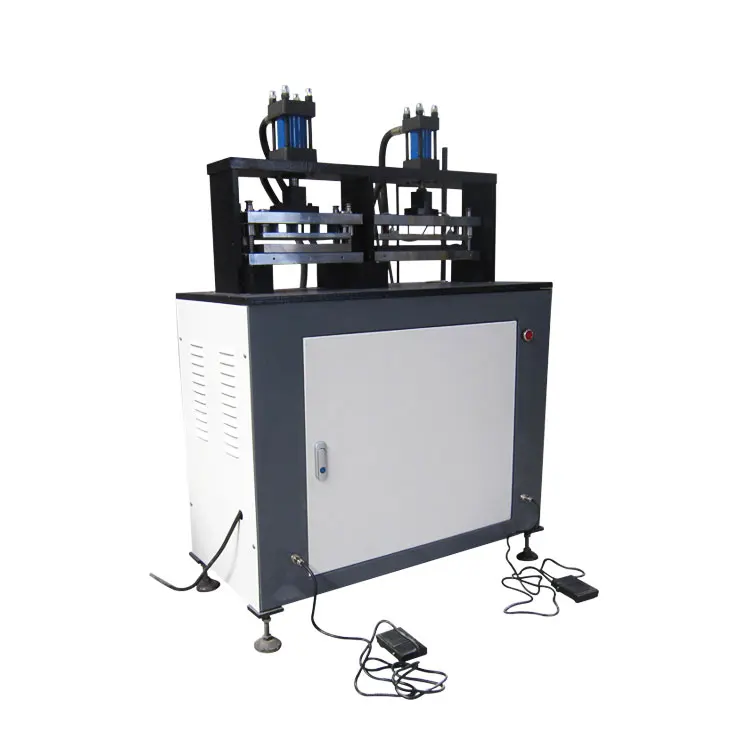

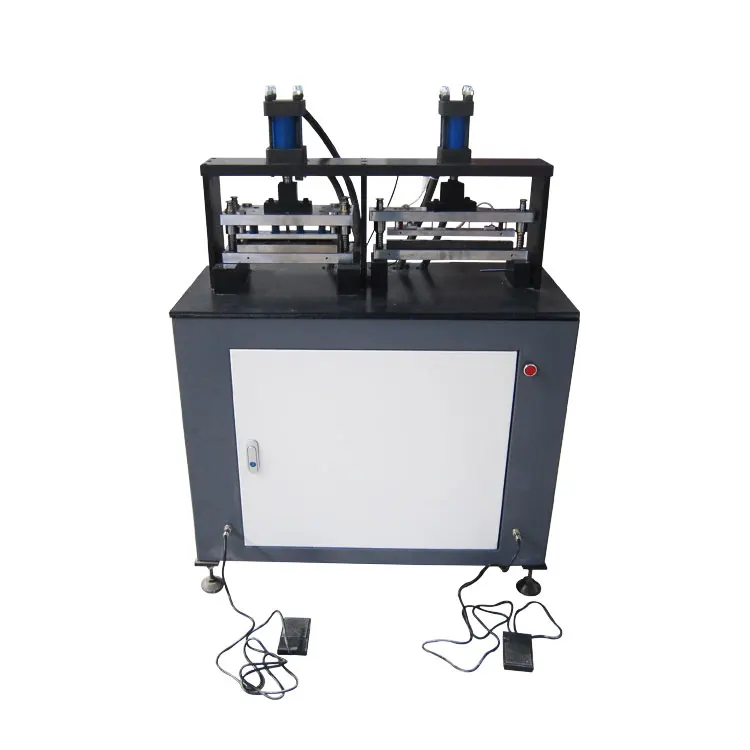

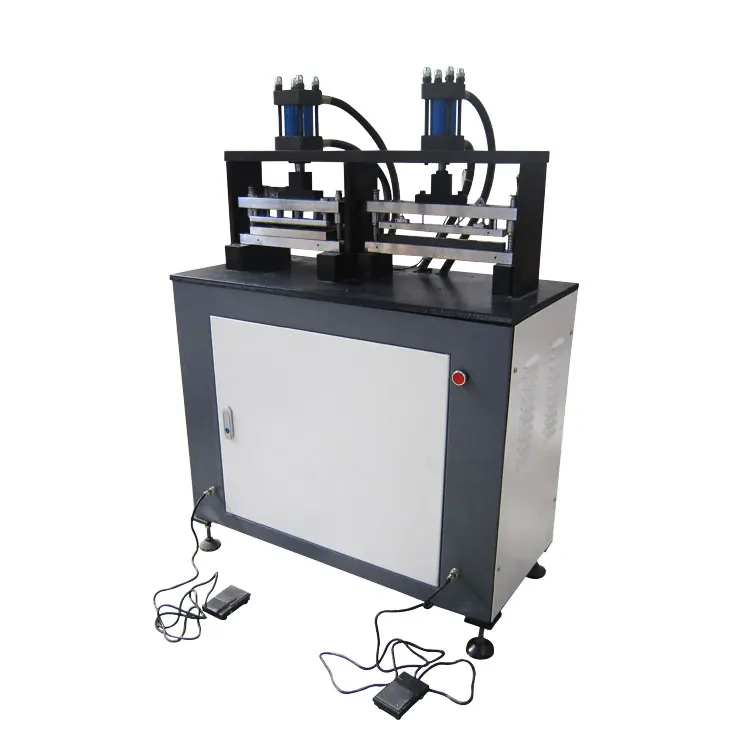

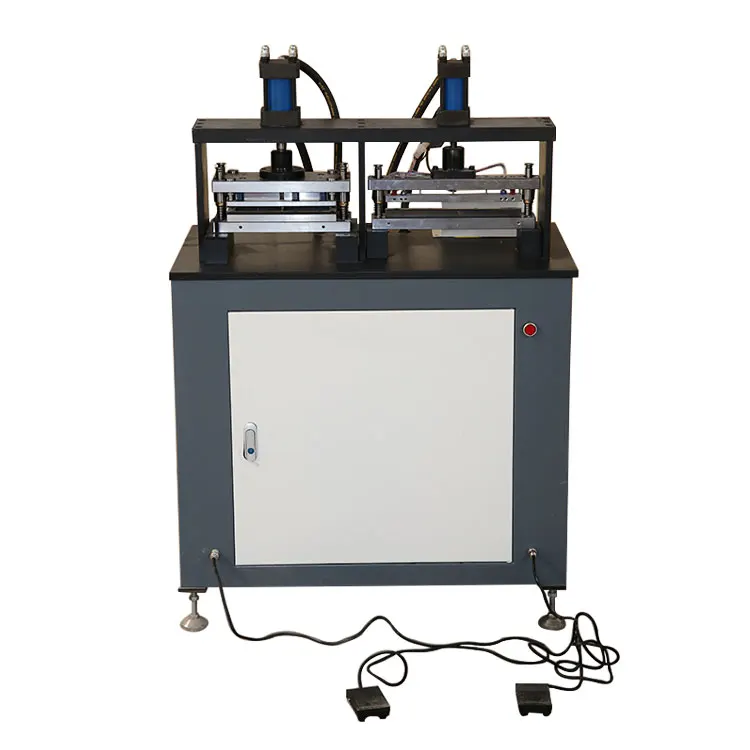

PVC Sheet Punching Machine for Card
Features :

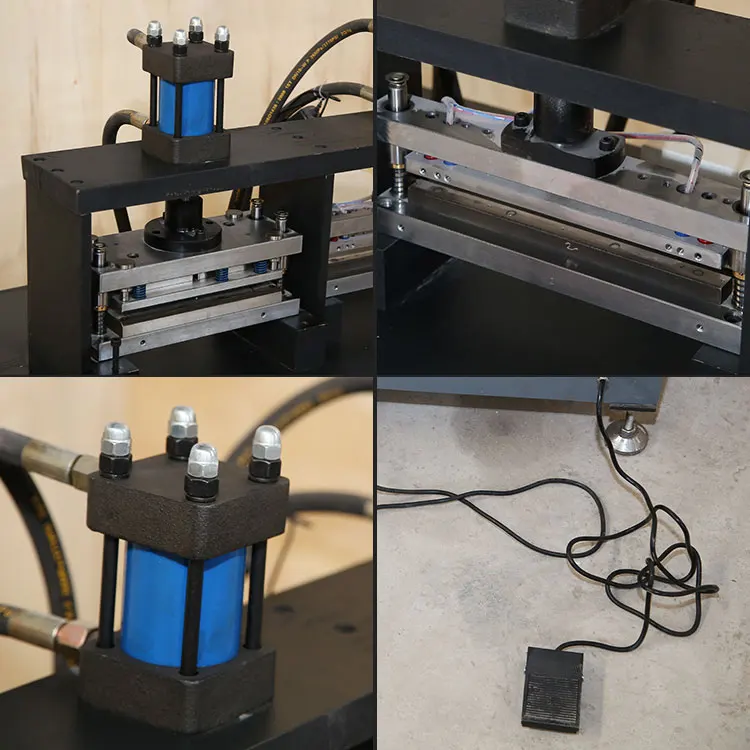

SC-HS-2B Punching Machine combines slotting and punching. It adopts hydraulic power punching method .It adopts photoelectric eye center location to accurate positioning with fast speed. It uses imported good quality mold, which is easy to be replaced. The machine is for punching A4 size PVC, ABS and etc. Punching effect is comparable with automatic high-speed die punch card. Punching is done after making holes without cutting.
Technical Parameter:
Model | SC-HS-2B punching machine |
Punching size | International smart card standard size( 85.7*54mm ) |
Card material size | 210 mm*297 mm |
Punching thickness | 0.3 mm-1.2mm |
Punching method | Hydraulic |
Punching motion | Constant |
Voltage | 220V |
Power supply | 220V AC 50HZ |
Power | 2.2KW |
Dimension | 850 mm*410mm *1150 mm |
G.W | 275KG |
Productivity | 3000 cards / Hour |



Packaging: PVC Sheet Punching Machine for Card in standard export wooden case.



Sinocard since 2000, which specializes in reaching, developing and manufacturing smart card making equipments. Equipped with the advanced production lines, professional R&D team and strict quality control system, Sinocard keeps good reputation on excellent quality, customer focus service and competitive prices.
Sinocard always insists on "honesty first, professional concentration, in pursuit of excellent and service forever", and dedicates in technology innovation and product development. It has researched and developed kinds of production equipments for plastic and paper card . The company always takes the lead in the industry especially in terms of automatic punching machine, automatic card packing machine, automatic IC slot milling machine and automatic chip implanting machines. Its products are highly recognized by the oversea and domestic customers for excellent qualities and reasonable prices.
