Tobee Effluent Handling
$12,600

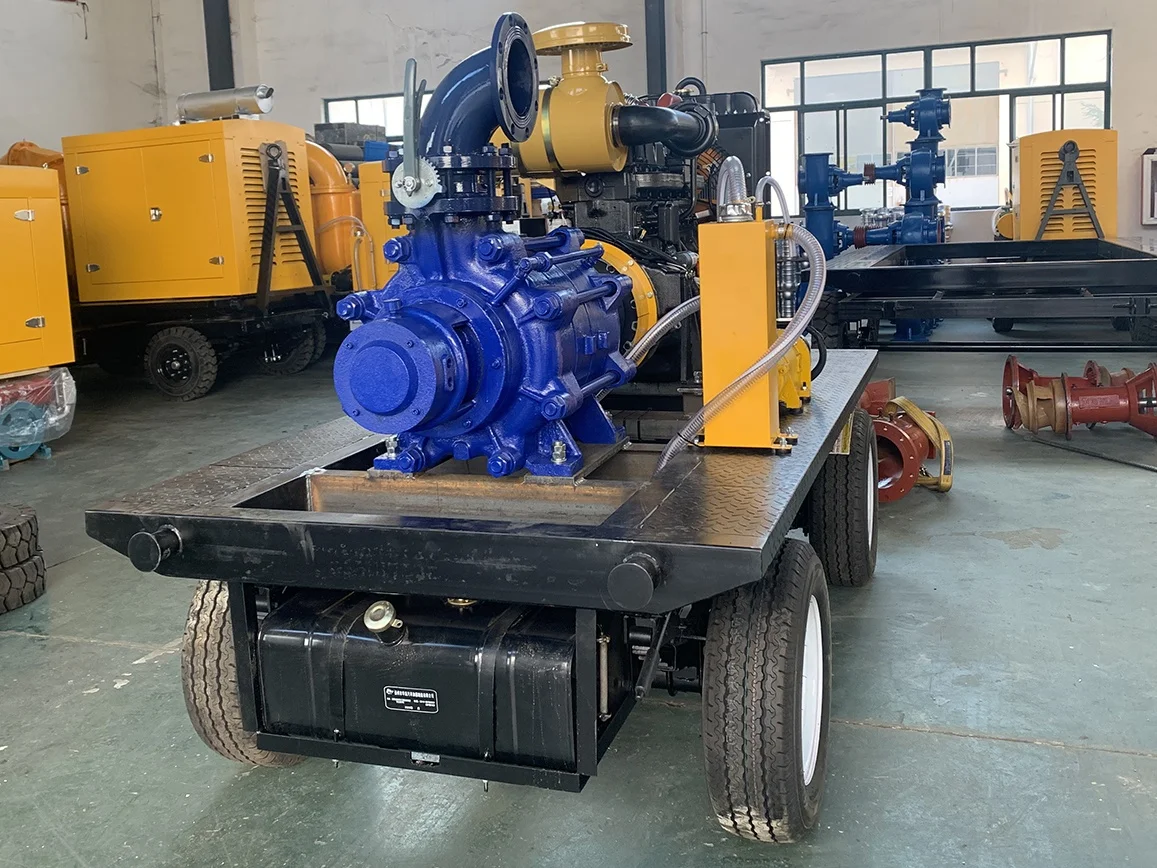

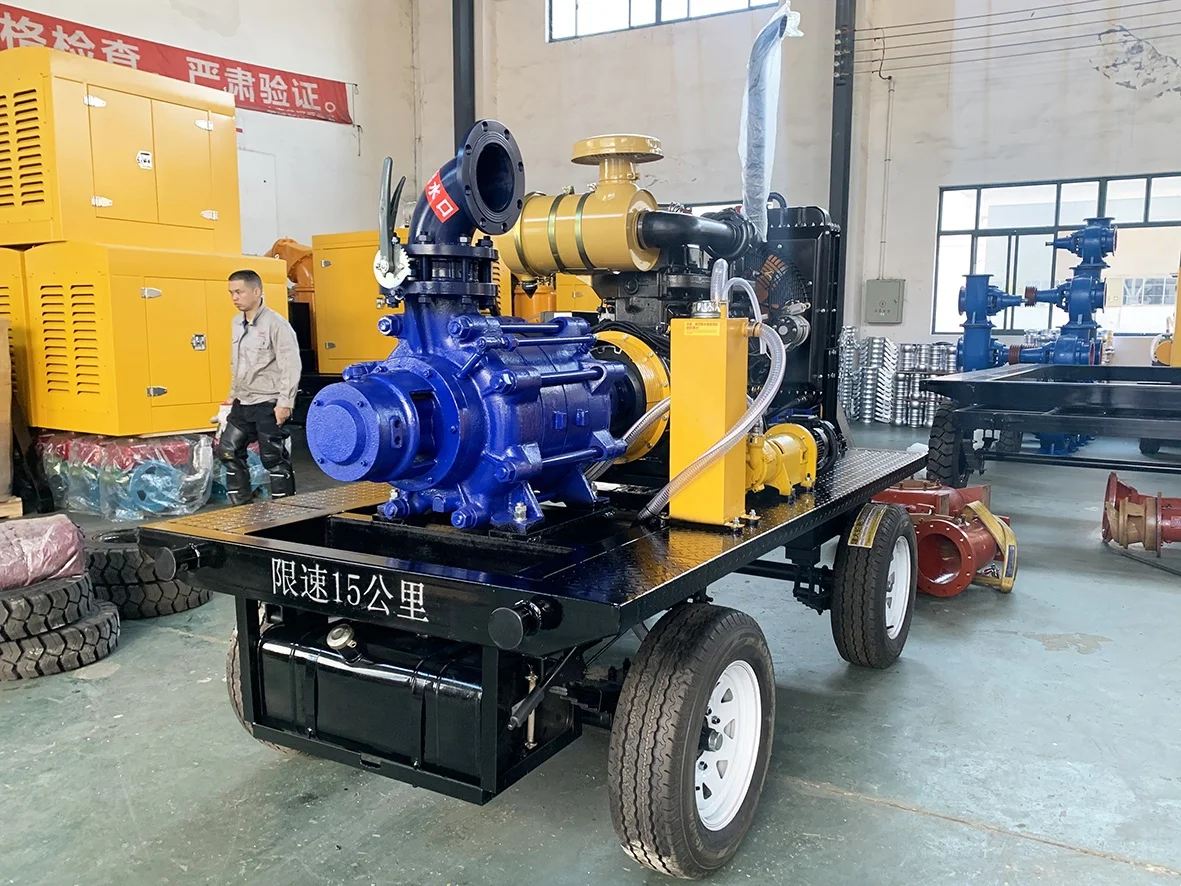

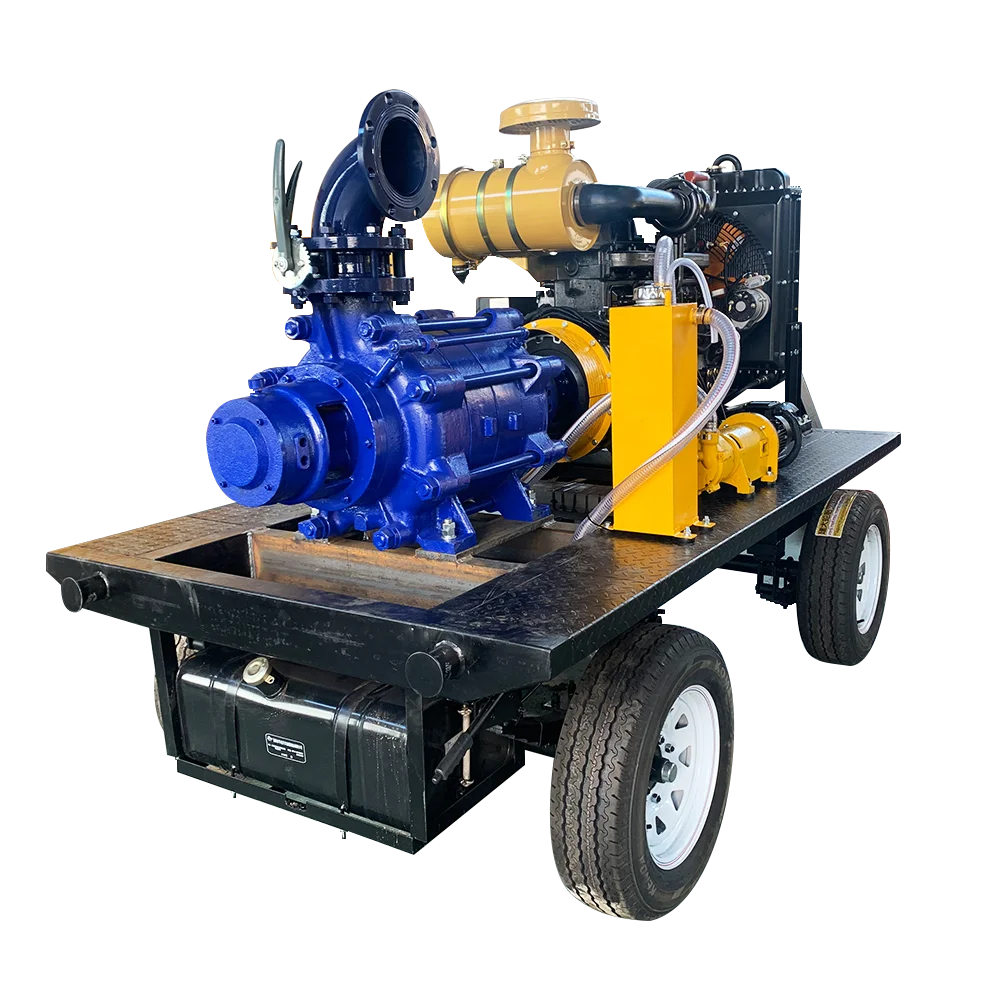

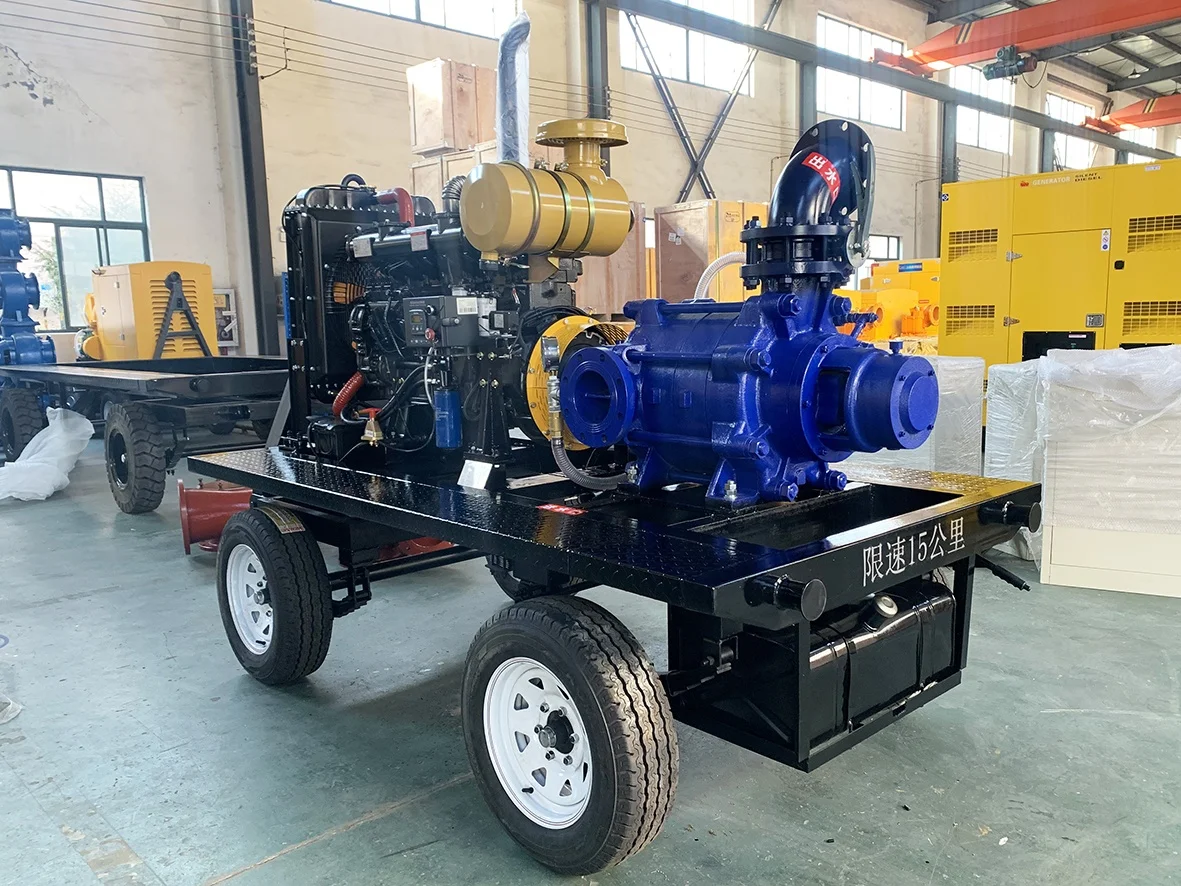

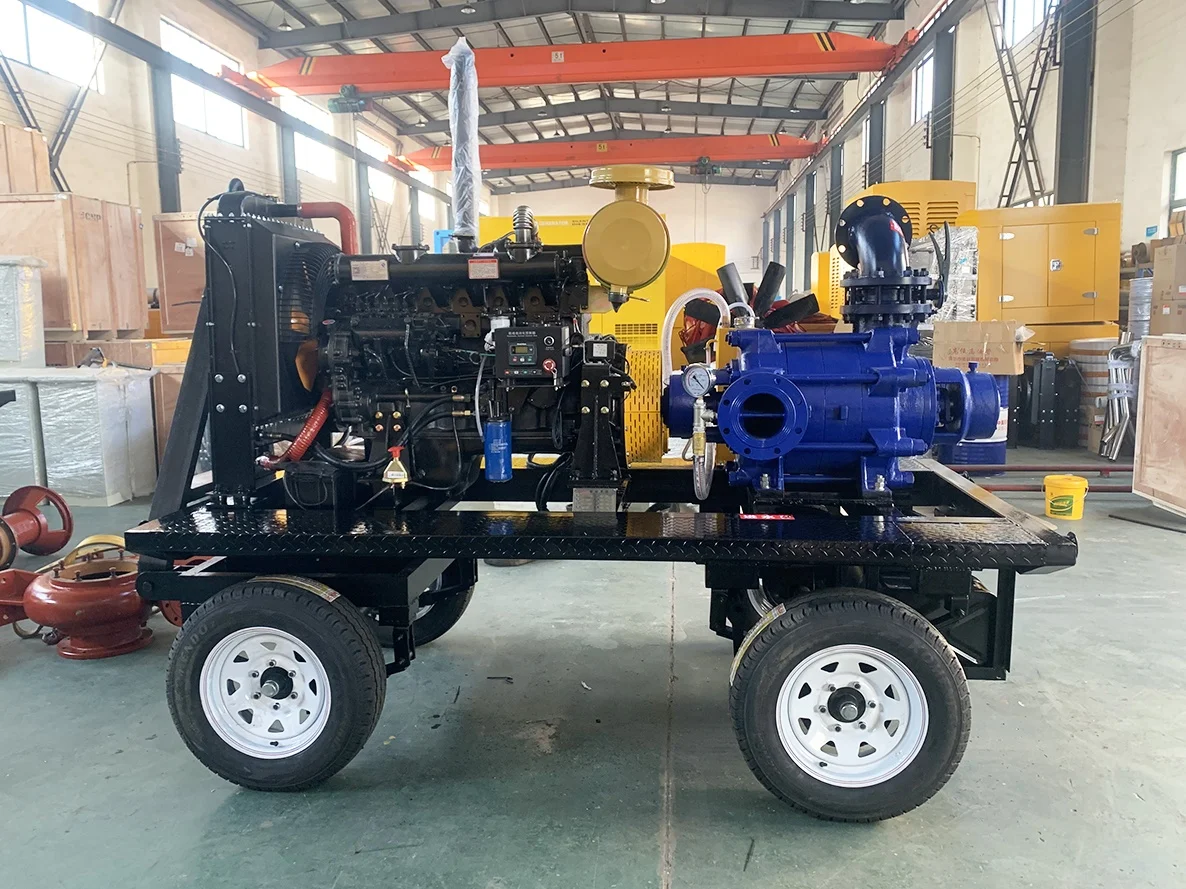

Stainless steel impeller corrosion resistant cast iron high pressure diesel engine water pump
- Category: >>>
- Supplier: Shanghai Huanghe Pump Manufacture Co. Ltd.Shanghai Ltd.
Share on (1601030938799):
Product Overview
Description
Certifications
Product description

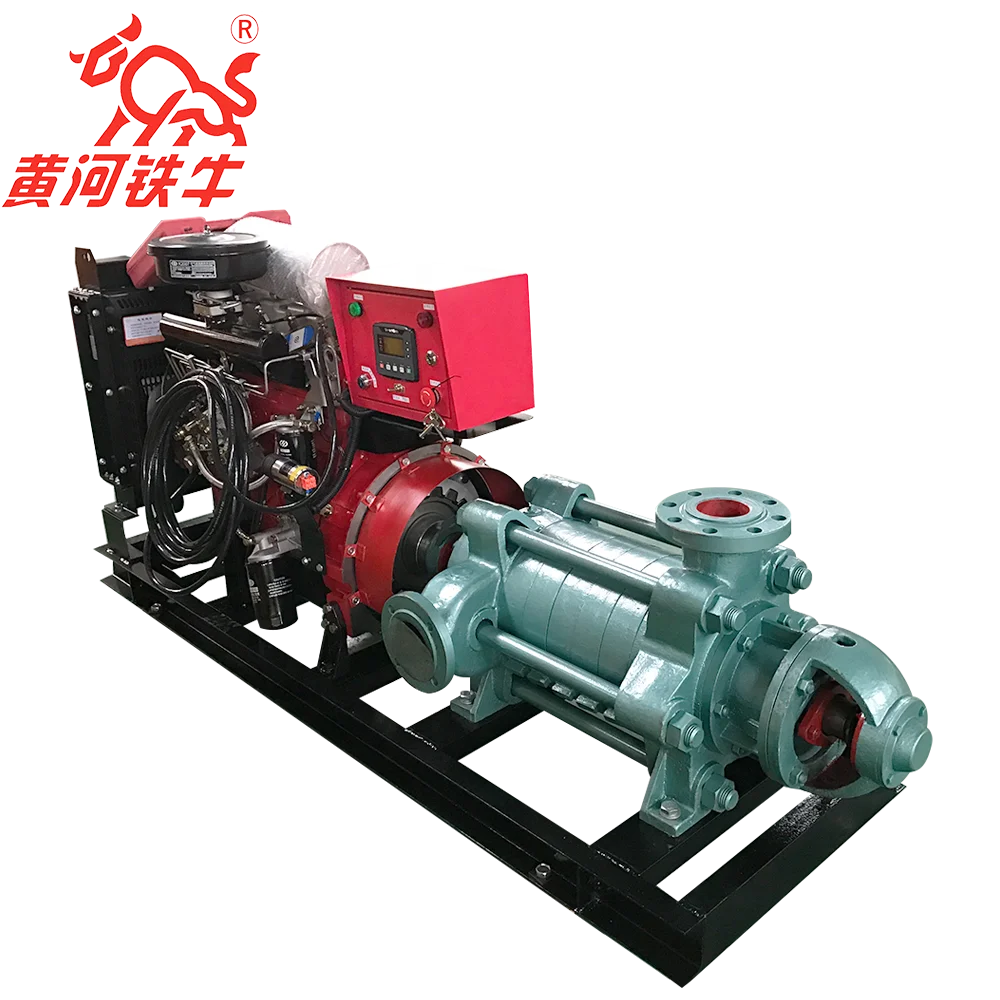

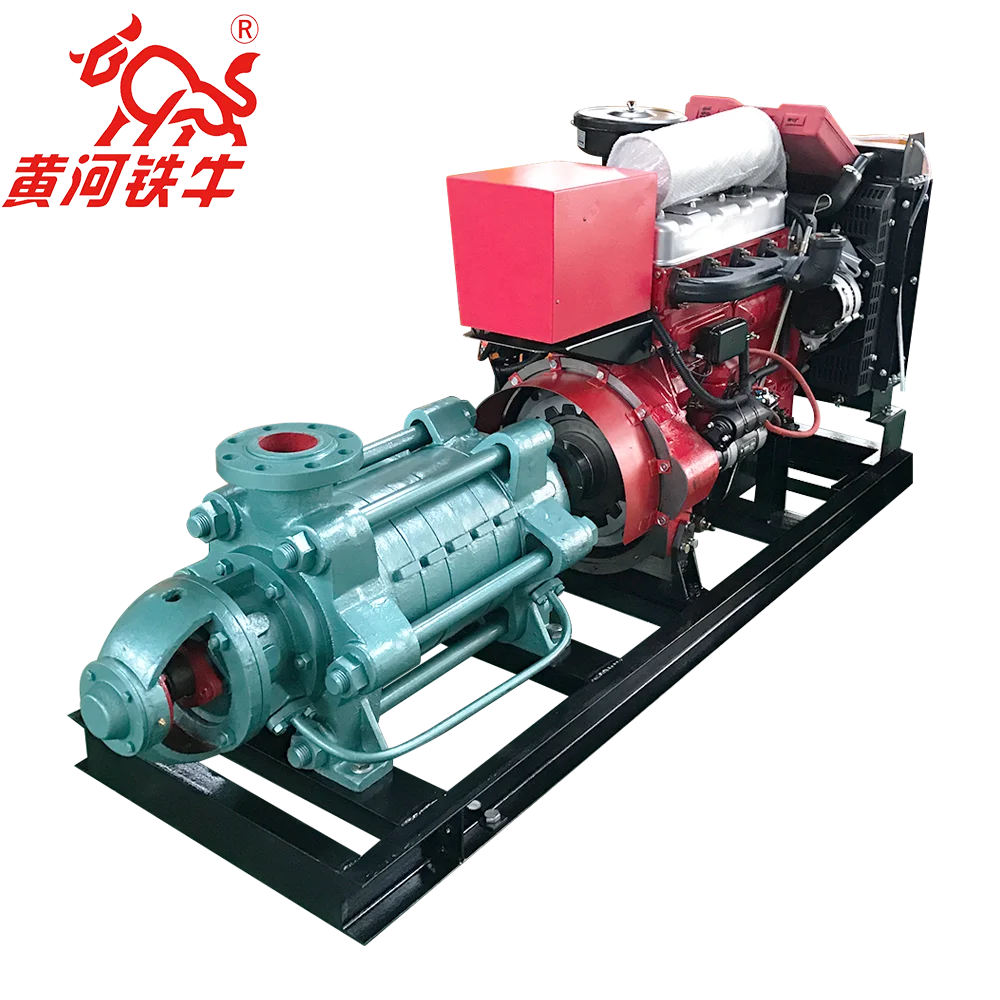

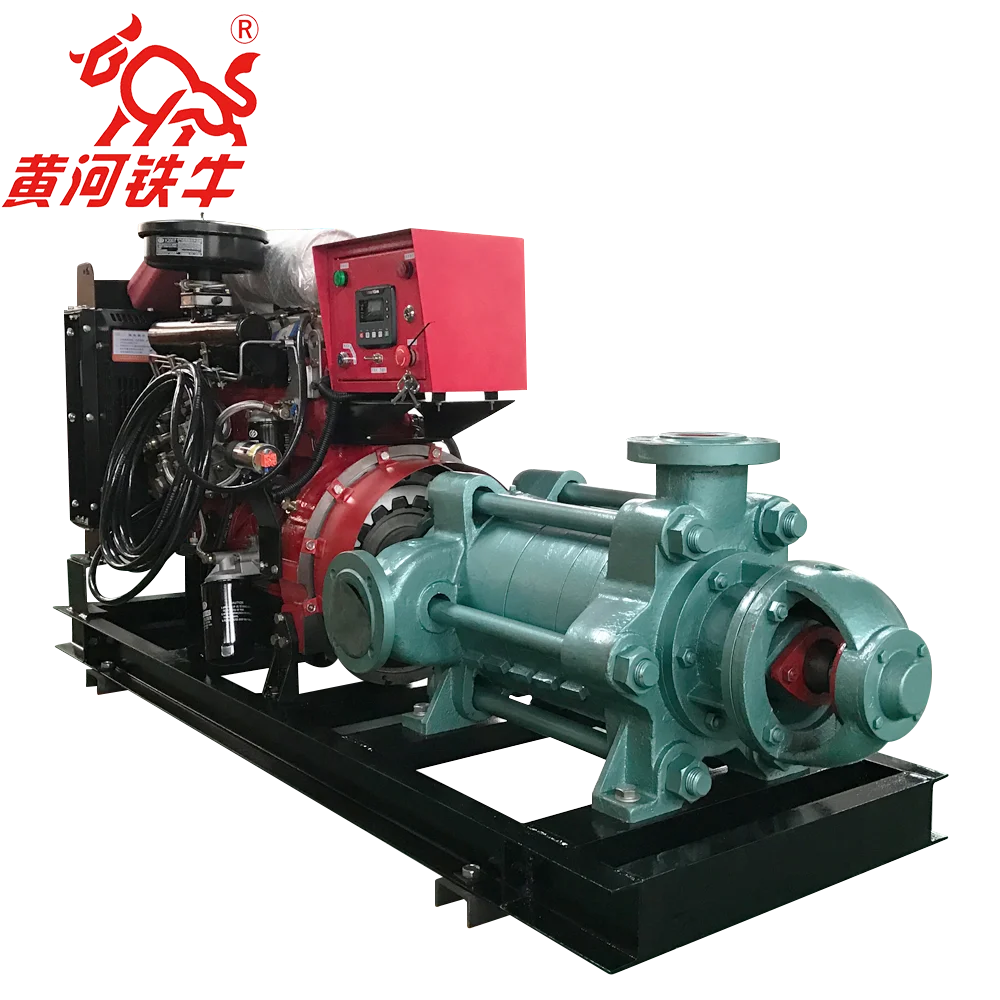

KDD155 series horizontal multistage centrifugal pump
The multistage pump utilizes the principle of centrifugation. Type D pump is a multi-stage, segmented centrifugal clean water pump, which is suitable for water supply and drainage in mines, factories and cities. For conveying free of solid particles and abrasives. Clean water without suspended matter, or other liquids with physical and chemical properties similar to clean water.
Precautions for disassembly
1. Park in the order of parking
2. The liquid inside the pump casing (including cooling water) should be drained
3. Remove the accessory pipelines that hinder disassembly
4. During disassembly, the manufacturing accuracy of the parts should be strictly protected from damage
2. The liquid inside the pump casing (including cooling water) should be drained
3. Remove the accessory pipelines that hinder disassembly
4. During disassembly, the manufacturing accuracy of the parts should be strictly protected from damage
Similar products
Installation matters
1. The base plane of the pump should be levelled with a level
2. After the motor, pump and base are assembled, the concentricity of the pump shaft and motor shaft should be strictly checked to ensure that the two axis lines are on the same horizontal line
3. When the motor and the pump are assembled, the end shaft of the pump coupling should be stretched out to ensure the axial clearance value of the end face of the pump and the motor coupling
4. The suction pipe of the pump and the extrusion pipe should have their own supports, and the pump can only withstand its own internal force, and can not withstand any external force, so as not to crush the pump
2. After the motor, pump and base are assembled, the concentricity of the pump shaft and motor shaft should be strictly checked to ensure that the two axis lines are on the same horizontal line
3. When the motor and the pump are assembled, the end shaft of the pump coupling should be stretched out to ensure the axial clearance value of the end face of the pump and the motor coupling
4. The suction pipe of the pump and the extrusion pipe should have their own supports, and the pump can only withstand its own internal force, and can not withstand any external force, so as not to crush the pump
Product specifications
Model | Flow (m³/h) | Lift (m) | Power (kw) | Speed (r/min) |
D155-30*3 | 155 | 90 | 75 | 1450 |
*4 | 120 | 90 | ||
*5 | 150 | 110 | ||
*6 | 180 | 132 | ||
*7 | 210 | 160 | ||
*8 | 240 | 200 | ||
*9 | 270 | 200 | ||
*10 | 300 | 220 | ||
D155-67*3 | 201 | 132 | 2950 | |
*4 | 268 | 185 | ||
*5 | 335 | 220 | ||
*6 | 402 | 280 | ||
*7 | 469 | 315 | ||
*8 | 536 | 355 | ||
*9 | 603 | 450 |
Other displays

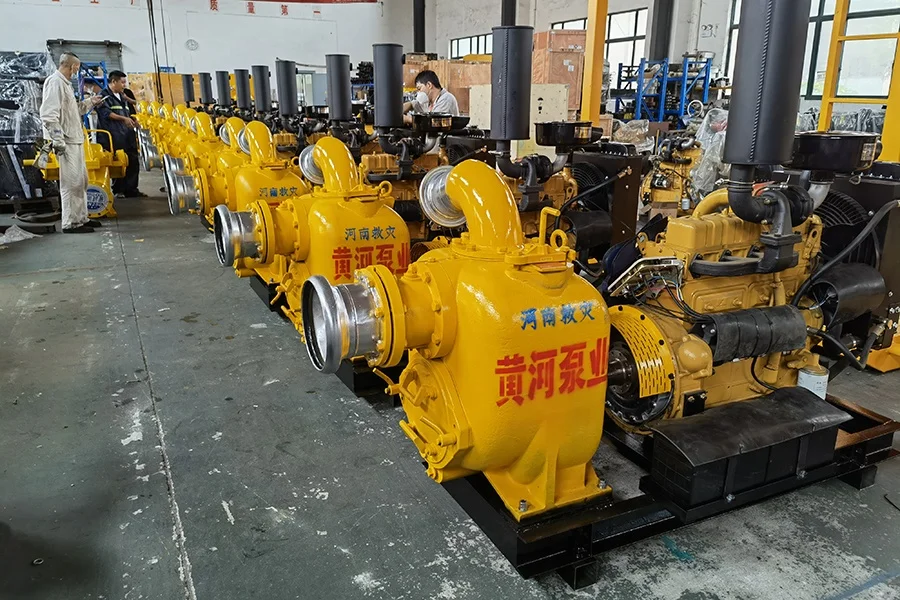

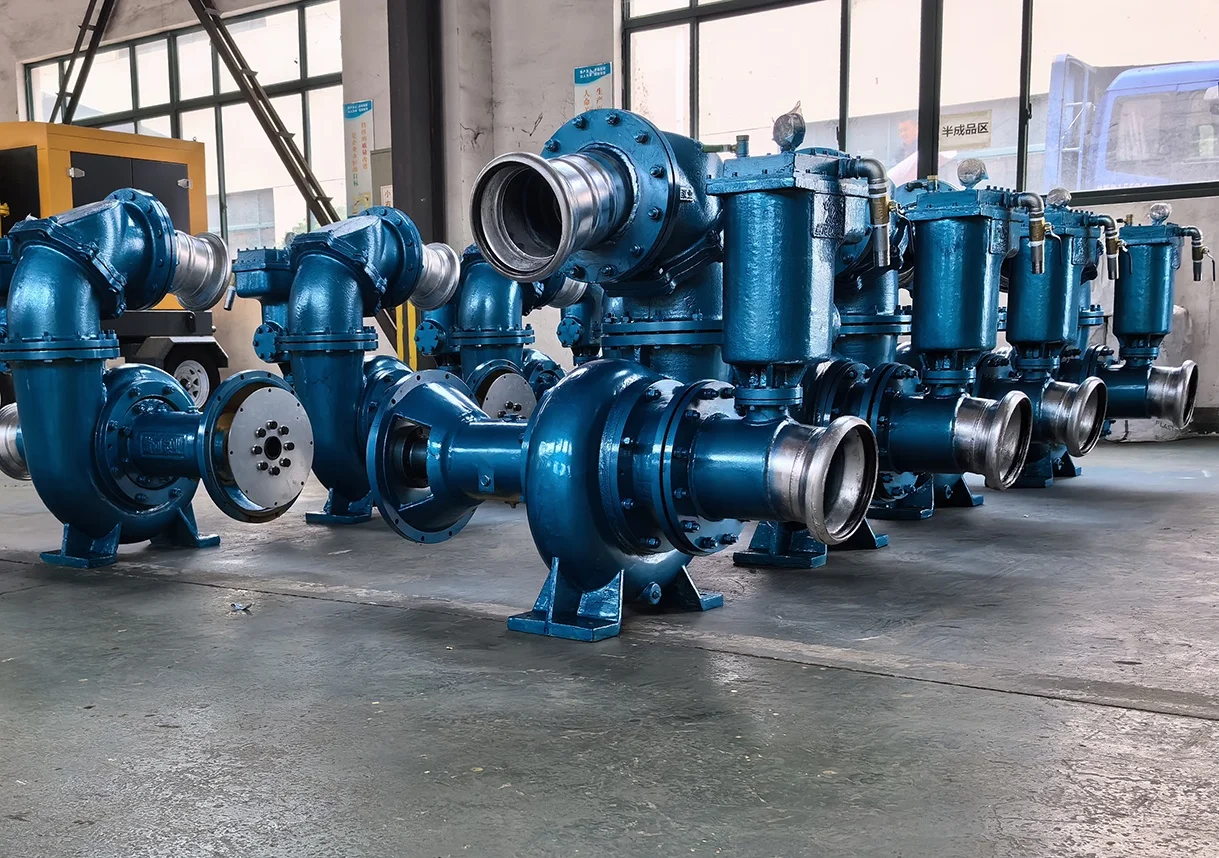

Product testing photos

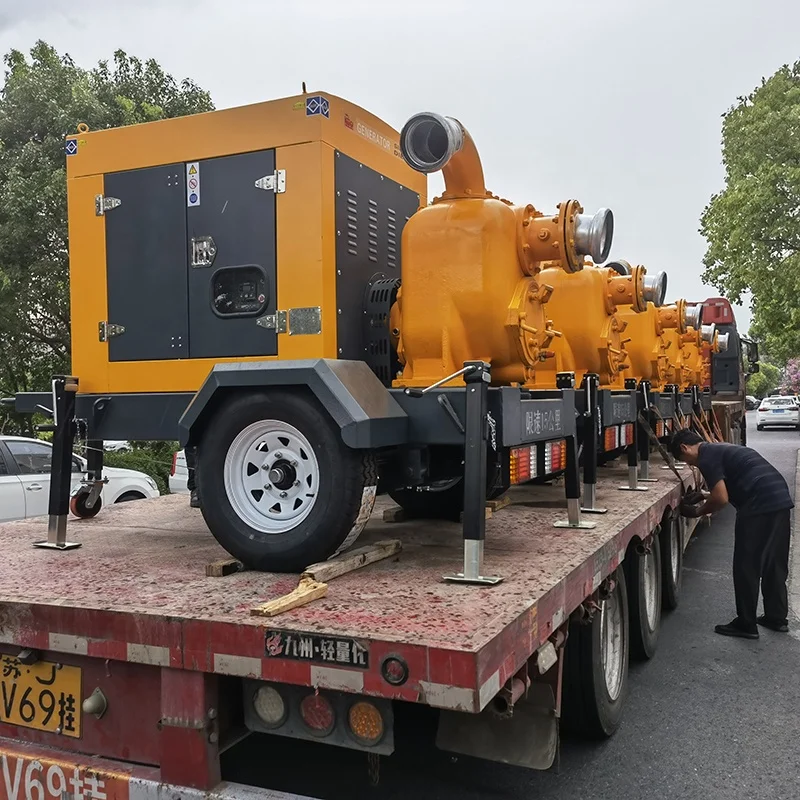

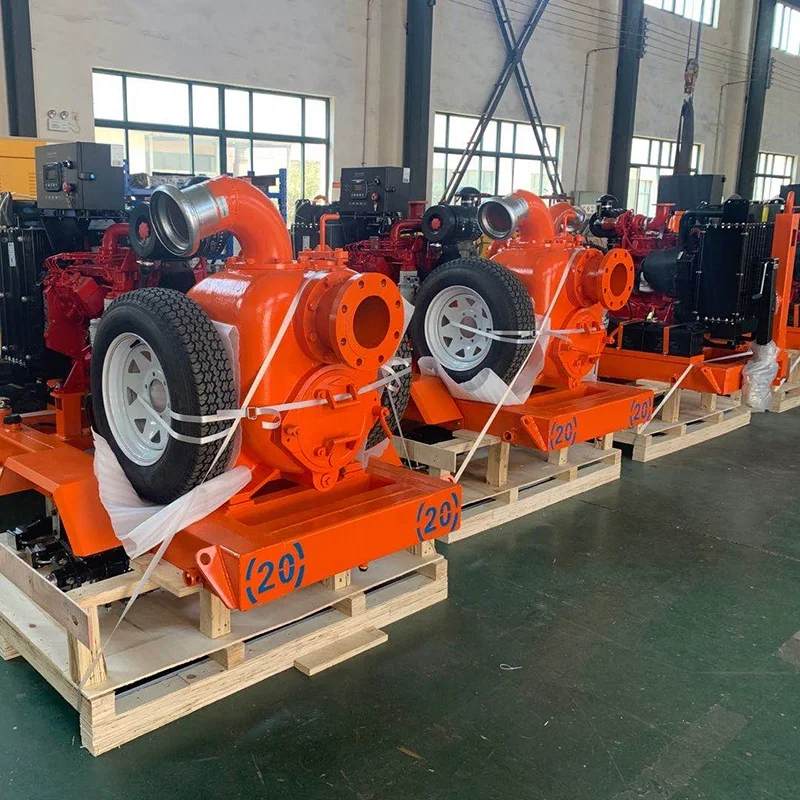

Packaging and shipping
Product usage video
Secure transaction
1. You can send us an email or message(whatsApp/ wechat) to confirm the ordering details
2. Our minimum order quantity is one set
3.The delivery time is usually 10-15 working days after confirming payment
4.The product warranty period is 2 years (Usually, due to poor manufacturing, the company will replace and repair the product and parts for users free of charge. Product damage caused by human factors is not covered by the warranty)
2. Our minimum order quantity is one set
3.The delivery time is usually 10-15 working days after confirming payment
4.The product warranty period is 2 years (Usually, due to poor manufacturing, the company will replace and repair the product and parts for users free of charge. Product damage caused by human factors is not covered by the warranty)
