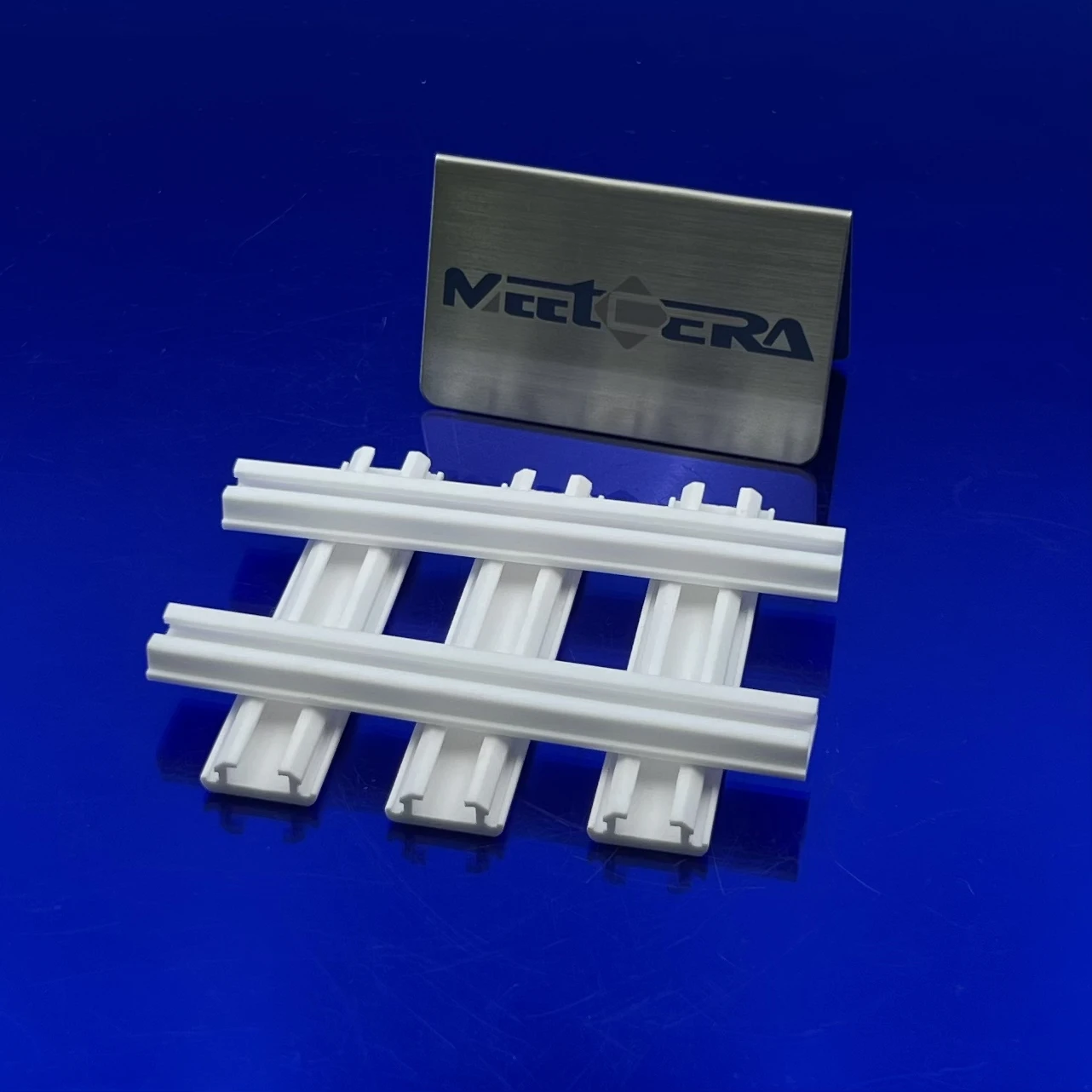

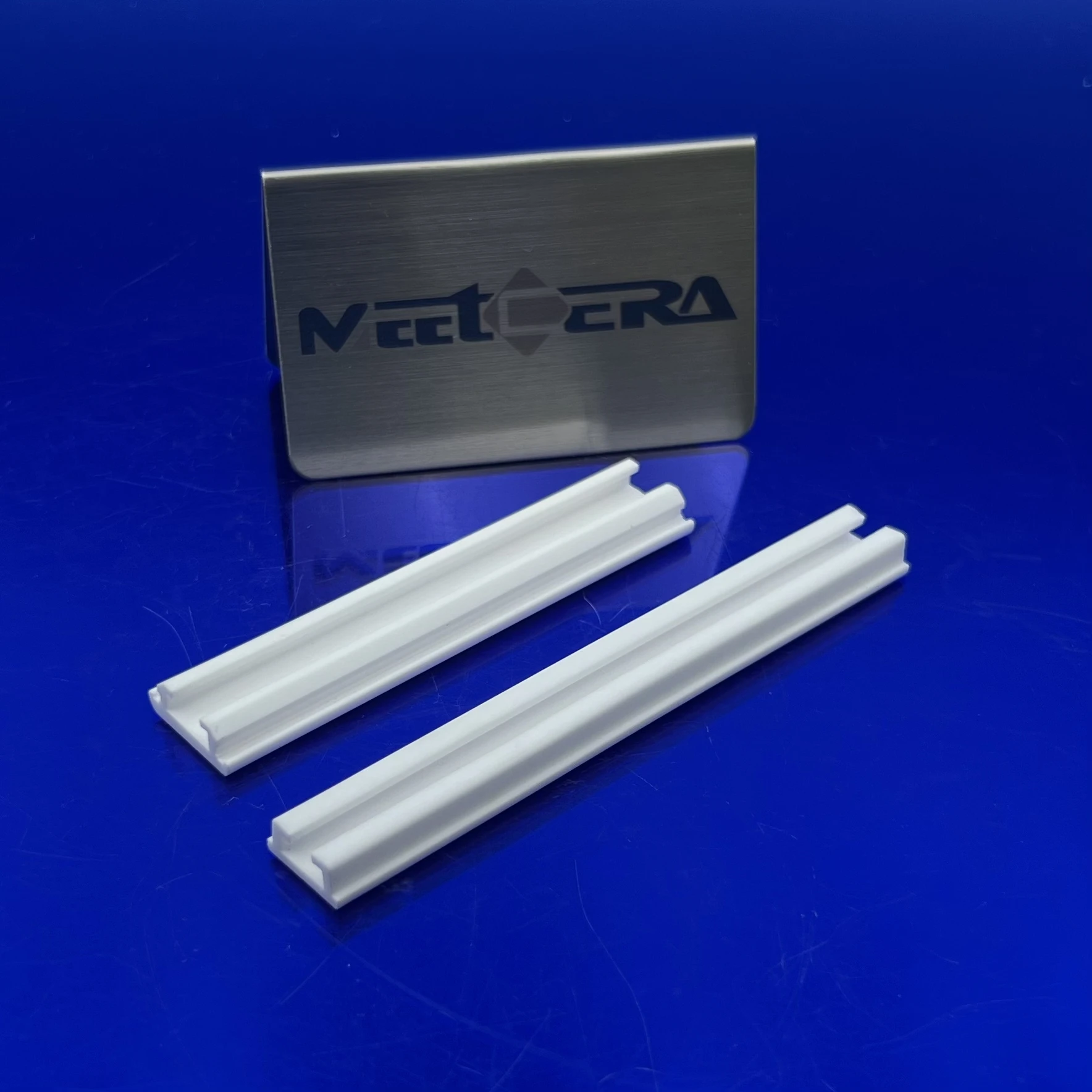

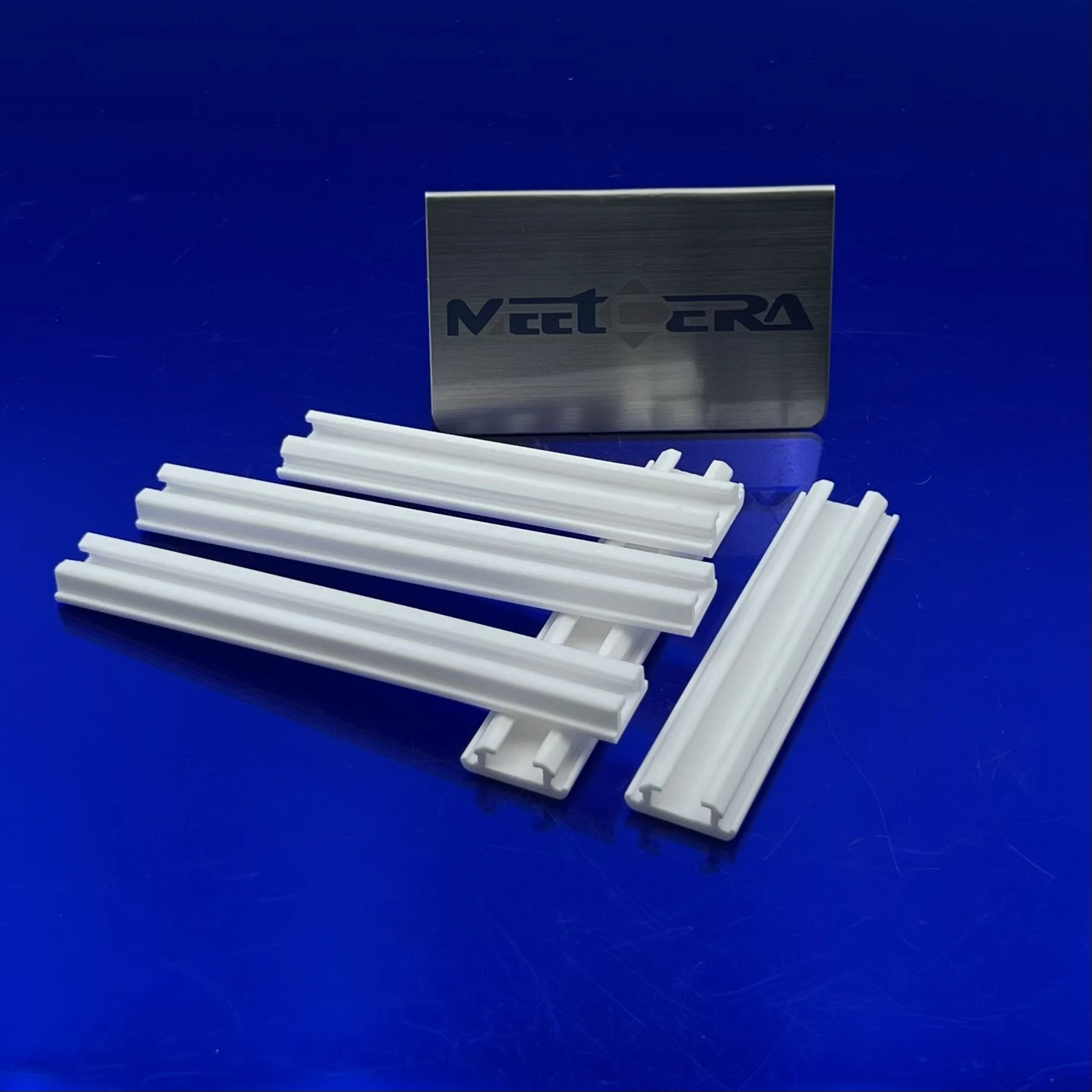

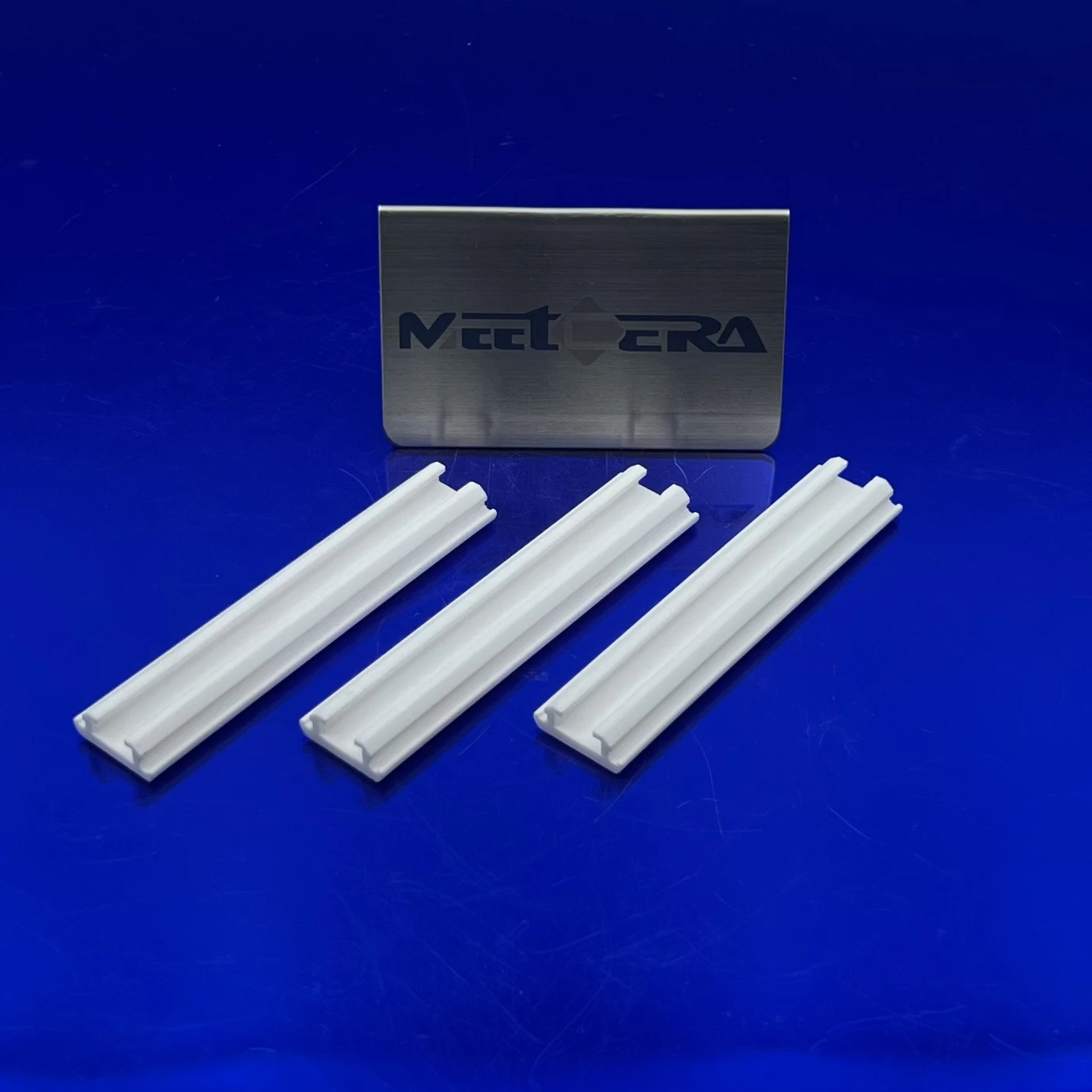

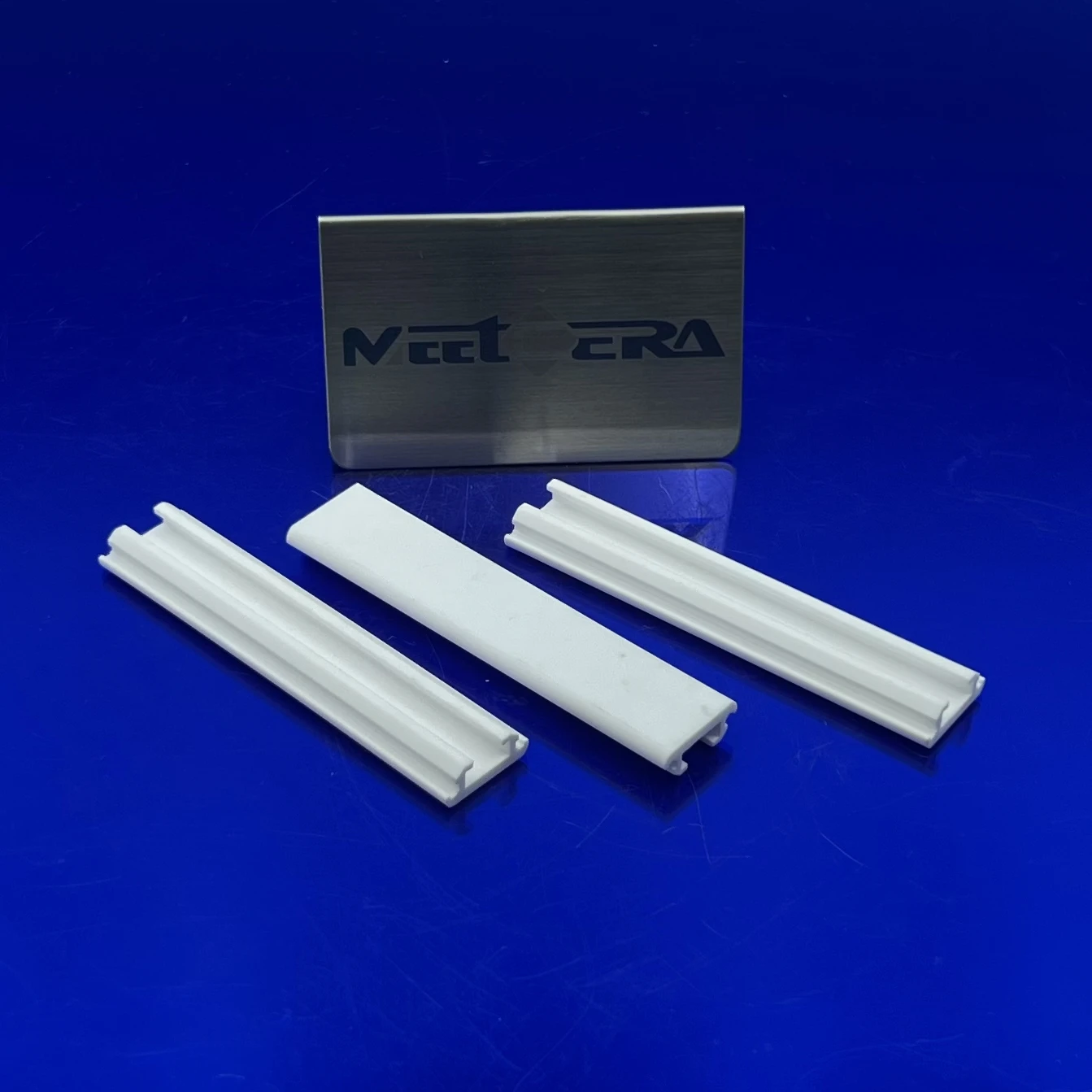

High temperature resistance acid alkali resistant 99% white alumina ceramic parts
- Category: >>>
- Supplier: Fuzhou Meetcera Technology Co. Ltd.
Share on (1601030964665):
Product Overview
Description
Alumina Ceramic
Alumina ceramic is the most mature of the engineering ceramics, offering excellent electrical insulat Good
insulator/alumina tube furnace for metallurgical melting/innovacera ion properties together with high hardness and good wear resistance but relatively low strength and fracture toughness.Alumina has a high melting point, high hardness,although mechanical strength is reduced at temperatures above 1000 C. Due to the relatively large coefficient of thermal expansion, thermal shock resistance is reduced.Good chemical stability of alumina leads to high corrosion resistance. It is insoluble in water and only slightly soluble in strong acid and alkaline solutions. Testing has
shown that the low chemical solubility of alumina ceramics components makes them highly resistant to chemical corrosion. This is what makes high purity alumina the material of choice for components in a wide range of industrial applications.
insulator/alumina tube furnace for metallurgical melting/innovacera ion properties together with high hardness and good wear resistance but relatively low strength and fracture toughness.Alumina has a high melting point, high hardness,although mechanical strength is reduced at temperatures above 1000 C. Due to the relatively large coefficient of thermal expansion, thermal shock resistance is reduced.Good chemical stability of alumina leads to high corrosion resistance. It is insoluble in water and only slightly soluble in strong acid and alkaline solutions. Testing has
shown that the low chemical solubility of alumina ceramics components makes them highly resistant to chemical corrosion. This is what makes high purity alumina the material of choice for components in a wide range of industrial applications.
Alumina Ceramic Property | ||||||||||
Property | Unit | 92% Alumina Ceramic | 95% Alumina Ceramic | 99% Alumina Ceramic | ||||||
Density | g/cm3 | ≥3.63 | ≥3.68 | ≥3.83 | ||||||
Water absorption | % | O | O | O | ||||||
Sintering temperature | °C | 1500-1700 | 1600-1800 | 1700-1800 | ||||||
Hardness | HV | ≥1400 | ≥1500 | ≥1650 | ||||||
Flexural strength | Kgf/cm2 | 3000 | 3000 | 3000 | ||||||
Compressive strength | Kgf/cm2 | 24000 | 25000 | 26000 | ||||||
Fracture toughness | Map.m3/2 | 3~4 | 3~4 | 4~5 | ||||||
Maximum temperature | °C | 1600 | 1700 | 1800 | ||||||
Coefficient of thermal expansion | /°C | 8*10-6 | 8*10-6 | 8*10-6 | ||||||
Heat shock | T(°C) | 220 | 220 | 220 | ||||||
Thermal conductivity | W/m.k(25-300°C) | 25 14 | 25 14 | 25 14 | ||||||
20°C | >1012 | >1012 | >1012 | |||||||
333
Advantage:
3.Excellent electrical insulation
4.High-frequency loss
5.Good thermal conductivity
6.Heat, wear and corrosion resistance.
Alumina ceramics features:
1).Excellent electrical insulation
2).High hardness
3).Relatively low strength and fracture toughness
4).Resistance to wear and corrosive
5).Excellent thermal stability
6).Resistance to high temperatures
7).High electrical resistivity
8).Good chemical stability and resistance
9).High corrosion resistance
10).Excellent thermal shock resistance
11).High thermal insulation
12).A Low Young's modulus
1).Excellent electrical insulation
2).High hardness
3).Relatively low strength and fracture toughness
4).Resistance to wear and corrosive
5).Excellent thermal stability
6).Resistance to high temperatures
7).High electrical resistivity
8).Good chemical stability and resistance
9).High corrosion resistance
10).Excellent thermal shock resistance
11).High thermal insulation
12).A Low Young's modulus
Packing&Shipping

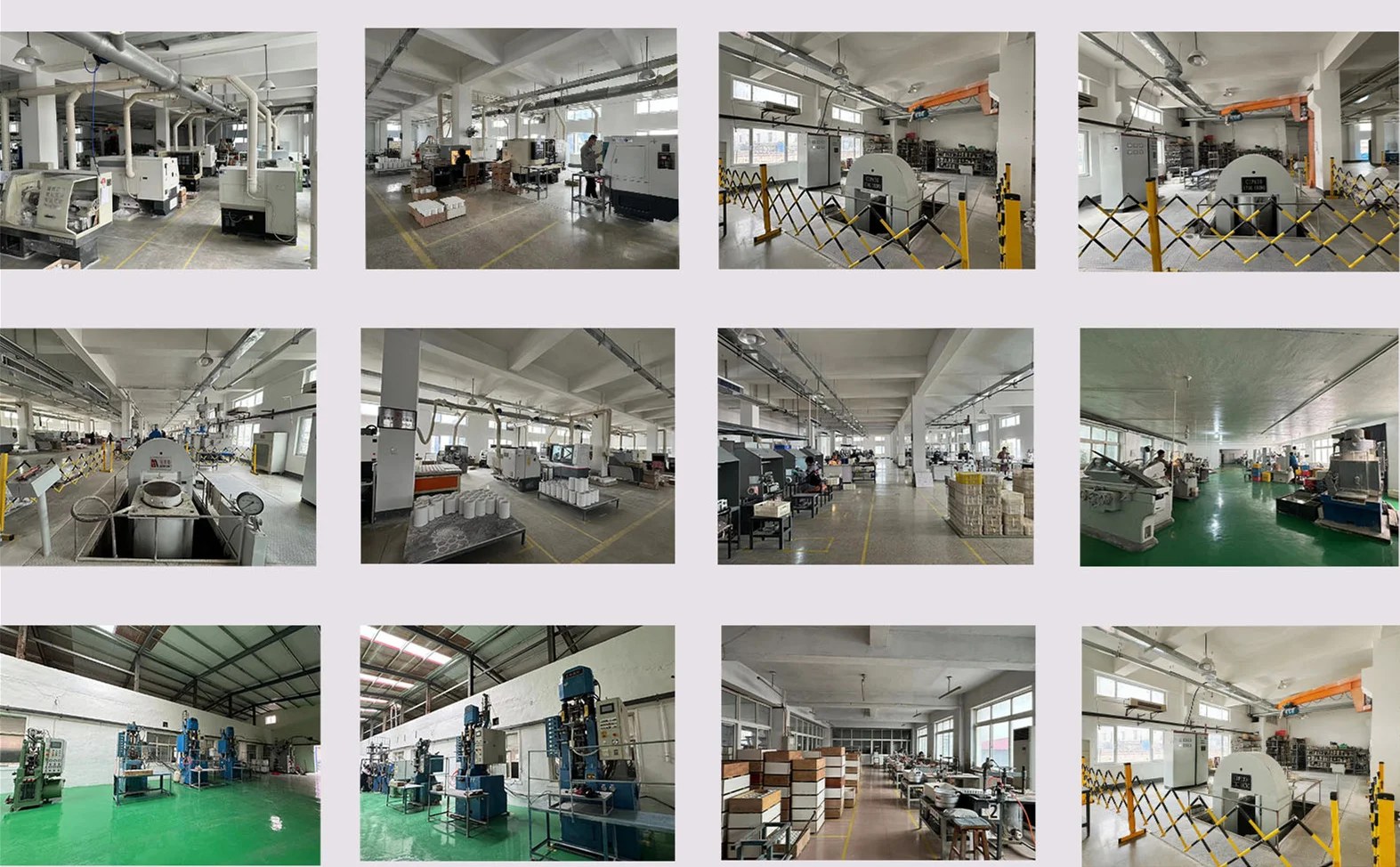

Factory environment
Fujian MEETCERA engages in R&D, manufacturing and selling the products of advanced ceramic materials, including Alumina, Zirconia, Boron Nitride, Silicon Nitride, Machinable Glass Ceramic and other advanced materials. Through different manufacturing processes, we supply metallized ceramic components, alumina heater, ceramic pump components and other ceramic components as request
FAQ:
......................................................................................................................................................................................
Q1: How to send an inquiry?
You can send your drawing with technology requiremens,and infrom your purchase quantity .If you can,pls inform what is your part used in .We will confirm what is the most suitable materials and quote our best price to you in 24 hours.
Q2:Can you provide the free samples ?
Yes,we can provide the sample free of charge if we have the stock product as customer's required,but the courier fee be collected.
Q3:How long will it take for you to send me a quote?
This depends on the complexity of your requirements. For simple items such as plates and rods, we can generally supply a quotation within 24 hours.
Q4:What's the delivery time?
For the standard products, like ceramic substrate and insulating rods, delivery time is normally 7 working days. For hot pressed boron nitride and machinable glass ceramic, it's about 10 working days. For customized products made of alumina, zirconia, boron carbide and silicon nitride, total producing time is about 30-45 working days.
You can send your drawing with technology requiremens,and infrom your purchase quantity .If you can,pls inform what is your part used in .We will confirm what is the most suitable materials and quote our best price to you in 24 hours.
Q2:Can you provide the free samples ?
Yes,we can provide the sample free of charge if we have the stock product as customer's required,but the courier fee be collected.
Q3:How long will it take for you to send me a quote?
This depends on the complexity of your requirements. For simple items such as plates and rods, we can generally supply a quotation within 24 hours.
Q4:What's the delivery time?
For the standard products, like ceramic substrate and insulating rods, delivery time is normally 7 working days. For hot pressed boron nitride and machinable glass ceramic, it's about 10 working days. For customized products made of alumina, zirconia, boron carbide and silicon nitride, total producing time is about 30-45 working days.
