Lovsun 10kw 20kw 30kw Single Phase Three Phases Solar Power Inverter 10000w 20000w 30000w Off Grid Solar Inverter
- Category: >>>
- Supplier: Lovsun Solar Energy Co.Ltd
Share on (1601030970677):

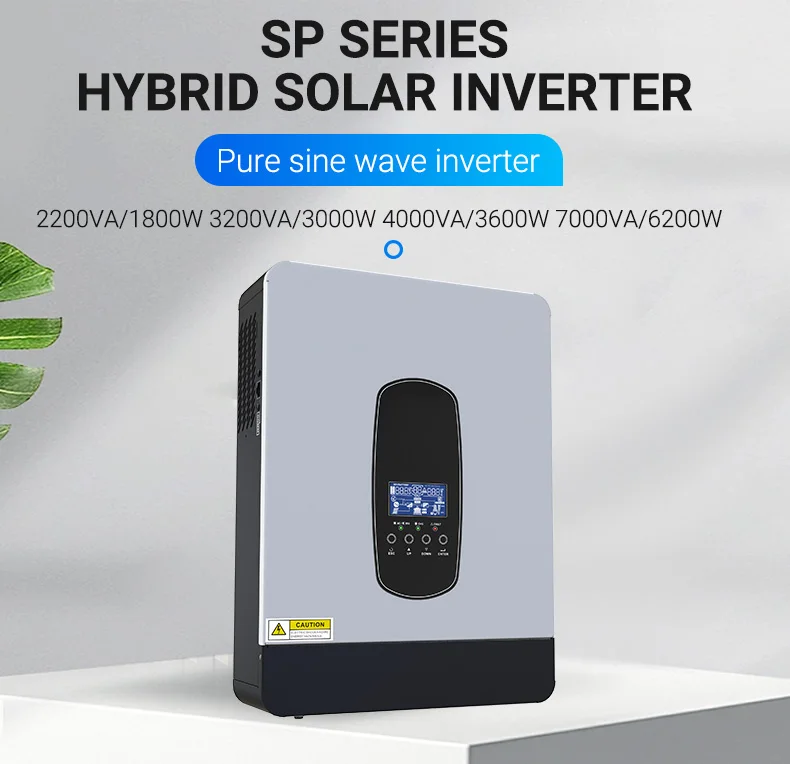

Product Overview
Description
Product Description
Product Parameters
Model | SP-2200 | SP-3200 | SP-4000 | SP-7000 | ||||
Rated Power | 2200VA/1800W | 3200VA/3000W | 4000VA/3600W | 7000VA/6200W | ||||
INPUT | ||||||||
Voltage | 230VAC | |||||||
Selectable Voltage Range | 170-280VAC(for personal computers)/ 90-280VAC(for home appliances) | |||||||
Frequency Range | 50Hz/60Hz (Auto sensing) | |||||||
OUTPUT | ||||||||
AC Voltage Regulation (Batt.Mode) | 230VAC±5% | |||||||
Surge power | 4400VA | 6400VA | 8000VA | 10000VA | ||||
Transfer Time | 10ms (for personal computers)/ 20ms (for home appliances) | |||||||
Wave form | Pure Sine Wave | |||||||
BATTERY & AC CHARGER | ||||||||
Battery Voltage | 12VDC | 24VDC | 24VDC | 48VDC | ||||
Floating Charge Voltage | 13.5VDC | 27VDC | 27VDC | 54VDC | ||||
Overcharge Protection | 15.5VDC | 31VDC | 31VDC | 61VDC | ||||
Maximum charge current | 60A | 80A | ||||||
SOLAR CHARGER | ||||||||
MAX.PV Array Power | 2000W | 3000W | 5000W | 6000W | ||||
MPPT Range@ Operating Voltage | 55-450VDC | |||||||
Maximum PV Array Open Circuit Voltage | 450VDC | |||||||
Maximum Charging Current | 80A | 110A | ||||||
Maximum Efficiency | 98% | |||||||
PHYSICAL | ||||||||
Dimension.D*W*H(mm) | 405X286X98MM | 423X290X100MM | 423X310X120MM | |||||
Net Weight (kgs) | 4.5kg | 5.0kg | 7.0kg | 8.0kg | ||||
Communication Interface | RS232/RS485(Standard) GPRS/WIFI(Optional) | |||||||
OPERATING ENVIRONMENT | ||||||||
Humidity | 5% to 95% Relative Humidity(Non-condensing) | |||||||
Operating Temperature | -10°C to 55°C | |||||||
Storage Temperature | -15°C to 60°C | |||||||

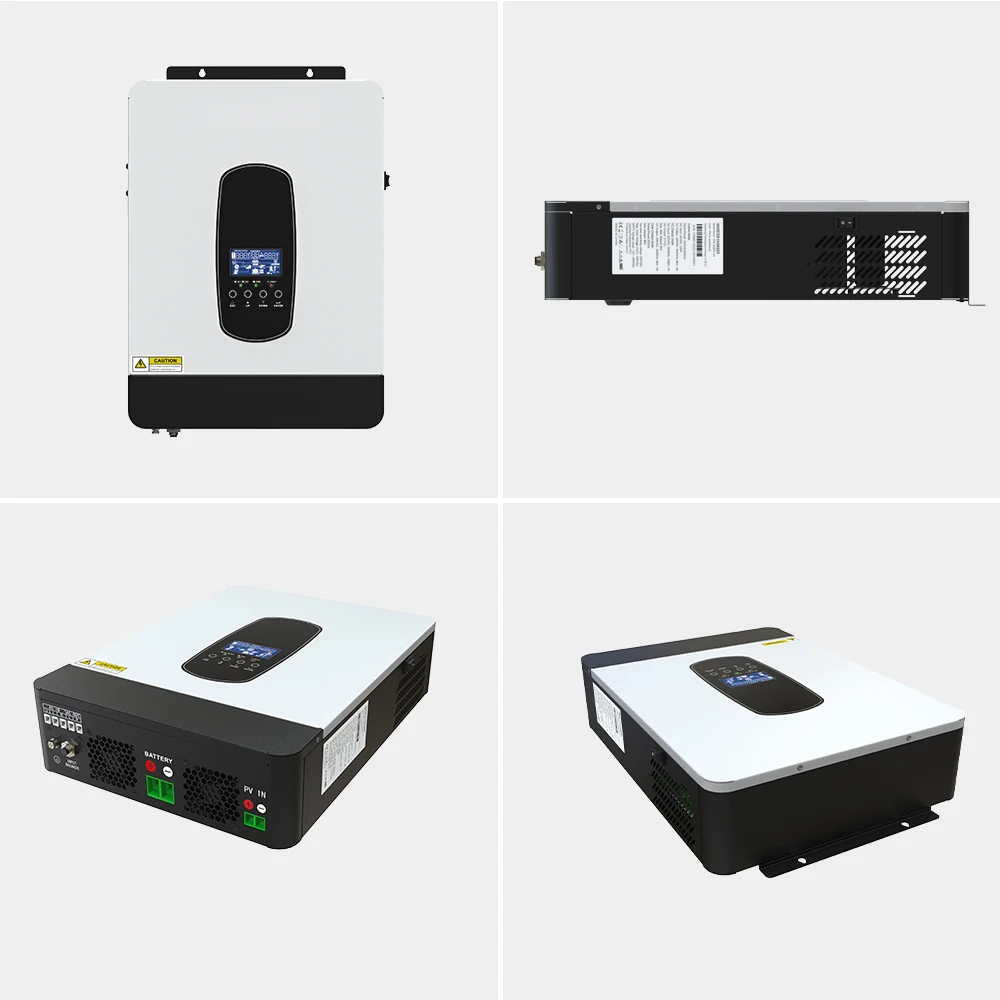

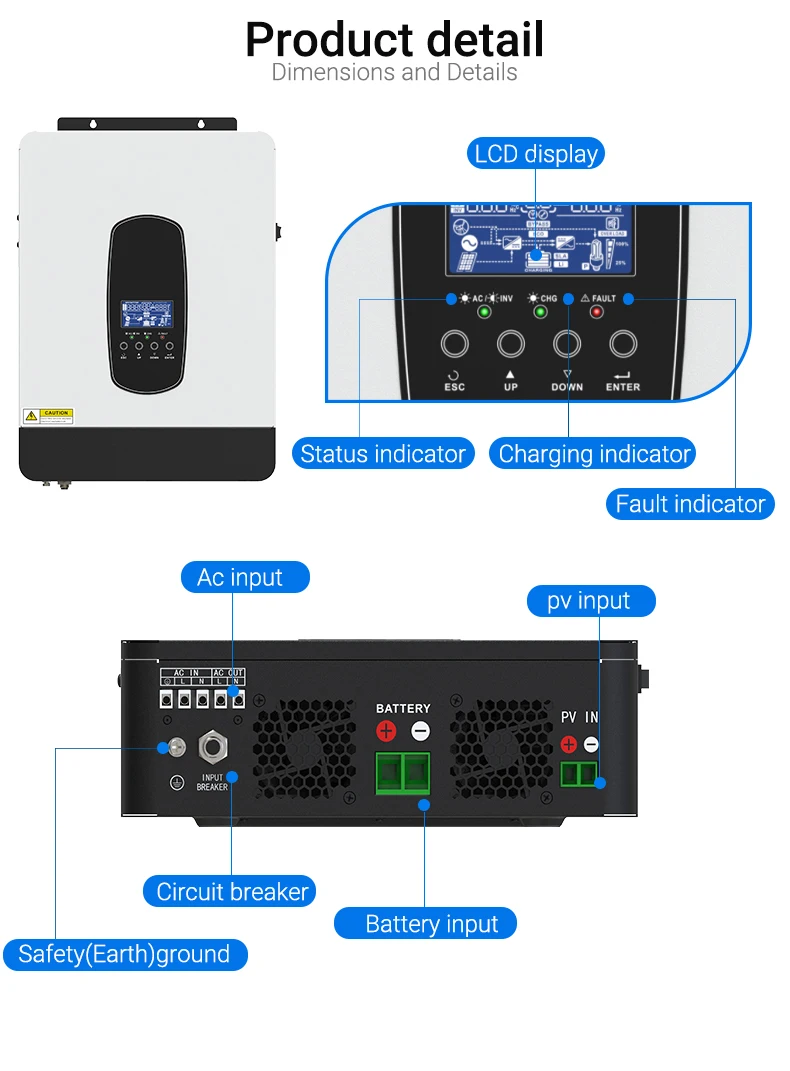

Products Details
Product Overview

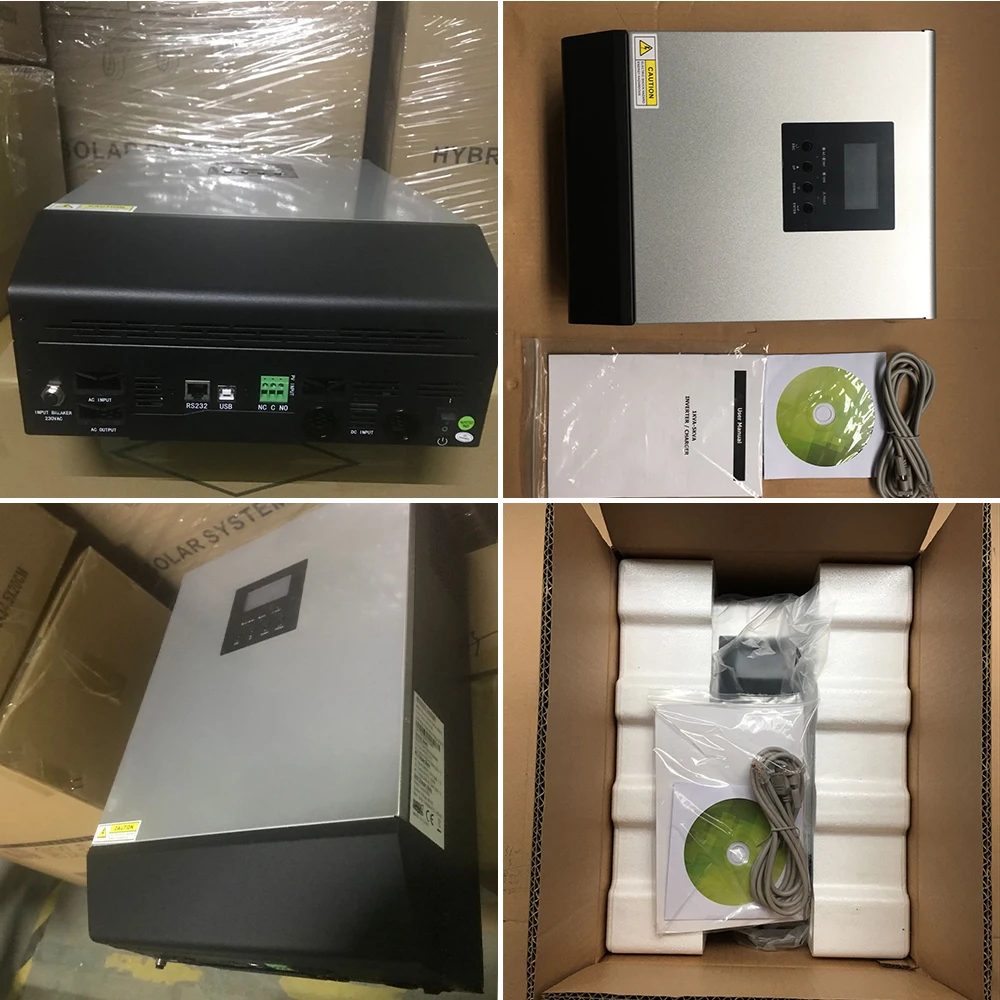

Packing&Shipping
Exhibition

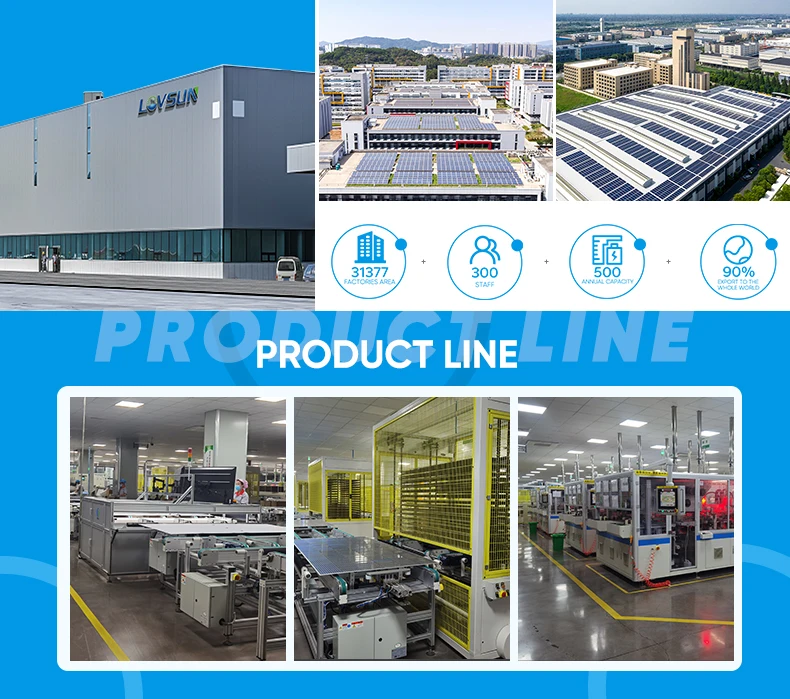

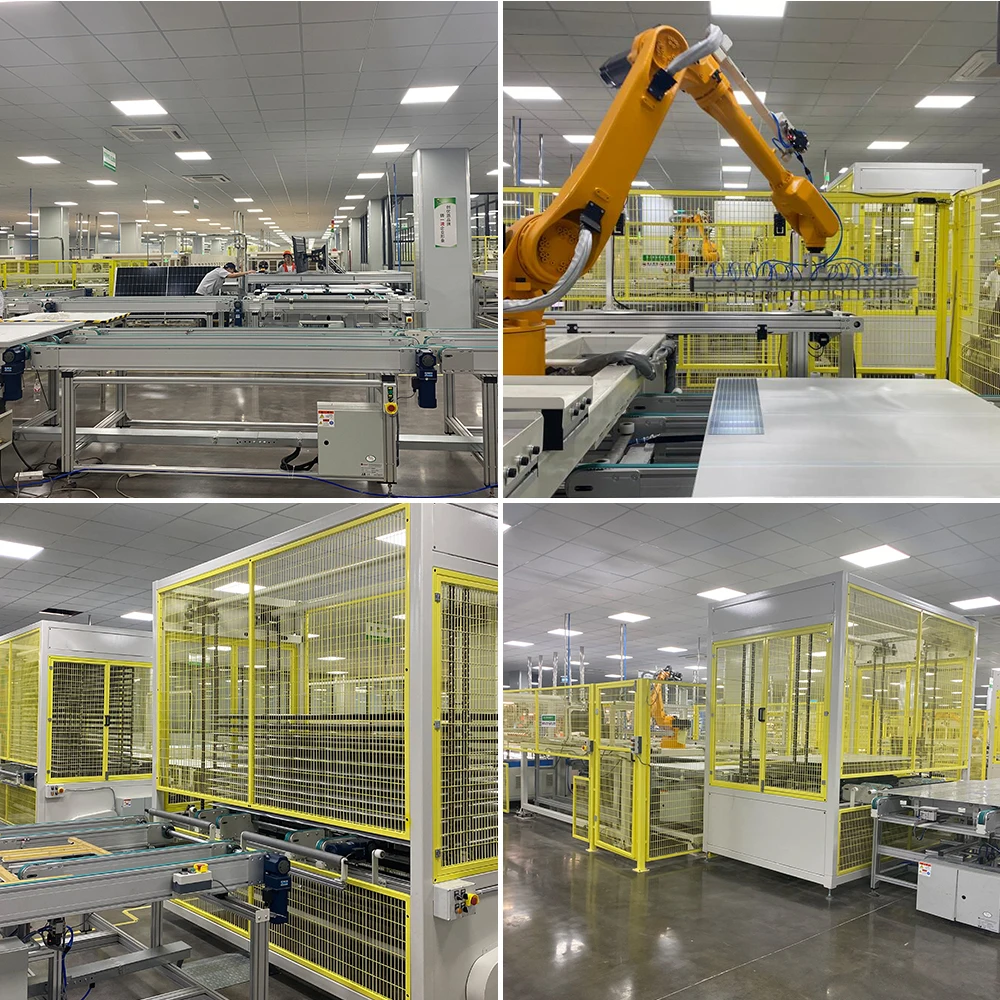

Our Factory
