Toncin Horizontal Rubber Vacuum Belt Filter CE Approved

DU series Vacuum Rubber Belt Filter is a high automatic and new-type solid-liquid separation machine, using vacuum negative pressure as impetus to separate the solid and the liquid. Filter cloth only allows the liquid and the air to flow through but not the solid . The filter district can finish the procedure of filtering, residue unloading and filter cloth cleaning with high efficiency, high output, good rinsing effect, low moisture, smart operation and low repair cost.

(1) The equipment can accomplish the process of feeding, cake washing, filtration, cake discharging and cloth washing continuously.

(2) The mother filtrate and other washing filtrate can be collected in different subsection.

(3) It is easy to transport and assemble this kind of equipment because of the modular structure.

(4) Vacuum system has a lifting device for the replacement of friction belt.

(5) We owe the patent of cloth washing device. Cleaning nozzles are products of US company.

(6) Circular rubber belt has an excellent flexibility and long service life.

(7) There is a circular friction belt between vacuum box and the rubber belt, which is sealed, lubricated and cooled with water. It can maintain stable vacuum and reduce the resistance of rubber belt friction.

This DU rubber belt vacuum filter has been widely used for solid-liquid separation in metallurgy, mining, chemical, paper making, food, environmental protection, power plant—FGD(Flue Gas Desulfurization).

Package:We use standard export package or as you required.

Shipping:We will send our products within 2 months.

Transport Way:By sea or by air.

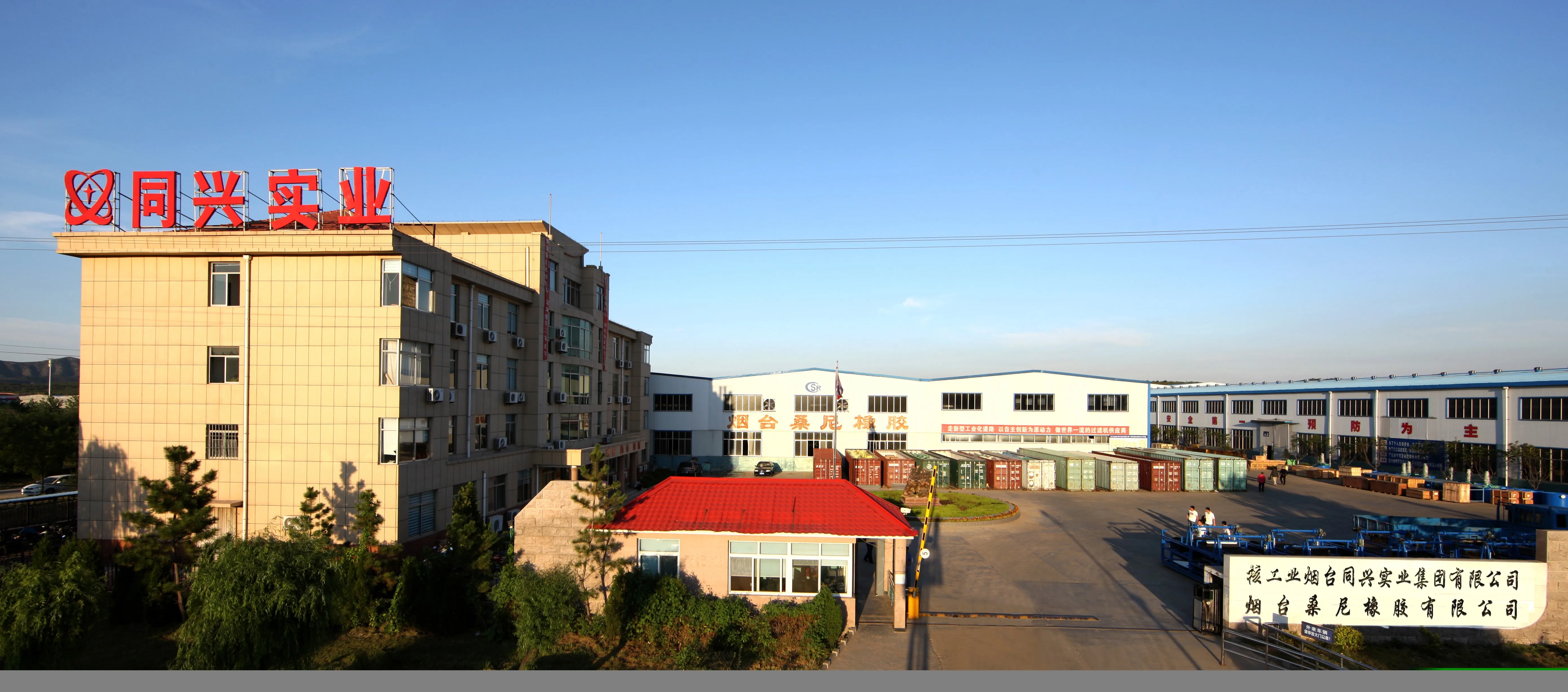

Nuclear Industry Yantai Toncin Group Co.,Ltd. completed the restructuring and reorganization in June 2016, integrated 13 enterprises of filter industry, advanced manufacturing industry and new materials industry, set up the group company, formed the industrial pattern of common development of filtration separation machinery, new material industry and high-end equipment industry.

Toncin group currently own 5 state-level high-tech enterprises, 3 provincial-level enterprise technology centers, 1 provincial-level industrial design center, maintain 177 valid patents, including 38 invention patents, presided and participated in the formulation of more than 10 national standards and industry standards of the Horizontal Belt Type Vacuum Filter, Vertical Automatic Diaphragm Filter Press, Joint Resistance to Static Cutting Performance Test Methods of Rubber or Plastic Coated Fabrics and so on.

The group has won the "China Patent Excellence Award", "National Key New Products", "Shandong Province Significant Energy-saving Achievement Award", "Shandong Province Technical Invention Award", "Shandong Province Science and Technology Progress Award" and a number of national and provincial science and technology award, undertaken a number of provincial science and technology, technical transformation special project of Shandong independent innovation achievements transformation major project and special funds project of Shandong industrial upgrading and synergism. The company has received the International Quality Control System Certification, Intellectual Property Management System Certification, Occupational Health Management System Certification and Environmental Management System Certification.

The company has received the "Shandong Energy-saving Environmental Protection Demonstration Enterprise", "Shandong Intellectual Property Advantage Enterprise", " Observes Contracts and Keep Promises Enterprise", "China Patent Shandong Star Enterprise", " Shandong Management Innovation Excellent Enterprise ", "Advanced Enterprise of Excellent Performance " and other honorary successively.

 1. How to buy your interested products?

  ANS: You can provide us the water sources, water quality, flow rate and ground area, material requirements about your project (More details, please contact us).

2. How to pay?

  ANS:L/C or T/T are acceptable.

3. What is the delivery time?

 ANS: It depends on order quantities. Generally speaking, the delivery time will be within 2 months.

4. How to pack the products?

  ANS: We use standard export package. If you have special package requirements, we will pack as you required, but the fees will be paid by customers.

5. How to install after the equipment arriving destination?

  ANS: We will provide detailed illustrations to you. If it is necessary, we will send technicians to help you.

6. How long is the validity?

  ANS:The validity is 12 months after installation.
