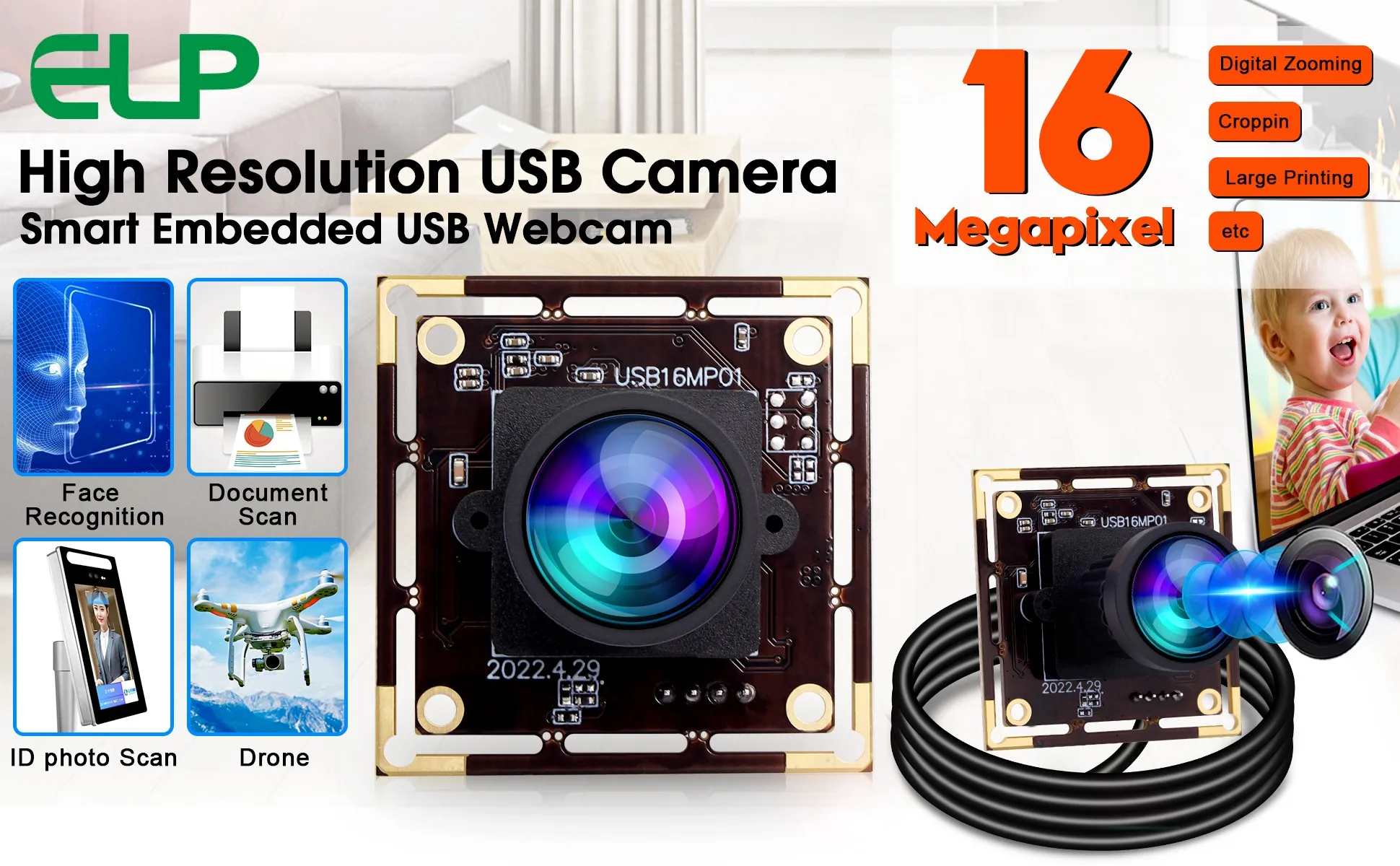

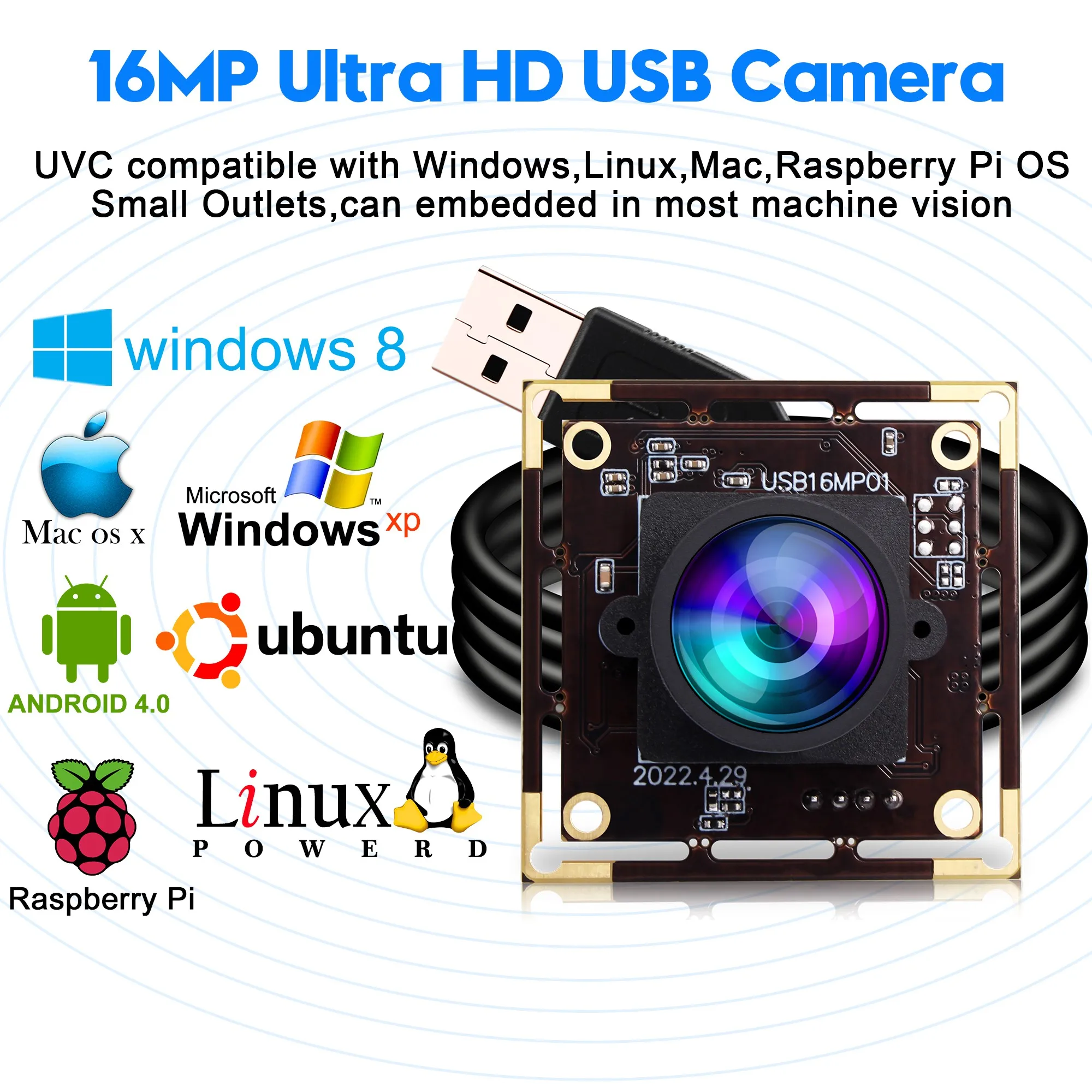

Wide Angle No Distortion 16MP Webcam Module IMX298 CMOS 4656x3496 Mini Board Size USB Camera with 1meter USB Cable for PC Pi
- Category: >>>
- Supplier: Shenzhen Ailipu Technology Co. Ltd.
Share on (1601031089720):
Product Overview
Description
ELP Wide Angle No Distortion USB Camera 16MP Ultra HD IMX298 CMOS 4656X3496 MJPEG YUY2 Video Web Cam with Mini Camera Module Size
Packing List:
(1) 1PC 16MP Fixed Focus USB Camera Module
(2) 1PC 1meter USB Cable
(2) 1PC 1meter USB Cable
Key Features:
* Ultra HD-4656x3496 16MP USB Camera Module
* CMOS Sensor- with 1/2.8" Sony IMX298 Color Image Sensor
* Lens-with Wide Angle No Distortion Lens, FOV 95/107/118 degree Options
* Audio-support customized built-in microphone for audio recording
* Mini webcam- 38x38/32x32mm mini board size for Embedded Applications
* High-speed USB 2.0 plug&play port suitable for any PC with USB 2.0 interface
* Low power consumption - ideal for portable equipment.
* UVC compliant: Support Windows, Linux, and Android systems with UVC
* Wide Application: Scanner, 3D printer, Simple surveillance, Robot, ATM, Kiosk, etc.
* CMOS Sensor- with 1/2.8" Sony IMX298 Color Image Sensor
* Lens-with Wide Angle No Distortion Lens, FOV 95/107/118 degree Options
* Audio-support customized built-in microphone for audio recording
* Mini webcam- 38x38/32x32mm mini board size for Embedded Applications
* High-speed USB 2.0 plug&play port suitable for any PC with USB 2.0 interface
* Low power consumption - ideal for portable equipment.
* UVC compliant: Support Windows, Linux, and Android systems with UVC
* Wide Application: Scanner, 3D printer, Simple surveillance, Robot, ATM, Kiosk, etc.
Specification
Model | ELP-USB16MP01-H120 |
Optional Models | With no distortion lens: ELP-USB16MP01-LC1100 (FOV 63 degree) ELP-USB16MP01-L75 (FOV 76 degree) ELP-USB16MP01-V100 (FOV 80 degree) ELP-USB16MP01-H100 (FOV 95 degree) ELP-USB16MP01-H110 (FOV 107 degree) ELP-USB16MP01-H120 (FOV 118 degree) With normal lens: ELP-USB16MP01-F28 (FOV 90 degree) ELP-USB16MP01-F36 (FOV 76 degree) With fisheye lens: ELP-USB16MP01-L170 (FOV1 39 degree) ELP-USB16MP01-L180 (FOV >180 degree) |
Sensor | SONY IMX298 |
Sensor Size | 1/2.8inch |
Pixel Size | 1.12um |
Image Area | 6.4mm x 5.3mm |

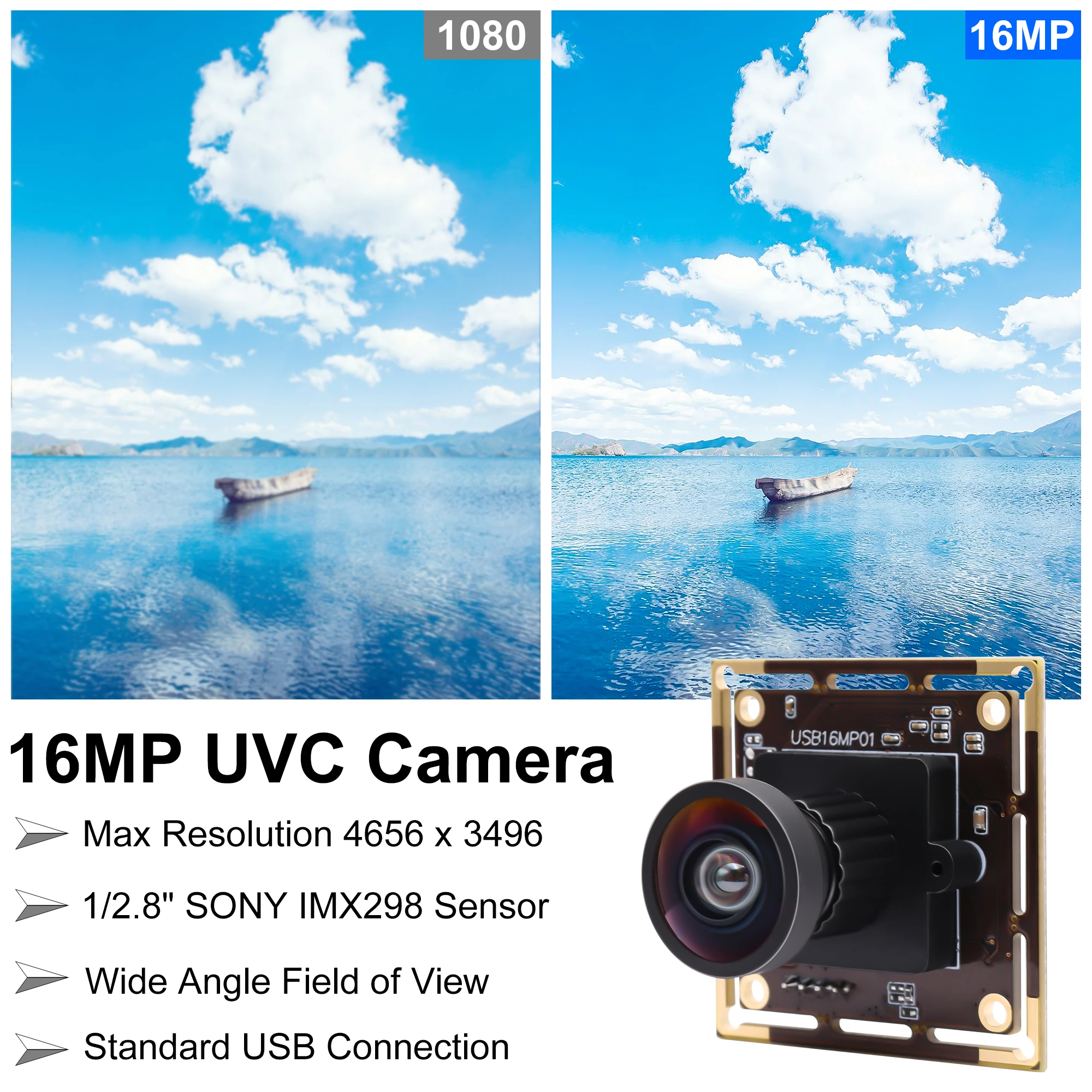

Max. Resolution | 4656(H) X 3496(V) 16 Megapixel |
Compression Format | MJPEG / YUY2 (YUYV) |

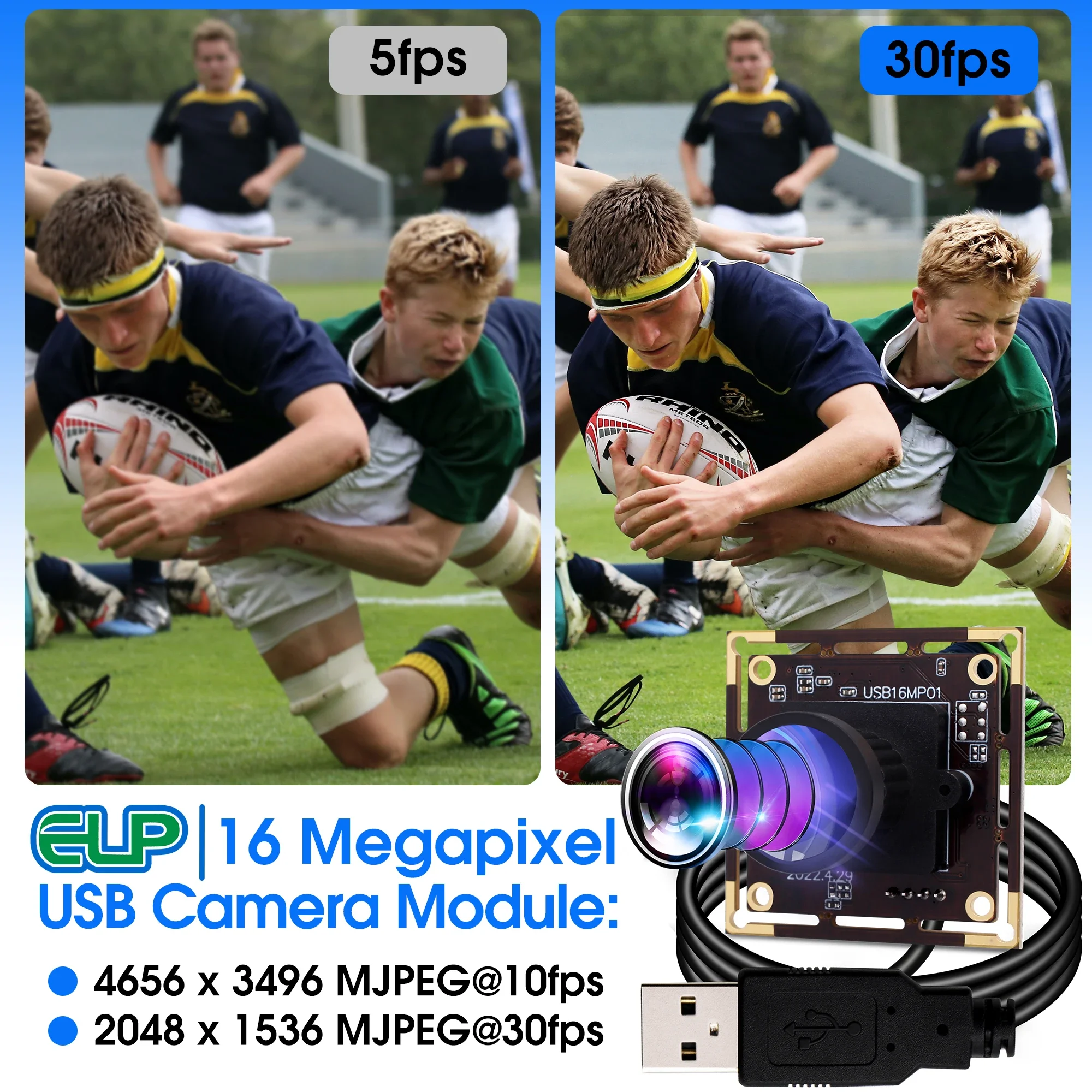

Resolution & Frame Rate | 4656 x 3496 MJPEG 10fps/ YUY2 1fps 4208 x 3120 MJPEG 10fps/ YUY2 1fps 4160 x 3120 MJPEG@10fps YUY2@1fps 4000 x 3000MJPEG@10fps YUY2@1fps 3840 x 2160 MJPEG@10fps YUY2@1fps 3264 x 2448MJPEG@10fps YUY2@1fps 2592 x 1944 MJPEG@10fps YUY2@1fps 2320 x 1744MJPEG@30fps YUY2@1fps 2048 x 1536 MJPEG@30fps YUY2@1fps 1920 x 1080MJPEG@30fps YUY2@5fps 1600 x 1200 MJPEG@30fps YUY2@5fps 1280 x 960MJPEG@30fps YUY2@10fps 1280 x 720 MJPEG@30fps YUY2@10fps 1024 x 768MJPEG@30fps YUY2@10fps 800 x 600 MJPEG@30fps YUY2@15fps 640 x 480MJPEG@30fps YUY2@30fps |
Min Illumination | 0.5 Lux |
Shutter Type | Electronic Rolling Shutter / Frame Exposure |
Connecting Port Type | USB2.0 High Speed |
Free Drive Protocol | USB Video Class (UVC) |
AEC | Support |
AWB | Support |
AGC | Support |
Adjustable Parameters | Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, Gain, White Balance, Backlight Contrast, Exposure |

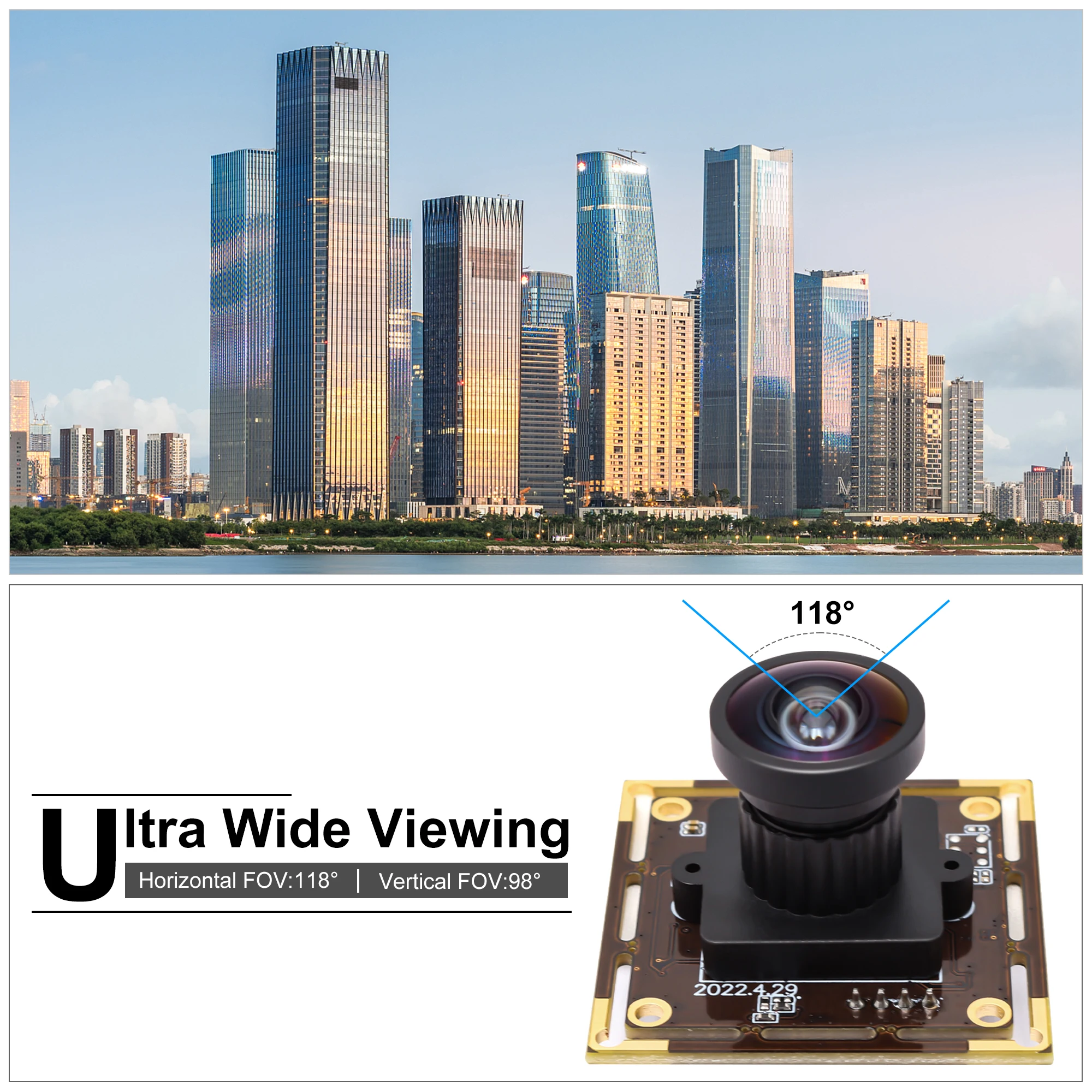

Lens Parameter | H120 No distortion Lens, FOV about 118 degree. Optional 2.8mm/3.6mm, No Distortion Lens (FOV 60~120 degree optional), 140 degree /180 degree Fisheye Lens etc. |
Power Supply | USB BUS POWER 4P-2.0mm Socket |
Operating Voltage | DC5V |
Working Current | 150mA~240mA |
Working Temperature | -10~70℃ |
Storage Temperature | -20~85℃ |

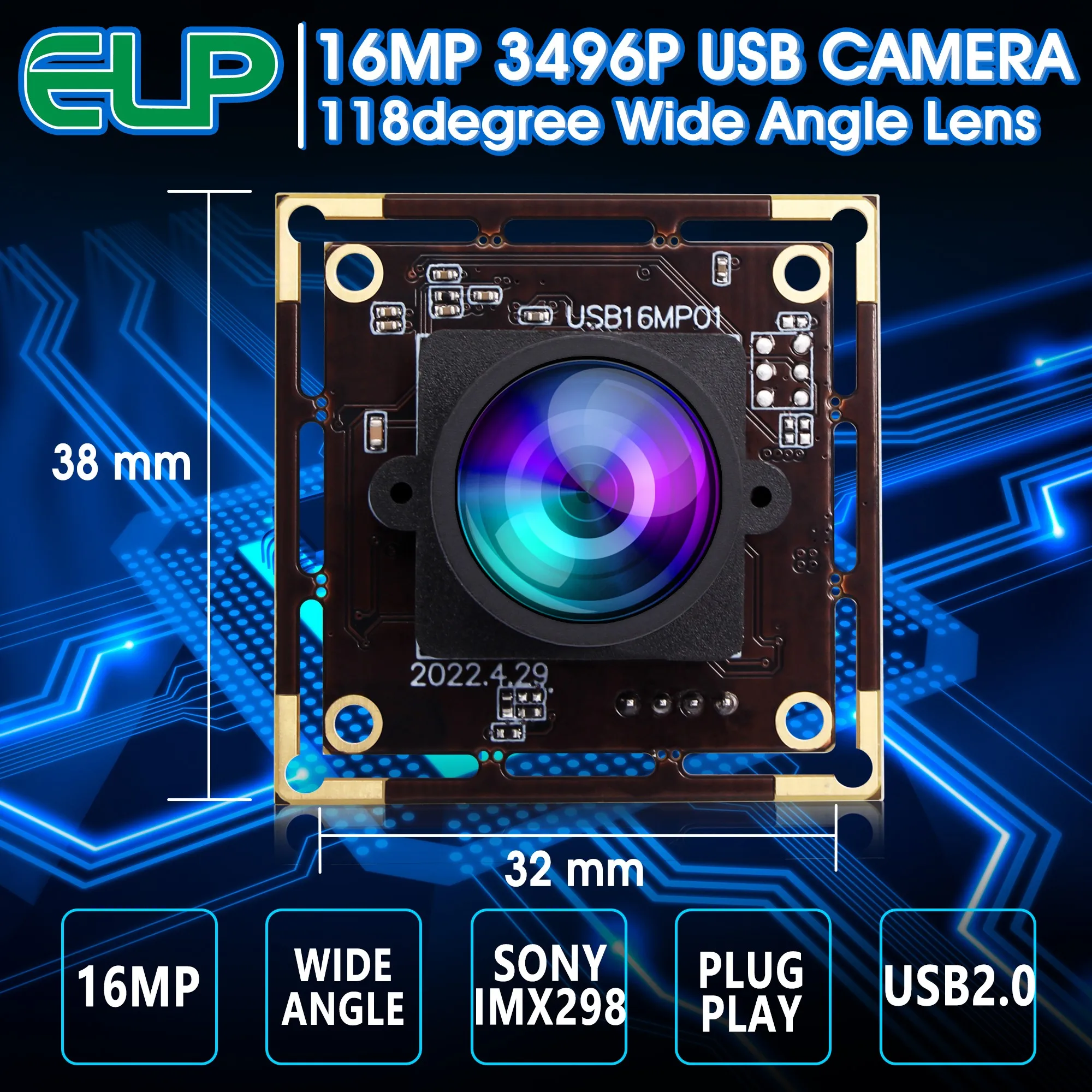

Board Size /Weight | 38X38mm (Compatible 32X32mm) / about 30g |
Cable | Standard 1m / Optional 2m,3m,5m |
Operating System Request | WinXP/Vista/Win7/Win8/Win9/Win10/Win11 etc. Linux with UVC (above Linux-2.6.26) MAC-OS X 10.4.8 or later Android 4.0 or above with UVC |
Operating voltage | DC5V |
Working current | 120mA~220mA |
Working Temperature | -10~70℃ |
Storage Temperature | -20~85℃ |
Board size /Weight | 38X38mm(Compatible 32X32mm)/ about 30g |
Cable | Standard 1m (optional 0.3m/0.5m/2/3/5m...optional) |
Operating system request | WinXP/Vista/Win7/Win8 and up Linux with UVC(above linux-2.6.26) MAC-OS X 10.4.8 or later Wince with UVC Android 4.0 or above with UVC |
Effect Image:
Product Description

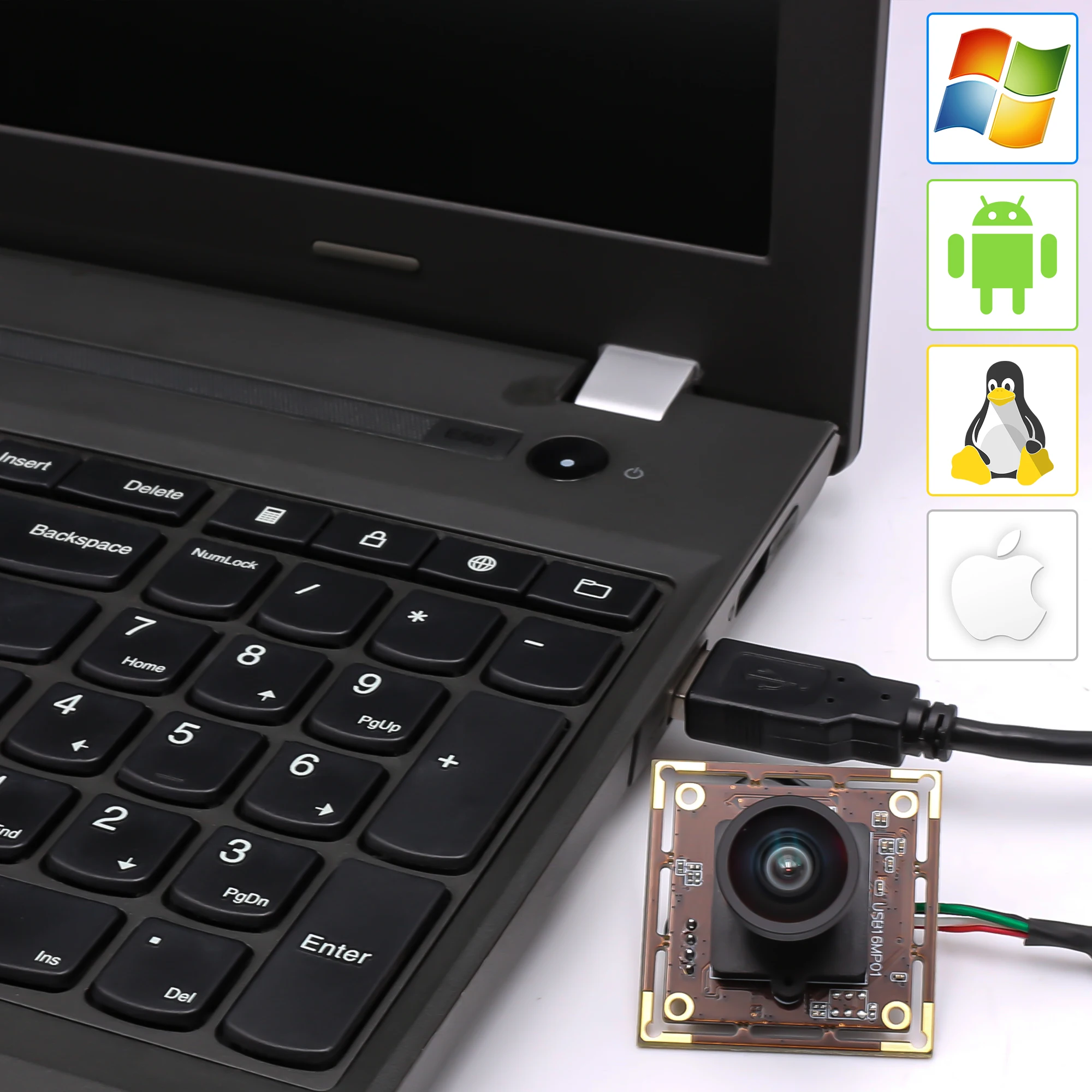

USB2.0 Interface, Free Driver, Plug and Play
This usb camera is easy to use, only plug and camera into computer USB port and running the software can make video display and recording work. No drive installation is required.
1)ELP USB web camera supports most systems ,Windows, Linux, MAC, Android , Raspberry Pi, secondary development board , Jeston Nano,etc
2) Is versatile for CSkype, OBS, Zoom,
GoToMeeting, Facebook LIVE, and YouTube Livestreaming services
2) Is versatile for CSkype, OBS, Zoom,
GoToMeeting, Facebook LIVE, and YouTube Livestreaming services
Application
ATM Machine, Kiosk, automatic vending machine,Robot, Sanner, Virtual reality, Medical equipment,
machinery equipment, POS equipment, Smart TV BOX, advisement player, LED display, safety box,
notebook, video door phone, Tablet external, on-the-spot law enforcement, Recognition algorithm
attendance machine, simple security system, teaching system, Interactive system,credit card machine,
attendance machine, Voting system, High speed video shooting Device, exam system, Driving learning system,
Industrial camera, biological microscope, box inside surveillance, micro HD surveillance, endoscope,
machinery equipment, POS equipment, Smart TV BOX, advisement player, LED display, safety box,
notebook, video door phone, Tablet external, on-the-spot law enforcement, Recognition algorithm
attendance machine, simple security system, teaching system, Interactive system,credit card machine,
attendance machine, Voting system, High speed video shooting Device, exam system, Driving learning system,
Industrial camera, biological microscope, box inside surveillance, micro HD surveillance, endoscope,
Packing & Delivery
Company Profile
Shenzhen Ailipu Technology Co.,Ltd, who have 16 years history, is a professional manufacturer of surveillance system . Ailipu has its own brand ELP, which already well know in security surveillance system.
With its own unique R&D team as the basic, oriented by dedicated sales team,Shenzhen Ailipu Technology Co., Ltd already developed into a prefessional video products company integrate with developing, production, sales and also service all together.
At present,Shenzhen Ailipu Technology Co., Ltd produce traditional analog CCTV camera, standalone DVR recorder for cctv camera,but also produce popular megapixel network IP cameras, NVR recorder for IP cameras too.Besides, Ailipu Technology Co., Ltd already developing its own special USB Cameras for industrial vision. Recently, Ailipu company present new USB cameras module range from 30W Pixel, 1megapixel, 2megapixe, 3megapixel, 5 megapixel to 5megapixel autofocus, which already used in all kinds of industrial system.
Shenzhen Ailipu manufacturer can also OEM or customize products specially by customers' requirements.
We always believe"Together everybody achives more!", and we are looking forward your choice and join, we fought together,open up a new future of video surveillance industry.
With its own unique R&D team as the basic, oriented by dedicated sales team,Shenzhen Ailipu Technology Co., Ltd already developed into a prefessional video products company integrate with developing, production, sales and also service all together.
At present,Shenzhen Ailipu Technology Co., Ltd produce traditional analog CCTV camera, standalone DVR recorder for cctv camera,but also produce popular megapixel network IP cameras, NVR recorder for IP cameras too.Besides, Ailipu Technology Co., Ltd already developing its own special USB Cameras for industrial vision. Recently, Ailipu company present new USB cameras module range from 30W Pixel, 1megapixel, 2megapixe, 3megapixel, 5 megapixel to 5megapixel autofocus, which already used in all kinds of industrial system.
Shenzhen Ailipu manufacturer can also OEM or customize products specially by customers' requirements.
We always believe"Together everybody achives more!", and we are looking forward your choice and join, we fought together,open up a new future of video surveillance industry.
FAQ
1. Can you OEM camera module?
Yes, we can offer OEM camera modules according to customer's different requirement.
2. Can you provide SDK for secondary development?
Yes, We can offer Linux, Windows, Android SDK.
3. What's your usb cameras' production cycle?
We can supply the camera module for a long time. as long as customers need it.
4. Are you manufacturer?
Yes, we are designer and manufacturer for usb camera module
5. What lens optional you have?
We have normal M12 2.1/2.8/3.6/6/8/12mm lens, M7 mini lens and also wide angle fisheye lens and varifocal lens
6. What operating system your cameras support?
Our USB cameras support Android, Windows and Linux System
7. What certificate your products have?
All our USB Camera Module have CE, FCC certificates, partial have RoHS and UL
8. Does the camera support Raspberry Pi? If support Linux Ubuntun system?
Yes, all our usb cameras support Raspberry Pi system and Linux Ubuntun system.
9. Does the camera support OTG?
Most of our usb cameras support OTG function, except 0.3MP USB30W02M series and 5MP OV5640 USB cameras.
10.Which software your usb camera module support?
Blue Iris, ContaCam, Yawcam, Ispy, Motion Eye OS,AMCAP Wecam Viewer, IP Camera Viewer, ZoneMinder,V4L2 video for Linux,Camerafi,VLC Player
Yes, we can offer OEM camera modules according to customer's different requirement.
2. Can you provide SDK for secondary development?
Yes, We can offer Linux, Windows, Android SDK.
3. What's your usb cameras' production cycle?
We can supply the camera module for a long time. as long as customers need it.
4. Are you manufacturer?
Yes, we are designer and manufacturer for usb camera module
5. What lens optional you have?
We have normal M12 2.1/2.8/3.6/6/8/12mm lens, M7 mini lens and also wide angle fisheye lens and varifocal lens
6. What operating system your cameras support?
Our USB cameras support Android, Windows and Linux System
7. What certificate your products have?
All our USB Camera Module have CE, FCC certificates, partial have RoHS and UL
8. Does the camera support Raspberry Pi? If support Linux Ubuntun system?
Yes, all our usb cameras support Raspberry Pi system and Linux Ubuntun system.
9. Does the camera support OTG?
Most of our usb cameras support OTG function, except 0.3MP USB30W02M series and 5MP OV5640 USB cameras.
10.Which software your usb camera module support?
Blue Iris, ContaCam, Yawcam, Ispy, Motion Eye OS,AMCAP Wecam Viewer, IP Camera Viewer, ZoneMinder,V4L2 video for Linux,Camerafi,VLC Player
