Prestressed Concrete Anchors Cable Grip Wedge for 12.7mm PC Strand
- Category: >>>
- Supplier: Baoshengcheng New Energy Technology Tangshan Co. Ltd.
Share on (1601031174940):
Product Overview
Description
Products Show
Product parameter

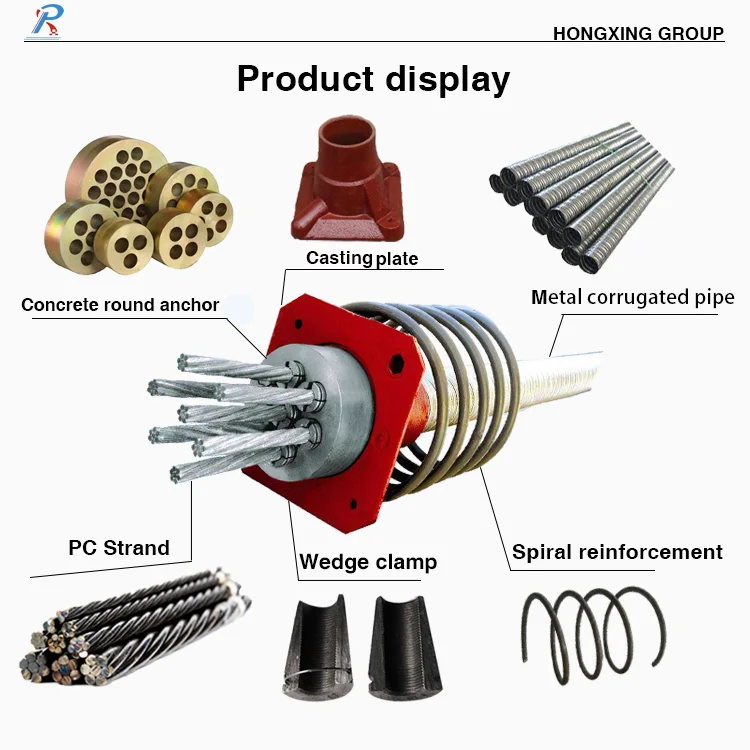

Components for one full set | Anchor head+wedge+bearing plate+spiral reinforcement | |
Anchor | ||

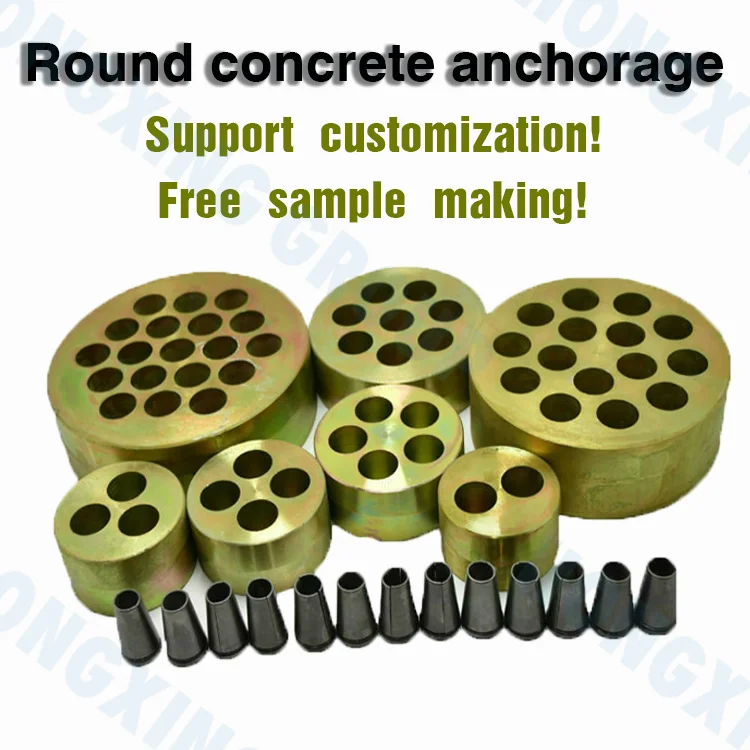

Round anchorage | 1-55 holes | |
Flat anchorage | 2-5 holes | |
Anchorage diameter | 5mm-19mm | |
Material of round anchor head | 45# high-quality carbon construction steel | |
Material of flat anchor head | 40Cr steel | |
Wedge | ||
Material of wedge | High-class alloy steel 20CrMnTi | |
Wedge type | Two-chip and three-chip | |
Material of bearing plate | HP300 | |
Material of spiral reinforcement | Q235 | |
Surface treatment | Anti-rust treatment | |
MOQ | 100sets | |
Package | In cartons or wooden boxes | |
Application field | Post tension projects such as bridges, malls and roads | |

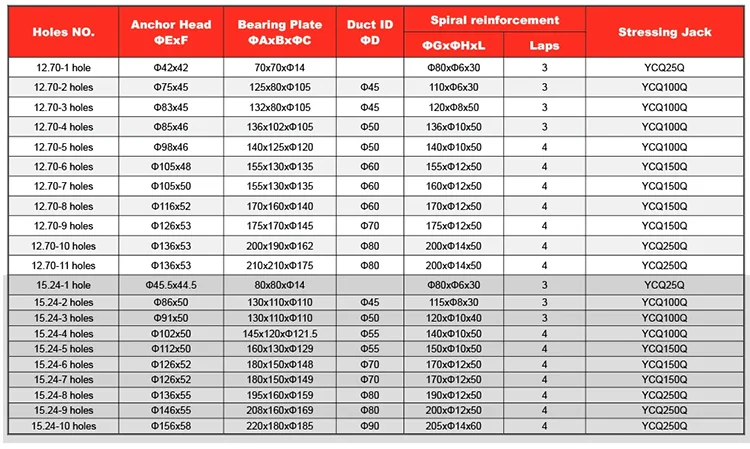

Product size | ||||||||

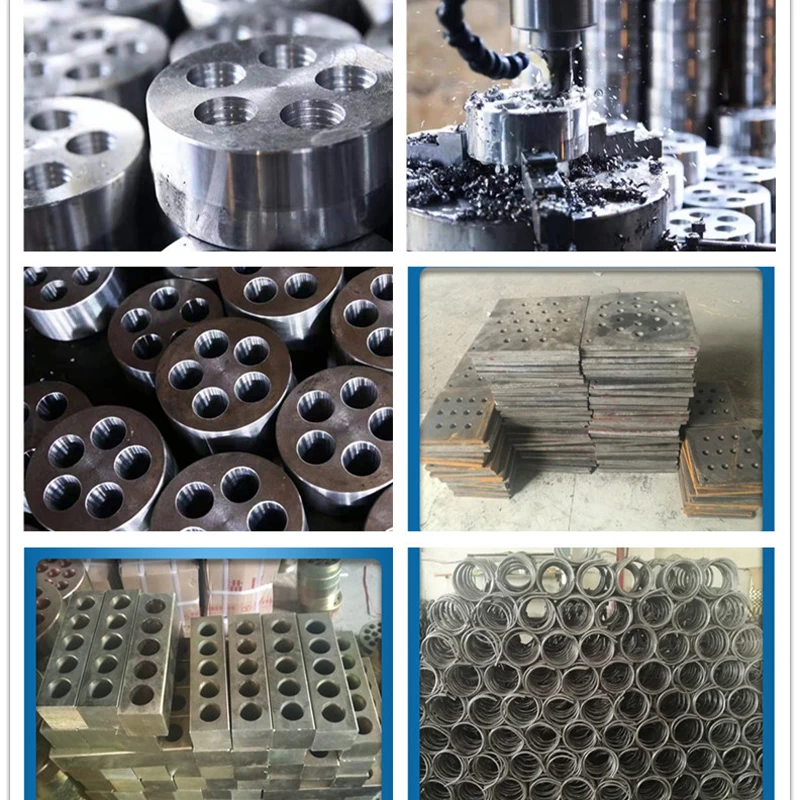

production process
