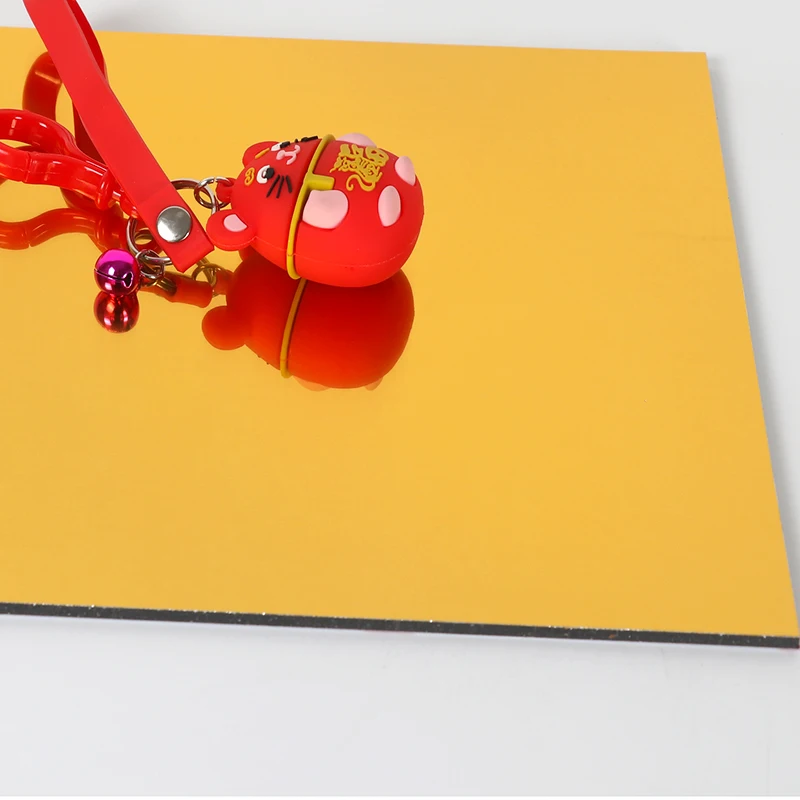

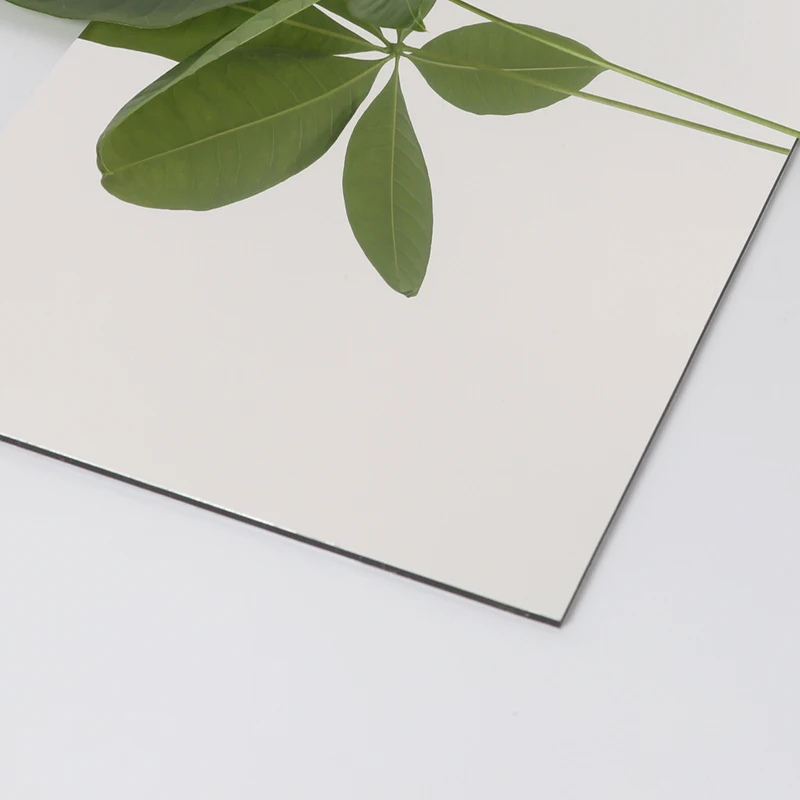

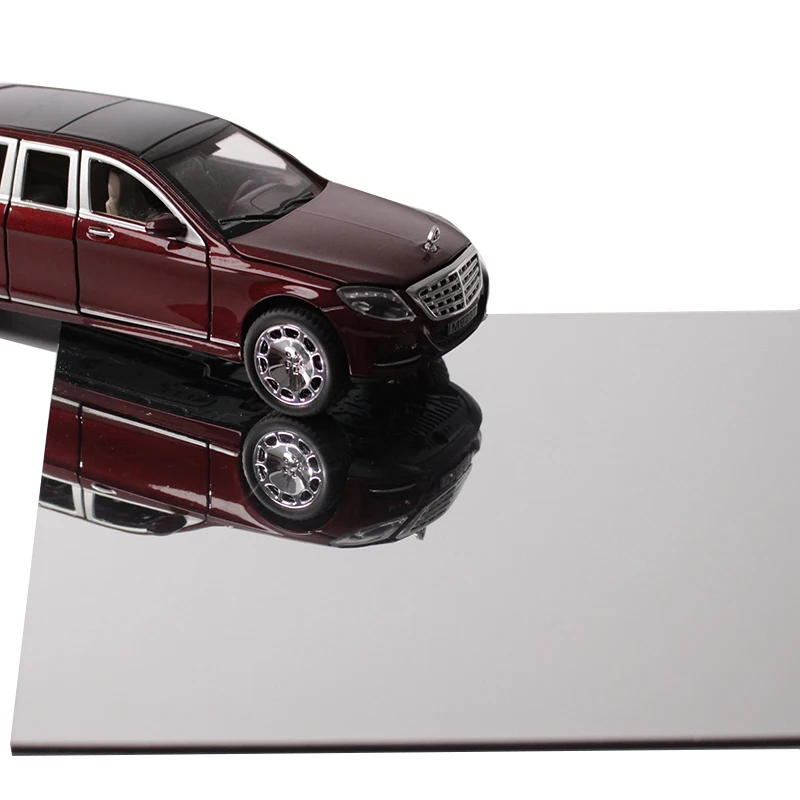

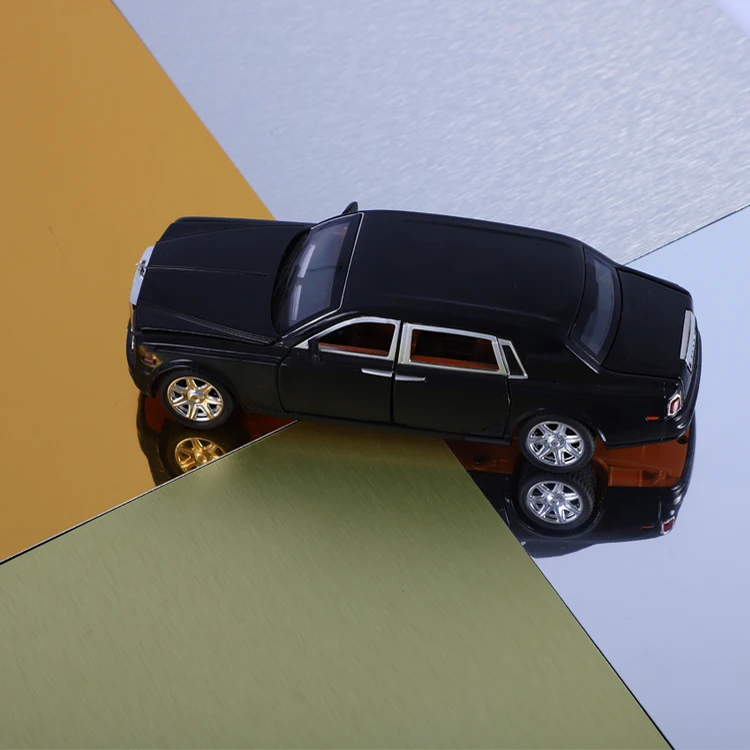

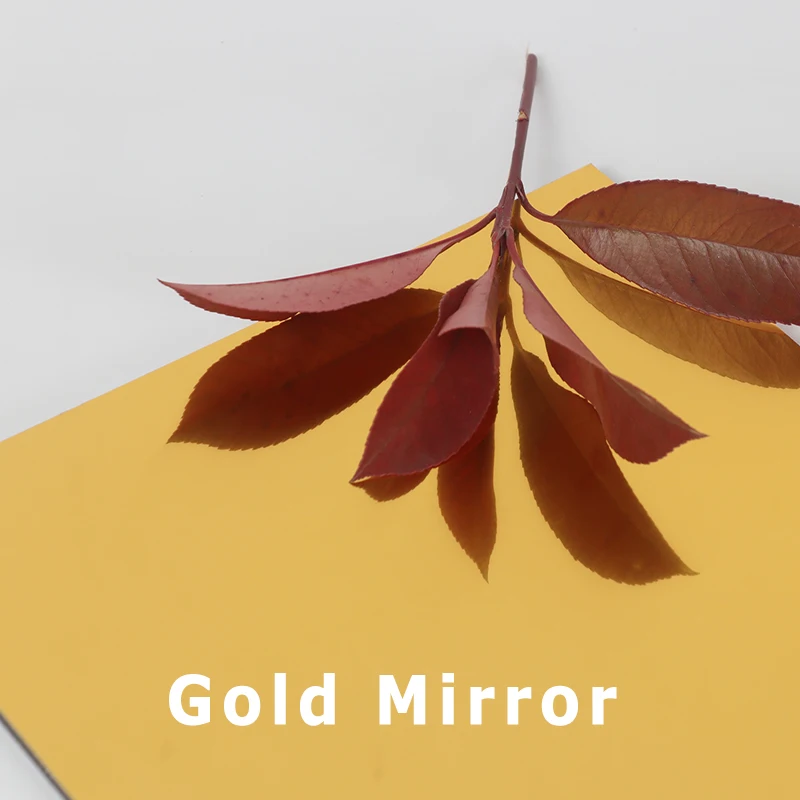

Modern Outdoor Aluminum Composite Panel ACP Sheet Mirror Aluminium PE PVDF Printing Facade Wall Apartment Decoration
- Category: >>>
- Supplier: Linyi Jinhu Color Coating Aluminum Industry Co. Ltd.
Share on (1601031241699):
Product Overview
Description

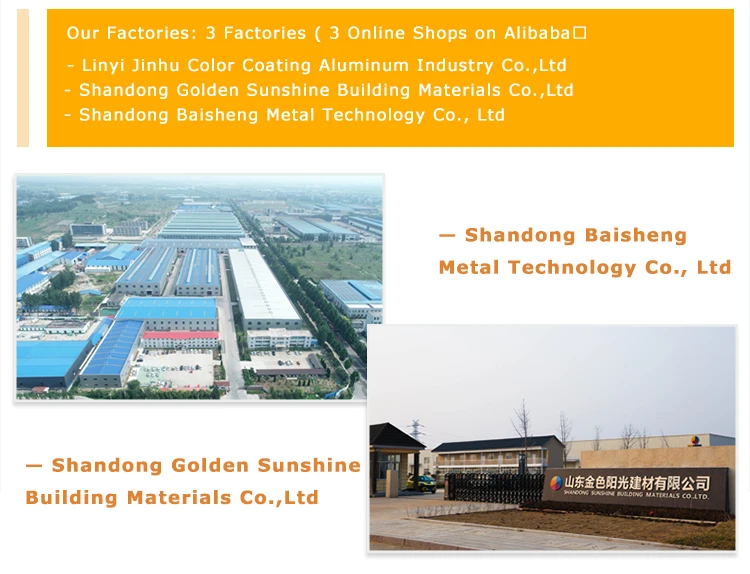

Who We Are
Jinhu Group is located in the comprehensive free trade zone in the Linyi city, Shandong Province.We are near Qingdao Port on lines including 4 precision lines and 10 continuous lines.These guarantee SUNSHINE annual production output of over 30,000 tons coated aluminum coils and about 1.5 million square meters ACP.
Specifications of aluminum composite panel acp sheet | Dimensional tolerance | ||||
Panel Thickness | 2mm,3mm,4mm,5mm,6mm | Panel Width | +/_2mm | ||
Panel Width | 1000mm,1250mm,1500mm,2000mm (maximum) | Panel Length | +/_3mm | ||
Panel Length | 1000mm-6000mm | Panel Thickness | +/_0.2mm | ||
Surface coat | One side coil coated,backside lacquer finish | Panel Diagonal | <=5mm | ||
Other surface | Both side coil coated lacquer,One side anodized,backside lacquer finish | Aluminum sheet thickness | +/_0.02mm | ||
Standard size | 1220mm*2440mm*3mm for interior1200mm*2440mm*4mm for exterior | Standard color | 30 kinds.Special color available upon request | ||

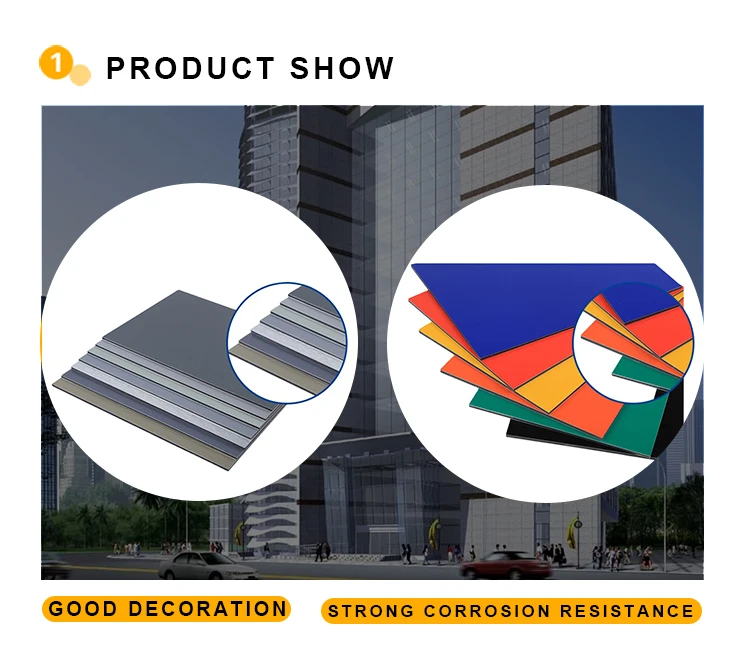

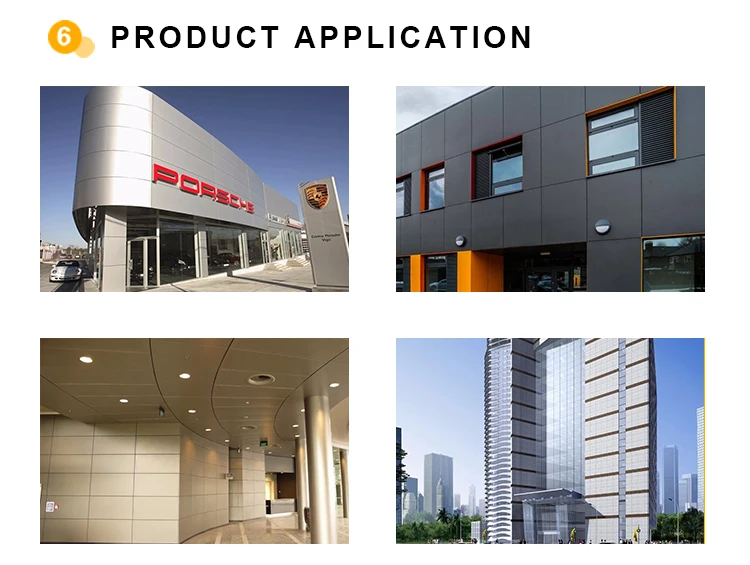

JINHU GROUP ACP APPLICATION | Exterior architecture cladding |
Interior designs | |
Advertising Signage | |
JINHU GROUP ACP CHARACTERISTICS | High Resistance to Peeling |
Superior Weather Resistance | |
Light Weight and Easy to process | |
Excellent Fire Resistance Properties | |
Coating Evenness | |

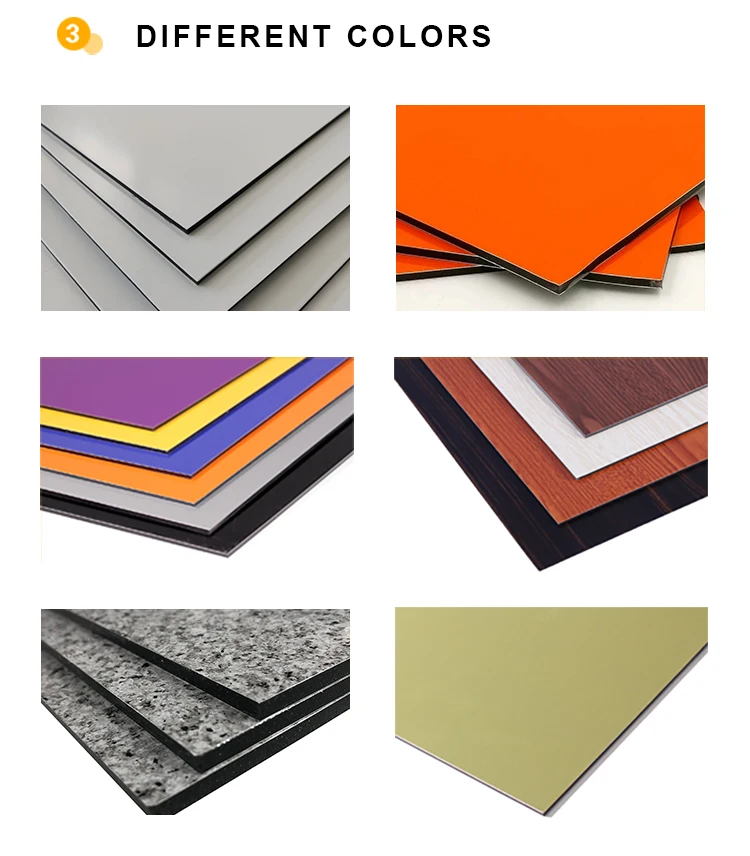

Diversified Colors | |
Easy for Maintenance | |
Impact Resistance |
Materials | Front side | Aluminum Alloy(3003) coated with Fluorin carbon resin (PVDF) or Polyester resin (PE) roasting painting | |
Core | Non-toxic polyethylene or Plastic fireproof materials(B1) | ||
Rear | Aluminium alloy sheet coated with polyester resin painting | ||
Standard Dimension | 1220mm*2440mm*3mm | ||
1220mm*2440mm*4mm | |||
Special Size | Width | 1240mm,1250mm,1270mm,1520mm,1590mm,2000mm,2020mm,2030mm | |
Length | 2440mm,3000mm,3200mm | ||
Thickness | 2mm,3mm,4mm | ||
Available Aluminum Skin Thickness | 0.02mm-0.50mm | ||
Polyester | 3mm | 0.12mm,0.15mm,0.18mm,0.21mm | |
4mm | 0.12mm,0.15mm,0.18mm,0.21mm,0.30mm,0.35mm,0.40mm,0.45mm,0.50mm | ||
PVDF | 4mm | 0.30mm,0.35mm,0.40mm,0.45mm,0.50mm | |

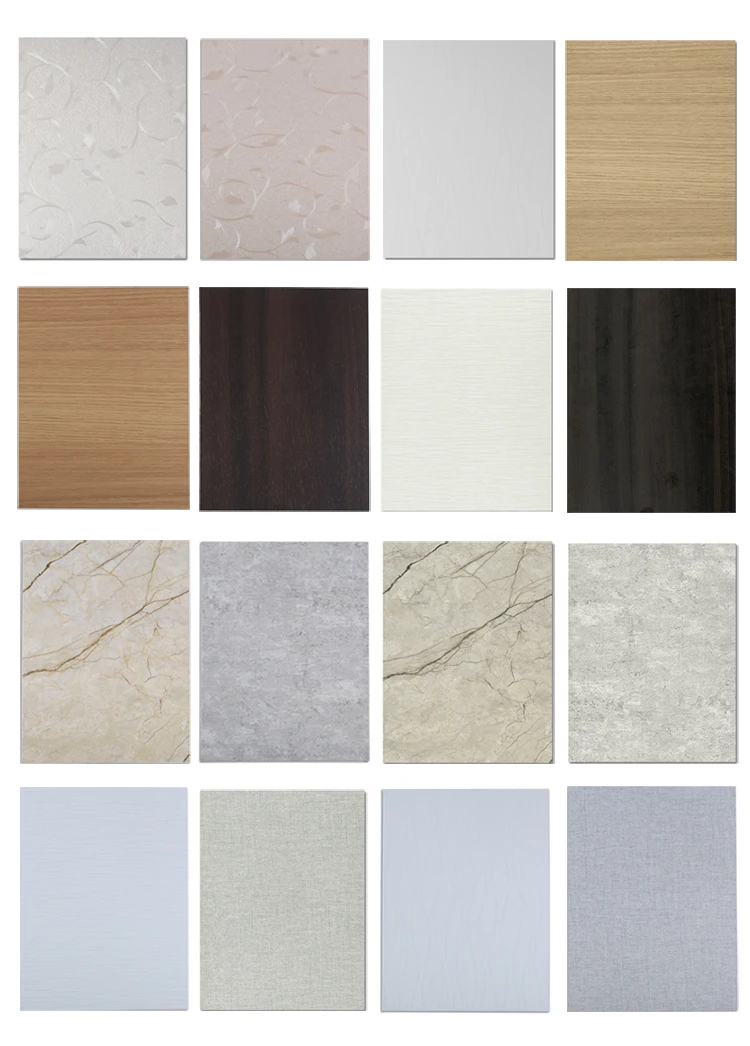

Surface Finish | PE, PVDF, FEVE, NANO-PVDF, SPECTRA, PRE-ANODIZED, POLYESTER BRUSH, HIGH GLOSSY | ||

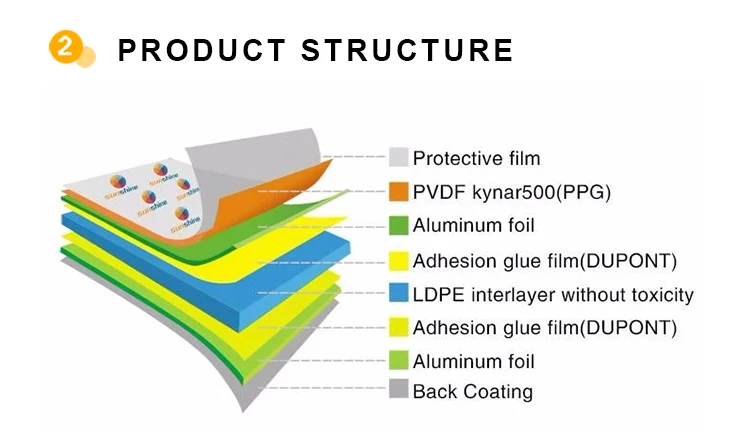

ACM is an aluminum composite material consisting of two aluminum cover sheets sandwiching a nontoxic low-density polyethylene core produced from a continuous extrusion process. When the ACM is used for external cladding of buildings, it is usually called an aluminum composite panel, shortened as ACP.

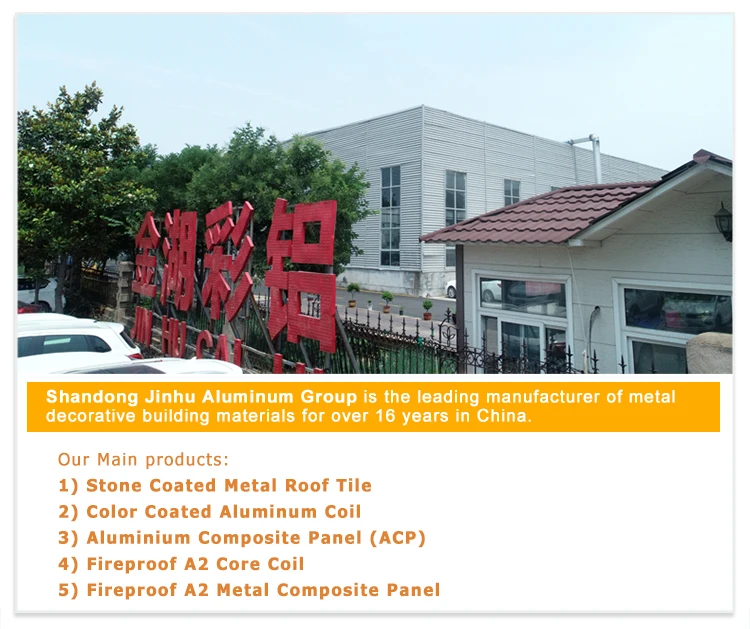

Linyi Jinhu Color Coating Aluminum Industry Co., Ltd is a factory with over 12 years of history and specializes in producing
color-coated aluminum coil, aluminum composite panel, and stone coated metal roof tile. Our annual turnover is over USD100 million and we export an average of 200*20GP each month to Southeast Asia, Africa, Europe, the Middle East, Australia, etc. countries and areas.

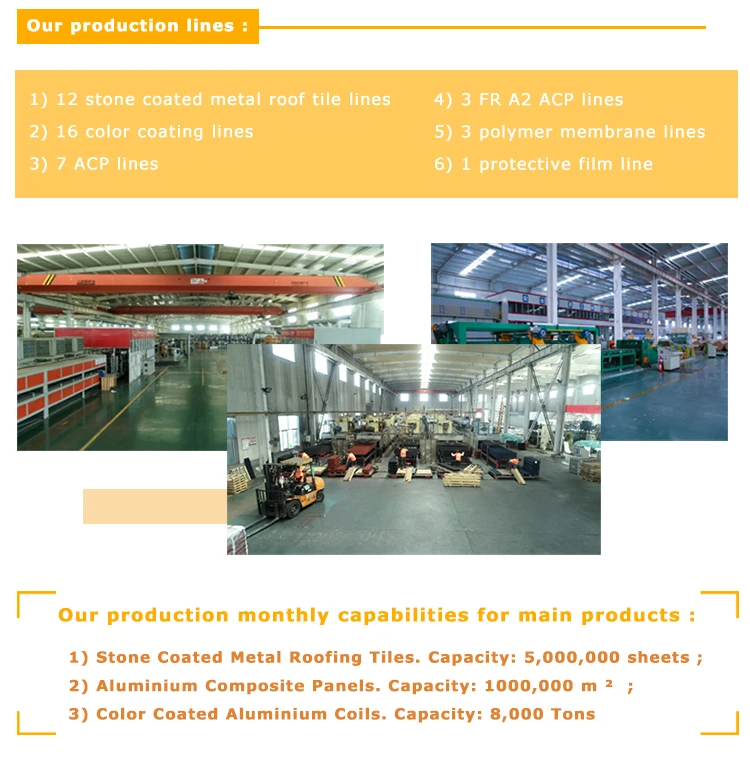

Shandong Golden JINHU Construction Materials Co., Ltd., is a wholly-owned subsidiary of Linyi Jinhu Color Coating Aluminum Industry Co., Ltd., has a team of senior professional technicians, experienced managers, and excellent marketing personnel, own the most advanced Automatic hot pressing ACP production line, high-speed coating production line and corresponding supporting facilities in China, which guarantee the high quality and competitive advantage of our products. Until now, we have steady clients from Columbia, Nigeria, Mauritius, Ghana, Algeria, Egypt, Turkey, Israel, Georgia, Italy, Iraq, New Zealand, India, Burma, Pakistan, Sri Lanka, etc. countries.
color-coated aluminum coil, aluminum composite panel, and stone coated metal roof tile. Our annual turnover is over USD100 million and we export an average of 200*20GP each month to Southeast Asia, Africa, Europe, the Middle East, Australia, etc. countries and areas.
Shandong Golden JINHU Construction Materials Co., Ltd., is a wholly-owned subsidiary of Linyi Jinhu Color Coating Aluminum Industry Co., Ltd., has a team of senior professional technicians, experienced managers, and excellent marketing personnel, own the most advanced Automatic hot pressing ACP production line, high-speed coating production line and corresponding supporting facilities in China, which guarantee the high quality and competitive advantage of our products. Until now, we have steady clients from Columbia, Nigeria, Mauritius, Ghana, Algeria, Egypt, Turkey, Israel, Georgia, Italy, Iraq, New Zealand, India, Burma, Pakistan, Sri Lanka, etc. countries.
FAQ:
Q:How to check whether this product is in good quality?
A. First is to see whether the surface is smooth enough, no ripples, bubbles and scratches.
B. Second is to check whether the panel thickness and aluminum skin thickness is thick enough.
C. To check the core material, whether it's easy broken.
D. To test the peel strength between aluminum skin and the core .

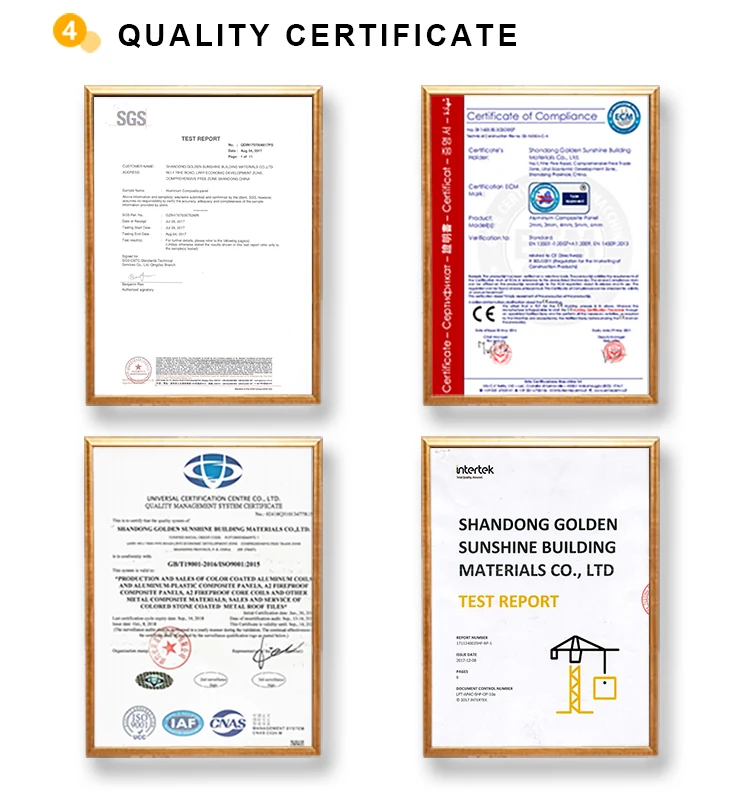

E. See whether company is normal manufacturer, which have ISO, CE, SGS certificate.
Q: How to confirm the color for what you want?
You can contact me for our color card.
You can also choose a color from the RAL/Panton color card.
Q: How to choose the panel thickness for different usages?
Exterior usage: 4mm panel with 0.30mm,0.40mm or 0.50mm aluminum skin, better in PVDF coating.
Interior usage: 2mm/3mm/4mm panel with 0.06mm, 0.10mm, 0.15mm or 0.21mm aluminum skin, PE coating is ok.
Q: How to confirm the color for what you want?
You can contact me for our color card.
You can also choose a color from the RAL/Panton color card.
Q:How to check whether this product is in good quality?
A. First is to see whether the surface is smooth enough, no ripples, bubbles and scratches.
B. Second is to check whether the panel thickness and aluminum skin thickness is thick enough.
C. To check the core material, whether it's easy broken.
D. To test the peel strength between aluminum skin and the core .
E. See whether company is normal manufacturer, which have ISO, CE, SGS certificate.
Q: How to confirm the color for what you want?
You can contact me for our color card.
You can also choose a color from the RAL/Panton color card.
Q: How to choose the panel thickness for different usages?
Exterior usage: 4mm panel with 0.30mm,0.40mm or 0.50mm aluminum skin, better in PVDF coating.
Interior usage: 2mm/3mm/4mm panel with 0.06mm, 0.10mm, 0.15mm or 0.21mm aluminum skin, PE coating is ok.
Q: How to confirm the color for what you want?
You can contact me for our color card.
You can also choose a color from the RAL/Panton color card.
