Topacelab 10L 20L 30L 50Liters vacuum filter/ filtration equipment Stainless steel laboratory funnel Vacuum pump and filter med
- Category: >>>
- Supplier: Shanghai Topace Scientific Instruments Co. Ltd.
Share on (1601031349762):
Product Overview
Description

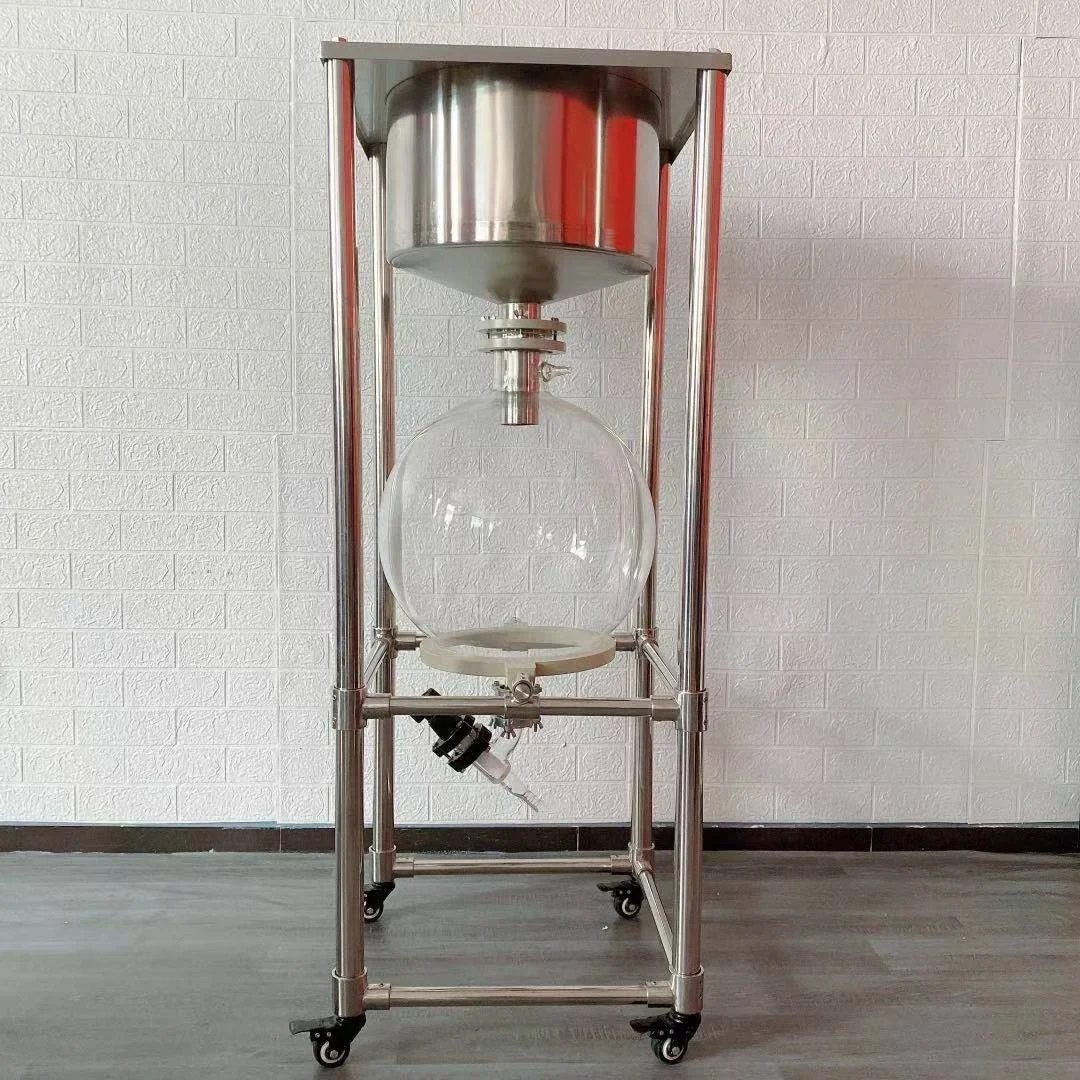

Topacelab 10L 20L 30L 50Liters vacuum filtration equipment Stainless steel laboratory funnel Vacuum pump and filter media
Introduce
Vacuum filter is a special laboratory filter, it matched with the microporous membrane of different aperture, adopts vacuum suction filter, can be used in the research of chemical analysis, instrumental analysis, sanitary inspection machinery and so on for liquid-liquid Extraction or liquid- soild filtration liquid filtration, to detect and remove fluid of the particles and bacteria, for example, the sterile aseptic filtration test, medium, small and medium-sized power intemal combustion engine clean, jet fuel and hydraulic system of solid particle pollution weight method, such as grating film, also applies to the hydraulic oil, aviation kerosene, and water quality of high purity reagent counting method.
Features
1. GG17 high borosilicate glass, has excellent chemical and physical properties.

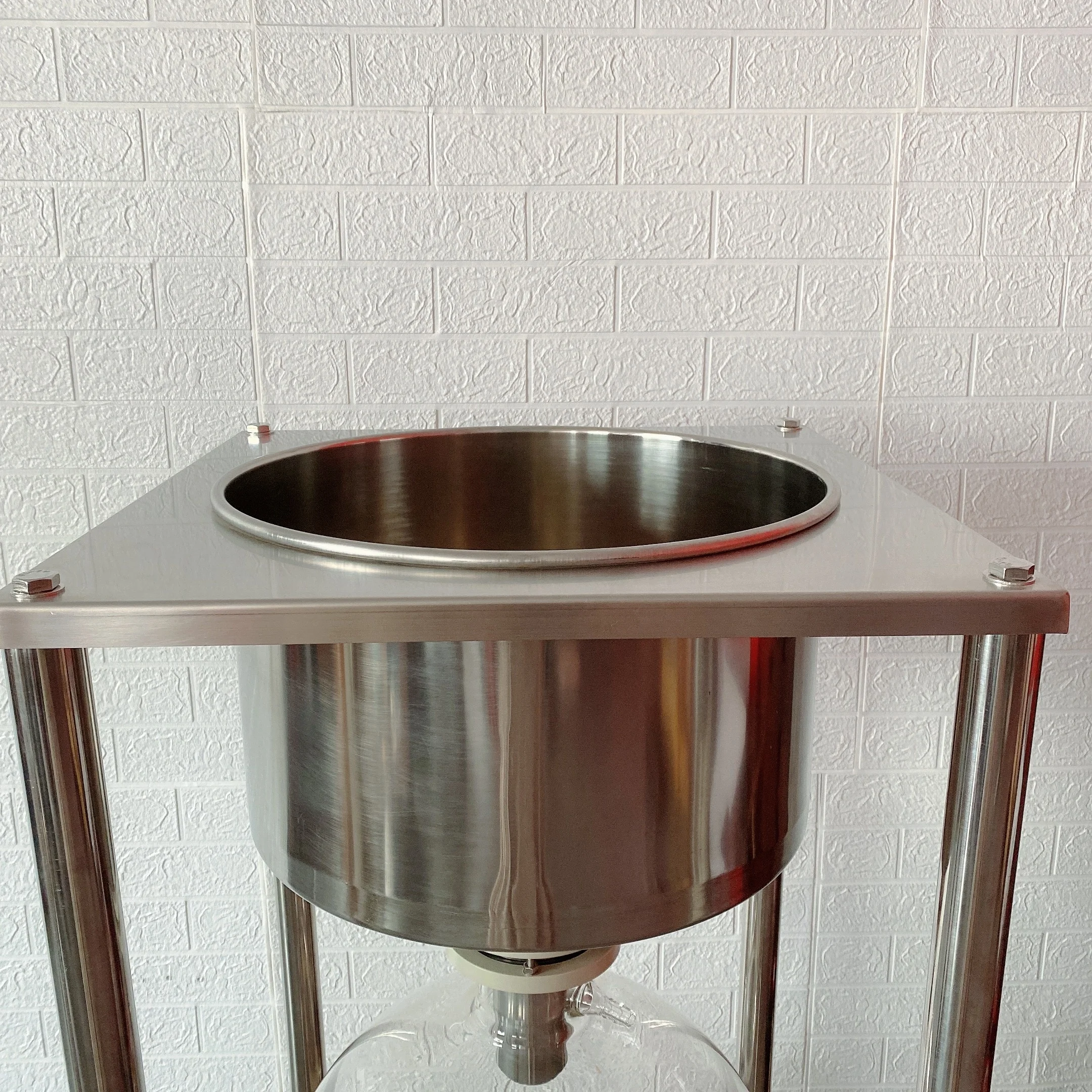

2. 304 stainless steel funnel, excellent physical and chemical properties.

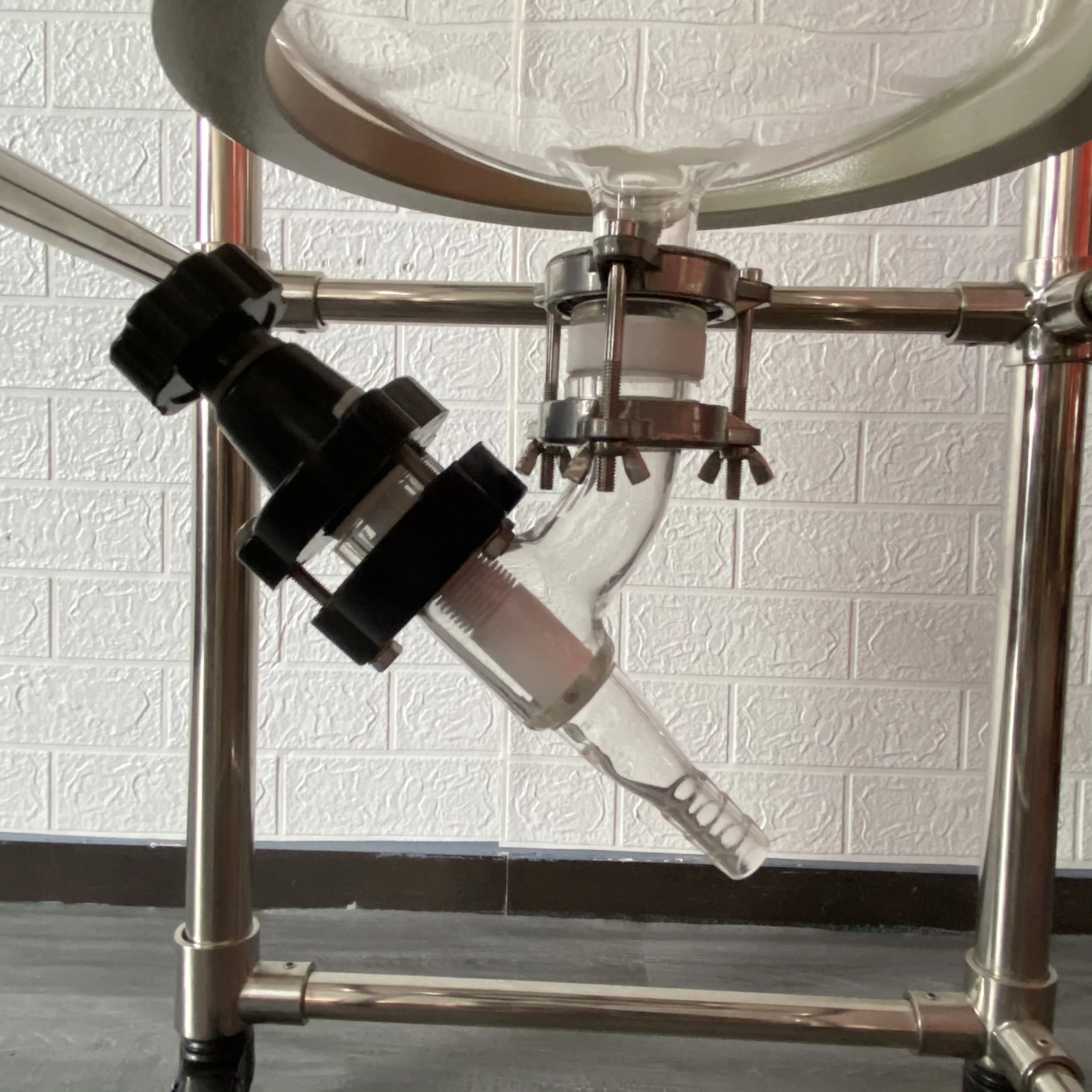

3. PTFE valve, no dead space, removable and easily discharge of solid materials

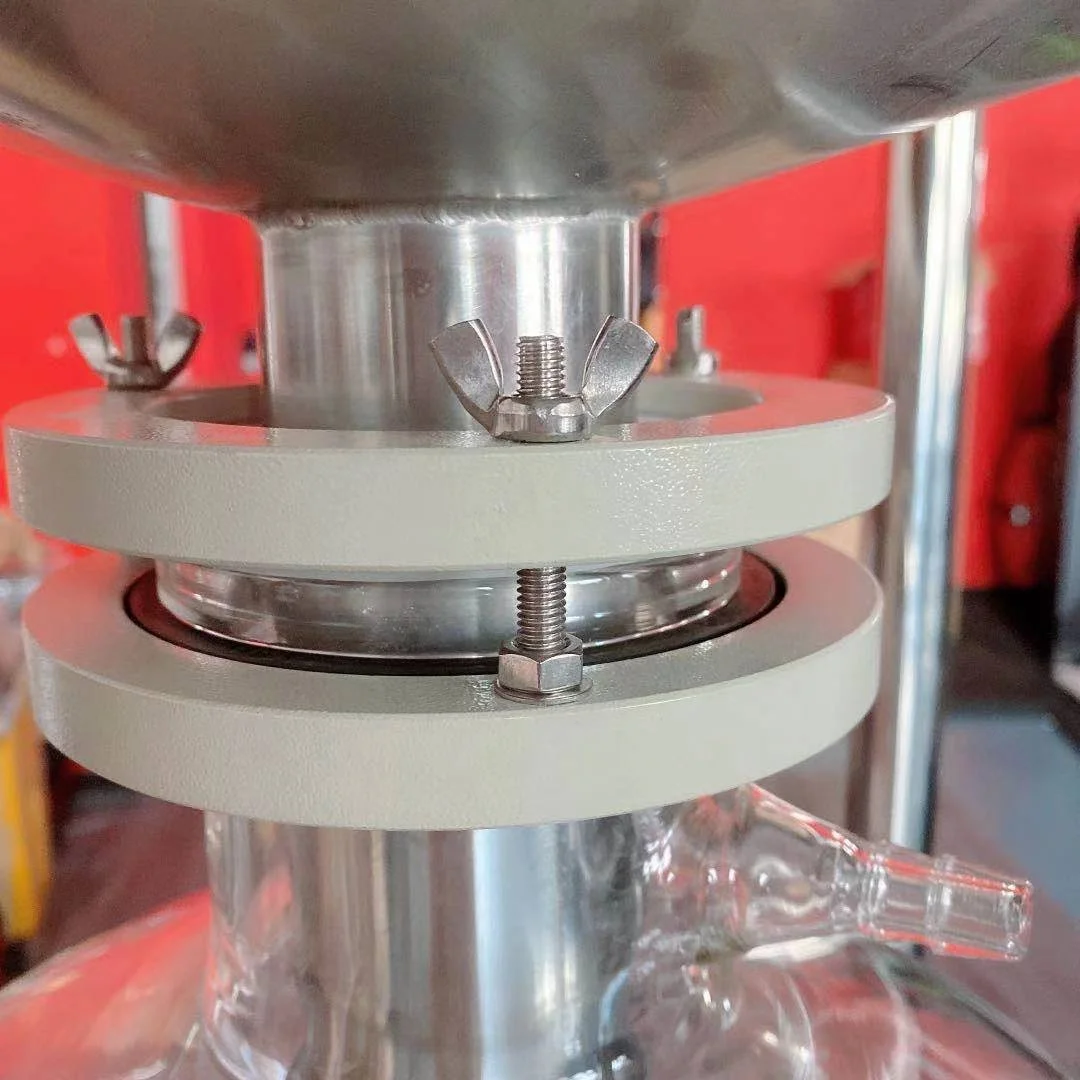

4. Perfect sealing. Flange and PTFE double seal.
2. 304 stainless steel funnel, excellent physical and chemical properties.
3. PTFE valve, no dead space, removable and easily discharge of solid materials
4. Perfect sealing. Flange and PTFE double seal.
Technical Date
| Model | VF-10L | VF-20L | VF-30L | VF-50L |
| Funnel volume | 10L | 20L | 30L | 50L |
| Funnel dimater | 300mm | 350mm | 400mm | 500mm |
| Funnel size | 300*200mm | 350*220mm | 400*240mm | 500*280mm |
| Funnel material | Stainless steel 304/202/316(standard 304) | |||
| Receiving flask | 10L | 20L | 30L | 50L |
| Flask material | High borocificate glass 3.3 | |||

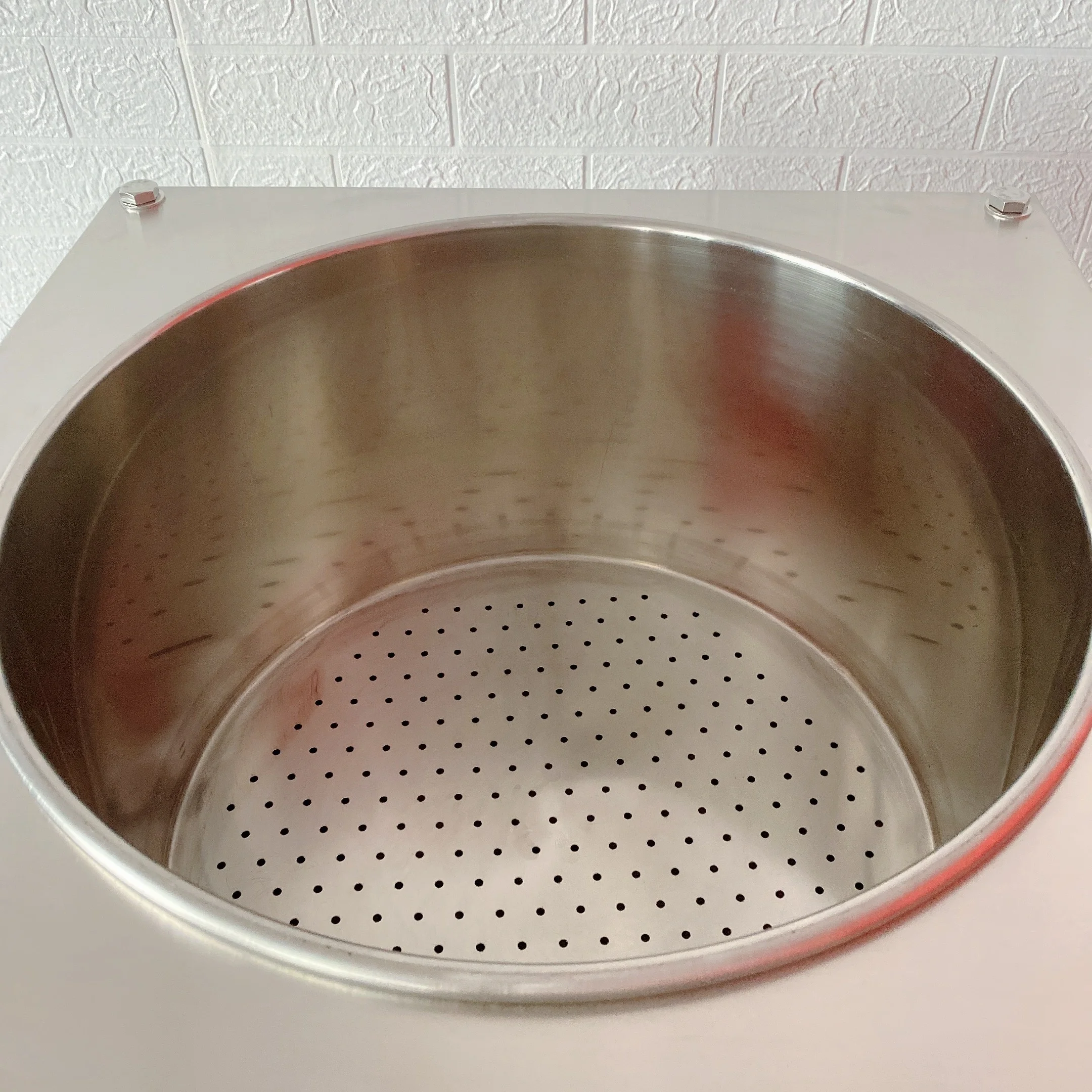

| Filter hole diameter | 4mm | |||
| Vacuum nozzle | 12mm | |||
| Discharging method | Glass PTFE combination seal | |||
| Move way | Swivel casters with locking | |||
| Sealing method | Mechanical PTFE combination seal | |||
| Work pressure | Negative pressure or normal pressure | |||
| Cleaning method | The whole machine is detachable | |||
| Scope of application | filter paper, filter bag | |||
| Overall size | 40*40*180cm | 50*50*128cm | 55*55*135cm | 57*57*155cm |
| other | Customize | |||

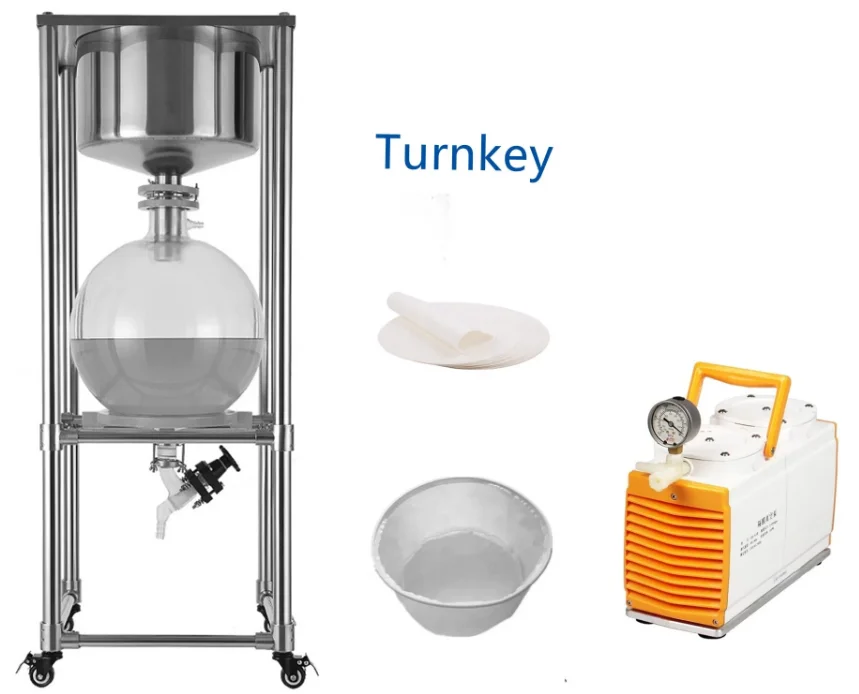

100% Turnkey Solutions
1.Oil free, corrosion resistant and reliable.
2.All major valves and parts made of PTFE, ideal for chemical-related operation.
3.No need to add water or oil to operate, clean and convenient,Oilless,anti-corrosive,quiet.
4.Easy to maintain for laboratory environment.
5.Designed to work with rotary evaporators, vacuum filtration, etc.
6.High quality anti-corrosion shell.

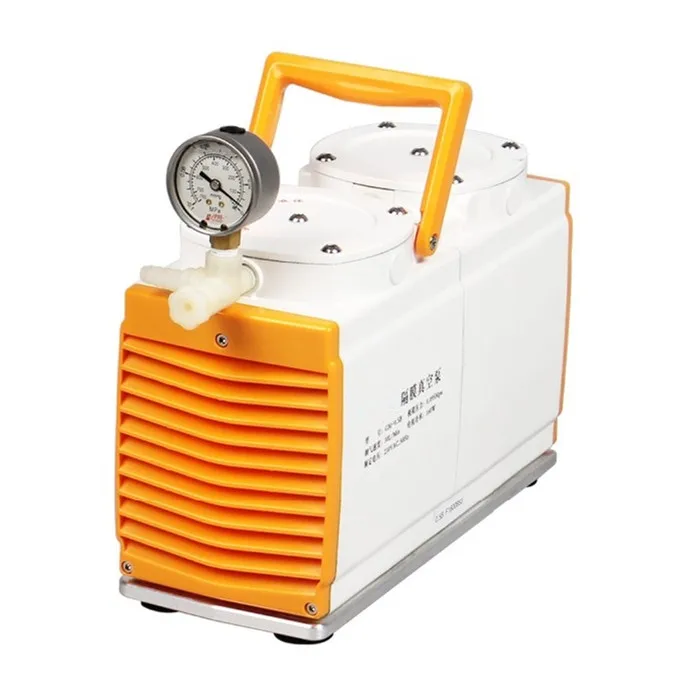

Technical Data:
| Model | GM-0.5B | ||||
| Speed of evacuation environment(L/Min) | 30 | Working temperature of pump body (C) | <55 | ||
| Dimensions(LxWxH)(mm) | 350x130x220 | Noise level(DB) | <60 | ||
| Weight(kg) | 10 | Vacuum | 50mbar | ||
| Voltage rating | 220Vac,50Hz | Inlet(mm) | φ6 | ||
| Motor power(w) | 160 | Outlet(mm) | silencer | ||
| Pump head | 2 | Temperature of working(C) | 7-40 | ||
| Extreme pressure | ≥0.095MPa | Diaphragm Valves | NBR | ||
| Function | Vacuum | ||||

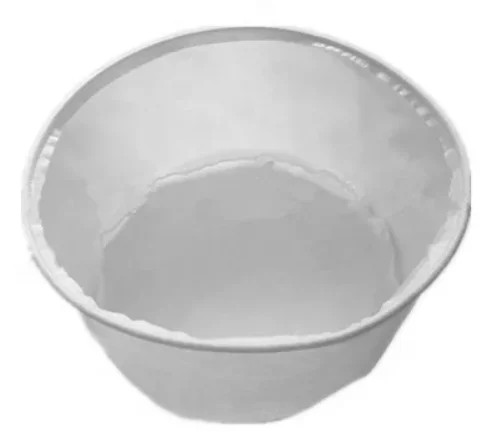

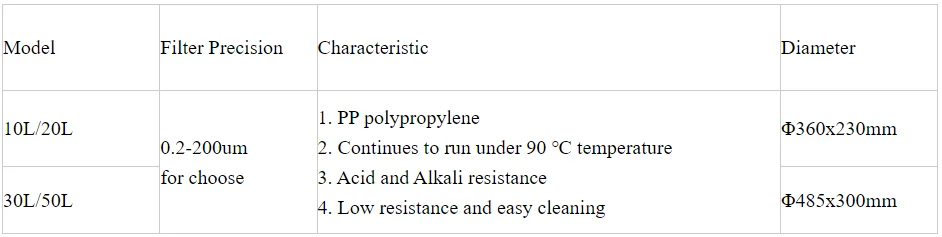

PP Filter bag

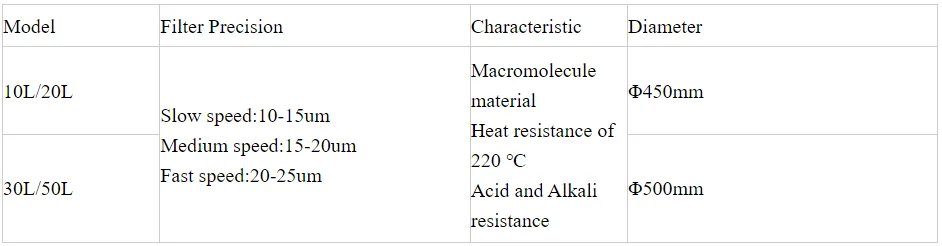

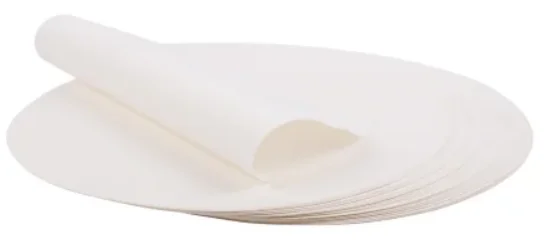

Filter paper
Packing and Delivery
All parts will be packed in on wooden case;
Customized packaging can be available
The damage caused by the transportation problem shall be borne by the seller.
We have good cooporation with leading international shipping companies such as DHL/UPS/FedEx/TNT toprovide various sea shipping and air shipping options.
| By sea | by air cargo | by express |
| 30-45day | 15-20days | 3-10days |

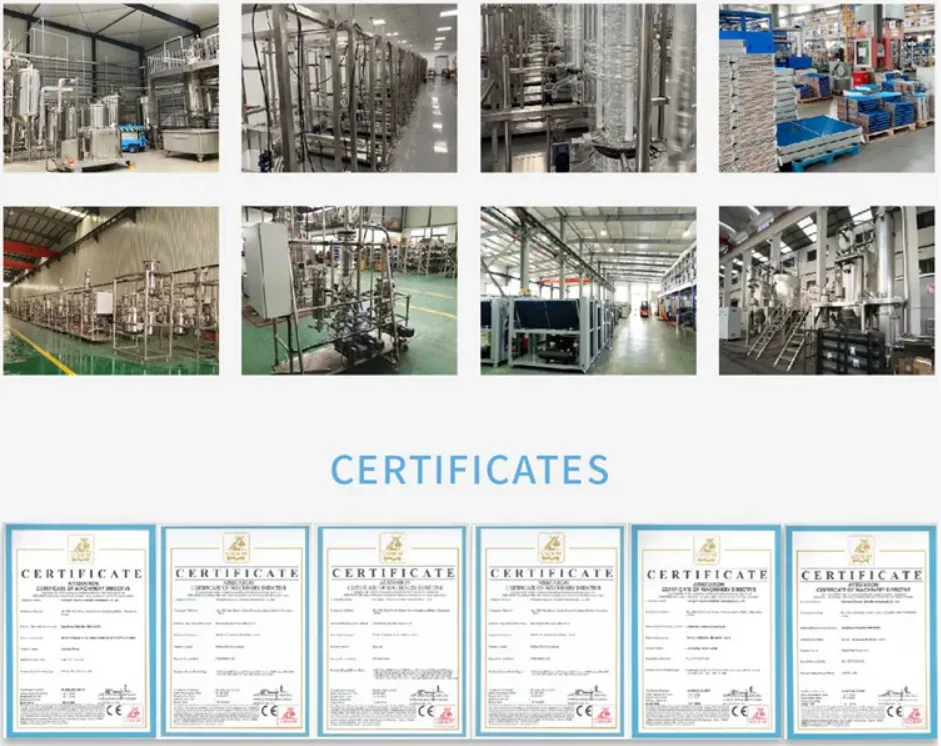

Our Company
