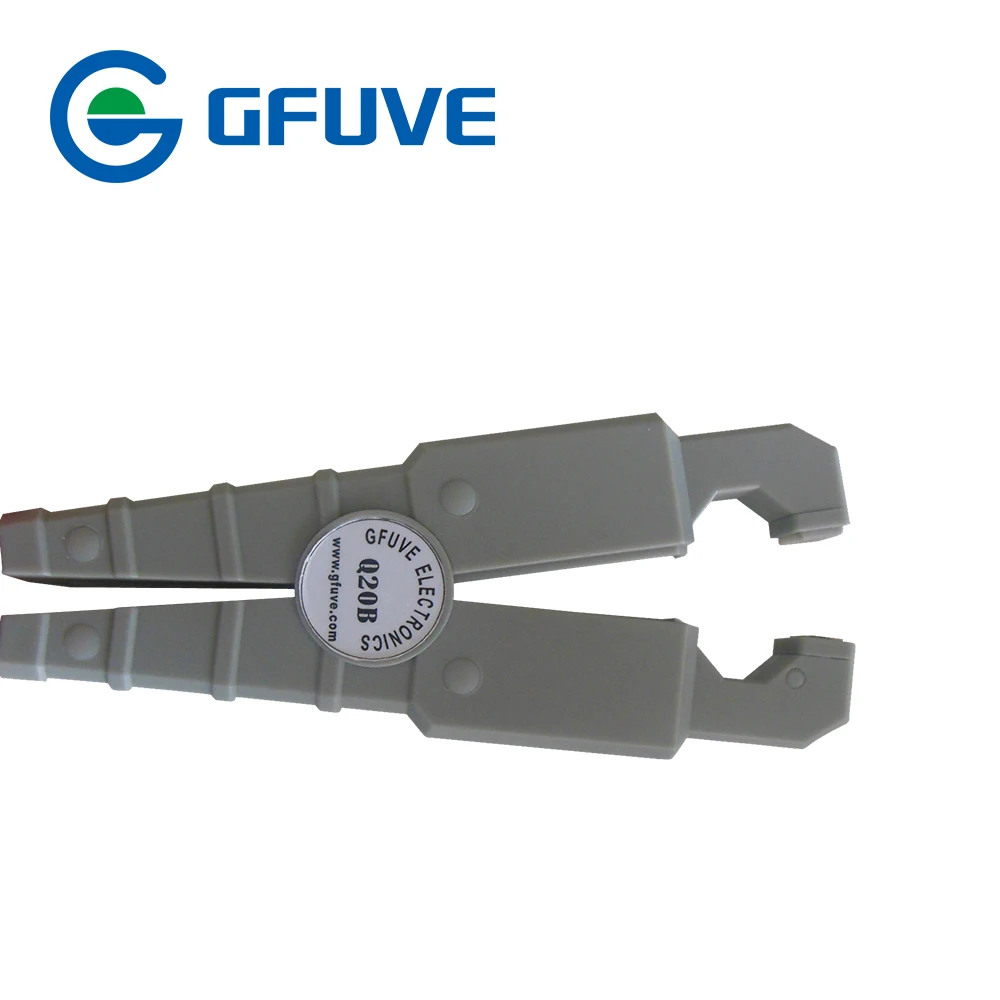

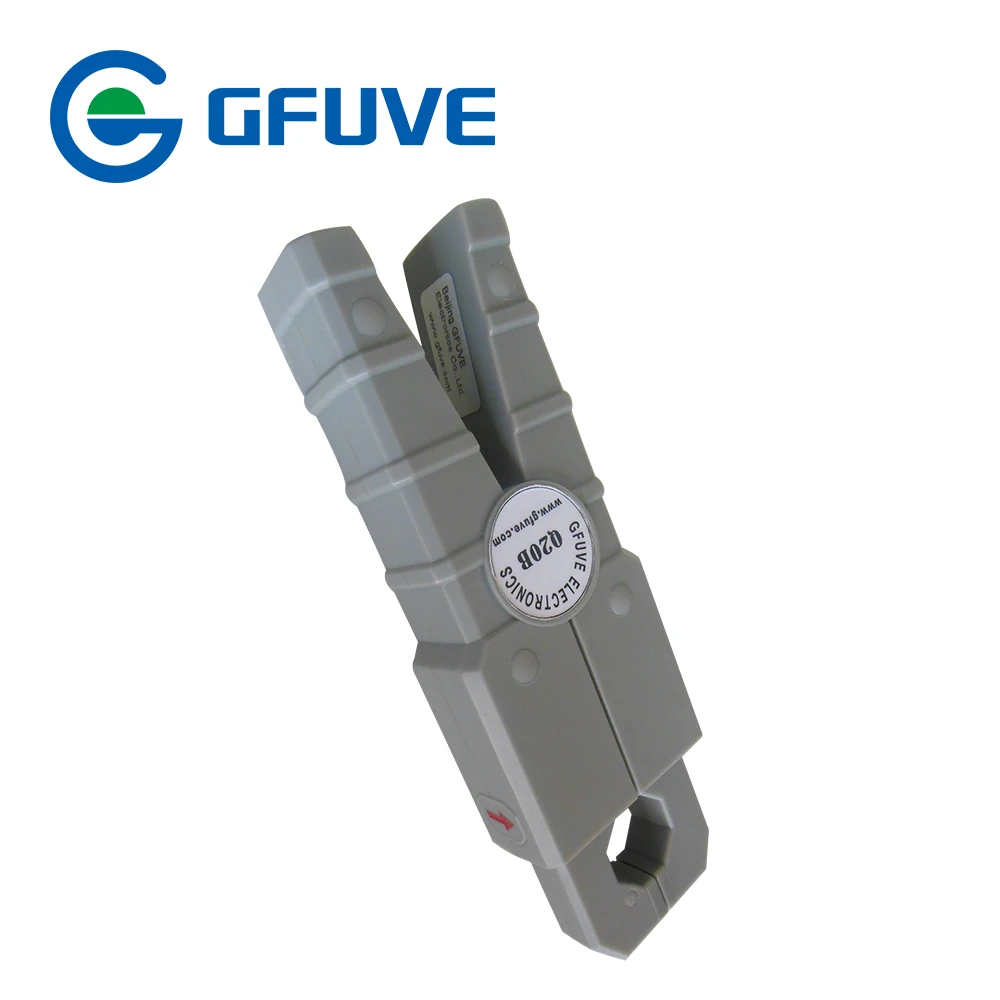

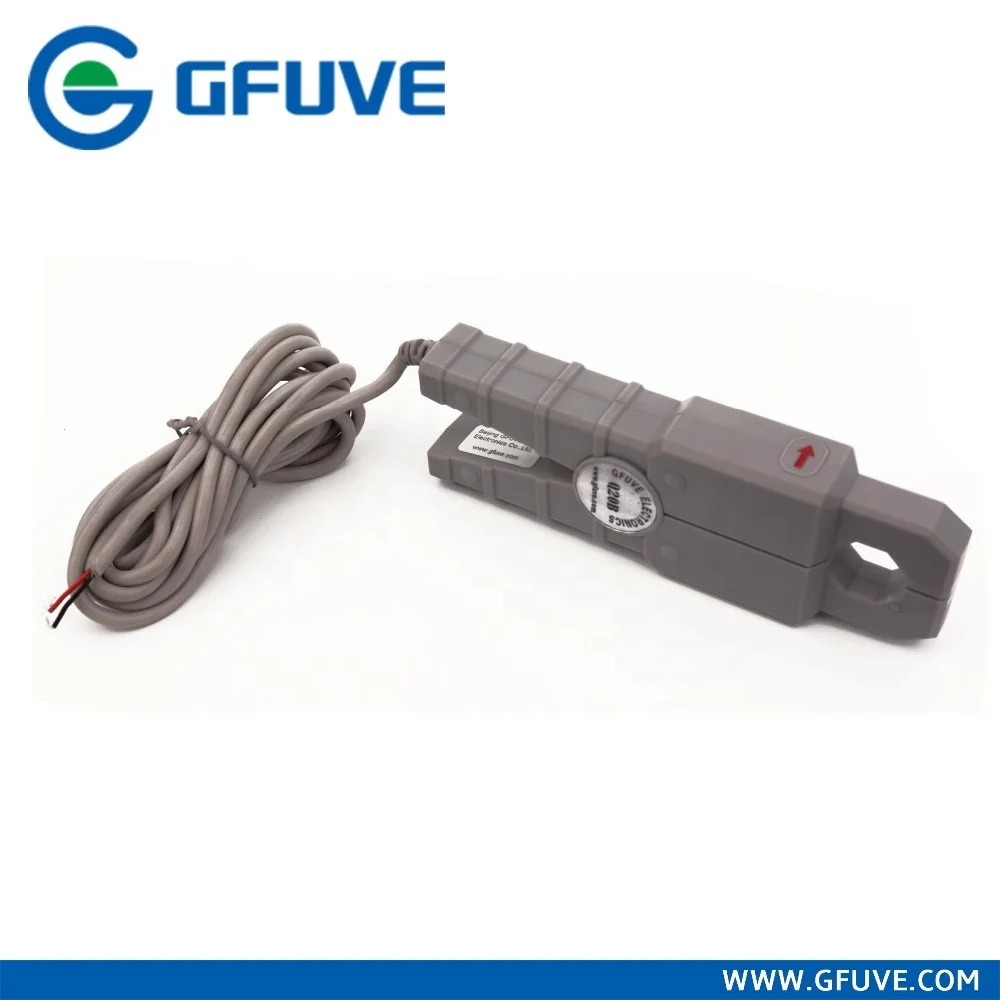

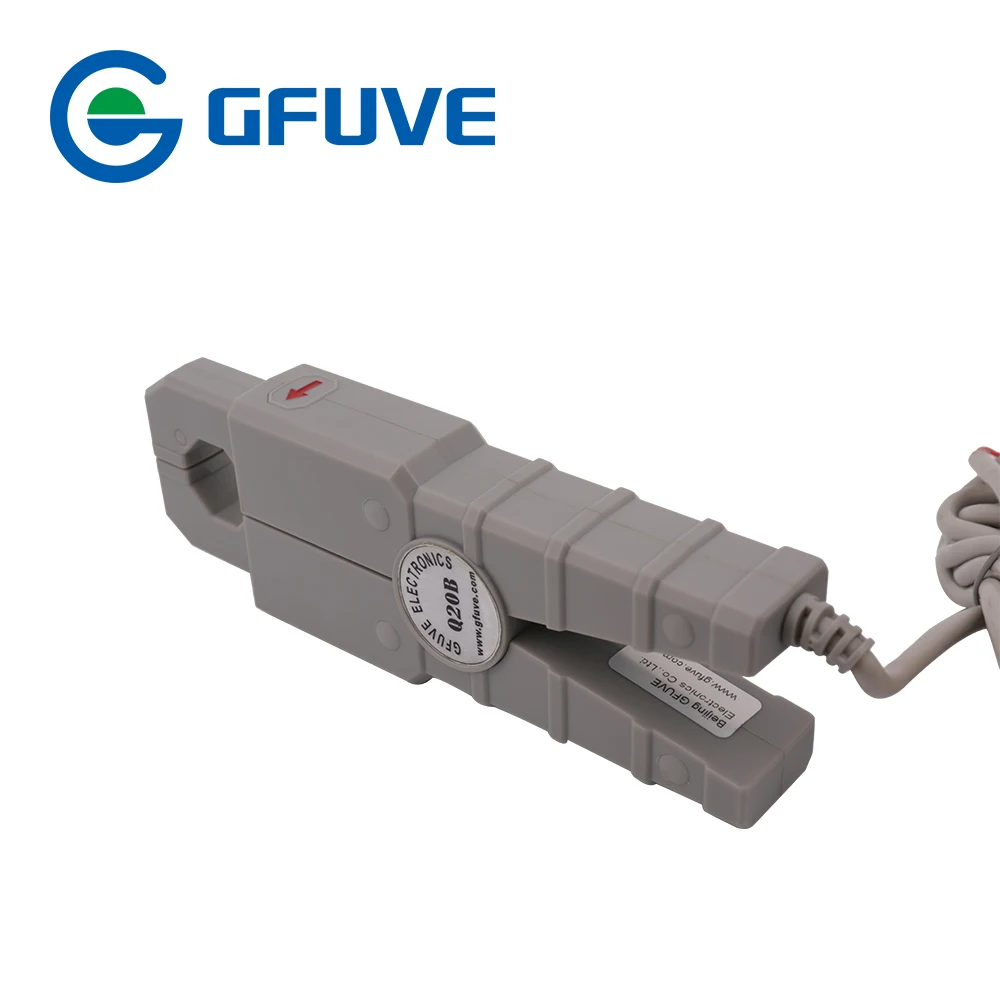

Q20B CHEAP 1000:1 RATIO 100A AC CURRENT CLAMP ON CT AC clamp on CT clamp on current transformer

The model Q20B cheap 100A AC current clamp on CT are best-in-class devices for use with power meters, power analyzers and high performance oscilloscopes. Its primary current range is 0-200A AC and secondary current range is 0-200mA, 0-200mV or 0-2V AC. Adopts Permalloy core and CT double-layer shielding technology, with high performance and high accuracy, high anti-interference ability, suitable for complex interference environment. Wide bandwidth 2M Hz, high precision 0.1%, according to EN 61010-1, EN 61010-2-032, IEC60044-1 Standard.

1. Small, compact size;


2. UL, CE, CNAS mark;


3. With load capacity ≤20Ω;


4. With harmonic measurement;


5. Holding wire diameter: φ20mm;


6. Frequency 10Hz-2MHz Bandwidth;


7. Measurement range of 1mA to 120A AC;


8. Low phase shift for power measurement;


9. High content nickel metal permalloy core;


10. Conforms to EN 61010-2-032, 600V CAT III;


11. Improved ergonomic design & easy operation;


12. High precision 0.1% for current measurement;


13. Designed for DMMs, recorders, calibrators, power and harmonic meters;

1. Multimeter;


2. Power meter;


3. Phase angle meter;


4. Energy sub-meters;


5. Oscilloscopes meter;


6. Power load monitoring;


7. Data logging/recording;


8. Power and harmonic meters;


9. Power quality analyzer(PQA);


10. Energy meter field calibrator;


11. Measuring around cable bundles;

SELECTION GUIDE
