High Quality Regular Gypsum Board Drywall Gypsum Plasterboard Ceiling 9 12mm Plaster Board For House Decoration
- Category: >>>
- Supplier: Lanzhou Jintailong Building Materials Co. Ltd.
Share on (1601031664796):
Product Overview
Description
High Quality Regular Gypsum Board Drywall Gypsum Plasterboard Ceiling 9-12mm Plaster Board For House Decoration
Specification
Size | 1220*2440mm 1220*1830mm 1200*2400mm 1200*2500mm 1200*3000mm...etc. |
Thickness | 9.5mm,12.5mm,13mm,15mm,18mm |
Main Raw Material | Gypsum Powder |
Face & Back | Paper |
Edge | Square edge & Tapered Edge |
Type | Decorative Plasterboards |
Product Description
The gypsum board produced by our company is divided into moisture resistant gypsum board, fire resistant gypsum board and standard gypsum board. With the advantages of light weight, high strength, thin thickness and various size, is widely used in all kinds of buildings wall panels, ceilings, sound-absorbing panels, floor boards and a variety of decorative panels in the field of residential, office buildings, shops, hotels and industrial buildings, etc.
Product Advantage:
1.Strong nail-pull resistance, excellent anti-sinking performance.
2.Adopt foaming technology to produce uniform and fine foam to achieve higher strength.
3.Smaller mass per unit area, lighter and much more labor saving.
4.Easier to install、cut and fold, with smooth edges and less fallen dust.
2.Adopt foaming technology to produce uniform and fine foam to achieve higher strength.
3.Smaller mass per unit area, lighter and much more labor saving.
4.Easier to install、cut and fold, with smooth edges and less fallen dust.
Features of JTL Reinforced Gypsum Board
1.We can provide three kinds of Reinforced Gypsum Board as following: standard Reinforced Gypsum Board, waterproof gypsum board,fireproof Reinforced Gypsum Board
2.Material: 95% pure nature gypsum powder, 90 degree white, no any smell.
3.Normally it be used in housing, hotel, school, hospital, factory etc.
4.The price of tegular edge is the same as the square edge.
5.Both metric and imperial systems are accept.
6.Packing: Two sheets are packed face to face with tapes.
7.Standard size: 1200*2400mm or 1220*2440mm, special size is available if bulk quantity.
8.LOGO: Extra cost needed if use your logo on the tapes, but our logo is free
9.SHIPPING TIME: 7-20 working days after receiving your advance payment, some specifications are in stock
2.Material: 95% pure nature gypsum powder, 90 degree white, no any smell.
3.Normally it be used in housing, hotel, school, hospital, factory etc.
4.The price of tegular edge is the same as the square edge.
5.Both metric and imperial systems are accept.
6.Packing: Two sheets are packed face to face with tapes.
7.Standard size: 1200*2400mm or 1220*2440mm, special size is available if bulk quantity.
8.LOGO: Extra cost needed if use your logo on the tapes, but our logo is free
9.SHIPPING TIME: 7-20 working days after receiving your advance payment, some specifications are in stock

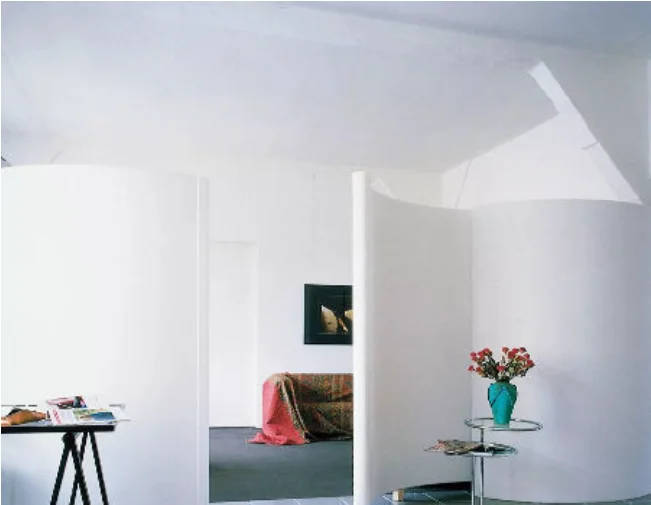

Standard Gypsum board
Lightweight;
Scope of application;
Common partition wall;
Common veneer wall; Ceiling
Scope of application;
Common partition wall;
Common veneer wall; Ceiling

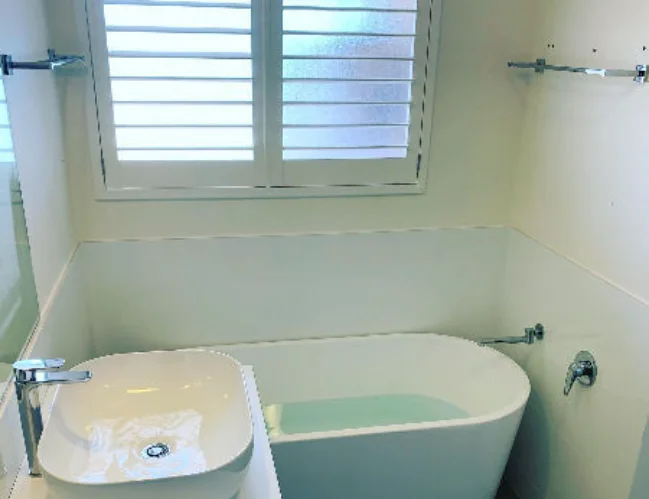

Moisture-Resistant Gypsum board
For humid environments;
Scope of application;
Kitchen, toilet, bathroom;
Temporary building
Scope of application;
Kitchen, toilet, bathroom;
Temporary building
Fire-resistant Gypsum board
High fire performance;
Scope of application; Fire exit;
Ceiling systems and partitions with requirements;
high-performance fire-fighting
Scope of application; Fire exit;
Ceiling systems and partitions with requirements;
high-performance fire-fighting
Technical Data
Item | Standard | Test Value | |
Rupture Load(N) | Thickness 9.5mm–Vertical | ≥ 360 | |
Thickness 9.5mm–Horizontal | ≥ 140 | ||
Thickness 12mm–Vertical | ≥ 500 | ||
Thickness 12mm–Horizontal | ≥ 180 | ||
Dimension Difference(mm) | Length | -6—0 | |
Width | -5—0 | ||
Thickness 9.5mm | ± 0.5 | ||
Thickness 12mm | ± 0.6 | ||
The Stability of Meeting Fire (For Fireproof Reinforced Gypsum Board) | Not Less Than 20min | ||
Cater-corner Length Difference MM | ≤ 5 | ||
Inner Irradiation Ratio | I Ra ≤ 1.0 | ||
Outer radiation Ratio | I γ ≤ 1.3 | ||
Weight per unit (kg/m² )-9.5thickness | ≤ 9.5 | ||

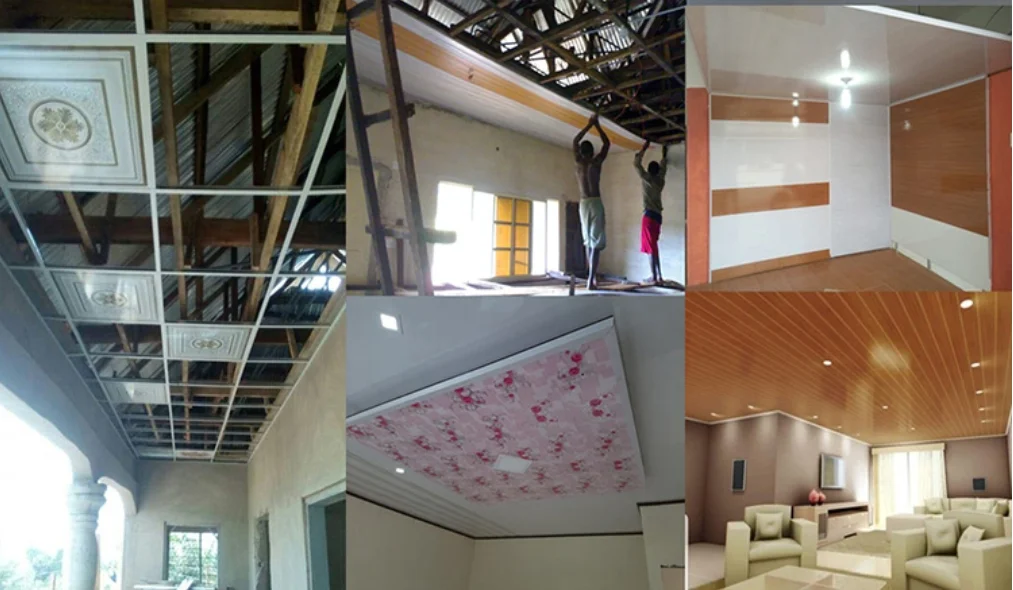

Application
Installations
1. The drywall should be installed sequentially starting from the end of one side of the wall.
2. Two adjacent plasterboards are naturally close together (leave the seam at 5mm).
3. The edge of the gypsum board should be located in the center of the keel, and the overlapping width of the gypsum board and the keel should not be less than 15mm.
4. The side mouth of gypsum board should be tightened with the wall, leaving no gaps (except for sound insulation and fireproof ceilings).

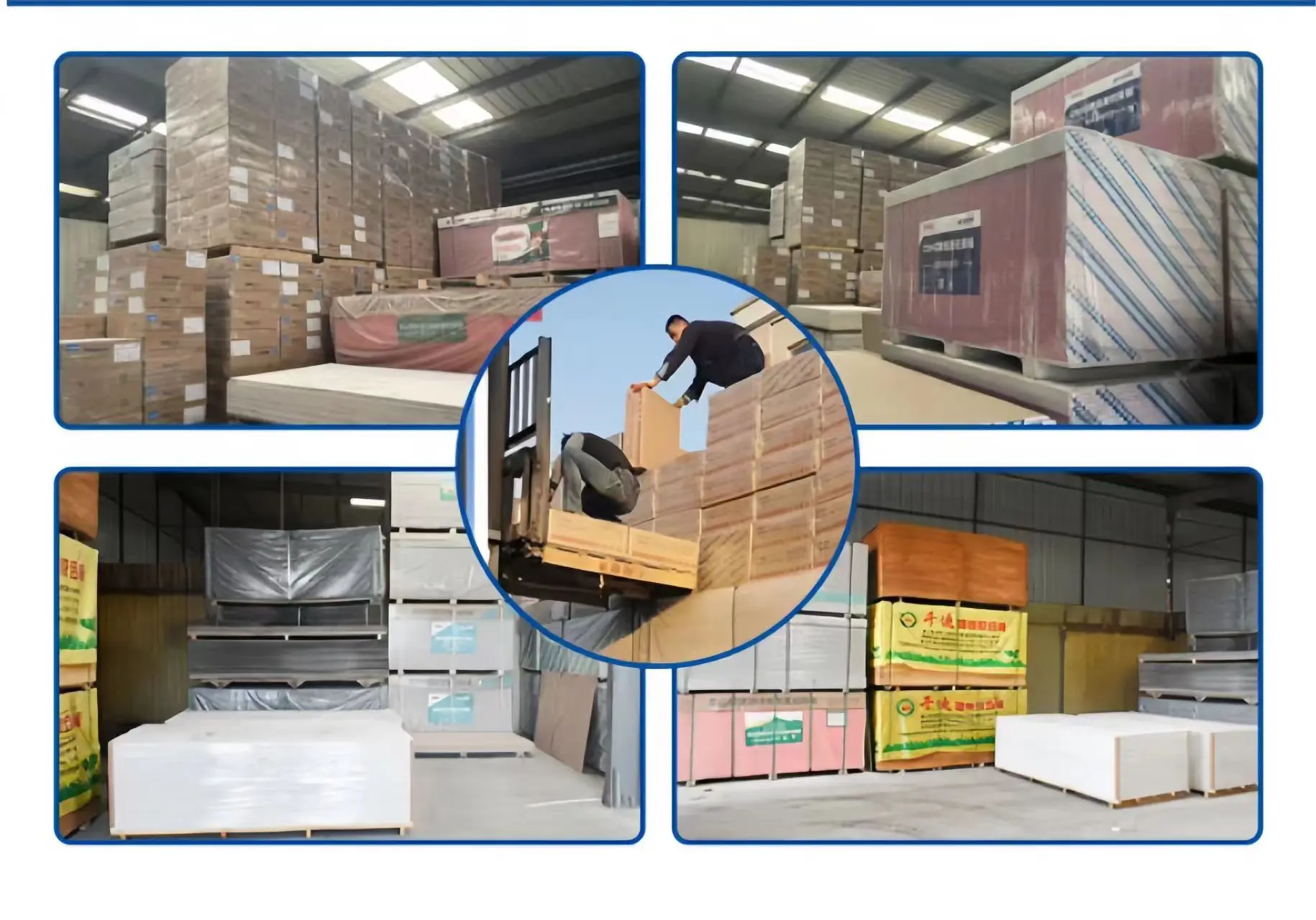

Packing & Delivery
Two sheets glued together without pallets by hand in bulk,20'container
Two sheets glued together with pallets by forklift in 40'container
Types | Thickness | Kg/m2 | 20'Container |
Normal | 9.5mm | 7.60 KGS | 880 PCS |
12mm | 8.80 KGS | 720 PCS | |
12.7mm | 9.20 KGS | 670 PCS | |
15mm | 11.60 KGS | 520 PCS | |
15.9mm | 12.00 KGS | 480 PCS |
Related Product
Company Profile
Founded in 1999, Lanzhou Jintailong building materials Co., Ltd. is the first manufacturer of light steel keel and gypsum board in Gansu Province. The annual output of the enterprise is 3 million square meters of gypsum board and 3000 tons of light steel keel. The enterprise has abundant funds and advanced production technology. At present, its products are mainly sold to five provinces in the northwest. The enterprise has passed the ISO9001-2000 quality management system certification. It has been awarded the honorary titles of "contract abiding, trustworthy enterprise" and "honest private enterprise" in Baiyin City, Gansu Province.
FAQ
1.Can we have discount?
Our price is only have small interest, we do not hope to waste your time in price ,Our factory mainly focus on quality control and offer ceiling solution. You get what you pay here.
2.Do you guarantee the quality of your products?
Yes, we are directly supplied by the manufacturer, the quality can be guaranteed.
3.Can your products be customized?
Yes, our products can be customized.
4.Payment term?
T/T,L/C,Yes,by T/T,30% deposite before production,70% balance before delivery.
5.where is your location?
We are located in Lanzhou,Gansu province.
Our price is only have small interest, we do not hope to waste your time in price ,Our factory mainly focus on quality control and offer ceiling solution. You get what you pay here.
2.Do you guarantee the quality of your products?
Yes, we are directly supplied by the manufacturer, the quality can be guaranteed.
3.Can your products be customized?
Yes, our products can be customized.
4.Payment term?
T/T,L/C,Yes,by T/T,30% deposite before production,70% balance before delivery.
5.where is your location?
We are located in Lanzhou,Gansu province.
