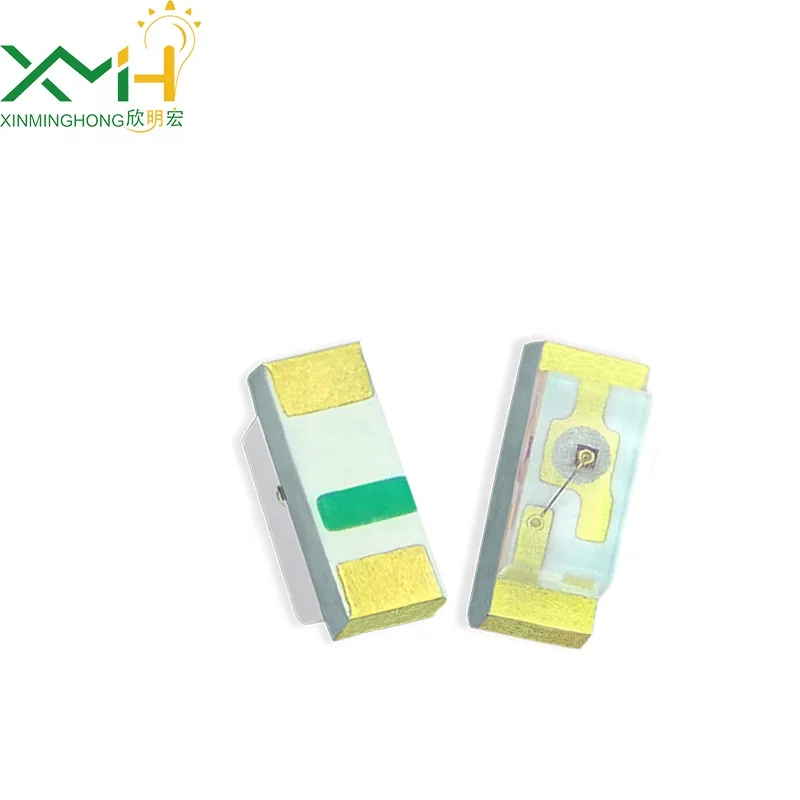

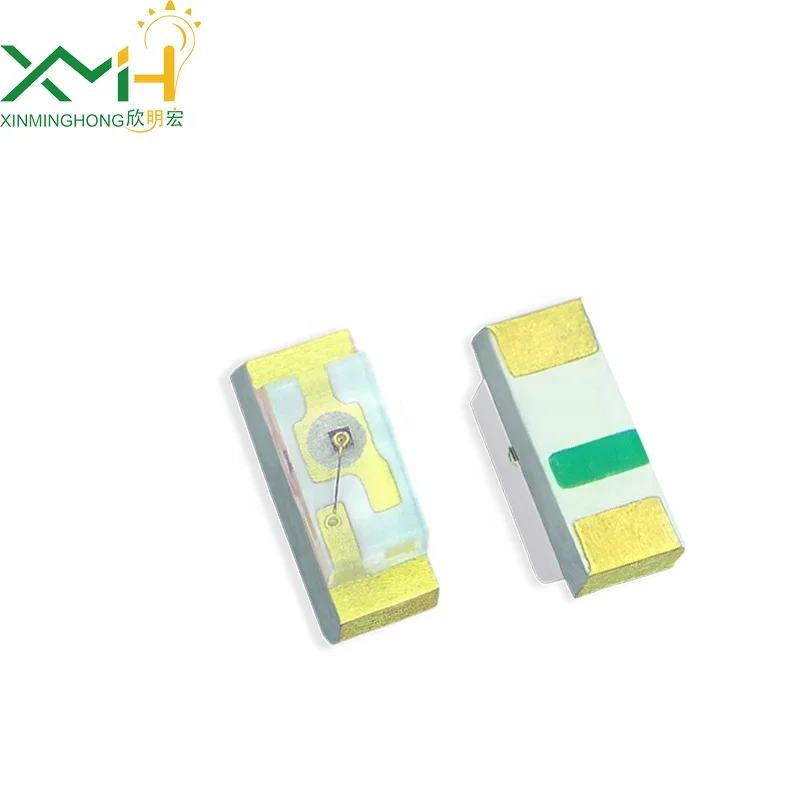

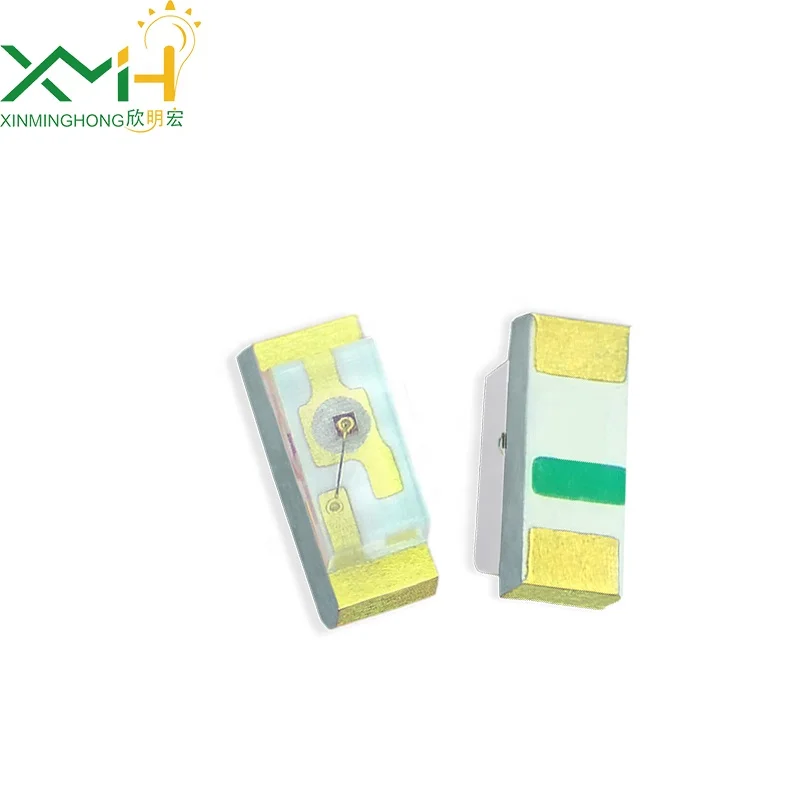

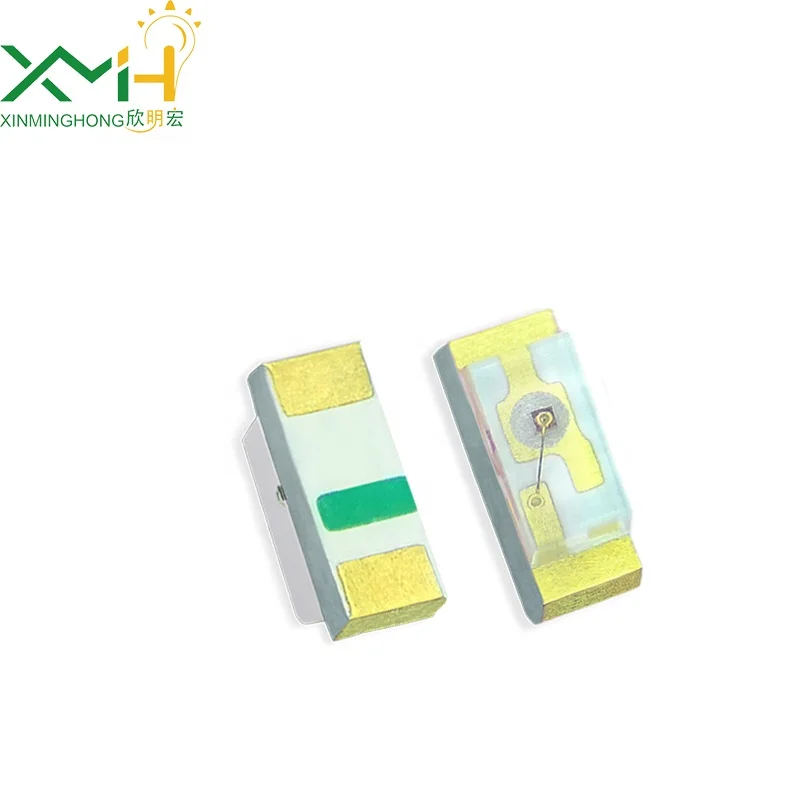

Small Size Side Mount RGB SMD LED, 0603/0602 Tricolor Surface Diode LED
- Category: >>>
- Supplier: Shenzhen Xinminghong Electronic Co. Limited
Share on (1601031733902):
Product Overview
Description
Product Category
Product Description

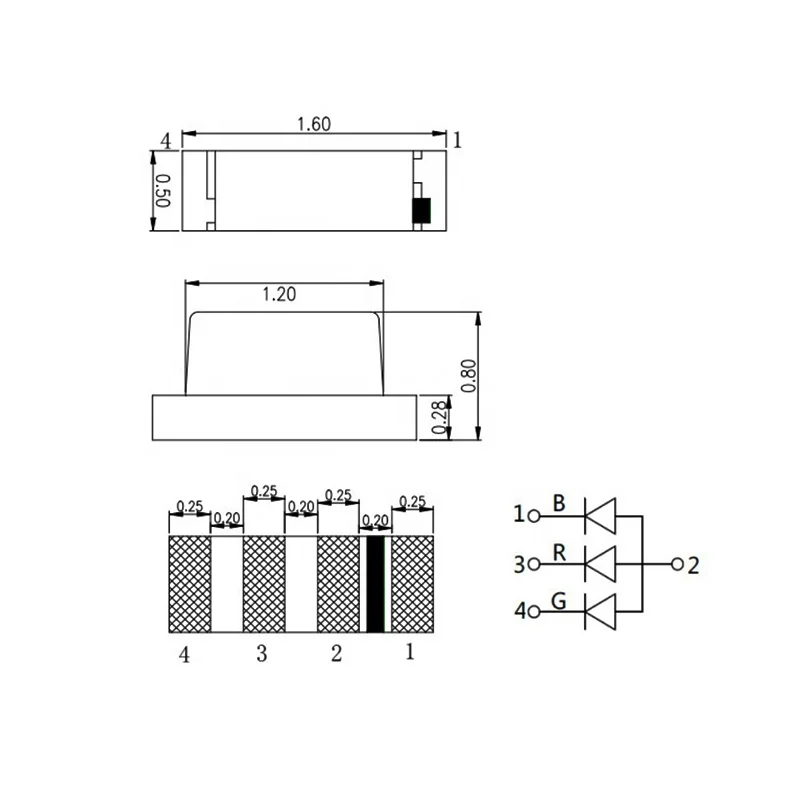

Outline dimension:
Feature:
1.6x0.5×0.8mmmm SMD LED
Avaliable color:red yellow blue green RGB etc.
Low power consumption
Wide view angle
Long lifespan
Super birghtness
High reliablity
Package:4000pcs/reel
ROHS Compliant
Application:
Ideal for backlight and indicator
Various colors and lens types available
Absolute Maximum rating:(Ta=25°C)
| Parameter | Symbol | Value | Unit |
| Forward current | If | 30 | mA |
| Reverse Voltage | Vr | 5 | V |
| Power dissipation | Pd | 90 | mW |
| Operationg temperature | Top | -40∼+85 | °C |
| ESD(Human-body mode | -- | 2 | KV |
| Storage temperature | Tstg | -40∼+85 | °C |
| Peak pulsing current(1/8 duty f=1kHz | lfP | 125 | mA |
Electrical characteristics:(Ta=25°C)
| Parameter | Test condition | Symbol | Value | Unit | |||
| Min | Typ | Max | |||||
| Dominant wavelength | If=20mA | λd | red | 620 | --- | 630 | nm |
| green | 520 | --- | 530 | ||||
| blue | 460 | --- | 465 | ||||
| Forward voltage | If=20mA | Vf | red | 1.8 | --- | 2.4 | v |
| green | 2.8 | --- | 3.2 | ||||
| blue | 2.8 | --- | 3.2 | ||||
| Luminous intensity | If=20mA | Iv | red | 100 | --- | 200 | mcd |
| green | 300 | --- | 800 | ||||
| blue | 100 | --- | 200 | ||||
| Viewing angle at 50% lv | If=10mA | 2θ1/2 | 140 | Deg | |||
| Resverse current | Vr=5v | Ir | 10 | mA | |||
Related Products
Certifications
Packaging & Shipping
PACKAGE:
Standard export carton packing.
DELIVERY TIME:
1-7 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
