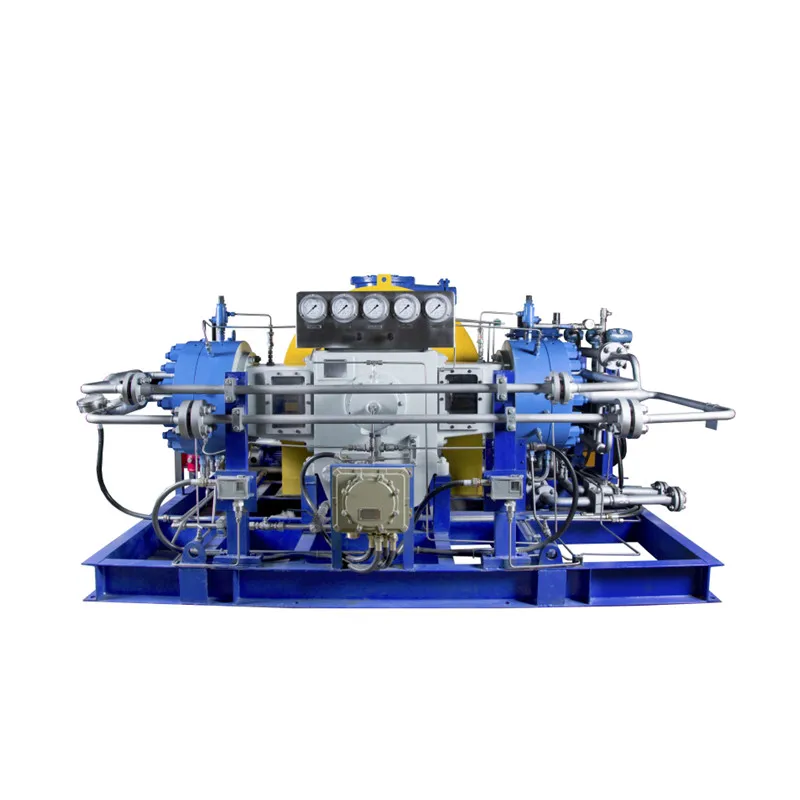

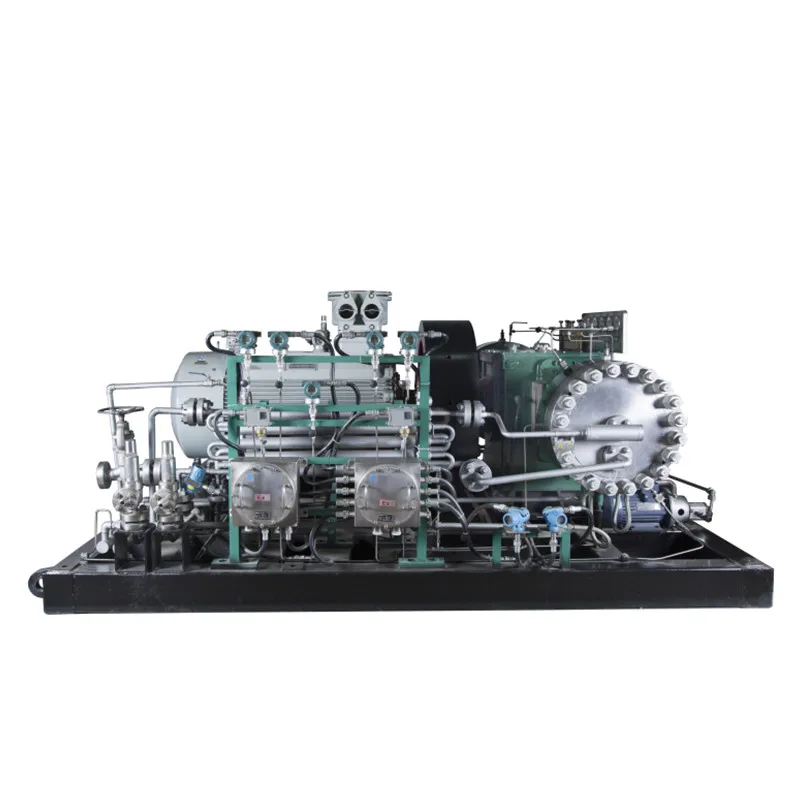

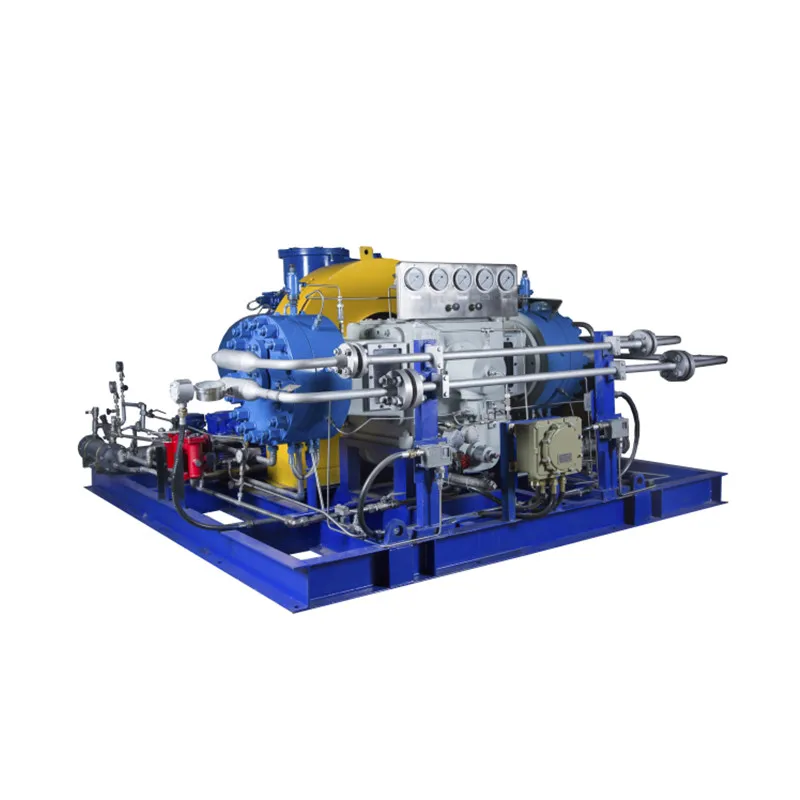

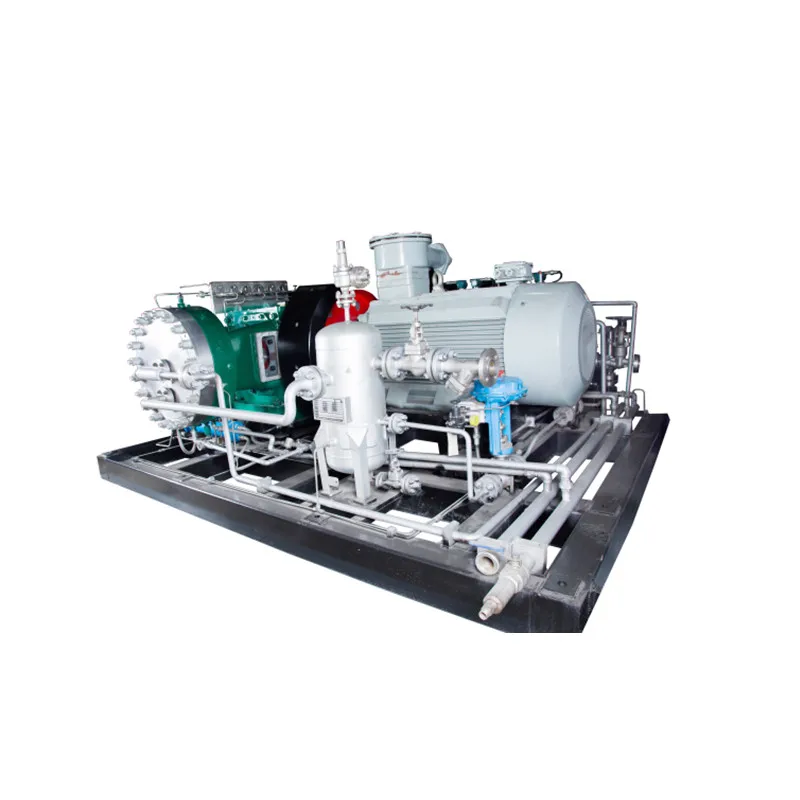

High Purity Diaphragm Booster Compressor for Special Gas Argon Hydrogen and Petroleum Gas
- Category: >>>
- Supplier: Xuzhou Huayan Gas Equipment Co. Ltd.
Share on (1601031753473):
Product Overview
Description
Product Description
Diaphragm Nitrogen Helium Oxygen Booster Compressor for Special Gas, Argon, Hydrogen, and Petroleum
Our company specialize in making various kinds of compressors, such as:Diaphragm compressor,Piston compressor, Air compressors,Nitrogen generator,Oxygen generator ,Gas cylinder,etc. All products can be customized according to your parameters and other requirements.

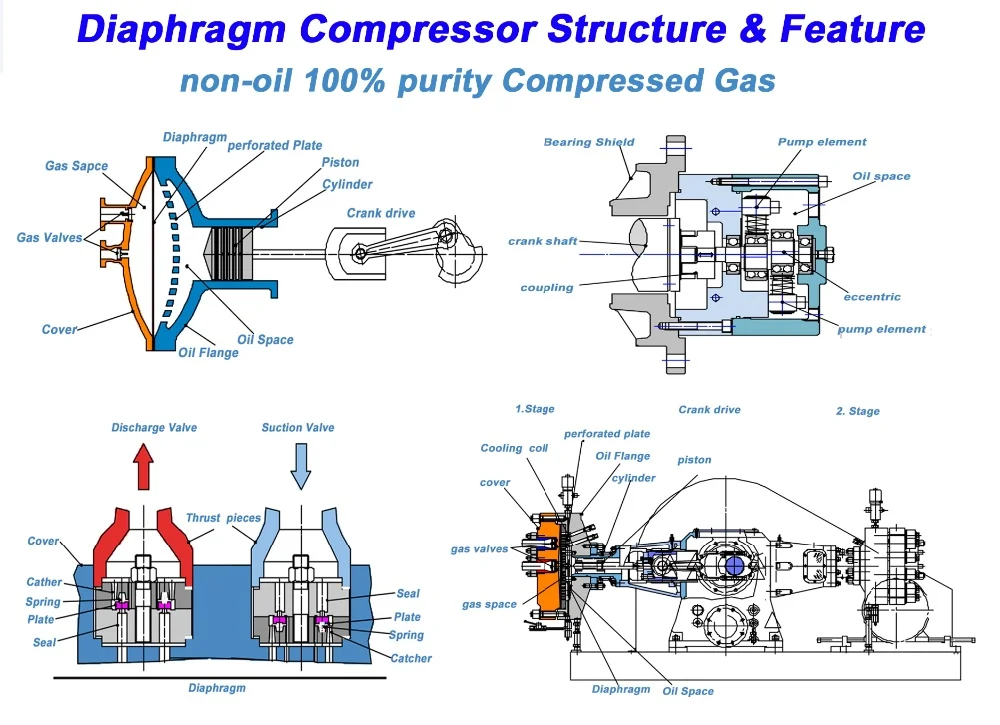

Process principle
Diaphragm compressor according to the needs of the user, choose the right type of compressor to meet the needs of the user. The diaphragm of the metal diaphragm compressor completely separates the gas from the hydraulic oil system to ensure the purity of the gas and no pollution to the gas. At the same time, advanced manufacturing technology and accurate membrane cavity design technology are adopted to ensure the service life of the diaphragm compressor diaphragm. No pollution: the metal diaphragm group completely separates the process gas from the hydraulic oil and lubricating oil parts to ensure the gas purity.
Main Structure
Diaphragm compressor structure is mainly composed of motor, base, crankcase, crankshaft linkage mechanism, cylinder components, crankshaft connecting rod, piston, oil and gas pipeline, electric control system and some accessories.
Gas Media type
Our compressors can compress ammonia, propylene, nitrogen, oxygen, helium, hydrogen, hydrogen chloride, argon, hydrogen chloride, hydrogen sulfide, hydrogen bromide, ethylene, acetylene, etc.(Nitrogen diaphragm compressor,bottle filling compressor,oxygen diaphragm compressor)
GV Model Simple Description
GV diaphragm compressor is a special structure of the volumetric compressor, is the highest level of compression in the field of gas compression, this compression method Without secondary pollution, it can ensure the purity of gas is more than 5, and it has very good protection against compressed gas. It has the characteristics of large compression ratio, good sealing performance, and the compressed gas is not polluted by lubricating oil and other solid impurities. Therefore, it is suitable for compressing high-purity, rare and precious, flammable, explosive, toxic, harmful, corrosive and high-pressure gases. The compression method is generally specified in the world for compressing high-purity gas, flammable and explosive gas, toxic gas and oxygen. Etc. (such as nitrogen diaphragm compressor, oxygen diaphragm compressor, hydrogen sulfide diaphragm compressor, argon diaphragm compressor, etc.).
Advantages
No leakage: the compressor membrane head is sealed by static "O" ring. The O "ring is made of elastic material, with long service life and no dynamic seal to ensure no leakage during gas compression.
Corrosion resistance: the compressor membrane head can be made of 316L stainless steel, the diaphragm is made of 301 stainless steel.
Small tightening torque: "O" ring seal, can reduce flange bolt tightening torque, reduce shutdown maintenance time.
Process principle
Diaphragm compressor according to the needs of the user, choose the right type of compressor to meet the needs of the user. The diaphragm of the metal diaphragm compressor completely separates the gas from the hydraulic oil system to ensure the purity of the gas and no pollution to the gas. At the same time, advanced manufacturing technology and accurate membrane cavity design technology are adopted to ensure the service life of the diaphragm compressor diaphragm. No pollution: the metal diaphragm group completely separates the process gas from the hydraulic oil and lubricating oil parts to ensure the gas purity.
Main Structure
Diaphragm compressor structure is mainly composed of motor, base, crankcase, crankshaft linkage mechanism, cylinder components, crankshaft connecting rod, piston, oil and gas pipeline, electric control system and some accessories.
Gas Media type
Our compressors can compress ammonia, propylene, nitrogen, oxygen, helium, hydrogen, hydrogen chloride, argon, hydrogen chloride, hydrogen sulfide, hydrogen bromide, ethylene, acetylene, etc.(Nitrogen diaphragm compressor,bottle filling compressor,oxygen diaphragm compressor)
GV Model Simple Description
GV diaphragm compressor is a special structure of the volumetric compressor, is the highest level of compression in the field of gas compression, this compression method Without secondary pollution, it can ensure the purity of gas is more than 5, and it has very good protection against compressed gas. It has the characteristics of large compression ratio, good sealing performance, and the compressed gas is not polluted by lubricating oil and other solid impurities. Therefore, it is suitable for compressing high-purity, rare and precious, flammable, explosive, toxic, harmful, corrosive and high-pressure gases. The compression method is generally specified in the world for compressing high-purity gas, flammable and explosive gas, toxic gas and oxygen. Etc. (such as nitrogen diaphragm compressor, oxygen diaphragm compressor, hydrogen sulfide diaphragm compressor, argon diaphragm compressor, etc.).
Advantages
No leakage: the compressor membrane head is sealed by static "O" ring. The O "ring is made of elastic material, with long service life and no dynamic seal to ensure no leakage during gas compression.
Corrosion resistance: the compressor membrane head can be made of 316L stainless steel, the diaphragm is made of 301 stainless steel.
Small tightening torque: "O" ring seal, can reduce flange bolt tightening torque, reduce shutdown maintenance time.
Products Description
We Produce helium, oxygen, hydrogen ,nitrogen gas compressors and etc . Available with 1,500 psi to 60,000 psi operating pressure ;
3 hp to 100 hp motor.;
Suitable for gas leak and pneumatic testing, chemical processing, hot isostatic pressing, instrument calibration and air bag inflator filling applications. Compressors can be
customized for specific pressures, capacities and applications.

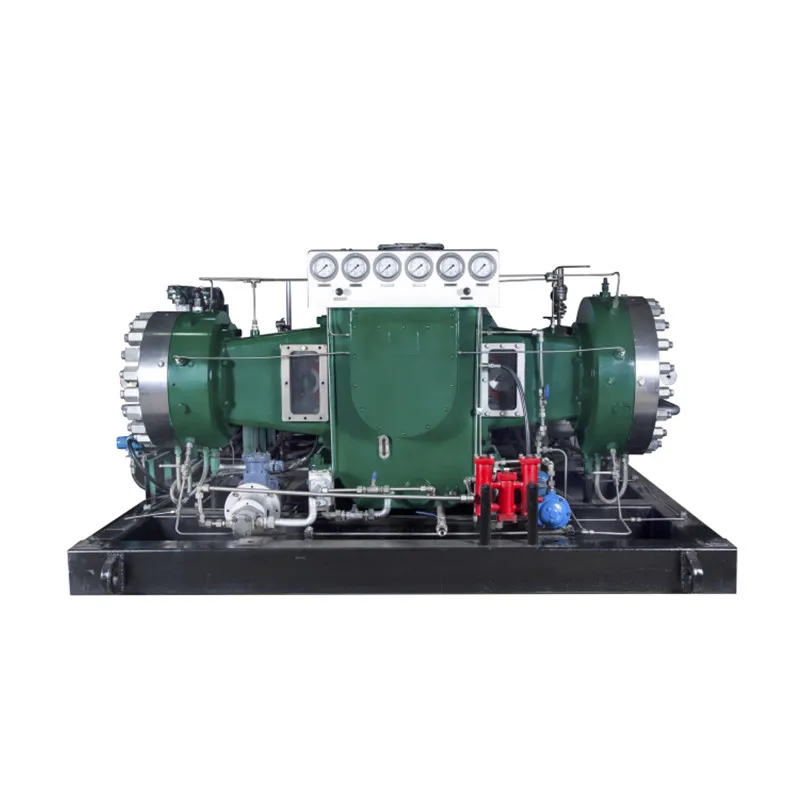

Structural:D type
stroke: 130mm~210mm Max piston force: 40KN~160KN
Max discharge pressure: 100MPa
Flow range: 30~2000Nm3/h
Cooling method: air/water
Title goes here.
Product features:1. Good sealing performance:
Diaphragm compressor is a kind of special structure positive displacement compressor, the gas does not need lubrication, good sealing performance, the compression medium does not contact with any lubricant, will not produce any contamination in the compression process, Especially suitable for high purity (99.9999% above), rare, highly corrosive, toxic ,harmful, flammable , explosive and radioactive gas compression, transportation and bottle filling.
2.Cylinder heat dissipation performance is good:
Compressor cylinder heat dissipation performance is good, close to isothermal compression, can use high compression ratio, suitable for compression of high pressure gas.
Diaphragm compressor is a kind of special structure positive displacement compressor, the gas does not need lubrication, good sealing performance, the compression medium does not contact with any lubricant, will not produce any contamination in the compression process, Especially suitable for high purity (99.9999% above), rare, highly corrosive, toxic ,harmful, flammable , explosive and radioactive gas compression, transportation and bottle filling.
2.Cylinder heat dissipation performance is good:
Compressor cylinder heat dissipation performance is good, close to isothermal compression, can use high compression ratio, suitable for compression of high pressure gas.
GD series diaphragm compressor parameter table | ||||||||||||||||
No. | Model | Cooling water(L/h) | Flow (Nm³/h) | inlet pressure (MPa) | outlet pressure (MPa) | Dimensions L×W×H (mm) | Weight (Kg) | Motor Power (kW) | ||||||||
1 | GD-120/4-80 | 3.0 | 120 | 0.4 | 8.0 | 3000×1600×1400 | 4.0 | 30 | ||||||||
2 | GD-130/0.98-11 | 3.0 | 130 | 0.098 | 1.1 | 3000×1800×1600 | 4.0 | 30 | ||||||||
3 | GD-150/2-20 | 3.0 | 150 | 0.2 | 2.0 | 3000×1800×1600 | 4.0 | 37 | ||||||||
4 | GD-100/0.1-5 | 4.0 | 100 | 0.01 | 0.5 | 2800×1500×1500 | 3.0 | 18.5 | ||||||||
5 | GD-100/5.5-200 | 5.0 | 100 | 0.55 | 20 | 3200×2000×1600 | 4.5 | 45 | ||||||||
6 | GD-80/0.12-4 | 5.0 | 80 | 0.012 | 0.4 | 2800×1600× 1500 | 3.8 | 15 | ||||||||
7 | GD-60/0.3-6 | 4.0 | 60 | 0.03 | 0.6 | 2800×1600×1500 | 4.0 | 15 | ||||||||
8 | GD-70/0.1-8 | 3.8 | 70 | 0.01 | 0.8 | 3000×1600×1250 | 5.0 | 18.5 | ||||||||
9 | GD-40/0.02-160 | 5.0 | 40 | 0.02 | 16 | 2800×1460×1530 | 3.0 | 22 | ||||||||
10 | GD-100/0.5-6 | 2.0 | 100 | 0.05 | 0.6 | 3000×2000×1560 | 6.0 | 18.5 | ||||||||
11 | GD-36/1-150 | 4.0 | 36 | 0.1 | 15 | 3000×1500×1500 | 4.0 | 45 | ||||||||
12 | GD-35/0.7-300 | 4.0 | 35 | 0.07 | 30 | 3000×1600×1500 | 4.0 | 22 | ||||||||
13 | GD-500/15-35 | 4.5 | 500 | 1.5 | 3.5 | 3000×2000×1700 | 4.0 | 45 | ||||||||
14 | GD-150/15-210 | 4.5 | 150 | 1.5 | 21 | 3200×1700×1600 | 4.0 | 45 | ||||||||
15 | GD-120/8-220 | 4.5 | 120 | 0.8 | 22 | 3200×1700×1600 | 3.8 | 45 | ||||||||
16 | GD-100/9 | 4.5 | 100 | 0.0 | 0.9 | 3200×1700×1800 | 4.5 | 22 | ||||||||
17 | GD-100/1.5-150 | 4.5 | 100 | 0.15 | 15 | 3200×1700×1800 | 4.5 | 45 | ||||||||
18 | GD-40/30 | 4.5 | 40 | 0.0 | 3.0 | 3200×1700×1800 | 4.0 | 18.5 | ||||||||
19 | GD-200/10-15-90 | 4.5 | 200 | 1.0-1.5 | 9.0 | 3200×1800×1600 | 4.0 | 37 | ||||||||
20 | GD-100/7-150 | 4.0 | 100 | 0.7 | 15 | 3000×1800× 1600 | 4.0 | 55 | ||||||||
21 | GD-25/-0.1-47 | 4.0 | 25 | -0.01 | 4.7 | 3000×1800×1600 | 4.0 | 15 | ||||||||
22 | GD-45/0.5-100 | 4.0 | 45 | 0.05 | 10 | 3000×1800×1600 | 4.0 | 30 | ||||||||
23 | GD-30/0.1-160 | 4.0 | 30 | 0.01 | 16 | 3000×1800×1600 | 4.0 | 18.5 | ||||||||
24 | GD-120/2.5-70 | 4.0 | 120 | 0.25 | 7.0 | 3000×1800×1600 | 4.0 | 37 | ||||||||
25 | GD-135/10-210 | 4.0 | 135 | 1.0 | 21 | 3000×1600×1400 | 4.0 | 37 | ||||||||
26 | GD-60/40-350 | 4.5 | 60 | 4.0 | 35 | 3000×1800×1600 | 4.0 | 30 | ||||||||
27 | GD-95/10-350 | 4.0 | 95 | 1.0 | 35 | 3000×1600×1400 | 4.0 | 37 | ||||||||
28 | GD-220/11-90 | 4.0 | 220 | 1.1 | 9.0 | 3000×1800×1600 | 4.0 | 37 | ||||||||
29 | GD-300/15-220 | 4.5 | 300 | 1.5 | 22 | 3600×2200×1700 | 5.0 | 75 | ||||||||
30 | GD-300/13-210 | 5.0 | 300 | 1.3 | 21 | 3500×2300×1800 | 6.0 | 75 | ||||||||
31 | GD-120/12-350 | 6.5 | 120 | 1.2 | 35 | 3500×2300×1600 | 8.5 | 45 | ||||||||
32 | GD-165/10-250 | 8.0 | 165 | 1.0 | 25 | 3500×2300×1500 | 8.5 | 55 | ||||||||
33 | GD-120/8-350 | 6.5 | 120 | 0.8 | 35 | 3500×2300×1600 | 8.5 | 45 | ||||||||
34 | GD-800/210-320 | 8.0 | 800 | 21 | 32 | 3500×2300×1500 | 8.5 | 37 | ||||||||
35 | GD-420/8-39 | 6.5 | 420 | 0.8 | 3.9 | 3600×2500×1700 | 6.0 | 75 | ||||||||
36 | GD-370/20-200 | 4.5 | 370 | 2.0 | 20 | 3600×2200×1700 | 5.0 | 75 | ||||||||
37 | GD-350/18-210 | 4.5 | 350 | 1.8 | 21 | 3600×2200×1700 | 5.0 | 75 | ||||||||
38 | GD-300/8-120 | 4.5 | 300 | 0.8 | 12 | 3600×2200×1700 | 5.0 | 75 | ||||||||
39 | GD-308/4 | 10.0 | 308 | 0 | 0.4 | 4200×3200×2600 | 10.0 | 55 | ||||||||
40 | GD-180/8.5 | 5.0 | 180 | 0 | 0.85 | 4200×3200×2600 | 10.0 | 55 | ||||||||
