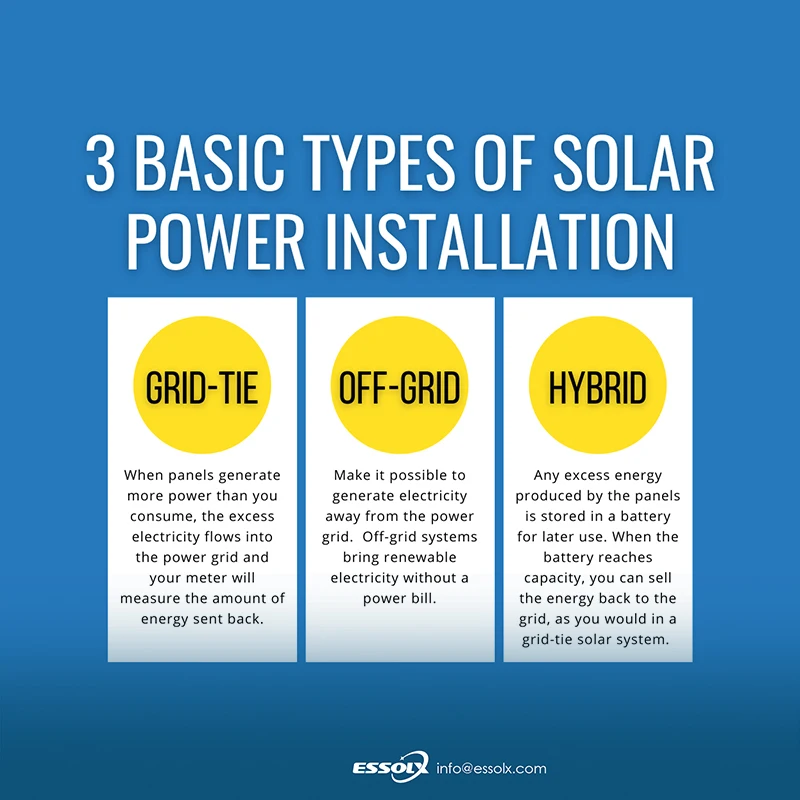

Being off-grid means you are not connected in any way to your grid's power system or utility company. This is appealing because you are 100% self-sustaining your energy use.
5KW OFF GRID SOLAR SYSTEM | ||||||
Item | Description | Specification | Q'ty (Set) | |||
1 | 550w Mono Solar Panel | 550W Solar Panels Specification Model Number:X-72M550HM10 Cell size:182mmx182mm Type:PERC, Half Cell Panel Dimensions:2278*1133*35mm Panel Efficiency:21.31 Warranty:12 YEARS Solar Cell:Monocrystalline Maximum system voltage:1500VDC Pallets per container:620 PCS | 10 | |||

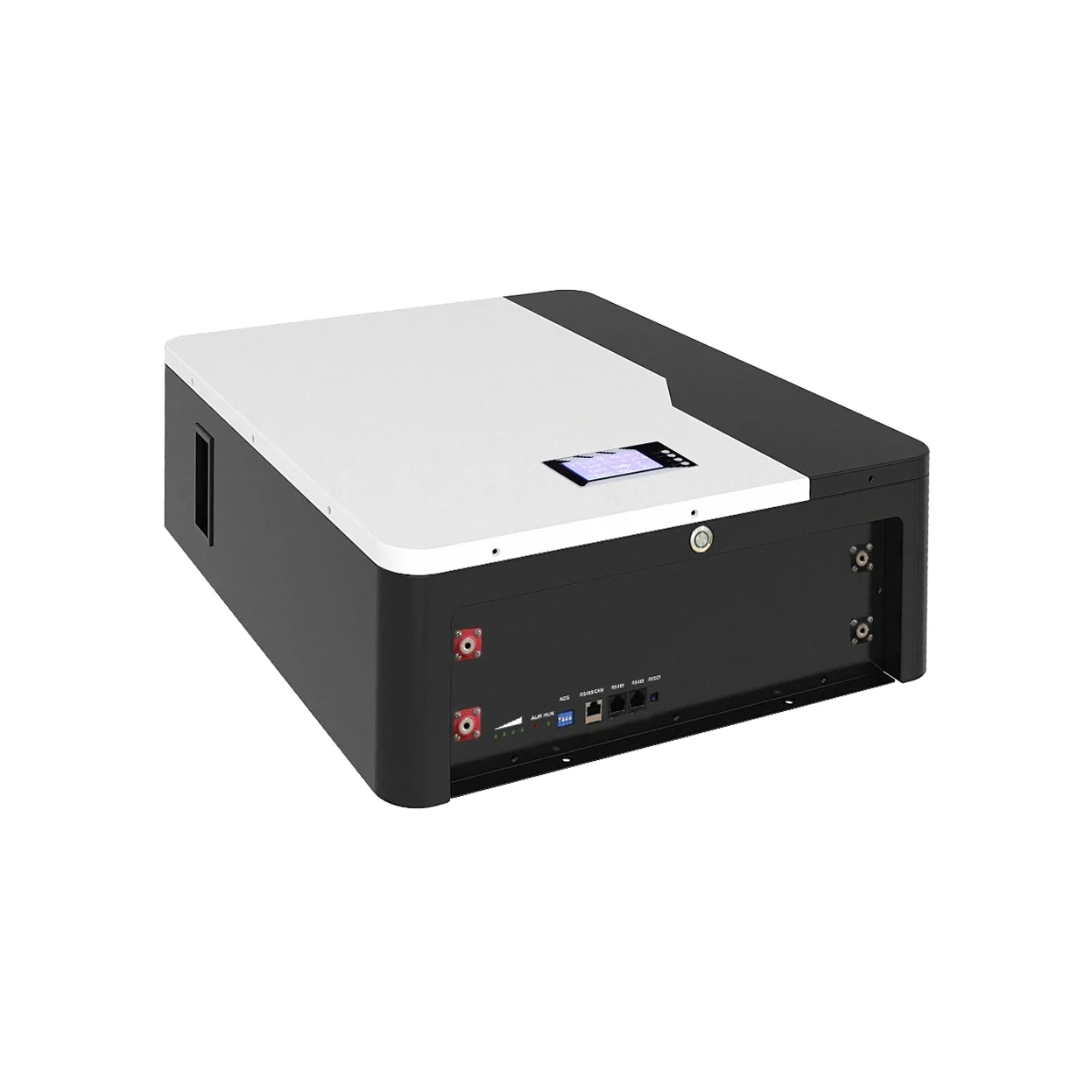

2 | 48V/100AH -(5KWH) - LFP battery | 48V/100 LFP battery POWER WALL 16 CELLS INSTEAD OF 15 CELLS | 2 | |||

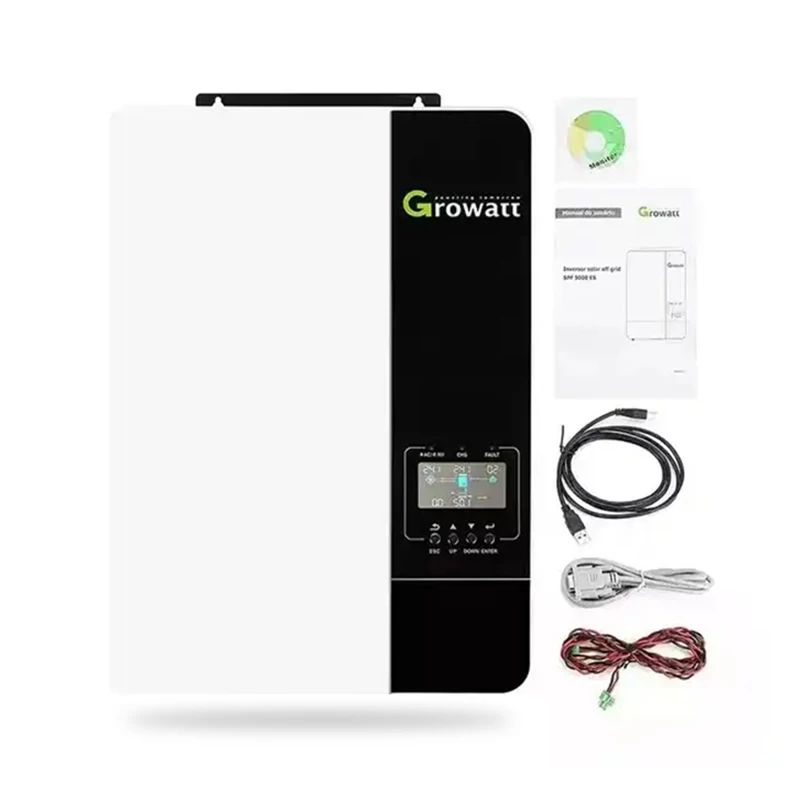

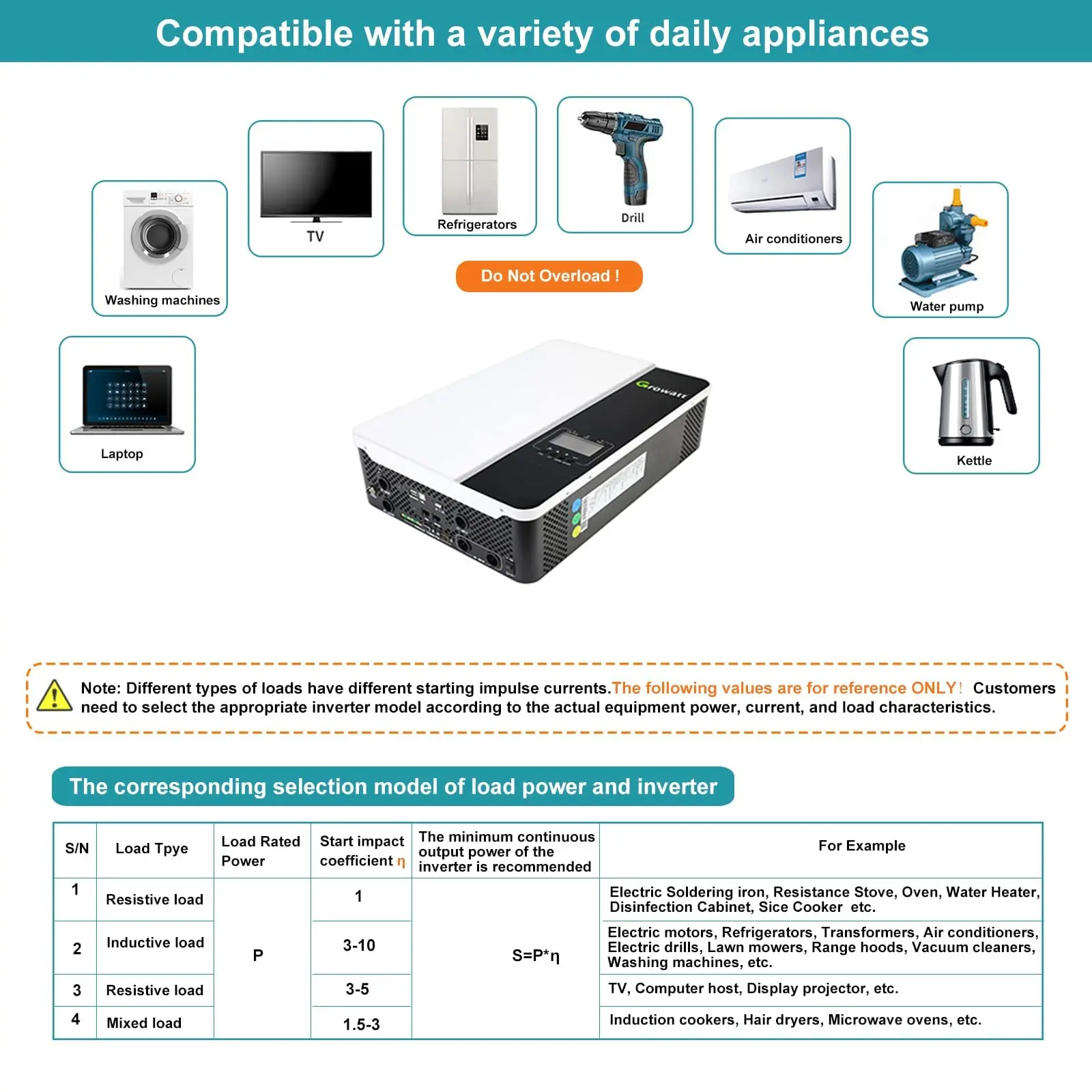

3 | 5KW OFF GRID INVERTER | Growatt Off Grid SPF 5000 ES, 220V Model, EUROPE MODEL | 1 | |||

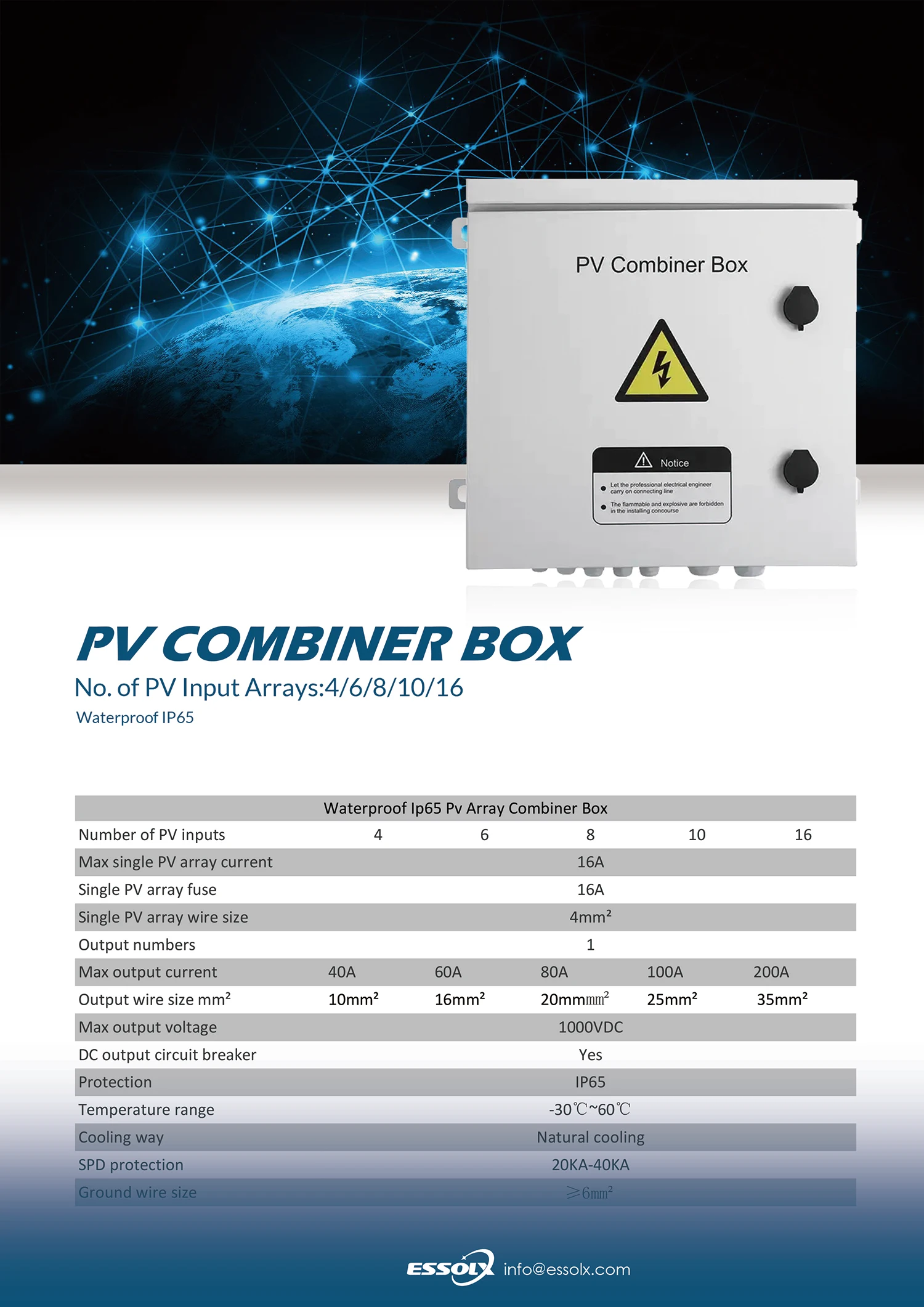

4 | PV Combined Box | 2inlet,1 outlet | 1 | |||
5 | DC breaker MCCB | 600V/12A 2P DC breaker | 4 | |||

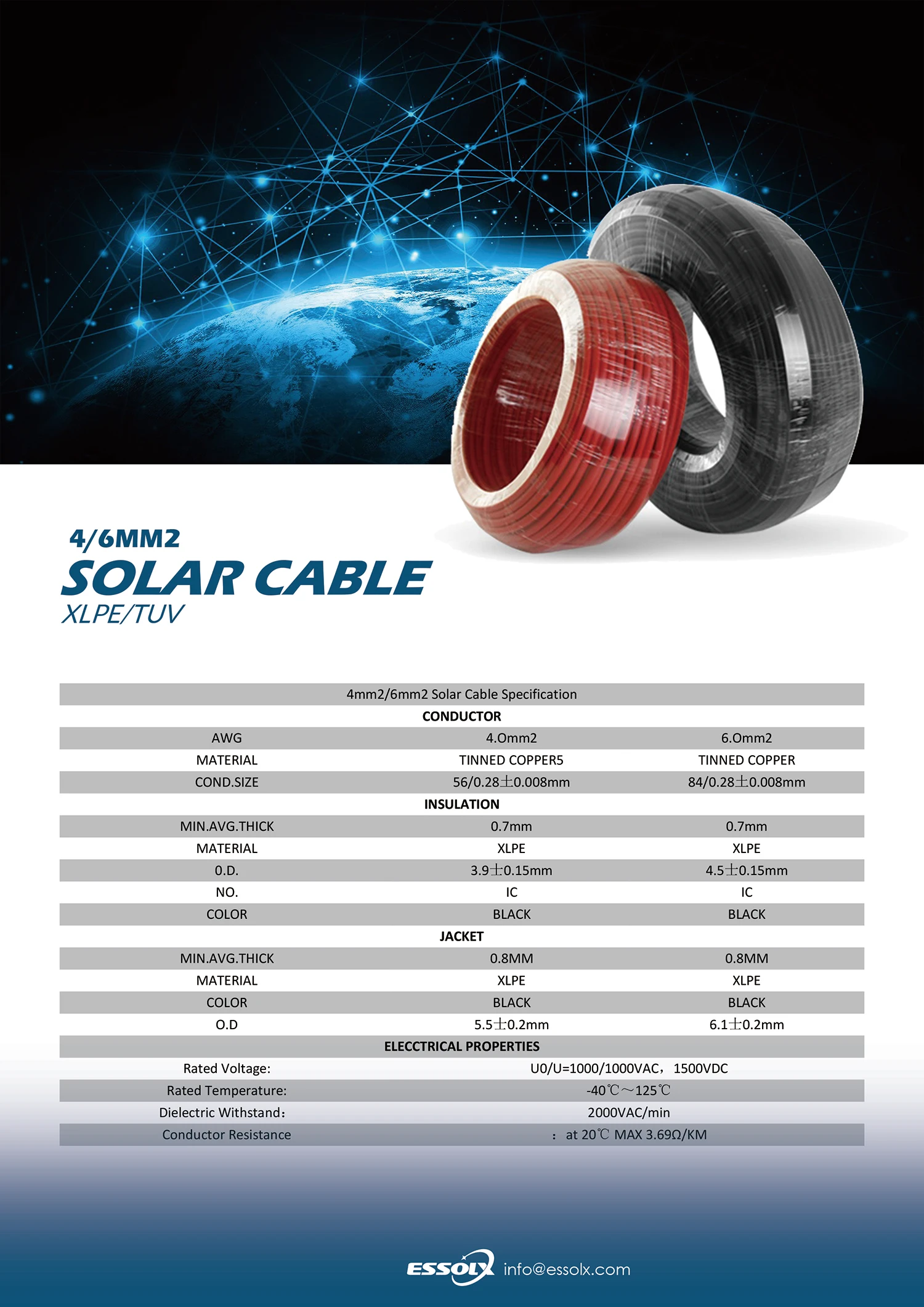

6 | 4mm2 Solar Cable | 4mm2 cable per meter | 200 | |||
8 | Solar Mounting Structure | Slope roof solutions | 10 | |||

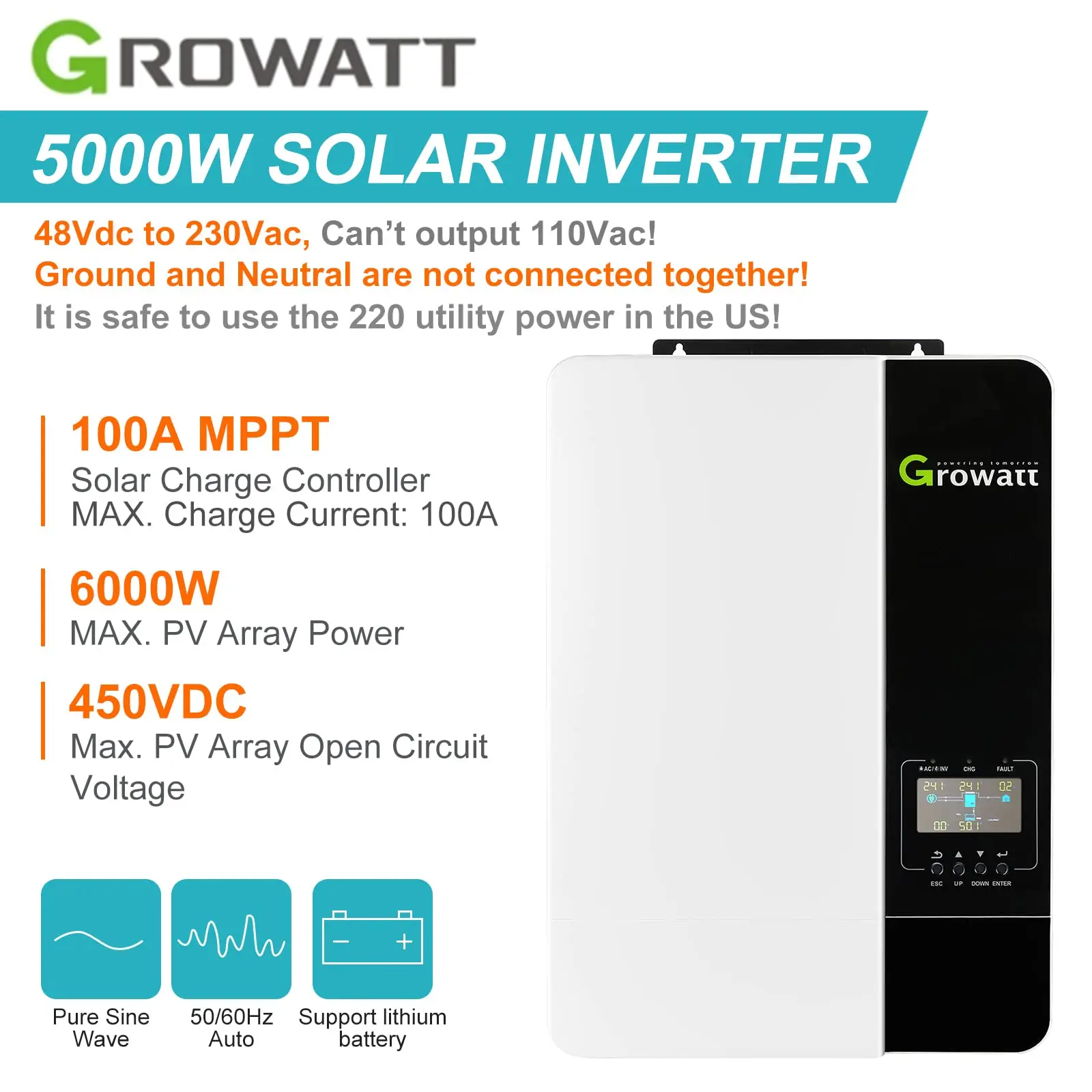

GROWATT SFP 5000 US SPLIT PHASE INVERTER FEATURE
GROWATT SPF 5000 US off grid inverter features:
1. Integrated MPPT charge controller
2. It can work with battery or without battery
3. Maximum PV input voltage up to 450VDC
4. Configurable grid or solar input priority
5. Optional WIFI/ GPRS remote monitoring
6. Parallel for scalability
7. Equalization charging function
8. Timing charging and output function

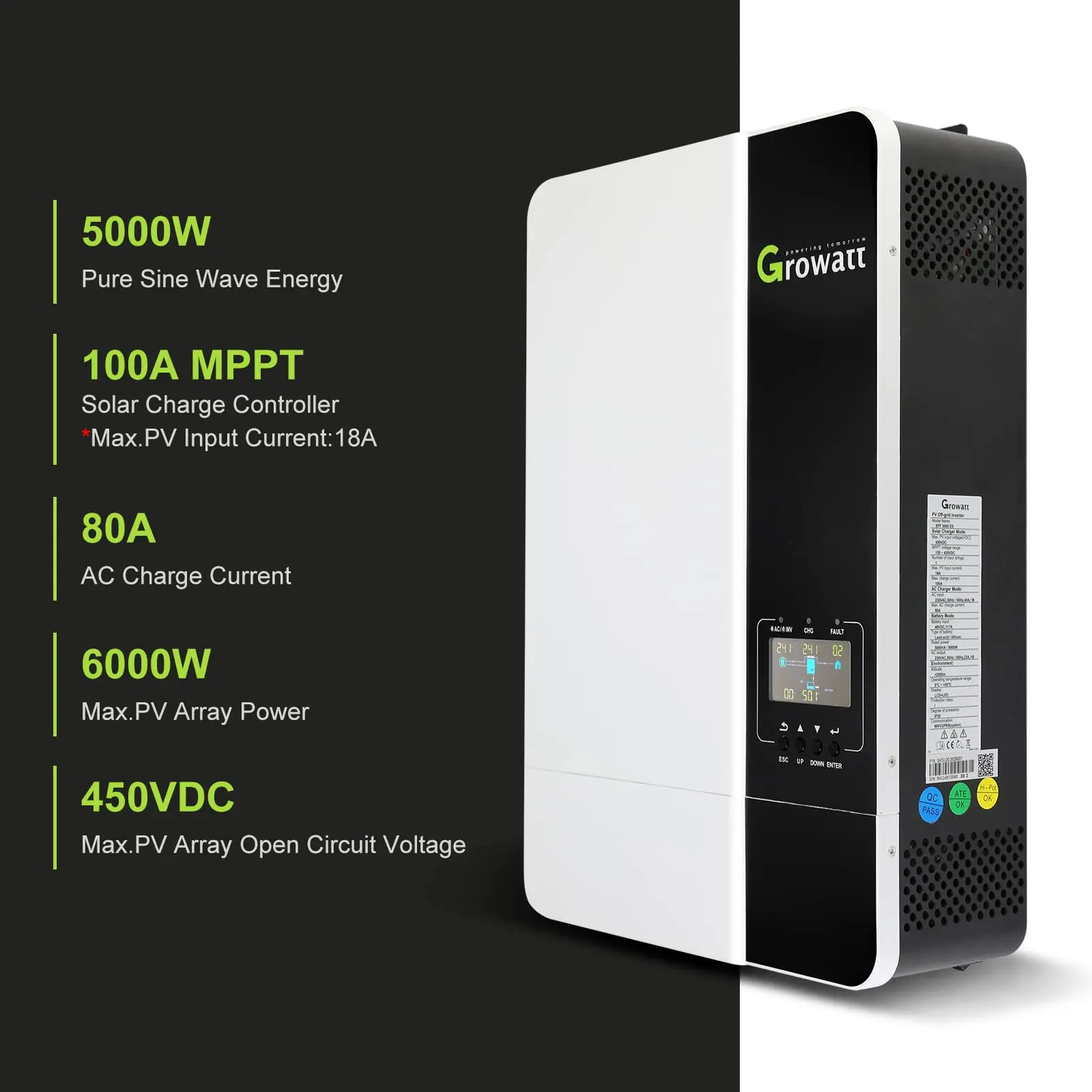

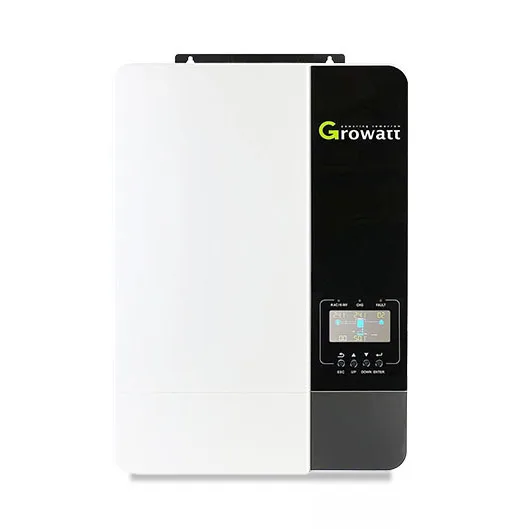

5KW Off Grid Inverter Specification
Model\tGrowatt SPF5000-ES
Maximum PV Array Power\t5000 W
MPPT Voltage\t120 VDC ~ 430 VDC
Max. PV Open Circuit Voltage\t450 VDC
Max. Solar Charge Current\t100 A
Solar Charger Type\tMPPT
Dimension\t140 x 295 x 468mm
Net Weight\t12kgs
Maximum PV Array Power\t5000 W
MPPT Voltage\t120 VDC ~ 430 VDC
Max. PV Open Circuit Voltage\t450 VDC
Max. Solar Charge Current\t100 A
Solar Charger Type\tMPPT
Dimension\t140 x 295 x 468mm
Net Weight\t12kgs

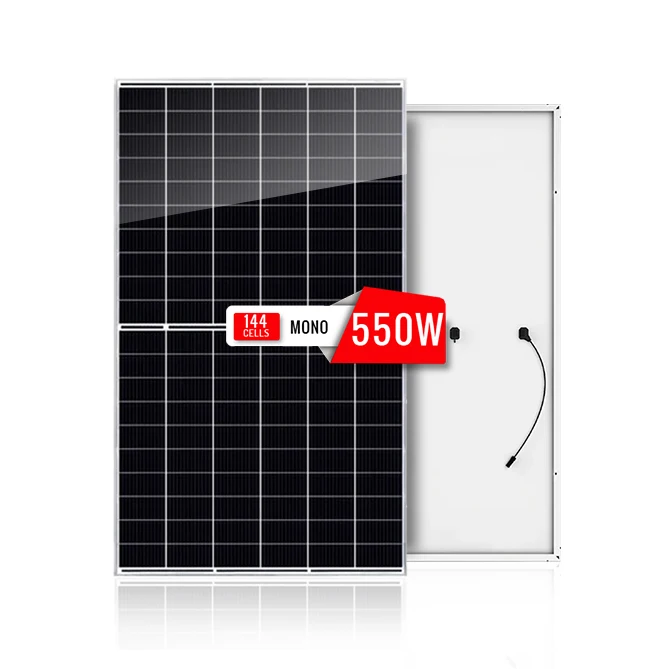

SOLAR PV PANEL SPECIFICATION
550/600/700/800W Solar Panels Specification Model Number:X-72M550HM10 Cell size:182mmx182mm Type:PERC, Half Cell Panel
Dimensions:2278*1133*35mm Panel Efficiency:21.31% Warranty:12 YEARS Solar Cell:Monocrystalline Maximum system voltage:1500VDC
Pallets per container:620 PCS
Dimensions:2278*1133*35mm Panel Efficiency:21.31% Warranty:12 YEARS Solar Cell:Monocrystalline Maximum system voltage:1500VDC
Pallets per container:620 PCS
Certification:CE, MSDS

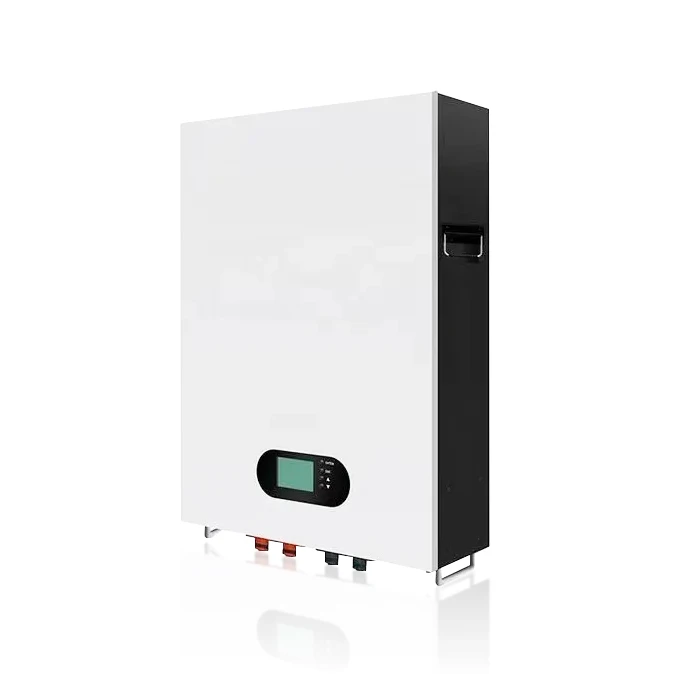

Battery Size:48v 100ah
Place of Origin:Zhejiang, China
The charging ratio:5000+
Storage Type:rechargable energy storage type Warranty:5~7 years
Anode Material:LFP Chargeable:Yes
Place of Origin:Zhejiang, China
The charging ratio:5000+
Storage Type:rechargable energy storage type Warranty:5~7 years
Anode Material:LFP Chargeable:Yes

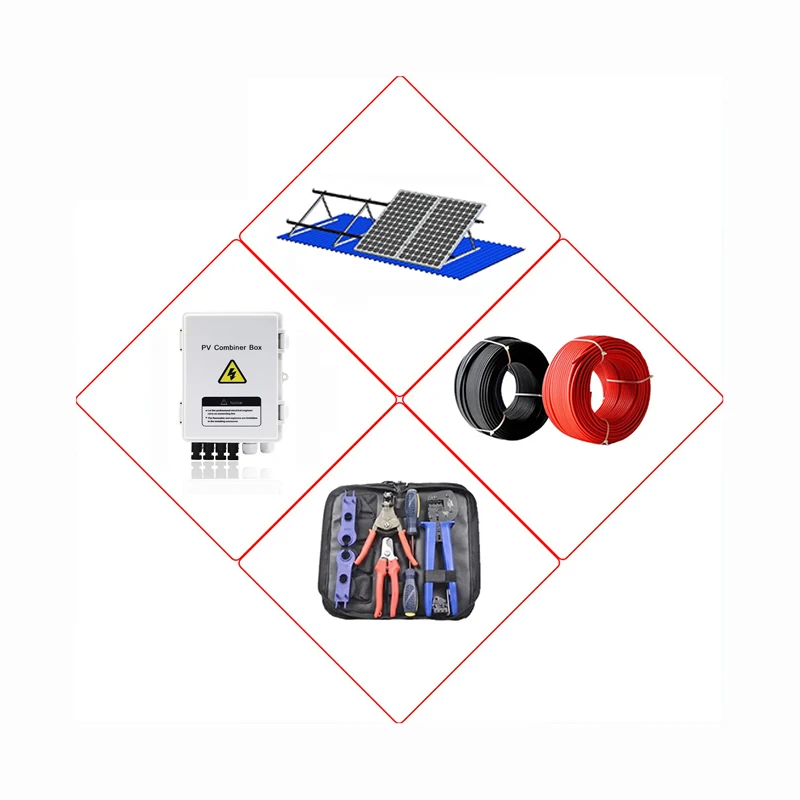

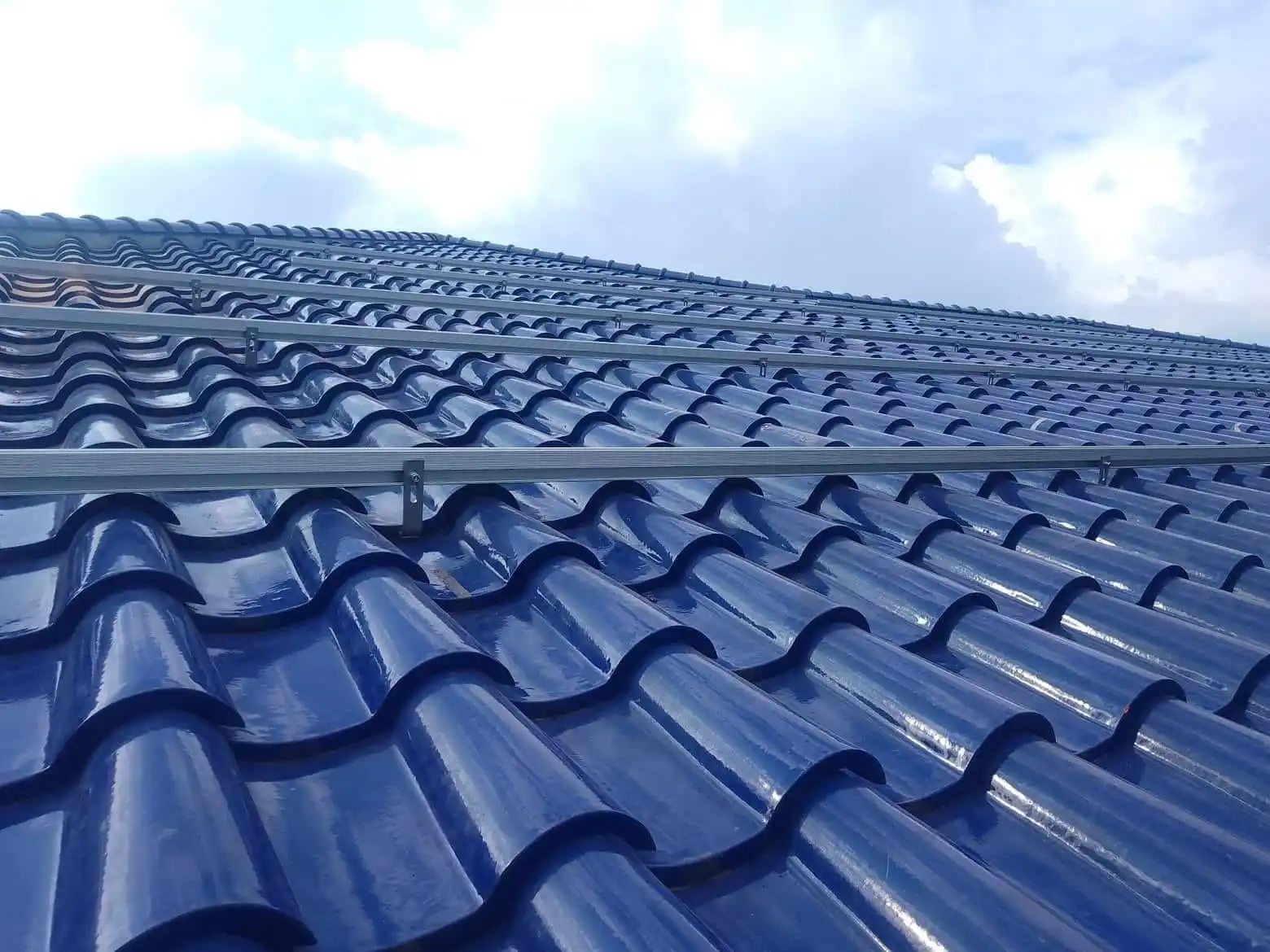

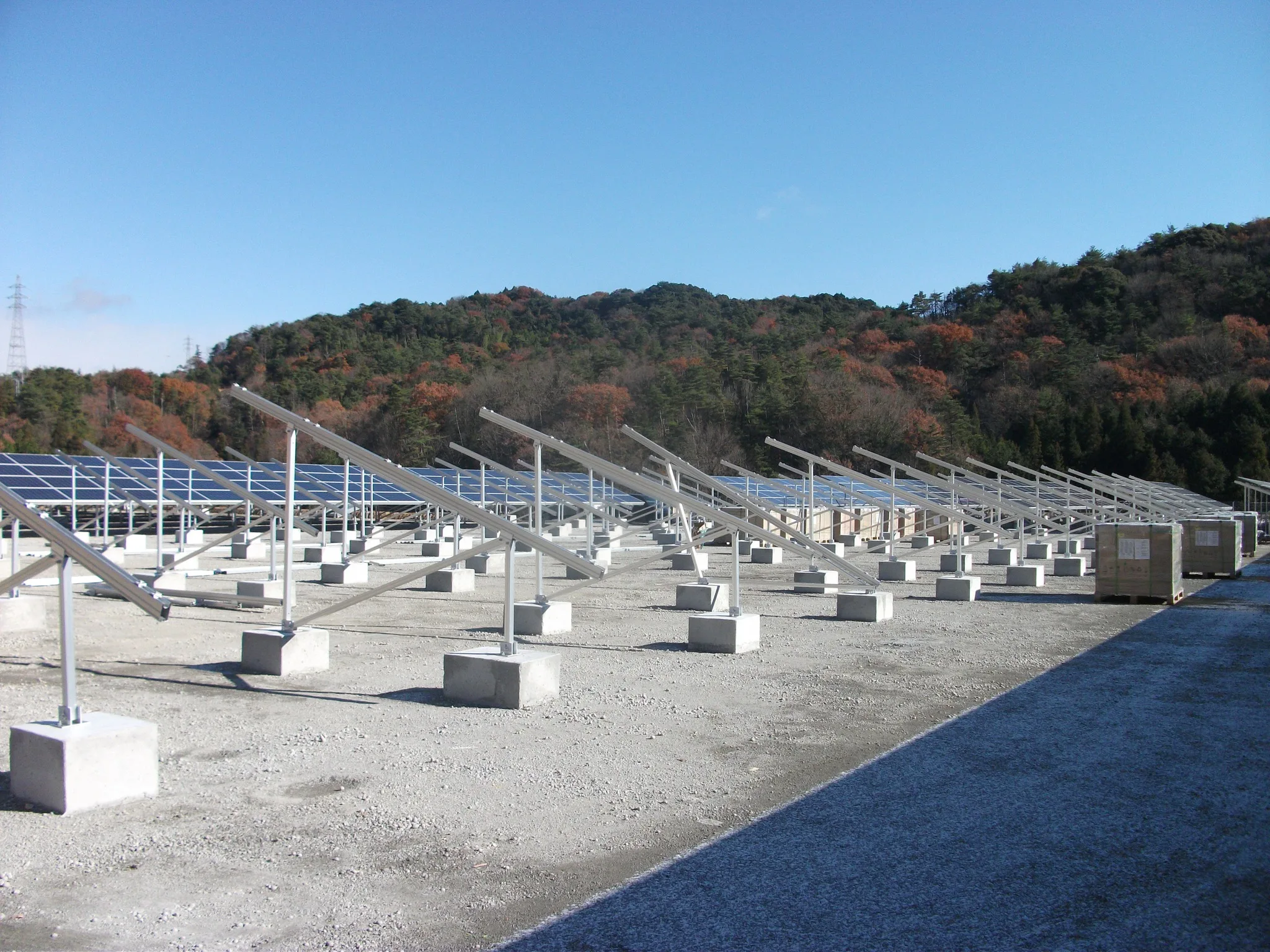

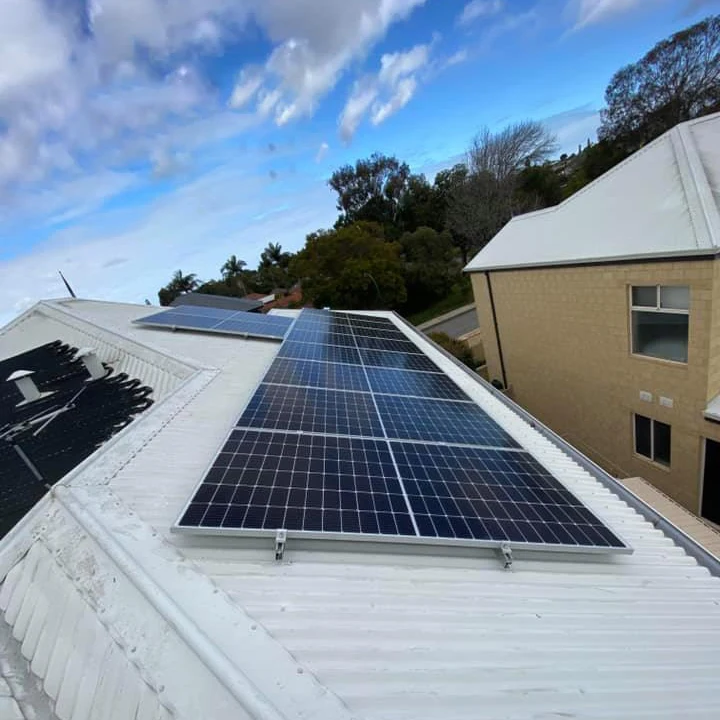

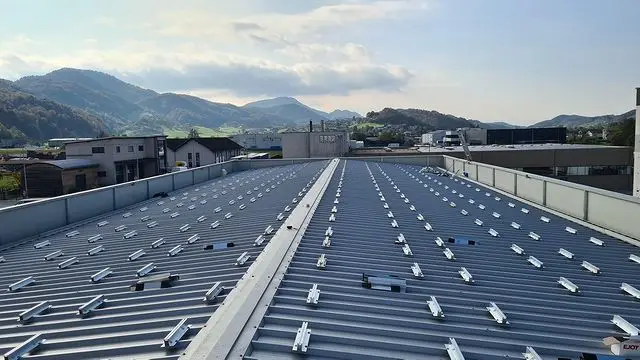

1. Solar Mounting System:Flat or pitched roof
Material: Hot-dip galvanized steel or never rust aluminium alloy
Bracket angle: 15/20/25/30...customize
3. MC4 connector
4. Solar electric tool bags
5. Solar pv cable 4mm2 or 6mm2.
Material: Hot-dip galvanized steel or never rust aluminium alloy
Bracket angle: 15/20/25/30...customize
3. MC4 connector
4. Solar electric tool bags
5. Solar pv cable 4mm2 or 6mm2.
