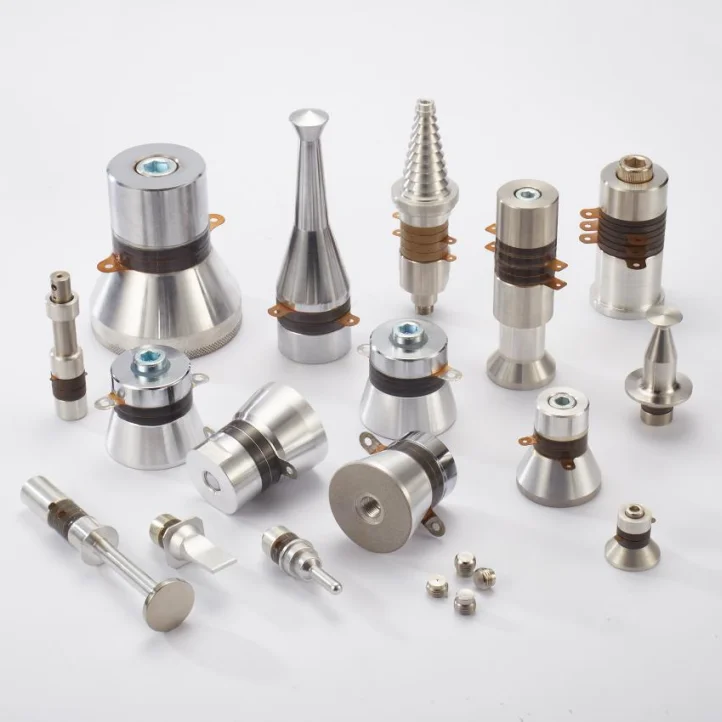

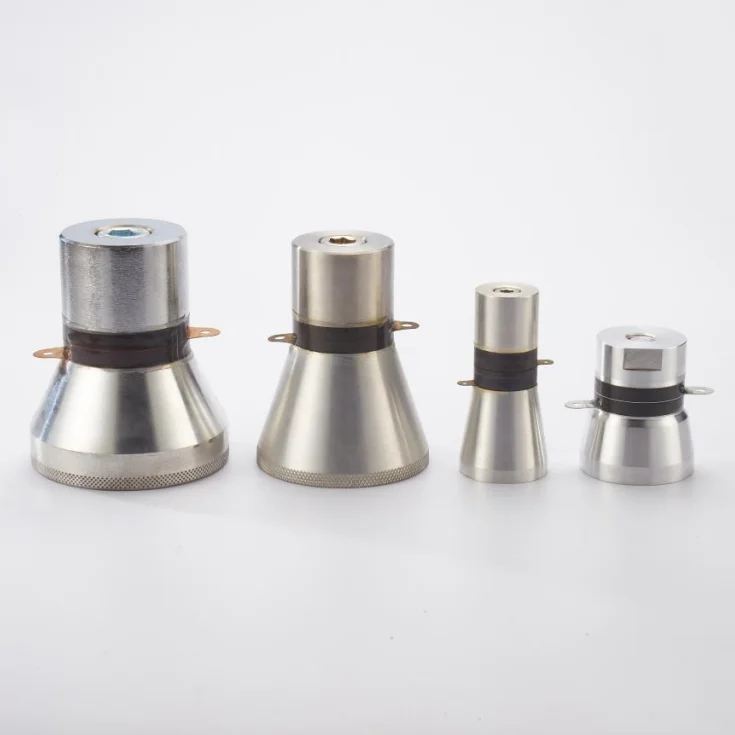

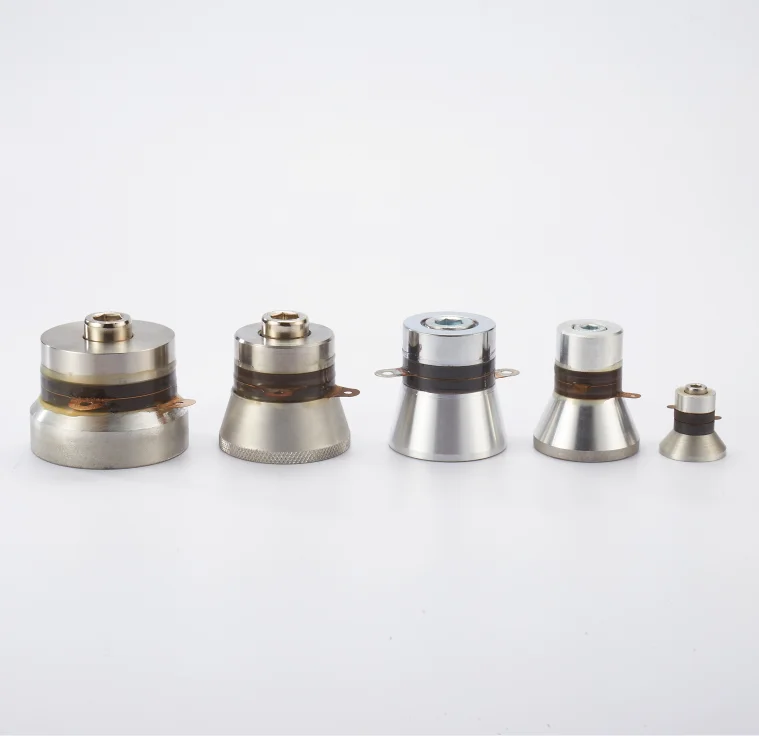

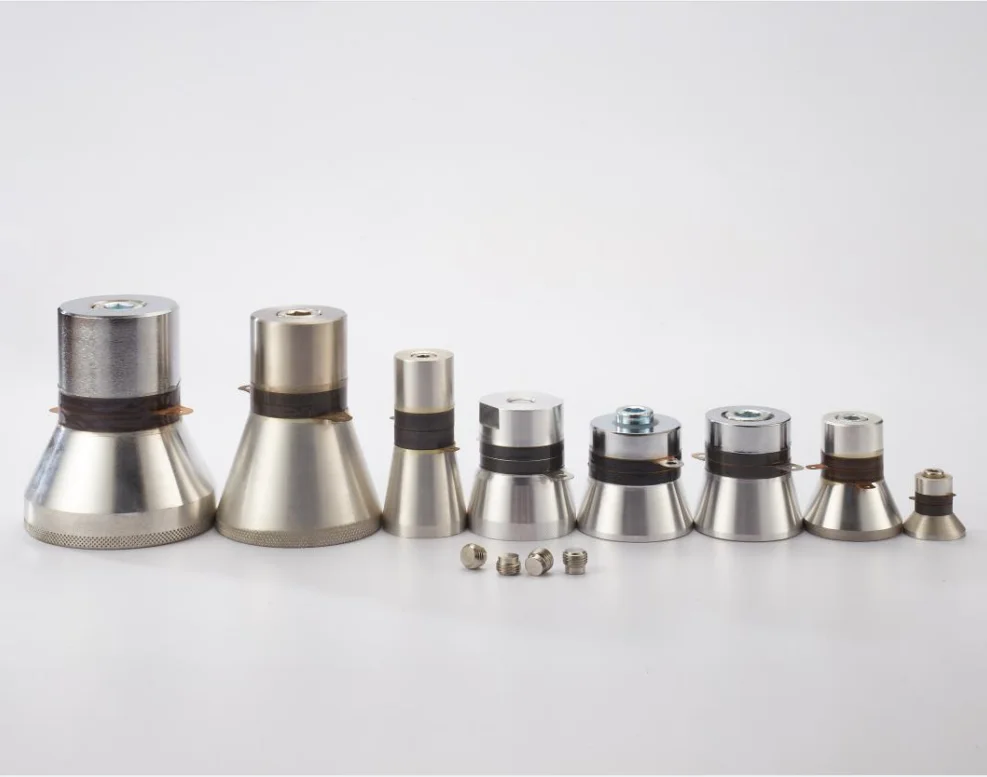

28KHz 40KHz 60W Industrial Ultrasonic Transducer/Vibrator/Oscillator Piezo ceramic transducer for Ultrasonic Cleaning Equipment

Product Overview

Description

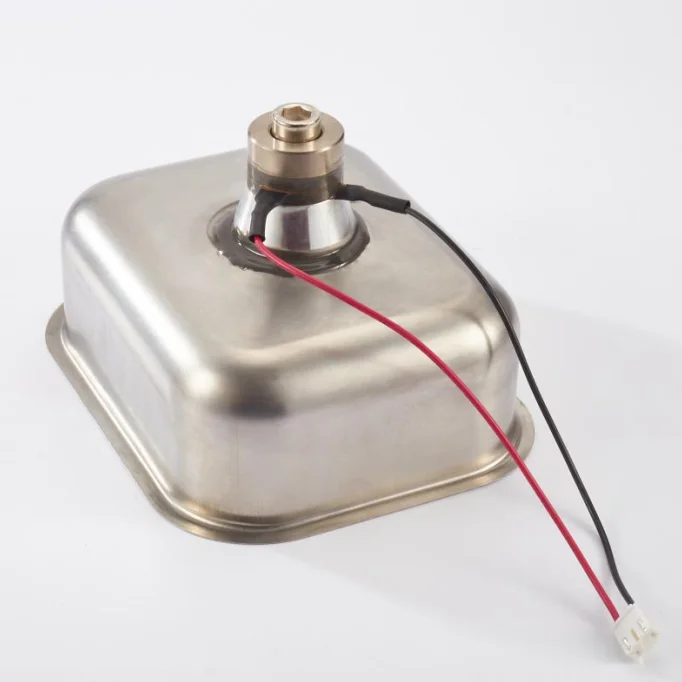

28KHz, 40KHz 60W Industrial Ultrasonic Transducer/Vibrator/Oscillator Piezo Ceramic Transducer is a component that utilize the piezoelectricity for actualize electro-acoustic conversion.SL's langevin-type transducer are used where powerful ultrasonic wave must be generated, such as in Cleaning equipment and easy to install.These transducers are mounted into a structure that can be bolted almost anythere.



Model No.	Frequency    (KHz)	Power           (W)	Static Capacitance    (Pf)	Resonant Impedance                  (Ω)	Insulation Resisance    (2500V DC)	External Dimension (mm)
						Dia. of Ceramic	D * H
Q60W-20K	20 ± 0.8	60W	3800±10%	≤ 20	≥ 100M Ω	38mm	63*92mm
Q100W-20K	20 ± 0.8	100W	6700±10%	≤ 20	≥ 100M Ω	45mm	67*92mm
Q60W-25K	25 ± 0.8	60W	3800±10%	≤ 20	≥ 100M Ω	38mm	59*77mm
Q100W-25K	25 ± 0.8	100W	6700±10%	≤ 20	≥ 100M Ω	45mm	66*78mm
Q50W-40K	40 ± 0.5	50W	3800±10%	≤ 20	≥ 100M Ω	38mm	45*51mm
Q60W-40K	40 ± 0.5	60W	3800±10%	≤ 20	≥ 100M Ω	38mm	47*51mm
Q100W-40K	40 ± 0.5	100W	6700±10%	≤ 20	≥ 100M Ω	45mm	55*47mm
Q60W-28K	28 ± 0.5	60W	3800±10%	≤ 20	≥ 100M Ω	38mm	59*68mm
Q100W-28K	28 ± 0.5	100W	6700±10%	≤ 20	≥ 100M Ω	45mm	67*68mm





Product Characteristic

1. High Mechanical Quality and excellent electro-acoustic conversion efficiency, providing a high output amplitude.


2. Piezoelectric element offer a high speed of vibration. Through bolt-on mounting, mechanical intensity and amplitude have been improved.


3. Having steady output amplitude even the load markedly changed.


4. Extended using temperature, ensuring good amplitude linearity. Lower resonant impedance, ensuring high conversion efficiency.


5. Bolt-on mounting gives the fasteasy installation and high reliability.

We can customize all specifications of Non-standard Ultrasonic Transducer according to your requirement.
