Magnetic current clamp probe cable fault analysis current clamp on CT

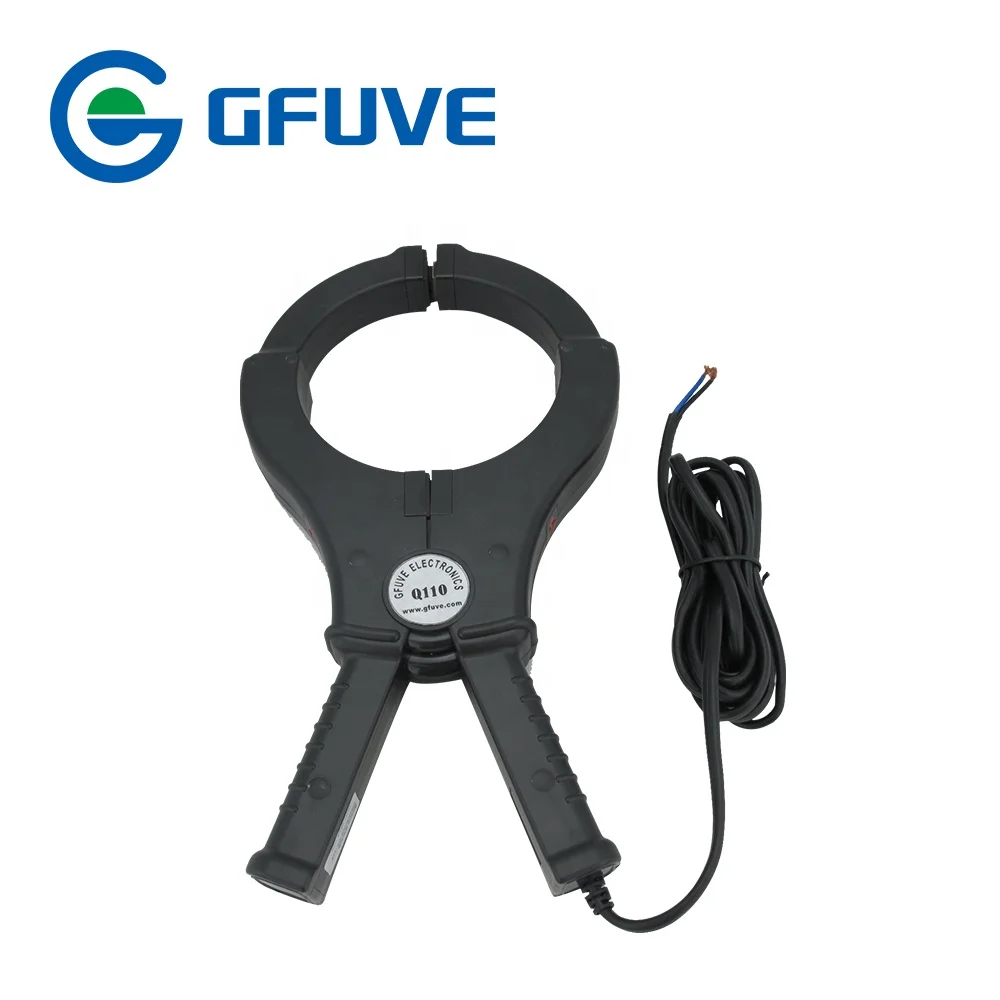

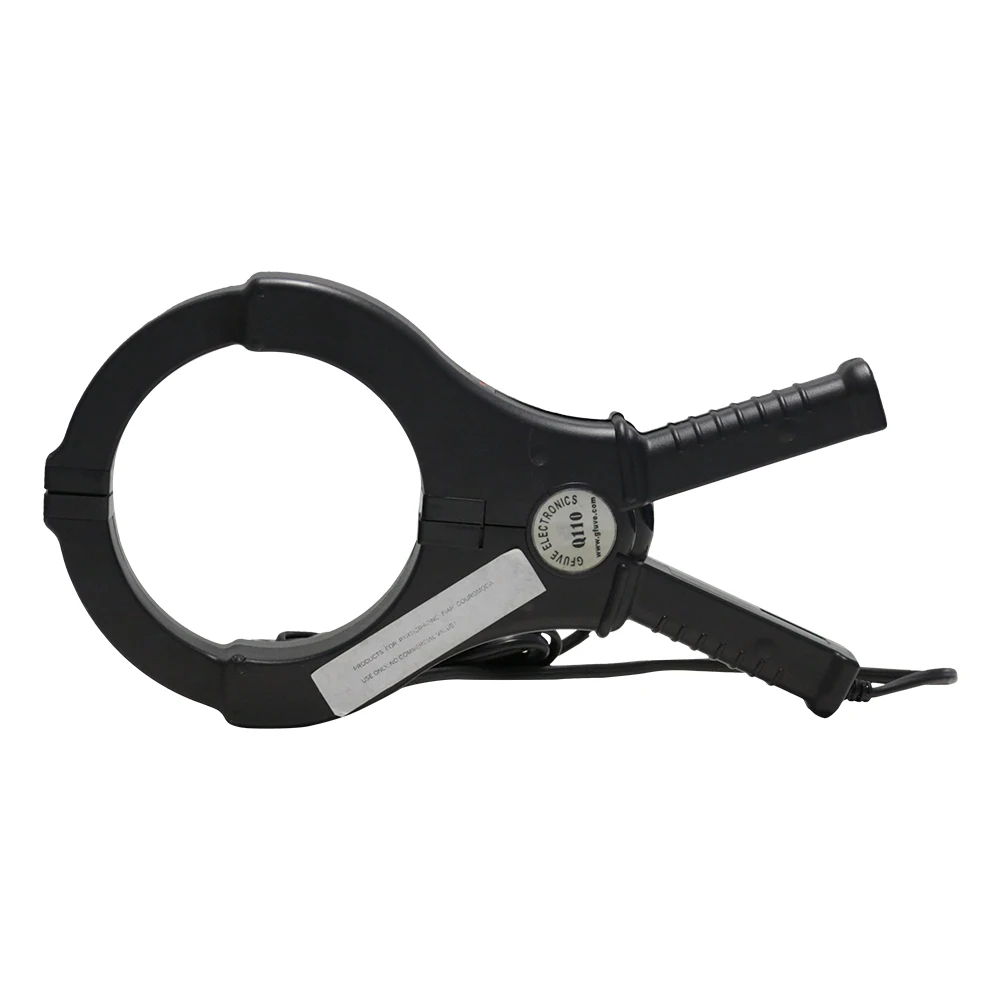

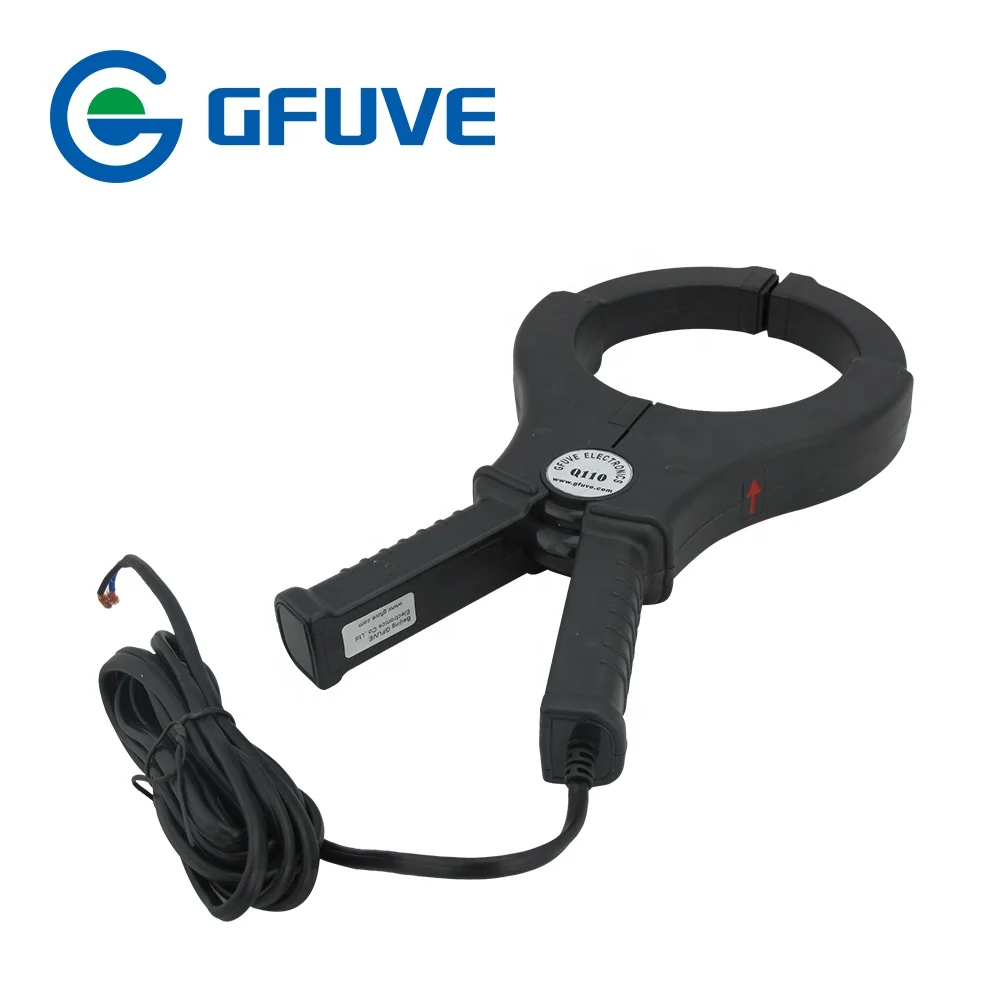

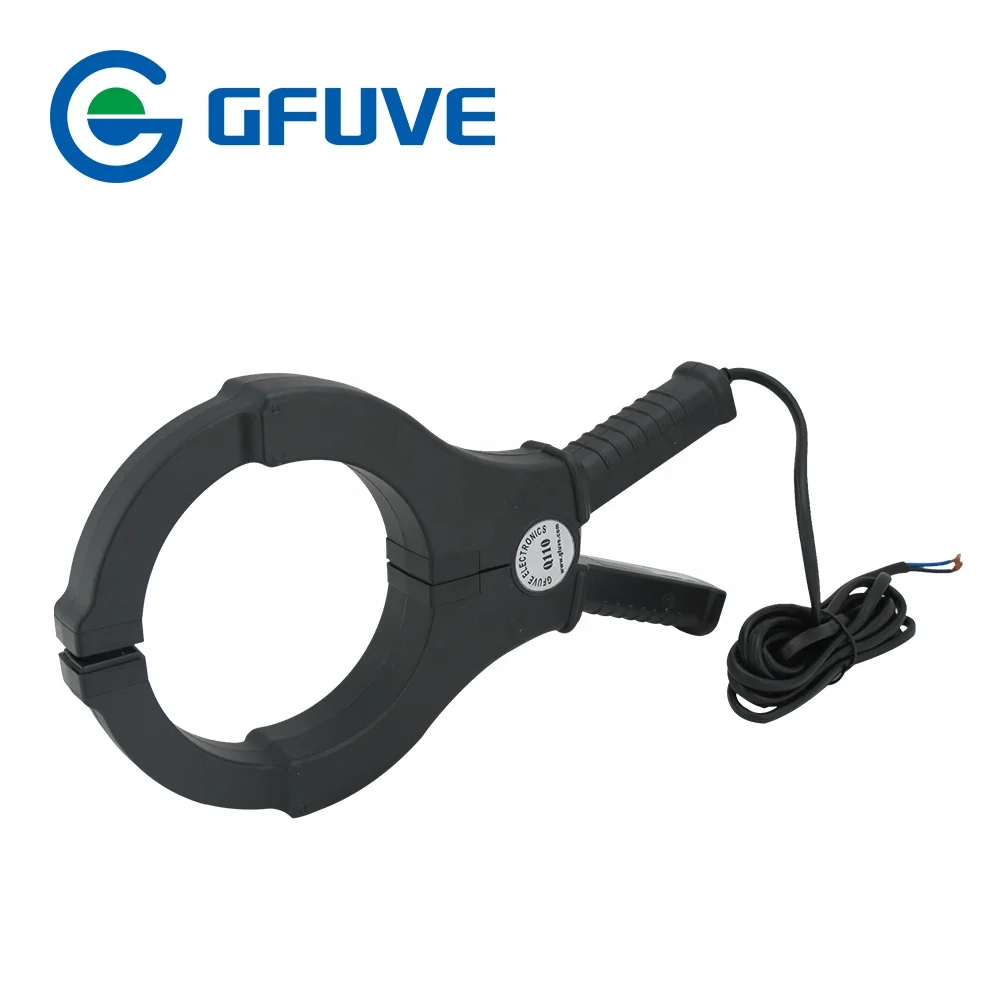

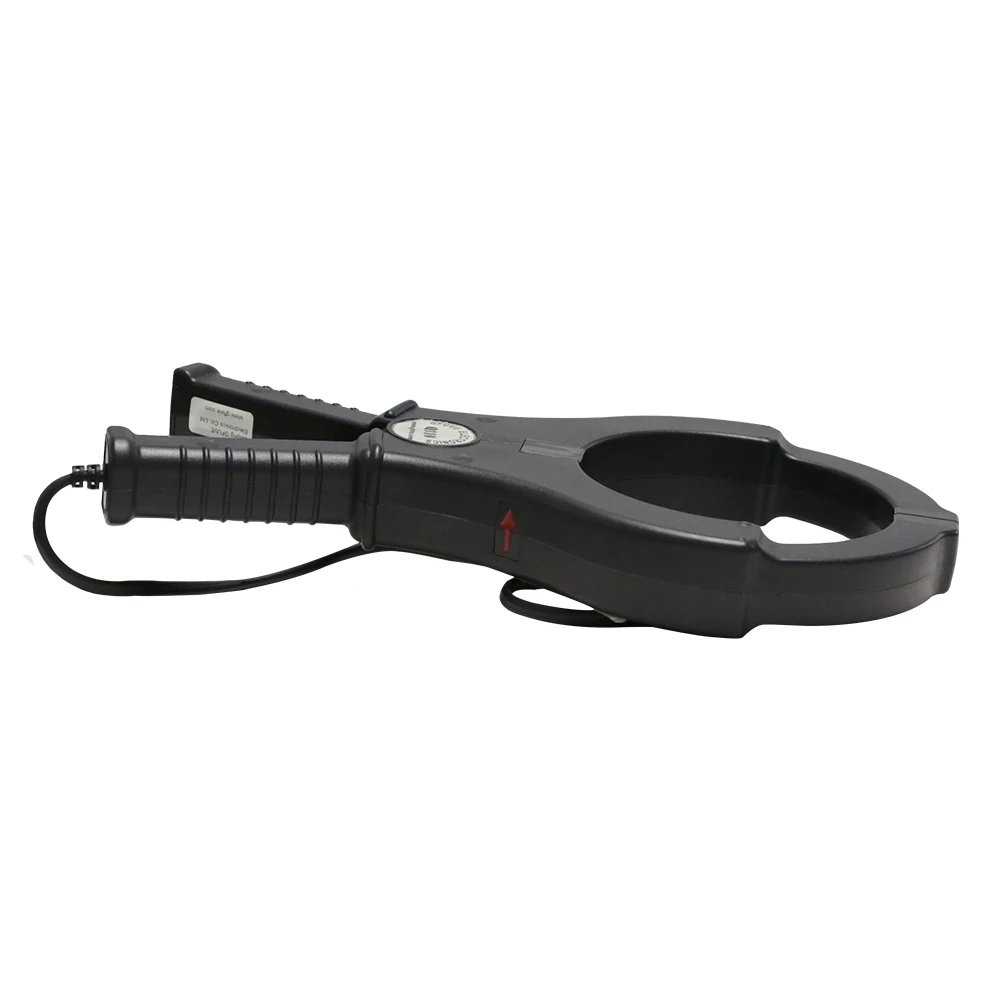

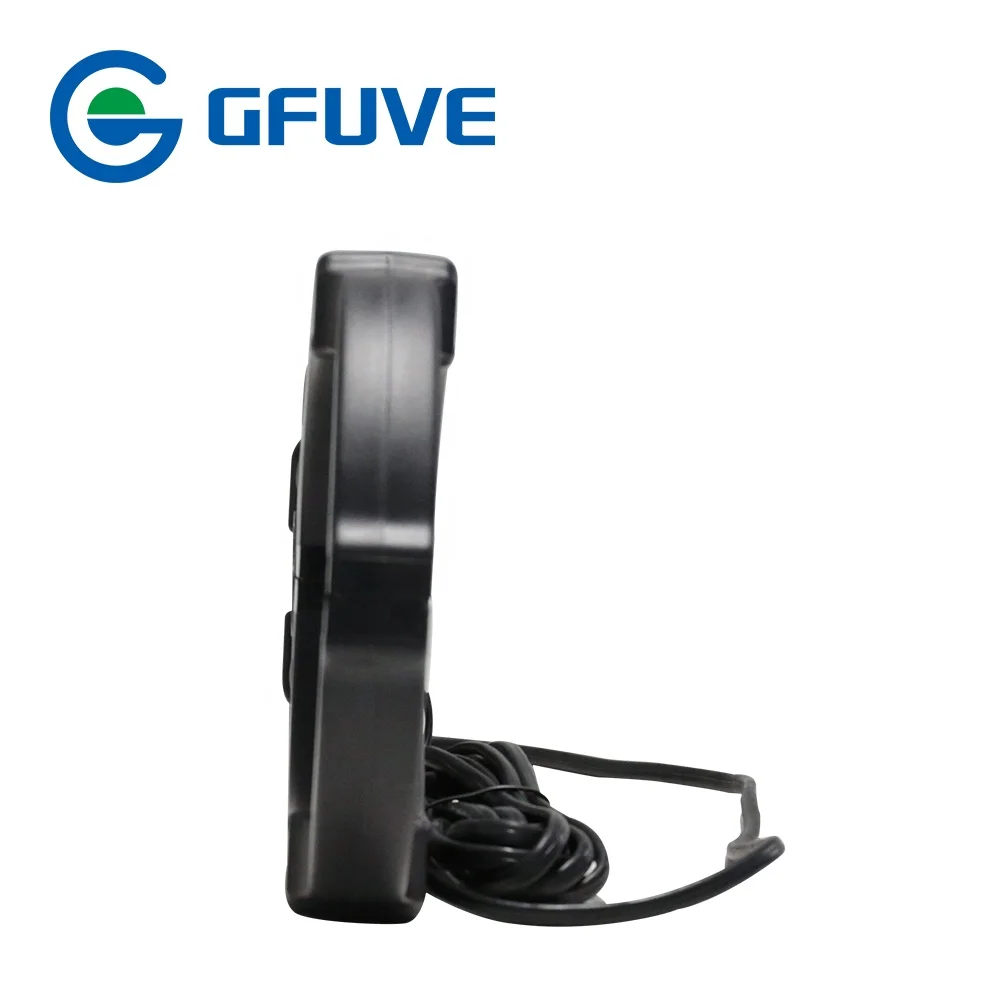

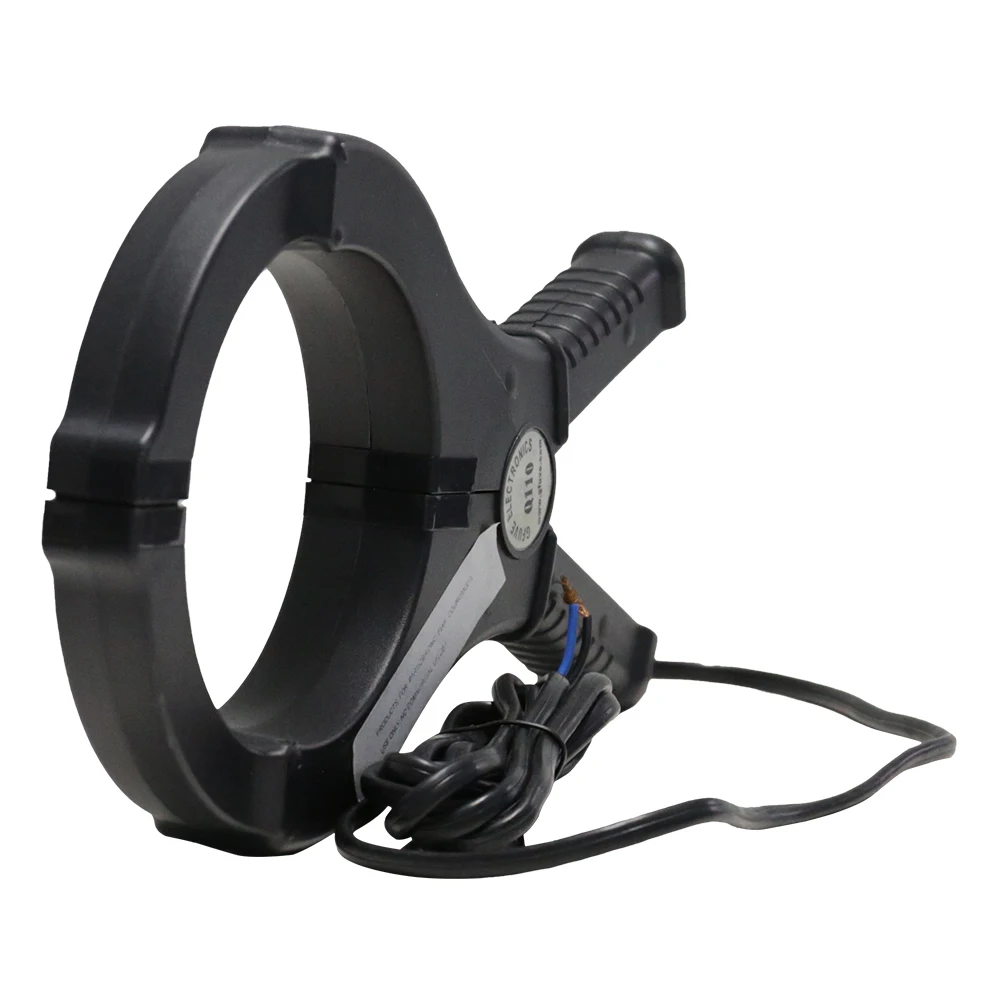

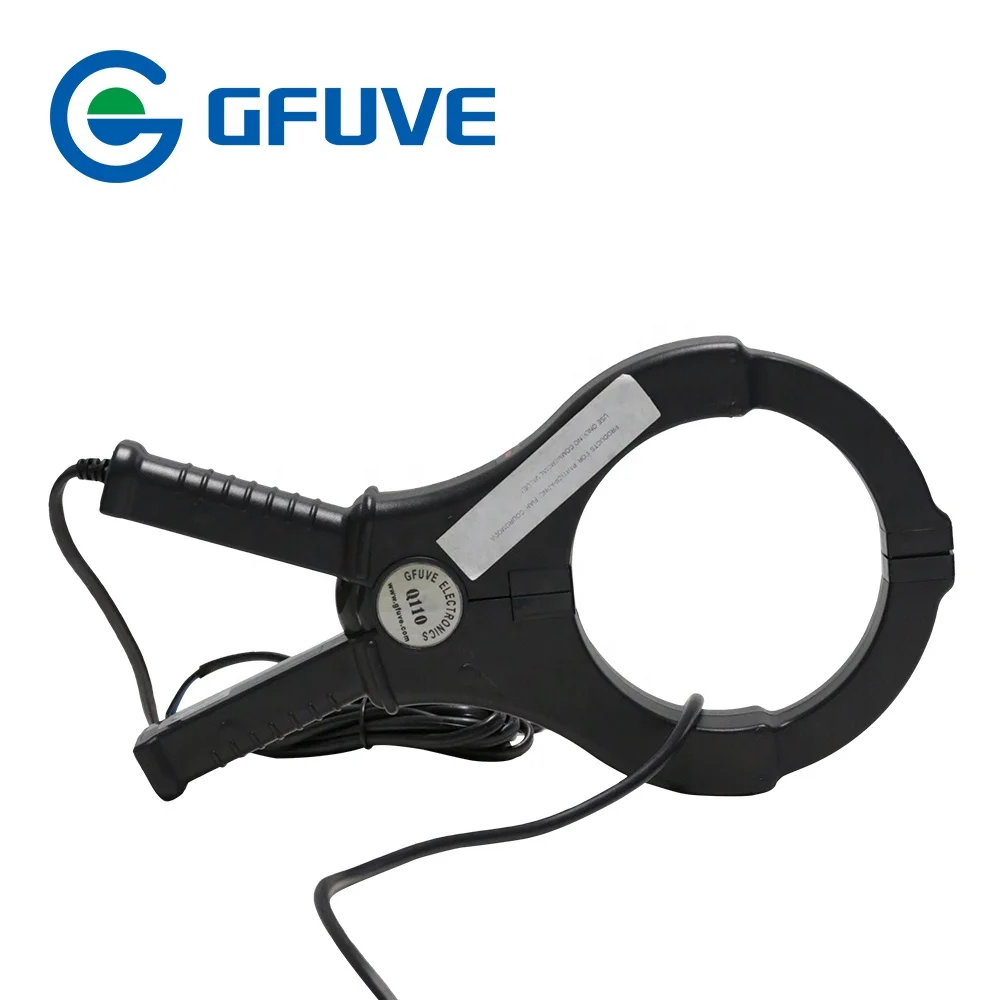

 The Q110 is a high accuracy ring current clamp probe that ensures 0. 2% linearity. 110mm large jaws allow measurement of AC currents up to 1000A with a 1000: 1 ratio and a frequency range from 10Hz to 20KHz. q110 is designed to interface with Phase Detection Analyzers, Industrial Controls, Data Loggers, Oscilloscopes, Harmonic Analyzers, Power Quality Analyzers, High Precision Digital Multimeters, and Cable Fault Analyzers, among others. Multimeters and Cable Fault Analyzers. Click on the links below to view more product informations: https://www.gfuvegroup.com/ac-current-clamp/compact-ring-type-1000-5a-magnetic-current-clamp-probe.html

 UL, CE CNAS mark;
High content permalloy core;
Holding wire diameter: φ110mm;
Frequency 40Hz-20kHz Bandwidth;
Conforms to EN 61010, 600V CAT III;
Low phase shift for power measurement;
Industrial design & beautiful appearance;
Measurement range of 1mA to 1500A AC;
Improved ergonomic design & easy operation;
High precision 0.1% for current measurement;
Designed for recorders, loggers, oscilloscopes, power and harmonic meters;
