XRF 7000 Mineral analyzer Handheld SDD xrf Metal Analyzer Price
- Category: >>>
- Supplier: Chongqing Drawell Instrument Co. Ltd.
Share on (1601032140465):
Product Overview
Description

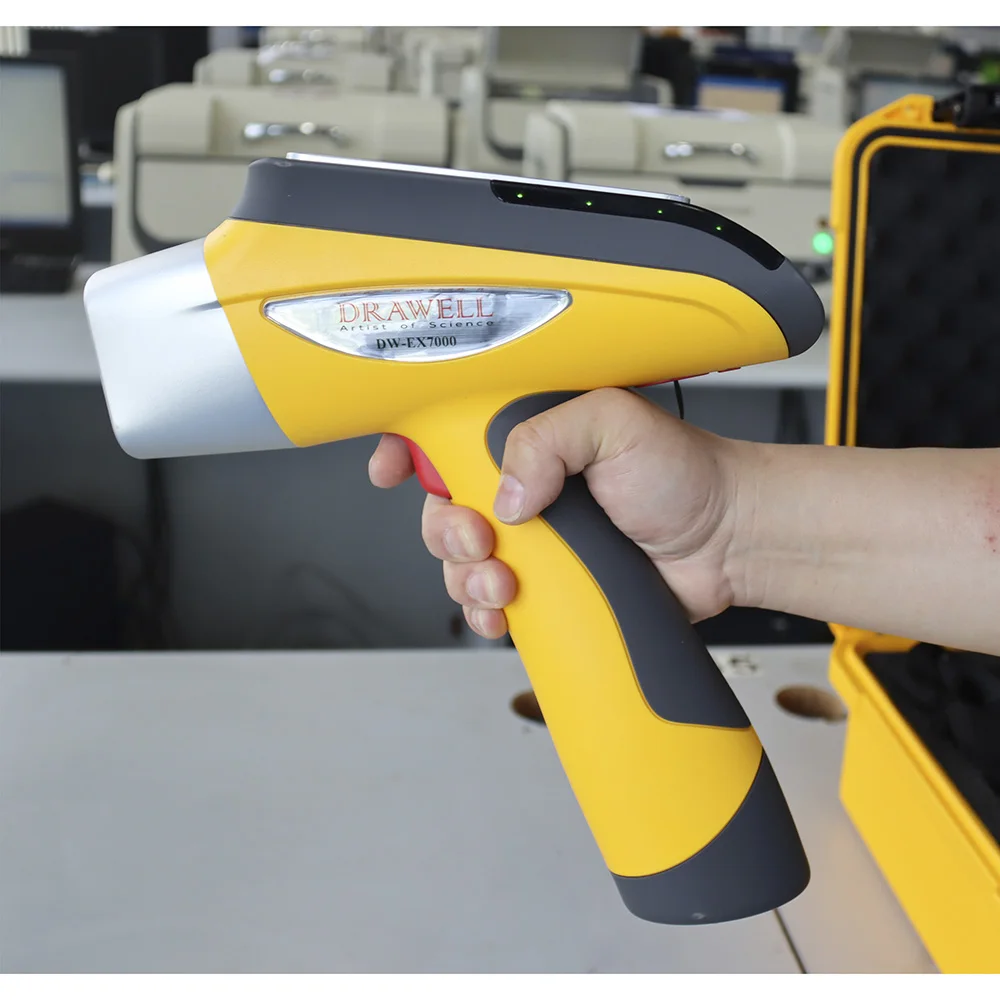

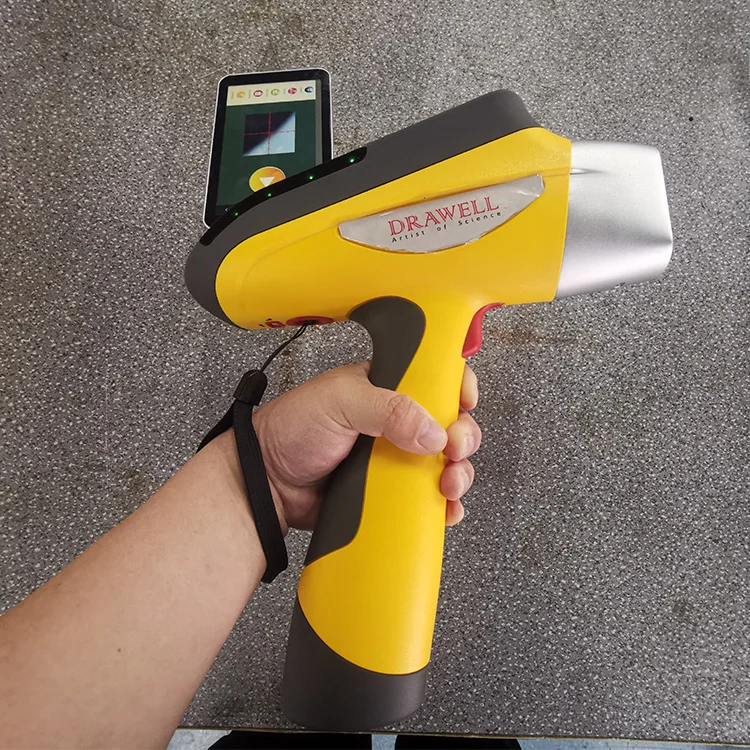

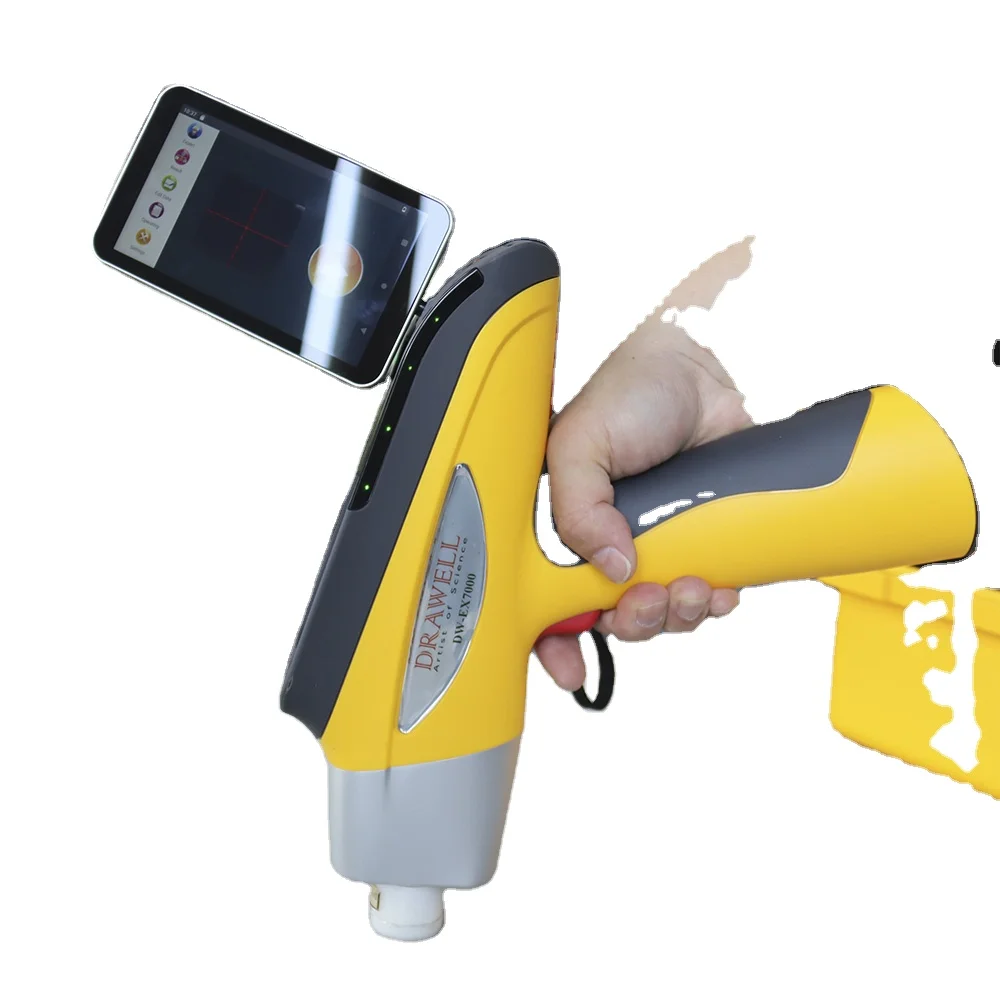

Handheld XRF Mineral Analyzer DW-EX7000
DW-EX7000 adopts newer digital multi-channel technology, lower detection limits, better stability, and wider applied range. It has comparable performance with bench top. Its small and convertible size makes the works of geological ore prospecting, multi elemental detection ,exploration analysis, refining slag more simply and easier.
Features ：
1.Personalized customization work mode
Selections of various Ore -sample一models and free to add unlimited-number - models, the work model can be customized by customer's demand.
2.The accurate definition of mining boundary
The built-in GPS function helps to receive signals from satellite anytime at anywhere, and can record the measurements of altitude, latitude and longitude during anytime of testing period, which determine the geographic location information of sampling points, and save as test reports automatically.
It can draw the ore distribution pictures by obtained coordinate analytical data, screen large area range rapidly and grasp the lode mine accurately, then define the mining boundary, in order to prior to find rich mining area to improve the production efficiency.
A built in Bluetooth function, which can recognize the key mining areas on site when the instrument collocates with a Bluetooth printer.
3.Environmental monitoring
To monitor and detect the heavy metals in the soil around the mines, to evaluate mine repair environments, in order to maximize the monitoring the surrounding environment of good mines
4.Discover the mines' full- value
HD camera function, observes the detected vein and point position more intuitive, manages and controls the process of mining exploitation better, detects the grade of ore at any time.
During ore dressing, the quick and accurate analysis of raw ore, concentrate and tailings , provides the value judgment basis for the determination of ore grade, mineral trade, processing and recycling.
DW-EX7000 adopts newer digital multi-channel technology, lower detection limits, better stability, and wider applied range. It has comparable performance with bench top. Its small and convertible size makes the works of geological ore prospecting, multi elemental detection ,exploration analysis, refining slag more simply and easier.
Features ：
1.Personalized customization work mode
Selections of various Ore -sample一models and free to add unlimited-number - models, the work model can be customized by customer's demand.
2.The accurate definition of mining boundary
The built-in GPS function helps to receive signals from satellite anytime at anywhere, and can record the measurements of altitude, latitude and longitude during anytime of testing period, which determine the geographic location information of sampling points, and save as test reports automatically.
It can draw the ore distribution pictures by obtained coordinate analytical data, screen large area range rapidly and grasp the lode mine accurately, then define the mining boundary, in order to prior to find rich mining area to improve the production efficiency.
A built in Bluetooth function, which can recognize the key mining areas on site when the instrument collocates with a Bluetooth printer.
3.Environmental monitoring
To monitor and detect the heavy metals in the soil around the mines, to evaluate mine repair environments, in order to maximize the monitoring the surrounding environment of good mines
4.Discover the mines' full- value
HD camera function, observes the detected vein and point position more intuitive, manages and controls the process of mining exploitation better, detects the grade of ore at any time.
During ore dressing, the quick and accurate analysis of raw ore, concentrate and tailings , provides the value judgment basis for the determination of ore grade, mineral trade, processing and recycling.
Technical parameters and specifications
Analytical Method | Energy dispersive X ray fluorescence analytical Method |
Elements Measuring Range | Atomic number from 12 to 92 [elements from magnesium (Mg) to uranium (U)] can be measured |
Simultaneous detector elements | Simultaneous analyze 40 elements |
Microcomputer system | Customized system; CPU: 1G ; System memory: 1G ; extended stored maximum support 32G ; standard 4G for mass storage data |
The content range | ppm ~ 99.99% |
The detection time | 1 〜60 seconds (one second report results) |
A built-in system | GPS, WIFI, Bluetooth |

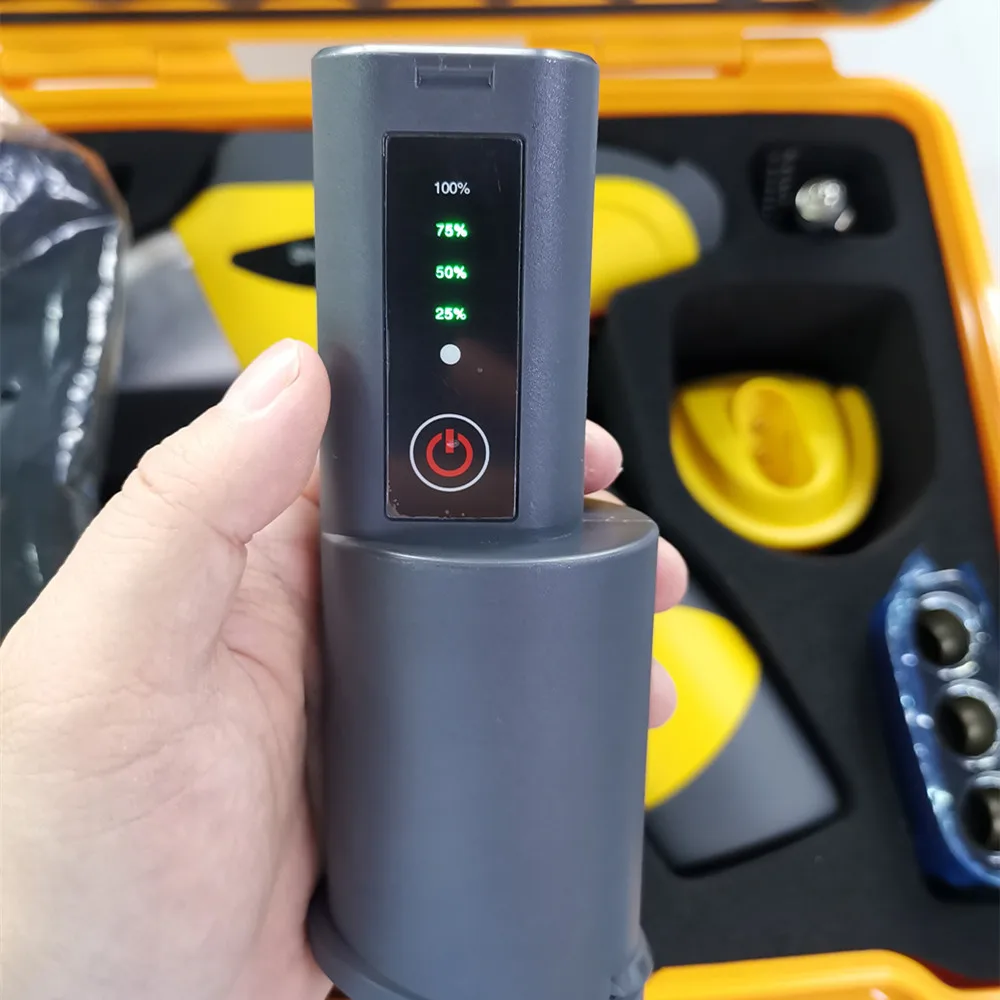

Power Supply | Rechargeable lithium battery, standard is 9000mAh, sustainable work up to 12 hours; optional is 27000mAh superbattery with wide voltage 110V ~ 220V universal adapter for recharging power supply |
Detection Objective | Solid, liquid, powder |
Detector | SDD detector or Fast-SDD detector (optional) |
Detector resolution | Minimum can reach 128eV |
The excitation source | 50KV/200uA- silver target end window integrated miniature X-ray tube and high voltage power supply |
Collimator and filter | collimator diameters are 4.0mm and 2.0mm, 6 kinds of filters with automatic switching functions |
Video system | 500W pixel high resolution camera |

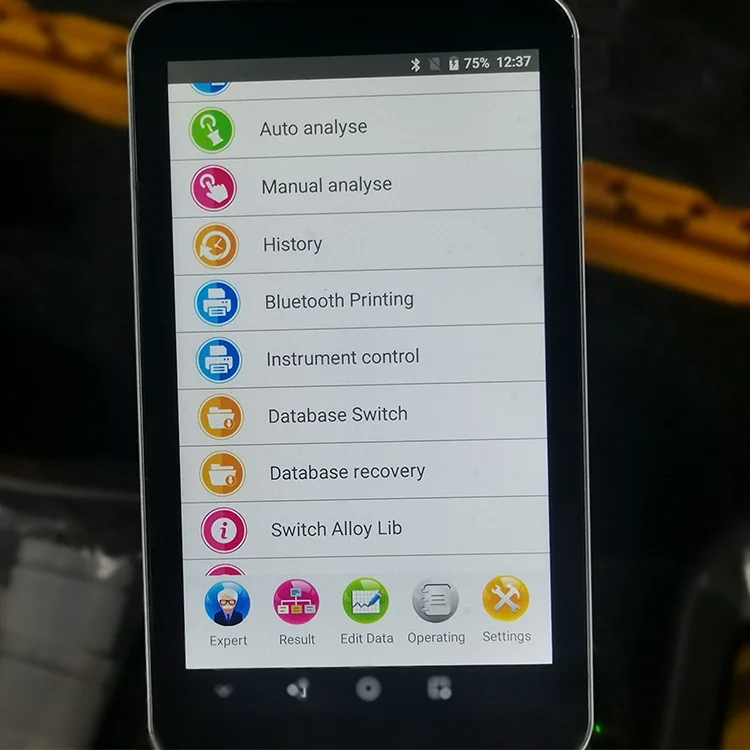

Display screen | Brand new 5 inch semi-reflecting and semi-transmitting LCD touch screen, its resolution is 1080*720. |
Detection limit | The minimum detection limits at 1 ~ 500 ppm |
Safety | Multiple safety protection, no tests, no radiation, radiation levels at work are far below the international safety standards, and has no sample telemetry, automatic -turn -off X-Ray tube function. Standard radiation shields, thickened instrument's alloy testing wally test instrument |
Specialty | Special edition of ore's analytical software, and intellectualized one- key- testing. |
Convenience of application | No need to select curves, intellectualized one- key-selecting will select the best matching curve |
Data transmission | Digital multi-channel technology, SPI data transmission, quick analysis, the high count rate; waterproof mini USB, and can be connected with a desktop computer |
Operating ambient humidity | ≤90% |
Operating environmental temperature | -20°C~+50°C |
Instrument dimension | 244mm ( Length) x 90mm (Width) x330mm ( Height) |
Instrument weight | 1.7Kg |
Intelligent warning signals Indicator system | Green light means power on, red flushing means testing and yellow flushing means the errors |

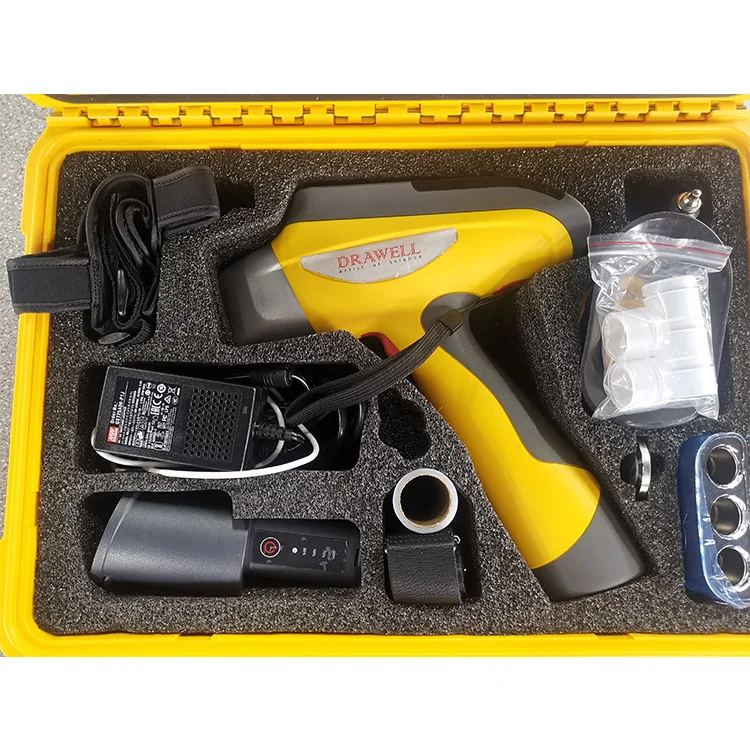

Accessories | Three-military-protection-box is compression, waterproof and shock absorption. |
Universal charger and car charger, 4G SD memory card and card reader | |
Two lithium battery and charger, PDA accessories, radiation shield. | |
Optional accessories | the large battery, seat type test support, Bluetooth printer, mill, manual pressure machine, and different meshes of sieves |
Product Description

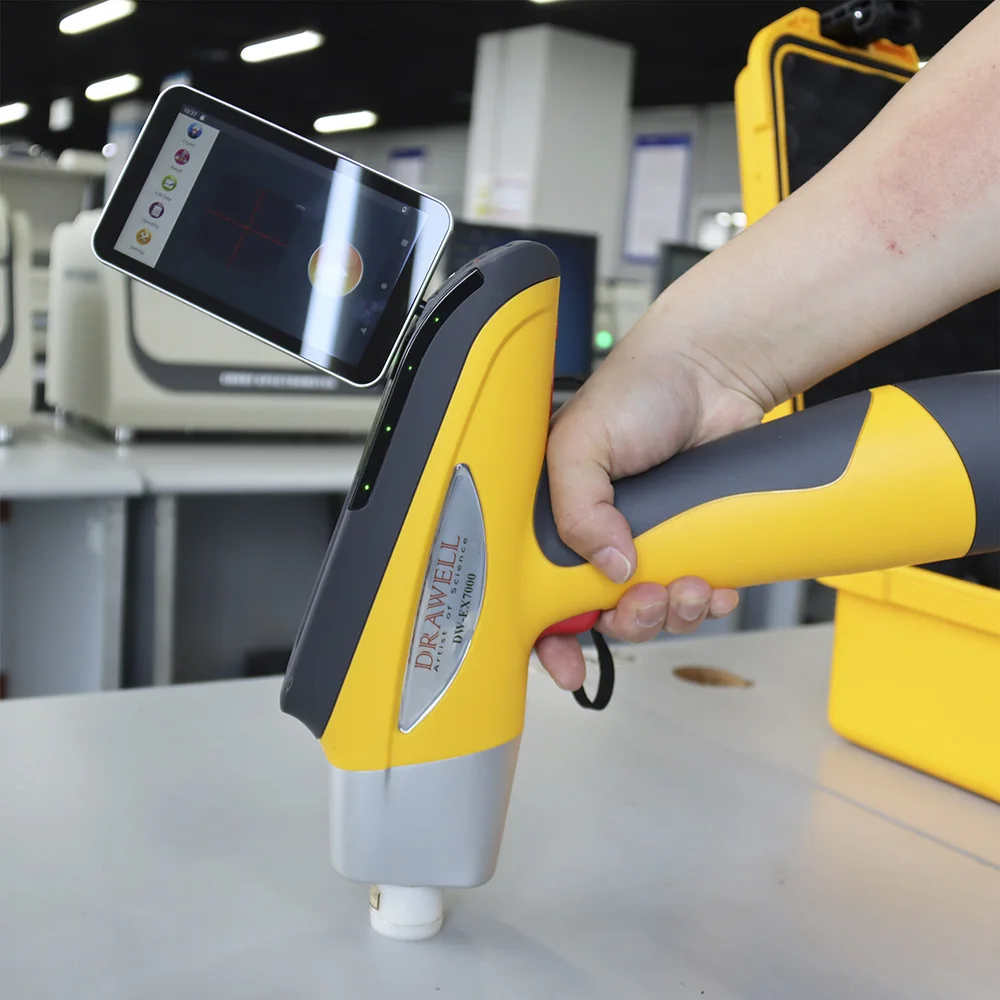

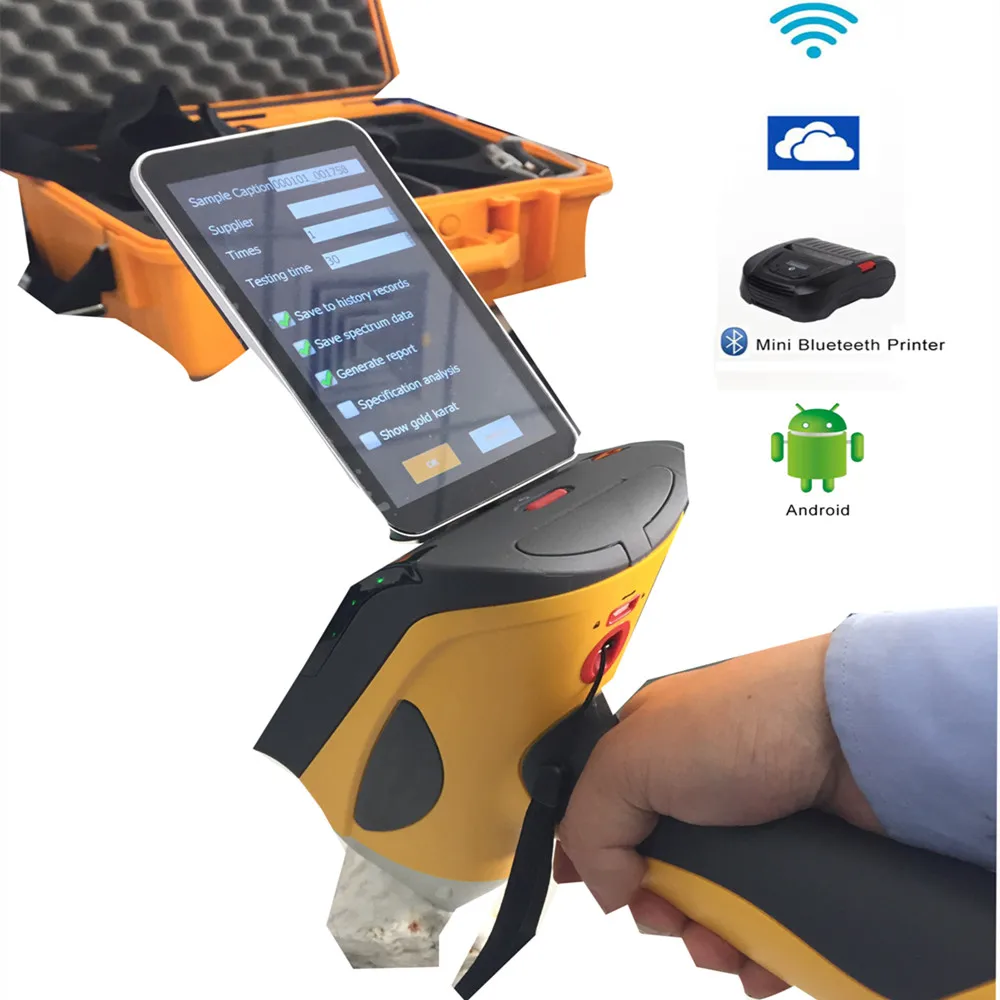

Fast speed and simple operation
High-performance X-ray Tube
Certificate
Company Profile
Exhibitions
Logistics & payment
Our Service
1． Quality warranty:
Drawell commits that TrueX handheld spectrometer is fabricated with fine grade materials and top notch workmanship. It is brand new, never used, and in full compliance with the quality provision of this Contract. TrueX warranty is 12 months starting from the date of final acceptance of the goods/commissioning of machine.
2． Technical training:
Operating Manual of TrueX Handheld Spectrometers
Maintenance Manual of TrueX Handheld Spectrometers
3． After-sale service
Over the years, Drawell has sold XRF instruments to many global users. In order to provide better technical support and service, it shall be committed to.
1． services including
a) Drawell shall provide after-sales service to all products it has sold worldwide.
b) Drawell shall provide a one-year warranty for the spectrometer it has sold worldwide.
c) Drawell shal provide one-year warranty for X-ray Tube (X-ray tube)and Detector (Detector).
d) Drawell shall provide one-year renewal warranty for the replaced components in case there is any replacement of them during repair of machine.
2． The following physical damage is not covered by warranty.
a) instrument is impacted by great force that the internal impact sensor changes from white to red;
b) Detector is broken
c) PDA is broken;
d) Instrument body is broken;
e) Loss of accessories
f) Loss of components
g) Water coming into instrument
3． In case the instrument is not able to operate, the customer can call after-sales service for help; we offer 3 types of repairs:
a) Internet repair: if the customers are in foreign countries or remote areas, we can offer them first the INTERNET repair service.
b) Phone repair: customers called over the phone to explain explicitly the problem and our technical staff will instruct them to solve the problem.
c) On-site repair: in case the phone repair fails, our technical personnel will go to the site to repair the instrument within 72 hours after the problem is reported;
4． Out-of-warranty service:
Drawell commits that TrueX handheld spectrometer is fabricated with fine grade materials and top notch workmanship. It is brand new, never used, and in full compliance with the quality provision of this Contract. TrueX warranty is 12 months starting from the date of final acceptance of the goods/commissioning of machine.
2． Technical training:
Operating Manual of TrueX Handheld Spectrometers
Maintenance Manual of TrueX Handheld Spectrometers
3． After-sale service
Over the years, Drawell has sold XRF instruments to many global users. In order to provide better technical support and service, it shall be committed to.
1． services including
a) Drawell shall provide after-sales service to all products it has sold worldwide.
b) Drawell shall provide a one-year warranty for the spectrometer it has sold worldwide.
c) Drawell shal provide one-year warranty for X-ray Tube (X-ray tube)and Detector (Detector).
d) Drawell shall provide one-year renewal warranty for the replaced components in case there is any replacement of them during repair of machine.
2． The following physical damage is not covered by warranty.
a) instrument is impacted by great force that the internal impact sensor changes from white to red;
b) Detector is broken
c) PDA is broken;
d) Instrument body is broken;
e) Loss of accessories
f) Loss of components
g) Water coming into instrument
3． In case the instrument is not able to operate, the customer can call after-sales service for help; we offer 3 types of repairs:
a) Internet repair: if the customers are in foreign countries or remote areas, we can offer them first the INTERNET repair service.
b) Phone repair: customers called over the phone to explain explicitly the problem and our technical staff will instruct them to solve the problem.
c) On-site repair: in case the phone repair fails, our technical personnel will go to the site to repair the instrument within 72 hours after the problem is reported;
4． Out-of-warranty service:
upon expiry of the warranty period, all customer
