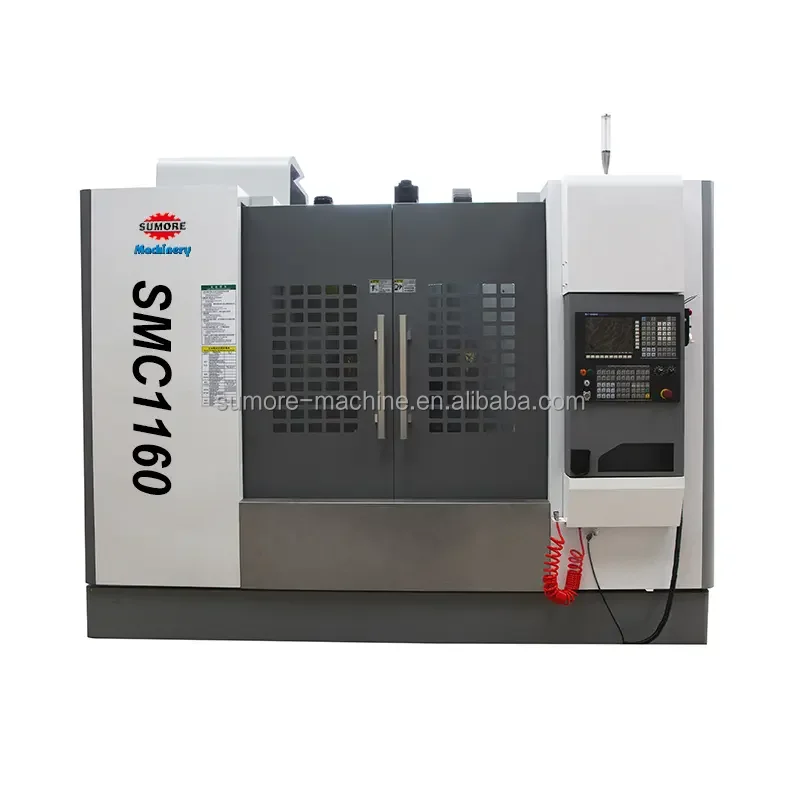

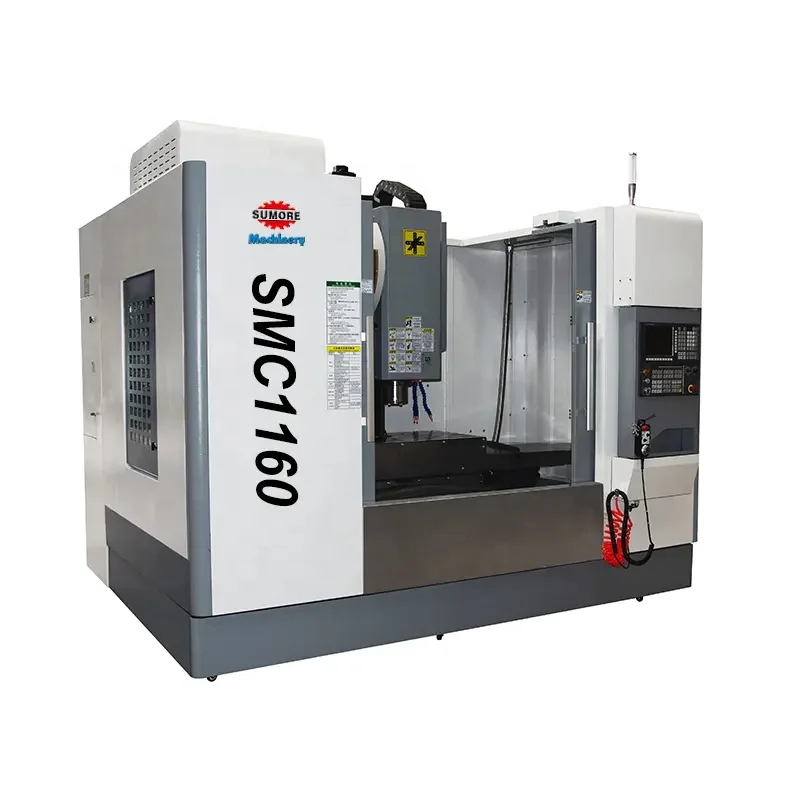

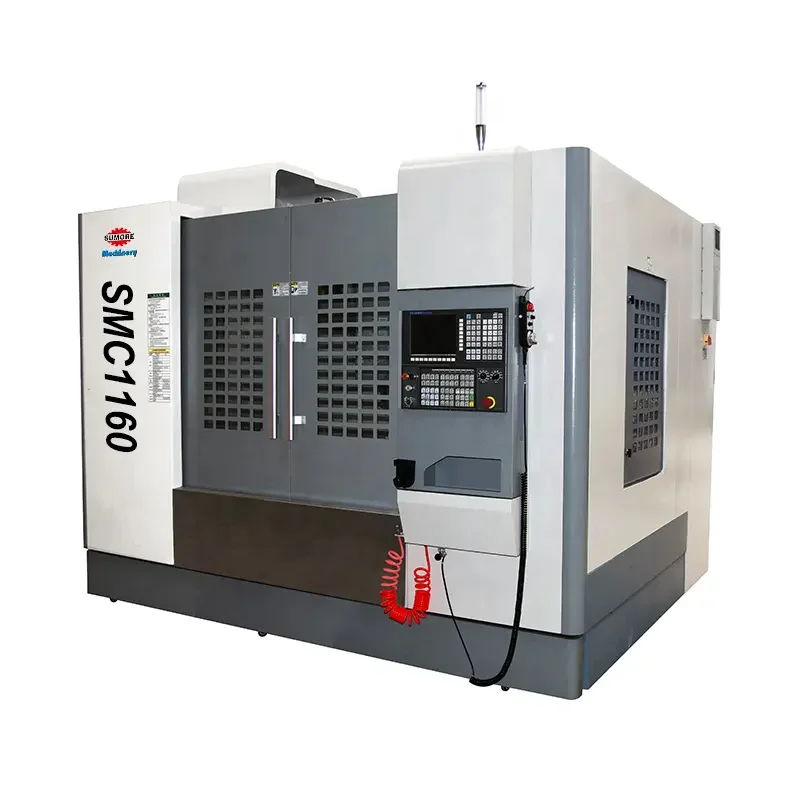

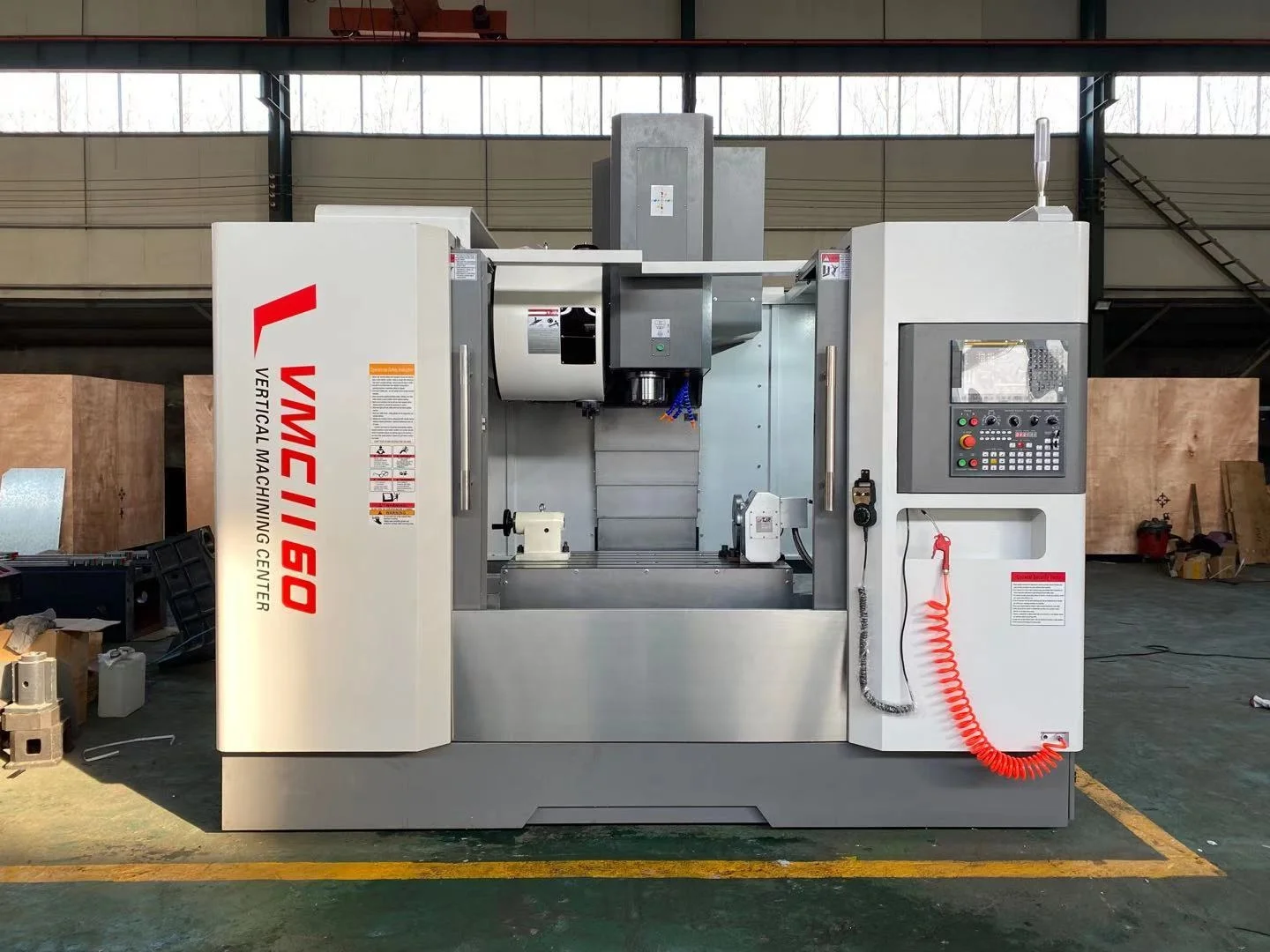

SMC1160 CNC Machining Center Sumore vertical milling machine with Siemens 828D/HNC/GSK/FANUC
- Category: >>>
- Supplier: Shanghai Sumore Industrial Co. Ltd.
Share on (1601032345680):
Product Overview
Description
Sumore !!! VMC 1160 GSK / FANUC / Siemens 828D / HNC / Heidenhain Control System 3 Axis 4 Axis 5 Axis CNC Machining Center SMC1160 High Accuracy VMC Model CNC Machining Center Vertical CNC Machine Center with 1200x600 table
Model | SMC1160 |

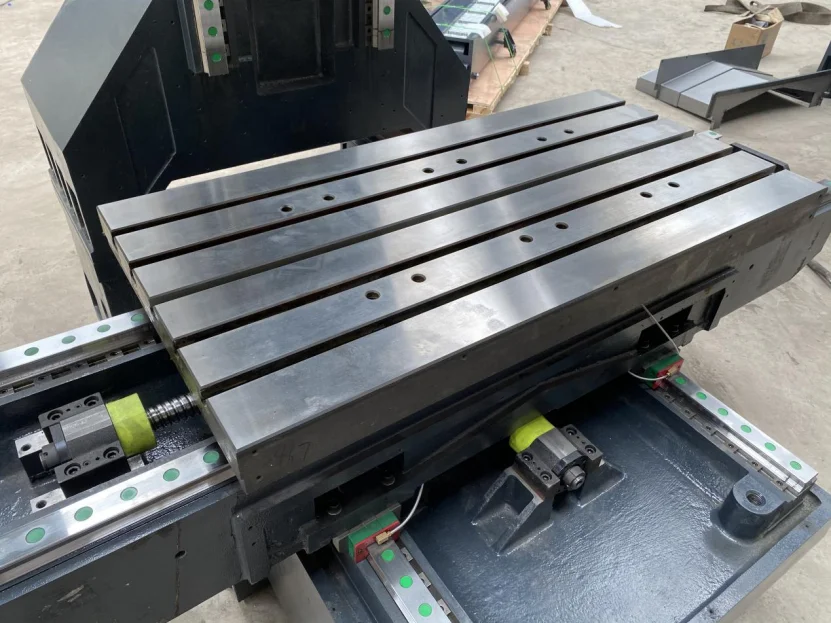

Table size | 1200x600mm |
X axis travel | 1100mm |
Y axis travel | 600mm |
Z axis travel | 600mm |
spindle nose to table surface | 120-670mm |
spindle axis to column surface | 650mm |
T-slot | 5-18 |
Spindle taper | BT40 |
Max. spindle speed | 8000rpm |
Main motor power | 11kw |
Max.table load | 800kgs |
Table size | 1200*600mm |
Automatic tools changer | 24 pcs tool arm type (optional:20 carousel) |
Max.tool weight | 8kgs |
Max. tool length | 200mm |
Max. tool diameter | 80mm /150mm |
X、Y axis rapid movement rate | 24000mm |
Z axis rapid movement rate | 20000mm |
Position accuracy | ±0.01mm |
Cutting feed rate | 1-10000mm/min |
Repeat positioning accuracy | ±0.003mm/300mm |
Air supply | 0.6MPa |
Machine dimension | 3350×2300×2550mm |
Machine weight | 6200kgs |
Product Description
SMC1160 is a multi-purpose machine which could mill surface & drill holes. This machine adopts domestic/overseas branded numerical control system and realizes full-screen edition in Chinese.

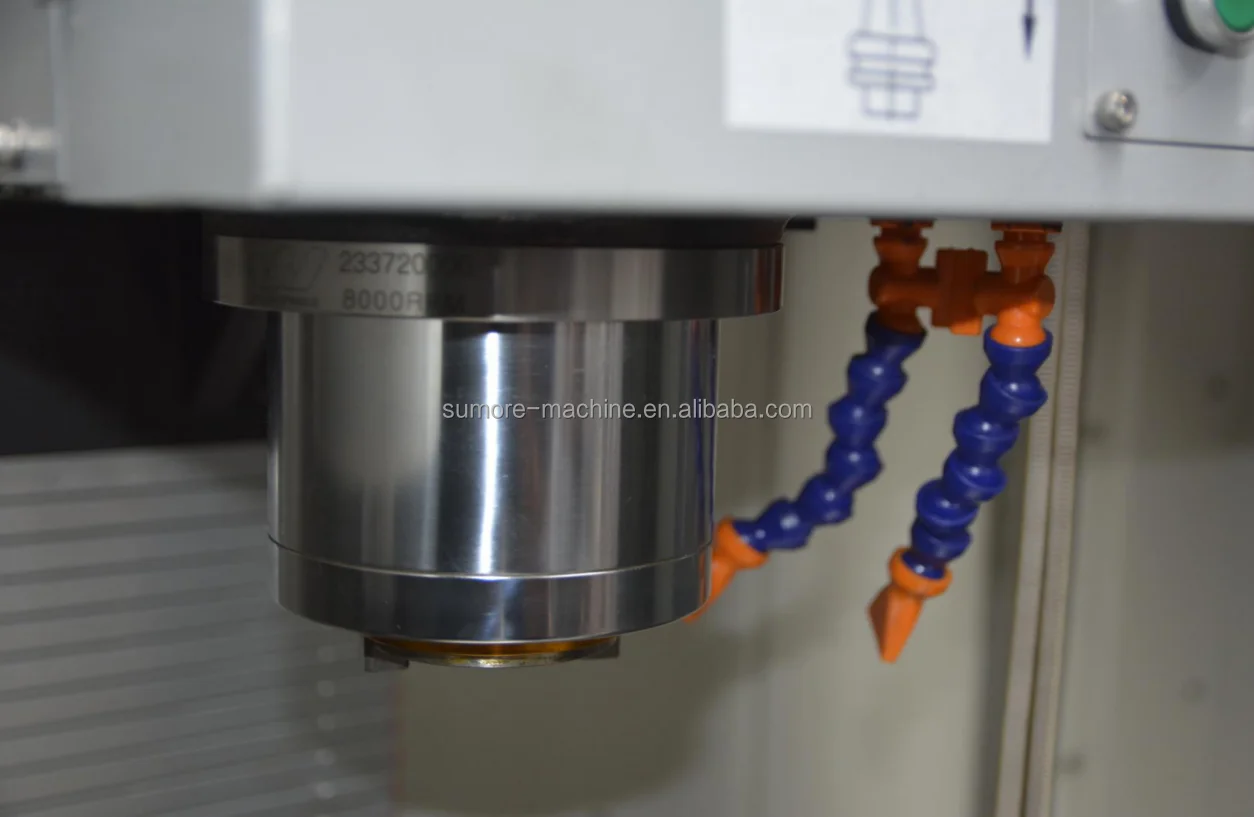

Spindle adopts imported frequency converters, which could fulfill variable speed control & constant linear speed cutting functions; machining body adopts ultrasonic frequency hardening treatment; both X-axle & Z-axle adopts step/servo motor, which could process feeding motion by directly connecting shaft coupling & ball screws.
With high power, pleasant rigidity, high precision & storage, high price-quality ratio and long cycle life, it is one small-medium precision & complex machine for processing various materials (especially non-ferrous metals & stainless steel) as well as an ideal equipment’s for large automation production.
CE Stanadrd Sumore VMC-1060 vertical CNC center cnc machining center vertical milling machine center price SMC1060 VMC550 VMC650
VMC850 VMC855 VMC1060 VMC850 VMC650 Sumore High-accuracy Pallet Changer Vertical Machining Center CNC Double Worktable VMC SMC1060
VMC1160 VMC1050 VMC1060 Vertical Milling Machining Center 4 axis 5 axis SMC1160 metal Machine Center with 1200x600 table SMC1060
VMC850 VMC855 VMC1060 VMC850 VMC650 Sumore High-accuracy Pallet Changer Vertical Machining Center CNC Double Worktable VMC SMC1060
VMC1160 VMC1050 VMC1060 Vertical Milling Machining Center 4 axis 5 axis SMC1160 metal Machine Center with 1200x600 table SMC1060

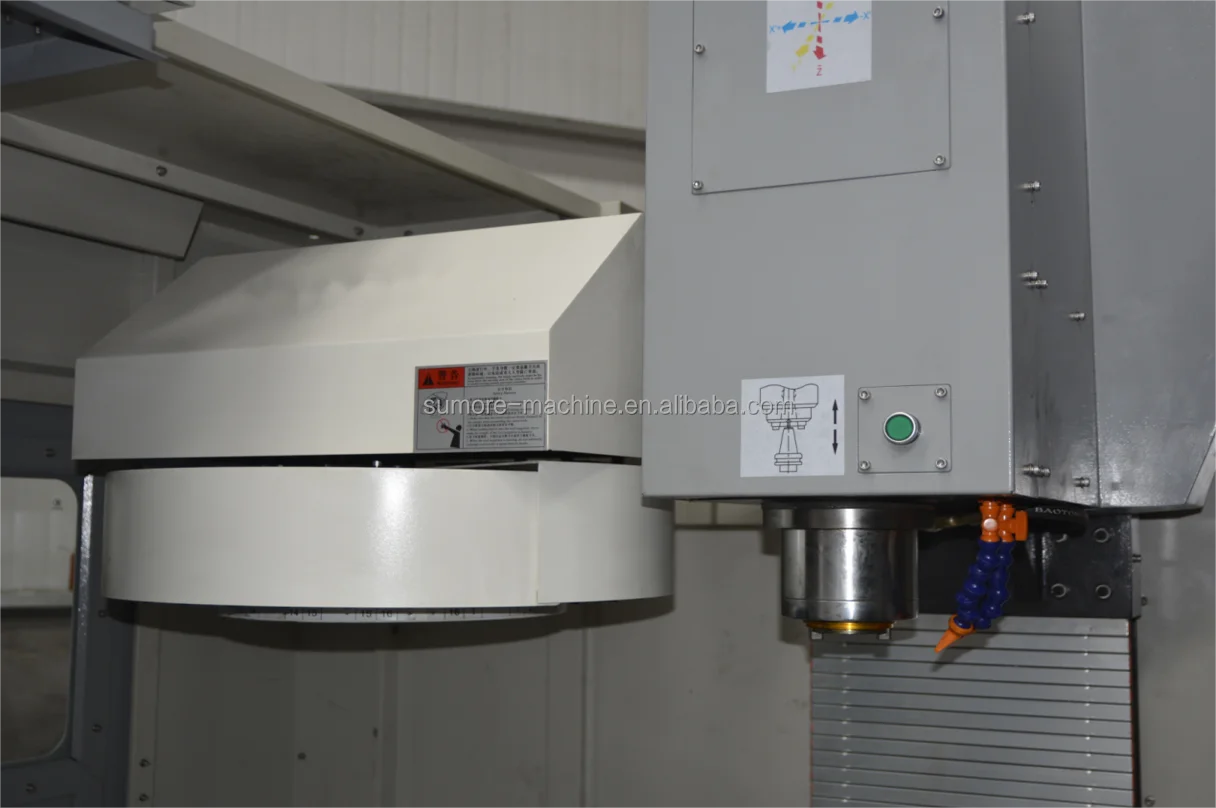

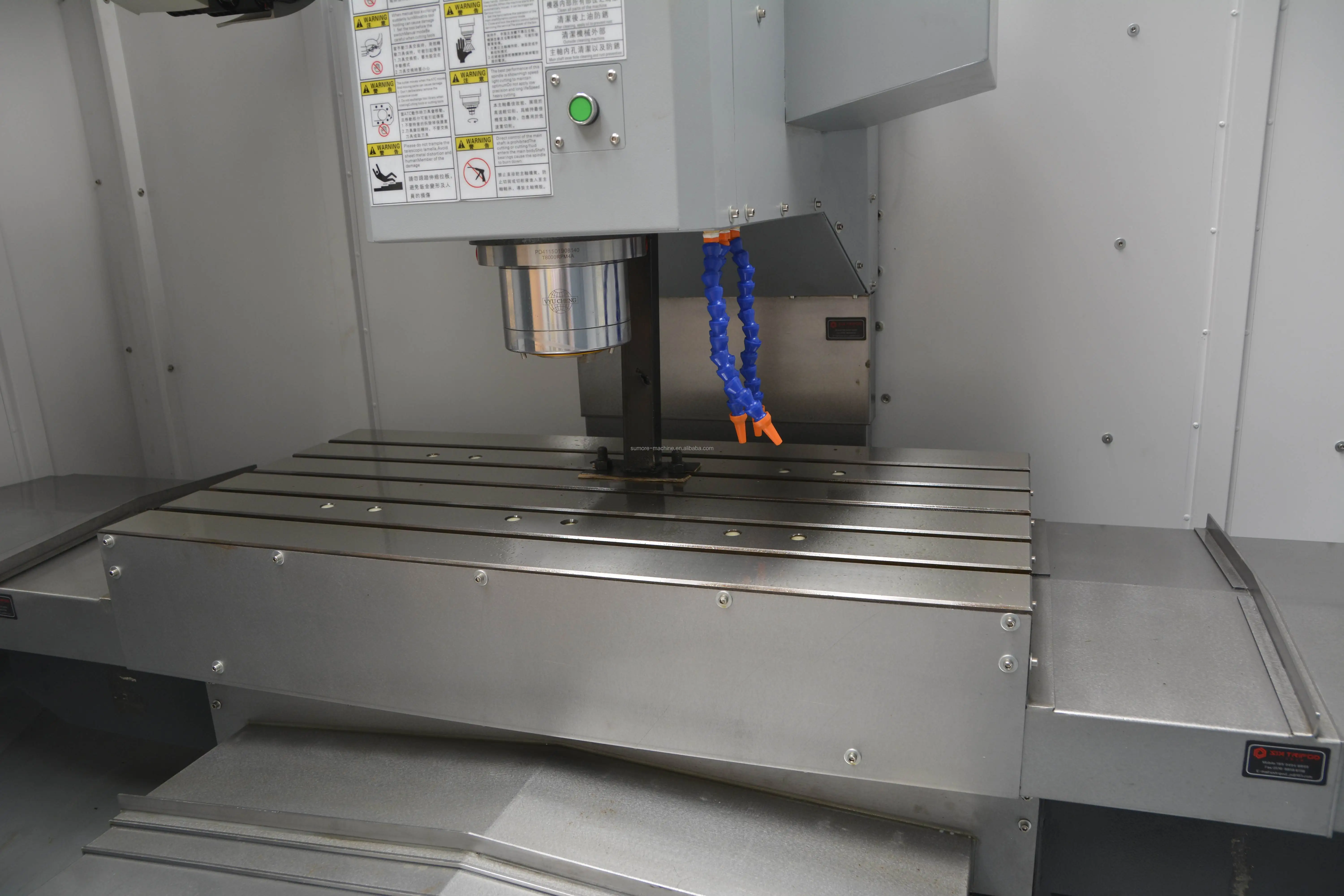

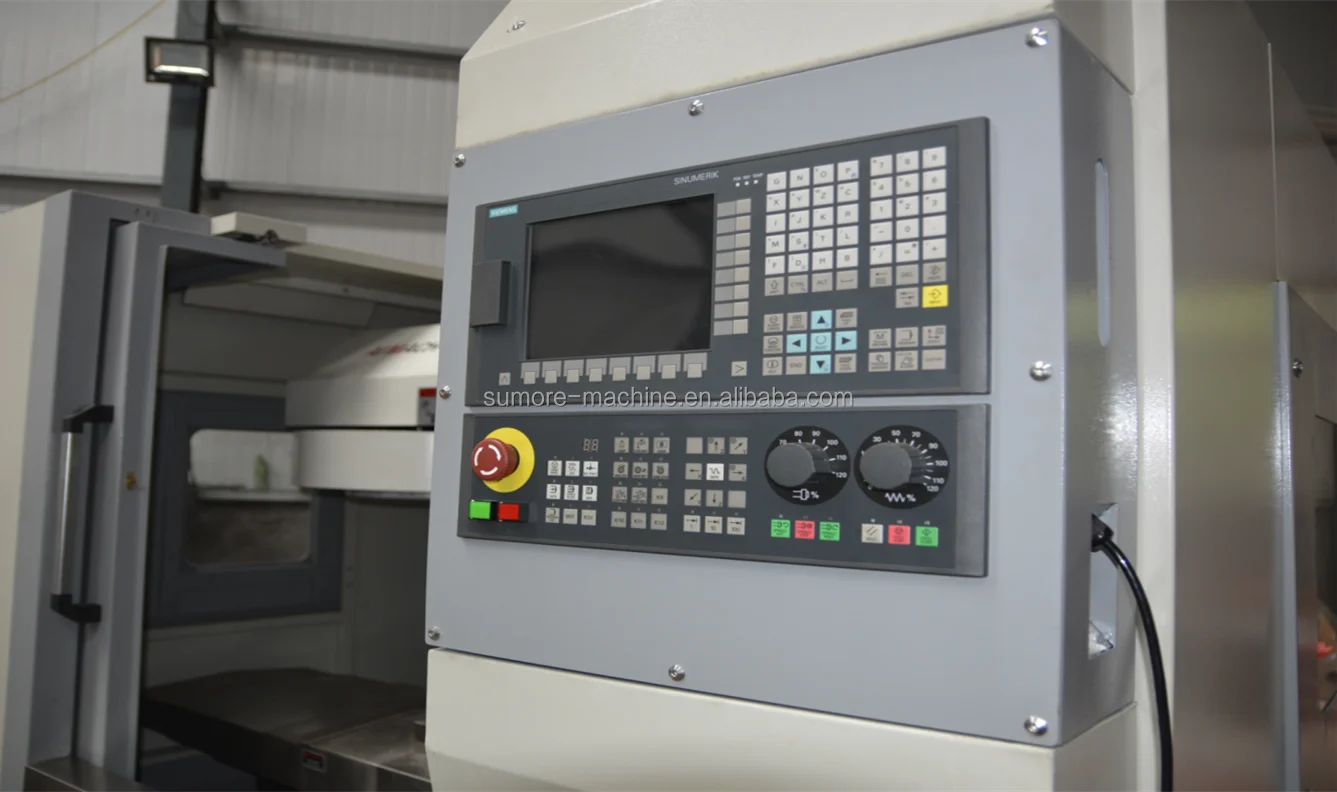

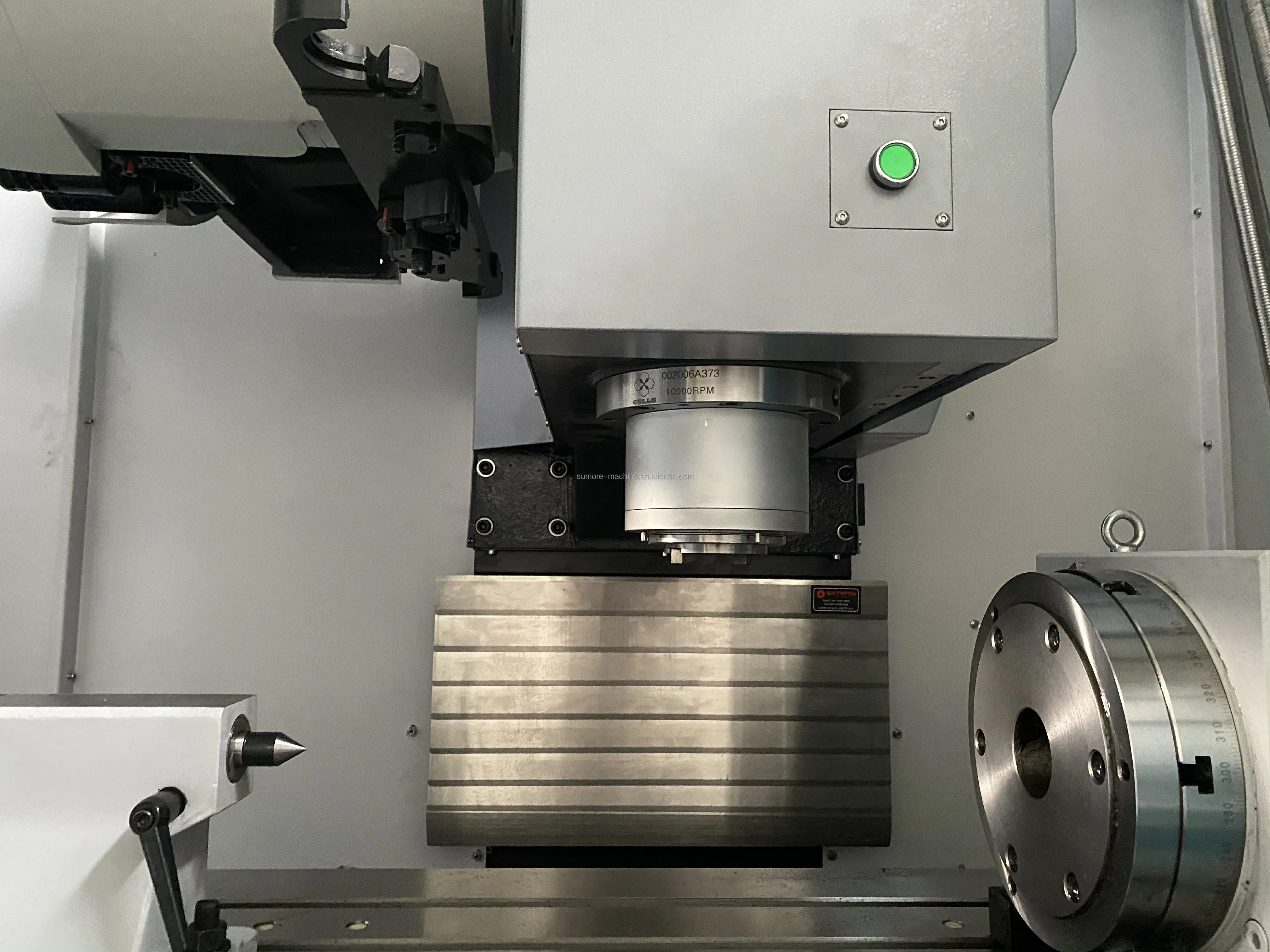

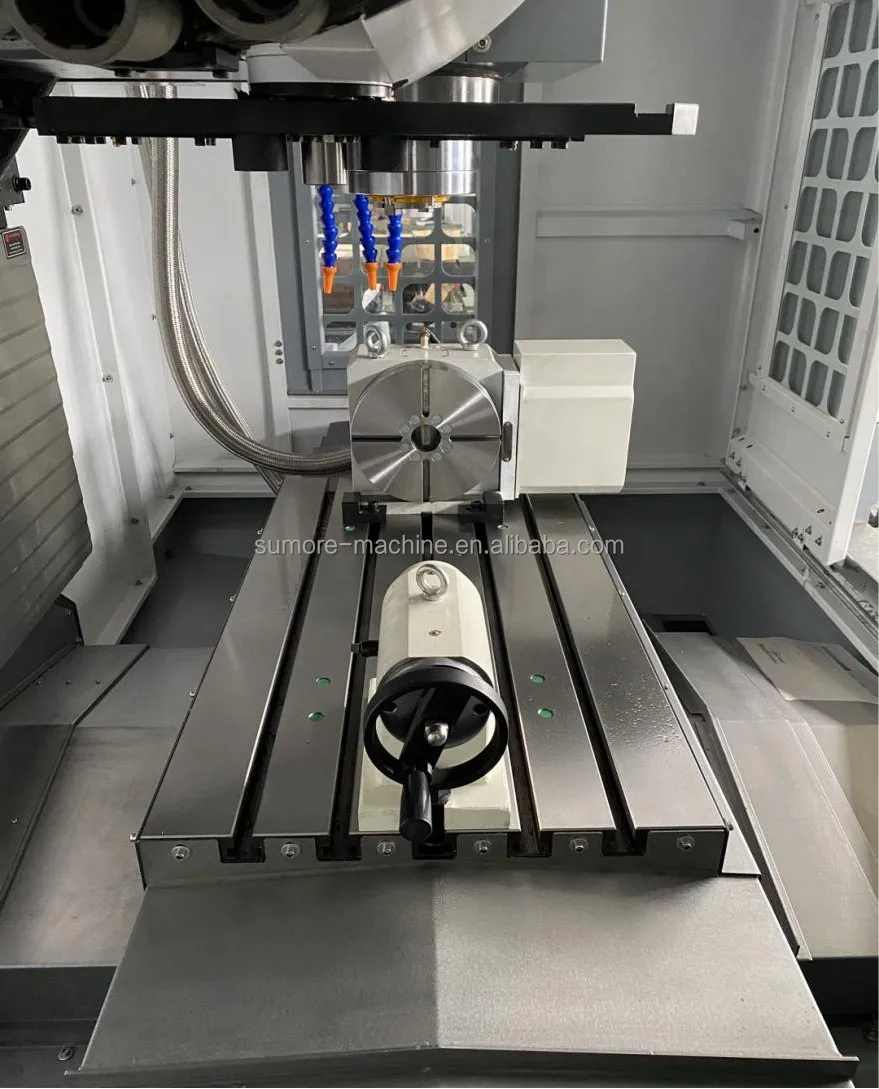

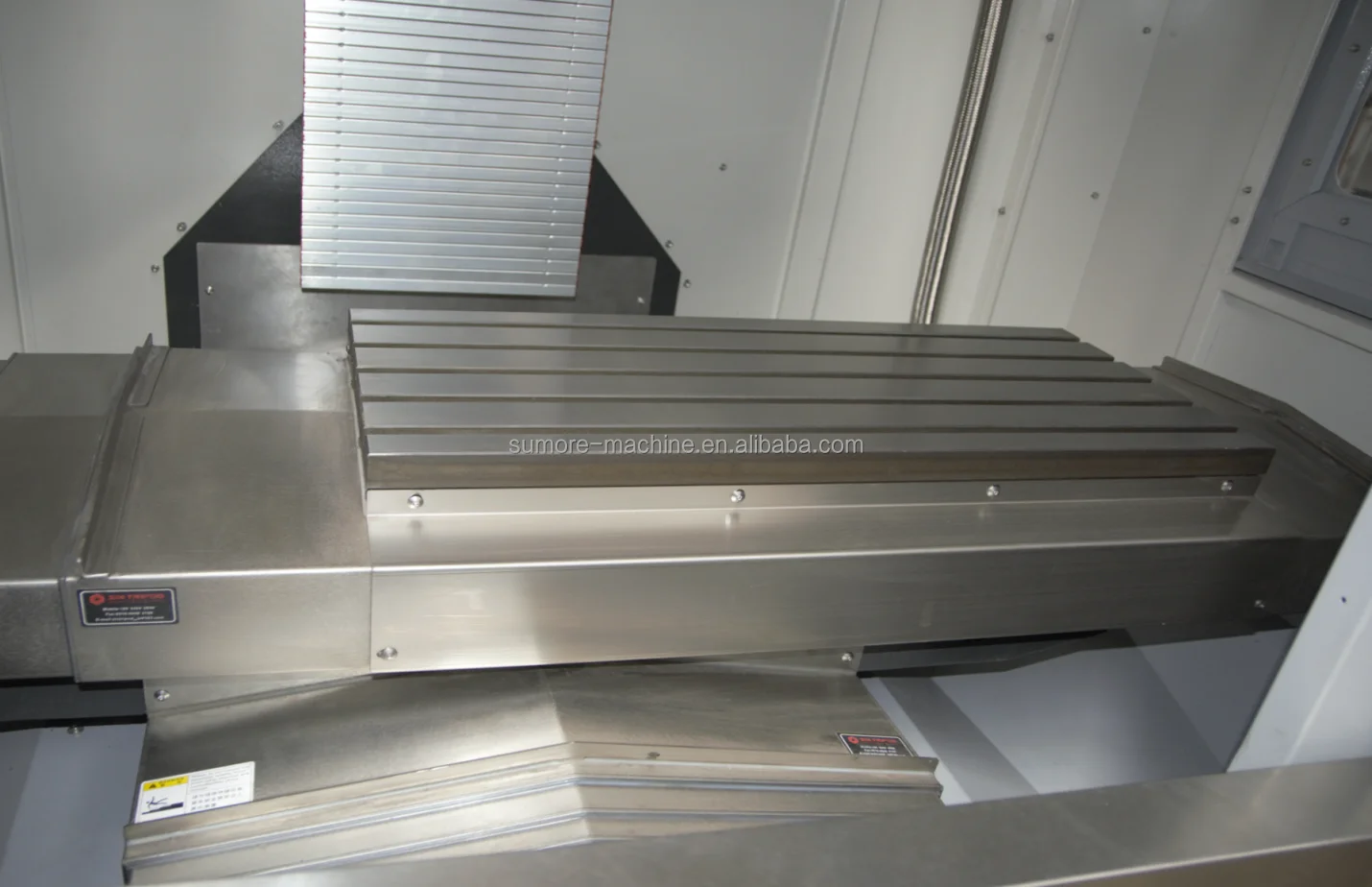

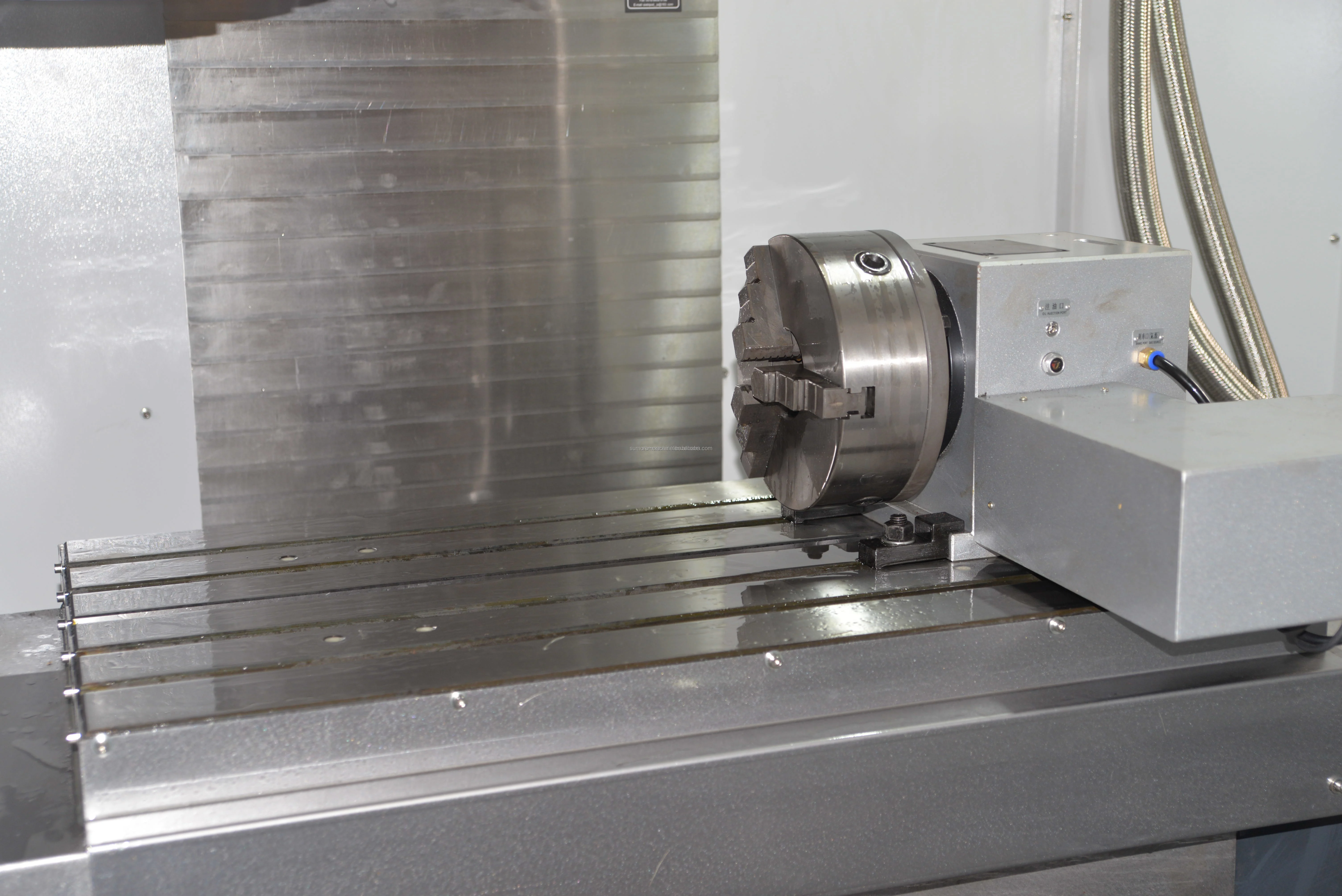

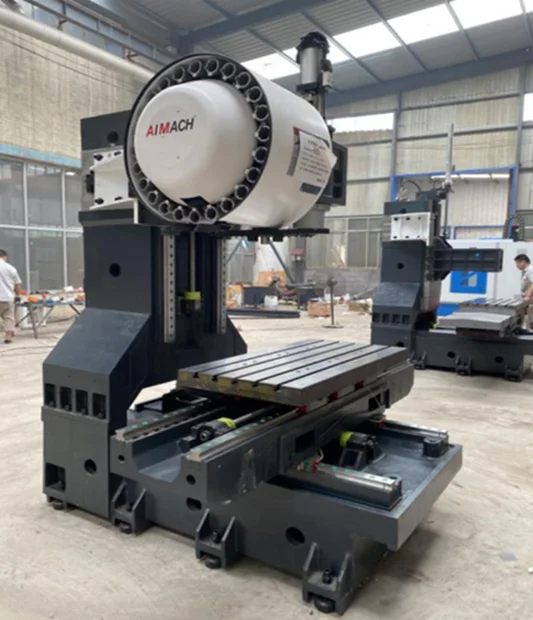

Product Detail Pictures

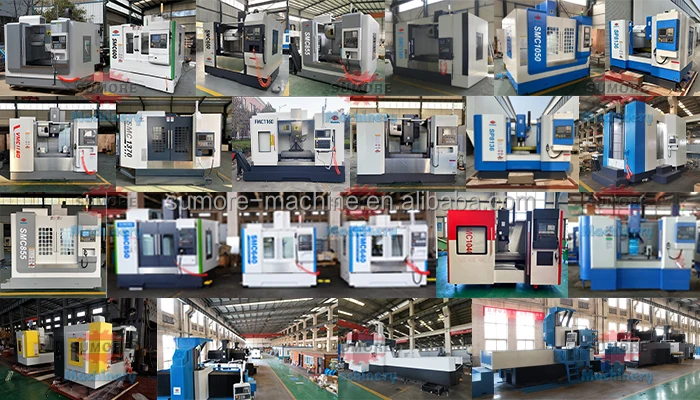

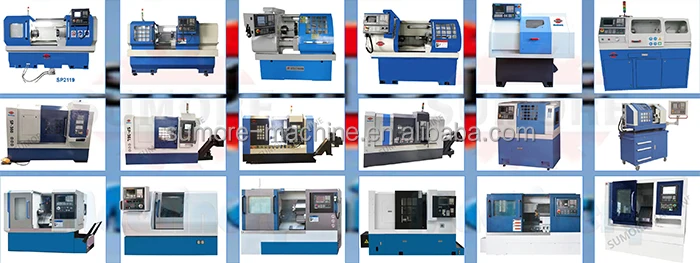

Hot Products
Packing & Delivery
Package | 1 set/polywood case (aluminum strips strengthen) |
Minimum Order Quantity (MOQ) | 1 sets |
Full Container Loading Quantity (FCL) | 36-60sets/20’GP (unitary; customerized packing available) |
Delivery Time | 25 calendar days after receiving of advance / full payment |
