220g kevlar fabric with aramid filament yarn twill weaving made by manufacturer

Share on (1601032433970):


Price:$7.00

Quantity:


Product Overview

Description


 220g aramid fabric with aramid filament yarn twill weaving made by manufacturer





Main spotlights of aramid:





Basically applications:


1 woven fabric is used in a wide range of industrial applications and is the most widely available and least expensive composite fabric. It is relatively lightweight, has moderate tensile and compressive strength and is easy to handle and machine. High strength, dimensional stability, design flexibility and excellent electrical properties are some of the characteristics that insure optimum performance.





2 Aramid is a lightweight plain weave fabric woven from fibers. The plain weave provides fabric stability.


3 It is suitable for use in wet layup, vacuum bagging and resin infusion manufacturing and is compatible with polyester, vinyl-ester and epoxy resins.





Conventional: door width 1.0 meters - 1.65 meters


Aramid filament: 200D 400D 800D 1000D 1500D 3000D


Gram weight: 50-1000g


the technical parameters of the fabrics:
































































































Item No.



Denier



Yarn type



Yarn count


 (Per 10cm)



weight



thickness



Breaking strength


N/5cm







warp



weft



warp



weft



warp



weft



G/m2



mm



warp



weft



YD 110



1000



1000



TF100



TF100



85



85



200g



0.4



6500



6500



YD 153



1500



1500



TF100



TF100



124



124



410g



0.6



13500



13500



YD 109



1000



1000



TF100



TF100



65



65



180g



0.3



6000



6000



YD 129



1000



1000



TF100



TF100



110



110



255g



0.43



8200



8200



YD 159



1500



1500



TF100



TF100



84



84



300g



0.4



9800



9800






samples are supported:

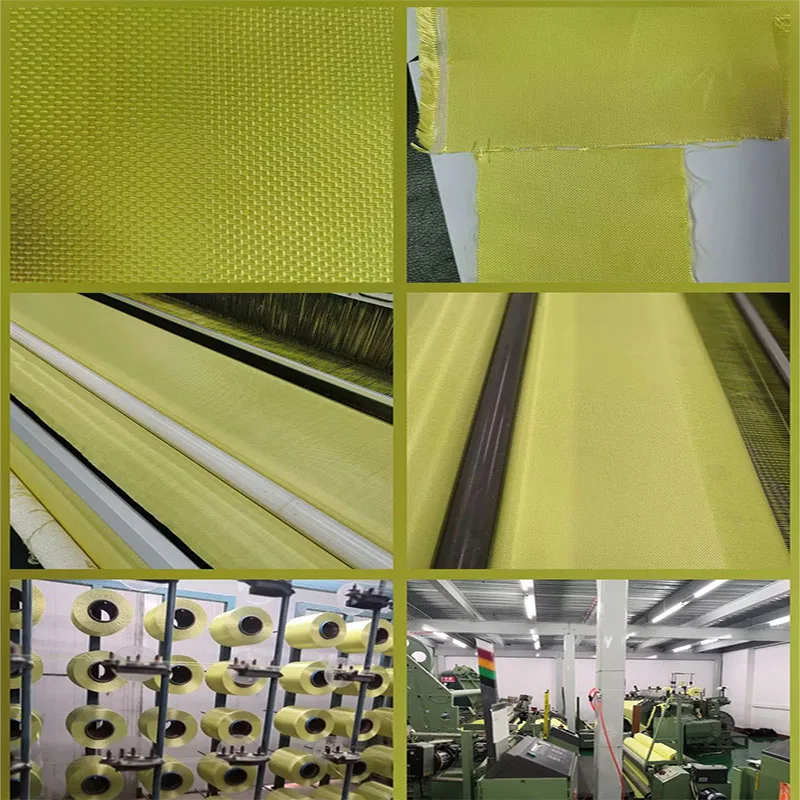

woven fabrics details 01








other aramid camuflage fabric :  aramid UD fabric


high-performance bullet UD fabric:
certified by China ordnance industry test center detection and America NIJIIIA 9 mm and the new standard NIJIIIA. 44 test.

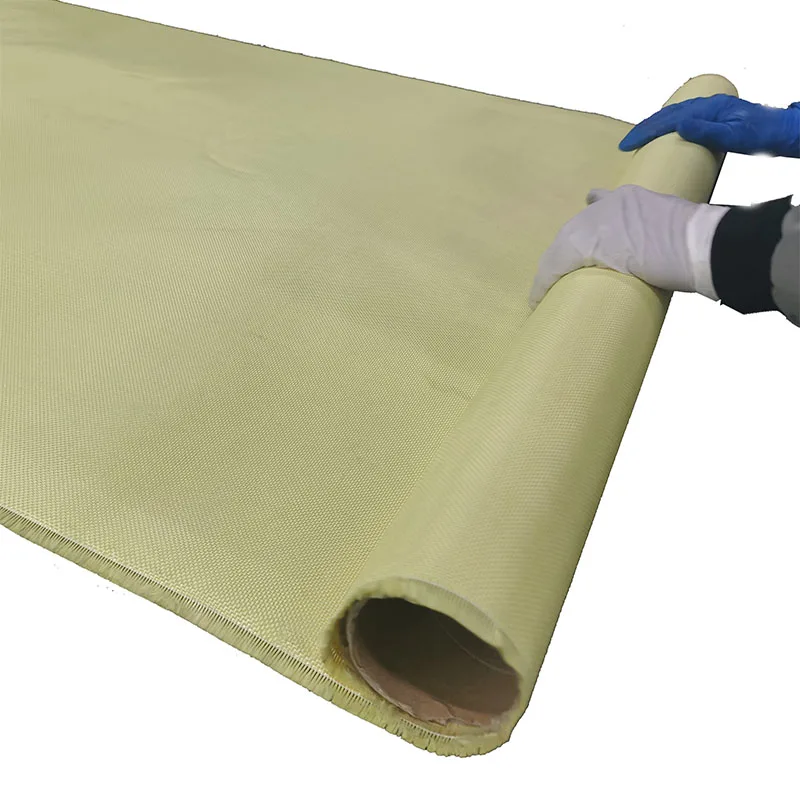

ARamid fabric package 1









FAQ


Q: Are you trading company or manufacturer factory?


A:we are factory.


Q: Do you provide sample? How long it takes?


A: Sample can be provided.


Delivery time: regular item in stock can be delivered in 3 days.Customize samples takes about 10-20days based on different quantity and requires .


Q:What’s your terms of payment?


A: EXW, FOB, CIF payment terms etc.We usually accept 30% prepayment and the balance before shipment
