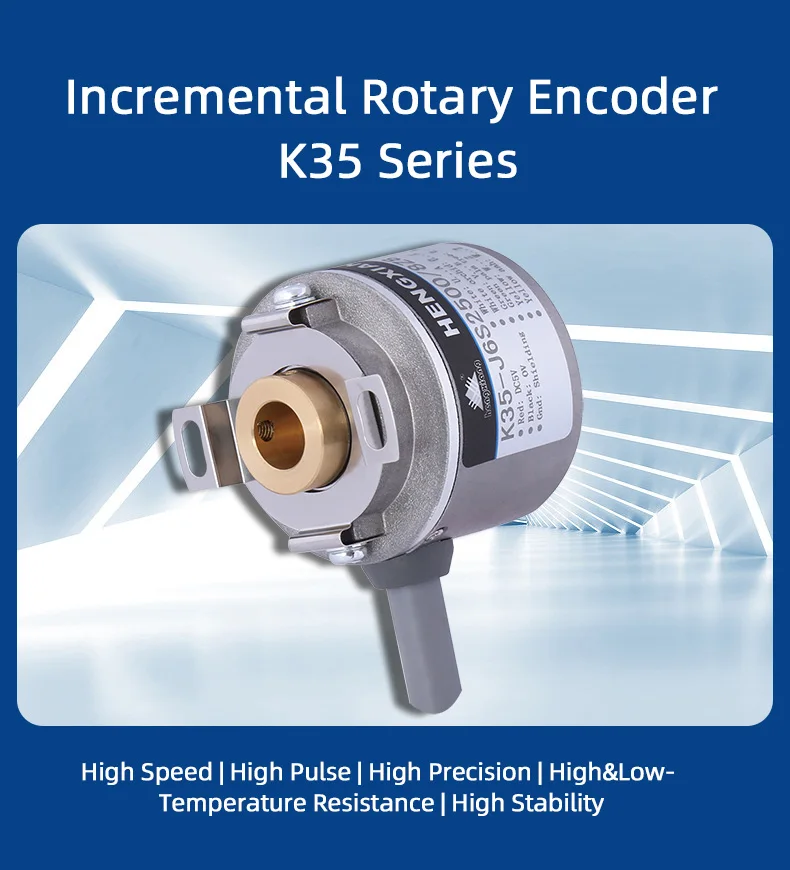

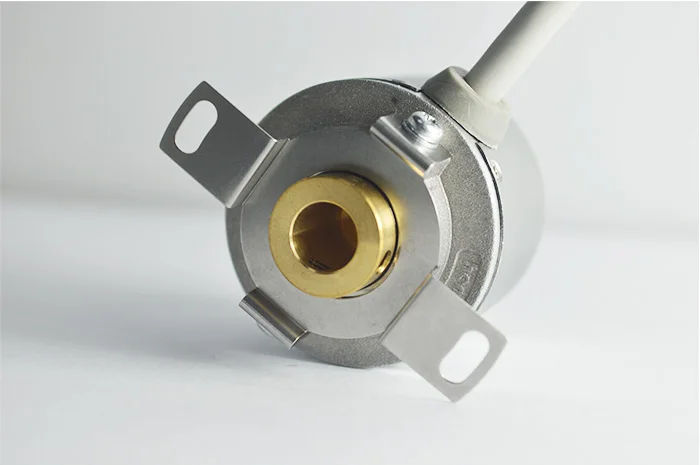

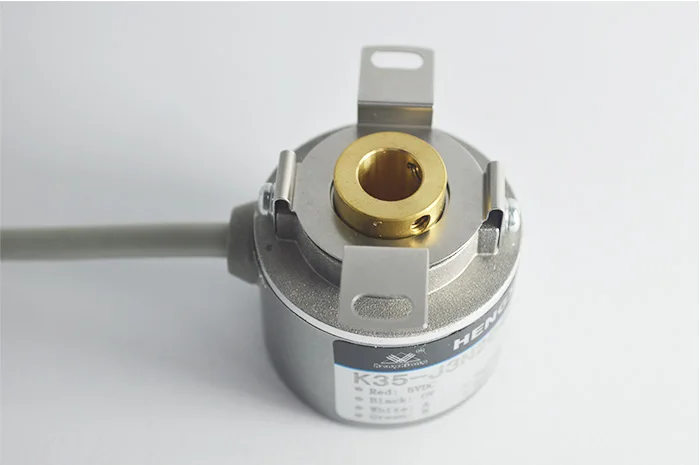

Hengxiang K35 blind shaft 6mm rotary angle encoder 1024P/R 5000ppr UVW signal servo motor encoder
- Category: >>>
- Supplier: Shanghai Hengxiang Optical Electronics Co. Ltd.
Share on (1601032442895):
Product Overview
Description
Products Description

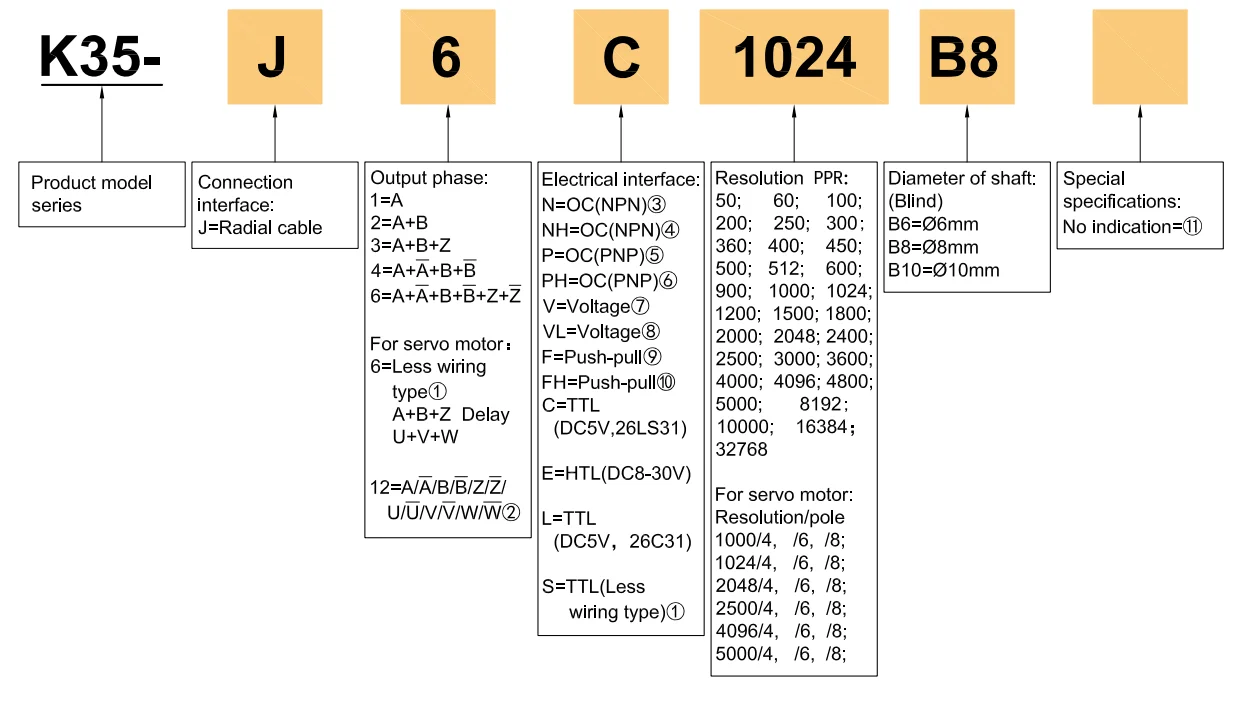

Brand | HENGXIANG | |
Encoder type | Incremental encoder | |

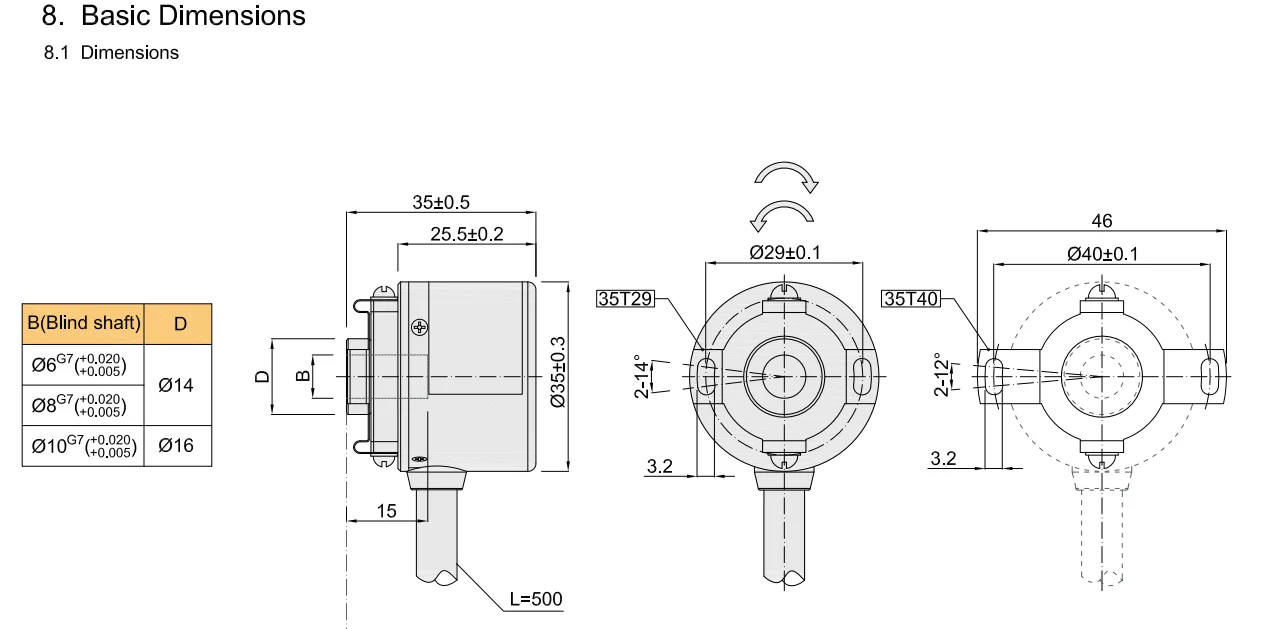

External diameter | 35mm | |
Thickness | 35mm | |
Installation dimension | 40mm(spring plate 35T40); 29mm(35T29) | |
Hollow shaft type | blind hole | |
Hollow shaft diameter | 6mm,8mm;10mm (Depth 15mm) | |
Resolution | 50;60;100;200;250;300;360;400;450;500;512;600; 1000;1024;1200;2000;2048;2500;3000;3600;4000;4096;4800;5000;8192;10000;16384;32768 | |
1000/4;1000/6;1000/8;1024/4;1024/6;1024/8;2000/4;2000/6;2000/8;2048/4;2048/6;2048/8;2500/4;2500/6;2500/8;4096/4;4096/6;4096/8;5000/4;5000/6;5000/8 | ||
Output phase | Phase A+,B+,Z+,A-,B-,Z-,U+,V+,W+,U-,V-,W- | |
Supply voltage | DC5V & DC8--30V | |
Outlettype | Radial cable | |
Output mode | NPN/PNP(Open Collector Output) | |
Voltage output | ||
Push-pull output | ||
line drive (26LS31) TTL | ||
line drive(DC8-30V) HTL | ||
TTL(DC5V) phase ABZ are back of phase UVW | ||
Protection grade | IP50 | |
Reverse polarity protection | √ | |
Short circuit protection | √ | |
Cable length | 500mm | |
Consumption current | 120mA MAX | |
Top response frenquency | 300KHZ | |
Allowable ripple | ≤3%rms | |
Load Voltage | ≤DC30V | |
Insulation strength | AC500V 60s | |
Insulation resistance | 10MΩ | |
GND | not connect to encoder | |
Mark to Space ratio | 45% to 55% | |
starting torque | less than 5.9x 10-3 N.m | |
Intertia moment | less than 1x 10-6kg.m2 | |
Shaft load | Radial 30N; Axial 20N | |
Top REV | 5000RPM | |
Bearing life | 1.5x109 revs at rated load(100000hrs at 2500RPM) | |
Environmental temperature | Operating:-20 ～+85°；storage:-20 ～+90° | |
Enviromental humidity | Operating and storage: 35-85%RH(noncondensing) | |
Vibration(endure) | Amplitude 0.75mm,5-55Hz,2 hours for three axis individually | |
Sock(endure) | 490m/s2 ,11 ms three times for X,Y,Z direction individually | |
Shell Material | Dia cast aluminium | |
Certification | CE | |
package | Carton box | |
Net weight | About 100g (with package) |
