550w 400w monocrystalline solar panel mono 2000 w 150 160 12v 300w 1000w 5000 watts 1 kw single amp output 48v 36 volt 50v
- Category: >>>
- Supplier: AOI ELECTRONICS HONG KONG CO. LIMITED
Share on (1601032499555):
Product Overview
Description
Product Overviews

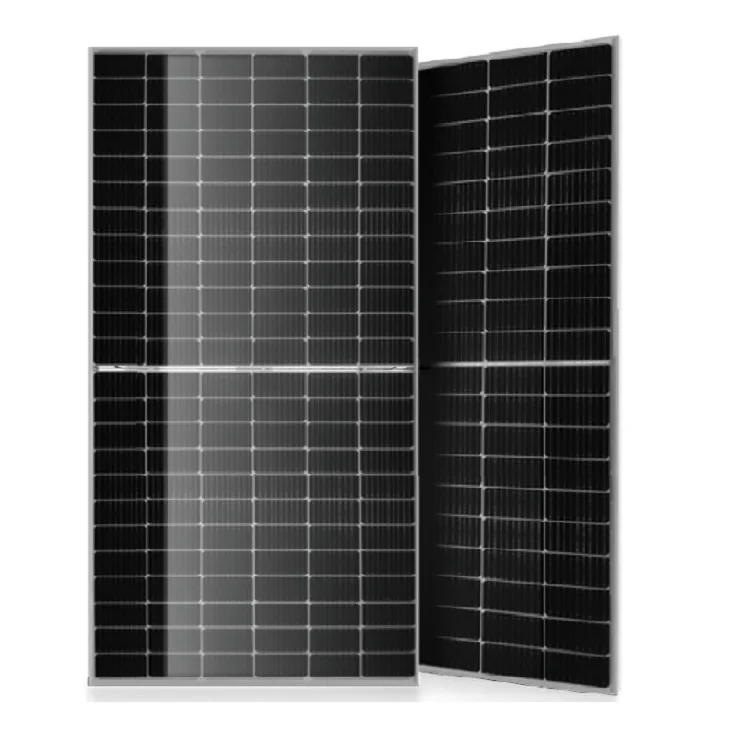

Half-Cell High Efficiency PV Module
| BIFACIAL MONO PERC Double-sided cell technology High Efficiency Higher module conversion efficiency(up to 21.03%) benefit from half cell structure(low resistance characteristic). Multi busbar technology Better light utilization and current collection capabilities, effectively improving product power output and reliability. Longer service life Excellent double-sided warranty promises a 30-year power warranty of 0.45% linear power attenuation. Severe Weather Resilience Certified to withstand:Wind load(2400 pascal) and snow load(5400 pascal). Double-sided power generation The double-sided power generation gain increases with the light received on the back side, up to 25%, which significantly reduces the LCOE. 12-year Warranty for Materials and Processing 30-year Warranty for Extra Linear Power Output |
| Module | KSM-525/144-S3S | KSM-530/144-S3S | KSM-535/144-S3S | KSM-540/144-S3S | KSM-545/144-S3S | |||||
| Testing Condition | STC | NOCT | STC | NOCT | STC | NOCT | STC | NOCT | STC | NOCT |
| Maximum Power(Pmax/W) | 525 | 390.6 | 530 | 394.3 | 535 | 398.0 | 540 | 401.8 | 545 | 405.5 |
| Open Circuit Voltage(Voc/V) | 49.27 | 46.51 | 49.35 | 46.59 | 49.42 | 46.65 | 49.49 | 46.72 | 49.65 | 46.87 |
| Short Circuit Current(Isc/A) | 13.64 | 11.02 | 13.71 | 11.07 | 13.79 | 11.14 | 13.87 | 11.20 | 13.94 | 11.26 |
| Voltage at Maximum Power(Vmp/V) | 40.61 | 37.58 | 40.71 | 37.75 | 40.81 | 37.88 | 40.91 | 38.02 | 41.07 | 38.17 |
| Current at Maximum Power(Imp/A) | 12.93 | 10.39 | 13.02 | 10.45 | 13.11 | 10.51 | 13.20 | 10.57 | 13.27 | 10.62 |
| Module Efficiency(%) | 20.26 | 20.45 | 20.65 | 20.84 | 21.03 | |||||
Company Information
Karstsolar, a company dedicated to accelerating the global transition to sustainable energy, combines photovoltaics, energy storage systems and innovative technologies. Solar panels are available in a wide range of power levels, from 5W to 300W, 450W, 550W, 600W, 650W, 680W, 700W, 800W and more. Solar panels such as PERC, N-Type TOPCON, HJT, Tile, etc., as well as double-sided/double-glazed, single-glazed, all-black, black-framed and frameless half panels Mono-crystalline silicon standard PV panels Flexible PV Modules, and Foldable Solar Module panels. We have all certificates such as TUV, CE, ISO, IEC Brazilian INMETRO certificates.
Flexible Integrated Solar Systems Services, OEM and ODM Services For all your customisation needs.
Our products are designed for long term use and easy recycling, ensuring that we minimise our carbon footprint and contribute positively to the circular economy.
Your power, my power, let's work together, endeavour to promote green innovation, build a better future for mankind and create a better world for future generations.
