Product Overview
Description
Cement Grinding Unit/Clinker Grinding Plant/Cement Clinker Grinding System
Products Description
Process
The cement grinding technology is adopted by investors as circuit cement grinding processing, which have various advantages like high manufacture ability, high automation level, good production quality, less energy consumption, more industry waste using quantity, so have been as the main technology of world-wide cement manufacture.
The cement manufacture process of grinding station, have be adopt open circuit manufacture process, and mostly application is closed circuit manufacture process which meaning ball mill grinding system match with air classifier.
As for the cement producing scale is bigger and bigger, the roller mill is widely used in the grinding system, which will reduce the feeding size of ball mill, greatly increase the producing capacity and decrease grinding energy consumption.
The cement manufacture process of grinding station, have be adopt open circuit manufacture process, and mostly application is closed circuit manufacture process which meaning ball mill grinding system match with air classifier.
As for the cement producing scale is bigger and bigger, the roller mill is widely used in the grinding system, which will reduce the feeding size of ball mill, greatly increase the producing capacity and decrease grinding energy consumption.
Our Advantage
1. The batching system have been adopt automatic quantitative feeding and measuring device, which have increase the material batching accuracy and also stablilizing the production’s quality.
2. Adopting tube mill or vertical roller mill to producing qualify cement according to the raw material’s condition of clients.
3. Producing system have adopt closed circuit to reduce the energy consumption of cement grinding. The single line scale can be from 15tpd to 1500tpd, which have been covered the cement factory’s different manufacture demand.
4. Adoption of High efficiency air classifier and pulse type bag filter have created the circumstance for energy saving and energy consumption reduction.
5. The mill and air classifier have adopt 3D computer design, which have reasonable structure and reliable operation.
6. The grinding system have adopt best ventilation air volume design, which will reduce the installed capacity.
2. Adopting tube mill or vertical roller mill to producing qualify cement according to the raw material’s condition of clients.
3. Producing system have adopt closed circuit to reduce the energy consumption of cement grinding. The single line scale can be from 15tpd to 1500tpd, which have been covered the cement factory’s different manufacture demand.
4. Adoption of High efficiency air classifier and pulse type bag filter have created the circumstance for energy saving and energy consumption reduction.
5. The mill and air classifier have adopt 3D computer design, which have reasonable structure and reliable operation.
6. The grinding system have adopt best ventilation air volume design, which will reduce the installed capacity.
7. Plant have high automation level, the operating process will adopt DCS central control system for adjustment, control and alarm in master control room, then the whole plant have less operator and also increase the working efficiency.
Technical Data
Capacity: 50 t/d - 3000 t/d
Main Materials: Limestone, Clay, Gypsum, Fly Ash, Slag
Main Equipment: Cement Ball Mill / Cement Vertical Mill, Bag Filter
Application: Cement Clinker Grinding Station
Main Materials: Limestone, Clay, Gypsum, Fly Ash, Slag
Main Equipment: Cement Ball Mill / Cement Vertical Mill, Bag Filter
Application: Cement Clinker Grinding Station

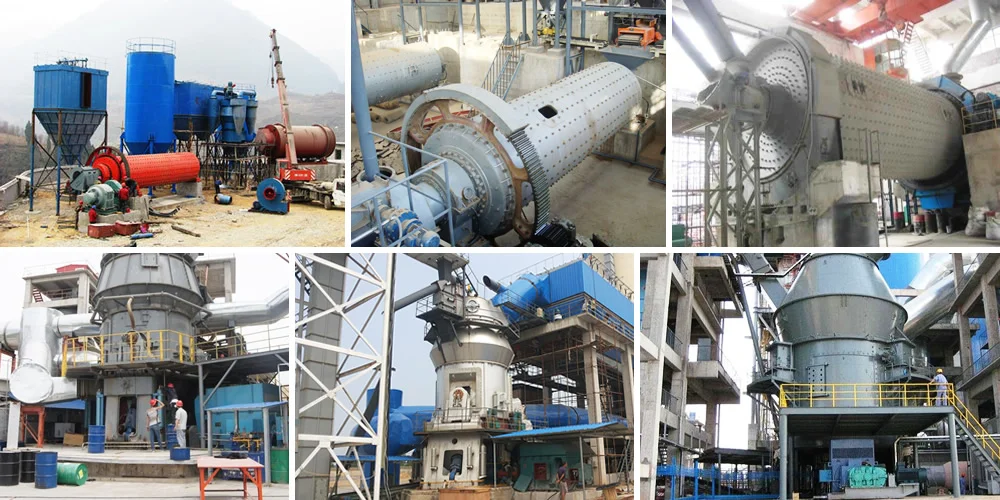

Main Equipments

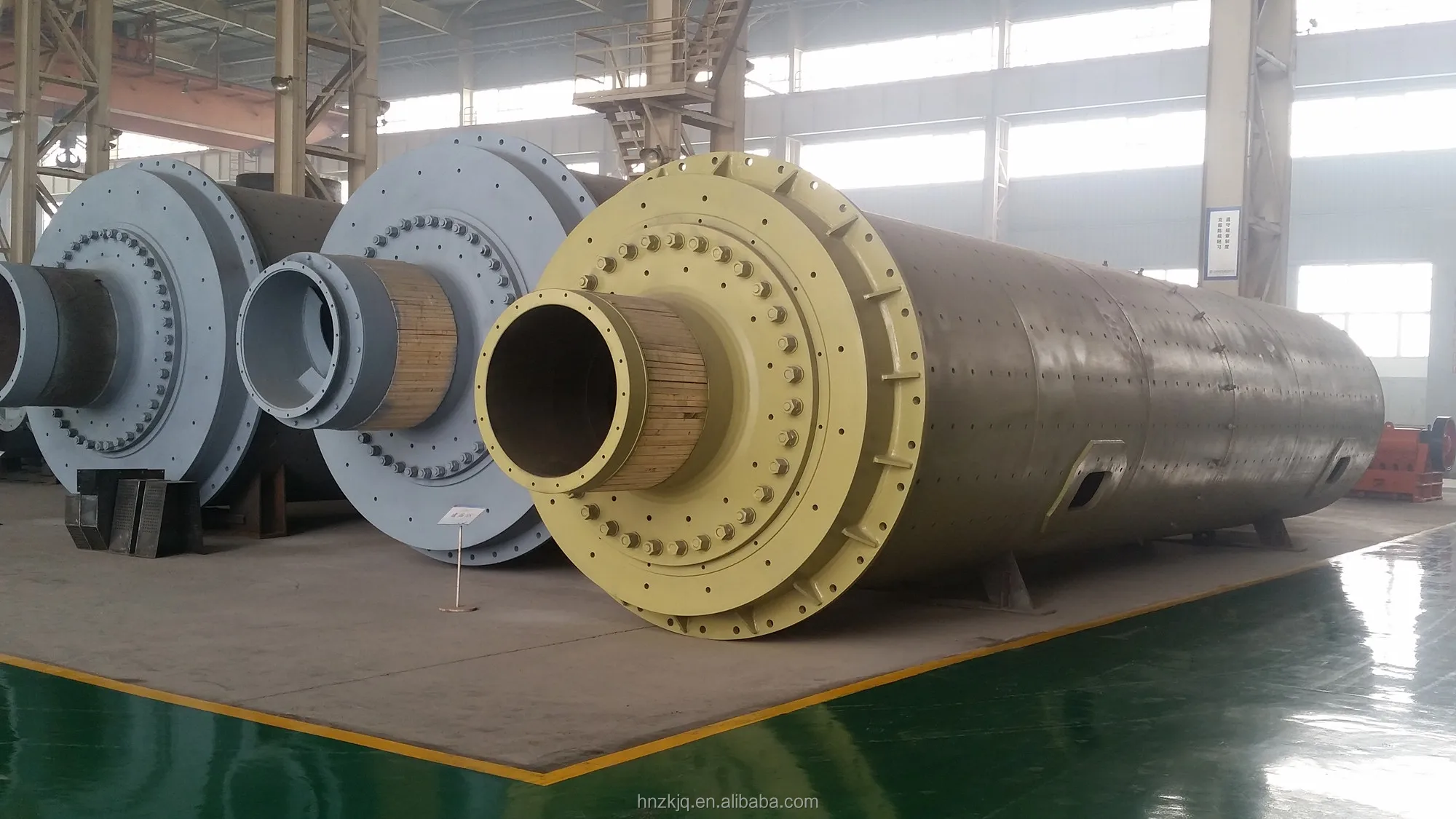

Name: Cement Mill
Cement mill is mainly used in grinding of cement finished product and materials, also to the metallurgical, chemical, electricity and other industrial and can be used to open streams, but also to the composition and the separator flow grinding circle.
Name: Vertical roller mill
Vertical Cement Grinding Mill produced by China ZK Corp is is a new type of high efficiency, energy conservation and environmental protection of grinding equipment, widely used in the grinding of raw cement, slag, cement clinker, raw coal and other raw materials. It gathers grinding, drying and powder selecting as a whole, with high grinding efficiency and high drying capacity ( the maximum material moisture can be up to 20% ).
Name: Cement Conveyor
Belt Conveyor is a friction-driven machine that continuously transports material. It is mainly composed by the rack, conveyor belt, roller, roller, tension device, transmission and other components. It can be material in a certain transmission line, from the initial feeding point to the final discharge point between the formation of a material transport process.
Name: Bag Filter
Bag filter is a kind of dry dust filtration device. Our company can provide design, manufacture, and installation one-stop service for bag filter. Our product range mainly include bag filter, single bag filter, pulse bag filter, mechanical reverse air bag filter, wet bag filter and bag filter parts.
Technical Parameter
No. | Item | Unit | Closed circuit production | ||||||||
1 | Factory capacity | ×10³t/a | 100 | 160 | 250 | 350 | 500 | ||||
2 | Main material usage | ||||||||||
① | Clinker | t/a | 80000 | 128000 | 200000 | 280000 | 400000 | ||||
② | Gypsum | t/a | 5000 | 8000 | 12500 | 17500 | 25000 | ||||
③ | Pozzolana | t/a | 15000 | 24000 | 37500 | 52500 | 75000 | ||||
3 | Energy consumption | ||||||||||
① | Fresh water | t/a | 4000 | 7000 | 9000 | 12000 | 17000 | ||||
② | Electrical | kWh/a | 3600000 | 5700000 | 8500000 | 1200000 | 17000000 | ||||
4 | Layout transportation | ||||||||||
① | Land area | ㎡ | 15000 | 18000 | 20000 | 22000 | 24000 | ||||
5 | Project invest | ||||||||||
① | Production line total invest | Ten | 600 | 1000 | 1500 | 2000 | 2850 | ||||
thousand | |||||||||||
6 | Workers | 30 | 35 | 35 | 35 | 35 | |||||
7 | Main equipment | ||||||||||
① | Ball mill | Φ2.2×6.5m | Φ2.4×11m | Φ3×11m | Φ3.2×13m | Φ3.5×13m | |||||
14t/h | 24t/h | 35t/h | 50t/h | 70t/h | |||||||
380kW | 630kW | 1250kW | 1600kW | 2000kW | |||||||
② | Belt conveyor | B500 | B650 | B650 | B800 | B1000 | |||||
③ | Mill outlet bucket elevator | TH315 | TH400 | NE100 | NE150 | NE200 | |||||
④ | Air classifier | NHX400 | NHX600 | NHX700 | NHX800 | NHX1000 | |||||
（Osepa N250） | （Osepa N500） | （Osepa N750） | （Osepa N1000） | （Osepa N1500） | |||||||
⑤ | Bag filter | PPC32-4 | PPC32-6 | PPC64-5 | PPC64-6 | PPC64-7 | |||||
（PPC64-6） | （PPC96-7） | （PPC96-2×5） | （PPC96-2×6） | （PPC96-2×10） | |||||||
⑥ | Finished production bucket elevator | TH250 | TH315 | NE50 | NE100 | NE100 | |||||
⑦ | Screw conveyor | LS400 | LS400 | LS500 | - | - | |||||
⑧ | Packer | Three nozzle | Four nozzle | Six nozzle | Eight nozzle | Eight nozzle | |||||
⑨ | Belt weigher | B500×2000 | B650×2500 | B800×2500 | B800×2500 | B1000×3500 | |||||

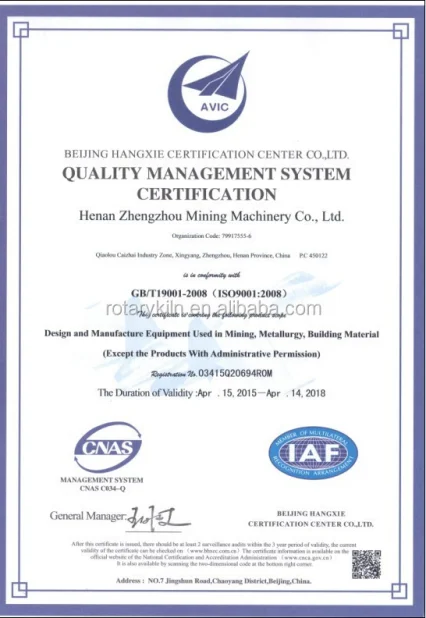

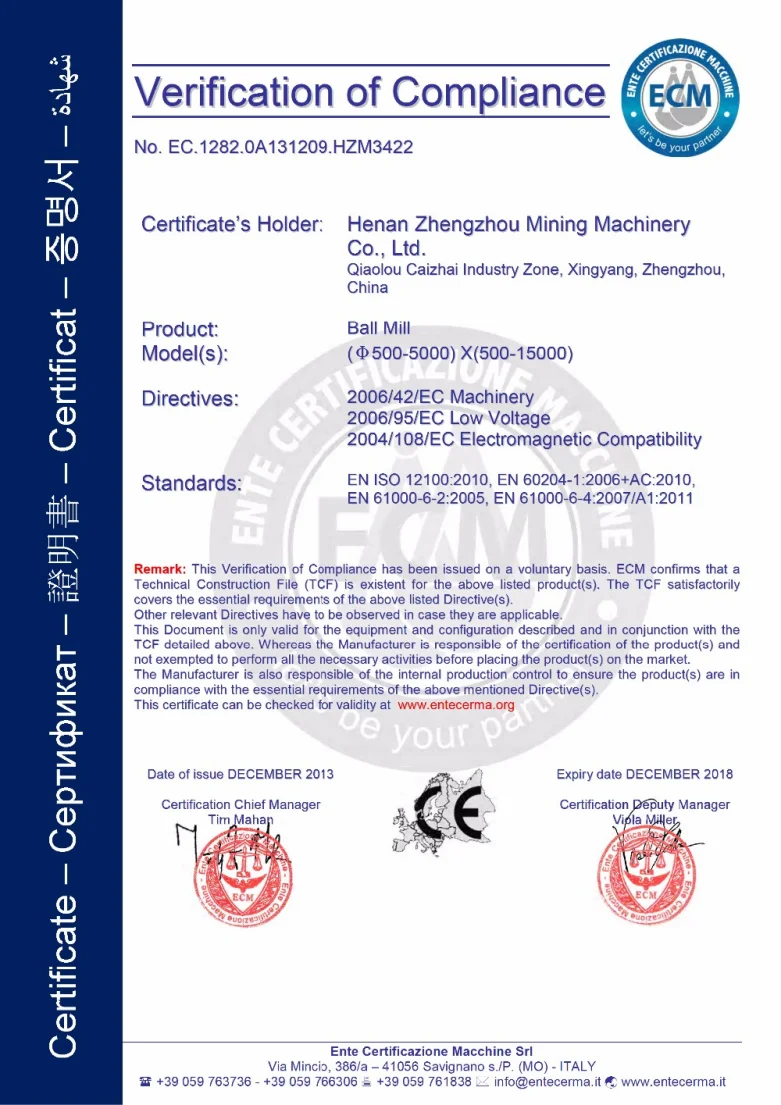

Certifications
