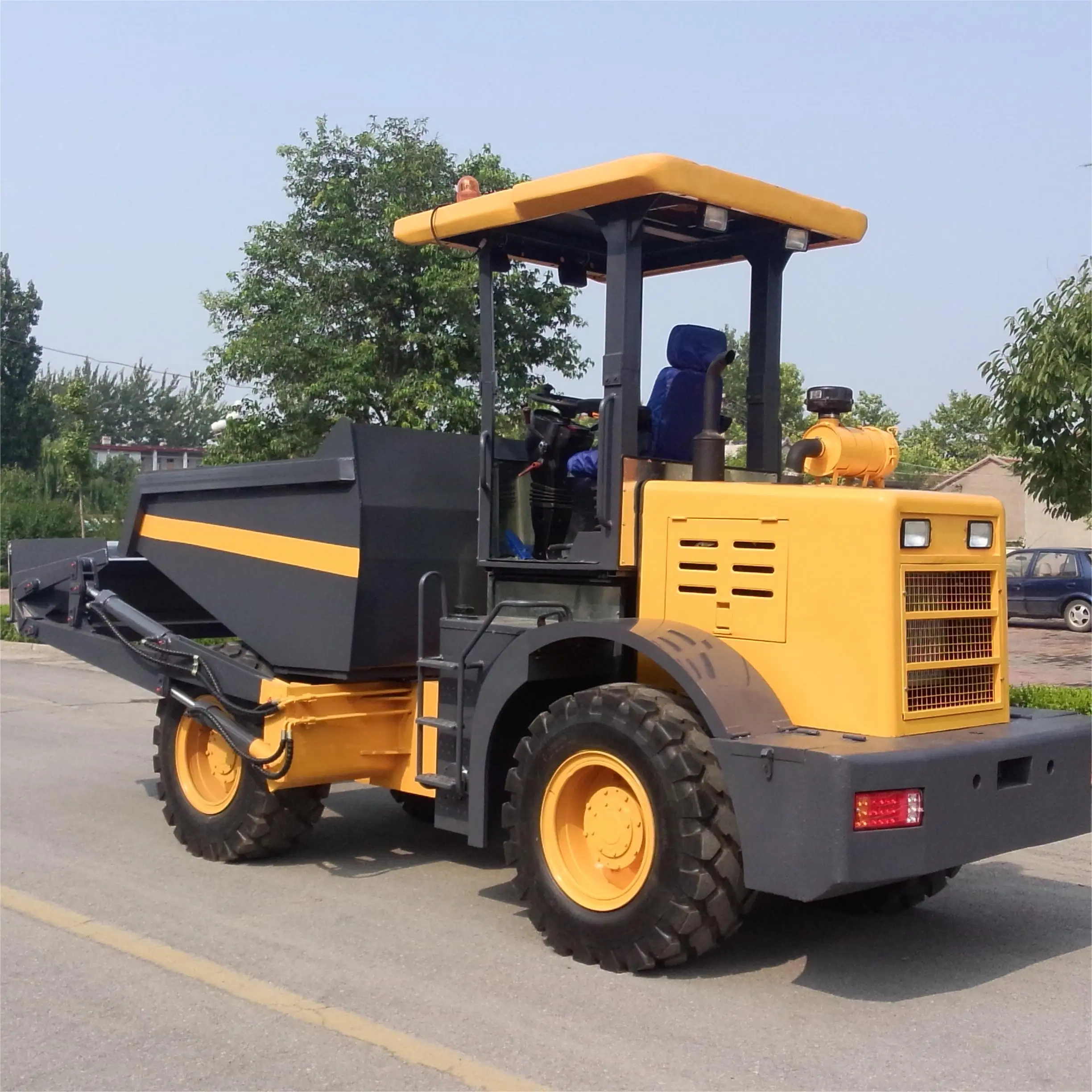

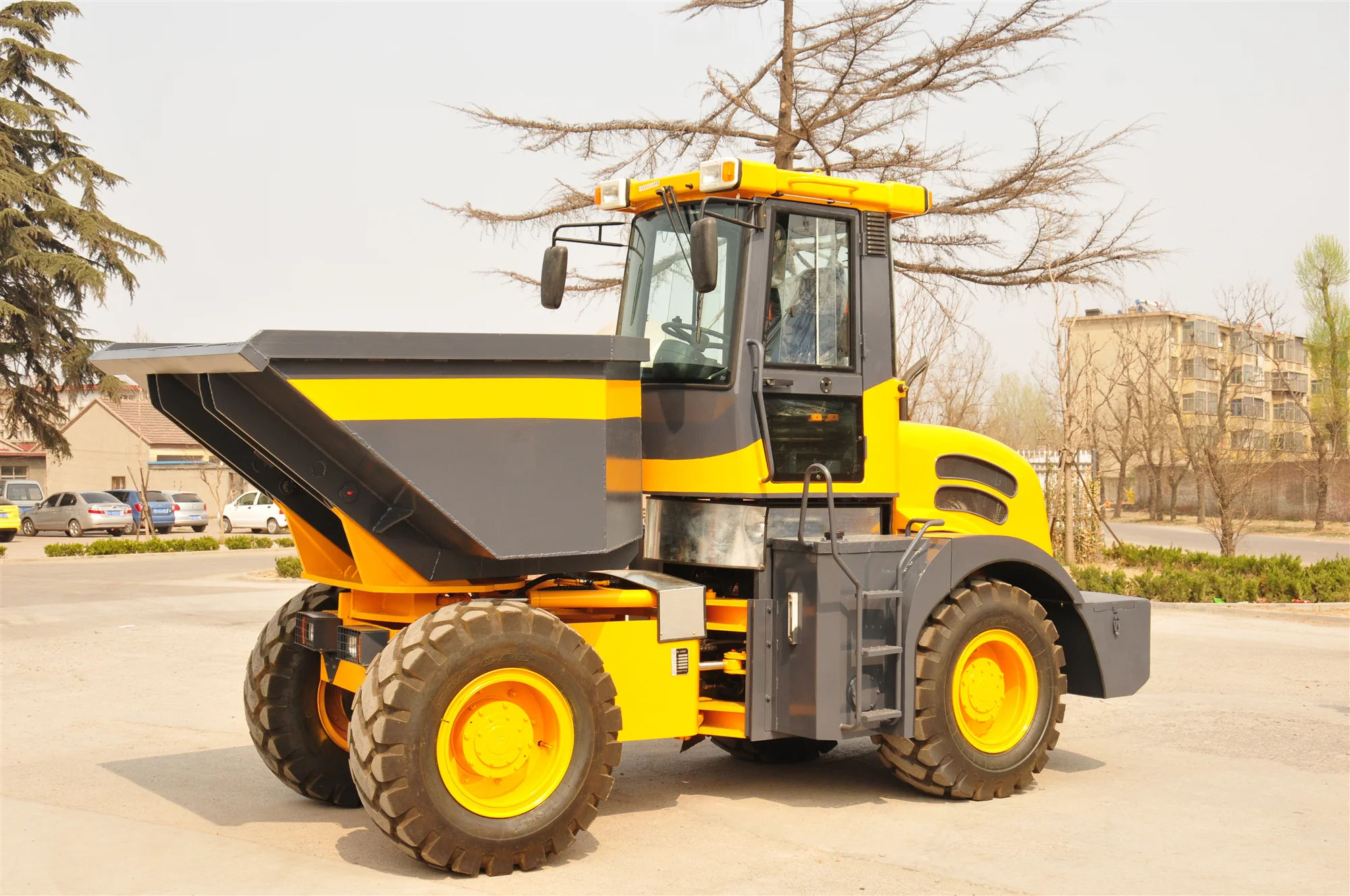

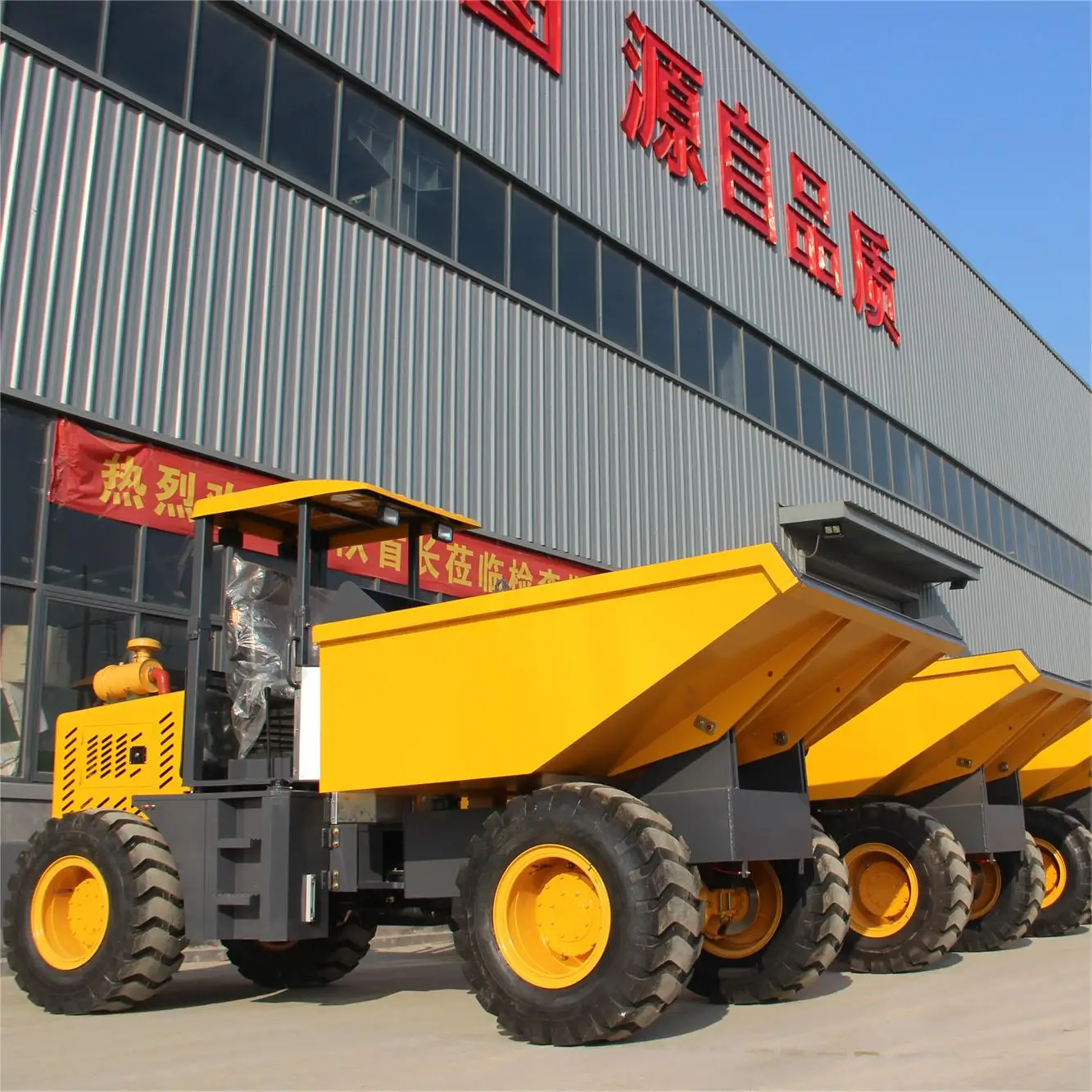

CE Front Tipping Type 6tons Mini Site Dumper Truck Mini Loader Dumper Compact Tipper Truck 6ton 6 Ton 6ton 10ton
CE Front Tipping Type 6tons Mini Site Dumper Truck Mini Loader Dumper Compact Tipper Truck 6ton 6 Ton 6ton 10ton
CE Front Tipping Type 6tons Mini Site Dumper Truck Mini Loader Dumper Compact Tipper Truck 6ton 6 Ton 6ton 10ton
CE Front Tipping Type 6tons Mini Site Dumper Truck Mini Loader Dumper Compact Tipper Truck 6ton 6 Ton 6ton 10ton
CE Front Tipping Type 6tons Mini Site Dumper Truck Mini Loader Dumper Compact Tipper Truck 6ton 6 Ton 6ton 10ton
CE Front Tipping Type 6tons Mini Site Dumper Truck Mini Loader Dumper Compact Tipper Truck 6ton 6 Ton 6ton 10ton
CE Front Tipping Type 6tons Mini Site Dumper Truck Mini Loader Dumper Compact Tipper Truck 6ton 6 Ton 6ton 10ton

CE Front Tipping Type 6tons Mini Site Dumper Truck Mini Loader Dumper Compact Tipper Truck 6ton 6 Ton 6ton 10ton

Share on (1601032673201):


Price:

Quantity:


Product Overview

Description



Product Description






Item
DP20
DP40
DP60
DP90
Rated loading
2000kg
4000kg
6000kg
9000kg
Overall weight
2500kg
5250kg
5950kg
8500kg
Rated bucket capacity
1.15m3
2.5m3
3.0m3
5.0m3
Maximum tractive force
≥35KN
≥55KN
≥55KN
≥55KN
Maximum breakout force
≥28KN
≥46KN
≥46KN
≥46KN
Maximum grade ability
300
30°
30°
30°
Overall dimension (L×W×H)
3950×1590×2450mm
4800×2050×3100mm
5000×2200×3100mm
6500×2200×3200mm
Minimum turning radius
4600mm
4600mm
5750mm
5750mm
Model
Changchai ZN390Q
Yunnei
Yunnei YN38
Yunnei YN48GBZ
Type
Vertical, in-line, water cooled, 4-stroke diesel engine
No. of cylinder-bore/stroke
3—90×95mm
4—84×90mm
4—108×120mm
4—108×120mm
Rated power
25kw-2400r/min
42kw-2400r/min
60kw-2400r/min
92kw-2400r/min
Maximum torque
105N.m
270N.m
270N.m
270N.m
Min fuel-consume ratio
≤225g/kw.h
≤235g/kw.h
≤243g/kw.h
≤243g/kw.h
Torque converter
YJ-240
YJ—265
YJ—280A
YJ—280A
Gearbox mode
Countershaft power-shift
Gear shift
2 forward shift 2 reverse shift
2 forward shift 2 reverse shift
2 forward shift 2 reverse shift
2 forward shift 2 reverse shift
Maximum speed
17km/h
22km/h
24km/h
24km/h
Main reducing mode
Circular Arc Bevel gear, single stage
Circular Arc Bevel gear, single stage
Decelerating mode
Single stage planetary type
Single stage planetary type
Wheel base (mm)
2410mm
2100mm
2530mm
2600mm
Wheel tread
1300mm
1500mm
1600mm
1650mm
Ground clearance
240mm
290mm
310mm
360mm
System working pressure
16MPa
16MPa
16MPa
16MPa
Fuel tank capacity
26 L
80L
80L
80L
Service brake
Air assist disc brake on 4 wheels
Parking brake
Flexible shaft operated external drum
Type specification
8.25-16
23.5/70-16
16/70—20
16/70-24
Front tyre pressure
0.22Mpa
0.22Mpa
0.22Mpa
0.22Mpa
Rear tyre pressure
0.18Mpa
0.18Mpa
0.18Mpa
0.18Mpa


We support customizing dump trucks ranging from 2 to 9 tons. For more detailed information, please click to consult

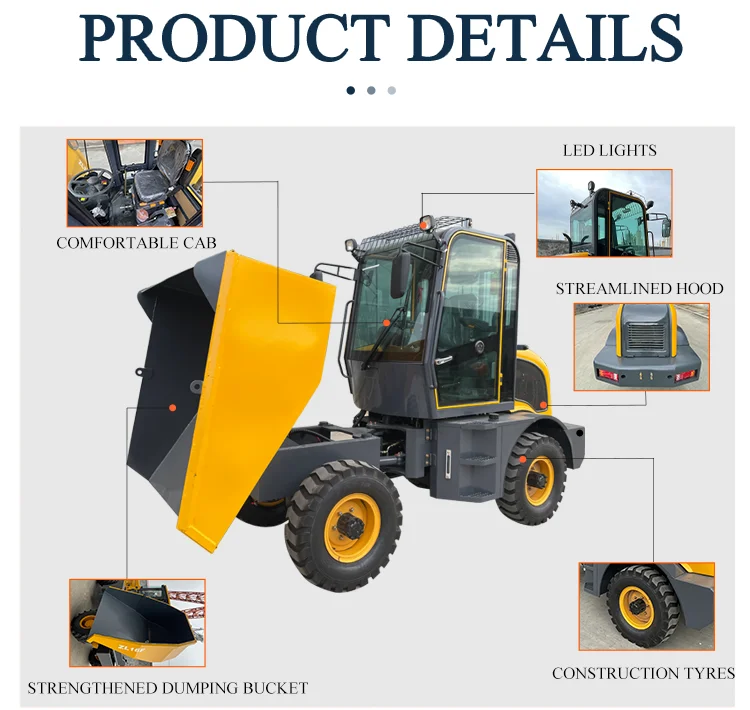

Details Images






Opention

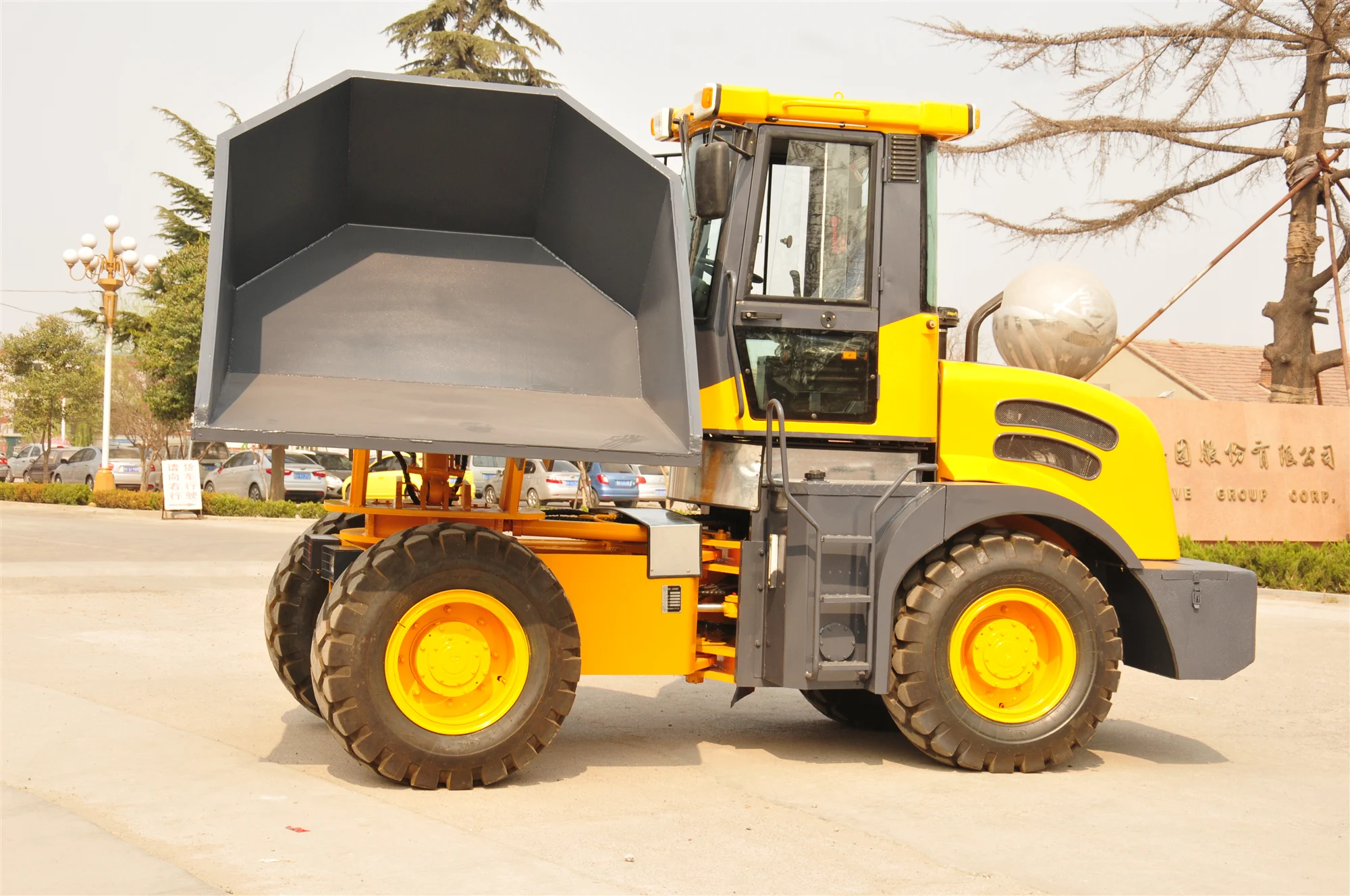

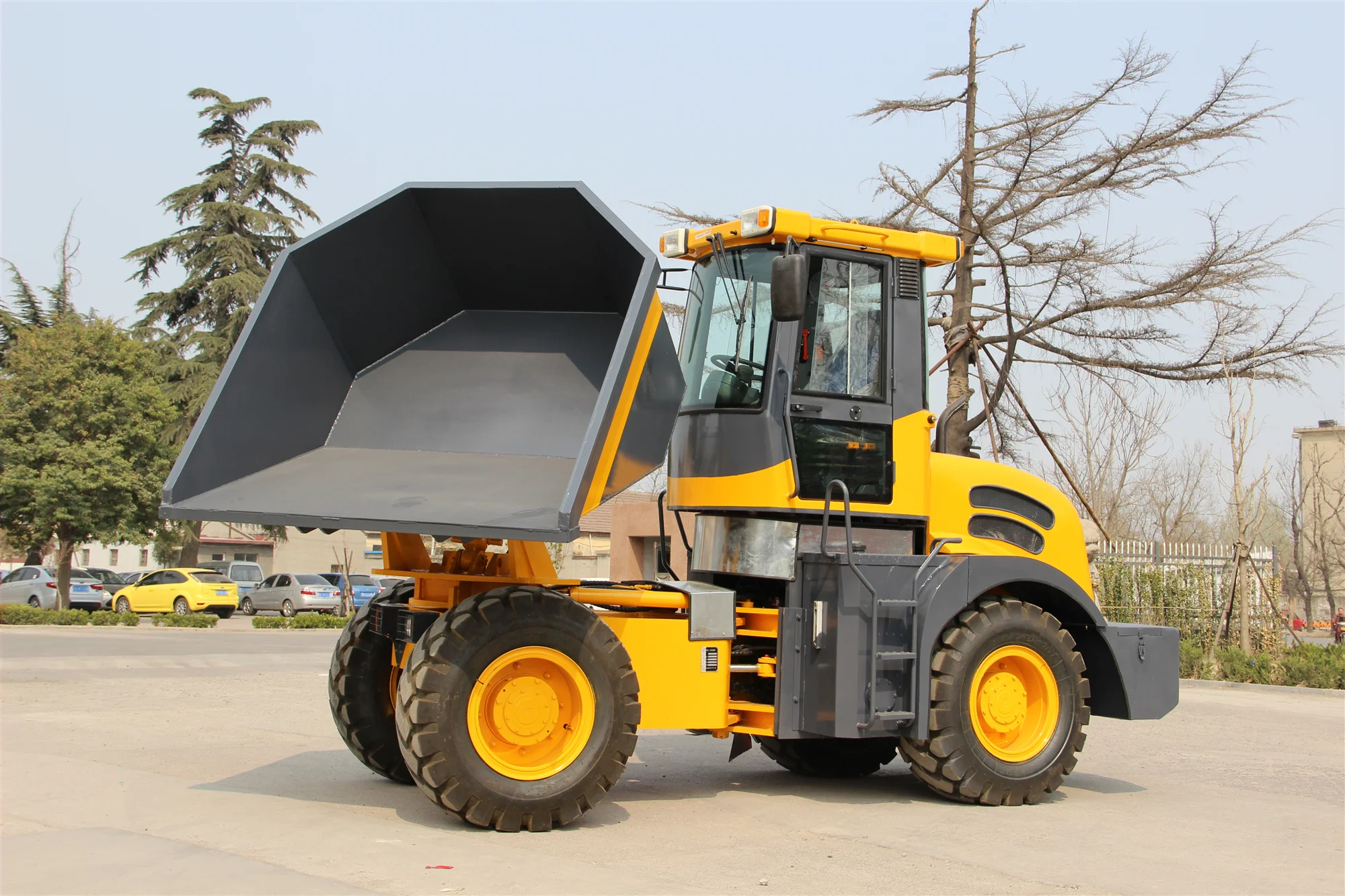

With 180 Degree Rotatable Bucket
With Self Loading Bucket
With Bulldozing Blade

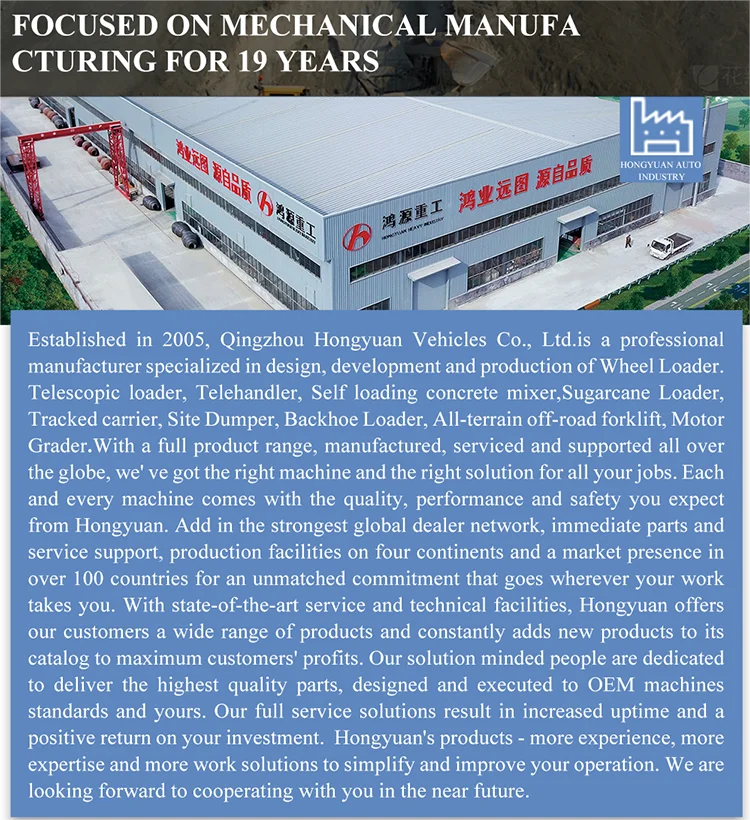

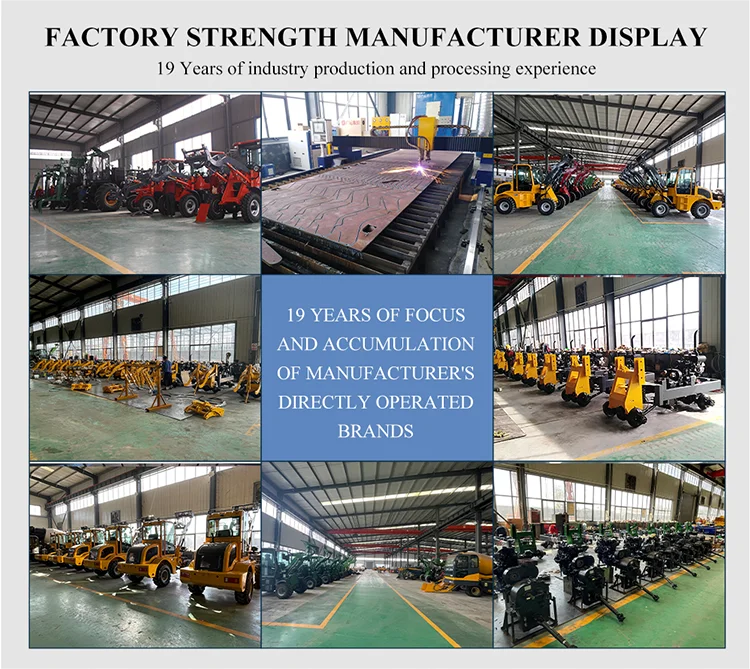

Company Profile












FAQ


1. who are we?
We are based in Shandong, China, start from 2005,sell to Northern Europe(30.00%),Eastern Europe(28.00%),Western Europe(24.00%),Southern Europe(5.00%),Southeast Asia(5.00%),South Asia(2.00%),Oceania(2.00%),Eastern Asia(2.00%),Mid East(2.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Wheel Loader, Self Loading Concrete Mixer, Telescopic Loader,Telehandler, Sugarcane Loader，Site Dumper, Backhoe Loader, Tracked Carrier, All-terrain off-road Forklift, Motor Grader.

4. why should you buy from us not from other suppliers?
We have more than 19 year's producing and exporting experiences of construction machinery and agricultural machinery. All the machine were produced by ourselves and we have very much learned about the strengths and weaknesses of these machines.

5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW；
Accepted Payment Currency:USD,EUR;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese
