English Food Rotary Evaporator With Dust Collector

Product Overview

Description

English Food Rotary Evaporator With Dust Collector





Mino Rotary Evaporators series are perfectly designed for many different distilling processes, from standard evaporation without vacuum control to complex distillation processes with vacuum control.  During the development of evaporators, Mino focuses on the features and functions of safety, convenience, and cost savings.

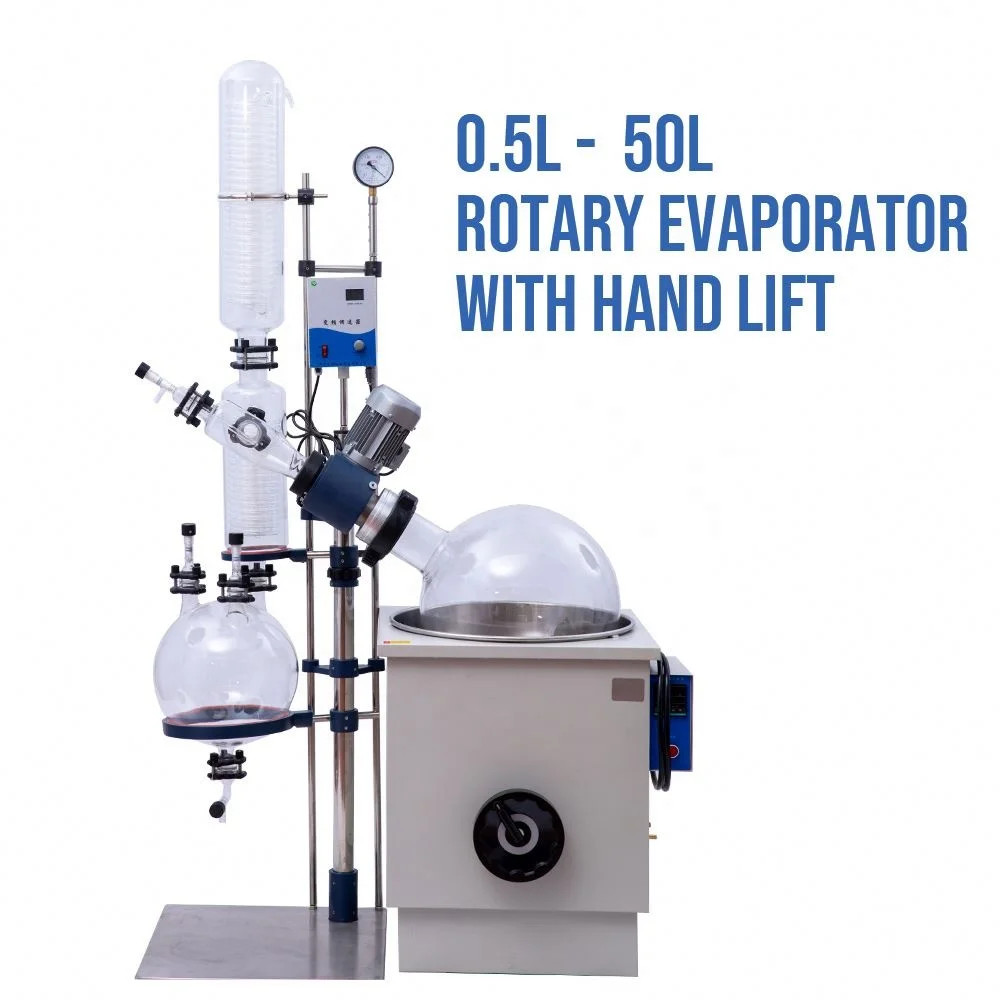

0.5L~50L Rotary Evaporator With Hand Lift
Model	RE-1L	RE-3L	RE-5L	RE-10L	RE-20L	RE-50L
Rotary Flask	1L	3L	5L	10L	20L	50L
Collection Flask	1L	2L	3L	5L	10L	20L
Reachable Vacuum	-0.098MPA
Motor Power	40W			120W		180W
Rotation Speed	0-120rmp
Heating Power	1.5KW	2KW	2KW	4KW	4KW	6KW
Overall Dimension (L*W*H)(cm)	68*30 *83	67*32 *94	70*33.5 *101	105*54 *180	115*54 *187	125*54 *200
Static Temperature Control Range	Water Bath: RT-99°C; Oil Bath: RT-200°C±0.2°C
Voltage	220V/50HZ or Customized
Heating Bath	Stainless Steel; Hand Lift
Glass Material	High Borosilicate Glass 3.3
