LASERSHOT New Upgraded Type C USB 2.7K Night Vision 10X Zoom Lens Style Cameras Hunting Digital Infrared binoculars Goggles
- Category: >>>
- Supplier: Chongqing Forward Technology Co. Ltd.
Share on (1601032965565):
Product Overview
Description
3.0 Inch digital night vision 10X Digital Zoom binoculars high quality night vision
Product Description

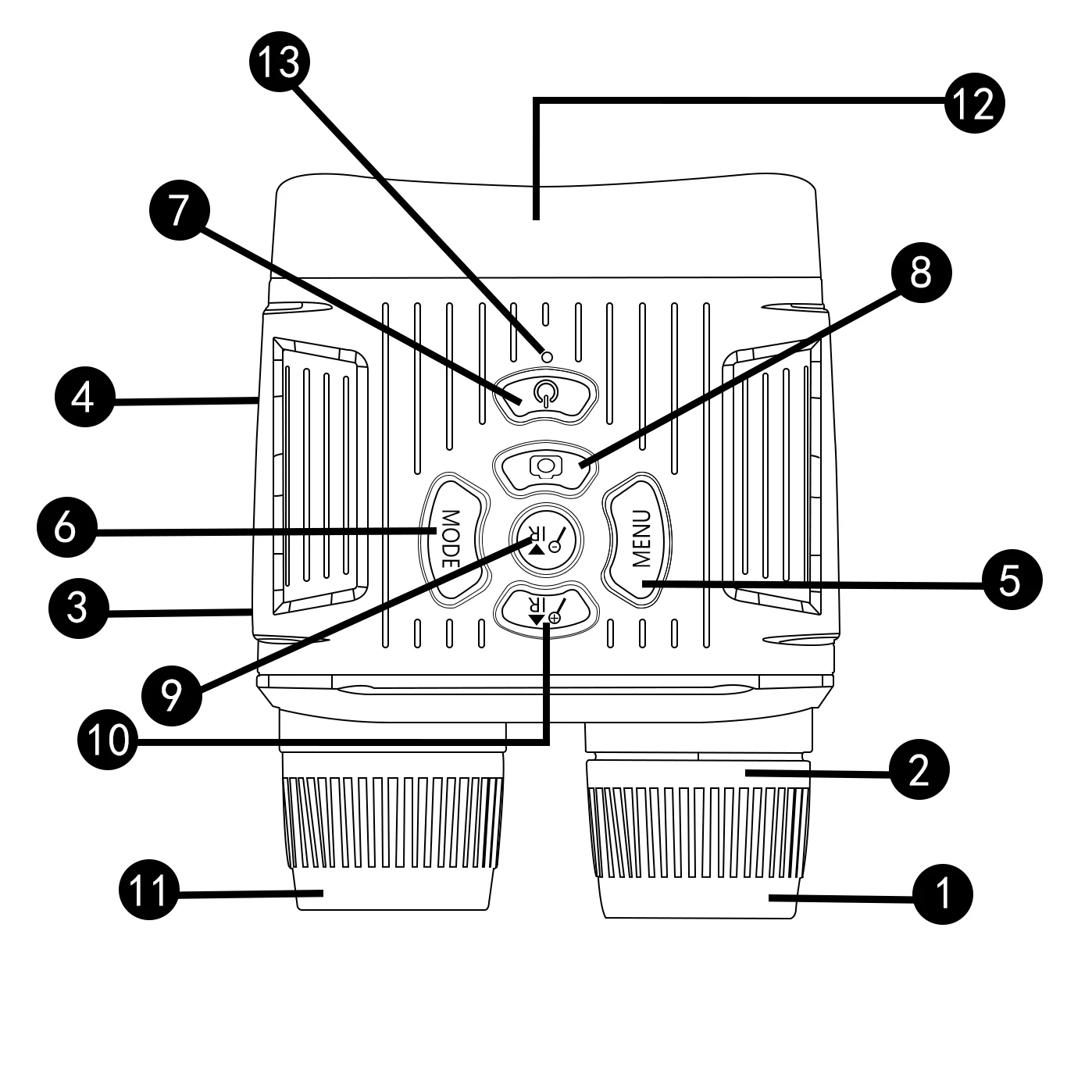

Product Overview
1.Lens | 7.Power ON/OFF |
2.Manual focus wheel | 8.OK/ Shoot Button |
3.Mini SD card slot | 9.IR Down/Zoom out or Down Button |
4.USB port | 10.IR Up/Zoom in or Up Button |
5.Menu/ESC | 11.Infrared filter cap |
6.Work Mode（Photo/Video/Playback） | 12.3.0 Inch Screen |
13.Work Indicator light |
Quick Start
1：Insert Micro SD card（up to 128GB）,Long presskey to 2-3s,the indicator light shows blue, the device will power on，After power on，adjust the object clearly through the focus wheel，and presskey， manual take photo or video record，and long presskey to shutdown.
2：presskey，setting work mode（photo，video，playback）,on playback mode,presskey to playback,and presskey again，exit playback.
3：presskey，go to menu setting parameters，pressor up or down key to choice，and presskey to confirm，after settings，presskey again to ESC and exit menu.

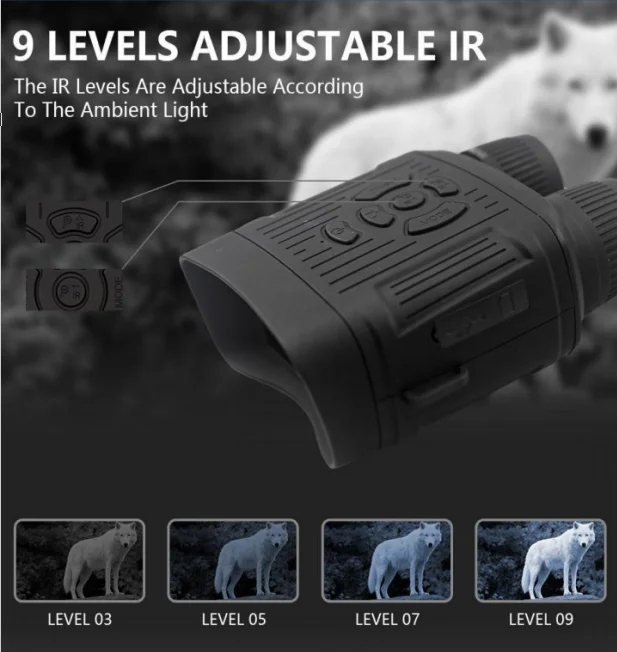

4：short presskey to open IR LED， press it again to add one level until 9 Levels (Max)， short presskey to reduce one level until 0 level (Mini) and close IR LED.
5： Long presskey，Zoom in，Max 10X， long presskey，Zoom out，Mini 0X，for the objects of long range or nearly range，Zoom in or out first ,and adjust the clearly object through the focus wheel，presskey to take photo or video record and save SD card
Note： Turn on IR LED status，can not zoom in or out，need to close IR LED first.
6： Long presskey 2-3s to shutdown，take out SD card after shutdown，read the data files with card reader or connect USB cable on PC.
7： Charging，the indicator light shows red, and connect it to DC 5V adapter or Power Bank with USB cable; after charging, the indicator light goes out.
7： Charging，the indicator light shows red, and connect it to DC 5V adapter or Power Bank with USB cable; after charging, the indicator light goes out.
Specification
Photo Resolution | 36M/24M/14M/9M/6M |
Video Size | 2.7K/1080P/720P |
Aperture | F 1.2 f=25mm |
Lens Angle | FOV=10°, diameter: 25mm |

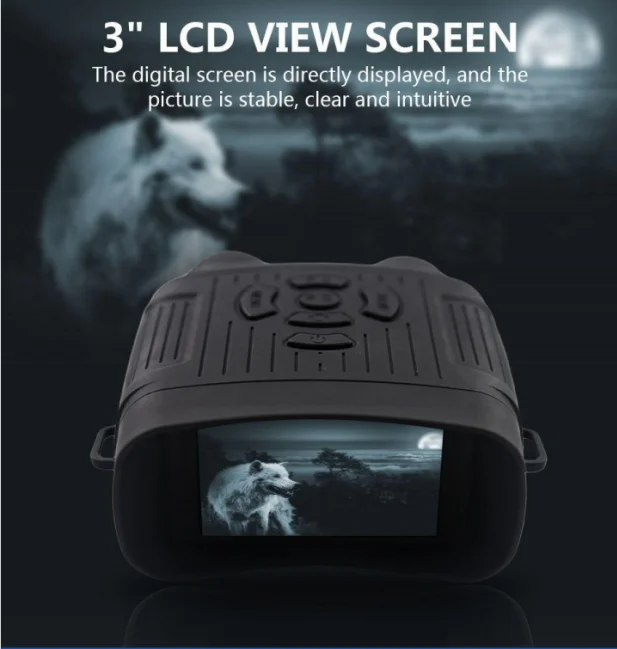

Display Screen | Inner 3.0”inch (800*480)TFT LCD |
Digital Zoom | 10X |
Storage Media | Micro SD card，Max up to 128GB |
Viewing Distance in 100% darkness | 150-200M |
Viewing Distance in weak light or day time | 3M~Infinity |
IR LED | 3W，850nm，9 levels |
USB Port | Type C USB 2.0 |
Power Source | Built-in 2000mA battery |
Operating Temperature | -20℃ to +60℃ |
Storage Temperature | -30℃ to +70℃ |
Dimension | approx. 155*120*60mm |
Net weight | approx.300g |
