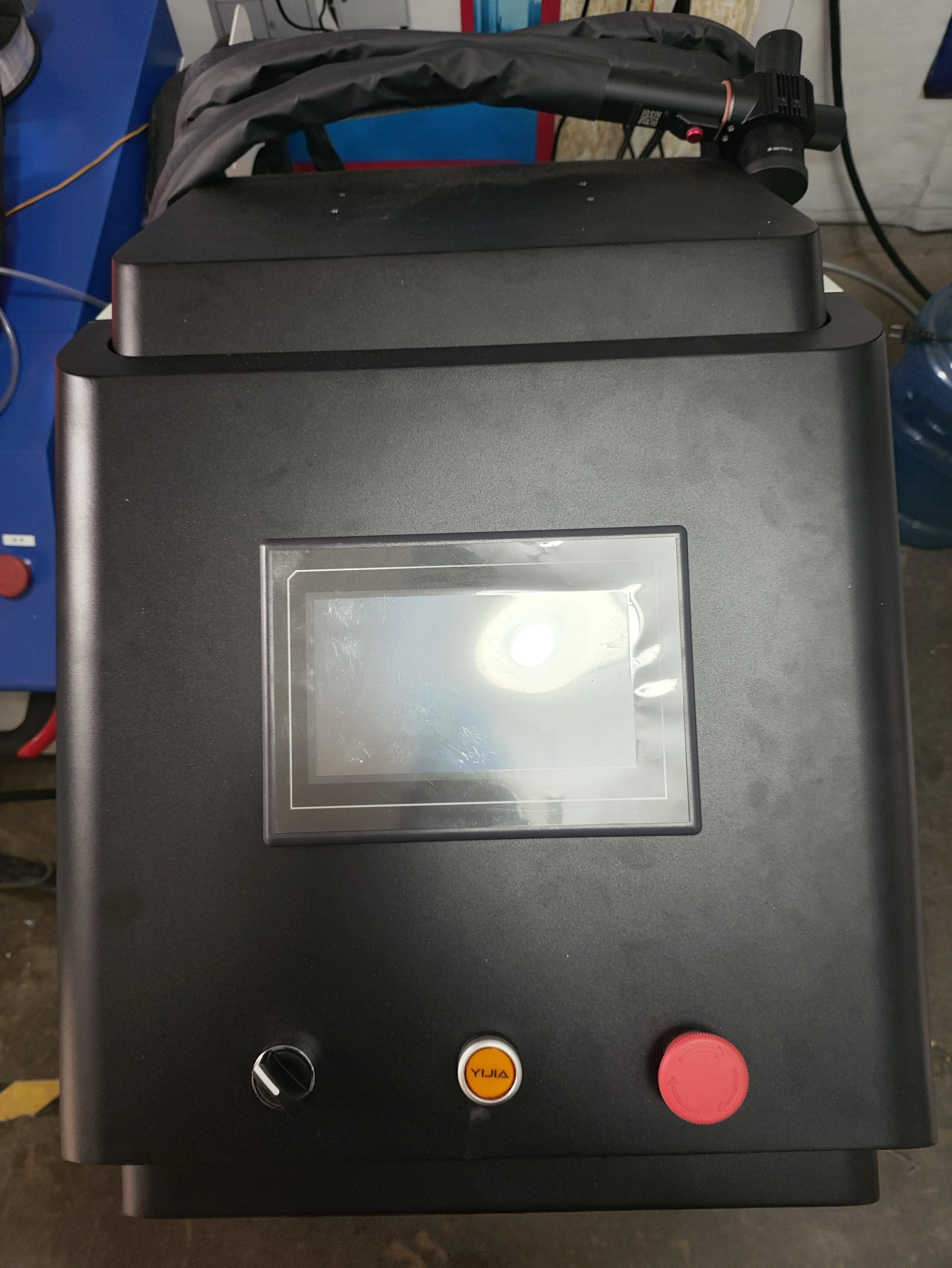

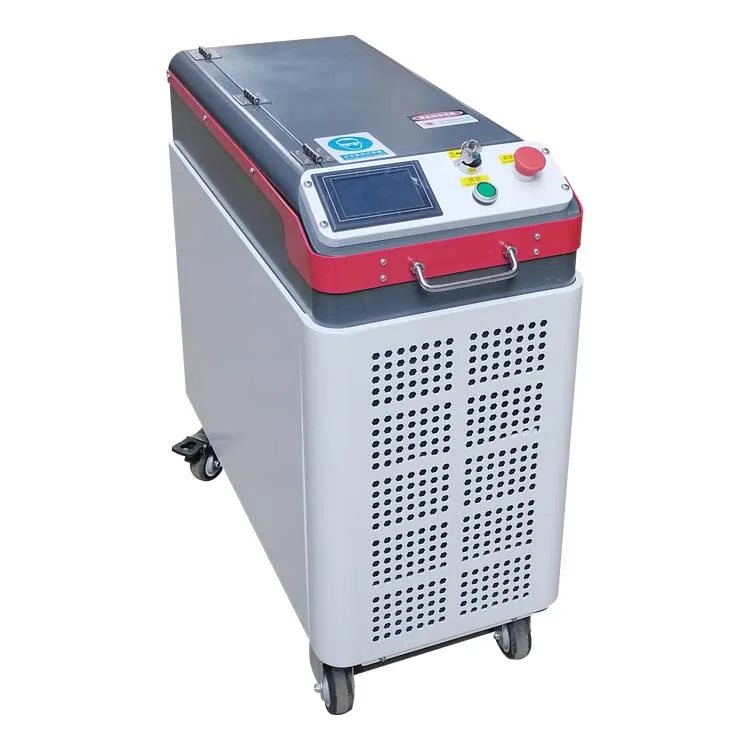

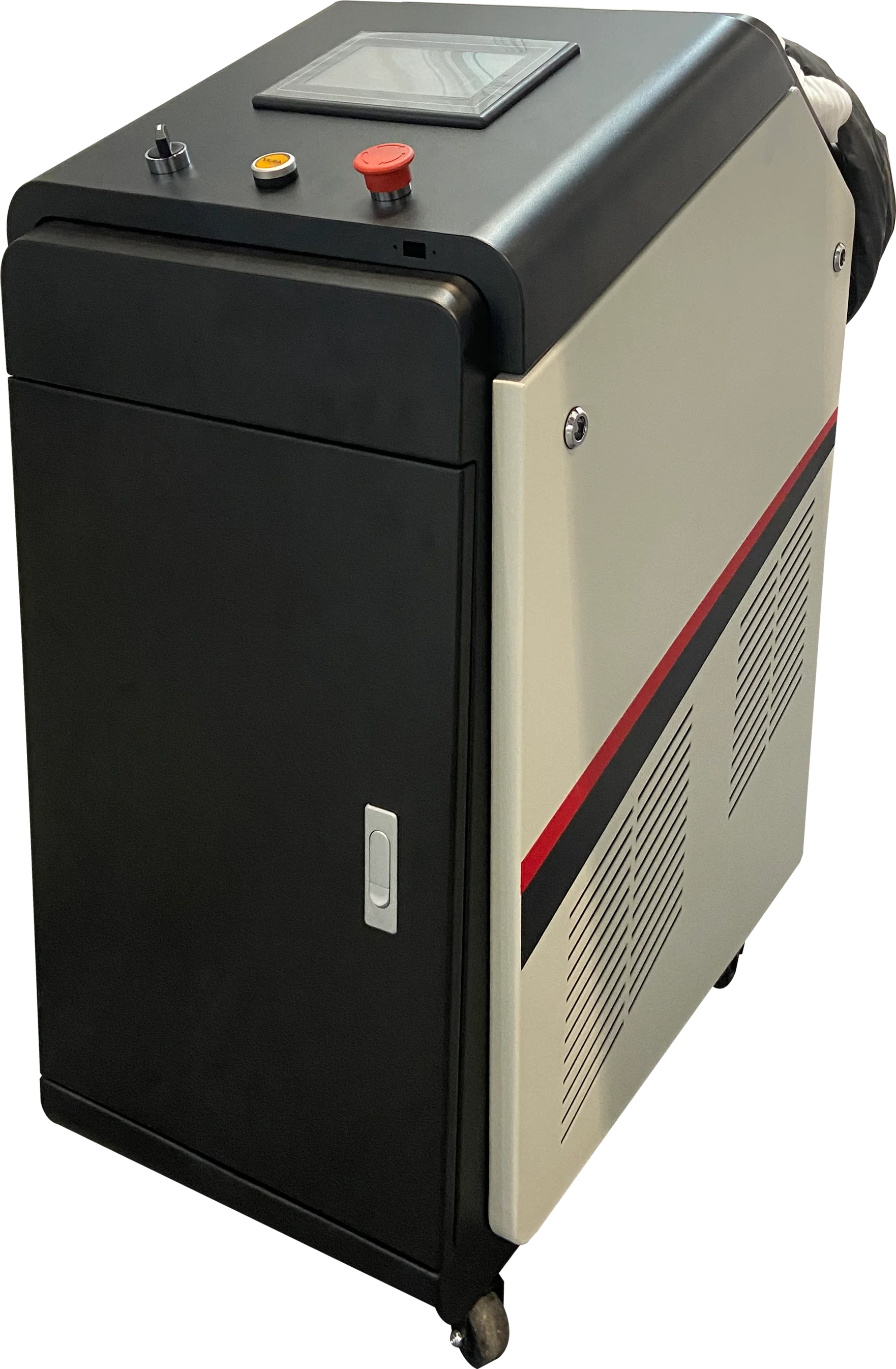

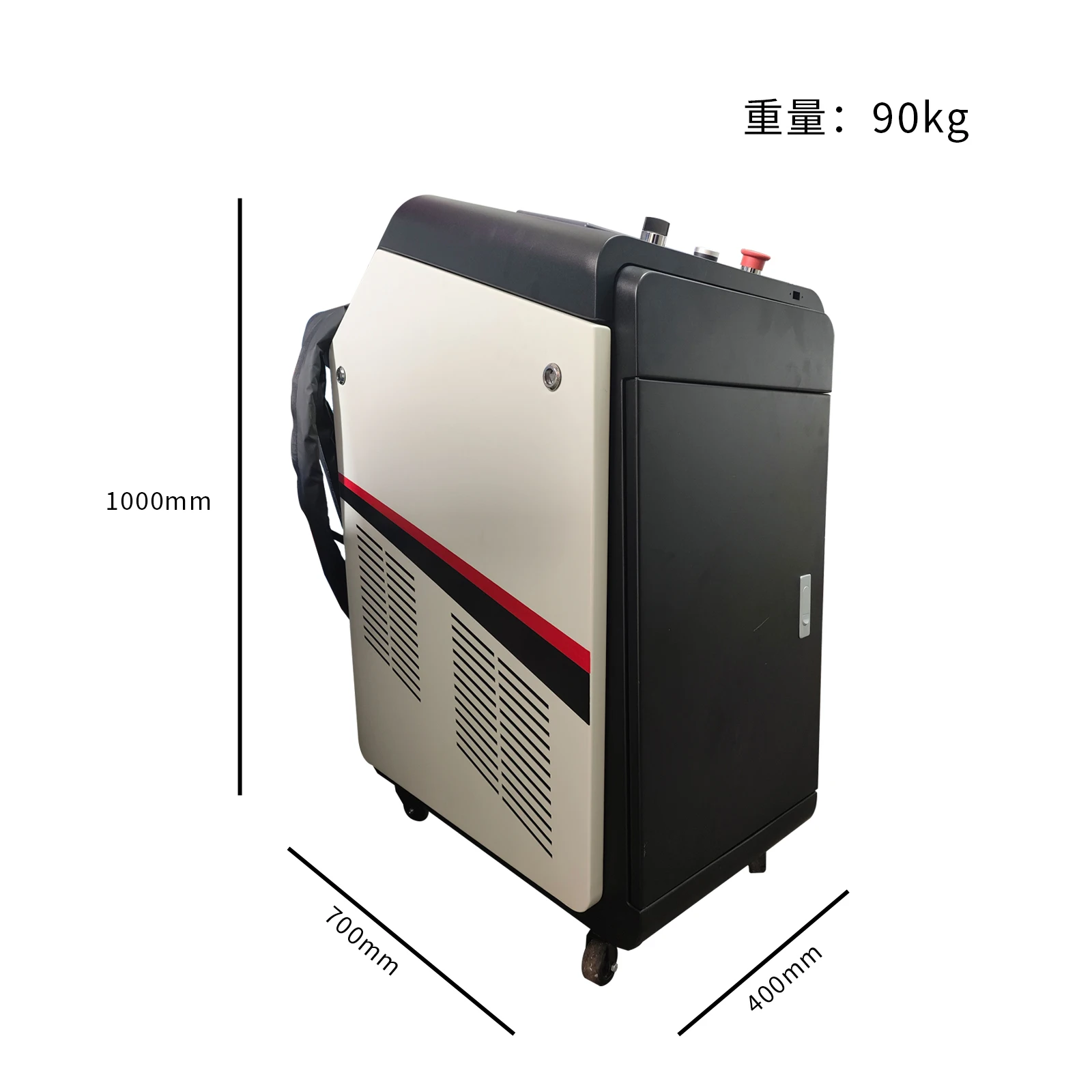

ZIXU 100W 200W 300W 500W Power Laser Cleaning Machine Metal Surface Rust Removal and Paint Oxide Layer Away

Product Overview

Description

ZIXU 100W 200W 300W 500W Power Laser Cleaning Machine Metal Surface Rust Removal and Paint Oxide Layer Away

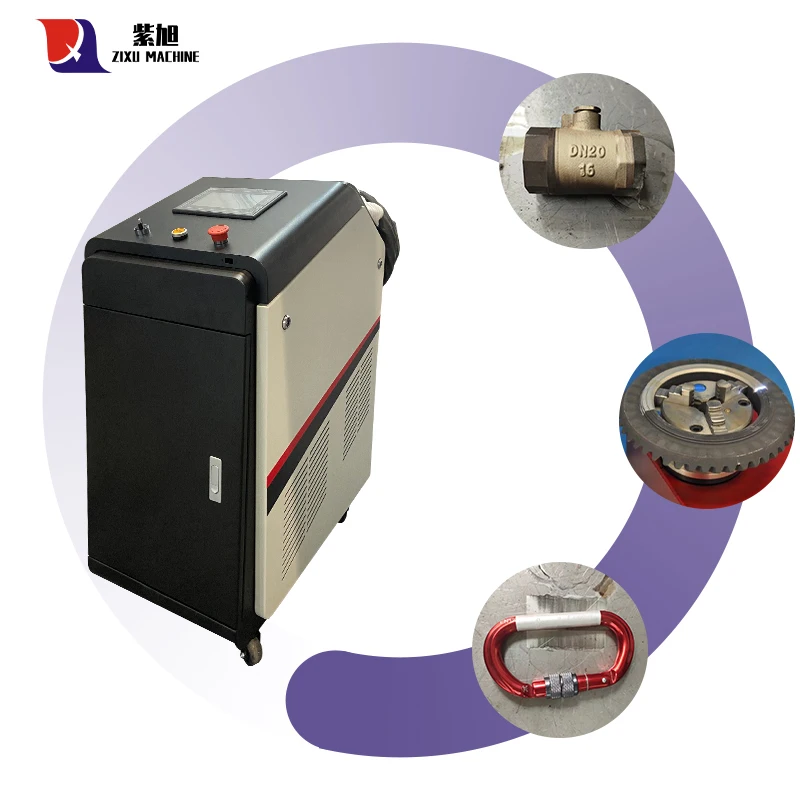

Pulse laser cleaning machine is a device that uses pulse laser technology for surface cleaning. It instantly irradiates the surface of the workpiece with a high-energy pulse laser beam, causing impurities such as dirt and oxide layers to expand and fall off due to heat, achieving efficient cleaning. Pulse laser cleaning machine has the characteristics of no need to use chemical solvents, no need to contact the object surface, and the cleaning process is environmentally friendly and pollution-free. It is suitable for cleaning metal, ceramics, rubber and other materials, and is widely used in automobile manufacturing, aerospace and other fields.



Model		YFPN-100-GMC	YFPN-200-GMC	YFPN-300-GMC	YFPN-500-GMC
central wavelength	nm	1060-1080	1060-1080	1060-1080	1060-1080
Spectral width	nm	<20	<20	<30	<30
maximum pulse energy	mJ	1.5	1.8	1.8	12
Output Power	W	100	200	300	500
Power adjustment range	%	0-100	0-100	0-100	0-100
Frequency adjustment range	kHz	1-3000	1-3000	1-3000	1-3000
On/off light response time	μs	<20	<20	<20	<100
Pulse Width	ns	10-500	10-500	20-500	10-500
Output power stability	%	<5	<5	<5	<3
Beam quality M2	/	<2	<2.5	<5	<5
polarization direction	/	random	random	random	random
Anti-high reaction	/	yes	yes	yes	yes
Indicating light	/	have	have	1~3	1~3
Spot diameter (4σ)	mm	3.5-5	3.5-5	/	/
Output armored cable length	m	5	5	10	10
output method	/	/	/	QCS (QBH can be customized)	/
Divergence angle (full width)	mrad	/	/	/	<200
