2024 Nouveauts Produits HC G2 in the wall AP router wifi6 dual band Gigabit Wireless 5G Router mini AP router
- Category: >>>
- Supplier: Shenzhen Huachuangyilian Electronics Co. Ltd.
Share on (1601033057193):
Product Overview
Description
Product Parameter Datasheet
Product Name | HC-G2 |
Chipset | MT7621DAT+MT7975DN+MT7905DAN |
Main Frequency | 880MHz |
Wifi Technology | 2.4G:600M 802.11b/g/n MIMO Technology 5.8G:1200M 802.11a/n/ac MIMO Technology |
Memory | 128MB DDR RAM |
Flash | 16MB |
WAN/LAN | WAN：10/100/1000Mbps Auto-MDI/MDIX LAN： 10/100/1000Mbps Auto-MDI/MDIX |
Button | 1*Reset Button, long press 3 seconds to restore factory settings |
LED | Power LED |
Power | 802.3af 48V 0.5A Standard PoE Power Supply |
Operation Environment | Temperature: -10°C to +55°C (operating), -40°C to +70°C (storage) Humidity (non-condensing): 10% to 90% (operating), 5% to 95%(storage) |
Product Size | 86mm×86mm×45mm |
Antennas | >3dBi*4 Omni-directional FPC antennas |
Products Description

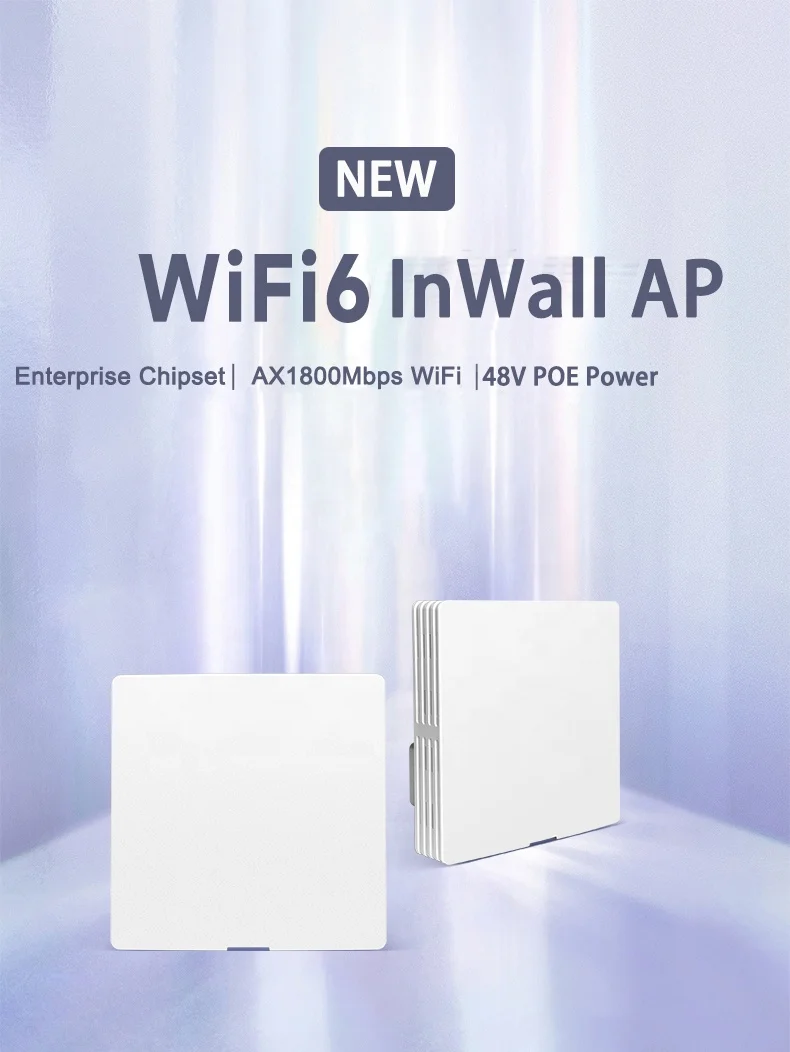

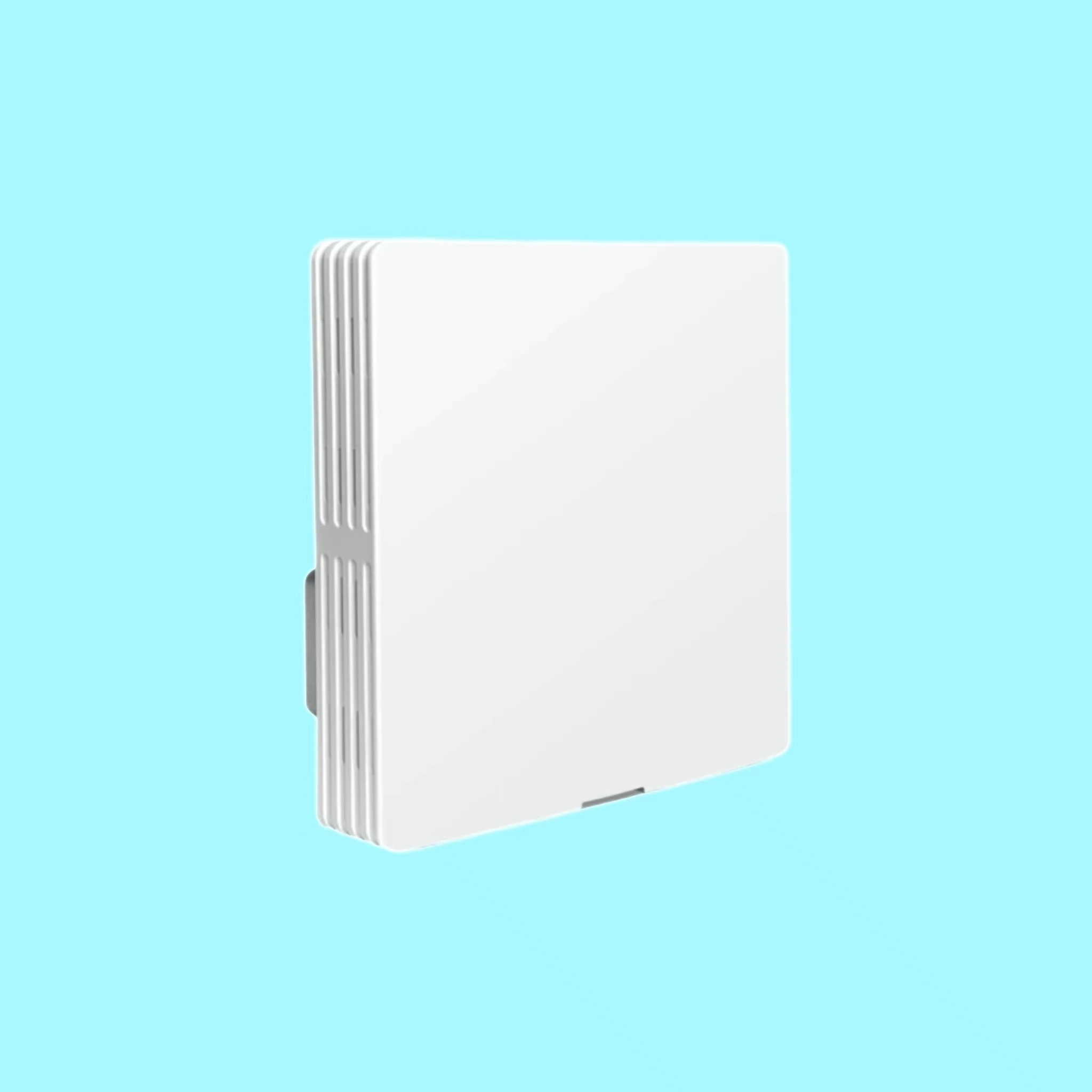

HC-G2 is a low-power, ultra-thin 1800Mbps embedded dual-band wireless AP developed for intensive, high-bandwidth needs, working in the 2.4G & 5.8G bands, supporting 802.11a/b/g/n/ac/ax protocols, using 2T2R MIMO technology, high-performance enterprise-class products. 86-style panel design, integrated Ethernet interface, simple design, beautiful and easy to deploy. The design is simple, aesthetically pleasing, and easy to deploy. Multi-colour options, in the case of not destroying the overall decorative layout, perfect and easy to deploy wireless WiFi6 to each room on the 86 junction box, is the family, hotels, villas, offices, dormitories and other environments the best choice for wireless network construction.
* High performance hardware configuration
Adopting MT7621DAT+MT7975DN+MT7905DAN high-performance enterprise chip, industrial-grade circuit design, supporting IEEE802.11a/b/g/n/ax protocol, it can provide 573Mbps wireless access speed in 2.4G band, 1201Mbps wireless access speed in 5.8G band, 10/100/1000Mbps Ethernet switching processing speed in WAN port and 10/100/1000Mbps Ethernet switching processing speed in LAN port. 1000Mbps for WAN and 10/100/1000Mbps for LAN. Built-in 16MB flash memory + 128MB RAM, easily support 64 users to access the Internet concurrently. Excellent industrial-grade circuitry and heat dissipation design, always ensure the long-term, stable and high-performance transmission of network data to enhance user experience.
* Powerful wireless coverage

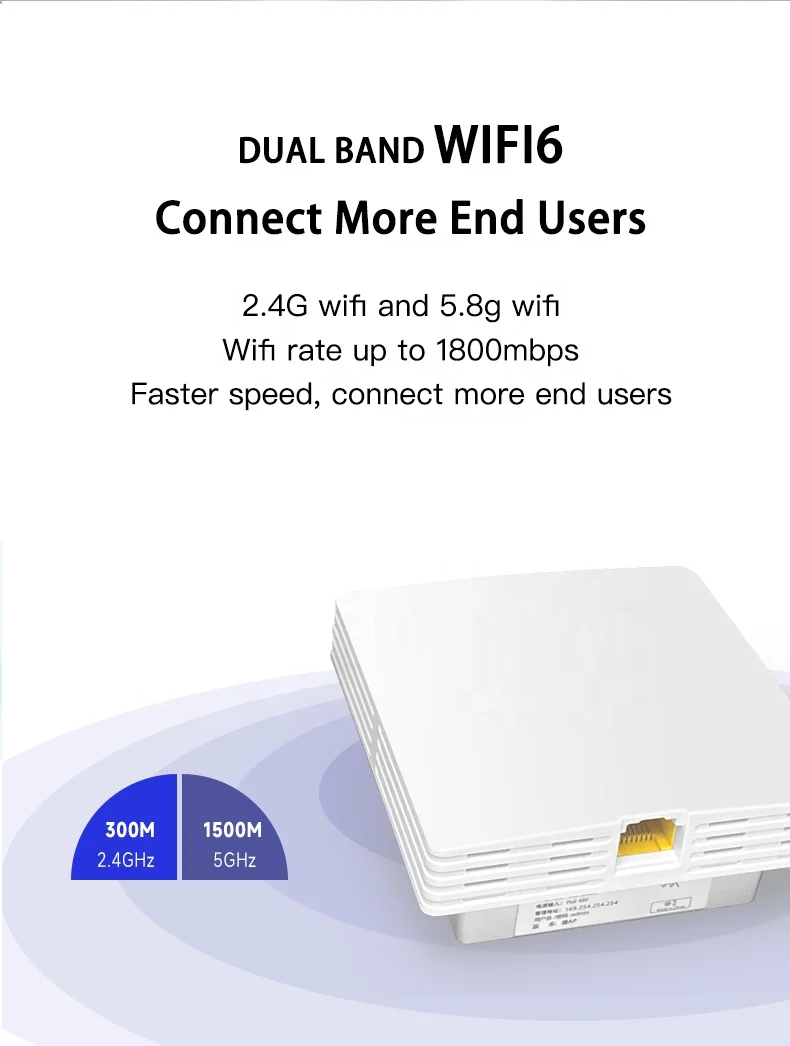

Support 2.4G & 5.8G dual-band WiFi, 2.4G band is better to penetrate the wall, 5.8G band is higher rate. Dual-frequency
concurrency, can access more devices at the same time, to meet the small space, high density, large bandwidth environment wireless terminal WiFi wireless Internet needs.
concurrency, can access more devices at the same time, to meet the small space, high density, large bandwidth environment wireless terminal WiFi wireless Internet needs.
* Gigabit PoE powered WAN port, Gigabit LAN interface

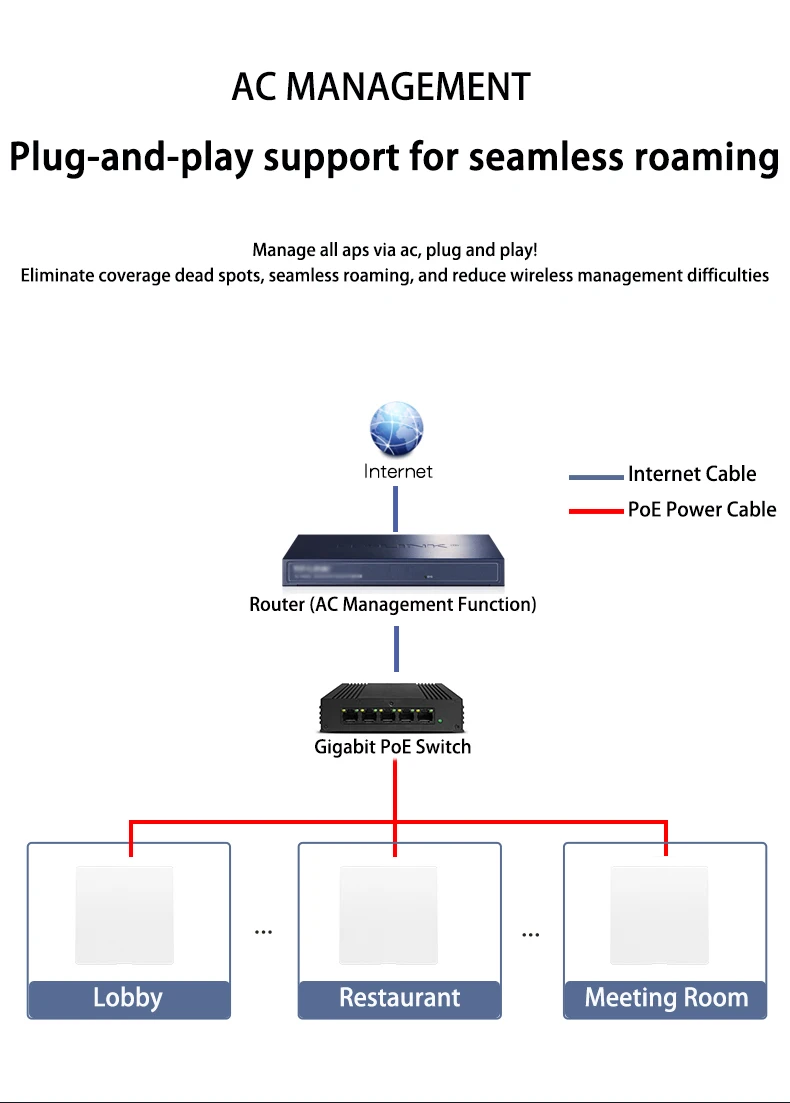

Configuration of two 10/100/1000Mbps adaptive wired network interface, support for 802.3af 48V standard PoE remote power supply, only a network cable can be network data, power transmission to the device, power supply distance of up to 100 metres (the specific distance is related to the material of the network cable, the general use of the network cable transmission distance of about 70 metres), no need to change the original layout of the power supply, construction is simple and convenient. Simple and convenient construction.
If you don't know how to choose version, please contact us before you order.
