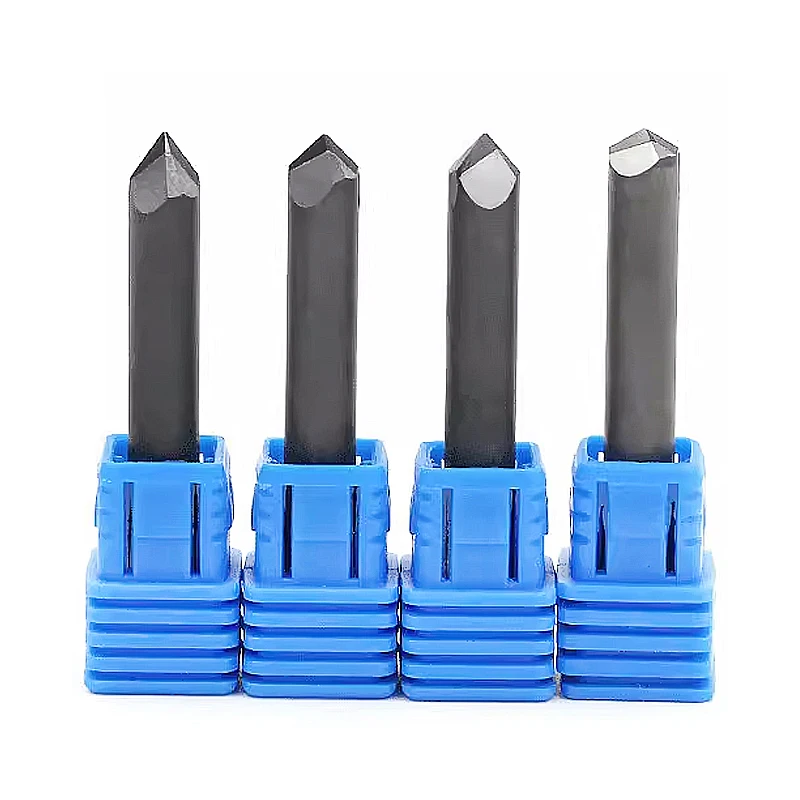

Diamond 70/90/120 degree PCD engraving cutting head 0.2mm stone marble milling tool
Diamond 70/90/120 degree PCD engraving cutting head 0.2mm stone marble milling tool
Diamond 70/90/120 degree PCD engraving cutting head 0.2mm stone marble milling tool
Diamond 70/90/120 degree PCD engraving cutting head 0.2mm stone marble milling tool
Diamond 70/90/120 degree PCD engraving cutting head 0.2mm stone marble milling tool
Diamond 70/90/120 degree PCD engraving cutting head 0.2mm stone marble milling tool
Diamond 70/90/120 degree PCD engraving cutting head 0.2mm stone marble milling tool

Diamond 70/90/120 degree PCD engraving cutting head 0.2mm stone marble milling tool

Share on (1601033114993):


Price:$8.40 - $8.80

Quantity:


Product Overview

Description

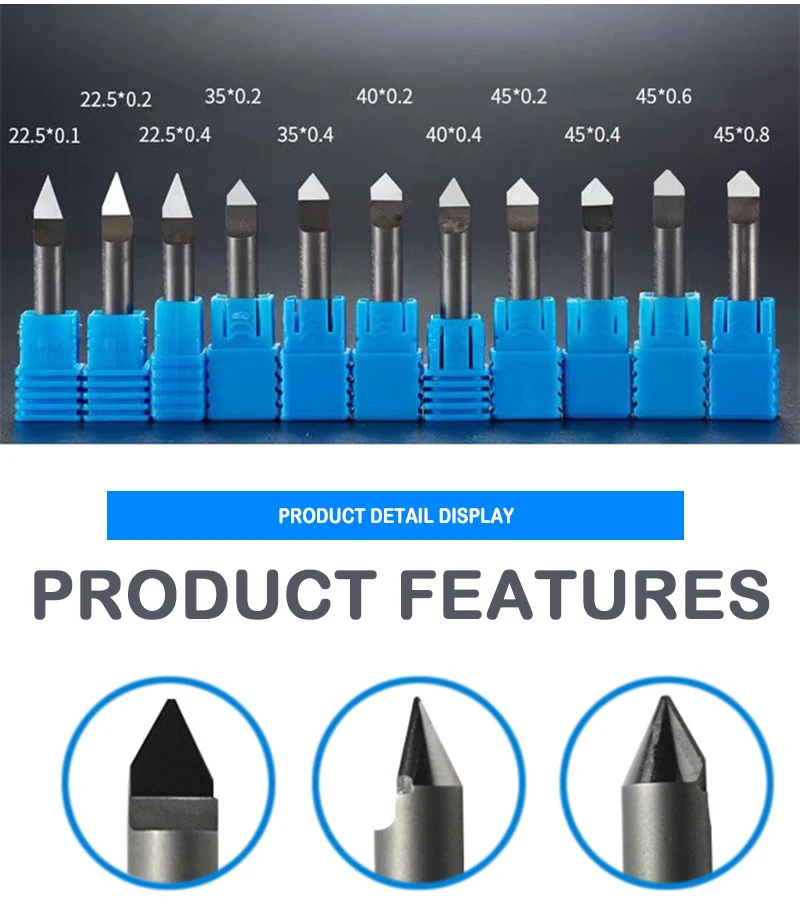

Product specifications
shank diameter(mm)

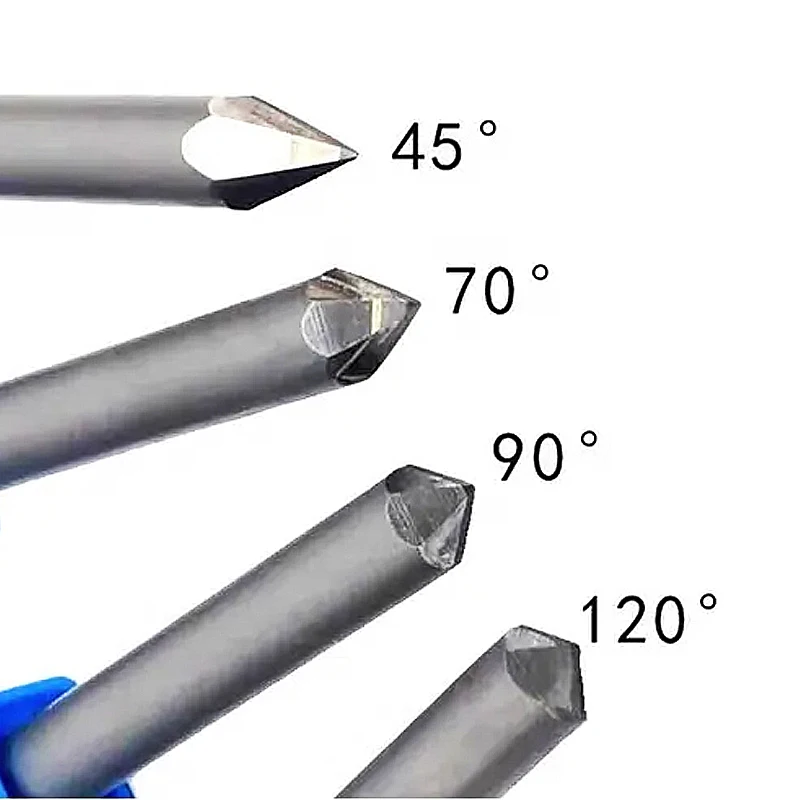

angle
tool nose(mm)
Total length(mm)
10x70°x0.2
10
70°
0.2
50
10x70°x0.4
10
70°
0.4
50
10x70°x0.6
10
70°
0.6
50
10x70°x0.8
10
70°
0.8
50
10x70°x1.0
10
70°
1.0
50
10x70°x1.5
10
70°
1.5
50
10x90°x0.2
10
90°
0.2
50
10x90°x0.4
10
90°
0.4
50
10x90°x0.6
10
90°
0.6
50
10x90°x0.8
10
90°
0.8
50
10x90°x1.0
10
90°
1.0
50
10x90°x1.5
10
90°
1.5
50
10x100°x0.2
10
100°
0.2
50
10x100°x0.4
10
100°
0.4
50
10x100°x0.6
10
100°
0.6
50
10x100°x0.8
10
100°
0.8
50
10x100°x1.0
10
100°
1.0
50
10x100°x1.5
10
100°
1.5
50
10x110°x0.2
10
110°
0.2
50
10x110°x0.4
10
110°
0.4
50
10x110°x0.6
10
110°
0.6
50
10x110°x0.8
10
110°
0.8
50
10x110°x1.0
10
110°
1.0
50
10x110°x1.5
10
110°
1.5
50
10x120°x0.2
10
120°
0.2
50
10x120°x0.4
10
120°
0.4
50
10x120°x0.6
10
120°
0.6
50
10x120°x0.8
10
120°
0.8
50
10x120°x1.0
10
120°
1.0
50
10x120°x1.5
10
120°
1.5
50
10x140°x0.2
10
140°
0.2
50
10x140°x0.4
10
140°
0.4
50
10x140°x0.6
10
140°
0.6
50
10x140°x0.8
10
140°
0.8
50
10x140°x1.0
10
140°
1.0
50
10x140°x1.5
10
140°
1.5
50











Tool running-in method

Knife running-in is a process that naturally dulls the edge of a sharp tool, which can make the tool have a longer life and more stable cutting efficiency.




The significance of natural blunting of the edge

To put it simply, it is the difference between a kitchen knife and a bone chopping knife. The cutting edge of the kitchen knife is very sharp, while the bone chopping knife is blunt. It has a long life when used to chop ribs! If you insist on using a kitchen knife to chop ribs, obviously It is necessary to damage the knife. In the same way, the blade of a knife newly shipped from the factory is very sharp and can even cut your finger. It is like a kitchen knife. After the knife is run in, the edge will be blunted and then used again. High-strength stone carving is naturally more effective with half the effort.




The specific setting parameters and methods of running-in tools are as follows

To put it simply, it is the difference between a kitchen knife and a bone chopping knife. The cutting edge of the kitchen knife is very sharp, while the bone chopping knife is blunt. It has a long life when used to chop ribs! If you insist on using a kitchen knife to chop ribs, obviously It is necessary to damage the knife. In the same way, the blade of a knife newly shipped from the factory is very sharp and can even cut your finger. It is like a kitchen knife. After the knife is run in, the edge will be blunted and then used again. High-strength stone carving is naturally more effective with half the effort.

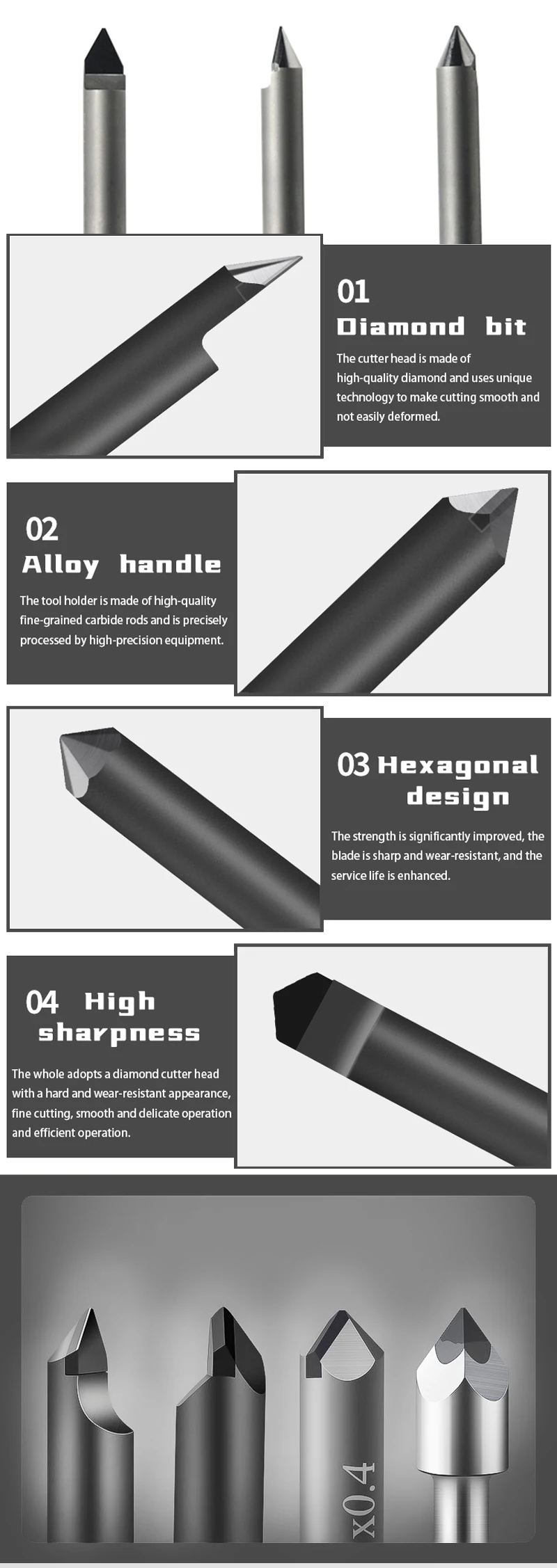

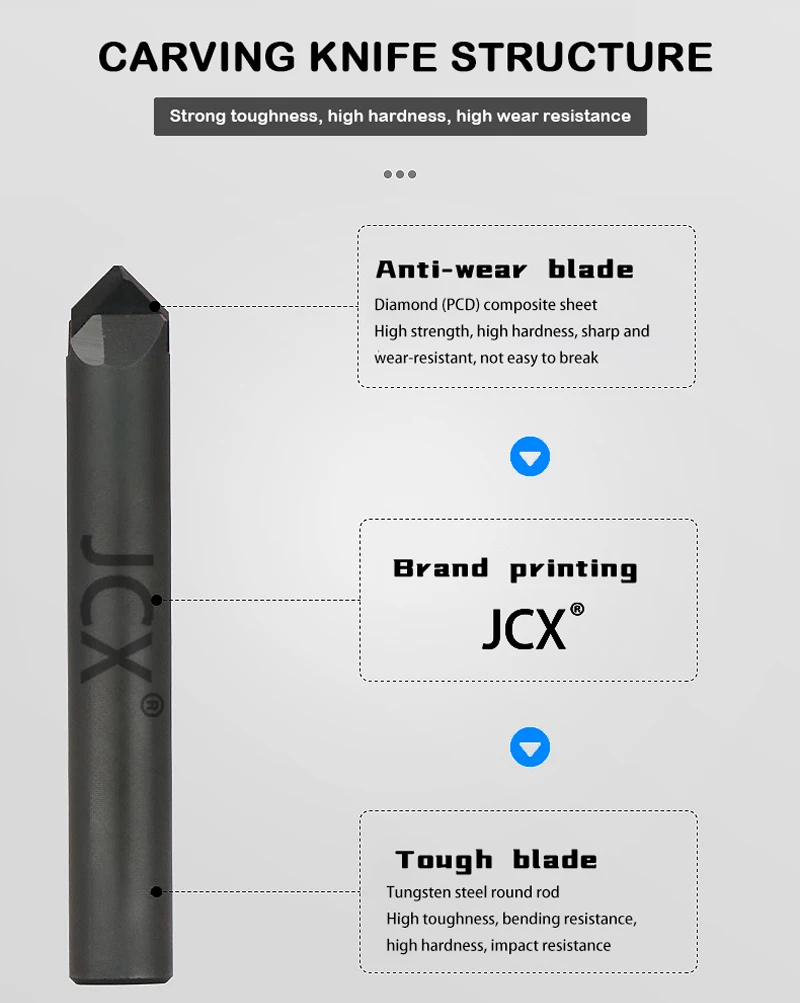

PCD hexagonal knife is polycrystalline diamond

Polycrystalline diamond is made by sintering diamond powder and metal binder at high temperature and pressure, so we see that the appearance is black, which is different from the diamond knife on the grinding head type. The diamond on the diamond knife is a large-grained single crystal, and the color is yellow and transparent.




Main features of polycrystalline diamond material

Polycrystalline diamond is made by sintering diamond powder and metal binder at high temperature and pressure, so we see that the appearance is black, which is different from the diamond knife on the grinding head type. The diamond on the diamond knife is a large-grained single crystal, and the color is yellow and transparent.

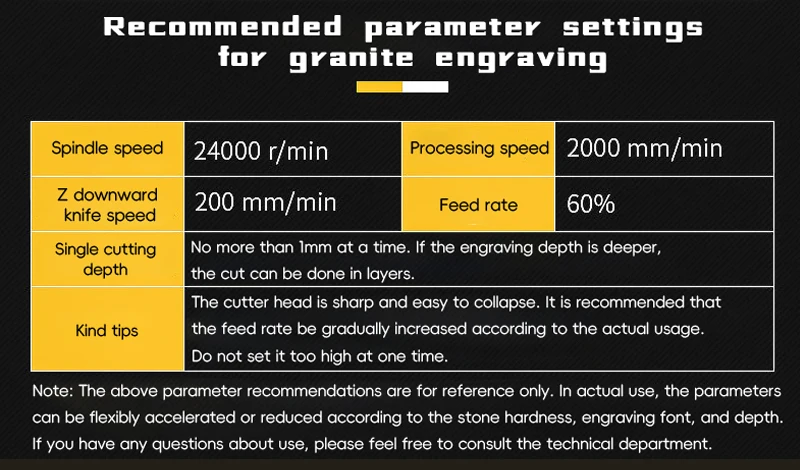

PCD tool processing parameter reference values

1: Rotation speed 24000
2: Idle speed 3000
3: Cutting speed 50-100mm/min
