UL2851 Awm Multi Core Copper Wire 20AWG PVC Jacket 3 Core 4 Core Electrical Shielded Cable
UL2851 Awm Multi Core Copper Wire 20AWG PVC Jacket 3 Core 4 Core Electrical Shielded Cable
UL2851 Awm Multi Core Copper Wire 20AWG PVC Jacket 3 Core 4 Core Electrical Shielded Cable
UL2851 Awm Multi Core Copper Wire 20AWG PVC Jacket 3 Core 4 Core Electrical Shielded Cable
UL2851 Awm Multi Core Copper Wire 20AWG PVC Jacket 3 Core 4 Core Electrical Shielded Cable
UL2851 Awm Multi Core Copper Wire 20AWG PVC Jacket 3 Core 4 Core Electrical Shielded Cable
UL2851 Awm Multi Core Copper Wire 20AWG PVC Jacket 3 Core 4 Core Electrical Shielded Cable

UL2851 Awm Multi Core Copper Wire 20AWG PVC Jacket 3 Core 4 Core Electrical Shielded Cable

Share on (1601033133508):


Price:

Quantity:


Product Overview

Description



Product Description


★ Rated temperature: 80℃
Rated voltage: 30V
★ Reference Standard: UL Subject 758, UL1581 & CSA C22.2 No.210.2
★ Stranded, tinned or bare copper conductor, 40 AWG minimum
★ Colour-coded PVC insulation
★ Tinned or bare copper wire spiral shield
★ Colour-coded lead free PVC jacket
★ Passes UL VW-1 & CSA FT1 vertical flame test
★ Application: For internal wiring of electronic equipment in Class 2 systems



Cores
Conductor
Insulation
Shield
Jacket
Maximum Resistance at 20 ℃
Ω/km
AWG
No./mm
Dia.
mm
Nom. Thick.
mm
Nom.Dia.
mm
No./mm
Nom. Thick.
mm
Nom.Dia.
mm
2
30
7/0.1
0.30
0.23
0.75
41/0.1
0.36
2.42
354
28
7/0.127
0.38
0.26
0.90
46/0.1
0.34
2.80
223
26
7/0.16
0.48
0.26
1.00
54/0.1
0.35
2.94
139
24
11/0.16
0.61
0.26
1.13
62/0.1
0.35
3.15
88.9
22
17/0.16
0.76
0.26
1.28
62/0.12
0.35
3.50
57.5
20
26/0.16
0.94
0.26
1.46
72/0.12
0.35
3.86
34.6
18
41/0.16
1.18
0.26
1.70
82/0.12
0.35
4.34
23.3
3
30
7/0.1
0.30
0.23
0.75
46/0.1
0.37
2.55
354
28
7/0.127
0.38
0.26
0.90
53/0.1
0.44
3.10
223
26
7/0.16
0.48
0.26
1.00
62/0.1
0.35
3.10
139
24
11/0.16
0.61
0.26
1.13
69/0.1
0.35
3.32
88.9
22
17/0.16
0.76
0.26
1.28
72/0.12
0.35
3.70
57.5
20
26/0.16
0.94
0.26
1.46
82/0.12
0.35
4.08
34.6
18
41/0.16
1.18
0.26
1.70
96/0.12
0.35
4.60
23.3
4
30
7/0.1
0.30
0.23
0.75
56/0.1
0.34
2.80
354
28
7/0.127
0.38
0.26
0.90
56/0.12
0.35
3.10
223
26
7/0.16
0.48
0.26
1.00
63/0.12
0.35
3.35
139
24
11/0.16
0.61
0.26
1.13
71/0.12
0.35
3.67
88.9
22
17/0.16
0.76
0.26
1.28
81/0.12
0.35
4.03
57.5
20
26/0.16
0.94
0.26
1.46
92/0.12
0.35
4.46
34.6
18
41/0.16
1.18
0.26
1.70
107/0.12
0.35
5.04
23.3
5
30
7/0.1
0.30
0.23
0.75
68/0.1
0.35
2.93
354
28
7/0.127
0.38
0.26
0.90
62/0.12
0.35
3.37
223
26
7/0.16
0.48
0.26
1.00
71/0.12
0.35
3.64
139
24
11/0.16
0.61
0.26
1.13
79/0.12
0.35
3.99
88.9
22
17/0.16
0.76
0.26
1.28
90/0.12
0.35
4.40
57.5
20
26/0.16
0.94
0.26
1.46
103/0.12
0.35
4.88
34.6
18
41/0.16
1.18
0.26
1.70
120/0.12
0.35
5.53
23.3
6
30
7/0.1
0.30
0.23
0.75
59/0.12
0.35
3.20
354
28
7/0.127
0.38
0.26
0.90
71/0.12
0.35
3.64
223
26
7/0.16
0.48
0.26
1.00
79/0.12
0.35
3.94
139
24
11/0.16
0.61
0.26
1.13
88/0.12
0.35
4.33
88.9
22
17/0.16
0.76
0.26
1.28
101/0.12
0.35
4.78
57.5
20
26/0.16
0.94
0.26
1.46
114/0.12
0.35
5.32
34.6
7
30
7/0.1
0.30
0.23
0.75
59/0.12
0.35
3.20
354
28
7/0.127
0.38
0.26
0.90
71/0.12
0.53
4.00
223
26
7/0.16
0.48
0.26
1.00
79/0.12
0.35
3.94
139
24
11/0.16
0.61
0.26
1.13
88/0.12
0.35
4.33
88.9
22
17/0.16
0.76
0.26
1.28
101/0.12
0.35
4.78
57.5
20
26/0.16
0.94
0.26
1.46
114/0.12
0.35
5.32
34.6

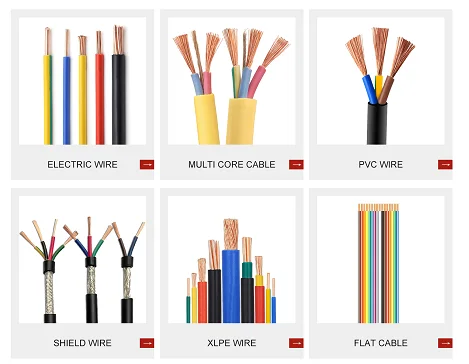

Our Products

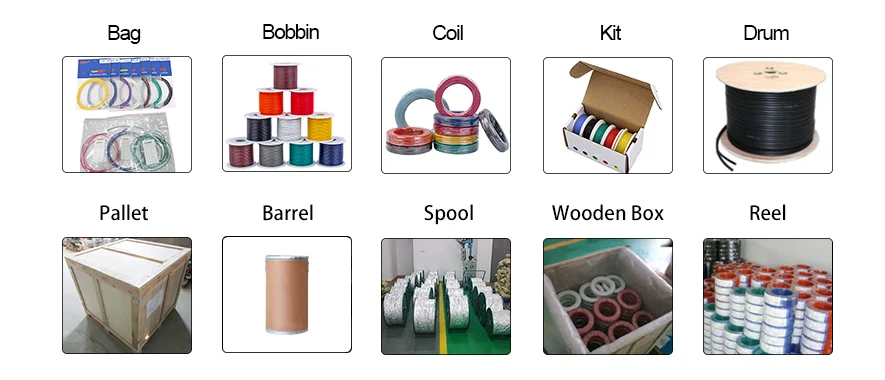

Packing & Delivery

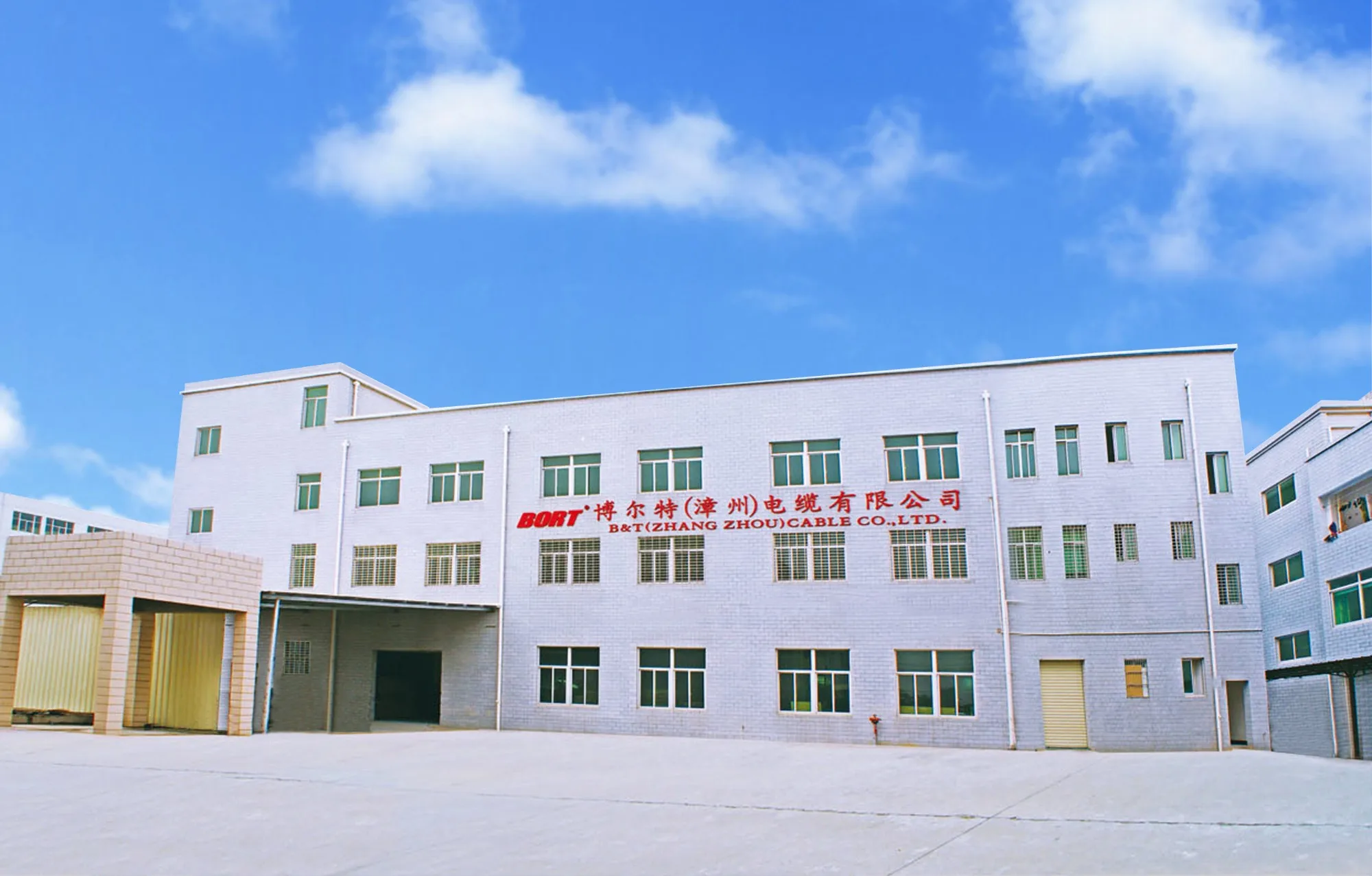

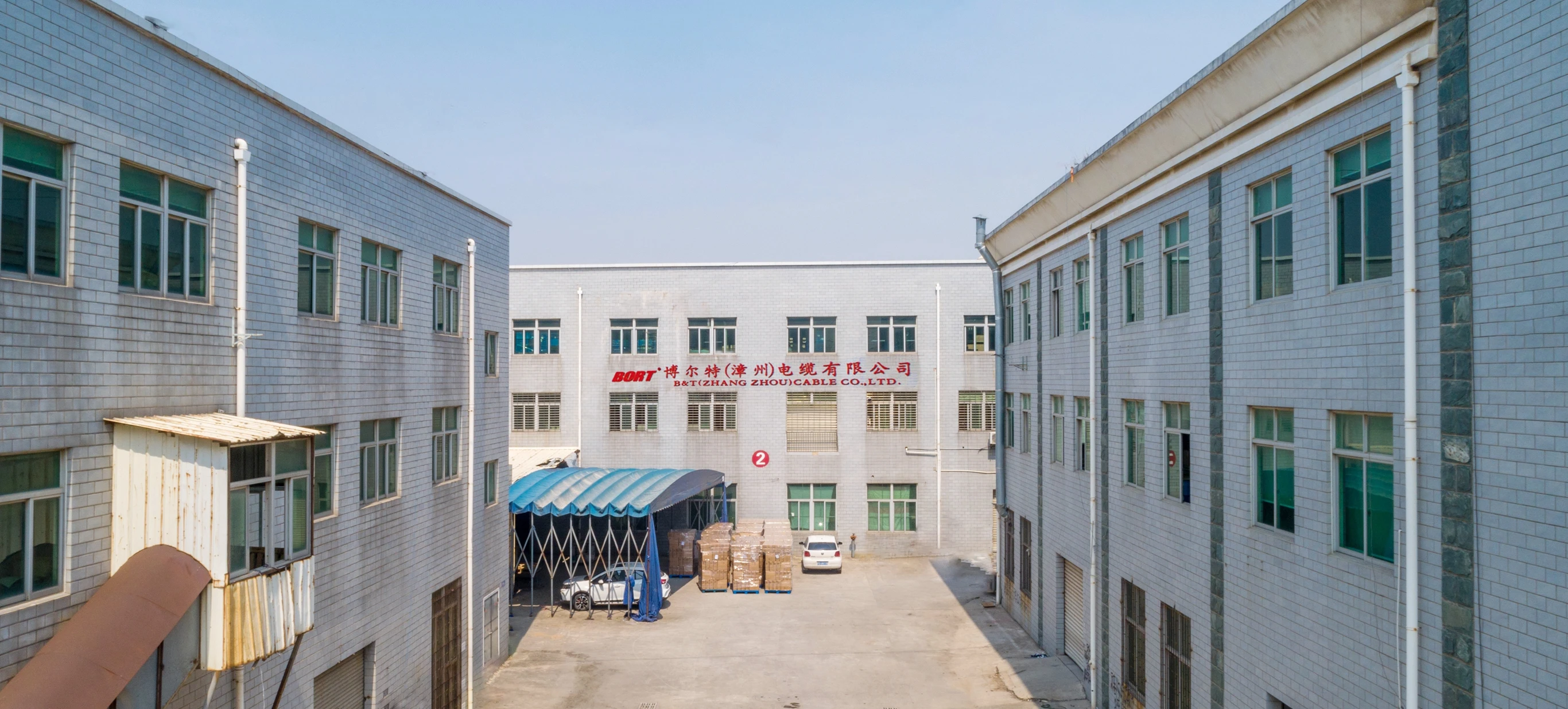

Company Profile




About Us
B & T (ZHANGZHOU) CABLE CO., LTD. established in 2009, specializes in high technology and special cables.
BORT key product lines: UL cable, automotive wire, power cord cable, high temperature cable. With materials in PVC, XLPVC, XLPE, PE, PP, TPE, TPU, SLICONE, PFA, FEP etc. In devotion to finding new materials and developing cables to meet specific customer requirements like supply halogen free, environmentally friendly cables.


Company Advantage
13 years factory
UL & VDE certified and compliant with ROHS and REACH
Service more than 50 countries
OEM & ODM engineers team
These assure good price with high quality and quickly delivery.

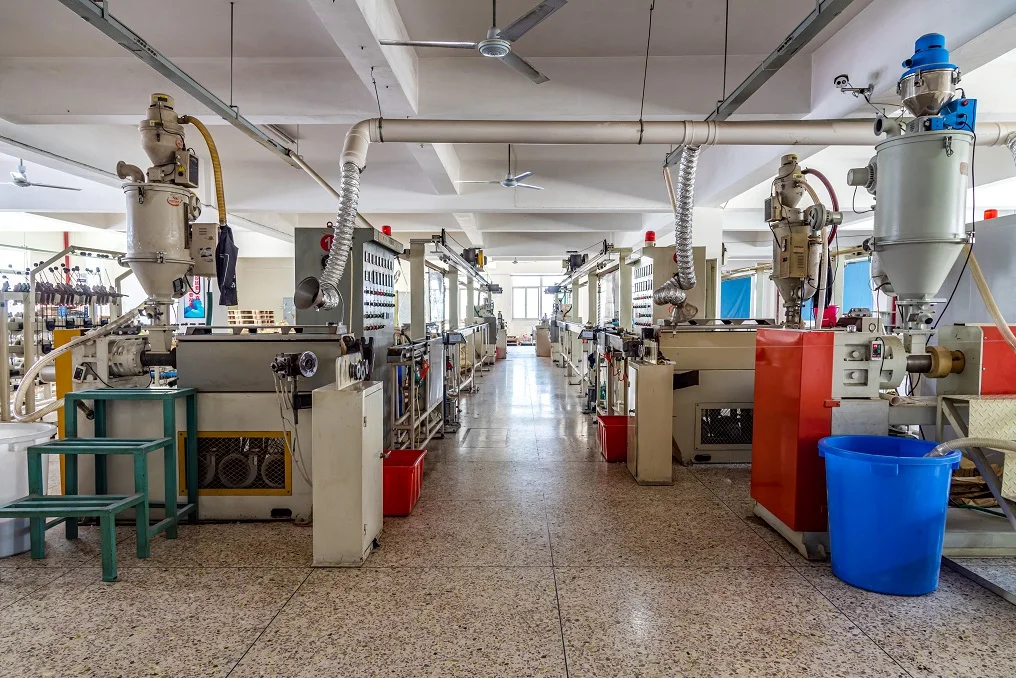

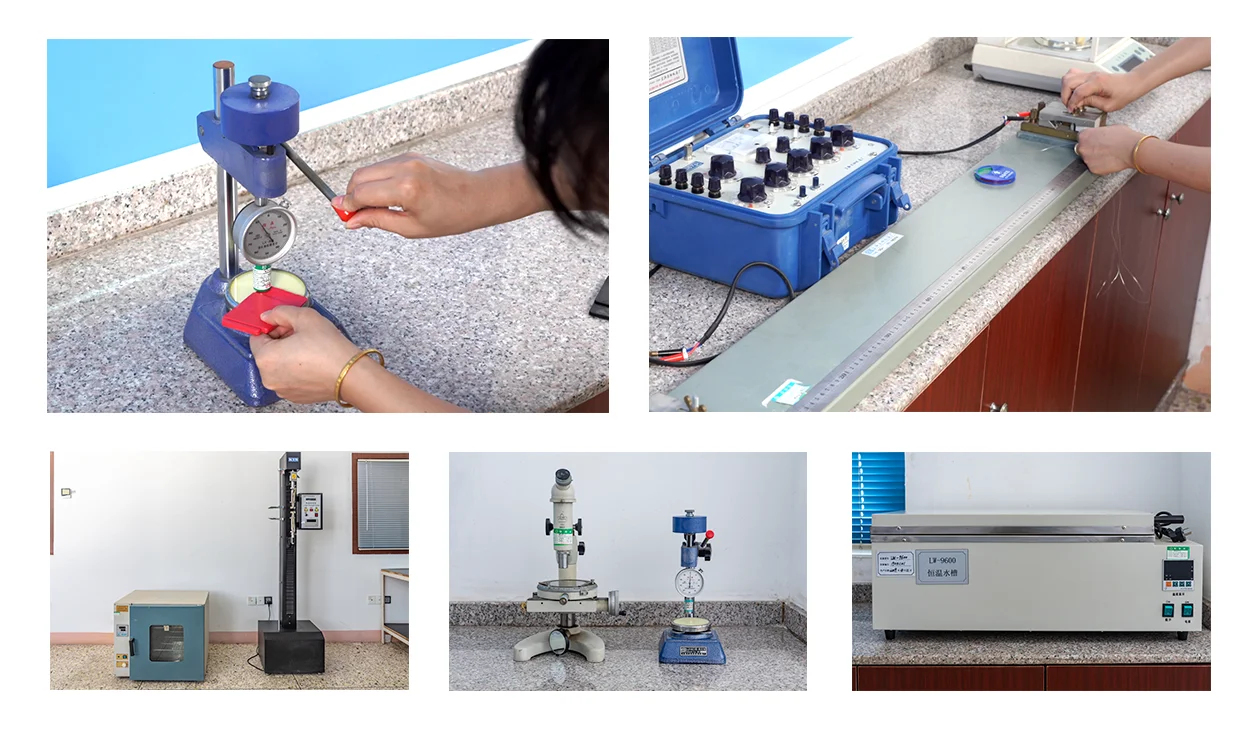

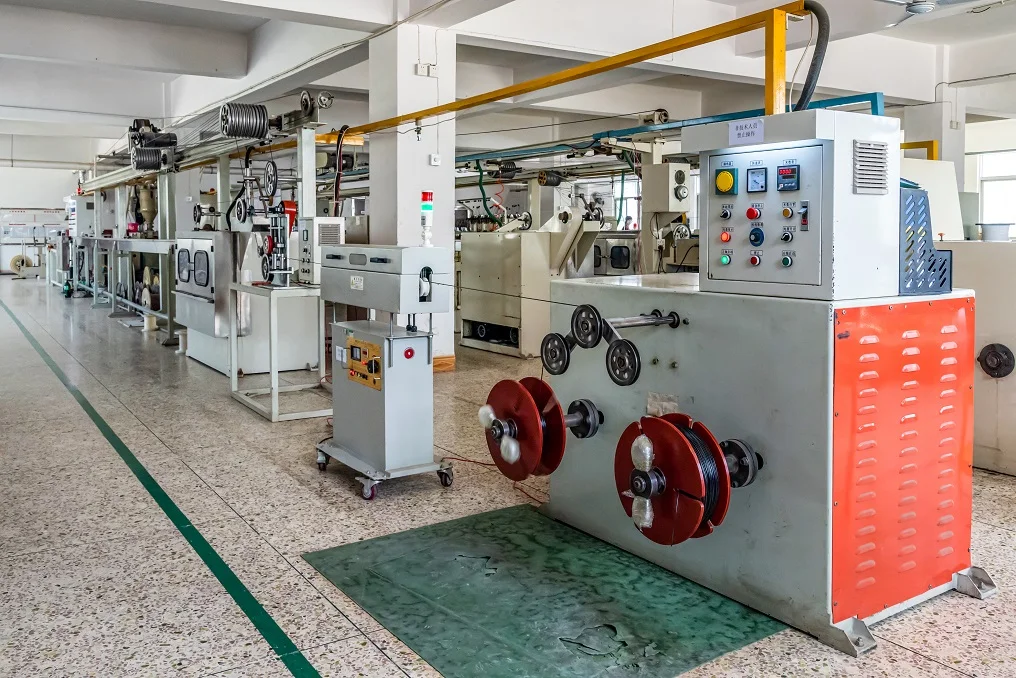

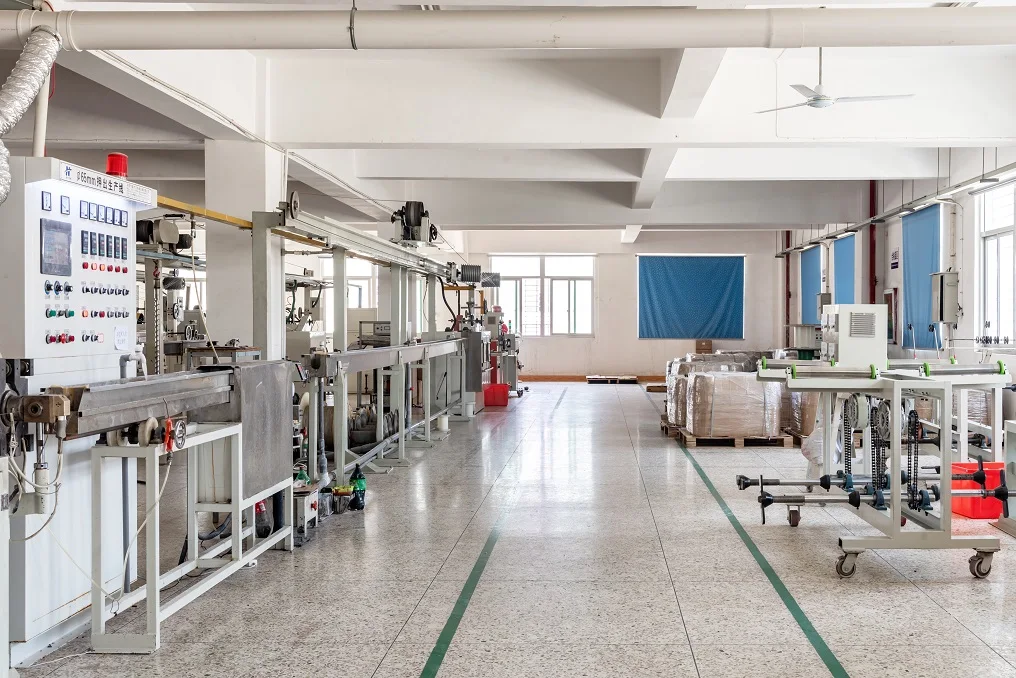

Experimental Equipment And Workshop






Certificate




Exhibition




FAQ


1. Are you manufacturer or trading company ?
We are manufacturer, welcome visit our factory after epidemic or Remote Video firstly .

2. How can I get sample to test your quality?
Most samples are free except special products. The buyers are expected to pay the courier.

3. What’s your Minimum Order Quantity?
Normally 3000m for trial order, the price will be much better if quantity is big than MOQ.

4. Does your company accept OEM or ODM production?
Yes, we are experienced in operating OEM & ODM, just send detailed requirements, our engineers team will study and reply quickly.
