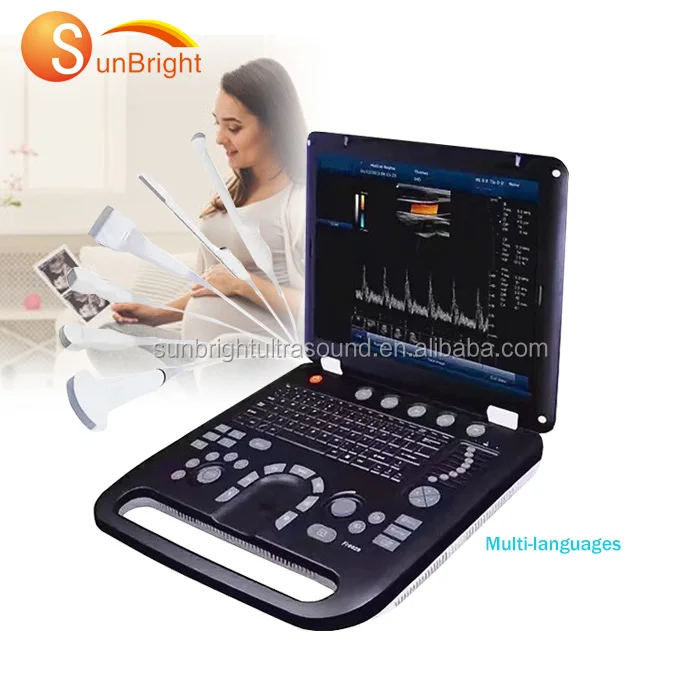

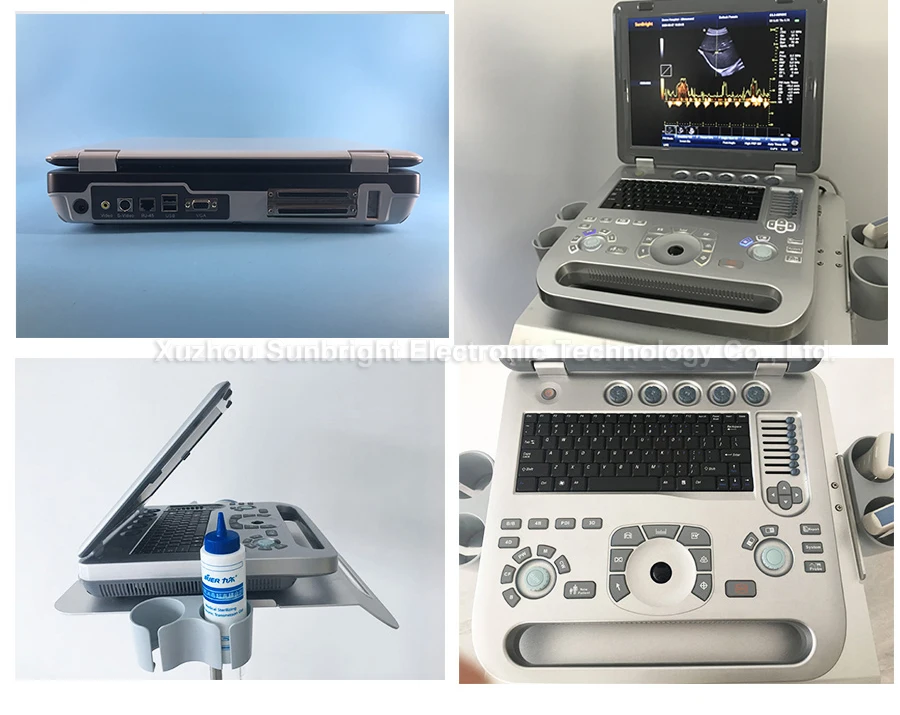

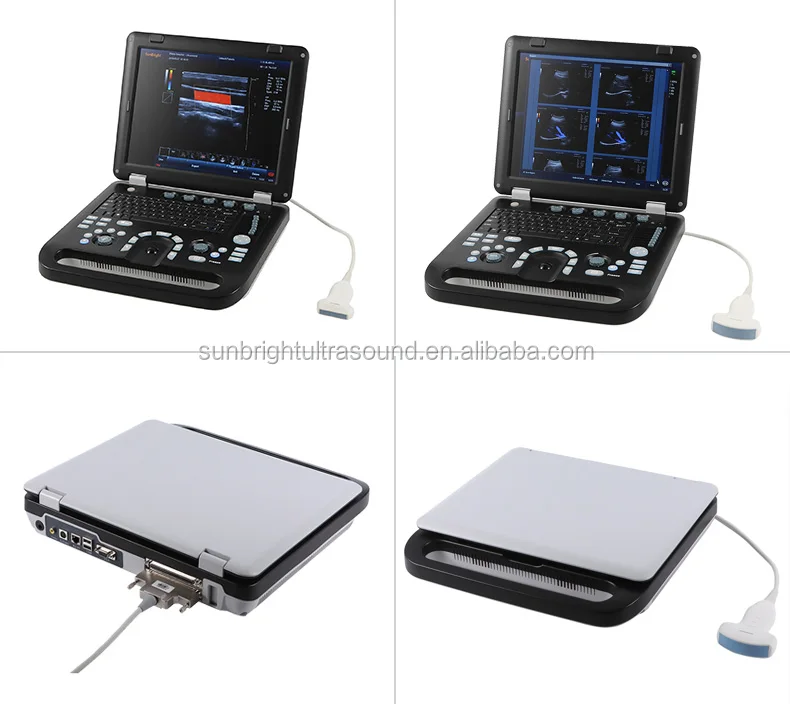

SUN 906A Medical Ultrasonic Instruments Portable Color Doppler 2D 3D Ultrasound Machine
- Category: >>>
- Supplier: Xuzhou Sunbright Electronic Technology Co. Ltd.
Share on (1601033184751):
Product Overview
Description
Products Description
Fast description:
SUN-906A Medical Ultrasonic Instruments Portable Color Doppler 2D 3D Ultrasound Machine
1.Large 15 inch LED color display real Doppler function USB ports and VGA port and 2 probe connectors.
2. Built-in battery,which can be contentiously worked at least 3 hours when power off.
3.Main Application: Abdomen / Cardiac / Obstetrics / Gynecology / Urology / Andrology / Small Parts / Vascular / Pediatrics /Musculoskeletal and so on
SUN-906A Medical Ultrasonic Instruments Portable Color Doppler 2D 3D Ultrasound Machine
1.Large 15 inch LED color display real Doppler function USB ports and VGA port and 2 probe connectors.
2. Built-in battery,which can be contentiously worked at least 3 hours when power off.
3.Main Application: Abdomen / Cardiac / Obstetrics / Gynecology / Urology / Andrology / Small Parts / Vascular / Pediatrics /Musculoskeletal and so on
4. IMAGING MODES:B, 2B, 4B, M, B/M, B/C, B/D, B/C/D, B/CFM/D,CF+B model simultaneously,PDI Color, Dual Color,Simultaneous 2D/3D/4D Color Compound, PW, CW Duplex/Triplex, CFM, CDE, PD, Directional PD, CD . Anatomy M, Color M mode
5. PC-based Color Doppler with Windows system, which can connect with any printers in any brands. Printed area are adjustable,which can be pictures, reports or picture+report, etc.
5. PC-based Color Doppler with Windows system, which can connect with any printers in any brands. Printed area are adjustable,which can be pictures, reports or picture+report, etc.
6. Built-in DICOM 3.0 protocol
7. Multi-languages function:English, Chinese, Spanish, and Portuguese, Russian, Arabic, French, Vietnamese, Indonesian, German,Persian, Thai and so on.
Physical Specifications:
Equipment size | 375mm*360mm*75mm |
Equipment weight | 5.5kg |
Packing size | 490mm×270mm×490mm |
Packing weight | 10kg |
Connectivity/Media/Peripherals
Transducer Ports | 2 |
USB Ports | 2 |
128Hard Disc | 128GB (SSD), 120G/200GB SSD (Optional) |
Printing Area | Image, report, Image+report |
Ethernet Port | 2(100Mb/1000Mb) |
External Display | VGA, HDMI, |
Printer(Optional) | USB Printer, Digital Laser Printer, Digital B/W Thermal Printer |
Hardware Specification
LED Monitor
LED Monitor
Size (Diagonal) | 15" |
Contrast Ratio | 800:1 |
Resolution | 1024*768 pixels |
Brightness | 230 cd/m2 |
Color Depth | 24bit |
Rotate Angle | ± 90° |
Grey Levels | 256 |
DICOM Connectivity
DICOM3.0 Compliant
3D Software
Built-in 3D software
Image Storage
Storage Format: PNG, AVI, BMP, JPEG, DICOM
Export Video Format: AVI
Export Image Format: PNG, JPEG, BMP, DICOM
USB Flash Drive
DICOM3.0 Compliant
3D Software
Built-in 3D software
Image Storage
Storage Format: PNG, AVI, BMP, JPEG, DICOM
Export Video Format: AVI
Export Image Format: PNG, JPEG, BMP, DICOM
USB Flash Drive
General Performance: | Digital Broadband | 12288 channels |
Beam-former | Re-programmable | |
Transmit Voltage | Adjustable (15 steps) | |
Beam-former Frequency Range | 1~40 MHz |

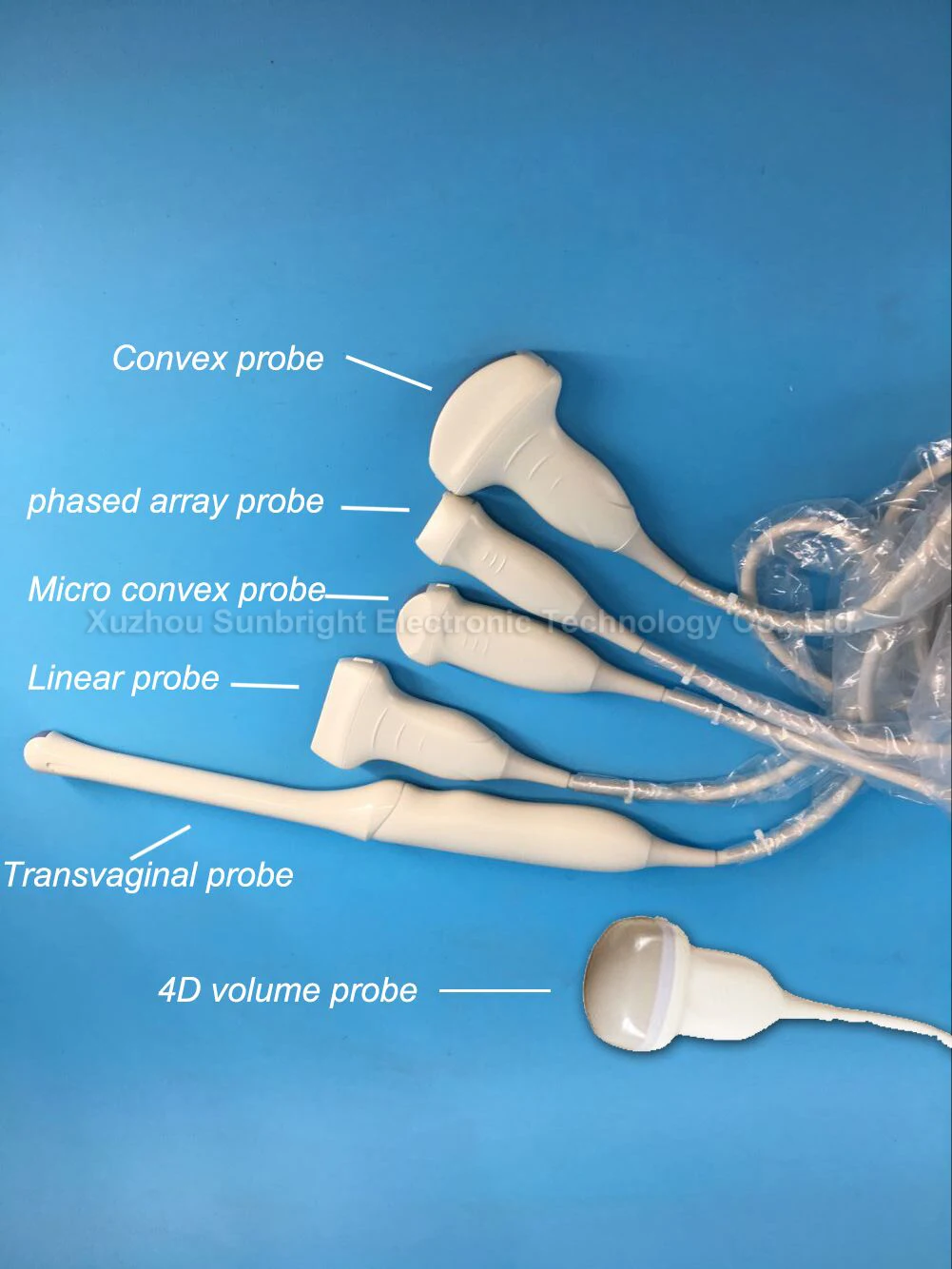

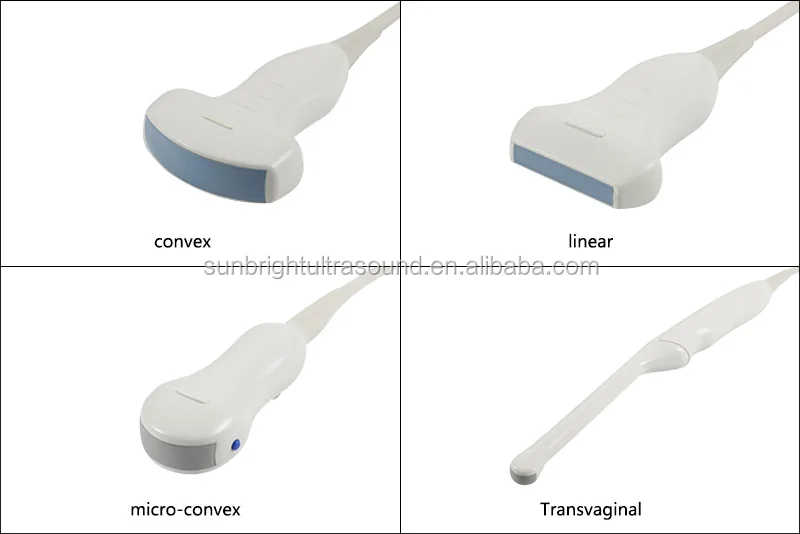

Transducers:
User Interface:
User Permission setting
Intuitive Windows-based operating principles
User-centric control panel with Home Base layout and control customization
On/Off task light and back-lit illumination of control panel
Variable brightness indicates active state of function keys
Easily accessible, full size QWERTY keyboard for text entry, function keys and system programming
Cine Playback, Multiple Arrows, Configurable Worksheets, Exam Review, Pictograms (Body Marks),System Setup Menu
On line attention function, tell the user how to operate in the next step
User Permission setting
Intuitive Windows-based operating principles
User-centric control panel with Home Base layout and control customization
On/Off task light and back-lit illumination of control panel
Variable brightness indicates active state of function keys
Easily accessible, full size QWERTY keyboard for text entry, function keys and system programming
Cine Playback, Multiple Arrows, Configurable Worksheets, Exam Review, Pictograms (Body Marks),System Setup Menu
On line attention function, tell the user how to operate in the next step

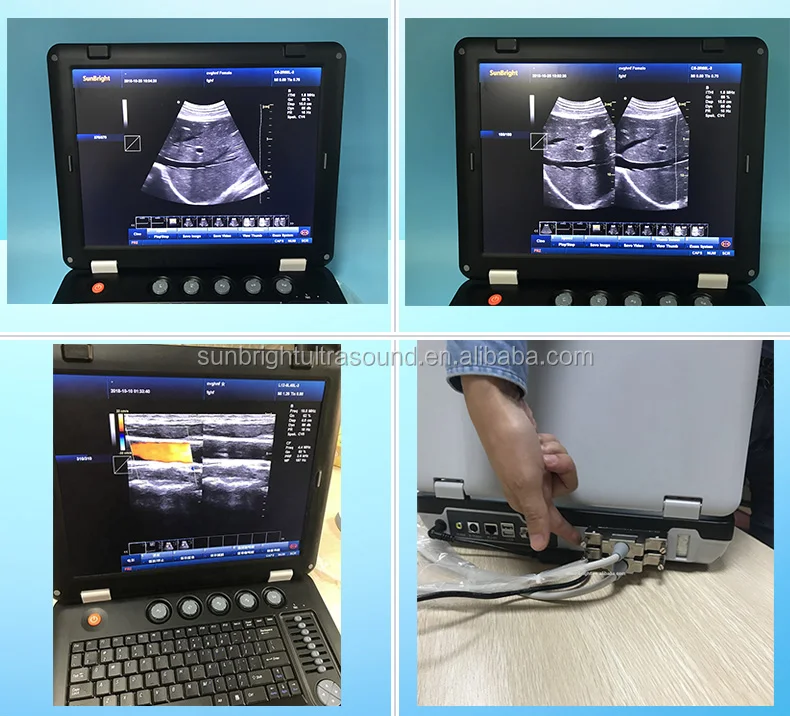

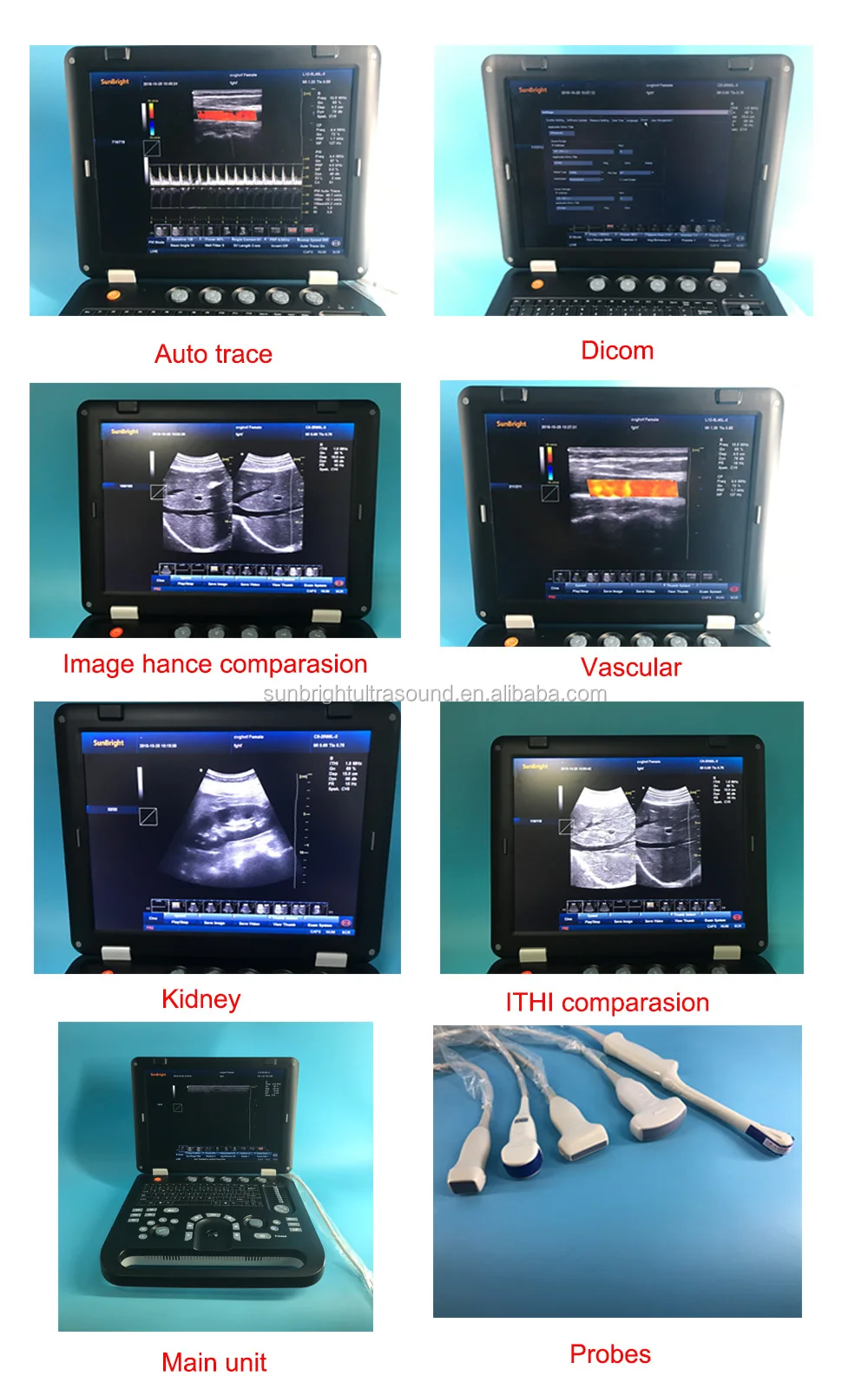

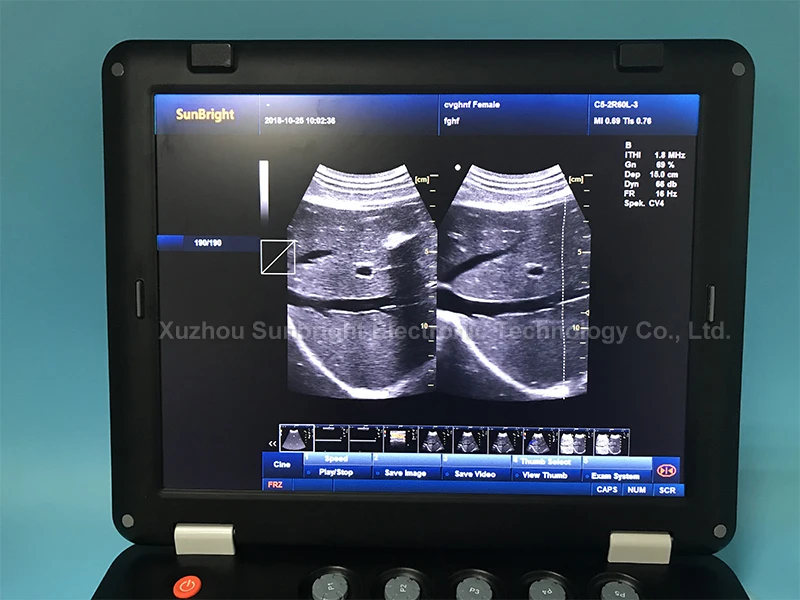

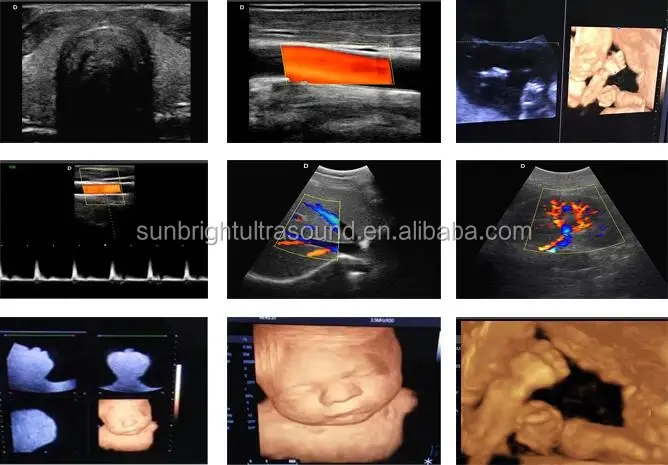

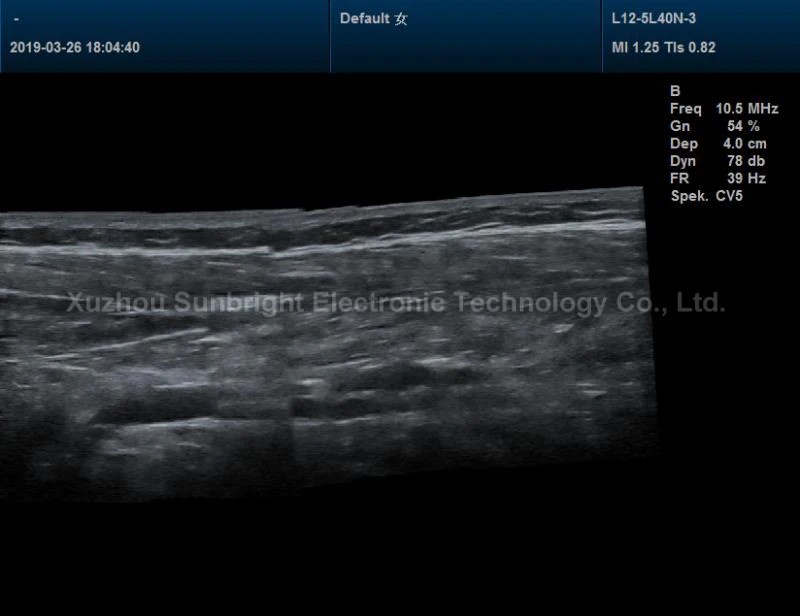

Scanning images
Standard Congfiguration:
906A color Doppler 3D main unit+one convex probe+lithium battery
15"LCD with high resolution
3D software
PW function
Two USB ports
Two probe connectors
One s-video out port
One video port
One power inlet
One convex probe(3.2M R50)
One VGA video converter
Plenty of measurement & calculation software packages
24 months warranty since ex-factory date for main unit
12 months warranty since ex-factory date for probes
906A color Doppler 3D main unit+one convex probe+lithium battery
15"LCD with high resolution
3D software
PW function
Two USB ports
Two probe connectors
One s-video out port
One video port
One power inlet
One convex probe(3.2M R50)
One VGA video converter
Plenty of measurement & calculation software packages
24 months warranty since ex-factory date for main unit
12 months warranty since ex-factory date for probes
