Freezer Temperature Sensor Data Logger Refrigerator Wireless Temperature Monitoring System with Lora Gateway
- Category: >>>
- Supplier: Shenzhen Thingsend Communication Tech Co. Ltd.
Share on (1601033226307):
Product Overview
Description
Product Description
Product Introduction

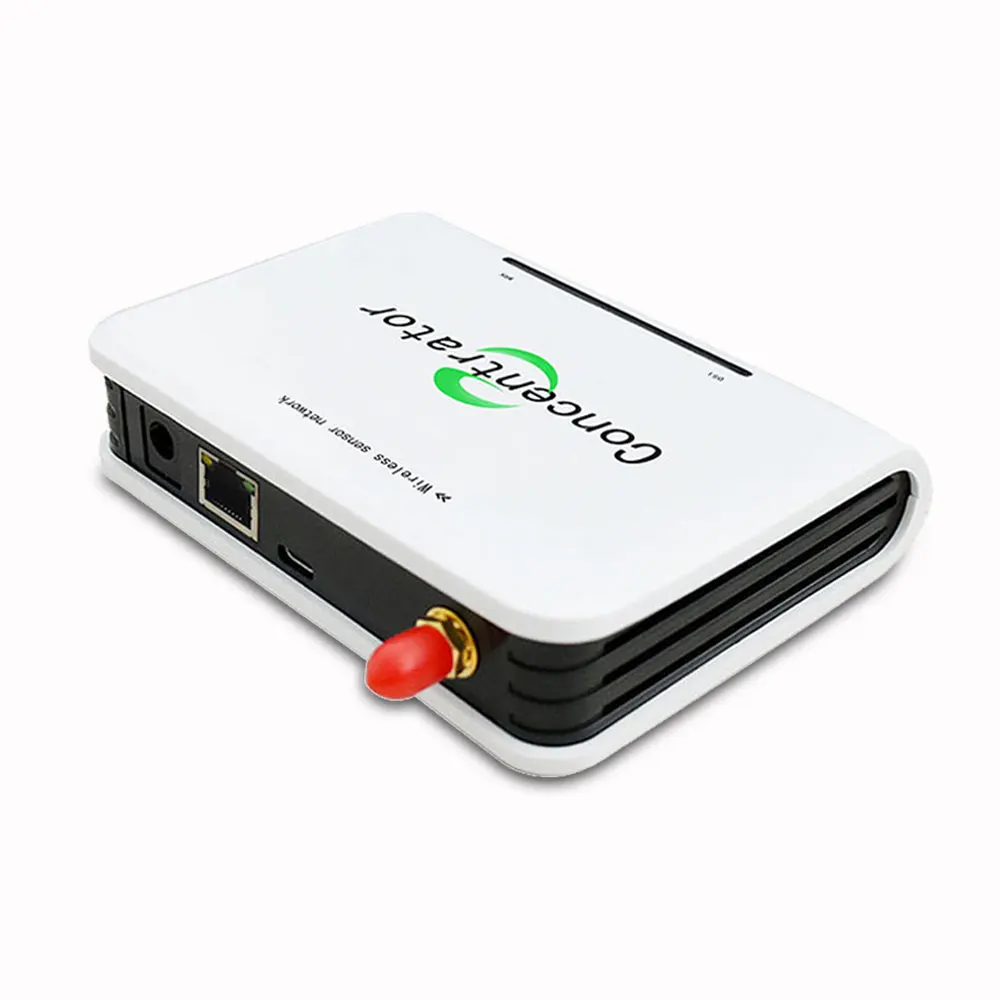

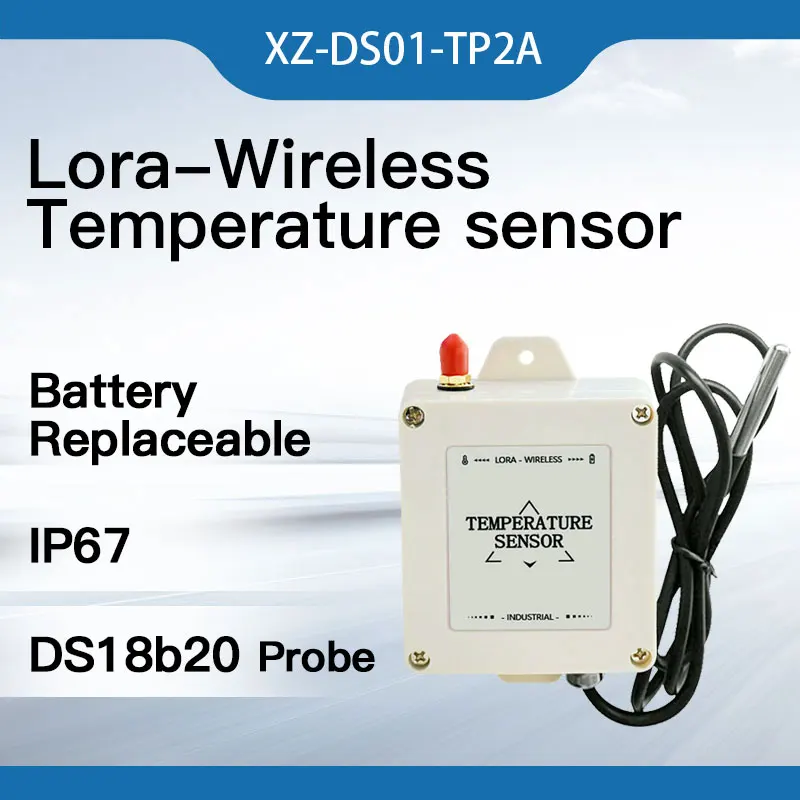

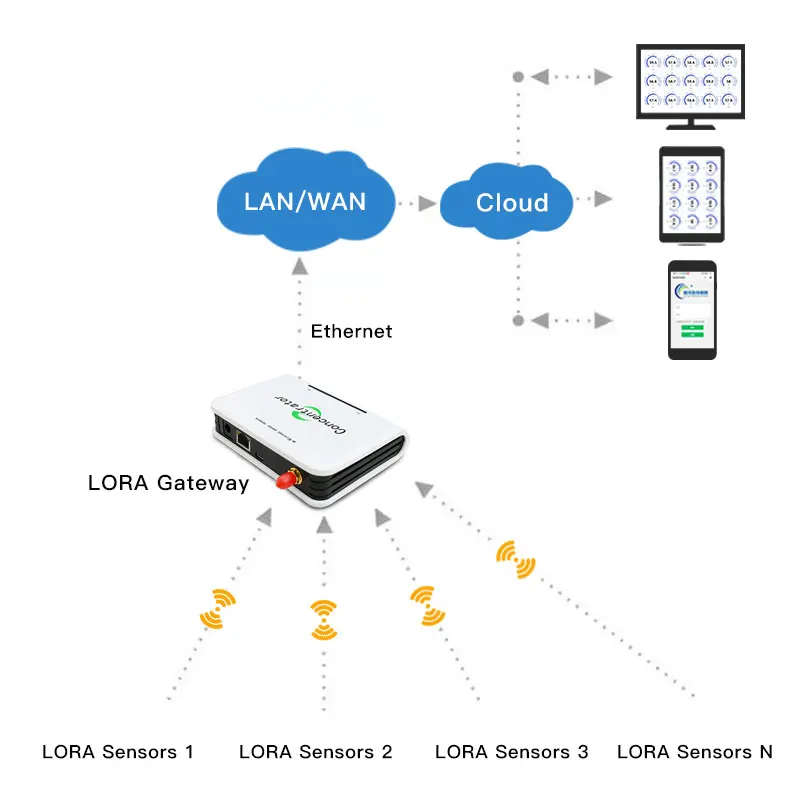

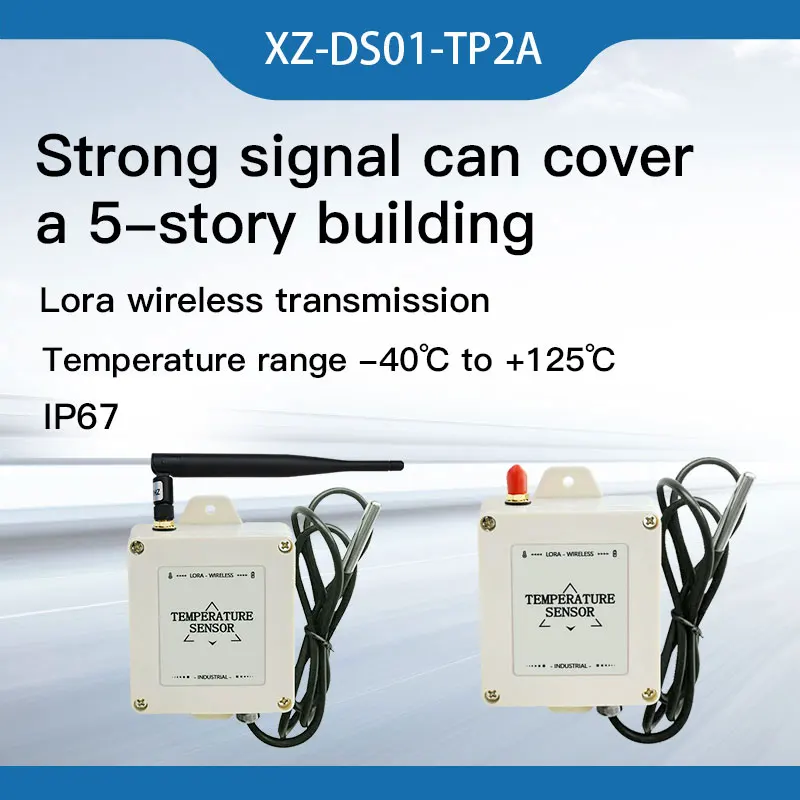

TP2A lora wireless temperature sensor is a low-power ds18b20 wireless temperature measuring instrument.It consists of temperature sensor, signal processing circuit, lora communication module and battery.DSG1 is a lora RJ45 ethernet gateway,their working together can realize remote temperature data acquisition. Lora RJ45 ethernet gateway sends data to PC/Cloud server.We also have USB serial gateway,4G gateway and modbus gateway,each gateway can work with more than 100pcs sensors(Modbus gateway can work with 30pcs wireless sensors). We provide free software and cloud server for remote monitoring.
Product Features
♦Battery operated sensor,and battery can be replaced by user
♦LoRa Wireless transmission distance is 5KM in open field(No obstacles)
♦Receive alarm sound and email alert
♦Set high-low threshold value for alert
♦Monitors /alerts battery levels
♦Unlimited history of readings for 6 months
♦Monitor every 5mins default,1-240mins can be changed by user
♦LoRa Wireless transmission distance is 5KM in open field(No obstacles)
♦Receive alarm sound and email alert
♦Set high-low threshold value for alert
♦Monitors /alerts battery levels
♦Unlimited history of readings for 6 months
♦Monitor every 5mins default,1-240mins can be changed by user
♦Free software and cloud server for remote monitoring
♦One lora gateway can work with more than 100pcs sensors.
♦LED light on when taking readings
♦Manufacturing,support OEM/ODM service
♦Manufacturing,support OEM/ODM service
Technical Parameters
Transmitting Power:<1 7dBm | Receiving Current:< 20mA |
Sensitivity:< -136dBm | Average power consumption:< 15uA |
Transmitting Current :<1 20mA | Battery Life:5 years@8700mAH |
Transmission Distance: >5KM(L OS) | Power supply:1pc ER26500 3.6V (Li- -SOCI2) battery (replaceable and included) |
Operating Temperature:-40°C~80°C | Working Frequency:476.505 & 488.505MHz (frequency can be customized) |
Temperature measurement range:-55℃～125℃ | Temperature Accuracy:<±0.5℃（-10℃～85℃）& < ±1℃（<-10℃,>85℃） |
Transmission Interval:5mins default, 1 ~ 240mins settable by user | Serial port Methods: fixed IP/Port or server domain name resolution |
Wired network:RJ45 | Receiving sensitivity:-136dBm |
Communication interface: TCP/IP | Gateway Power supply:DC 5V @1A |
Software &Cloud Server for Remote Monitoring
We provide free software and cloud server for remote monitoring,and we can also provide protocols for customers to build their own platform.
Applications
Recommend Products
Company Profile
Our Advantages
Packing
FAQ
Q1. Is Thingsend manufacturer or a trading company?
A:We are manufacturer of wireless sensors and wireless transceivers. What we offer are excellent products at a reasonable price,professional technical support and fast&good service .
A:We are manufacturer of wireless sensors and wireless transceivers. What we offer are excellent products at a reasonable price,professional technical support and fast&good service .
Q2. Can I customize the product?
A:Abosolutely. We can customize products according to your needs and add your logo on the products.OEM &ODM service and wireless customized solutions are supported.
Q3. What's the delivery time?
A:For prototype, it will be sent within 5 working days after you have paid. For bulk orders, it depends on your order quantity.
Q4: What is the payment terms?
A: PayPal, Western Union and T/T are preferred.
