China Industrial Lifting Equipment small robotic arm manipulator
- Category: >>>
- Supplier: Jiangyin Tongli Industrial Co. Ltd.
Share on (1601033309382):
Product Overview
Description
Product Description

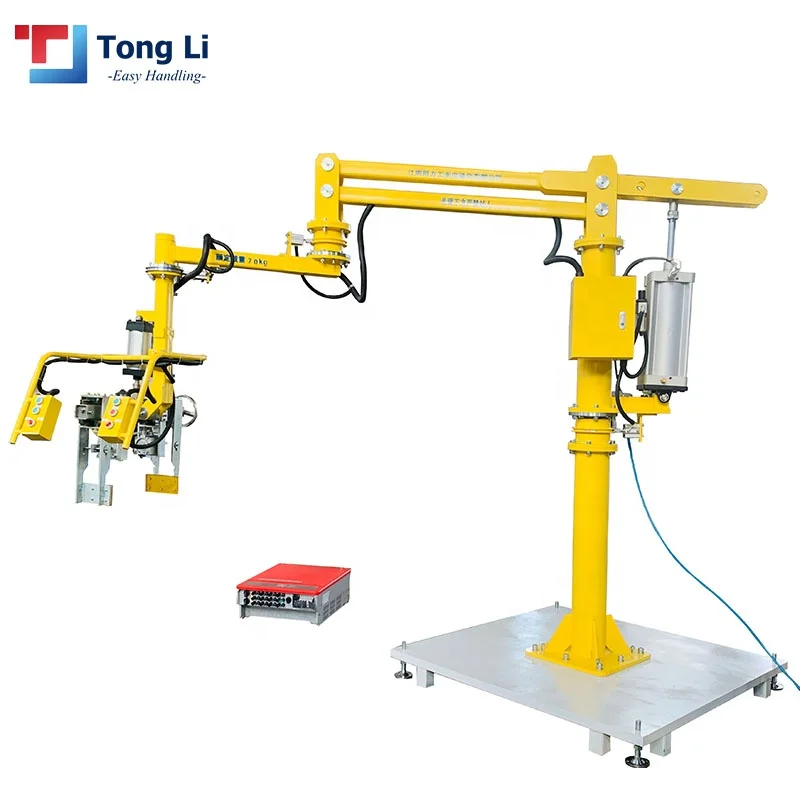

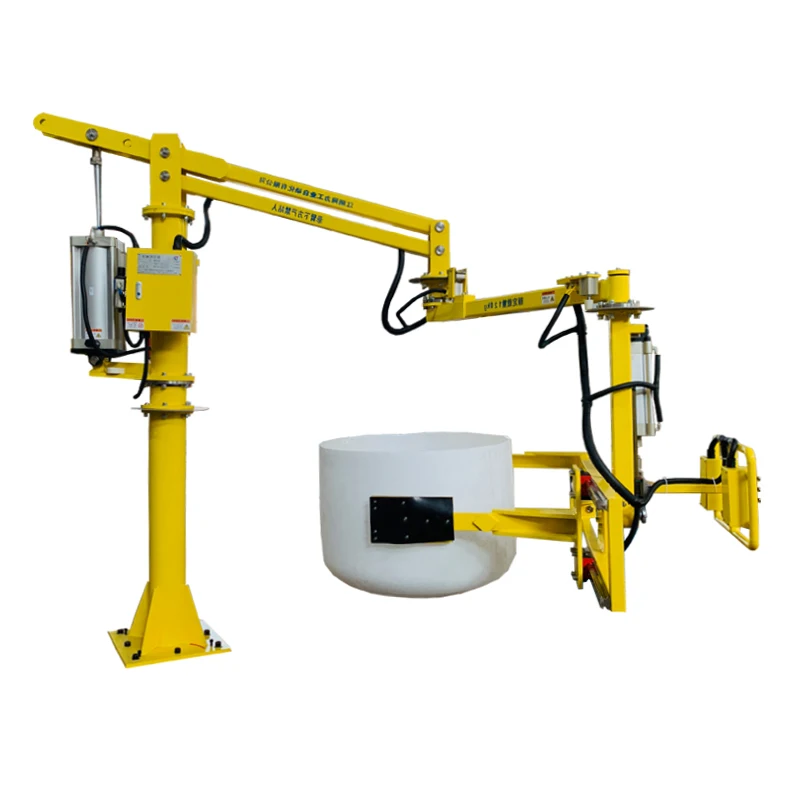

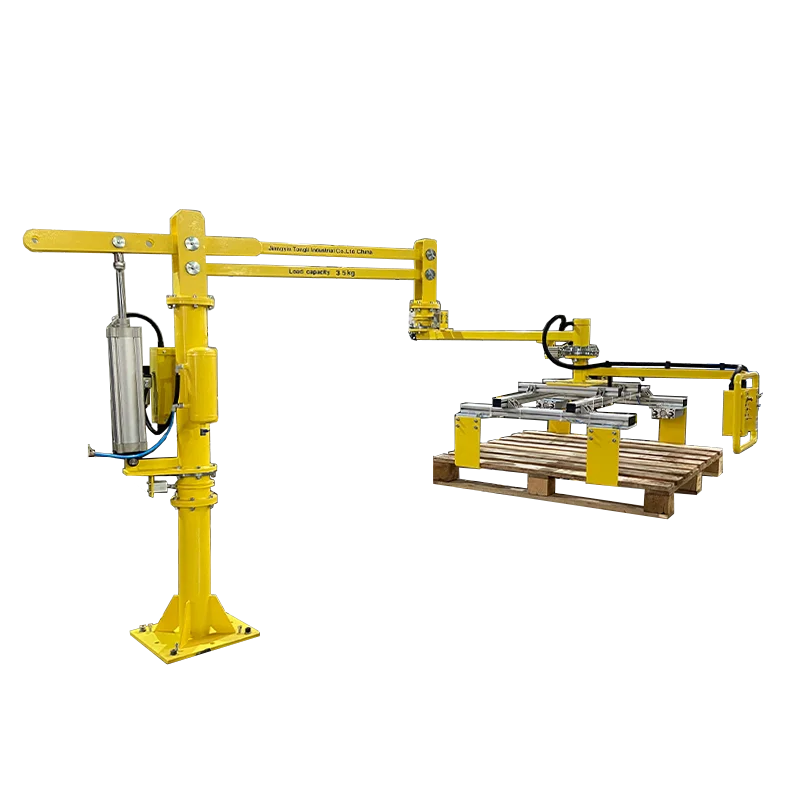

Power Assisted Manipulator for Handling, Lifting, Stacking
The power assisted manipulator is composed of rigid arm. When there is torsion resistance, the power assisted manipulator is used, such as the workpiece is irregular or the workpiece needs to be overturned tocomplete stacking, loading and unloading. The power assisted manipulator is easy,
safe and stable.
safe and stable.
The fixture is customized according to the dimensions of the workpiece provided by the customer. It generally has the following structure:
Hook ; Grab; Clamping; Air shaft; Lift; Clamping turnover; Vacuum adsorption
Hook ; Grab; Clamping; Air shaft; Lift; Clamping turnover; Vacuum adsorption
Main Parameter
Model | TLJXS-50 | TLJXS-100 | TLJXS-200 | TLJXS-300 | TLJXS-400 |
Load-Bearing | 50KG | 100KG | 200KG | 300KG | 400KG |
Working Radius L1 | 2500mm | 2500mm | 2500mm | 2300mm | 2300mm |
Lifting Height H2 | 500-2000mm | 500-2000mm | 500-2000mm | 500-2000mm | 500-2000mm |
Air Pressure | 0.5-0.8Mpa | 0.5-0.8Mpa | 0.5-0.8Mpa | 0.5-0.8Mpa | 0.5-0.8Mpa |
Rotation Angle A | 330° | 330° | 330° | 330° | 330° |
Rotation Angle B | 300° | 300° | 300° | 300° | 300° |
Rotation Angle C | 360° | 360° | 360° | 360° | 360° |
Product Type
Our products are widely used in Glass Industry, Packaging, Paper and Printing Industry, Building Industry, Machinery Manufacturing, Foundry Industry, Chemical and Pharmaceutical Industries, Auto Parts Industry, Automotive Assembly and many other industries.

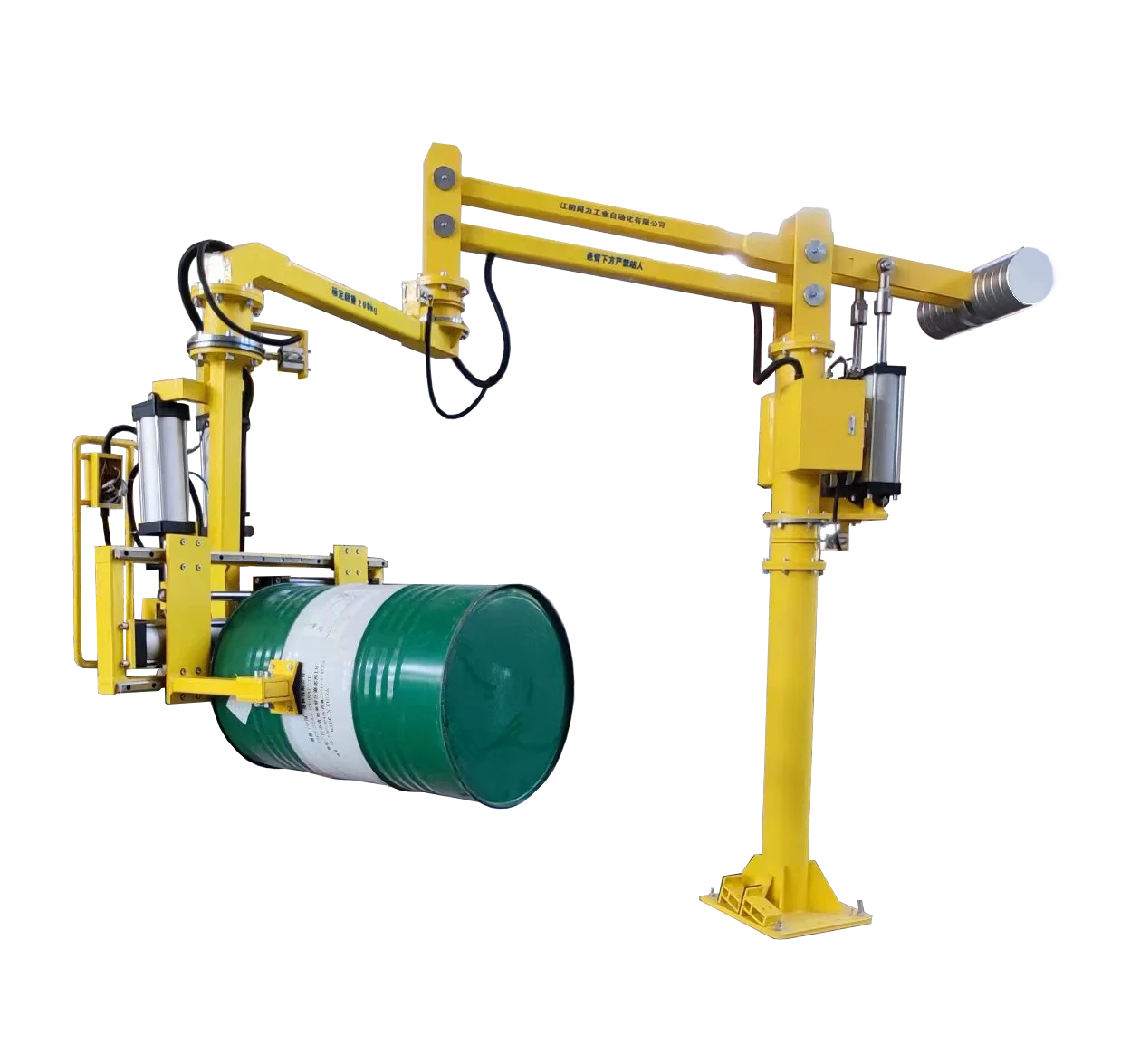

It can handle workpieces and products of various shapes and weights. For example, bags, carton boxes, chemical barrels, oil drums, large rolls of plastic rolls, glass, plates, air conditioners, condensers, compressors, metal castings, molds, sand cores, car tires, front wall, skylights, Dashboard, cylinder head, etc. The fixtures of each manipulator are specially designed and manufactured according to the customer's specific conditions.
It can handle workpieces and products of various shapes and weights. For example, bags, carton boxes, chemical barrels, oil drums, large rolls of plastic rolls, glass, plates, air conditioners, condensers, compressors, metal castings, molds, sand cores, car tires, front wall, skylights, Dashboard, cylinder head, etc. The fixtures of each manipulator are specially designed and manufactured according to the customer's specific conditions.

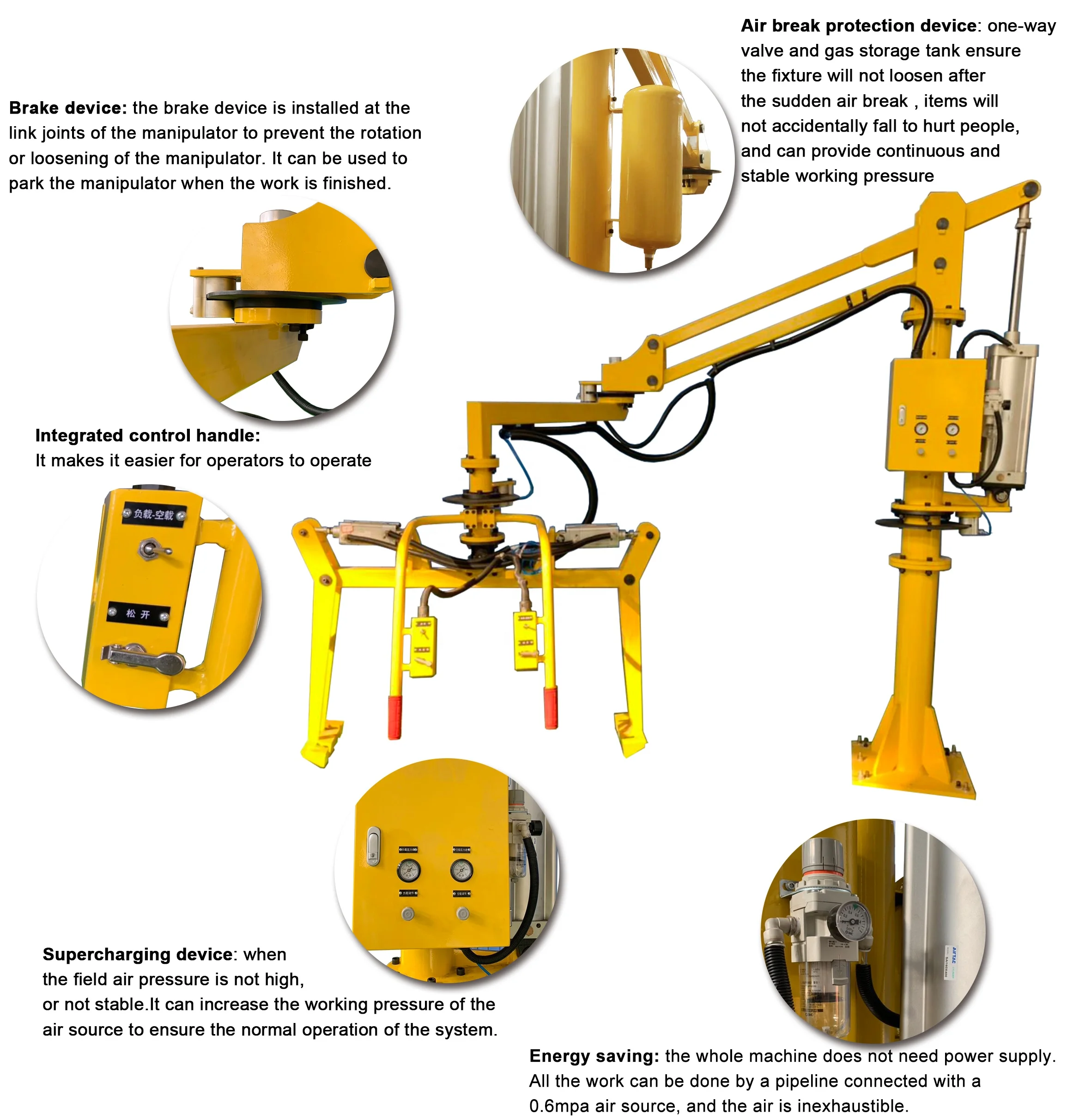

Advantages

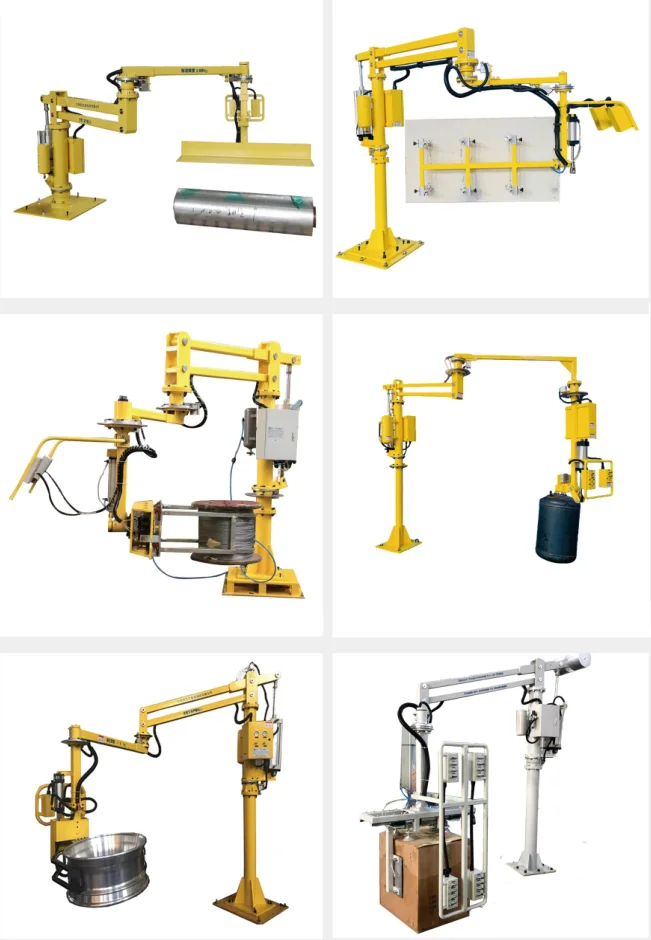

Application

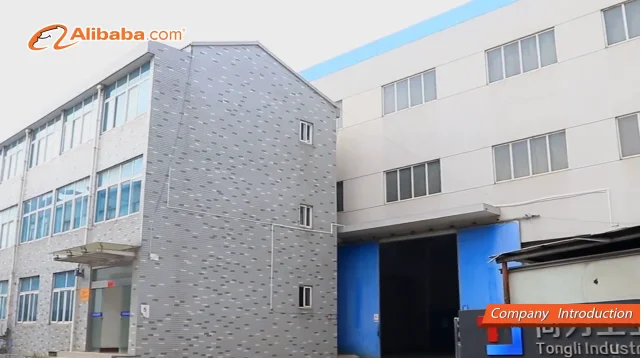

Company Profile
Jiangyin Tongli Industrial co., LTD is a manufacturing enterprise specialized in the automation research and development, design, production, sales and service of storage and handling equipment.
Since its establishment, the company has been committed to solving the storage and handling problems of various materials, and providing corresponding perfect and professional solutions for the complex and changeable storage and handling requirements. It also provides effective and competitive solutions to customer budgets.
Since its establishment, the company has been committed to solving the storage and handling problems of various materials, and providing corresponding perfect and professional solutions for the complex and changeable storage and handling requirements. It also provides effective and competitive solutions to customer budgets.
The following are some of the patents we applied for

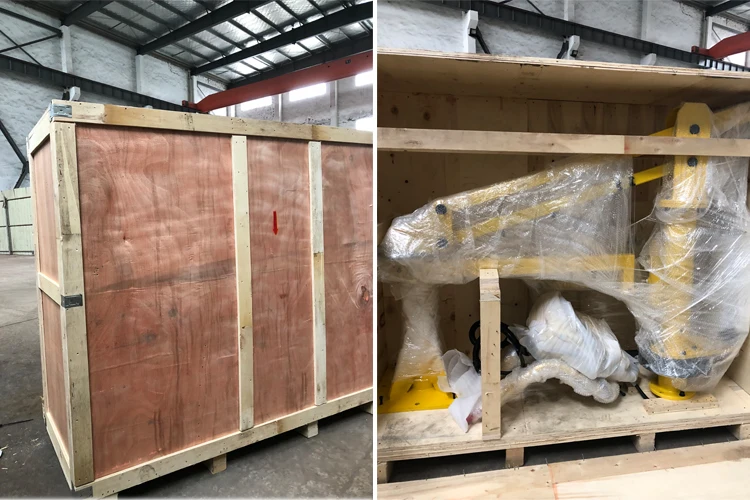

Packing & Delivery
