Chinese supplier warehouse collapsible transport system storage steel pallet for cold storage

Share on (1601033355498):


Price:$88.00 - $100.00

Quantity:


Product Overview

Description



Product Description

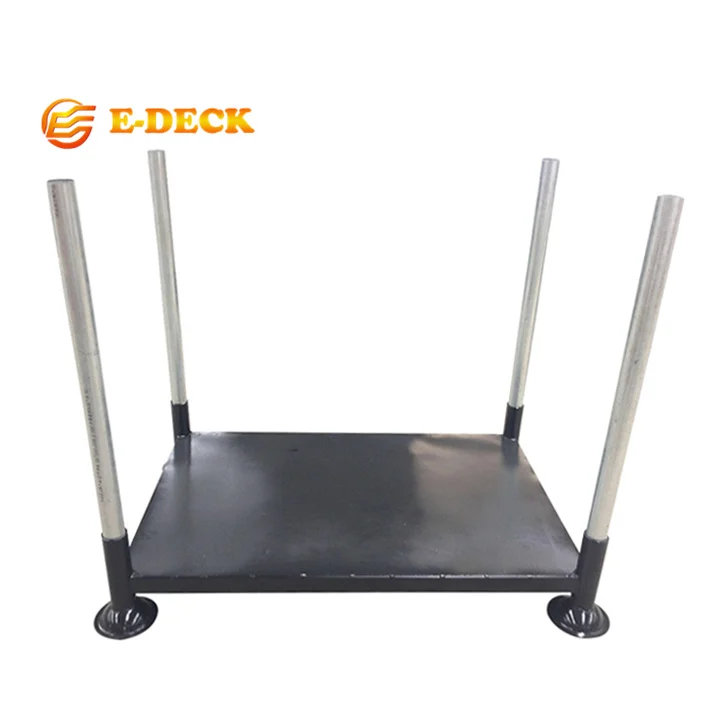

Chinese supplier warehouse collapsible transport system storage steel pallet for cold storage


Realize the three-dimensional management of the warehouse and Improve warehouse space utilization


M4


Specification of steel pallet for cold storage















































































































Model No.Exterior DimensionLoading CapacityFinishQuantitiesTotal container
LxWxH(mm)kg sets
EDT1-Base1395x1060x3101500Zinc2501x40'HQ
EDT1-Post1200x60x2.5Zinc1000
EDT2-Base1875x1060x3102000Zinc1501x40'HQ
EDT2-Post1200x60x2.5Zinc600
EDT4-Base1545x1050x3101000Powder coating2471x40'HQ
EDT4-Post1510x60x2.5Zinc988
EDT5-Base1200x1000x3101500Zinc2501x40'HQ
EDT5-Post2000x60x2.5Zinc1000
EDT6-Base950x950x3101000Zinc1601x40'HQ
EDT6-Post1200x60x2.5Zinc640
MaterialMild steel Q235
Application areaWarehouse, logistic, recycling, etc.
RemarkCustomized or OEM support
Key Features1.Strong tubular steel - stack up to 4 high
2.Removable arms - fully collapsible, save space, easy storage when not in use
3.Cup feet - easy stacking
4.Hot-dip galvanized finish - corrosion resistant, suitable for outdoor use

5-1_06


5-1_04


M1


5-1_08





Product Uses


Usage:


It will enable you to transform areas that are usually free into storage spaces.






Packaging & Shipping


Packing


1. Plastic banding with wooden pallet
2. Stretch film wrapped
Delivery time
30 days for steel pallet for cold storage after receiving 30% deposit
Payment
T/T:3-5 Working Days to The Account
Western Union:1-24 Hours to The Account
MoneyGram:1-24 Hours to The Account
PayPal: Immediately to The Account


Stacking rack








Company Information


e-deck company (1)


e-deck company (2)


.png


e-deck company (4)


e-deck company (5)





Main Products


If you have other needs, click here for more E-Deck product information

















Our Services


e-deck company (8)





FAQ


1, What is the material being used for steel pallet for cold storage?


---Mild steel Q235, Q195





2, How is the goods being packed?


---Plastic banding + Stretch film wrapped, palletized for easy loading and unloading with a standard forklift truck or pallet jack.





3, What is the payment terms I can get?


---TT or L/C at sight, DP, etc.





4, What kind of finish do you provide for steel pallet for cold storage?


 ---A. Electro galvanized/Zinc plated: the zinc serves as a sacrificial anode( indoor storage)


     B. Hot dip galvanized: it forms a coating of corrosion-resistant zinc(indoor/outdoor and cold storage)


     C.Powder coating: a type of coating that is applied as a free-flowing, dry powder(indoor/outdoor storage)





5. What is the loading capacity?


 ---In general, we have a light duty(100~300kg) model, medium duty(400~800kg) model and


    heavy duty(1000~1700kg) model available for your choice.





6. Which product can be used in cold storage?


---Mobile rack, wire container, and roll cage are all widely used in cold storage.





7.I like your design, but couldn‘t find the right model from the products list, is custom size available?


---Yes, we do custom products and projects.





8 I would like to have my own design products and qty is not that big, is it ok?


---Yes, we can go with your custom design, no matter small or big qty, however, pls understand the cost will be different.





9 I don't have drawing or picture available for the custom products, could you design it for me?


Yes, we can make the best suitable design for you but do need to know the details, such as


a) dimension b) loading capacity c)stackability d)operation environment.





10 What is the minimum quantity I can order?


--1x20'GP - qty is variable depending on the size





11 What is your average production lead time?


--2-3 weeks against formal order and deposit.





12 Do I get any guarantee from your company?


-3~10 years warranty in the case that


A) Proper handling during operation, correctly forklift handling while stacking/unstacking


B) Overloading is prohibited


C) Environment request indoor, dry and not humid circumstance, do not contact with any corrosive chemical material (for zinc plated and powder coated products, no limitation for hot-dip galvanized).
