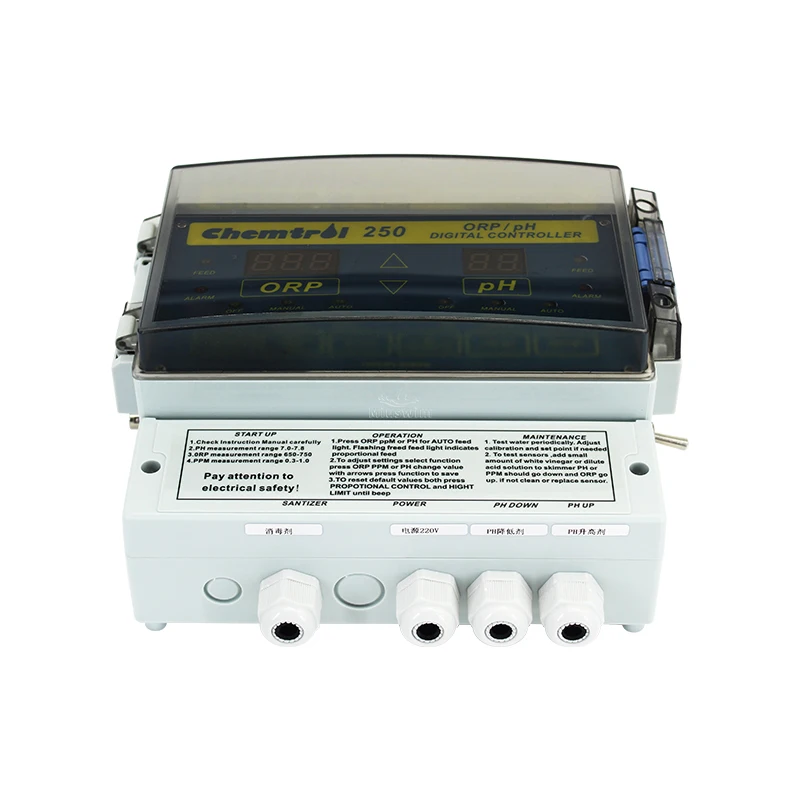

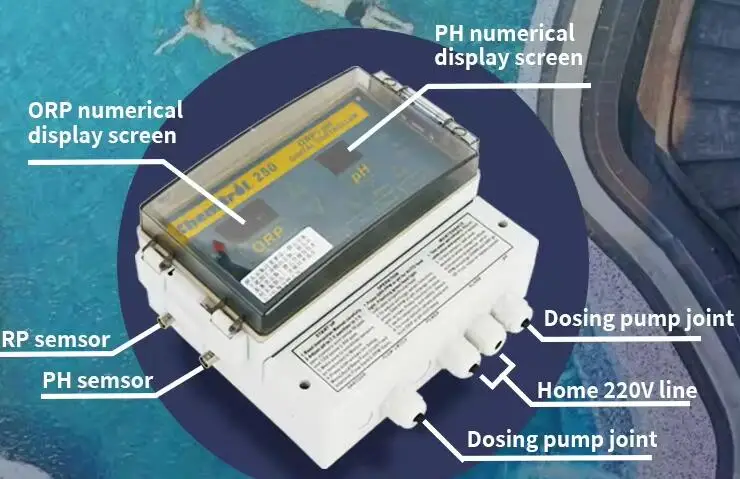

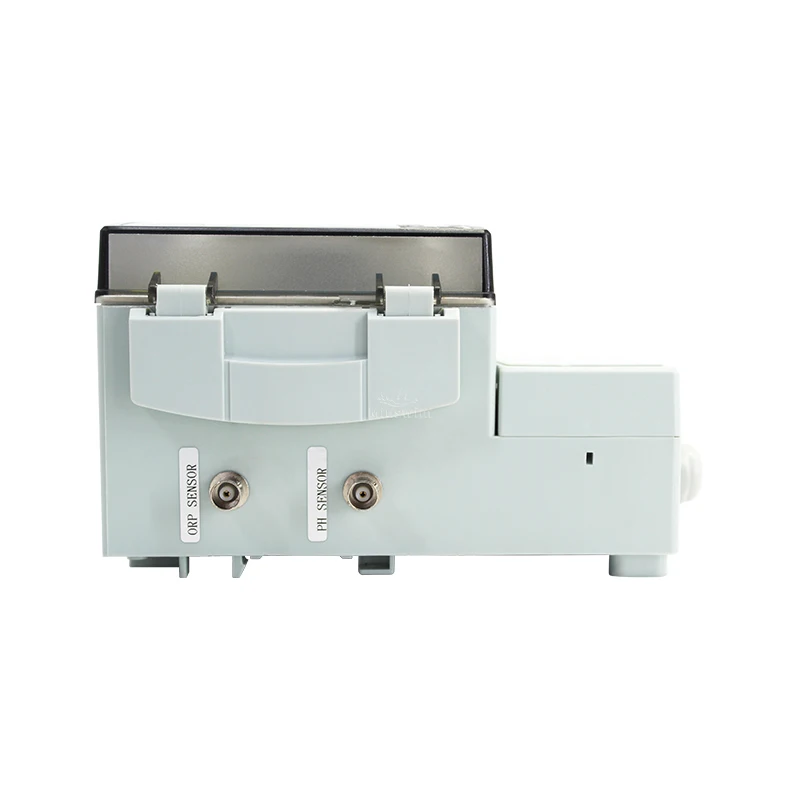

Easy Operated pool control Chemical Chlorine Dosing pump PH&ORP Tester Swimming Pool Water Control digital controller panel

Product Overview

Description

Product Description







1.The perfect match for your pool with its liquid crystal display.
2.Its ability to integrate all types of pool maintenance functions.
3.Our control is easily programmed for daily, monthly or seasonal requirements.
4. Its smart thermo-plastic housing is suitable for fresh or salt water
5. Can be installed away from your pool area. it's also has battery backup.
6. Ideal for: Hotels, Motels, Clubs, Condos, Apartments, Homes











Brand	Miuswim
MOQ	1 PIECE
OEM accepted	Yes
OPR Control	Adjustable from 0 to 999mv
Ph Control	Adjustable from 1.0 to 14

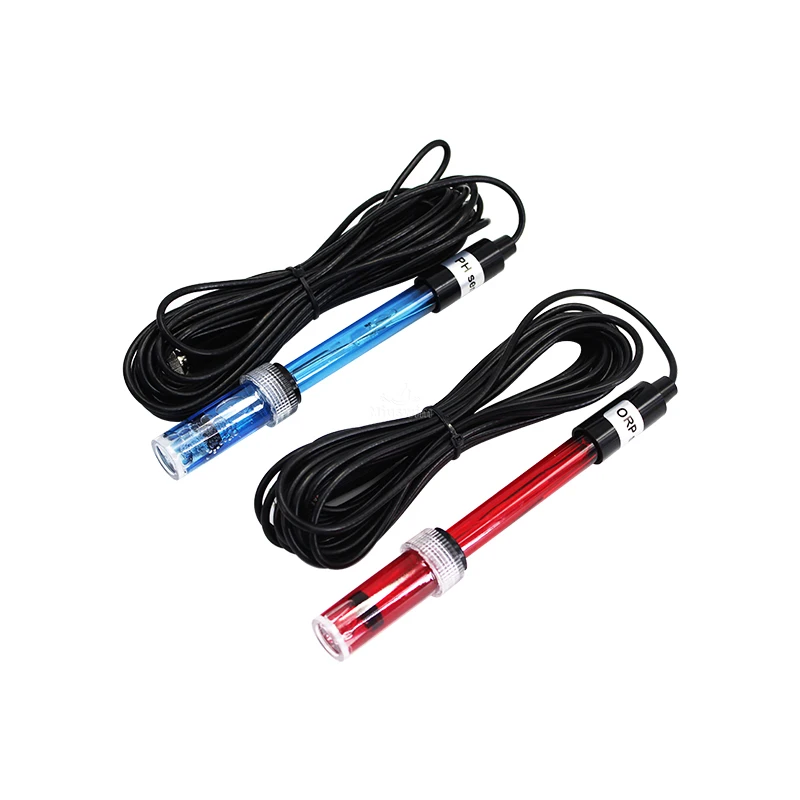

ORP Sensor	Platinum electrode with 13-ft(4m) cable
Ph Sensor	Glass electrode with 13-ft(4m) cable
Readouts	ORP(3 digits) and ph(2 digits) LEDs
Feed modes	Manual, automatic
Adjustments	Setpoint, calibration, limits, feed rate
Indicators	LEDs for feed mode, feed status, alarms
Safety	Audio,visual and remote alarms
	out-of rang limits and overfeed safety timers
Cabinet	Polystyrene 9x7x4in. (22x18x10cm)
Electrical	AC 220V/50hz
Plumbing	PVC tees for 0.5in,1.5in or 2in line
Warranty	1 year on electronic module
Shipping	12x12x12-n(30x30x30cm) carton
	9lbs(4kg) without pumps

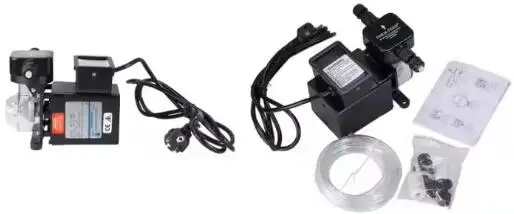

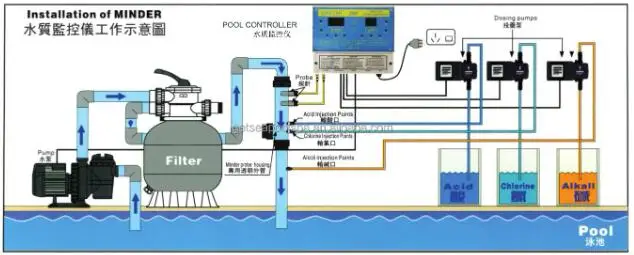

Working With Dosing Pump

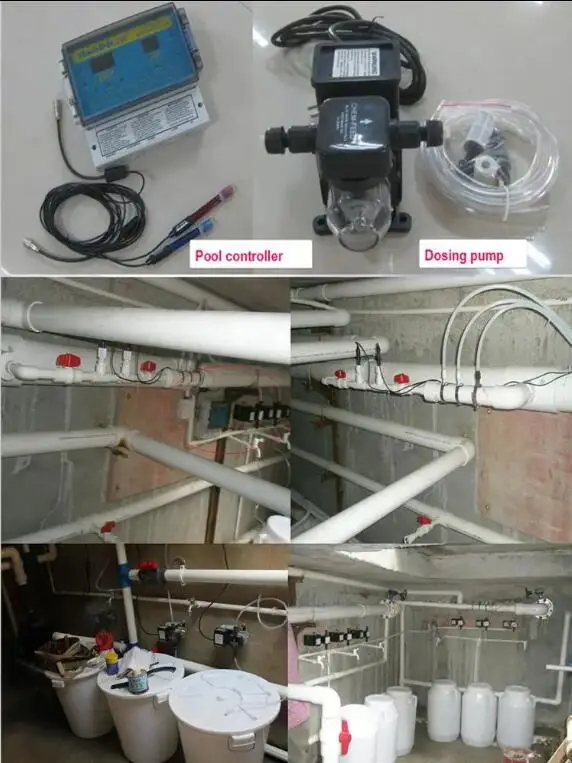

Working Effect
