PMNN4598A PMNN4598 Moto rola Li Ion 2300mAh Battery
- Category: >>>
- Supplier: Raytalk Communications Ltd.
Share on (1601033480041):
Product Overview
Description
Product Description

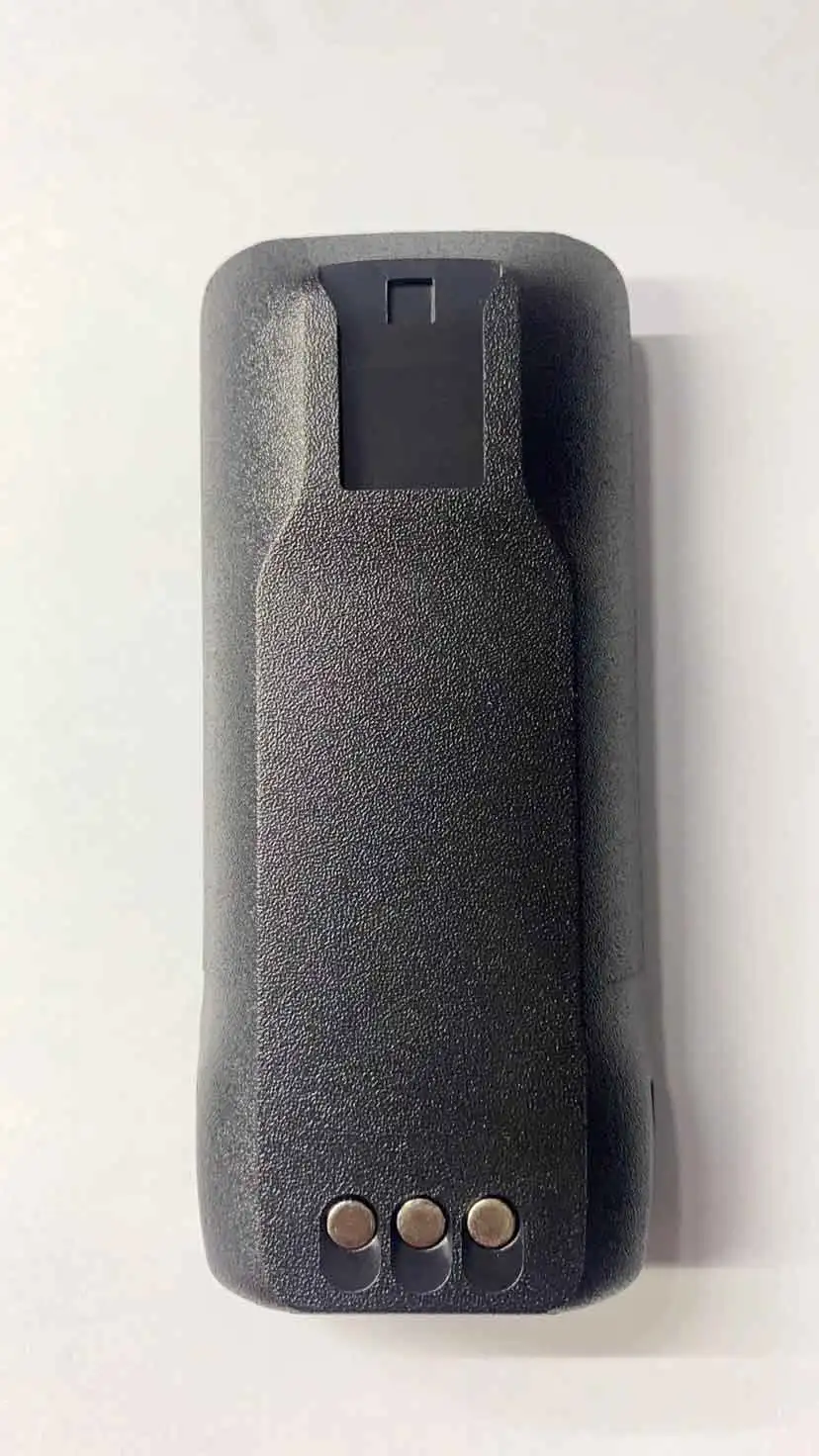

PMNN4598A PMNN4598 Moto-rola Li-Ion 2300mAh Battery
IM-PRES Battery Care Guidelines
1. Proper IM-PRES Battery Care Starts with Initialization A Moto-rola IM-PRES battery must be initialized by an IM-PRES charger the first time it is charged. This process is indicated by a STEADY YELLOW light on the charger indicator (the same as if the battery were reconditioning). The process is automatic, includes an initial reconditioning of the battery, and begins charging upon completion of this process. This process requires approximately 12 hours depending on the capacity. Do not remove the battery from the charger until the STEADY GREEN light is on.
2. IM-PRES Automatic Battery Conditioning Moto-rola IM-PRES Adaptive Chargers, when used in conjunction with a Motorola IM-PRES battery, have the ability to determine the appropriate time to recondition the battery.
When an IM-PRES battery is properly inserted into the charger, the charger determines if it is appropriate to recondition the
battery. If the battery needs reconditioning, the charger automatically indicates a STEADY YELLOW. This process may take up to 12 hours to complete, depending upon the state of charge and capacity rating of the battery when it is inserted. It is important to note, for this process to be effective, the IM-PRES battery must be allowed to complete the recondition/recharge process. Leave the battery in the charger until the charger indicates a STEADY GREEN. At the completion of the recondition cycle, the charger automatically recharges the IM-PRES battery.
3. How to Terminate the IM-PRES Conditioning Process At any time during the reconditioning process of a Moto-rola IM-PRES battery (STEADY YELLOW indication), reconditioning may be terminated by removing and reinserting the battery back into the charger within 5 seconds. This causes the charger to terminate the reconditioning process
and begin the charging process. The charger indicator changes to a STEADY RED. The charger will attempt to recondition the battery at the next battery insertion. 4. Manually Initiating the IM-PRES Reconditioning Process Within 2-1/2 minutes of the initial insertion of an IM-PRES battery (STEADY RED indication), remove and reinsert the battery within 5 seconds to manually force reconditioning to occur. The charger indicator changes from a STEADY RED to a STEADY YELLOW. This forces the charger to recondition and automatically recharge the battery. This is a useful feature to have when IM-PRES batteries have been in storage for several months or longer. Two or three manual recondition cycles may be required to rejuvenate the batteries, due to long term storage conditions. For descriptions of the charge indicators.
Charge Indicator:
1. Single Flash Green: Charger has successfully powered up
2. Steady Red: Battery is in rapid charge mode
3. Flashing Green: Battery has completed rapid charge (>90% available capacity). Battery is in Topoff charge (Trickle charge)
4. Steady Green: Battery has completed charging and is fully charged
5. Flashing Yellow: Battery is recognized by charger but is waiting to charge. (Either the battery voltage is too low or the
battery temperature is too low or too high to allow charging. When this condition is corrected, the battery will automatically begin charging.)
6. Flashing Red: Battery in un-chargeable or not making proper contact
7. Steady Yellow (IM-PRES batteries only): Battery is in recondition or initialization mode. The length of time the charger
remains in this mode depends upon the state of charge remaining in the battery when inserted. (Fully charged batteries require more time to recondition - 8 to 12 hours or more - than fully discharged batteries.)
8. Flashing Red/Green (IM-PRES batteries only): Battery has completed charging and is fully charged. Battery continues to be usable, but may be nearing the end of its rated service life
1. Proper IM-PRES Battery Care Starts with Initialization A Moto-rola IM-PRES battery must be initialized by an IM-PRES charger the first time it is charged. This process is indicated by a STEADY YELLOW light on the charger indicator (the same as if the battery were reconditioning). The process is automatic, includes an initial reconditioning of the battery, and begins charging upon completion of this process. This process requires approximately 12 hours depending on the capacity. Do not remove the battery from the charger until the STEADY GREEN light is on.
2. IM-PRES Automatic Battery Conditioning Moto-rola IM-PRES Adaptive Chargers, when used in conjunction with a Motorola IM-PRES battery, have the ability to determine the appropriate time to recondition the battery.
When an IM-PRES battery is properly inserted into the charger, the charger determines if it is appropriate to recondition the
battery. If the battery needs reconditioning, the charger automatically indicates a STEADY YELLOW. This process may take up to 12 hours to complete, depending upon the state of charge and capacity rating of the battery when it is inserted. It is important to note, for this process to be effective, the IM-PRES battery must be allowed to complete the recondition/recharge process. Leave the battery in the charger until the charger indicates a STEADY GREEN. At the completion of the recondition cycle, the charger automatically recharges the IM-PRES battery.
3. How to Terminate the IM-PRES Conditioning Process At any time during the reconditioning process of a Moto-rola IM-PRES battery (STEADY YELLOW indication), reconditioning may be terminated by removing and reinserting the battery back into the charger within 5 seconds. This causes the charger to terminate the reconditioning process
and begin the charging process. The charger indicator changes to a STEADY RED. The charger will attempt to recondition the battery at the next battery insertion. 4. Manually Initiating the IM-PRES Reconditioning Process Within 2-1/2 minutes of the initial insertion of an IM-PRES battery (STEADY RED indication), remove and reinsert the battery within 5 seconds to manually force reconditioning to occur. The charger indicator changes from a STEADY RED to a STEADY YELLOW. This forces the charger to recondition and automatically recharge the battery. This is a useful feature to have when IM-PRES batteries have been in storage for several months or longer. Two or three manual recondition cycles may be required to rejuvenate the batteries, due to long term storage conditions. For descriptions of the charge indicators.
Charge Indicator:
1. Single Flash Green: Charger has successfully powered up
2. Steady Red: Battery is in rapid charge mode
3. Flashing Green: Battery has completed rapid charge (>90% available capacity). Battery is in Topoff charge (Trickle charge)
4. Steady Green: Battery has completed charging and is fully charged
5. Flashing Yellow: Battery is recognized by charger but is waiting to charge. (Either the battery voltage is too low or the
battery temperature is too low or too high to allow charging. When this condition is corrected, the battery will automatically begin charging.)
6. Flashing Red: Battery in un-chargeable or not making proper contact
7. Steady Yellow (IM-PRES batteries only): Battery is in recondition or initialization mode. The length of time the charger
remains in this mode depends upon the state of charge remaining in the battery when inserted. (Fully charged batteries require more time to recondition - 8 to 12 hours or more - than fully discharged batteries.)
8. Flashing Red/Green (IM-PRES batteries only): Battery has completed charging and is fully charged. Battery continues to be usable, but may be nearing the end of its rated service life
Package & Shipping
Company Profile
Our service

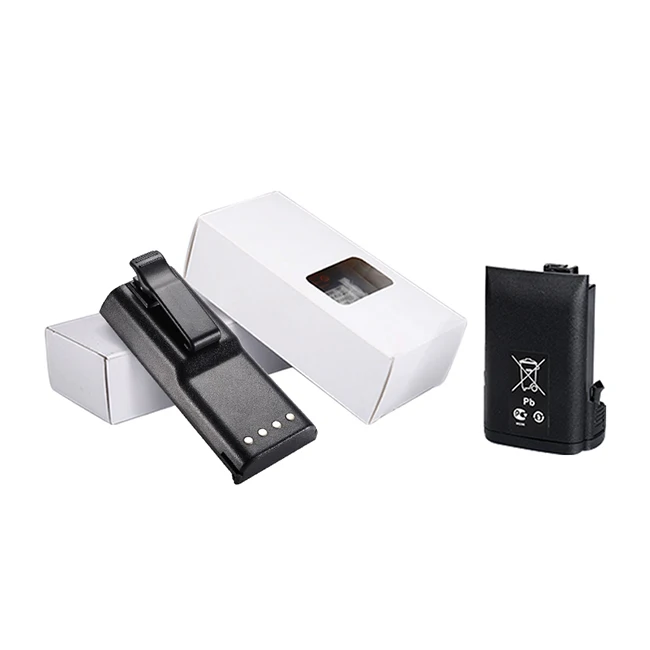

1.PACKAGE:Natural carton package or OEM service.
3.SHIPPING METHOD:DHL,EMS,UPS etc as you want
4.PAYMENT: T/T, Western Union, paypal in small amount. Our prices DO NOT include any customs duty or tax. Please be responsible for custom tax if your local custom charge some custom tax.
5.RETURN and WARRANTY: 100% QC inspection before shipment. Accept exchange within 7 working days after you received. Pls contact us before you return. All of our products have 1 year warranty.
6.MINIMUM ORDER: Sample order and trial order are welcome.
2.LEADTIME:Whithin one week for samples, order depand on the quantity.
3.SHIPPING METHOD:DHL,EMS,UPS etc as you want
4.PAYMENT: T/T, Western Union, paypal in small amount. Our prices DO NOT include any customs duty or tax. Please be responsible for custom tax if your local custom charge some custom tax.
5.RETURN and WARRANTY: 100% QC inspection before shipment. Accept exchange within 7 working days after you received. Pls contact us before you return. All of our products have 1 year warranty.
6.MINIMUM ORDER: Sample order and trial order are welcome.
