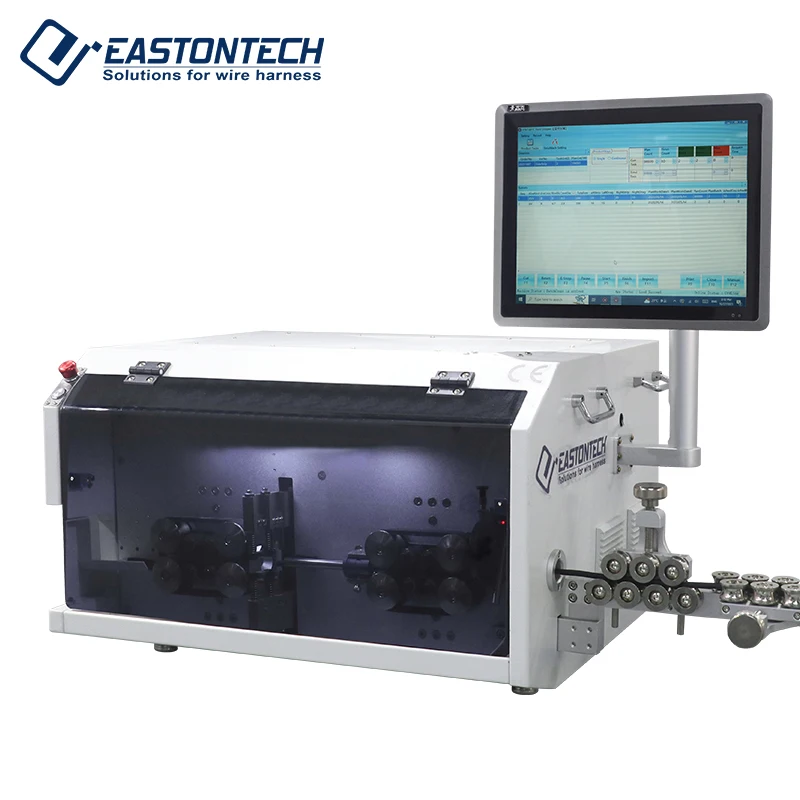

EW 05F S Cable Manufacturing Equipment Automatic Small Wire Cable Cutting And Stripping Machine with control system
- Category: >>>
- Supplier: Wenzhou East World Import&Export Co. Ltd.
Share on (1601033556934):
Product Overview
Description
Products Description

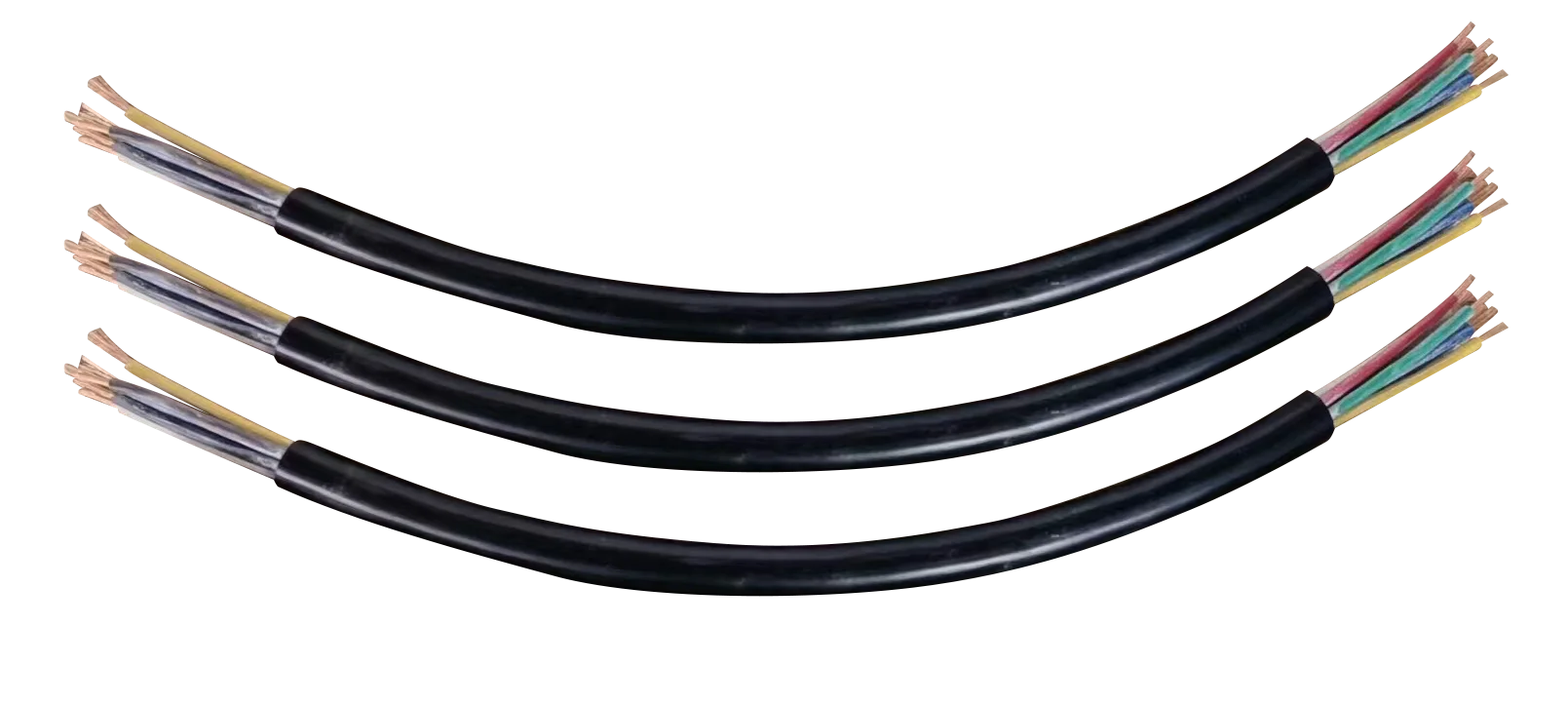

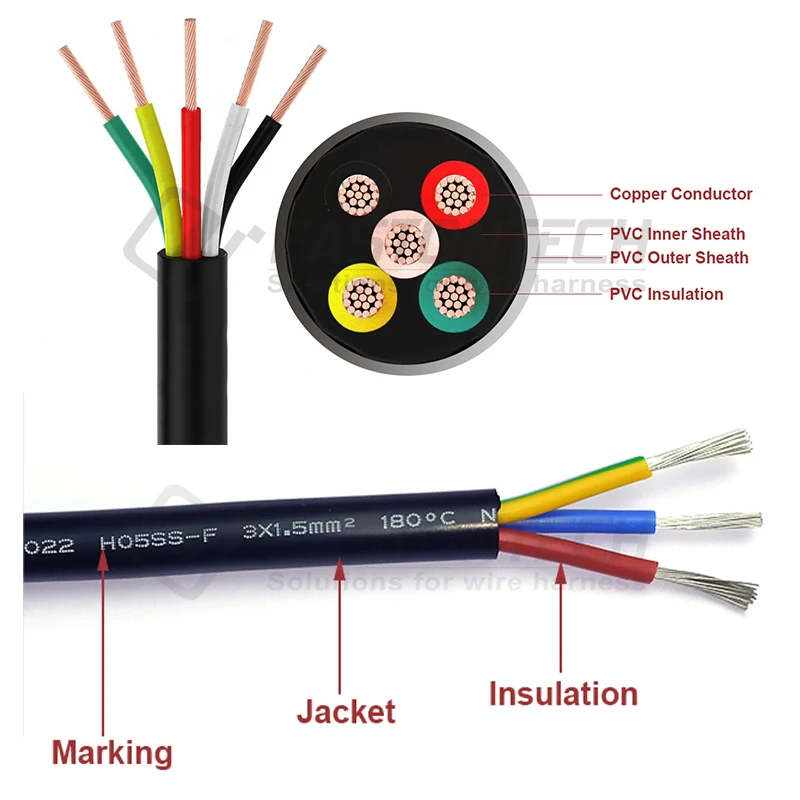

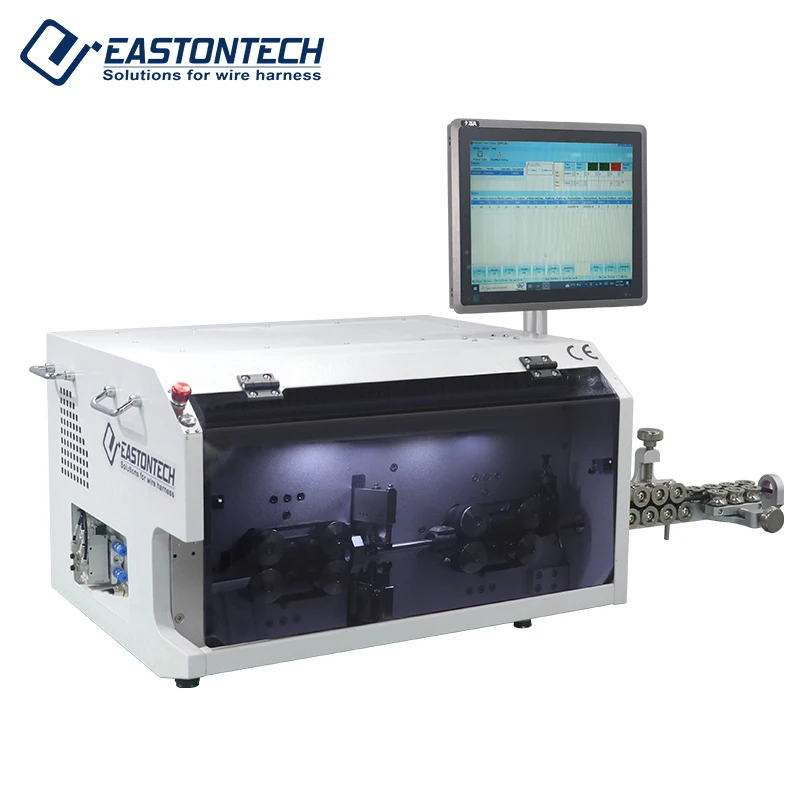

Ew-05F+S Multi-Core Cables (Max. 11 Cores) Cut And Strip Machine

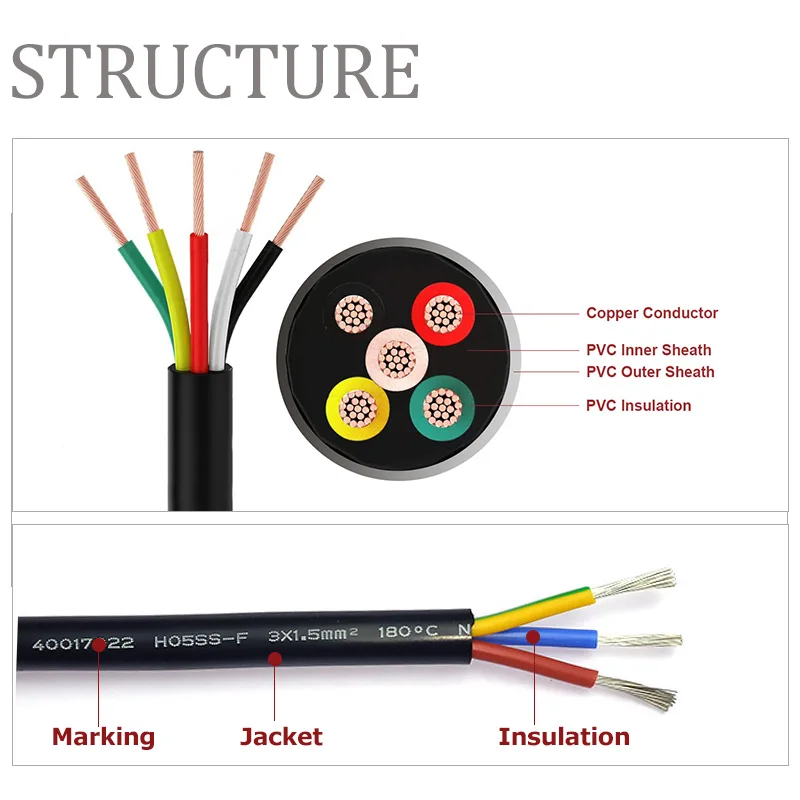

The EW-05F+S is a versatile cut and strip machine for multi-core cables (max. 11 cores) and multi-stranded single wire up to 30 mm square.
Features:
√ Powered by hybrid servo motor, the productivity is maximized to 600 pcs./h (400 pcs./h multi-core cable).
√ Powered by hybrid servo motor, the productivity is maximized to 600 pcs./h (400 pcs./h multi-core cable).
√ Uni-V jacket stripping blades (optional radius blades for special jacket material).
√ The left and right roller set gap is freely set on PLC touch screen to auto change the roller gap and roller pressure, no need manual adjustment.
√ Optional add-on: pre-feeder, middle strip (window strip) module, twist module, conveyor with stacker, coiler, ink-jet printer, industrial control system (ICS).
√ The left and right roller set gap is freely set on PLC touch screen to auto change the roller gap and roller pressure, no need manual adjustment.
√ Optional add-on: pre-feeder, middle strip (window strip) module, twist module, conveyor with stacker, coiler, ink-jet printer, industrial control system (ICS).
Product Paramenters
Model | EW-05F+ | EW-05F-1 | |
Conductor cross-section | 1 - 30 mm² | 1 - 30 mm² | |
Core wire stripping | 2 - 11 cores | N/A | |
Cutting length | 1 - 99999.9 mm | 1 - 99999.9 mm | |
Cutting length tolerance | < 0.002 * L (L = cutting length) | < 0.002 * L (L = cutting length) | |
Stripping length (side I) | Cable jacket - Full strip: 1 - 150 mm - Half strip: 1 - 1000 mm Core wire - Full strip: 1 - 30 mm - Half strip: 1 - 100 mm | Full strip: 1 - 150 mm Half strip: 1 - 1000 mm | |
Stripping length (side II) | Cable jacket - Full strip: 1 - 120 mm - Half strip: 1 - 350 mm Core wire - Full strip: 1 - 30 mm - Half strip: 1 - 60 mm | Full strip: 1 - 120 mm Half strip: 1 - 350 mm | |
Maximum guide tube diameter | 16 mm | 16 mm | |
Productivity | 600 pcs./h 400 pcs./h (multi-conductor cable) | 600 pcs./h | |
Blade material | Imported high speed steel | Imported high speed steel | |
Display mode | 7-inch touch screen | 7-inch touch screen | |
Driving mode | 16-wheel driving, servo tool holder | 16-wheel driving, servo tool holder | |
Feeding mode | By belts | By belts | |
Power supply | 110, 220 V (50 - 60 Hz) | 110, 220 V (50 - 60 Hz) | |
Power | 1 kW | 1 kW | |
Compressed air connection | 0.5 - 0.7 MPa | 0.5 - 0.7 MPa | |
Weight | 100 kg | 92 kg | |
Dimension | 795 * 490 * 500 mm | 795 * 490 * 500 mm | |
Remarks | Special application can be customized by sending samples | ||
Details Images

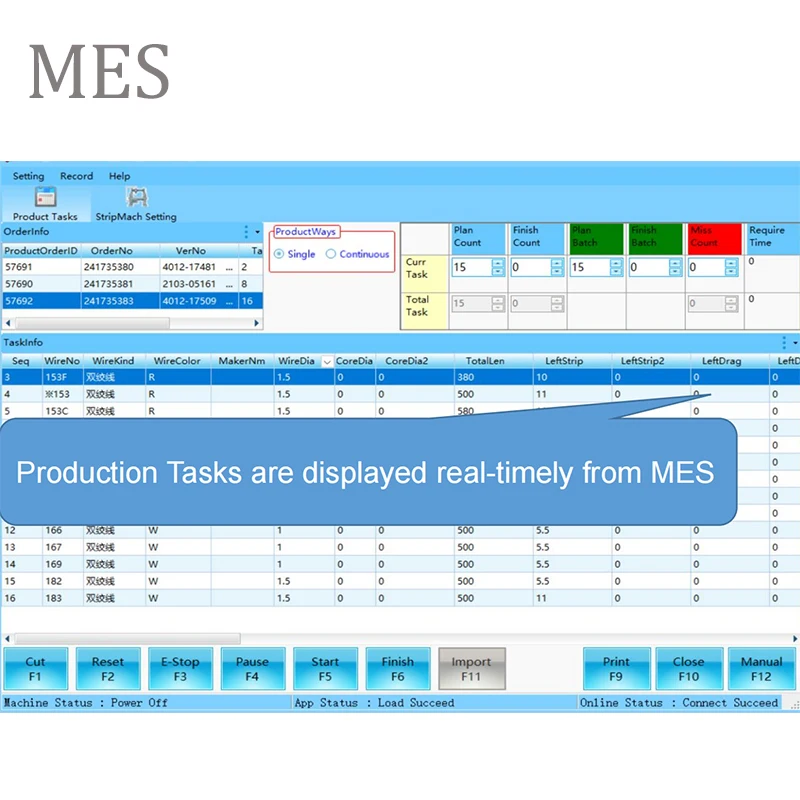

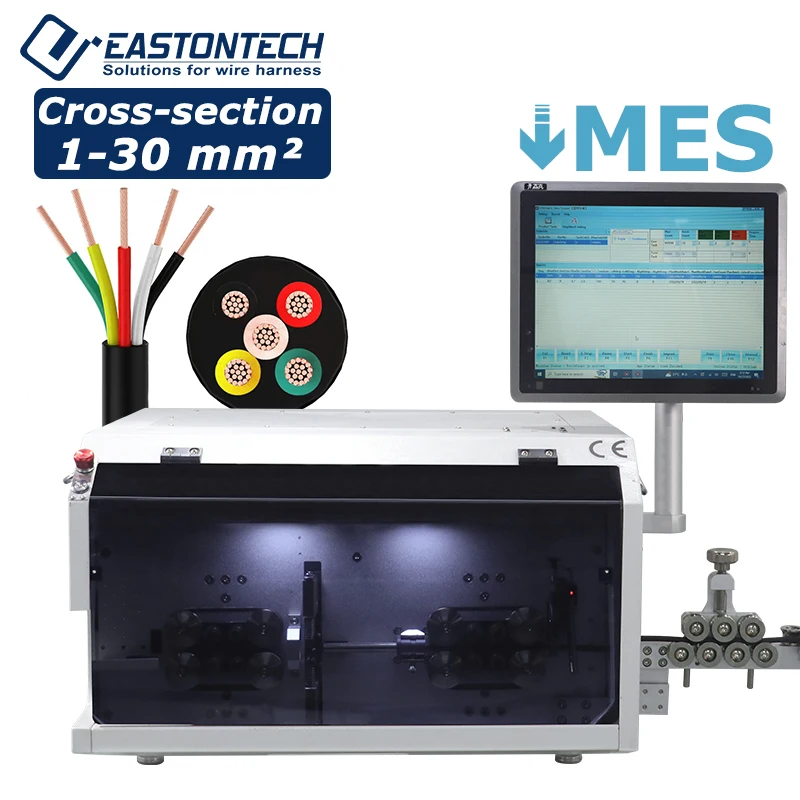

-MES Production-
-Product Details-
Programmable PLC
Setup on PLC touch screen to auto change the roller gap and roller pressure, no need manual adjustment.
16-Roller Driving
Enhanced feeding force, highly precise feed length as per program set with 0.1 mm increment and no scratch mark on wire insulation/jacket guarantee.
Separate Jacket Blades & Core Wire Blades
Uni-V jacket stripping blades (optional radius blades for special jacket material) Uni-flat core wire blades for max.11 core wires (optional teeth blades for rubber insulation)
Hybrid Servo Blade Holder
Selected hybrid servo motor to maximize the
product enay to 600 pcs./h (multi-core cable 400 pcs)
product enay to 600 pcs./h (multi-core cable 400 pcs)
Add-on Options:
1.Pre-feeder
2.Middle Strip (window strip) Module
3.Twist Module
4.Conveyor with stacker
5.Coiler
6.Ink-jet printer

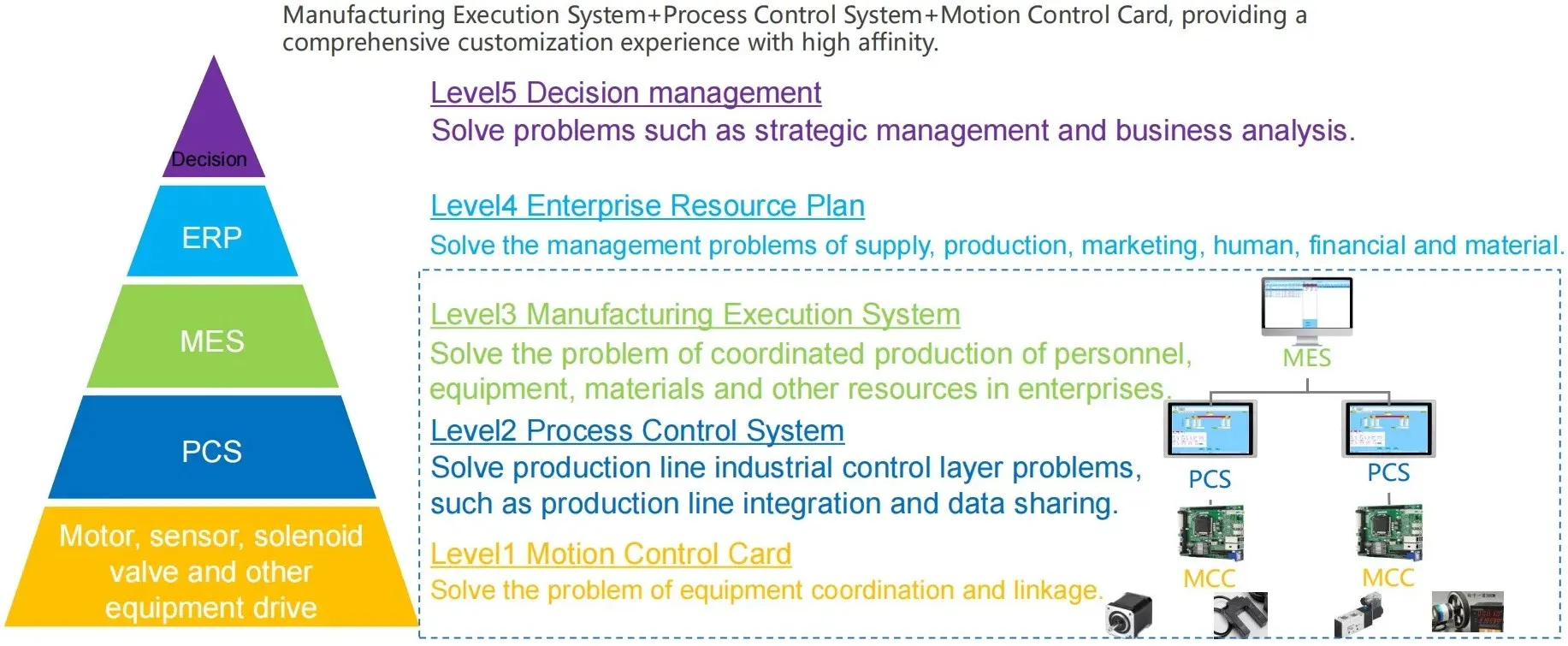

7.Industrial control system (ICS)
2.Middle Strip (window strip) Module
3.Twist Module
4.Conveyor with stacker
5.Coiler
6.Ink-jet printer
7.Industrial control system (ICS)
★Various Safety Guarantee
1.Auto-stop function when safety guard is open.
2.Auto-stop function when wire is used up.
3.Emergency stop button to stop machine at once.
4.Auto-shut off when the short circuit
occurs
5.Intelligent alarm to report errors.
1.Auto-stop function when safety guard is open.
2.Auto-stop function when wire is used up.
3.Emergency stop button to stop machine at once.
4.Auto-shut off when the short circuit
occurs
5.Intelligent alarm to report errors.
Recommend Products

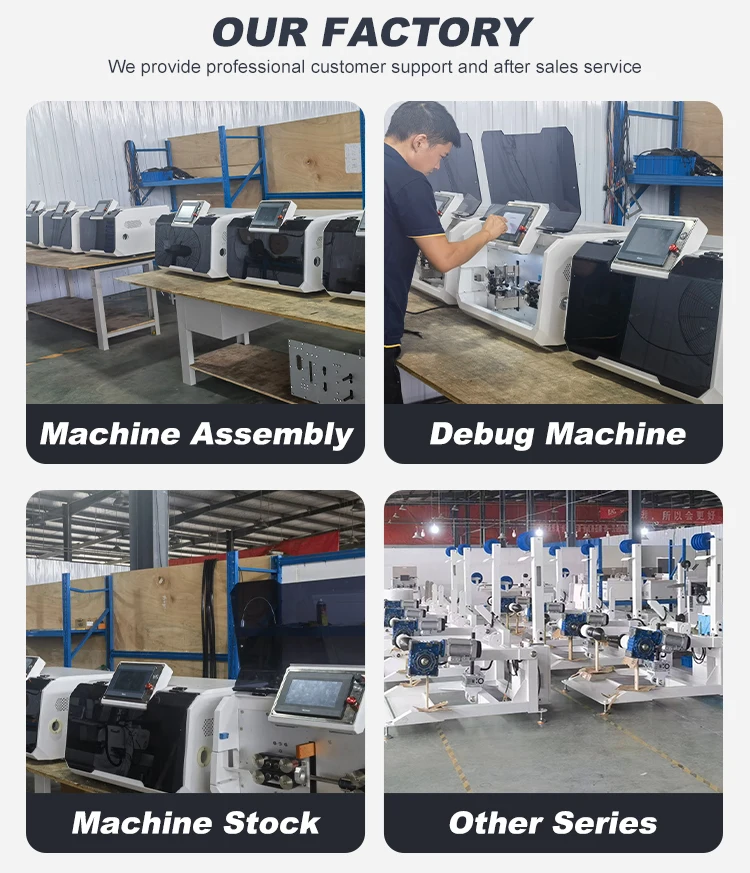

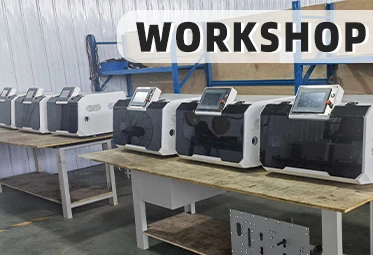

Company Profile
