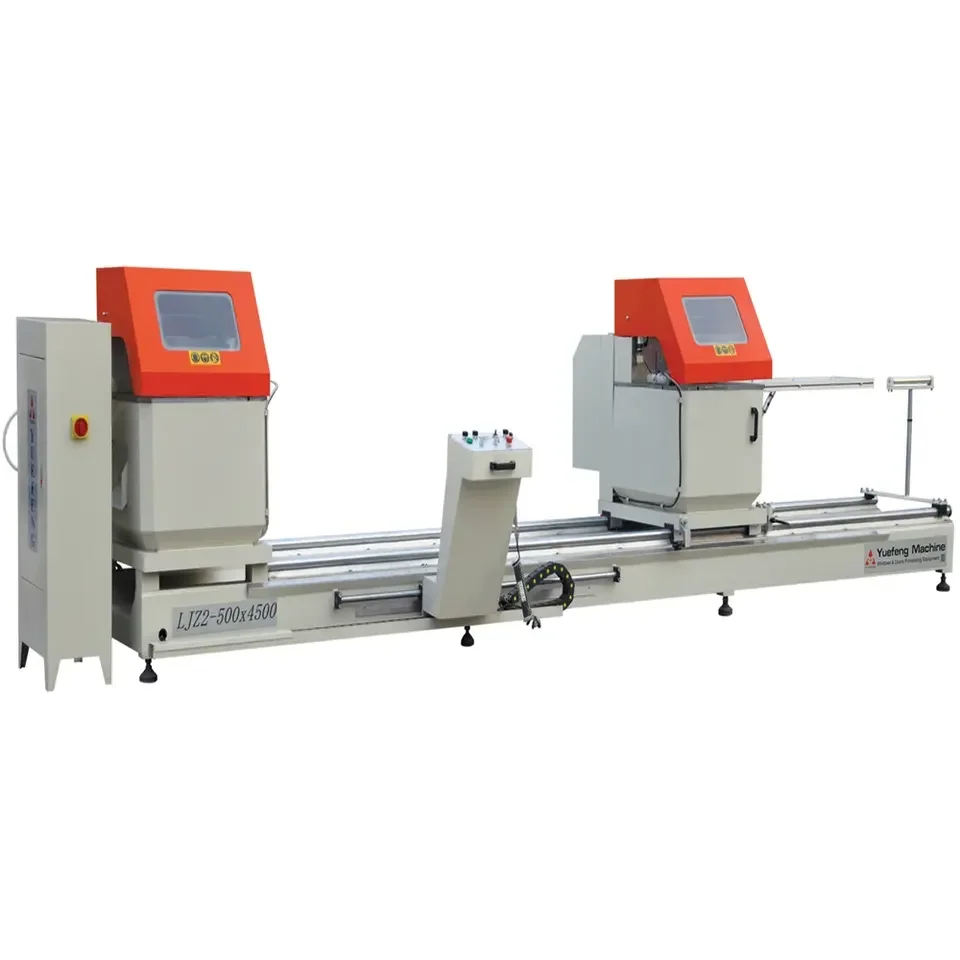

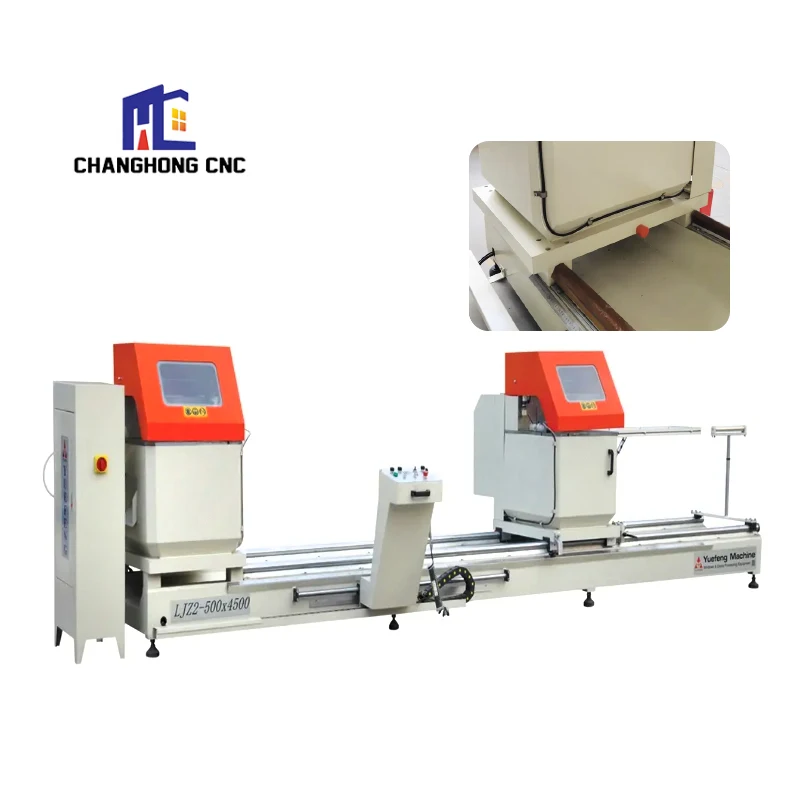

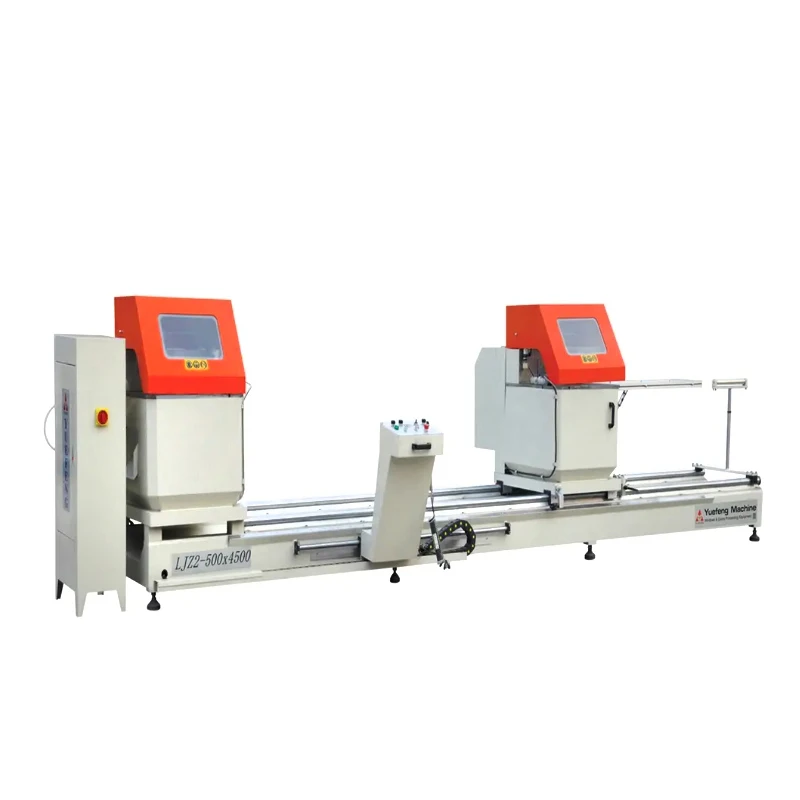

Double Head Cnc Aluminum Windows Cutting Saw Digital Display aluminium mitre saw

Product Overview

Description

LJZ2-500×4500   Digital Display Double Mitre Saw

1 Used for cutting profiles such as aluminum and pvc profile and curtain wall.

2 Two heads cutting angle 90°, 45° are available. The system can store various of profiles, convenience and efficiency.

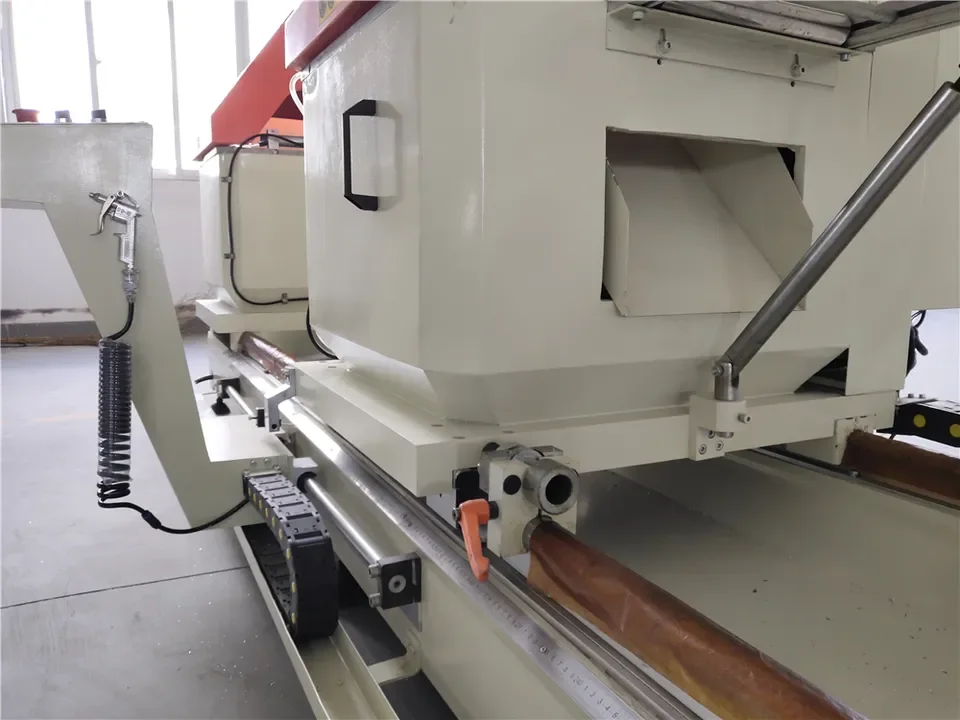

3 Swing arm type feeding results the gold cutting angle for the saw and profile, more stable,  durable, smooth, and accuracy.

4 It has the features of high accuracy, adjustable, easy operation and has the international first-class Level.



Technical Parameter:

Model	LJZ2-500×4500
Input voltage	380V 50Hz
Input power	4.5Kw
Air pressure	0.5~0.8MPa
Air consumption	200L/min
Spindle speed	3200r/min
Cutting length	430~4500mm
Cutting width	10~240mm
Cutting height	10~140mm
Cutting angle	90° 45°
Saw feeding speed	0~3m/min
Saw blade standard	φ500×4.4×φ30×Z120
Overall dimension	5400×1300×1450mm
