Eybond Wi Fi Bluetooth RS 485 RS 232 USB RJ 45energy data acquisition system brand inverters Datalogger

Share on (1601033620041):


Price:$52.35 - $57.75

Quantity:


Product Overview

Description



Product Description




Wi-Fi+Bluetooth








                    power stations: 4000000+ stations                             Super compatible: 500+ brands and models
                    Large users: 3000000+ users                                      High capacity: 250+GW
                    Wide distribution: 50+ countries                                 Strong cooperation: 5500+ partners





SmartESS APP

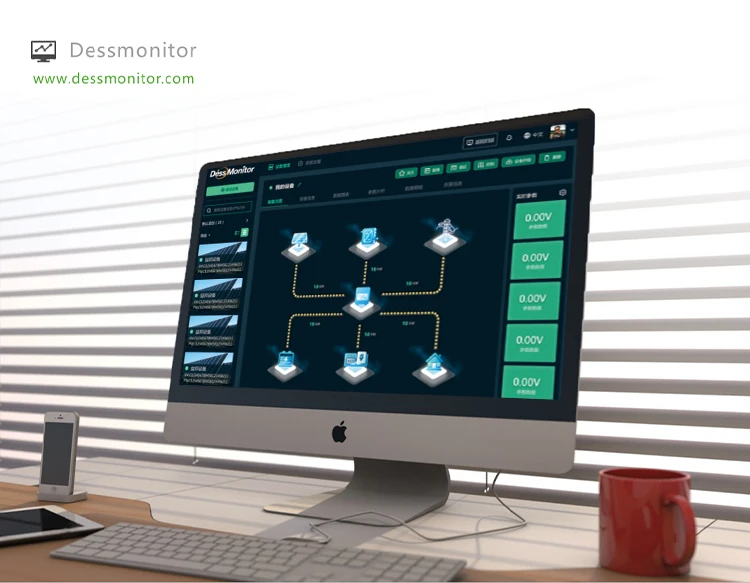

Dessmonitor Web



















































































































































































Product modelWi-Fi.DTU.Case4G.DTU.CaseEthernet.DTU.Case
Basic parameter

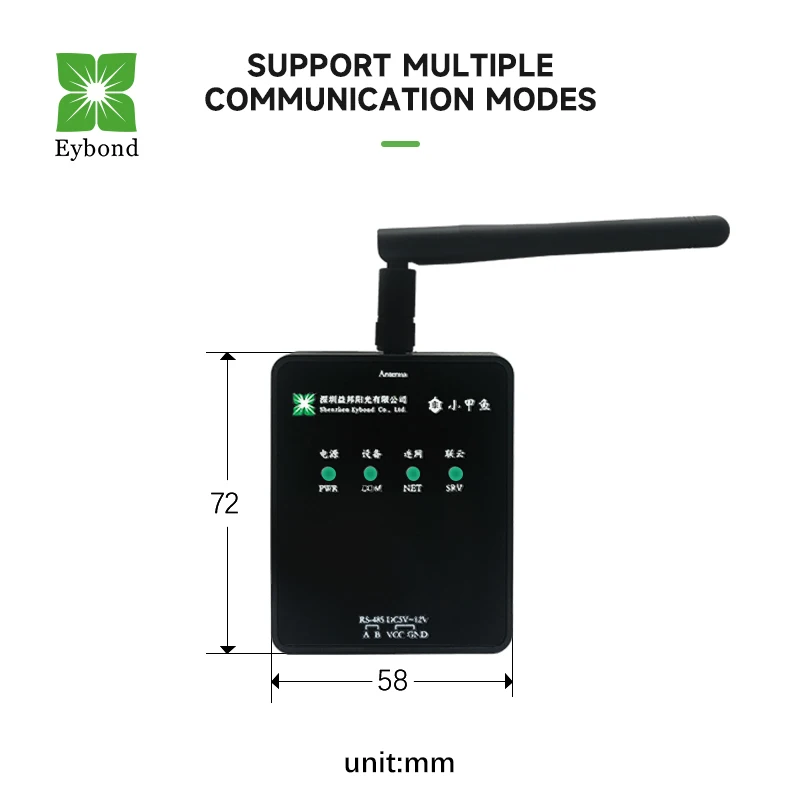

 Size 72*58*22mm 72*58*22mm 72*58*22mm

 Weight


 ≈58g ≈58g ≈58g
 Protection class IP21 IP21 IP21
 Installation mode Wall hanging/pasting Wall hanging/pasting Wall hanging/pasting
 Input voltage range DC5~12V±5% DC5~12V±5% DC5~12V±5%
 Maximum current 500mA(DC5V) 2A(DC5V) 2A(DC5V)
 Indicator light 4 4 4
 Operating temperature -40℃-+85℃ -40℃-+85 -40℃-+85
 Storage temperature -40℃-+90℃ -40℃-+90℃ -40℃-+90℃
Communication parameter
 Local communication   mode RS-485/RS-232 RS-485/RS-232 RS-485/RS-232
 Public network access   mode Wi-Fi 4G Ethernet
 Baud rate 9600bps(Default) 9600bps(Default) 9600bps(Default)
 Operating frequency 2.412GHz~2.484GHz FDD LTE:B1/B3/B5/B8 TDD   LTE:B38/B39/B40/B41   GSM:900/1800 --
 Communication standard IEEE802.11b/g/n LTE-Advanced/WirelessMAN -   Advanced(802.16m) IEEE 802.3u
 Maximum transmission   rate 72Mbps 10Mbps 10Base-T/100Base-TX
 Communication distance 100mm(Open environment) Carrier network --
 Maximum transmitting   power
 18.5dBm(70mW)


 230dBm

 --
 Antenna gain 2.5dBi 2.5dBi --
 Antenna Rod antenna/Extension antenna Rod antenna/Extension antenna --
 Data SIM card -- Nano card or Chip card --
Other parameter
 Watchdog Software watchdog +   Hardware watchdog

 Software watchdog +


 Hardware watchdog


 Software watchdog +   Hardware watchdog
 Configuration Serial port, network, infrared,  Serial port, network, infrared,  Serial port, network, infrared
 Connecting channel TCP/UDP TCP/UDP  TCP/UDP
 Connected   devices 1~10 1~10 1~10
 Warranty period 2 years 2 years 2 years
 Certification CE,RoHS CE,RoHS CE,RoHS




Existing project customization services


_02.pngDomain name and logo customization                                             APP customization



_04.pngWechat small programs customization                                          Administrator customization

New project customization service




                    Private cloud deployment                                                     Intelligent hardware customization


_09.png                                Solution consulting                                                                 Software project development






                                      PACKAGING AND LOGISTICS

    Since 2014, it has rich experience in the research and devel-opment and manufacturing of new energy data communication and other products, and has obtained more than 150 inventionpatents.
    We have a team of 200+ senior R&D engineers, occupying20,000 square meters in the central area of Shenzhen, to pro-vide you with R&D products and provide the best service.







Packaging & Shipping


1. Delivery will be arranged by DHL/UPS/Fedex/TNT/EMS, it will take 3-7 working days to arrive in most countries.
2.We can also help you ship the goods by air line,then you need to go to Air port totake it, it takes about 2-7 days to arrive.
3.If goods are large quantity and you not need the goods so urgently, you can choose by sea to save some freight cost which takes about one month to arrive.
4.We can accept the payment method such as Paypal/Credit card/ L/C and T/T.





FAQ


Q1: Are you a manufacturer or a trading company?
A1: We are a manufacturer.
Q2: Can you do ODM or OEM for us?
A2: We are glad to offer custom service for you, we have an experienced engineers team who will provide you with a complete solution according to yourrequirements.
Q3: Whether the product can be customized logo?
A3: For bulk orders, we support custom logo.
Q4: How about the delivery time?
A4: For regular orders, it takes about 3-7 days for production, and it may take15-30 days for bulk orders or customized orders.
Q5: What are your delivery and payment terms?
A5: We accept EXW, FOB, CFR, CIF, etc. You can choose the one that suits youbest. Sample orders 100%in advance, bulk orders 100% balance.
Q6: After service and warranty?
A6: We provide 1 year warranty, if you have any problems in the use of products. please contact to your sales person.
Q7: How can we know the product quality?
A7: We suggest you to order a sample. Also, you can send us email for detailphotos for checking if you cannot get enough information in the product page
Q8: How can we get samples from you?


A8: Provide samples. Usually we need 5 days to arrange samples. If we do nothave business records with you before, we need to charge sample cost and mailexpress freight.
Q9: How do l choose the right data logger to connect to my inverter? Can youhelp with the choice?
A9: Please provide the brand and model of the inverter, the nameplate of theinverter, the interface information, the communication protocol, we can helpyou choose the right data logger.
