Double Conenhead uncoiler with Coil Loading Car & Coil Saddle& Coil Peeler Mill Entry of Tube Mill
- Category: >>>
- Supplier: Hebei Tubo Machinery Co. Ltd.
Share on (1601033636865):
Product Overview
Description

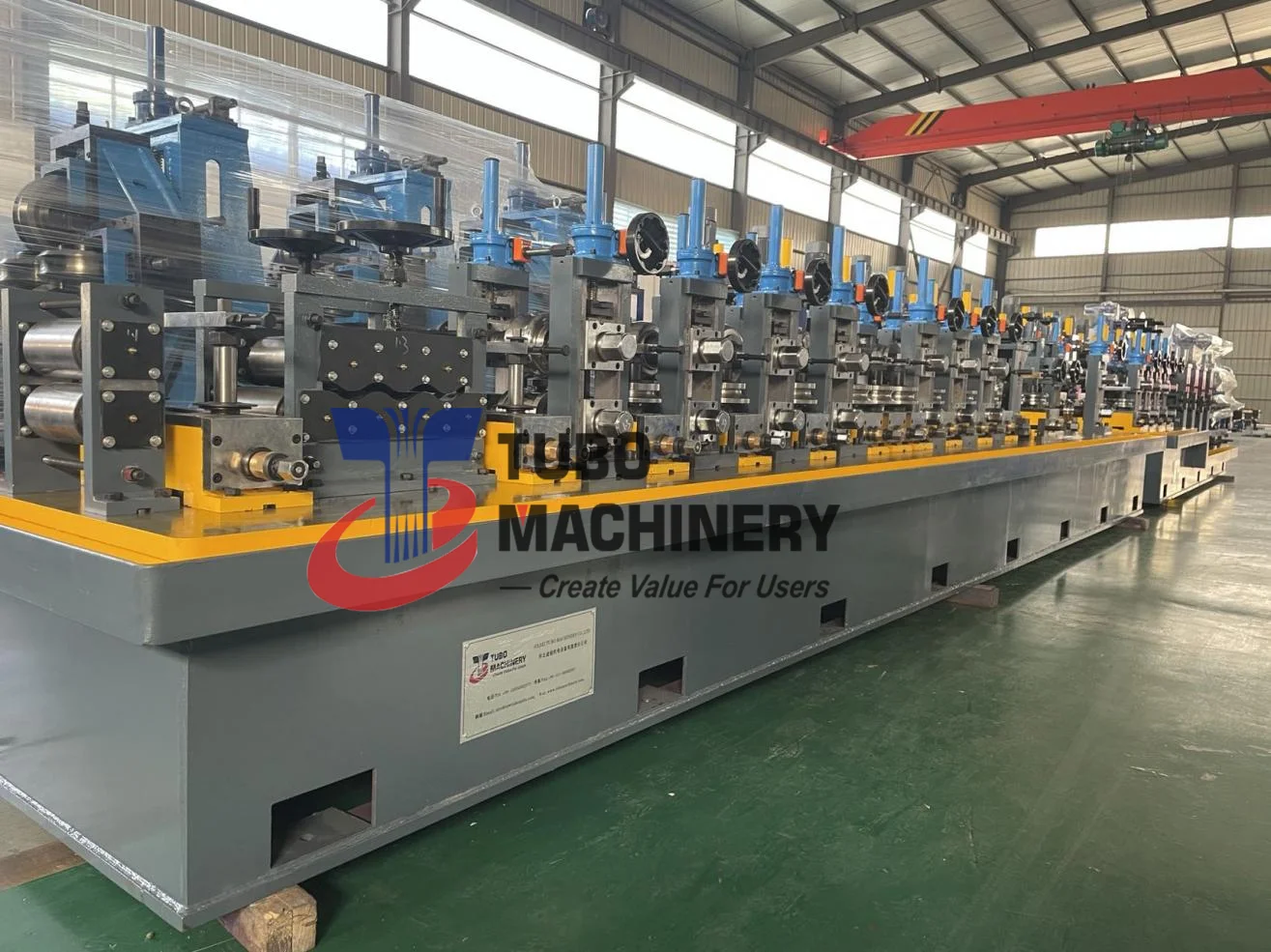

Hebei TUBO Machinery Co., Ltd. manufactures welded ERW Tube Mill / Pipe Mill, LSAW (JCO) Pipe Mill, Cold Roll Forming Machine and Slitting Line, as well as auxiliary equipments for more than 15 years, we developed and grew in line with constantly evolving market requirements. With modren design software and more than 130 sets all types of CNC machining equipments, TUBO Machinery has been continuously developing and reinforcing its know-how in the field in time.
Mill Entry
1. Coil Saddle
2. Coil Loading Car
3. Double Conenhead Unoiler
4.Gantry Type Straightening Head Device & Peeler
5.Side Guide Roll & Support Roll
6.Hydraulic Station
7. Electric Control System
Decoiler | ||
Application | It's the important equipment of entrance section of pipe mill line, mainly used to hold steel strip to make coils unfold, supplying raw material for the production line. | |
Thickness of steel strip | Max.18mm | |
Raw material | Stainless steel,Aluminium,Hot rolled,Cold Rolled | |
Loading capacity | Max.10Ton | |
Coil I.D | 508mm or Dia.61 | |
Coil O.D | Max.2200mm | |
Direction of feeding | From Right to Left or Left to Right(customized) | |
Power | According to your local power | |
Decoiler
1. Steel Coil Saddle
2.Loading Car
3.Peeler

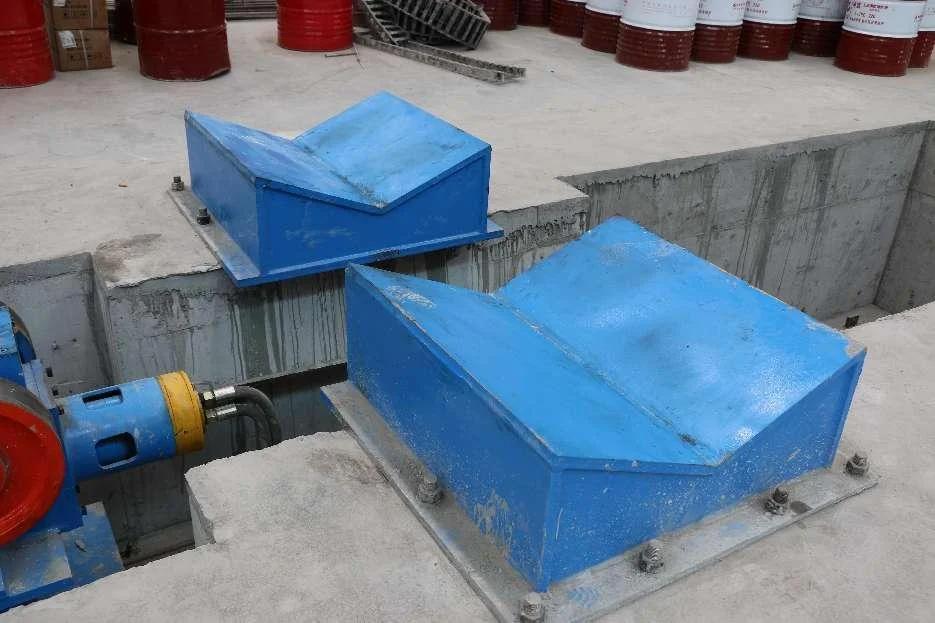

Steel Coil Saddle
1) Mechanical structure: the V - shaped frame structure welded by the steel plate is fixed
2) Operation function : Storage steel rolls for delivery to Uncolier.
2) Operation function : Storage steel rolls for delivery to Uncolier.
3) Storage : On set .
4) Bearing weight：Max.35000Kg；
5) Coil OD：Φ1000mm～Φ2200mm
4) Bearing weight：Max.35000Kg；
5) Coil OD：Φ1000mm～Φ2200mm

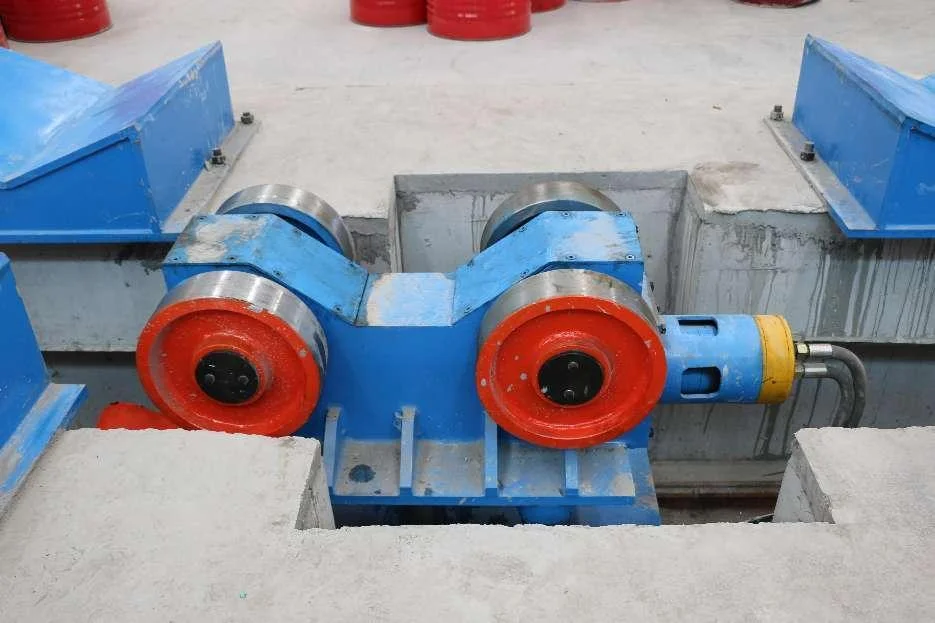

Loading Car
1) Structure: the whole body is divided into two parts, the upper part of the support by the hydraulic cylinder up-down control, four guide columns can effectively control the load of the steel after balance, lower part of the car body moving through the motor drive, walk with towline and telescopic protective plate;
2)Operation function: the loading trolley adjusts the position of the car and the height of the steel coil to keep the center of the coil center from the center of the uncoiler, until the shaft of the coiling machine is inserted into the inner hole of the steel coil to receive the steel coil.
2)Operation function: the loading trolley adjusts the position of the car and the height of the steel coil to keep the center of the coil center from the center of the uncoiler, until the shaft of the coiling machine is inserted into the inner hole of the steel coil to receive the steel coil.

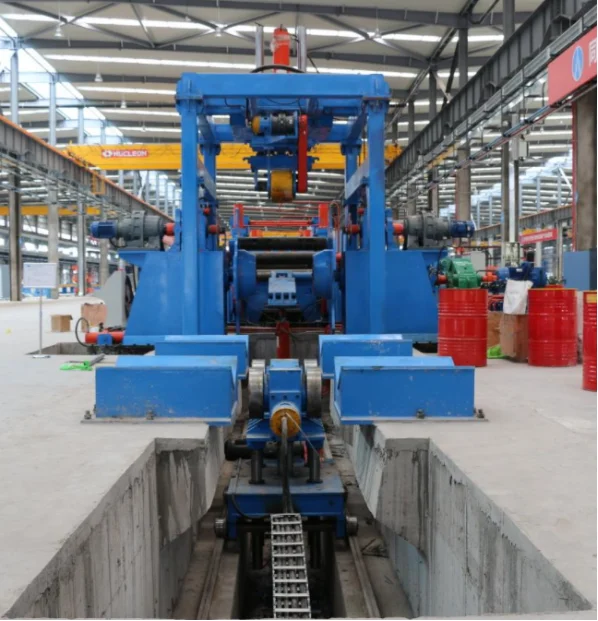

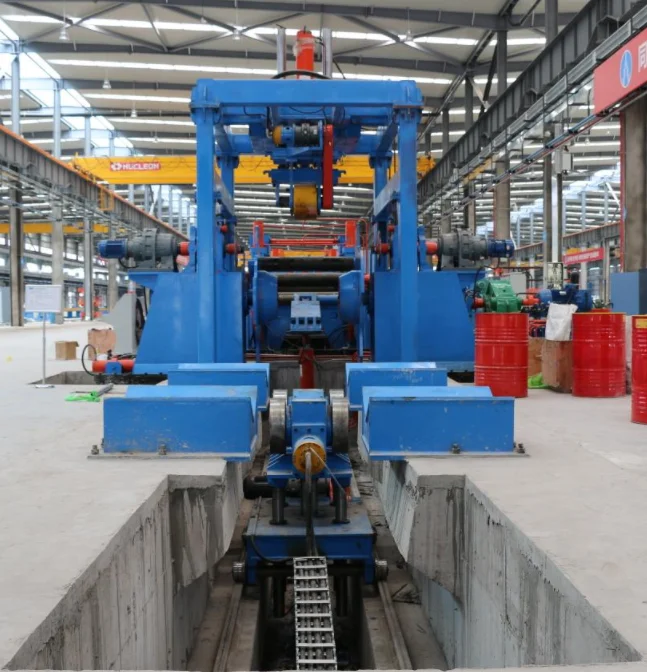

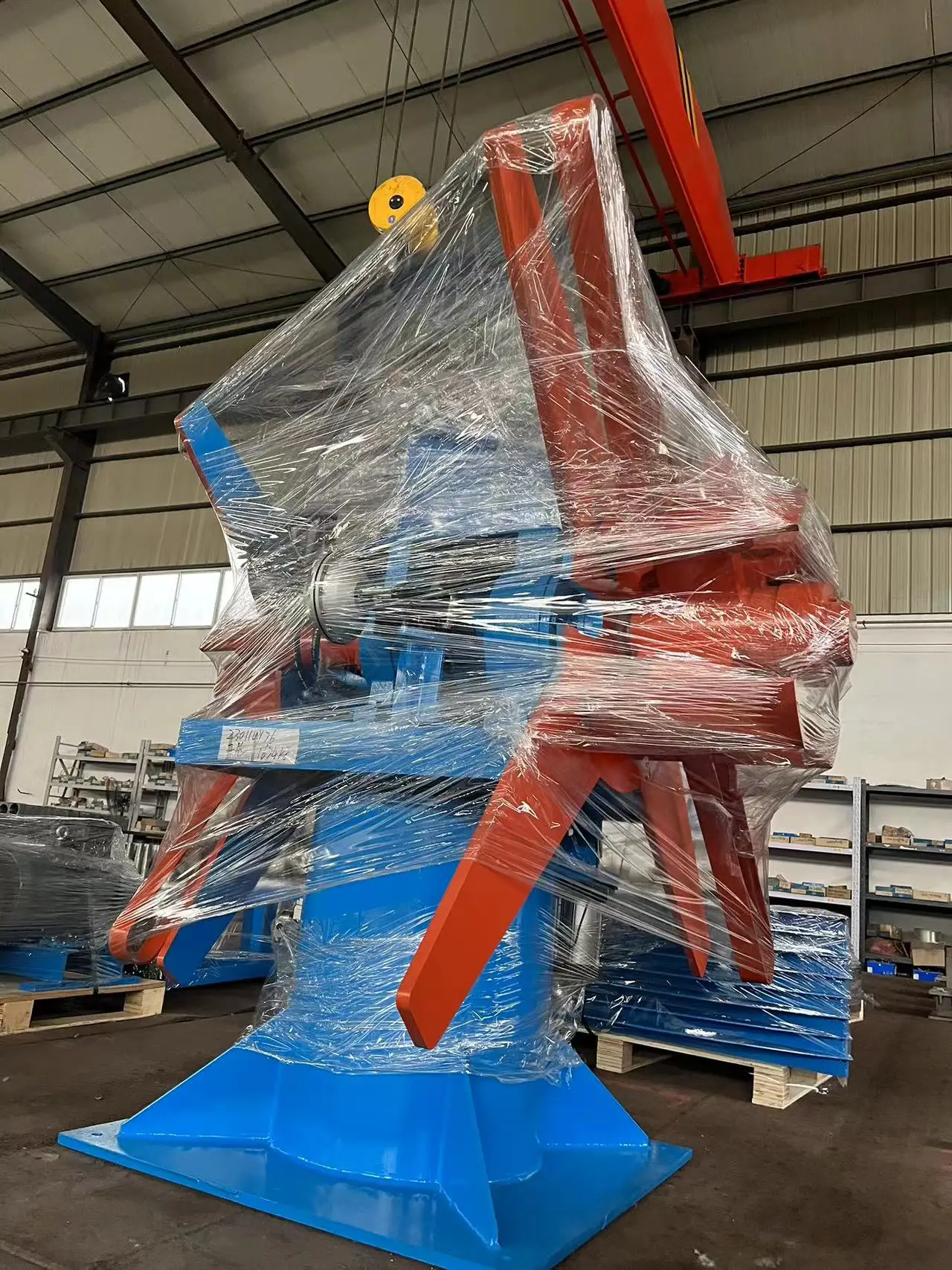

Double Conenhead Uncoiler
1.Structure : It is composed by the heavy body, Mandrel, heavy type slider seat, power system and braking device.
2.Operating function : This machine is the equipment for placing the coil . when placing the coil , the coil is sent to the center of the mandrel of the uncoiler by the feeding trolley . and the sliding cylinder started to receive the coiler. the decoiler driving by electric motor . the spindle is supported by heavy-duty bearings, and the pneumatic disc brake is installed at the rear of the spindle. which can prevent the inertial rotation of the coiled material .
Gantry type straightening Head device & Peer.
(1) Operation function:Feeding device operation in uncoiler feeding, will introduce the coil head to the next unit. The press
roller is extended to press the steel coil through the hydraulic cylinder to prevent the coil from loosening and facilitate the
operator to remove the packing belt safely.
(2) The mechanical structure: it is made up of Gantry frame, telescopic shovel plate, driving pressure roller, straight head
roller and hydraulic mechanism. The surface of the power roller is covered by polyurethane, driven by the large torque motor, and assisted by the uncoiler to rotate and feed. When the production line is running normally, the roller is lifted. Material guide shovel head through the cylinder adjust upward to the appropriate position, in the role of hydraulic cylinder extending to coil at the head of the shovel into the guide, head forward delivery. Head through the material guide plate, straight head roller driven by the cylinder under pressure, the pressure will bend head straight, the coil head into the pinch roll;
roller is extended to press the steel coil through the hydraulic cylinder to prevent the coil from loosening and facilitate the
operator to remove the packing belt safely.
(2) The mechanical structure: it is made up of Gantry frame, telescopic shovel plate, driving pressure roller, straight head
roller and hydraulic mechanism. The surface of the power roller is covered by polyurethane, driven by the large torque motor, and assisted by the uncoiler to rotate and feed. When the production line is running normally, the roller is lifted. Material guide shovel head through the cylinder adjust upward to the appropriate position, in the role of hydraulic cylinder extending to coil at the head of the shovel into the guide, head forward delivery. Head through the material guide plate, straight head roller driven by the cylinder under pressure, the pressure will bend head straight, the coil head into the pinch roll;
Side Guide Roll & Support Roll
Hydraulic Station
Electric Control System
1. Q : Are you manufacturer ?
A: Yes, We are manufacturer . More than 15 years R&D and Manufacturing Experience. We use more than 130 CNC machining equipments to guarantee our products perfect.
2. Q: What payment terms do you accept?
A: We are flexible on payment terms, please contact us for details.
3. Q:What information do you need to supply a quotation?
A: 1. Maximum Yield Strength of the material,
2.All pipe sizes needed (in mm),
3. Wall thickness (min-max)
4. Q: What is your advantages?
A: 1. Advanced mould share-use technology (FFX, Direct Forming Square). It saves a lot of invest amount.
2. Latest quick change technology to increase the output and reduce labor intensity.
3. More than 15 years R&D and Manufacturing Experience.
4. 130 CNC machining equipments to guarantee our products perfect.
5. Customized According to Customer Requirements.
5. Q: Do you have after sales support?
A: Yes,we have. We have a 10-person -professional and strong installation team.
6.Q: How about your service?
A:(1) One year’s warranty.
(2) Providing spare parts for life time at cost price.
(3) Providing Video technical support, Field installation, commissioning and training, online support, Engineers available to
service machinery overseas.
(4) Provide technical service for facility reforming, refurbishment.
A: Yes, We are manufacturer . More than 15 years R&D and Manufacturing Experience. We use more than 130 CNC machining equipments to guarantee our products perfect.
2. Q: What payment terms do you accept?
A: We are flexible on payment terms, please contact us for details.
3. Q:What information do you need to supply a quotation?
A: 1. Maximum Yield Strength of the material,
2.All pipe sizes needed (in mm),
3. Wall thickness (min-max)
4. Q: What is your advantages?
A: 1. Advanced mould share-use technology (FFX, Direct Forming Square). It saves a lot of invest amount.
2. Latest quick change technology to increase the output and reduce labor intensity.
3. More than 15 years R&D and Manufacturing Experience.
4. 130 CNC machining equipments to guarantee our products perfect.
5. Customized According to Customer Requirements.
5. Q: Do you have after sales support?
A: Yes,we have. We have a 10-person -professional and strong installation team.
6.Q: How about your service?
A:(1) One year’s warranty.
(2) Providing spare parts for life time at cost price.
(3) Providing Video technical support, Field installation, commissioning and training, online support, Engineers available to
service machinery overseas.
(4) Provide technical service for facility reforming, refurbishment.
