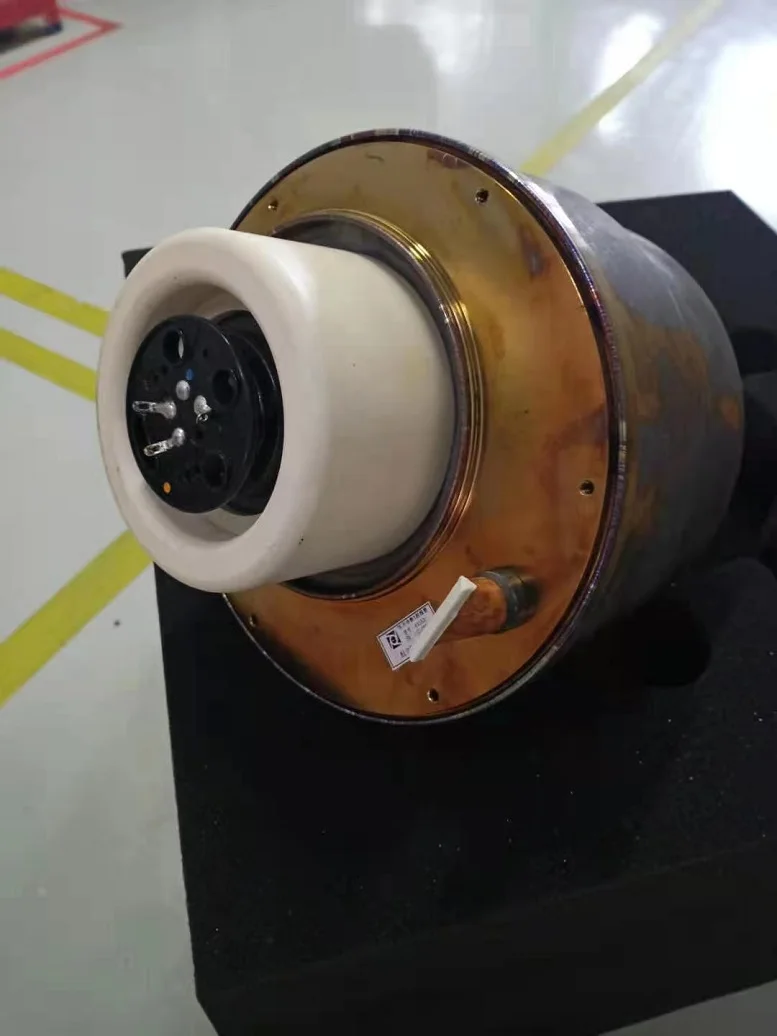

CT tubes, Dura202 Dura302 Dura352 tubes, x ray tubes for computed tomography

Product model specifications

MSLXRT01

Maximum anode heat capacity

3500KHU(2485kJ)

Maximum anode heat dissipation power

4.5kW

Anode nominal input power

28kW  34kW

Focus nominal value f (YY/T0063)

(YY/T0063)

0.8×0.4                    0.8×0.7

weight

8.1KG

Nominal X-ray tube voltage

140 kV

X-ray tube Overvoltage

150 kV

Target disk material

Rhenium tungsten molybdenum based graphite target

Target angle

7°

Target diameter

140mm

Rotating anode rate

≥8400 r / min @(150Hz)

Exposure rate

≥0.03mC/kg·s

Inherent filtration (IEC60522/1999)

2.7mmAl/70kV

Continuous anode input power

7kW

Filament voltage

3.0~10V  5.0~15V

Filament current

5.5~7.1A  5.2~6.8A
