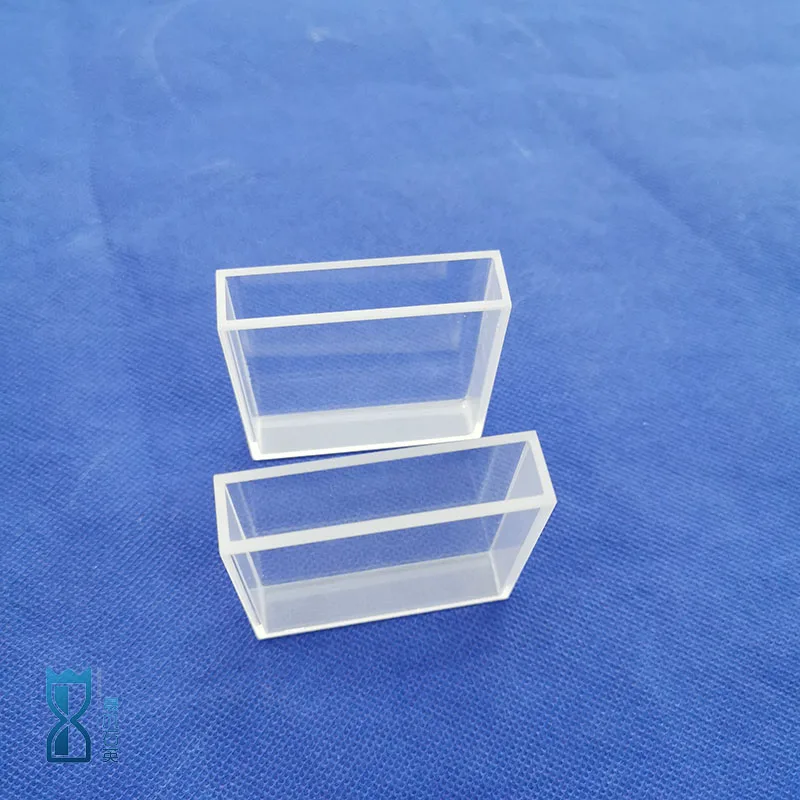

Manufacturer quartz glass cuvettes G685 quartz flow cell
- Category: >>>
- Supplier: Lianyungang Shengfan Quartz Products Co. Ltd.
Share on (1601033674375):
Product Overview
Description
Products Description
Specification | Specification | |
Color | Transparent | |
Light Transmittance | >92% | |
Application | Absorbance or transmission in all common spectrophotometers. | |
Rectangular Cells | Most commonly used cells! | |
Cylindrical Cells | Cells with round windows, tubular bodies | |
Flow Cells | Flow your sample through these cells | |
* Optical Synthetic Quartz Glass Cuvettes
* Versions with Two or Four Polished Windows Available
* Super Micro, Micro, and Macro Cuvettes with 100 µL, 700 µL, 1400 µL, or 3500 µL Capacity

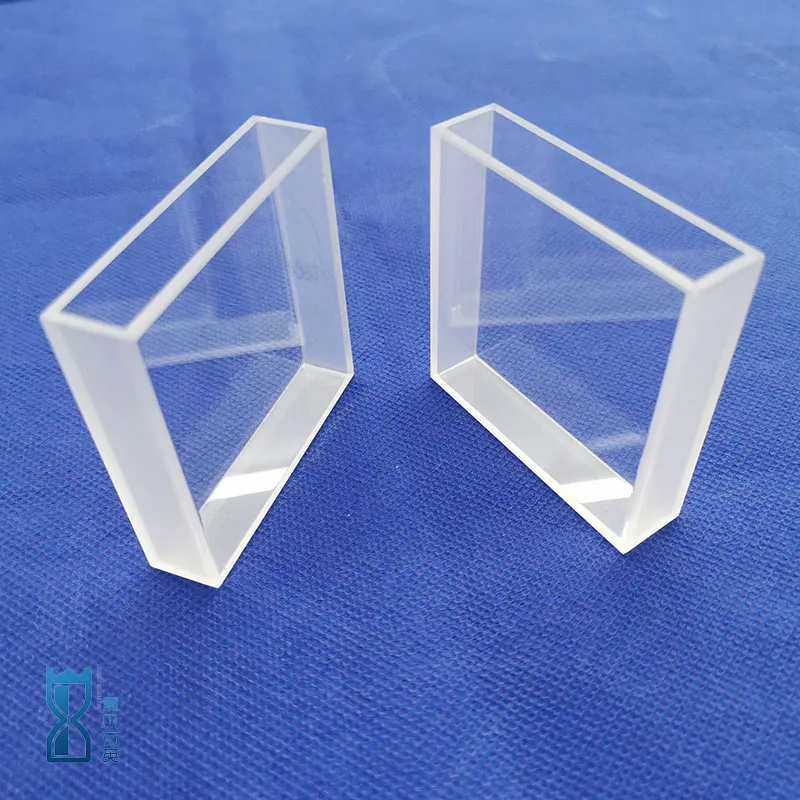

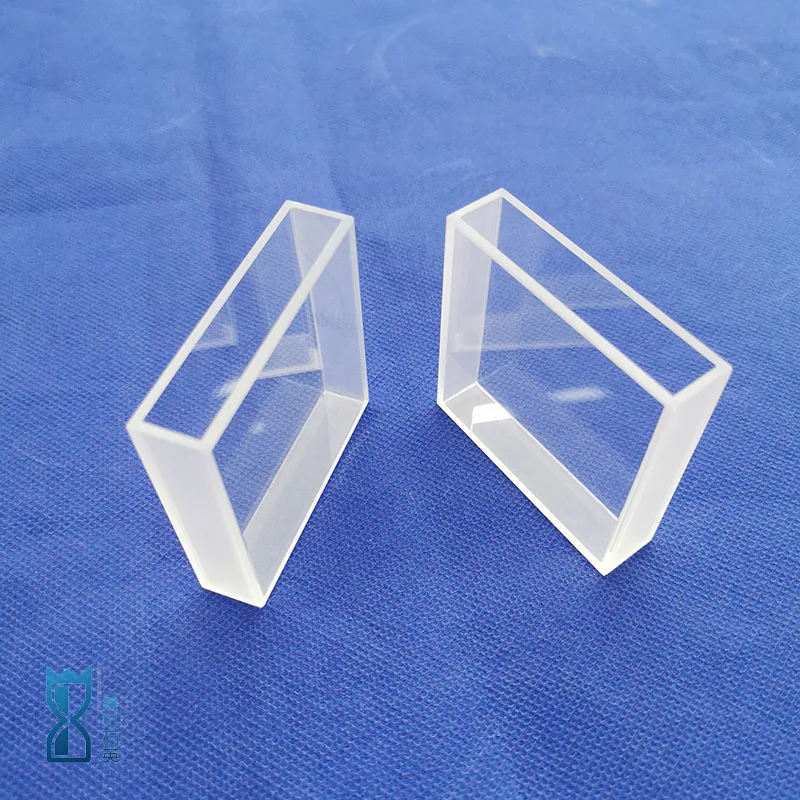

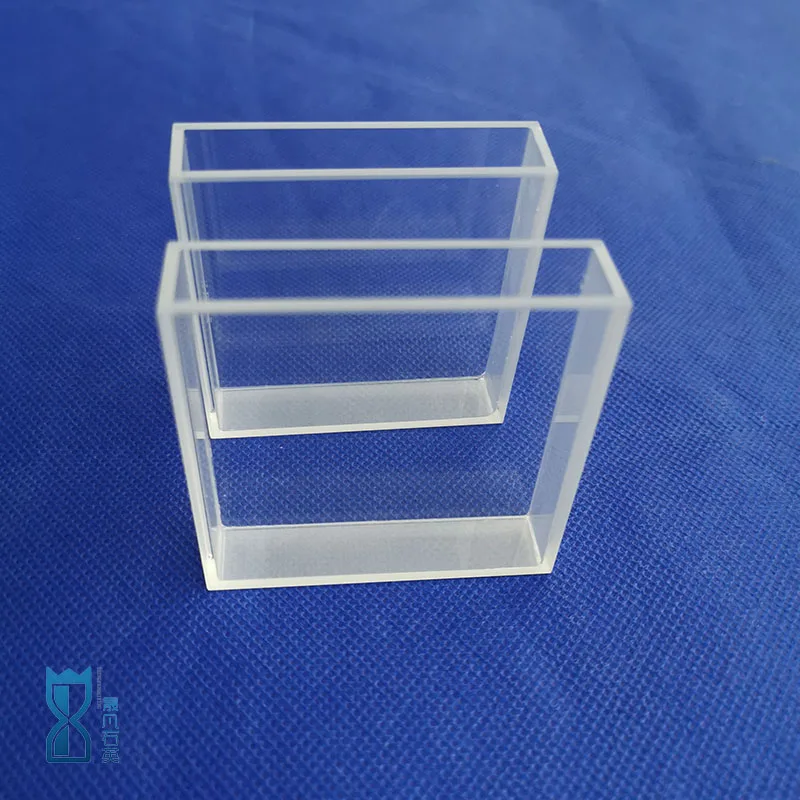

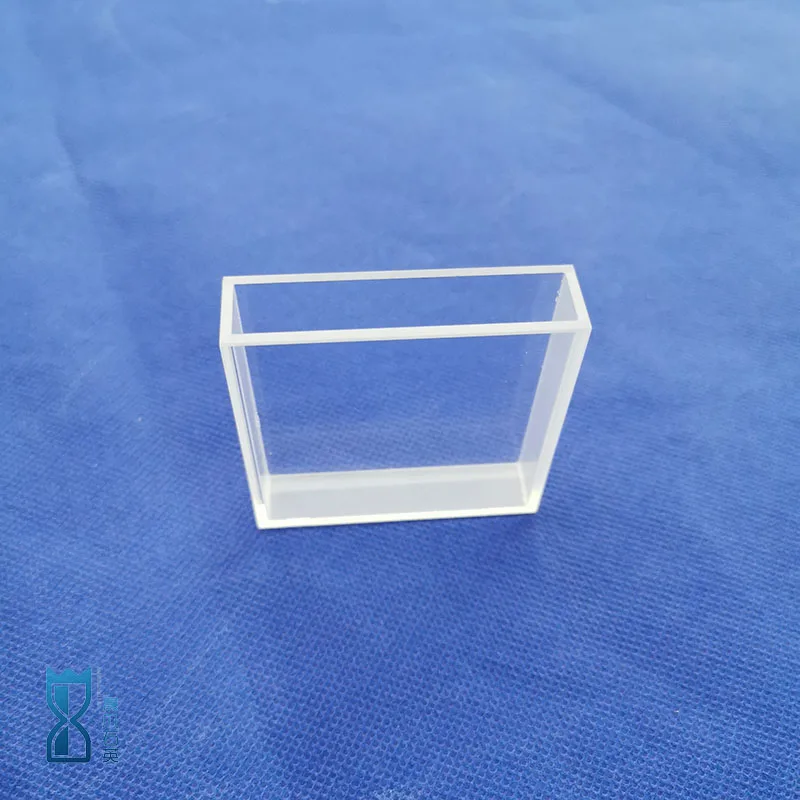

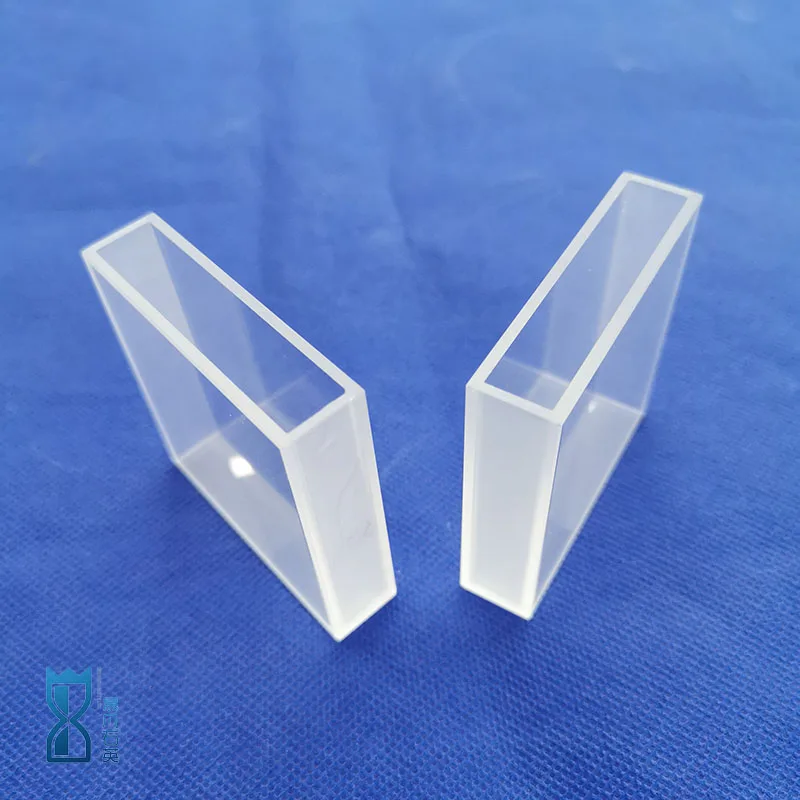

Details Images
Features
* Crafted from Synthetic Quartz Glass for the 190 nm - 2.5 µm Wavelength Range
* Versions with Two or Four Polished Windows for Spectroscopy Applications
* 100 µL, 700 µL, 1400 µL, and 3500 µL Capacities Available
* Standard 12.5 mm Square Profile with 10.00 mm Transmitted Path Length
* Available with PTFE Top Caps, Stoppers, or Septum Screw Caps
* Versions with Two or Four Polished Windows for Spectroscopy Applications
* 100 µL, 700 µL, 1400 µL, and 3500 µL Capacities Available
* Standard 12.5 mm Square Profile with 10.00 mm Transmitted Path Length
* Available with PTFE Top Caps, Stoppers, or Septum Screw Caps
Our cuvettes are high-quality cells designed to hold liquid samples. The synthetic quartz glass construction allows these cuvettes to be used with UV light at wavelengths as low as 190 nm, as well as with visible and infrared light up to 2.5 µm. Shengfan offers cuvettes with either two polished sides, for use in absorption spectroscopy experiments, or four polished sides, for use in fluorescence spectroscopy. The polished sides can be cleaned using standard optics cleaning procedures. Versions are also available with one of three PTFE tops: a cap to block dust and other particles, a stopper to prevent evaporation and provide a seal, or a septum screw cap to provide an airtight seal and prevent contamination until a needle is inserted.
The standard 12.5 mm square outside dimension and 10.00 mm transmitted path length through the sample make these cuvettes compatible with most spectrophotometers as well as our cage-compatible Cuvette Holder, Fiber Optic Filter and Cuvette Mount, and Holder for Integrating Spheres. We offer macro, micro, and super micro sizes (see the tables below for more information), sold in packs of two. The 100 µL cuvettes with four polished sides as well as all 3500 µL cuvettes are also available in a version with enhanced chemical resistance. All cuvettes are engraved on the outer surface with the Item # and a letter "Q" designating synthetic quartz glass construction and the typical input side.
The super micro and micro cuvettes with two polished sides are assembled with glue. Our other cuvettes are assembled by heating the quartz glass to a high temperature and applying pressure to adhere the pieces together. Of these, micro cuvettes that are polished on four sides and all standard macro cuvettes have a quartz glass powder applied to the edges before heating, while the enhanced-chemical-resistance super micro and macro cuvettes are constructed by finely polishing the quartz glass before heating.
Solvent Compatibility
All standard cuvettes should not be used with benzene, toluene, aqua regia, ethanol, corrosive solutions, or other similar substances, as they may degrade the bonds between the pieces and cause the cuvette to leak. The cuvettes with enhanced chemical resistance are compatible with corrosive solutions such as aqua regia. Contact Tech Support for instructions on cleaning the cuvettes found on this page.
For applications that require cuvettes with a enhanced chemical resistance and a shorter optical path length, we offer Enchanced Chemical Resistance Cuvettes with ≤2 mm Path Length. These cuvettes are made from either synthetic quartz glass or borosilicate glass and are available with 350 µL or 700 µL capacity.

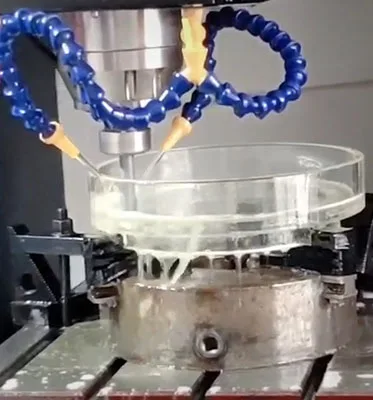

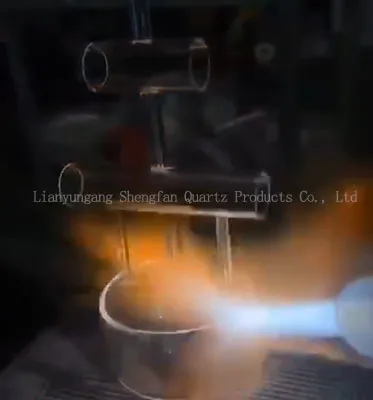

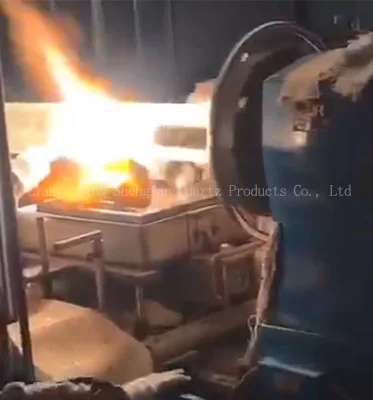

production flow
packing and shipping
Company Profile
Lianyungang Shengfan Quartz Products Co.,Ltd.
Lianyungang Shengfan Quartz Product Factory is a professional manufacture specialized in research and development of quartz plate,quartz tube,quartz flange,quartz ring,cuvette and quartz instrument. The company is located in China Crystal Capital - Donghai City, Jiangsu Prov., China. 70 km far from Lianyungang port, convenient transportation. Covering an area of 1000 square meters,we now have over 70 employees,an annual sales figure exceeding USD 10 million. With the philosophy of Technology Orientation, Quality First,Integrity and Responsibility, Sustainable Operation, the company dedicates to establish an international enterprise with standard and sustainable operation capability.
FAQ
Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
Q2. What about the delivery time?
A:Within 15 days after receiving deposit.
A:Within 15 days after receiving deposit.
Q3. Do you have any MOQ limit?
A: Low MOQ, 1pc for sample checking is available
Q4. How to proceed an order in your factory?
A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions. Thirdly customer confirms the samples and places deposit for formal order. Fourthly We arrange the production.
Q5. How do you ship the goods and how long does it take to arrive?
A:DHL, UPS, FedEx or TNT are optional for small order. It usually takes 3-5 days to arrive. Airline and sea shipping are also available.
