  • Hot Sale 4 Flute D1 20 Hrc55 Solid Tungsten Carbide EndMill Cutting Tools Corner Radius End Mill
Hot Sale 4 Flute D1 20 Hrc55 Solid Tungsten Carbide EndMill Cutting Tools Corner Radius End Mill
Hot Sale 4 Flute D1-20 Hrc55 Solid Tungsten Carbide EndMill Cutting Tools Corner Radius End Mill
Hot Sale 4 Flute D1-20 Hrc55 Solid Tungsten Carbide EndMill Cutting Tools Corner Radius End Mill
Hot Sale 4 Flute D1-20 Hrc55 Solid Tungsten Carbide EndMill Cutting Tools Corner Radius End Mill
Hot Sale 4 Flute D1-20 Hrc55 Solid Tungsten Carbide EndMill Cutting Tools Corner Radius End Mill

Hot Sale 4 Flute D1 20 Hrc55 Solid Tungsten Carbide EndMill Cutting Tools Corner Radius End Mill

Share on (1601033705258):


Price:

Quantity:


Product Overview

Description



Products Description


Product Name
Solid Tungsten Carbide corner radius end mill
Material
100% New Raw Material Carbide
Flute
1 / 2 /3/ 4/5 / 6
HRC
45 / 55 / 58 / 60 / 65 /70
Customized
Our factory supports Size, Coating, Shape, Logo, Sample Test etc. customization.
Coating Thickness
2um-4um
Shank Diameter
1mm-20mm
Overall Length
50mm-200mm
Application
General-purpose operation Slotting, Drilling, Profiling
Working Machine
CNC (computer numeric controlled) tool and cutter grinder machines
Work-piece material
Stainless Steel, Carbon Steel, Aluminum, Cast Iron, Alloyed Metal, Brass, Bronze etc.







New and upgraded nano coating
Using Swiss Prady
5 layers spraying technology
Composite coating increases hardness
Increase tool thermal conductivity


Advantages:


Suitable for finishing,can achieve the mirror effect.
coating increase surface gloss,and prolonging life.
100% quality guarantee (ISO9001)
Work material: carbide steel, alloy steel, cast iron, copper, mould steel,etc.
100% original tungsten, without recycle parts. Wc90%, Co10%, more cobalt will make end mills more crisp.


Characteristics：



1. Round handle, chamfering, easy to use, performance stability.
2. Tough and wear resistant.
3. high strength and hardness.
4.durable in use.
5.Using new ultra-fine fine tungsten steel bar grinding, high rigidity and toughness.


Endmill Grade
Coating Name
Color
Hv
μm
Friction
The MaxºC
Application
HRC 45
AlTiN
black
3300
0.6
0.7
850ºC
Suitable for General Steel
HRC 50
AlTiN
black
3300
0.6
0.7
850ºC
Suitable for General Steel
HRC 55
TiSiAlN
bronzed
3400
0.5
0.7
900ºC
General Steel,cast cast iron
HRC 60
AlCrSiN
black
4000
0.4
0.35
1100ºC
High Hard Material, steel, cast iron, etc
HRC 65
nACo 3 Blue
blue
4500
0.4
0.45
1200ºC
Titanium Alloy, High-temperature Alloy,material, etc


Type&Size


Specification Model
Blade diameter
Shank diameter
Total length
1R0.5*3*50
1
4
50
1.5R0.5*4*50
1.5
4
50
2.0R0.5*6*50
2
4
50
2.5R0.5*8*50
2.5
4
50
3.0R0.5*8*50
3
4
50
3.5R0.5*10*50
3.5
4
50
4R0.5*10*50
4
4
50
4R0.5*15*75
4
4
75
4R0.5*20*100
4
4
100
5R0.5*13*50
5
5
50
5R0.5*13*50 S6
5
6
50
6R0.5*15*50
6
6
50
6R0.5*20*75
6
6
75
6R0.5*30*100
6
6
100
8R0.5*20*60
8
8
60
8R0.5*25*75
8
8
75
8R0.5*35*100
8
8
100
10R0.5*25*75
10
10
75
10R0.5*40*100
10
10
100
12R0.5*30*75
12
12
75
12R0.5*45*100
12
12
100
1R1*3*50
1
4
50
1.5R1*4*50
1.5
4
50
2.0R1*6*50
2
4
50
2.5R1*8*50
2.5
4
50
3.0R1*8*50
3
4
50
3.5R1*10*50
3.5
4
50
4R1*10*50
4
4
50
4R1*15*75
4
4
75
4R1*20*100
4
4
100


Our Advantages




Customized Service


We not only produce the standard types, but also the carbide parts based on your designs. We have rich experience on this and a big part of our product is from our clients' designs. We can provide the technical support, like how to select the right grade of carbide to match your using purpose, we will make it very easy and simple to do business with us.If you need a customized service,please contact us






Company Profile

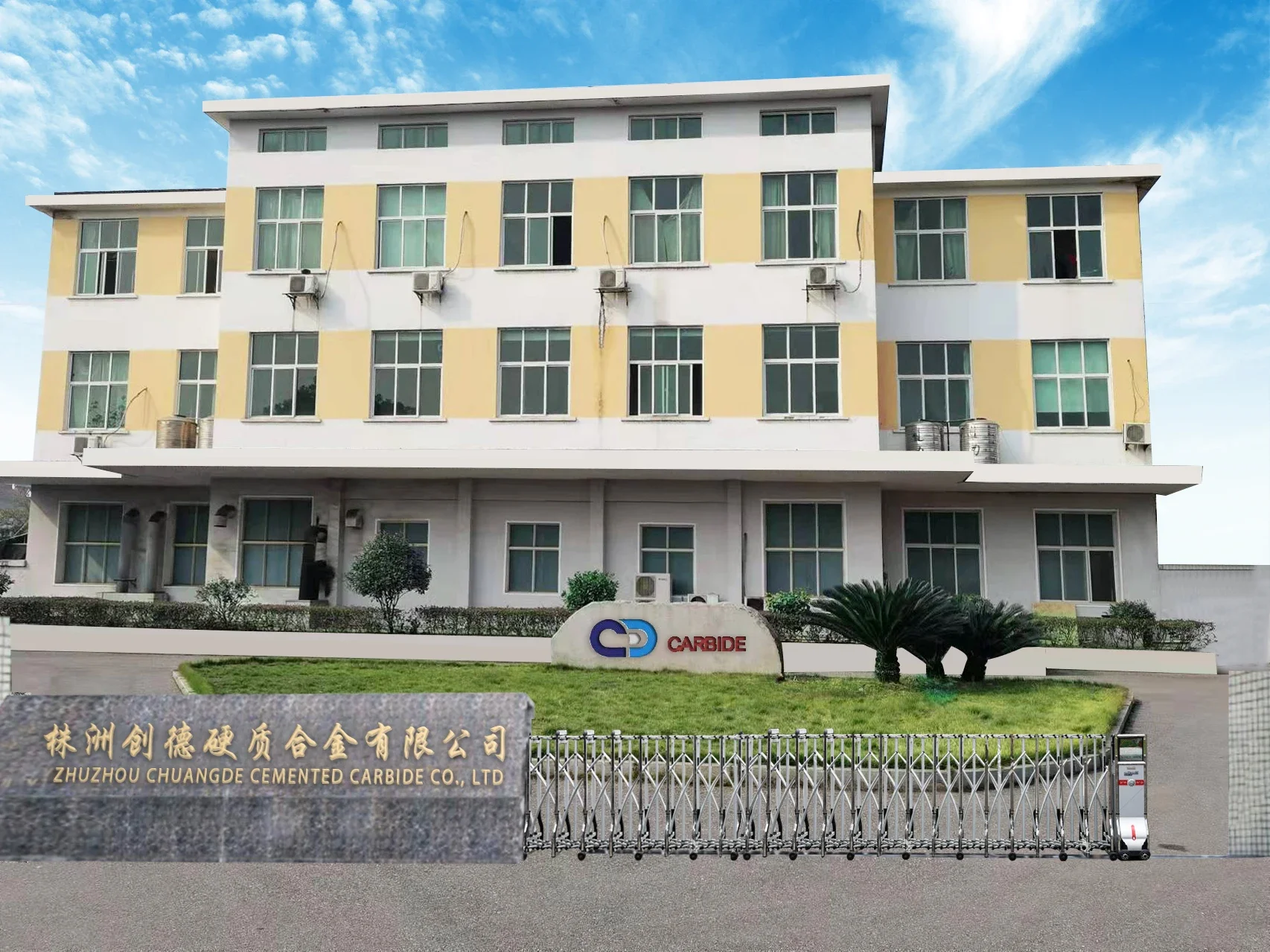

Zhuzhou Chuangde Cemented Carbide Co.,Ltd located in Zhuzhou,Hunan, China .lt mainly produces Tungsten heavy alloy,Tungsten & Molybdenum alloy,and Silicon Carbide products etc. We have highly qualified motivated and experienced employees who are providing synergies in our company which are necessary to create and guarantee high-quality and long-lasting solutions for our customers.We provide a worldwide distribution network. Asa medium-sized company we react fast and we are flexible to our customer requirements. Based on partnership, we supply suitable solutions for there spective needs.
Our company was certified after ISO in 9001:2015.A comprehensive quality assurance system guarantees high-class standards of our products.Our production are exported to UK, European, Japan, Taiwan and South-east Asia etc.








Packaging & Shipping




FAQ


Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons, we also can pack the goods based on your requirements,like your own labels.

Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.

Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.

Q4. How about your delivery time?
A: Generally, it will take 15-25 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.

Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings.

Q6. What is your sample policy?
A: We can send you the sample free of charge if it is standard type. For non-standard type, we may need to charge for the mould fee.

Q7. Do you test all your goods before delivery?
A: All the goods will be tested by three times (inspection for material, semi-product and final product) before we send them to you, all data will be recorded.

Q8: How do you make our business long-term and good relationship?
1. Good and stable quality based on our strict quality control system.
2. Fast delivery based on our high production capability.
3. Technical support based on our professional technical team.
4. Simply and easy to do business, to save your time, money and energy.
