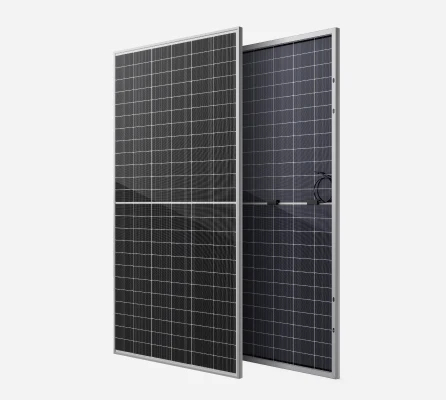

Risen Zhejiang Ningbo Solar Panels 565W 585W Aluminum Bifacial Solar Pv Panels
- Category: >>>
- Supplier: Sunevo Solar Co. Ltd.
Share on (1601033767787):
Product Overview
Description
Products Description
Model Type | RSM110-8-565-585BHDG | |||||||||
Rated Power in Watts-Pmax(Wp) | 565 | 570 | 575 | 580 | 585 | |||||
Open Circuit Voltage-Voc(V) | 41.18 | 41.27 | 41.36 | 41.46 | 41.55 | |||||
Short Circuit Current-Isc(A) | 17.47 | 17.57 | 17.67 | 17.77 | 17.88 | |||||
Maximum Power Voltage-Vmpp(V) | 34.53 | 34.6 | 34.68 | 34.76 | 34.84 | |||||
Maximum Power Current-Impp(A) | 16.39 | 16.49 | 16.6 | 16.71 | 16.81 | |||||
Module Efficiency (%) | 21.6 | 21.8 | 22 | 22.2 | 22.4 | |||||
TEMPERATURE & MAXIMUM RATINGS | ||||||||||
Nominal Module Operating Temperature (NMOT) | 43°C±2°C | |||||||||
Temperature Coefficient of Voc | -0.22%/°C | |||||||||
Temperature Coefficient of Isc | 0.047%/°C | |||||||||
Temperature Coefficient of Pmax | -0.24%/°C | |||||||||
Operational Temperature | -40°C~+85°C | |||||||||
Maximum System Voltage | 1500VDC | |||||||||
Max Series Fuse Rating | 35A | |||||||||
Limiting Reverse Current | 35A | |||||||||

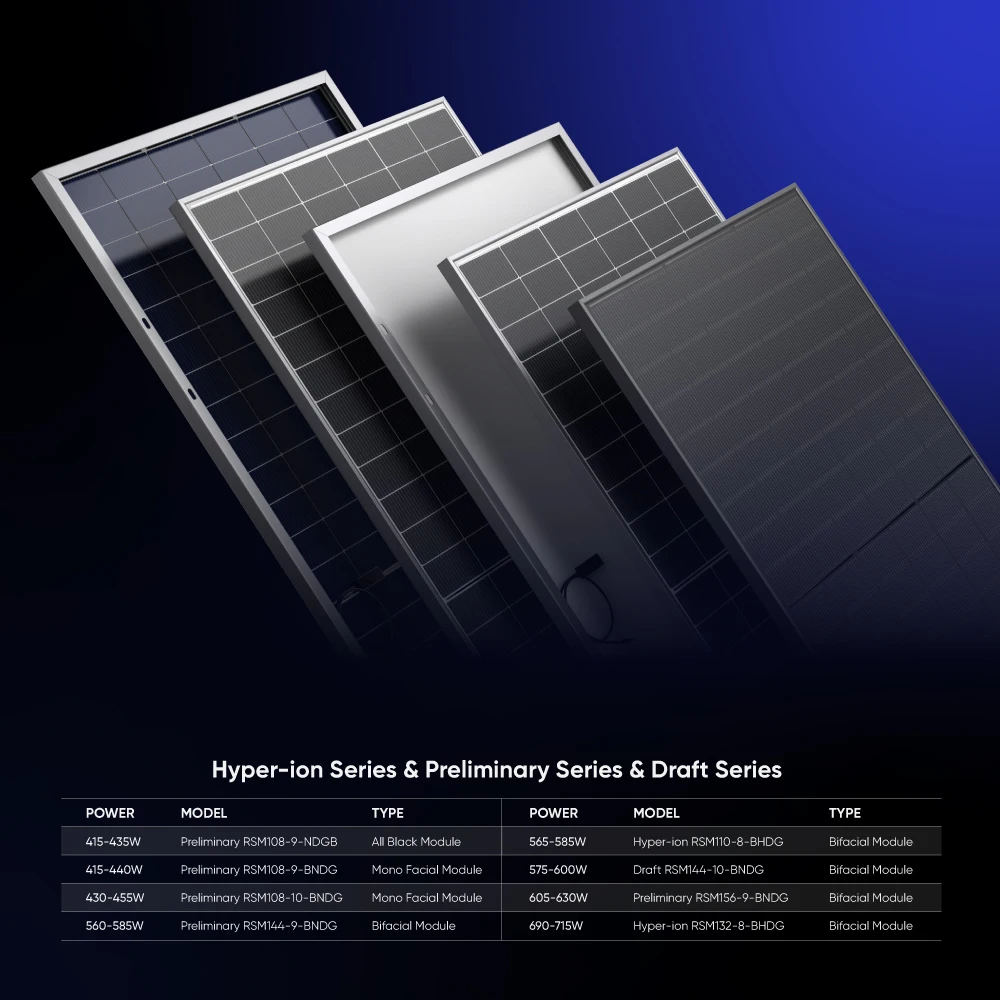

Products Series
690~715W Bifacial
Hyper-ion RSM132-8-690-715BHDG
Cells Layout: 132 Half Cells(6x22)Dimensions: 2384×1303×33mm
Weight: 37.5kg
Modules per box: 33pcs
Modules per 40' container: 594pcs
605~630W Bifacial
RSM156-9-605-630BNDG
Cells Layout: 156 Half Cells(6x26)
Dimensions: 2465×1134×30mm
Weight: 33.5kg
Modules per box: 36pcs
Modules per 40' container: 576pcs
Dimensions: 2465×1134×30mm
Weight: 33.5kg
Modules per box: 36pcs
Modules per 40' container: 576pcs
575~600W Bifacial
RSM144-10-575BNDG-600BNDG
Cells Layout: 144 Half Cells(6x24)
Dimensions: 2384×1134×30mm
Weight: 33.5kg
Modules per box: 36pcs
Modules per 40' container: 720pcs
Dimensions: 2384×1134×30mm
Weight: 33.5kg
Modules per box: 36pcs
Modules per 40' container: 720pcs

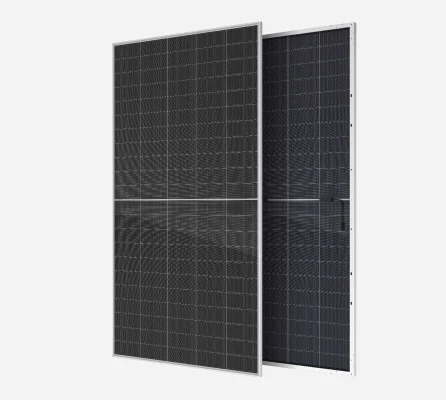

560~585W Bifacial
RSM144-9-560-585BNDG
Cells Layout: 144 Half Cells(6x24)
Dimensions: 2278×1134×30mm
Weight: 31kg
Modules per box: 36pcs
Modules per 40' container: 720pcs
Dimensions: 2278×1134×30mm
Weight: 31kg
Modules per box: 36pcs
Modules per 40' container: 720pcs

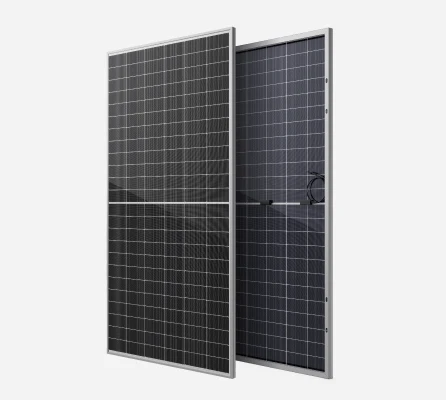

565~585W Bifacial
Hyper-ion RSM110-8-565-585BHDG
Cells Layout: 110 Half Cells(5x22)
Dimensions: 2384×1096×30mm
Weight: 33kg
Modules per box: 35pcs
Modules per 40' container: 700pcs
Dimensions: 2384×1096×30mm
Weight: 33kg
Modules per box: 35pcs
Modules per 40' container: 700pcs
RSM108-10-430-455BNDG
Cells Layout: 108 Half Cells(6x18)
Dimensions: 1800×1134×30mm
Weight: 22kg
Modules per box: 36pcs
Modules per 40' container: 936pcs
Dimensions: 1800×1134×30mm
Weight: 22kg
Modules per box: 36pcs
Modules per 40' container: 936pcs
RSM108-9-415-440BNDG
Cells Layout: 108 Half Cells(6x18)
Dimensions: 1722×1134×30mm
Weight: 20.5kg
Modules per box: 36pcs
Modules per 40' container: 936pcs
Dimensions: 1722×1134×30mm
Weight: 20.5kg
Modules per box: 36pcs
Modules per 40' container: 936pcs
RSM108-9-415-435NDGB
Cells Layout: 108 Half Cells(6x18)
Dimensions: 1722×1134×30mm
Weight: 20.5kg
Modules per box: 36pcs
Modules per 40' container: 936pcs
Dimensions: 1722×1134×30mm
Weight: 20.5kg
Modules per box: 36pcs
Modules per 40' container: 936pcs

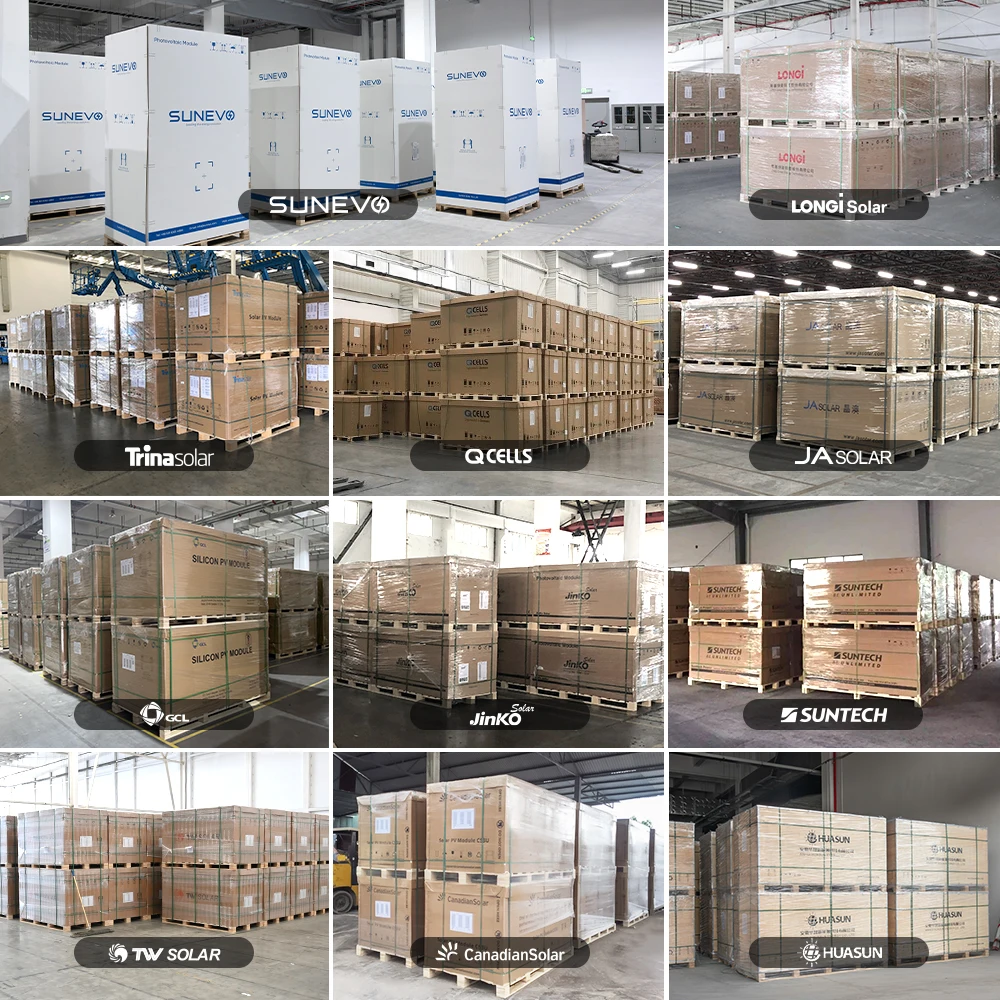

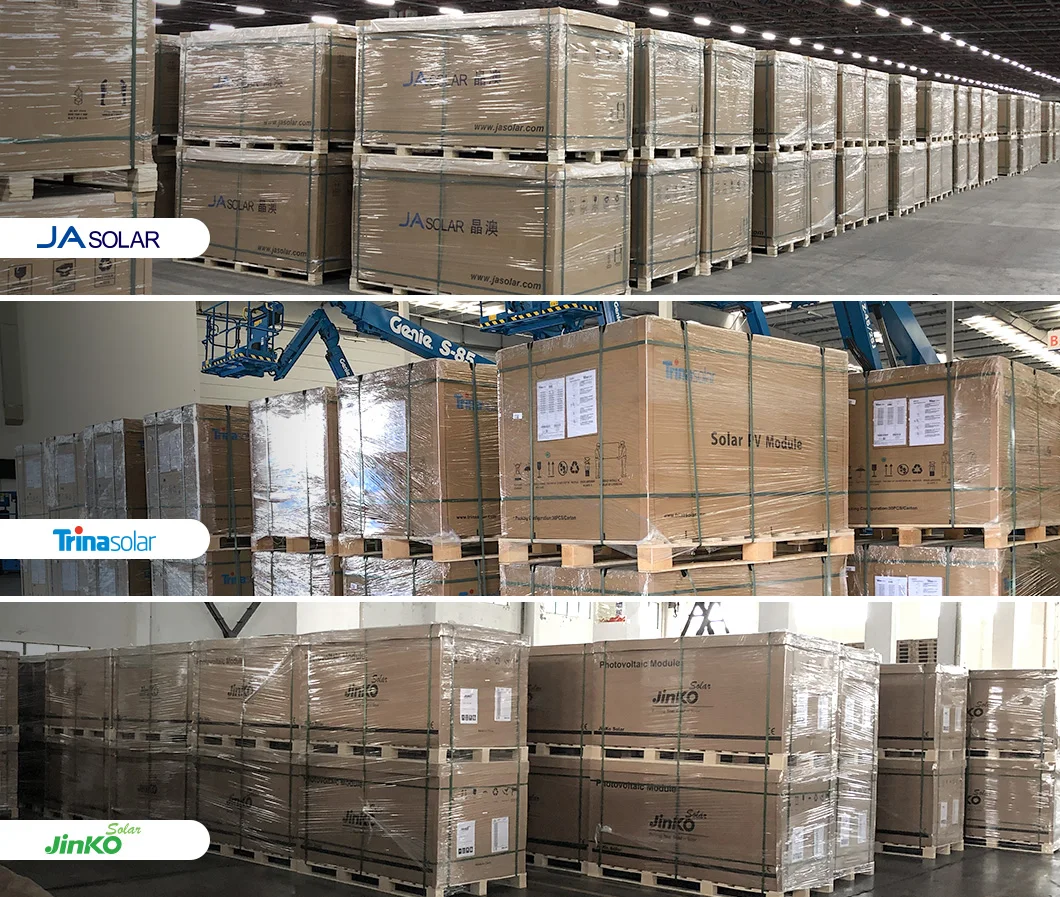

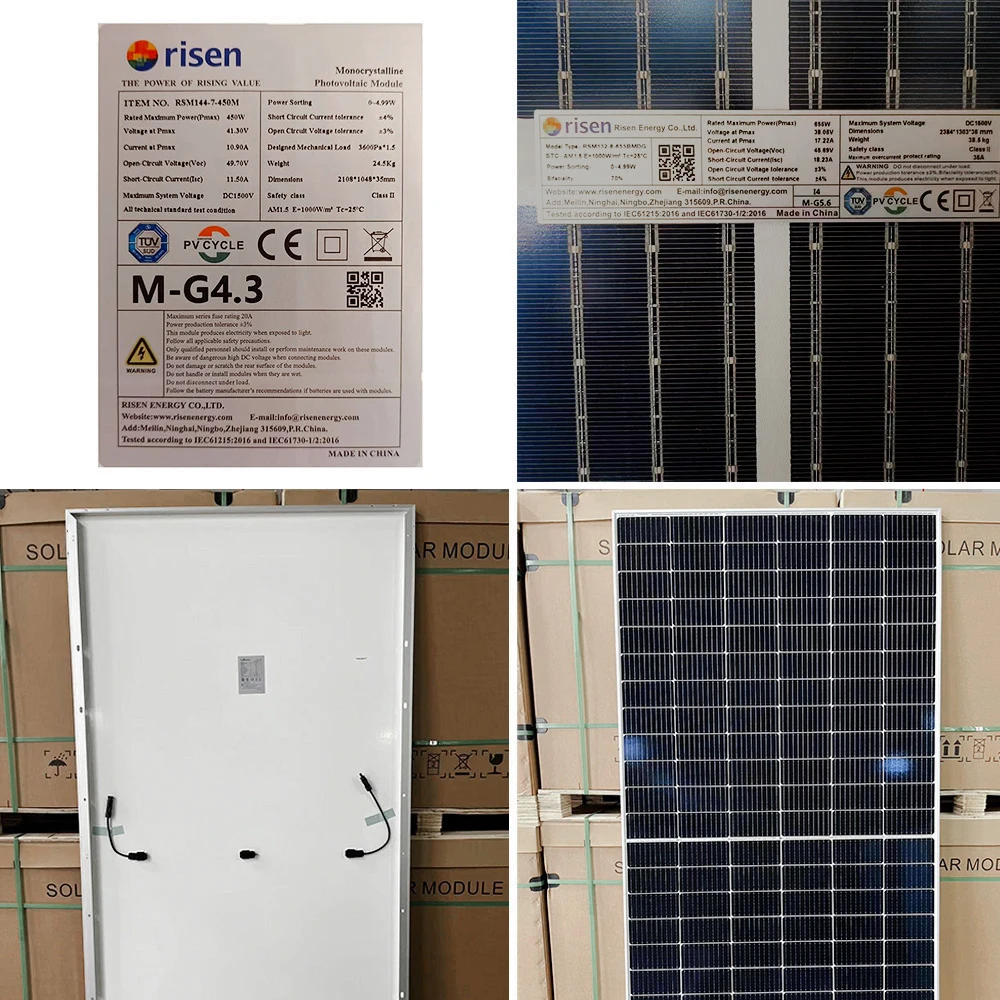

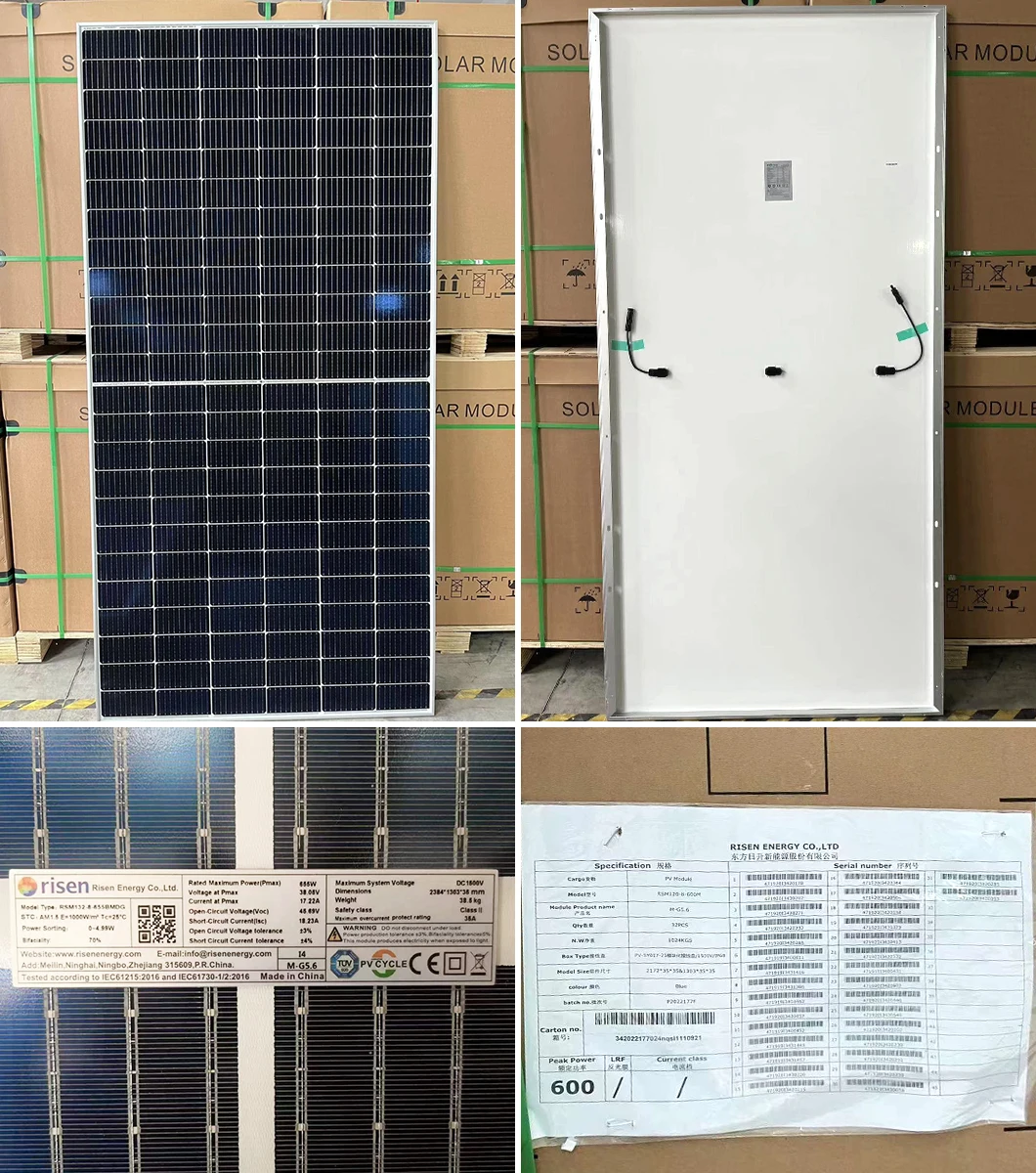

Pictures and Packages
