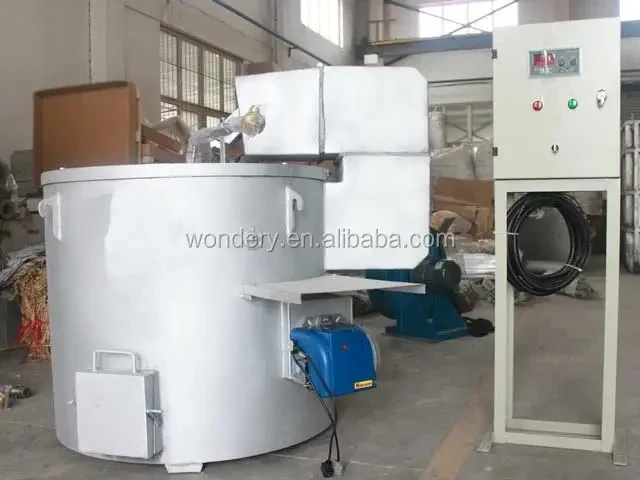

Wondery Fixed/Titing 100 1500KG Gas LPG Fired Crucible Type Copper Melting Furnace
- Category: >>>
- Supplier: Wuxi Wondery Industry Equipment Co. Ltd.
Share on (1601033830475):
Product Overview
Description
Factory Price Fixed 100-1500KG Gas LPG Fired Crucible Type Copper Melting Furnace For Copper Scrap Recycling
Product Application
Hot Sale Oil Gas Fired Tilting Type Copper Melting Furnace is used to melt copper scrap at a rated temperature of 1250°C
copper melting furnace copper melting furnace copper melting furnace copper melting furnace copper melting furnace
SPECIFICATIONS FOR Factory Price Fixed 100-1500KG Gas LPG Fired Crucible Type Copper Melting Furnace For Copper Scrap Recycling | ||||||
Fuel | natural gas | Kcal/m3 | 8600 | |||
Consumption | m3/ton copper | 65 | ||||
Main Performance Parameters | Crucible capacity | kg | 1000 (can be customized) | |||
Melting rate | kg/hour | 500 (at continous working status) | ||||
Working temperature | °C | 1250 | ||||
Crucible brand | Vesuvius or Morgan | |||||
Hydraulic system | Components brand | Domestic brand | ||||
The burning system
Brand: Riello Burner;
Function: The burning system employs European Riello burner, which has functions of temperature control, automatic ignition, flame detection, and automatic start-up or shut-off of the burner based on the temperature upper limit and lower limit.
Furnace lining
Brand: Allied Mineral Porduct Inc or famous domestic brand
Original: USA or China
The casting material has a long service life. It has a life of more than 3 years depending on user's operation conditions.
Emergency outlet hole
The furnace body is designed with an emergency outlet hole in case the crucible breaks.
Graphite crucible
The graphite crucible is of quality brand Vesuvius or Morgan.
The capacity of crucible can be customized.
Electrical control system
The electrical control system is of quality brands such as CHINT, Omron, Delixi, etc.
Crucible Specification | Maximum Melting Rate (Kg/h) | |||||
Inner Diameter (mm) | Height (mm) | Capacity (kg) | ||||
WDL-RCO-300 | 455 | 500 | 300 | 200 | ||
WDL-RCO-500 | 455 | 600 | 500 | 350 | ||
WDL-RCO-800 | 615 | 700 | 800 | 600 | ||
WDL-RCO-1000 | 620 | 800 | 1000 | 700 | ||
WUXI WONDERY TRADING CO., LTD. is a professional supplier of industrial furnaces. Currently the company mainly supplies the industrial furnaces for heat treatment industry, motor industry, fastener industry, die casting industry, gravity casting industry, steel wire manufacturing industry, etc. Our main products are: aluminum melting furnace, copper melting furnace, zinc melting furnace, crucible melting furnace, rotary melting furnace, melting tower, reverberatory melting furnace, ladle preheater, lader baker, ingot molds,heat treatment furnace, pit type carburizing furnace, pit type nitriding furnace, box type resistance furnace, bogie hearth furnace, salt bath furnace, mesh belt furnace, etc. Established in year 2008, the company has gained rich experiences in development and design, quality control, and after-sales service. The company aims to serve every customer with quality products and excellent service. The company provides thoughtful services like technical consultation, installation and test-running, technical training, and maintenance. Our company is also able to design non-standard products as per customers' requests. We have exported our machines and equipment to the following countries and areas: Taiwan (CHINA), Vietnam, Thailand, Pakistan, India, Venezuela, Bolivia, Mexico, Argentina, Columbia, Australia, USA, Kenya, Ethiopia, Qatar, Egypt, etc. We are capable of providing thoughtful solutions for every individual customer based on their specific requirements, making sure that every potential customer is satisfied with our work.
1. What is the power supply of the industrial furnace?
The power supply of industrial furnace is to be decided by the customer's side. We are able to adjust the power supply (volt, and phase) through a transformer or of the customer's voltage directly so that the industrial furnace is ready for use at the end user's site.
2. What information should the customer provide to get an accurate quotation from us?
The customer should provide the related technical requirements, drawings, pictures, industrial voltage, planned output, etc.
3. What is the payment term?
The payment term is 40% down payment, and 60% before delivery (T/T mode).
4. What is the delivery time?
The delivery time of the machine is 15-30 days after receipt of down payment.
