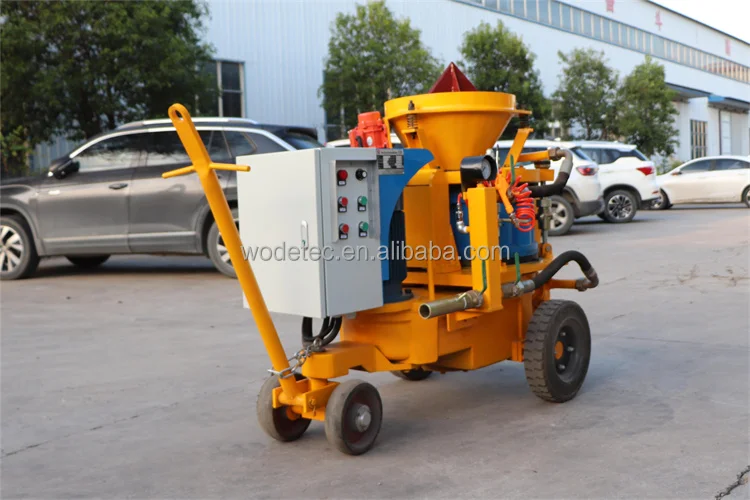

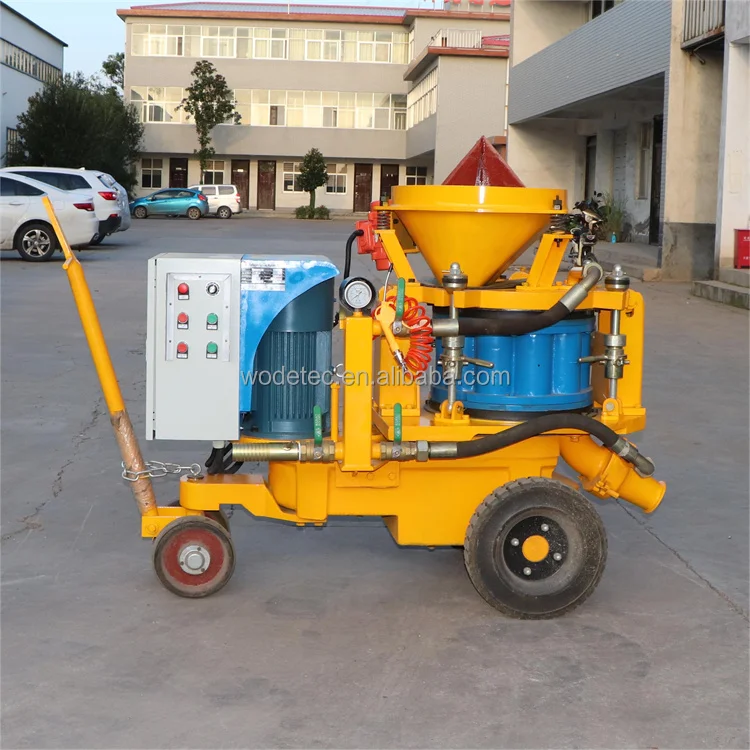

CE construction dry mix 9m3/h large capacity electric motor driven refractory shotcrete machine
- Category: >>>
- Supplier: Zhengzhou Wode Heavy Industry Co. Ltd.
Share on (1601033838237):
Product Overview
Description
Product Description

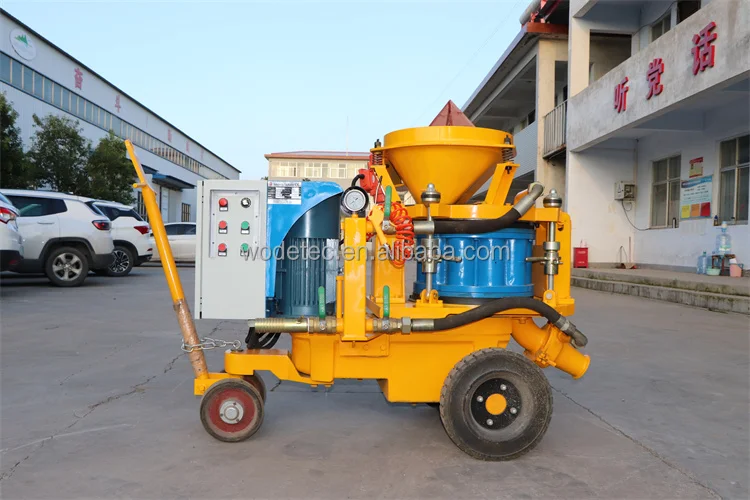

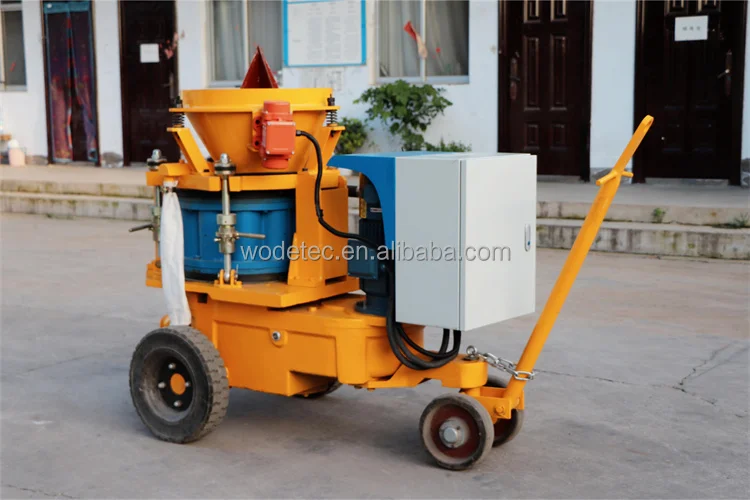

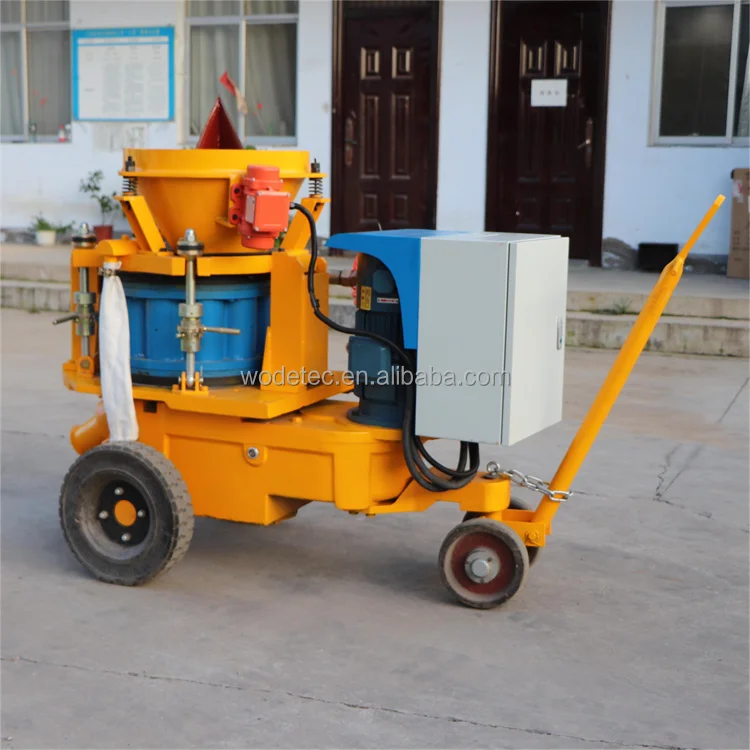

WZ-9ER electric refractory gunning machine is specifically designed for refractory dry-mix shotcrete applications, mainly used in spraying refractory materials for lining kilns, boilers, furnaces, steel plant, cement factory, degasser lining etc. WZ-9ER refractory dry mix shotcrete machine output is 9m3/h, Max. aggregate size is 20mm. With this WZ-9ER, you can get low dust and high performance spraying flow in nozzle.
Product Specification
Model | WZ-9ER |
Output Capacity | 3-9m3/h(6-18Ton/h) |
Drive type | electric |
Max. Horizontal Conveying Distance | 100m |
Max. Aggregate Size | Φ20 mm |
Conveying Hose Inner Diameter | 64mm |
Operating Air Pressure | 0.2-0.4MPa(29-58PSI) |
Air Consumption | 10~12m3/min |
Material Charging Height | 1.2m |
Rotor Speed | 0-11r/min |

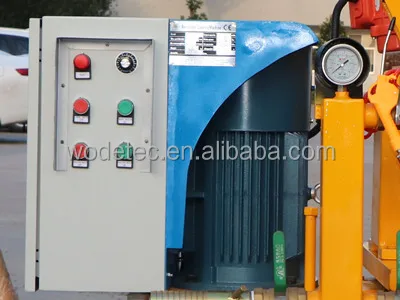

Motor Power | 7.5kW |
Voltage | 3 phase,380V,50Hz |
Overall Dimension(L×W×H) | 1650x900x1300mm |
Weight | 900kg |

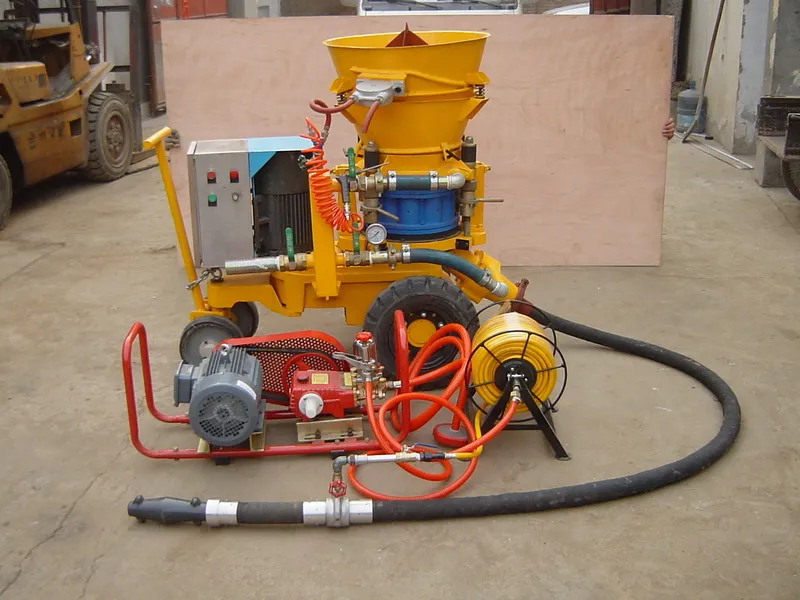

Product Feature:
1. Variable output with variable-frequency drive

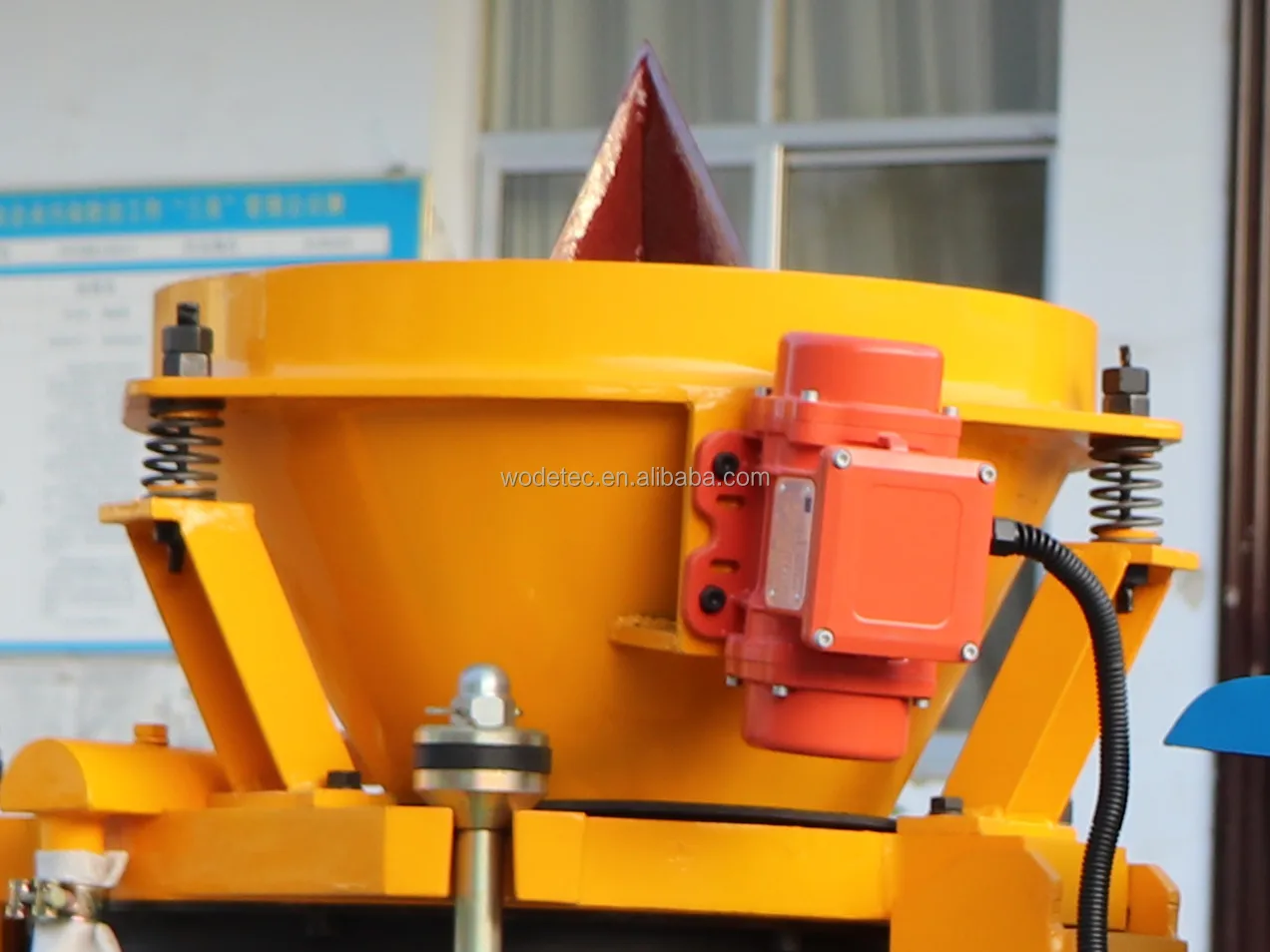

2. High hopper with vibrator
3. Collecting dust bag
4. Cleaning dust gun
5. Electric vibrator
6. Protect frame
7. Heavy-duty solid wheels

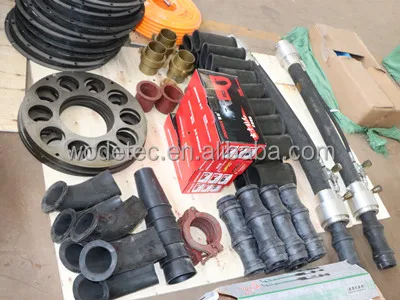

8. Coupling and clamp
9. Light weight pre-dampening nozzle
10. Blast rubber hose

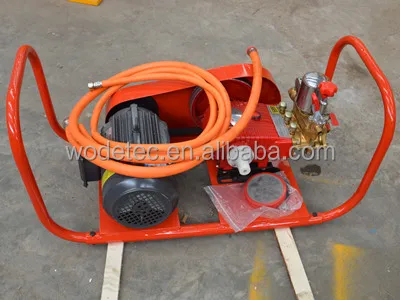

11. High pressure water pump
2. High hopper with vibrator
3. Collecting dust bag
4. Cleaning dust gun
5. Electric vibrator
6. Protect frame
7. Heavy-duty solid wheels
8. Coupling and clamp
9. Light weight pre-dampening nozzle
10. Blast rubber hose
11. High pressure water pump
Product Detail
Related Product

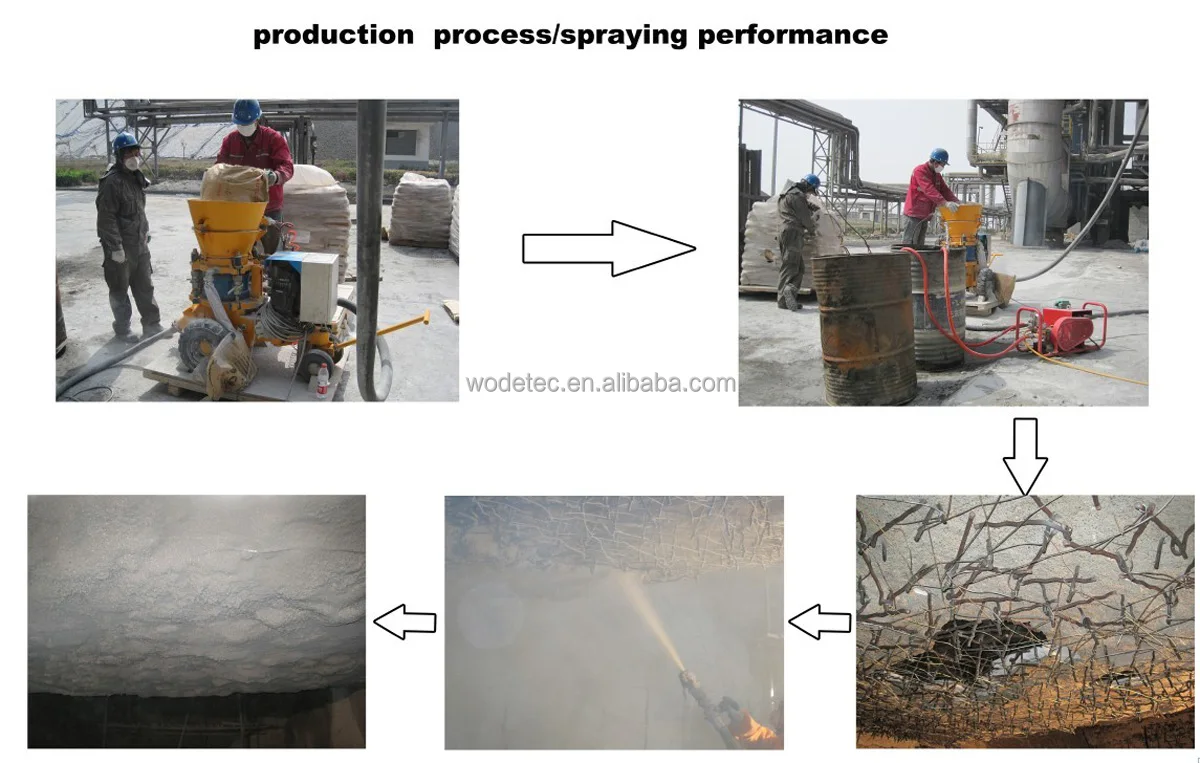

Product Application

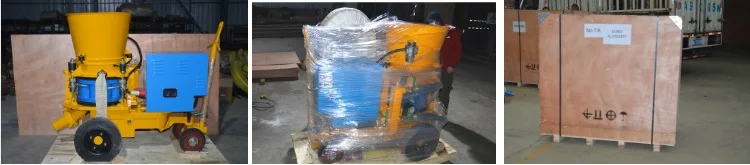

Packaging&Shipping
Contcat Us
Zhengzhou Wode Heavy Industry Co., Ltd. (short:"Wodetec") owns the advanced imported production equipment and complete production technology. Wodetec is a manufacturer specialized in R&D and sale of refractory shotcrete machine.We can customize according to your requirements, just tell us the application of the product or the parameter information you need. WODETEC have reached intern national standards. Based on continuous technological innovation, design capabilities of concrete pumps, hose pumps, grouting pump/station, shotcrete machine, tobotic shotcrete system, refractory mixer and refractory gunning machine, foam concrete machine etc.
