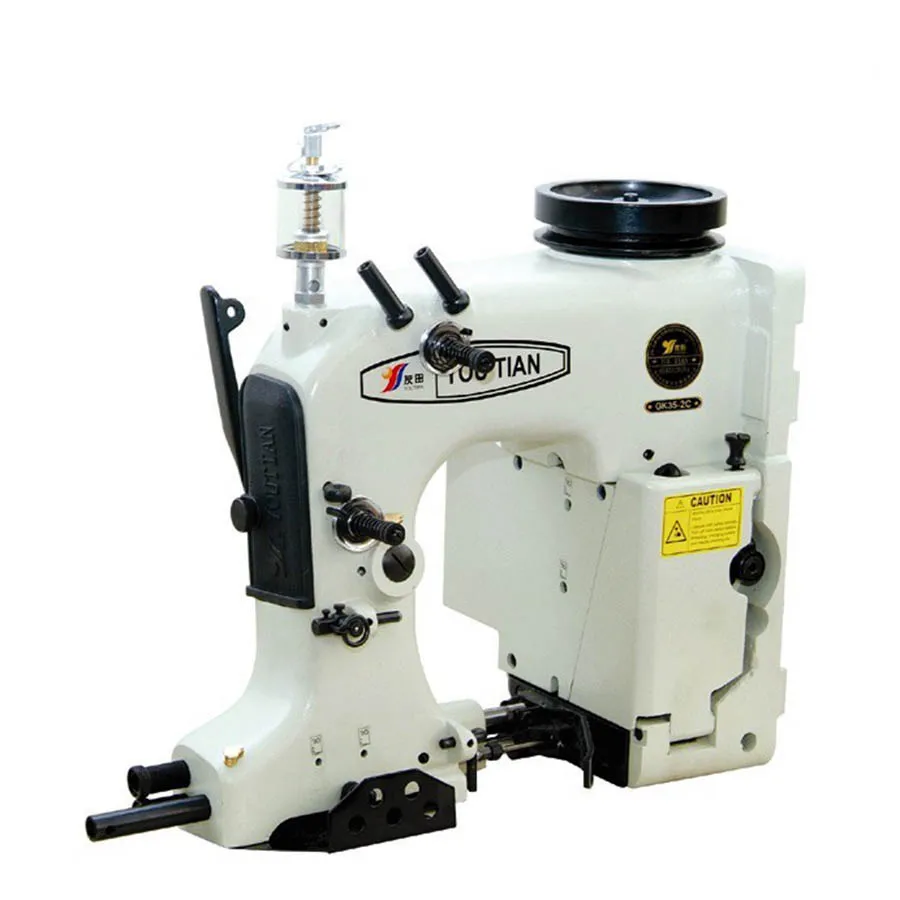

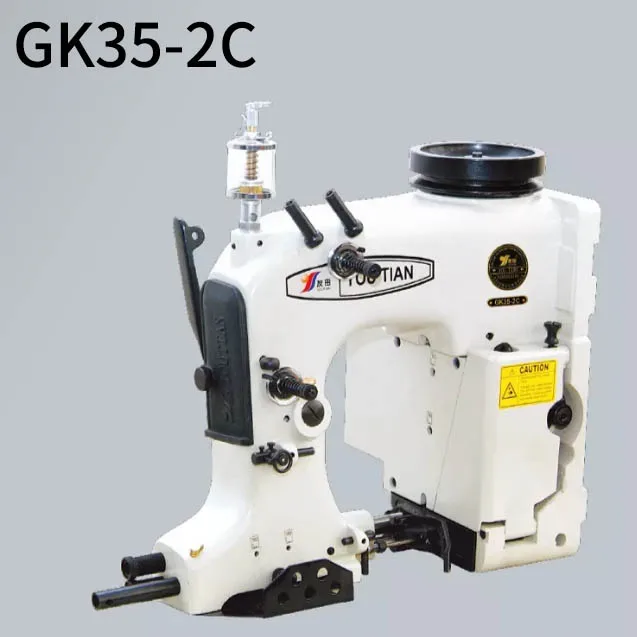

Gk35 2CHot Selling High Speed Double Thread Chain Stitch Bag Sewing Machine head
- Category: >>>
- Supplier: Shijiazhuang Sanli Grain Sorting Machinery Co. Ltd.
Share on (1601033865102):
Product Overview
Description
Product Description
It is suitable for chemical factories, grain processing factories, warehouses, ports and other enterprises with higher automation requirements to realize automatic wrapping of woven bags, paper bags, cloth bags filled with materials.
Product features.
* For Closing Bags Made Of Plastic, Jute,Cloth and Paper.
* Multinomial Improvement In Design.
* Adjust Pressure By Means Of Presser Bar Spring.
* Mechanical Thread Chain Cutter.
* Finest Quality In Sewing and Operating.
* Multinomial Improvement In Design.
* Adjust Pressure By Means Of Presser Bar Spring.
* Mechanical Thread Chain Cutter.
* Finest Quality In Sewing and Operating.

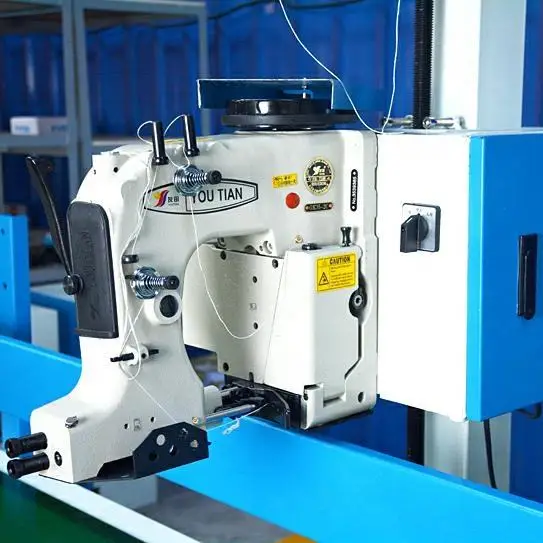

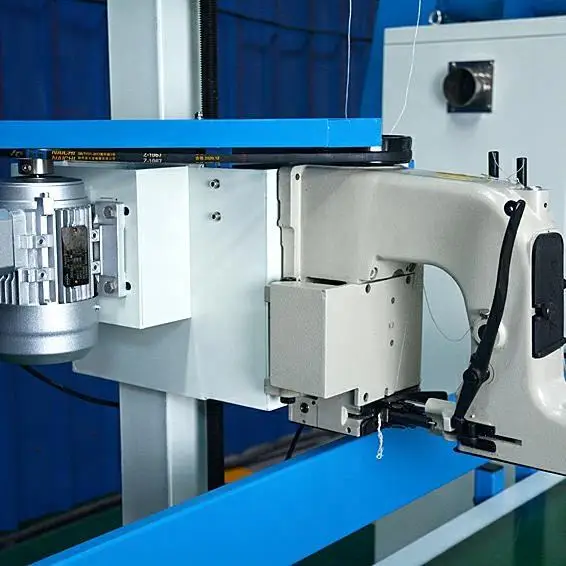

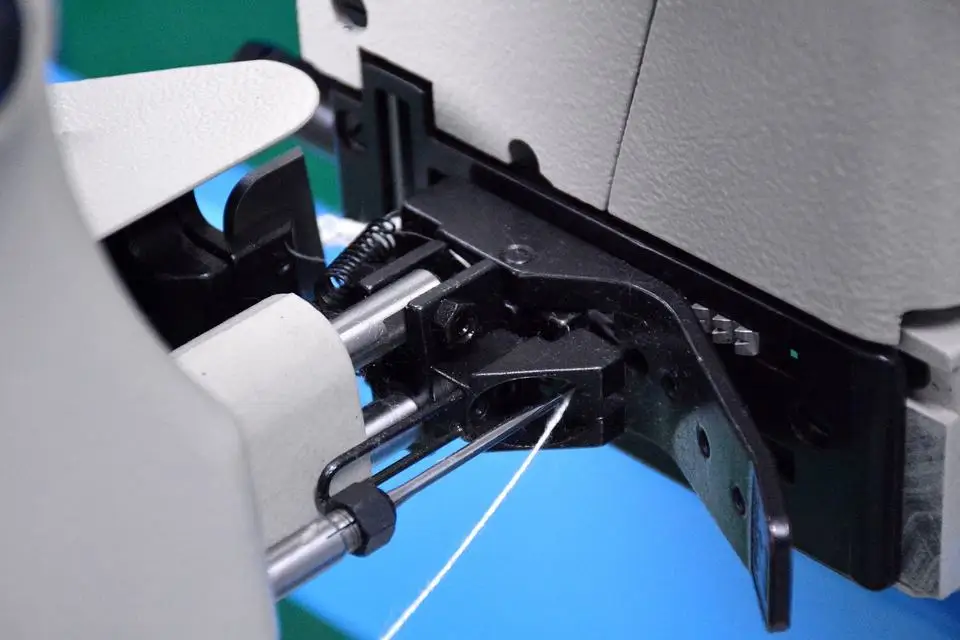

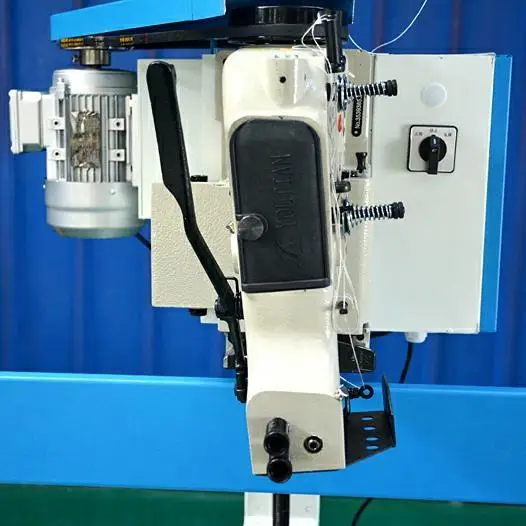

Product display
Product Paramenters
Model | GK35-2C | GK35-6 | |
Max. Speed | 1900 Rpm | 2000 Rpm | |
Working Speed | 1700 Rpm | 1800 Rpm | |
Thickness of material | 8 mm | ||
Range of Stitch width | 6.5-11 mm | ||

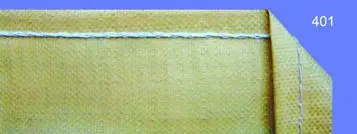

Stitch type | Double thread chain stitch (401) | ||
Thread type | Synthetic Fiber Thread | 20S/5,20S/3Synthetic Fiber | |
Needle | Model 80800 200-250# | ||
Pulley | ø 114 mm | ||
Thread chain Cutter | Manual | Electro-pneumatic | |
Motor | Common Motor | Brake Motor | |
Power | 370 w | ||
Weight | 27 Kg | 28 Kg | |
Size | 350×215×440 mm | 350×240×440 mm | |
Model difference
Model | 2C | 6 | 6A | 8 | 8A | |||
Start-stop mode | Pedal switch | Pedal switch | Light-controlled switch | Pedal switch | Light-controlled switch | |||
Thread chain Cutter | Manual | Electro-pneumatic | ||||||
Stitch type | Single needle, double thread | Double needle, four thread | ||||||

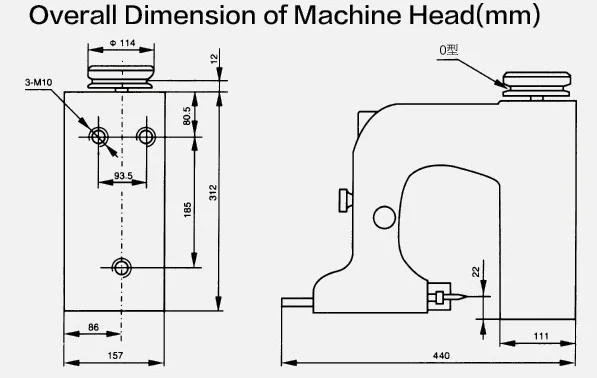

Diagrammatic sketch
Optional accessibility
Related Products
FAQ
Q1. How can I choose the suitable one?
Please tell us your detailed requirements by mail or online, we will recommend the suitable one as your request.
Q2.How can I pay?
We accept many payment term, such as T/T, Western Union…
Q3.When I receive it after pay?
Normal models can be delivered with 5-7days, please contact us to check transport time to your address.
Q4.What should I do if I do not know how to use?
Manual user will be sent together, you can also contact us with more technological support.
Q5.What should I do if some parts broken?
We do standard export package and 1 year warranty except wear parts.
Q2.How can I pay?
We accept many payment term, such as T/T, Western Union…
Q3.When I receive it after pay?
Normal models can be delivered with 5-7days, please contact us to check transport time to your address.
Q4.What should I do if I do not know how to use?
Manual user will be sent together, you can also contact us with more technological support.
Q5.What should I do if some parts broken?
We do standard export package and 1 year warranty except wear parts.
