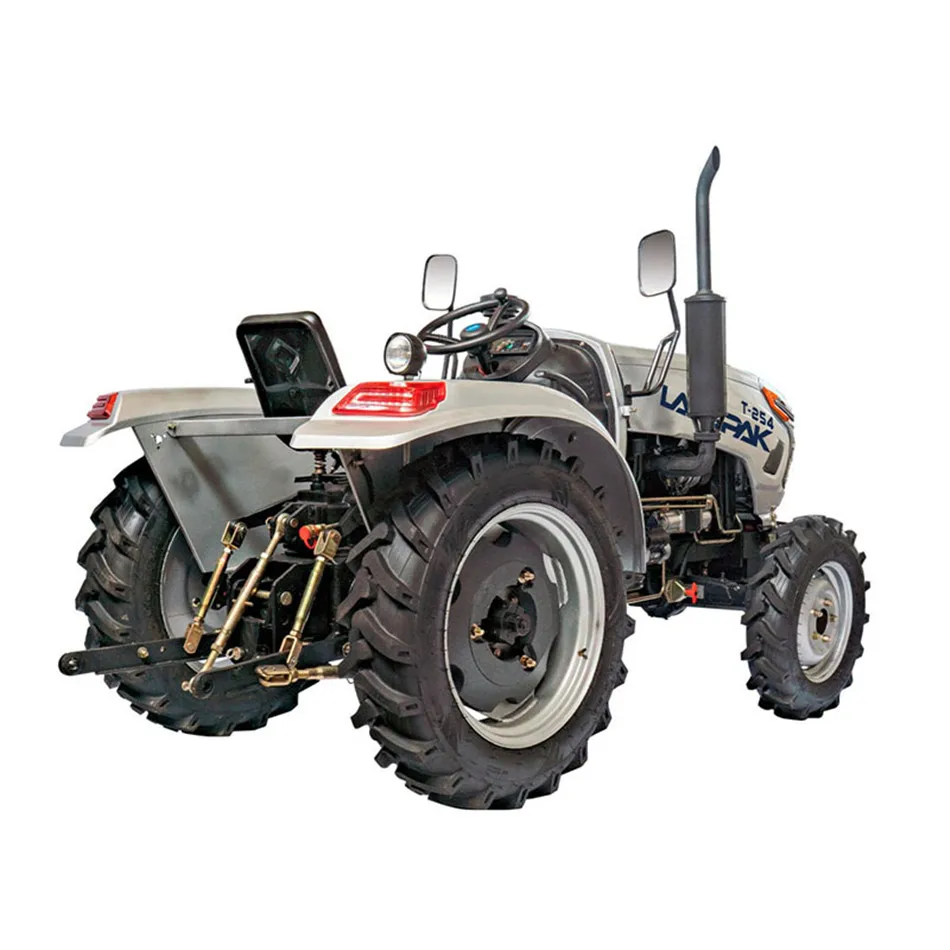

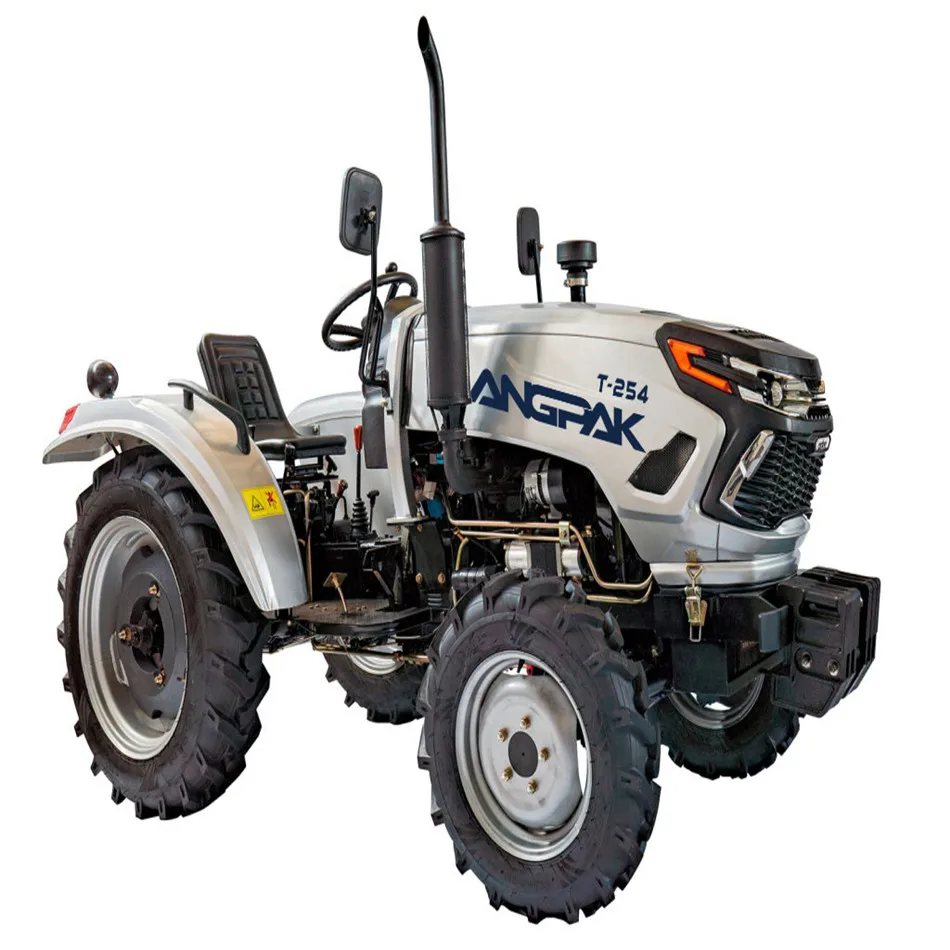

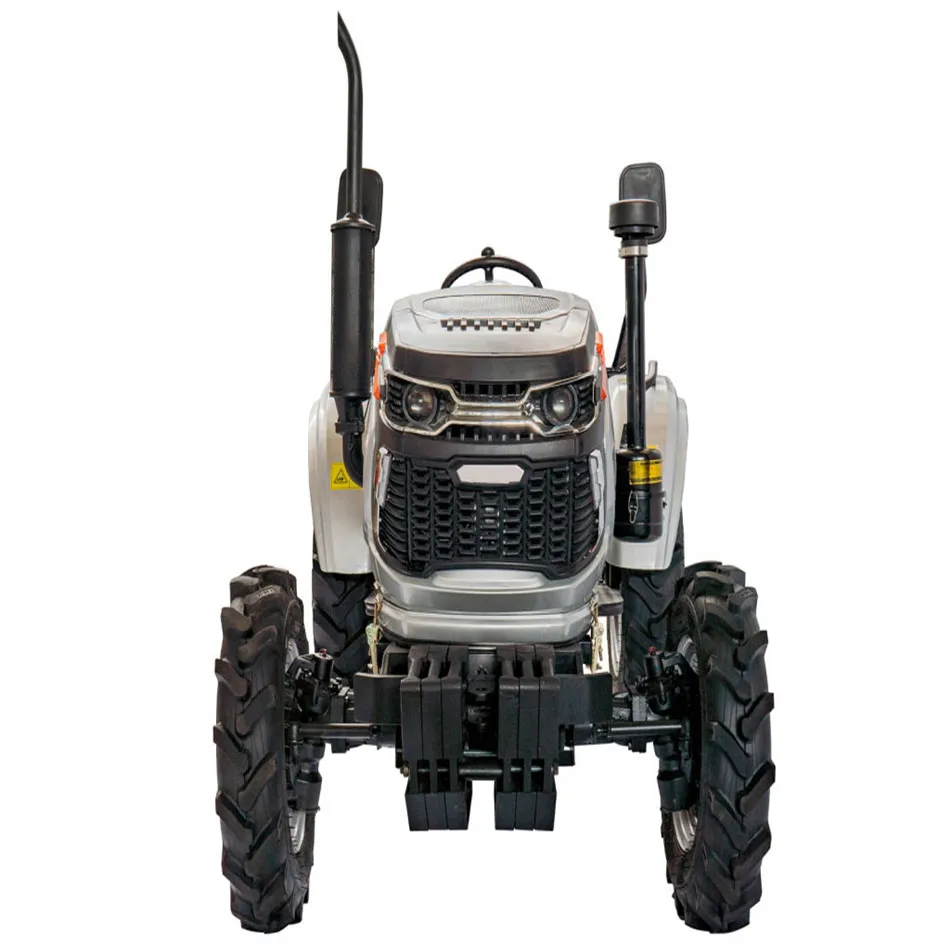

High Quality 24HP/25HP 4X4 Mini Agriculture Tractor
- Category: >>>
- Supplier: Weifang Langpak International Co. Ltd.
Share on (1601033867516):
Product Overview
Description

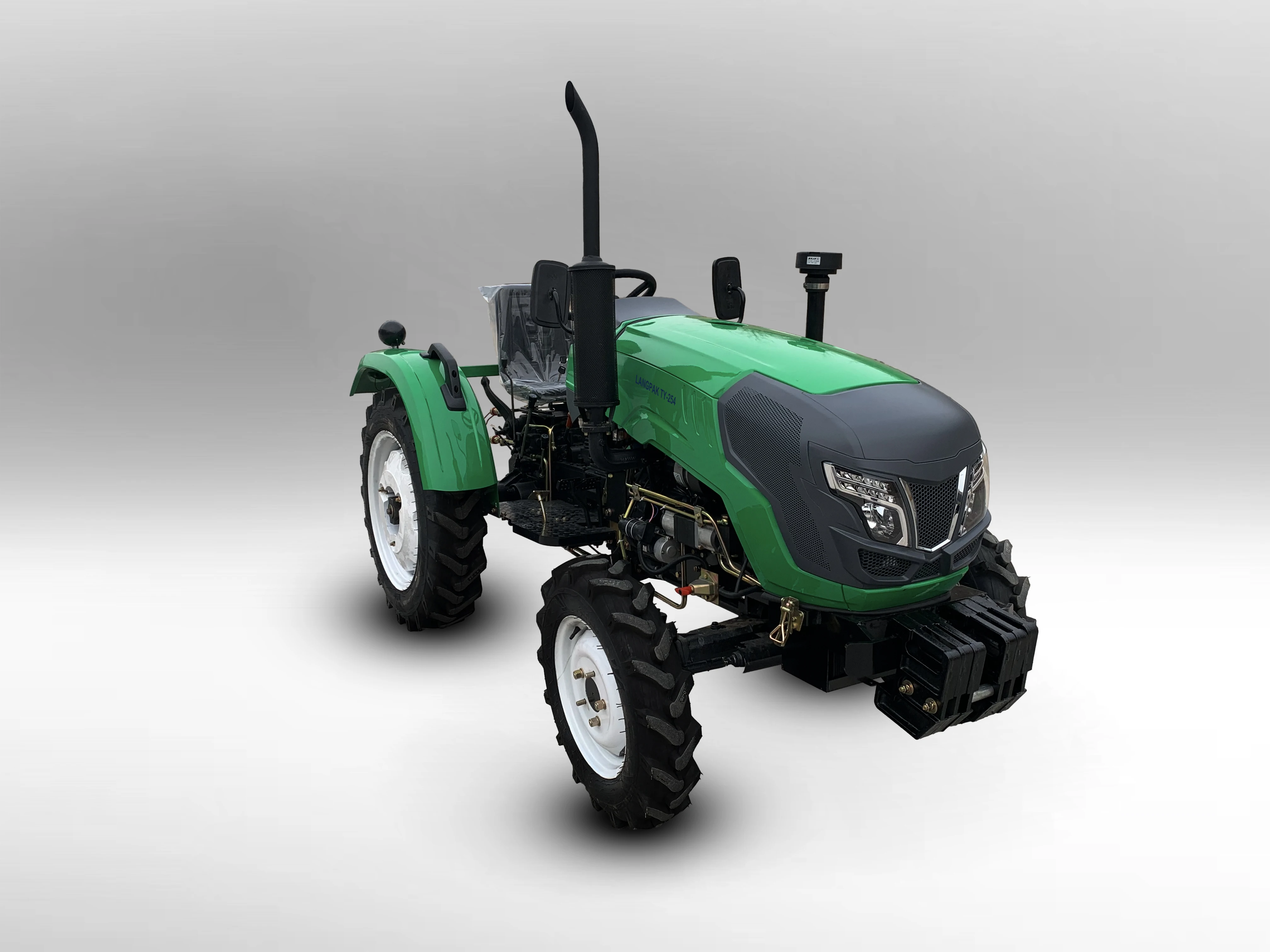

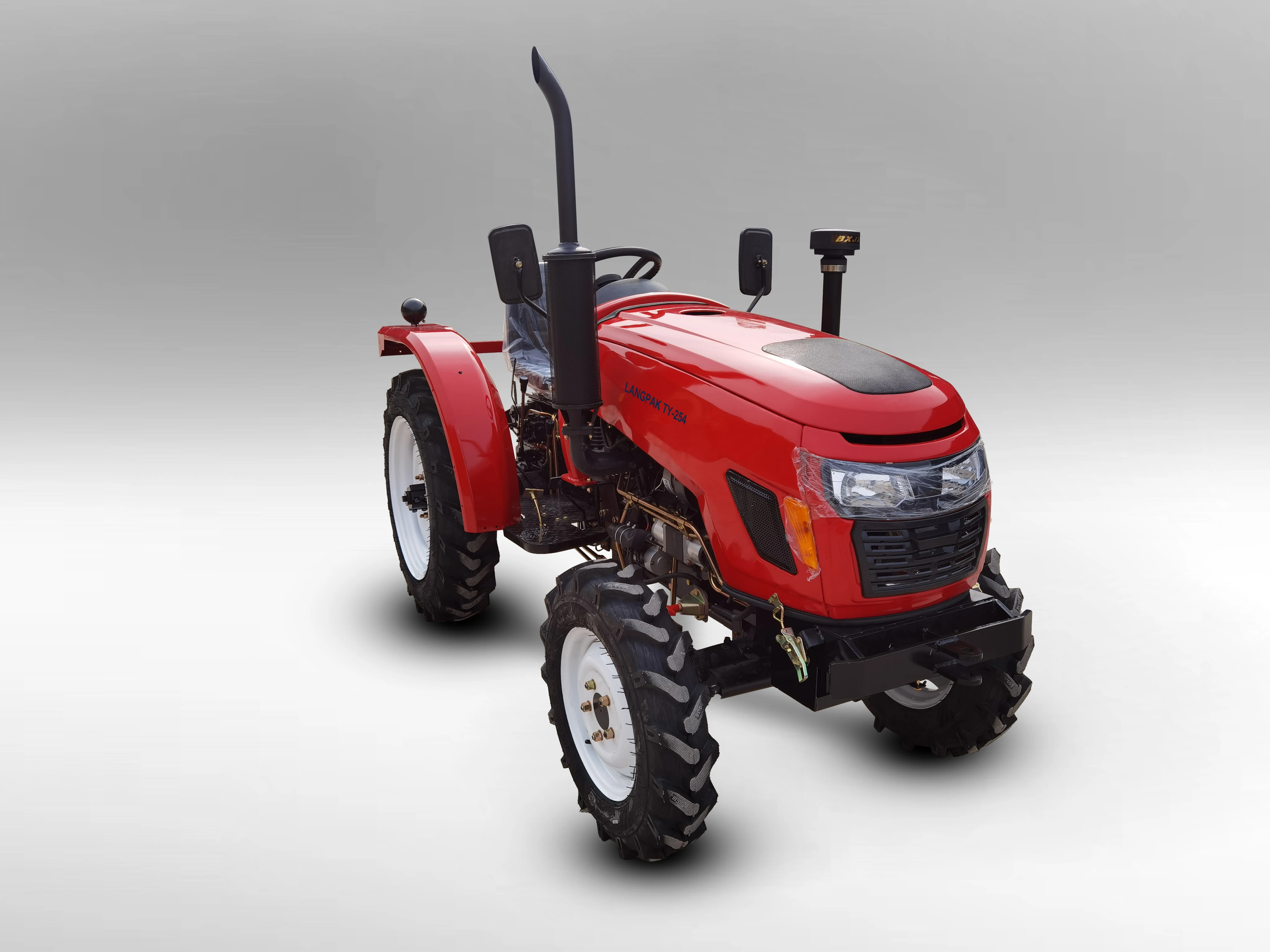

CHOICE OF DIFFERENT HOODS
PRODUCT SPECIFICATION

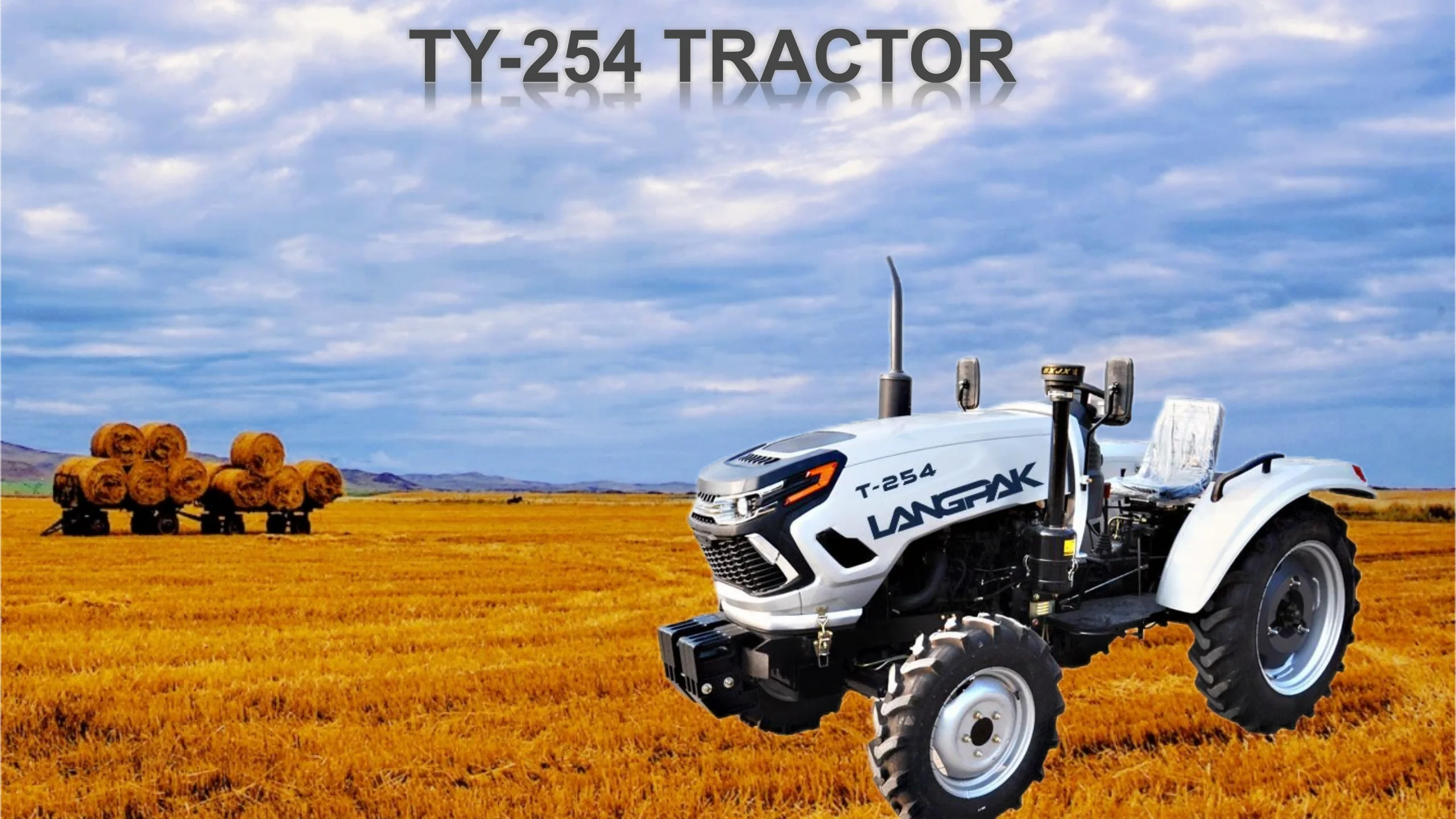

Model | TY-254 |
Power & Type | 25HP.4x4 |
Model | KM385BT |
BorexStroke(mm) | 85x90 |
Cooling System | Vertical, Water-Cooled,Four Strokes,Direct in Injection |
Air Intake Type | Naturally Aspirated |
Rated Output(kW) | 18.4 |
Starting System | Electrical Starting |
Size L·W·H (mm) | 3000x1450x1900 |
Wheel Base (mm) | 1670 |
Wheel Tread (mm)F/R | F:1000/1200/1300R:1100/1200/130 |
Min Ground Clearance(mm) | 280 |
Structure Weight(kg) | 1300 |
No. of Gear | (4F+1R)x2 |
Differential Type | Closed Planetary Gear |
Differential Lock | Tooth Inlayed Type |
Clutch Type | Dry, Single- stage |
Tyre F/R | 6.00-16/9.5-24 |
Steering | Hydraulic Steering |

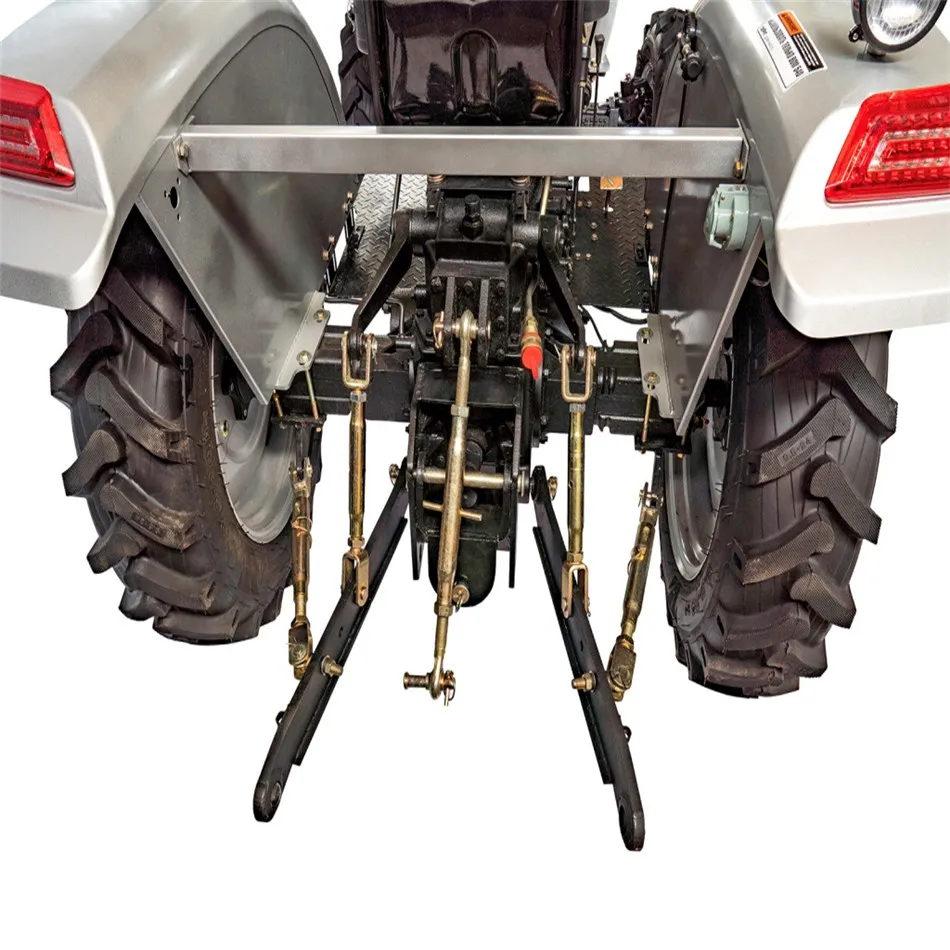

Hitch System | 3-Point hydraulic hitch,cat1 |
Hydraulic Pump | Gear Pump |
PTO | Rear Rectangle Spline, 6 Teeth |
Main technical features>>>>
Dynamic configuration
1. Multi-purpose small and middle agricultural wheeled tractor, adopt vertical energy-saving diesel engines as power respectively;
2. Direct gear transmission between the engine and the transmission system;
3. It has the characteristics of compact structure, small volume, reasonable power, various functions, convenient operation, reliable performance, environmental protection and so on. It is an ideal tractor for agriculture, horticulture and farm.
Dynamic configuration
1. Multi-purpose small and middle agricultural wheeled tractor, adopt vertical energy-saving diesel engines as power respectively;
2. Direct gear transmission between the engine and the transmission system;
3. It has the characteristics of compact structure, small volume, reasonable power, various functions, convenient operation, reliable performance, environmental protection and so on. It is an ideal tractor for agriculture, horticulture and farm.
Working efficiency
1. Two stage clutch, 8F + 2R shift, flat platform, easy to operate;
2. Rear three-point suspension, multi way valve, high efficiency of hydraulic system. Equipped with a variety of farm tools;
3. New designed front axle is adopted on 4WD tractor,mid hydraulic cylinder makes the structure easier and more reliable.
Reliability
1. It adopts the reinforced chassis, which is firm and reliable. The shift of the power take-off shaft and the transmission are matched with the shift sleeve, which makes the shift easier;
2. Using Chinese famous brand diesel engine, quality assurance;
3. Humanized design, comfortable operation and convenient maintenance.
Applicability
1. The slurry has superior water sealing performance, which is very suitable for paddy field operation. The hydraulic lifting system is adjusted separately to better adapt to various working requirements;
2. Support agricultural machinery, it can be used for ploughing, rotary tillage, ditching, hoeing, sowing, cultivation, harvesting, crushing, etc.
3. It can be used as a power source for pumping and threshing, suitable for medium and large fields.
1. Two stage clutch, 8F + 2R shift, flat platform, easy to operate;
2. Rear three-point suspension, multi way valve, high efficiency of hydraulic system. Equipped with a variety of farm tools;
3. New designed front axle is adopted on 4WD tractor,mid hydraulic cylinder makes the structure easier and more reliable.
Reliability
1. It adopts the reinforced chassis, which is firm and reliable. The shift of the power take-off shaft and the transmission are matched with the shift sleeve, which makes the shift easier;
2. Using Chinese famous brand diesel engine, quality assurance;
3. Humanized design, comfortable operation and convenient maintenance.
Applicability
1. The slurry has superior water sealing performance, which is very suitable for paddy field operation. The hydraulic lifting system is adjusted separately to better adapt to various working requirements;
2. Support agricultural machinery, it can be used for ploughing, rotary tillage, ditching, hoeing, sowing, cultivation, harvesting, crushing, etc.
3. It can be used as a power source for pumping and threshing, suitable for medium and large fields.
