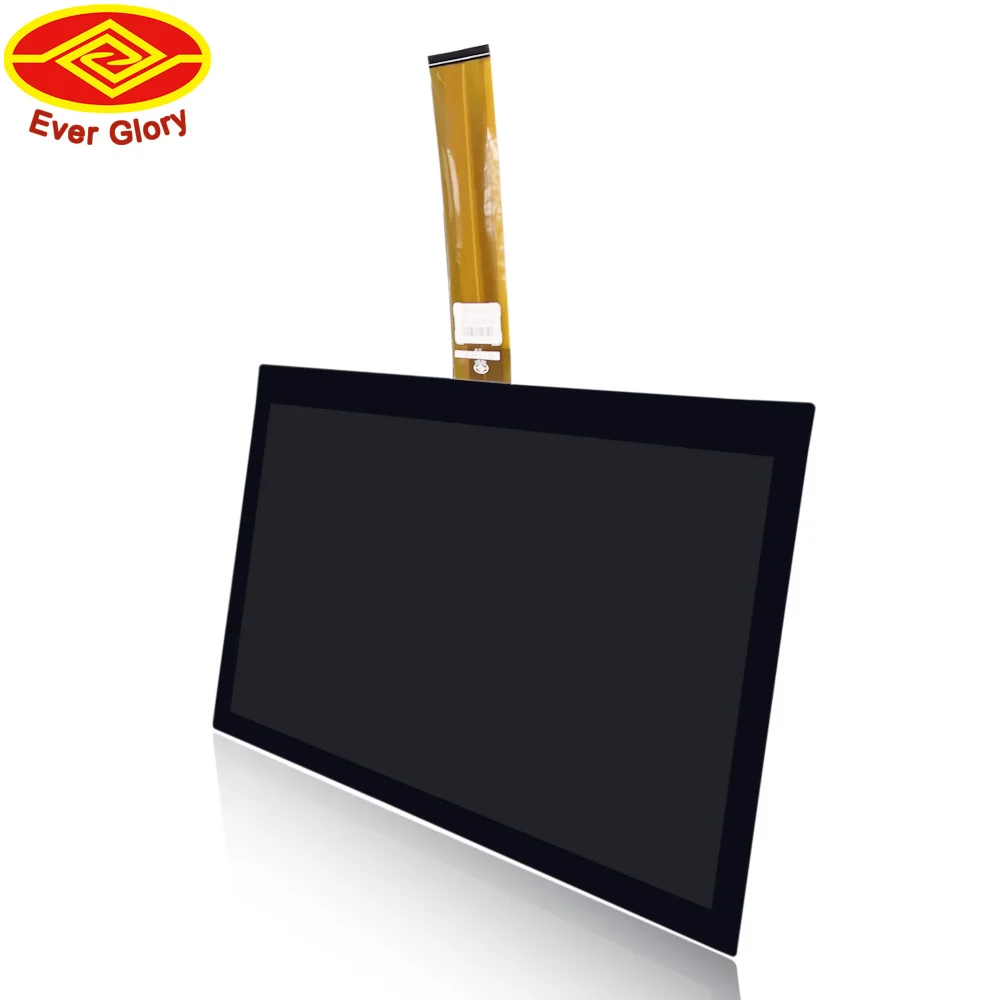

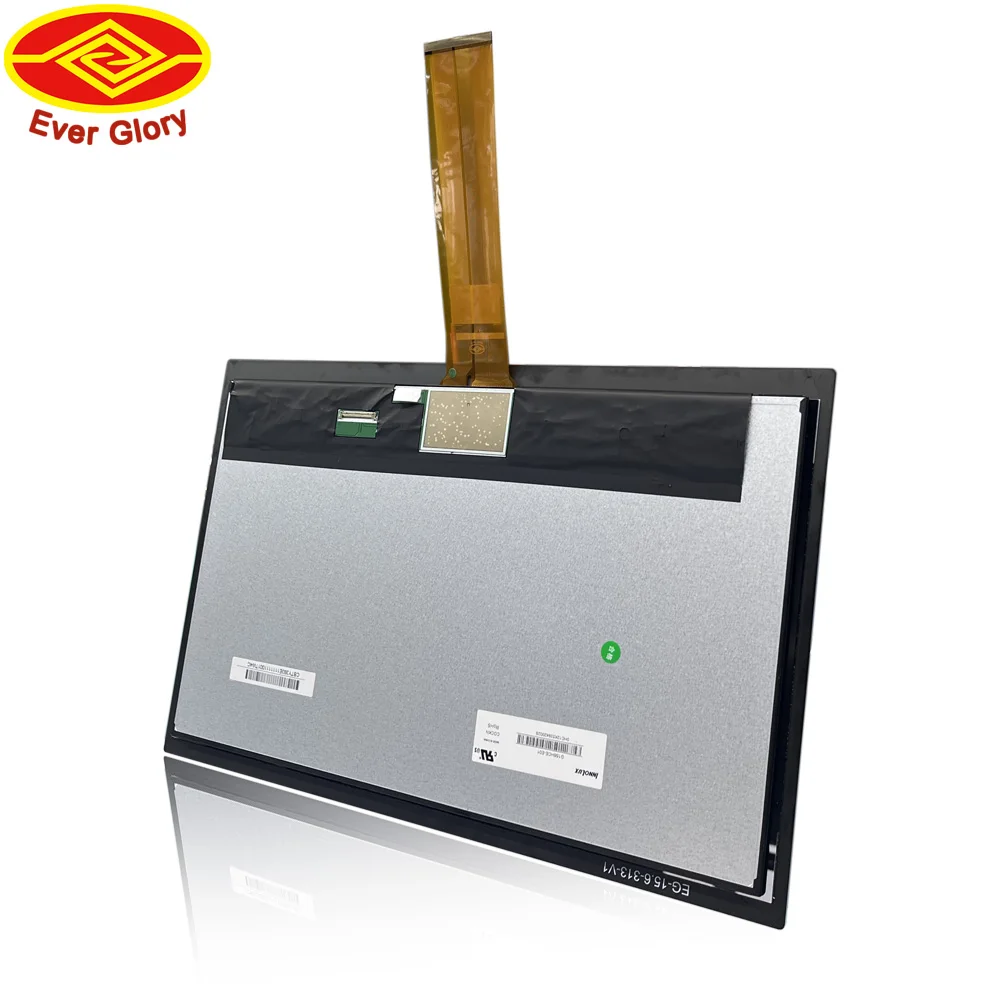

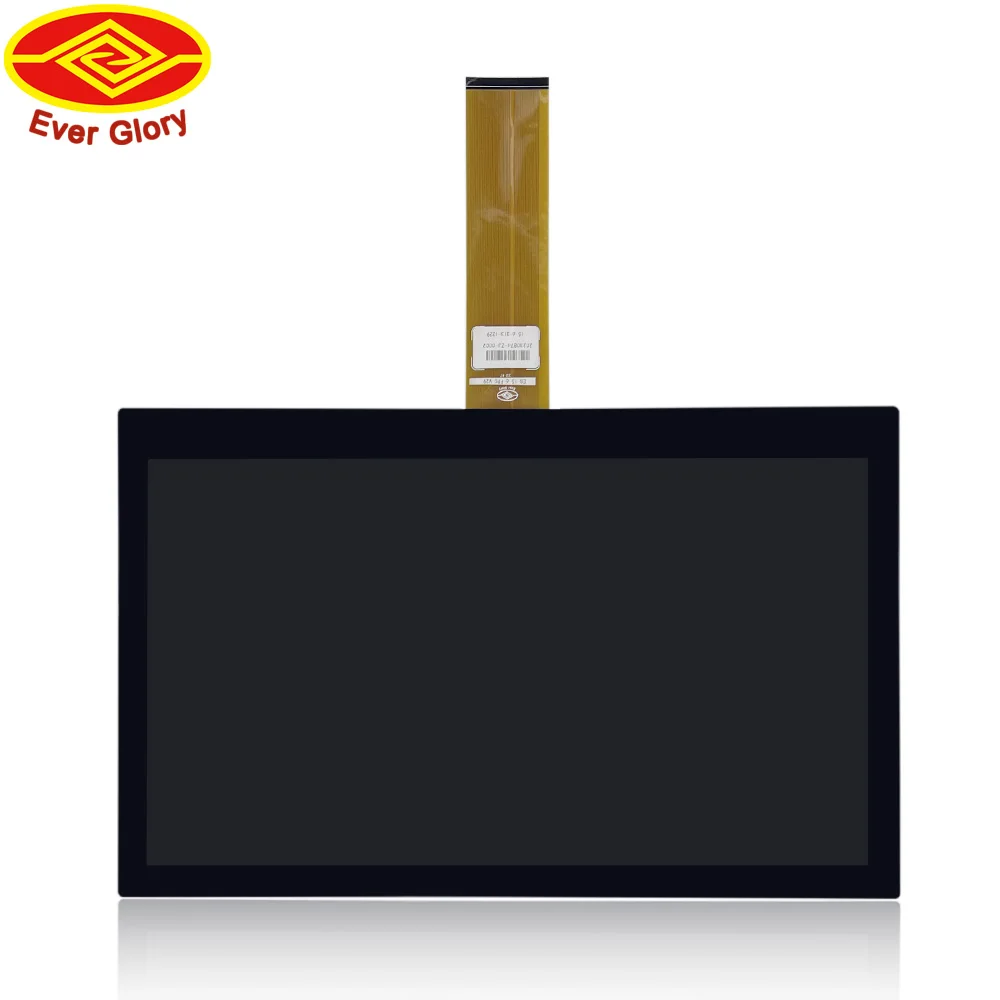

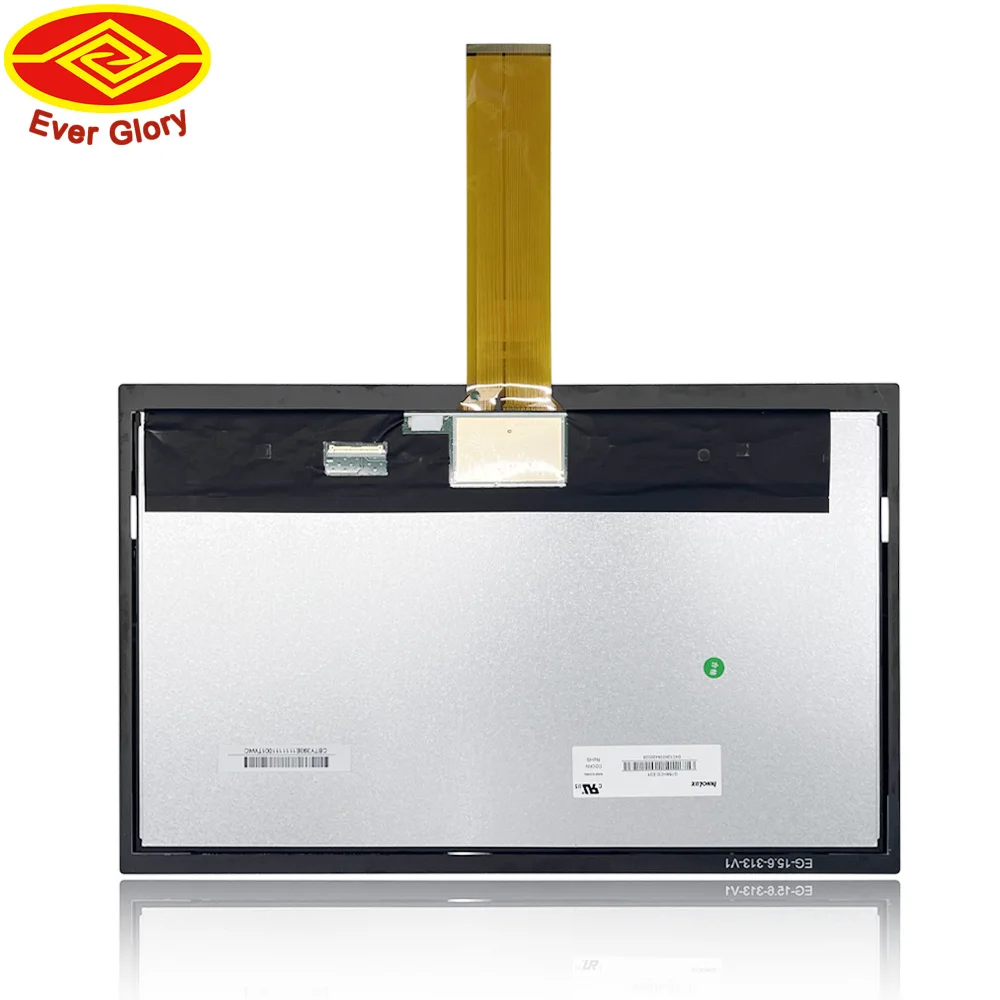

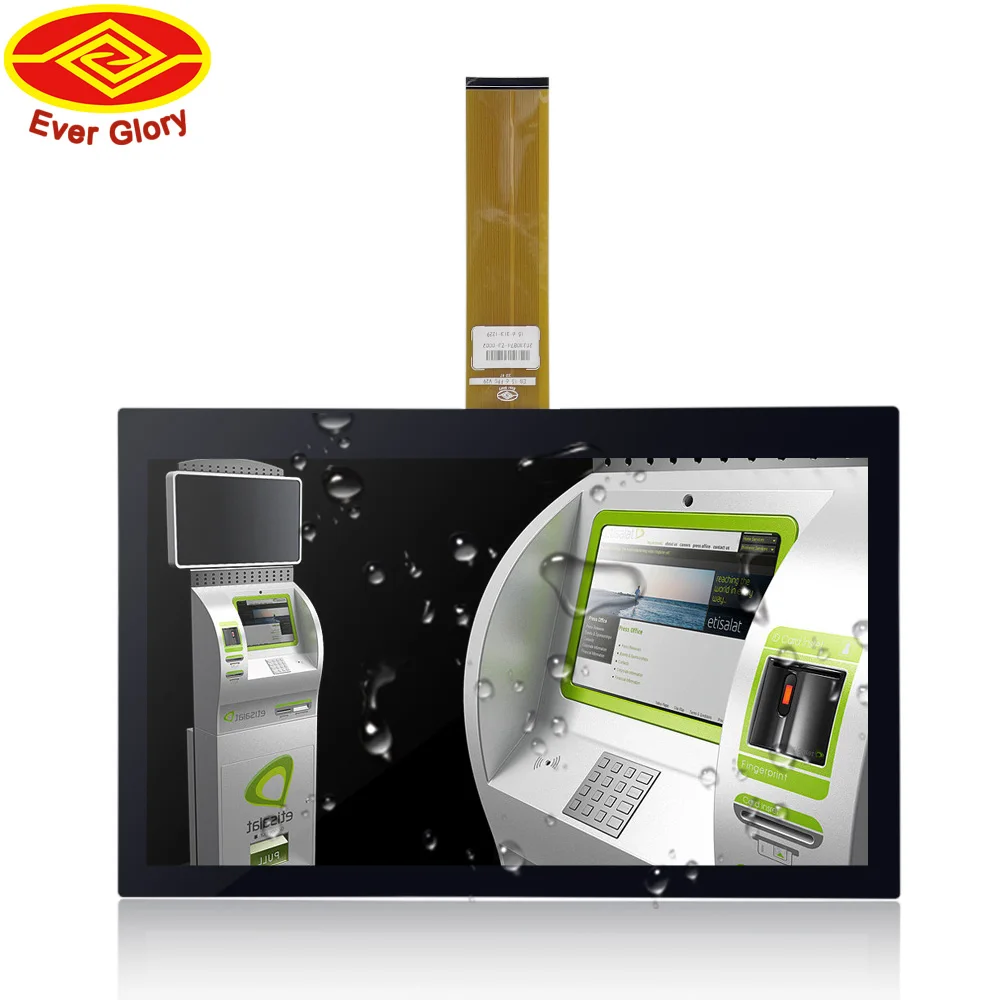

Optical Bonding High Brightness 13.3 Inch TFT LCD 10 Touch Points Projected Capacitive Pcap Touch Screen Touch Module
- Category: >>>
- Supplier: Shenzhen Ever Glory Photoelectric Co. Ltd.
Share on (1601033871869):
Product Overview
Description
Product Number | EG-13.3-A-1609V1-KTCTP-A | ||||||
Touch Panel P/N | EG-13.3-A-1609V1 | ||||||
Display P/N | G133HAN01.1 | ||||||
Screen Diagonal | 13.3/16:9 | ||||||
Cover Outline Dimension | 324.1*207.8mm | ||||||
Touch Panel View Area | 292.76*164.24mm | ||||||
Touch Panel Active Area | 293.76*165.24mm | ||||||
Touch Panel Thickness | 2.75mm | ||||||
Display Outline Dimension | 309.7*184.1mm | ||||||
Display Active Area | 293.472 (H) x 165.078 (V)mm | ||||||
Display Thickness | 9.6mm | ||||||
Total Thickness | 13.35mm | ||||||
Cover surface hardness | ≥7H | ||||||
Ink adhesion | ≥4B | ||||||
Impact resistance | ≥IK07 | ||||||
Lamination to display | Airbonding(gap1mm) | ||||||
Support Touch Points | 10 points Typ. | ||||||
Controller Interface | USB Typ. | ||||||
Controller Supply Voltage | USB 5V Typ. | ||||||
Transmittance | ＞85% | ||||||

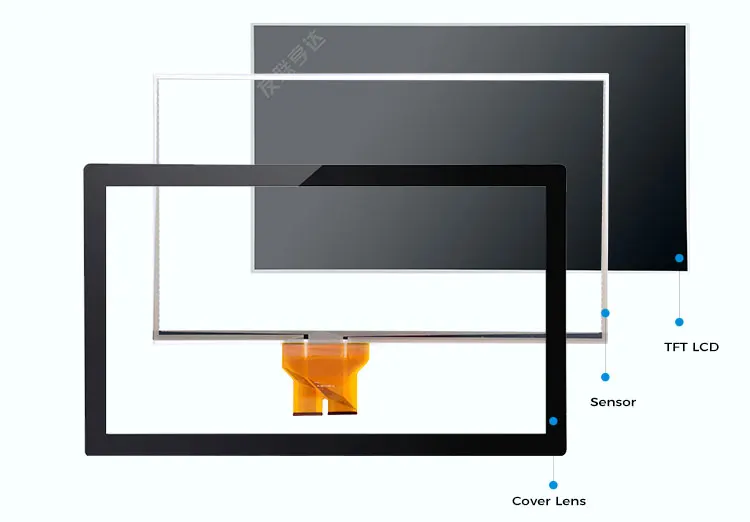

Lens's features
Shape: Standard/Customization
Color: Silkprinting, Logo
Glass material: Glass, PMMA
Treatment: AR/AF/AG/Anti-UV
Thickness:1.1-19mm
Color: Silkprinting, Logo
Glass material: Glass, PMMA
Treatment: AR/AF/AG/Anti-UV
Thickness:1.1-19mm
Sensor features
Material:Glass, film
FPC: Shape design optional
IC: EETI/ILITEK
Interface: I2C/USB/RS232
FPC: Shape design optional
IC: EETI/ILITEK
Interface: I2C/USB/RS232
Bonding option
Optical bonding
Air bonding
LCD: LCD, LED, OLED,TFT, IPS
Air bonding
LCD: LCD, LED, OLED,TFT, IPS
* 3 years warranty - Why offering 3 years warranty while the most of competitor only offer1 year ? it’s backup by our Stable
product design, Strict Quality Control , and strong technical Support capability .
* More than 12 years experience - Even though 12 years is not long history , But as the forerunner and preacher in China Market,
all our history and experience is about PCAP .
* 5 times QC inspection - from raw material to finished product ,100% inspection on each piece 1. 100% Incoming material
inspeciton
2. 100% Function test after Sensor+FPC lamination ,
3. 100% Physical inspection while bonding cover glass + Sensor
4. 100% Function and physical inspection after lamination process ( Before UV curing )
5. 100% Function test while loading the firmware controller
* Low MOQ - We are offering 50-200pcs MOQ for customized touch panels which competitors.Requires 500-1000pcs/model , And we have
strong capability to deal with complex design .
* Flexible Customization - For professional applications, it usually requires long testing period and repeated pilot runs to test
the reliability of products on site, we are able to coordinate with customers flexibly with small quantity .
* 7-15 working days delivery time - For standard models, We can ship within 3 working days upon order confirmation, For bulk order
, we usually can ship within 15 working days .
* Technical Support - Our sales team are very energetic and always ready to assist you for any demand , Our engineers are able to
handle 98% of firmware tuning and troubleshooting by ourself.
product design, Strict Quality Control , and strong technical Support capability .
* More than 12 years experience - Even though 12 years is not long history , But as the forerunner and preacher in China Market,
all our history and experience is about PCAP .
* 5 times QC inspection - from raw material to finished product ,100% inspection on each piece 1. 100% Incoming material
inspeciton
2. 100% Function test after Sensor+FPC lamination ,
3. 100% Physical inspection while bonding cover glass + Sensor
4. 100% Function and physical inspection after lamination process ( Before UV curing )
5. 100% Function test while loading the firmware controller
* Low MOQ - We are offering 50-200pcs MOQ for customized touch panels which competitors.Requires 500-1000pcs/model , And we have
strong capability to deal with complex design .
* Flexible Customization - For professional applications, it usually requires long testing period and repeated pilot runs to test
the reliability of products on site, we are able to coordinate with customers flexibly with small quantity .
* 7-15 working days delivery time - For standard models, We can ship within 3 working days upon order confirmation, For bulk order
, we usually can ship within 15 working days .
* Technical Support - Our sales team are very energetic and always ready to assist you for any demand , Our engineers are able to
handle 98% of firmware tuning and troubleshooting by ourself.
1.Our touch panel is safely sealed &packed with anti-static bag and foam wrapping
2.Flexible packing options with carton or wooden box
3.Shipping methods:DHL, UPS, Fedex, TNT,Air freight,Sea freight etc.
2.Flexible packing options with carton or wooden box
3.Shipping methods:DHL, UPS, Fedex, TNT,Air freight,Sea freight etc.
Q: How can we guarantee quality?
A: All products must pass 5 times QC inspection with 100% apearance & function test on each piece
A: All products must pass 5 times QC inspection with 100% apearance & function test on each piece
Q: Which operating systems does it support?
A: Our products support Windows, Android, Mac, Linux, and Chrome.
A: Our products support Windows, Android, Mac, Linux, and Chrome.
Q:What are the advantages of our products?
A:High precision, response quickly, good quality control, excellent after-service.
A:High precision, response quickly, good quality control, excellent after-service.
Q: What’s your warranty?
A: Touch panel : 3 years
Touch display module/touch monitor : 12 months
A: Touch panel : 3 years
Touch display module/touch monitor : 12 months
Q: Do you support sample testing?
A: Yes, we can support sample testing
A: Yes, we can support sample testing
