WZ series refractory gunning machine

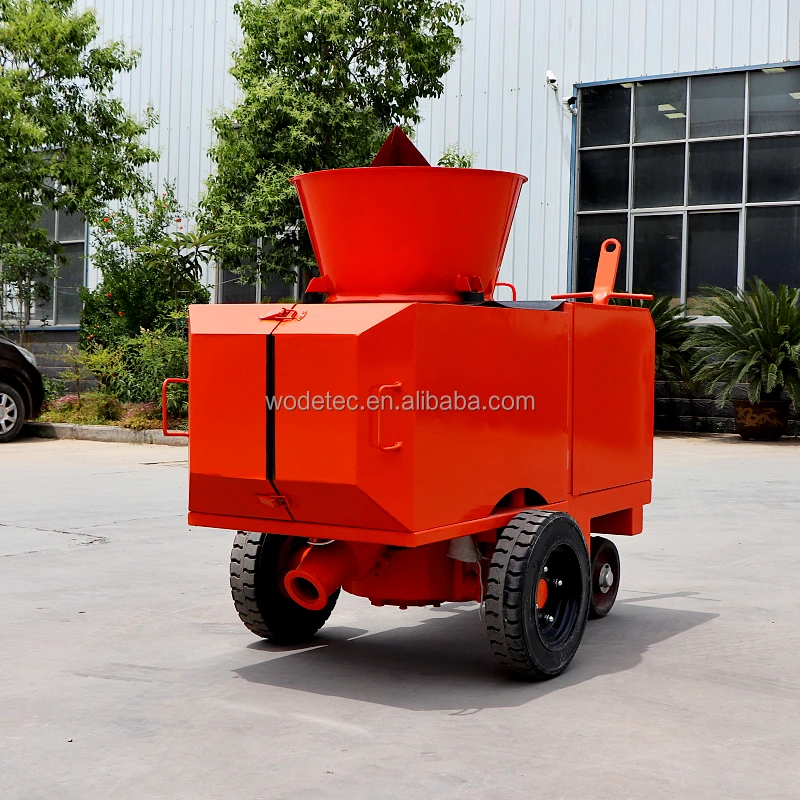

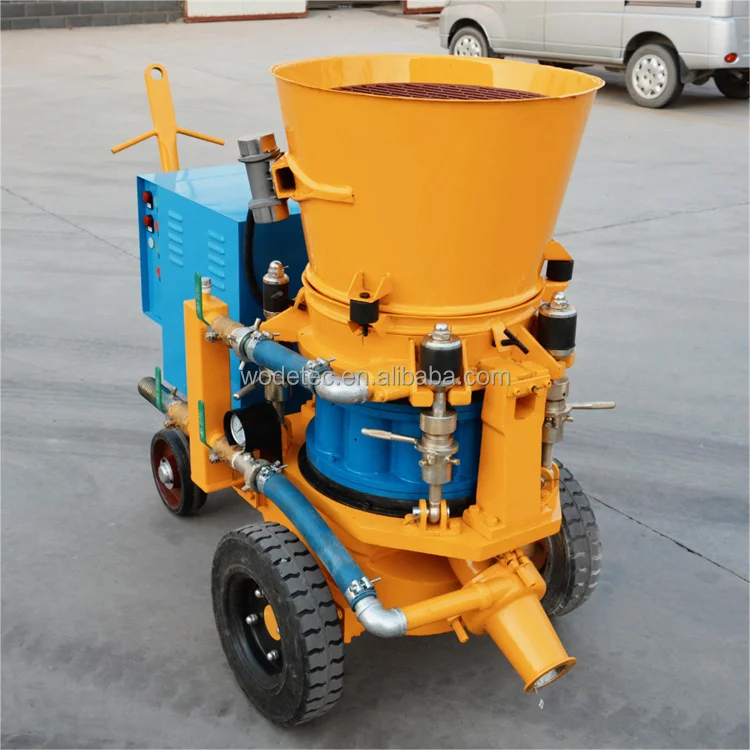

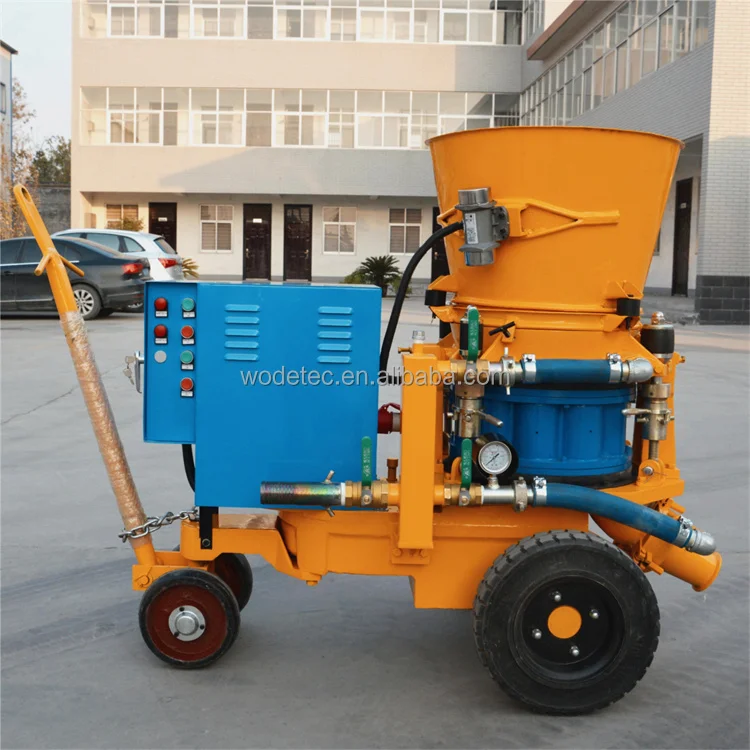

Electric refractory gunning machine is specially designed for refractory material spraying, output is from 1m3/h to 9m3/h, driven by electric motor, with ABB frequency converter, flow could be adjustable according to needs. And it also equipped with booster water pump and pre-dampening refractory nozzle to ensure you could use the machine when get it.
Refractory gunning machine Model | WZ-1.5ER | WZ-3ER | WZ-5ER | WZ-9ER | |||
Rated Output | 0.7-3m3/h (1.4-6ton/h) | 1-3m3/h (2-6ton/h) | 1-5m3/h (2-10ton/h) | 3-9m3/h (6-18ton/h) | |||
Max. Horizontal Conveying Distance | 200m | 100m | 100m | 100m | |||
Max. Aggregate Size | Φ10 mm | Φ10 mm | Φ15mm | Φ20 mm | |||
Conveying Hose Inner Diameter | 32/38mm | 32/38mm | 51mm | 64mm | |||
Operating air Pressure | 0.2-0.4MPa(29-58PSI) | 0.2-0.4MPa(29-58PSI) | 0.2-0.4MPa | ||||
Air Consumption | 5~6m3/min | 5~6m3/min | 8~9m3/min | 10~12m3/min | |||
Motor Power | 4KW | 4KW | 5.5KW | 7.5KW | |||
Voltage | 3 phase, 380V, 50Hz | ||||||
Material Charging Height | 1.16m | 1.1m | 1.1m | 1.2m | |||
Rotor Speed | 7r/min | 0-13.2r/min | 0-13.2r/min | 0-11r/min | |||
Overall Dimension(L×W×H) | 1.6×0.84×1.3m | 1.13×0.54×1.1m | 1.32×0.75×1.2m | 1.65×0.9×1.3m | |||
Weight | 660kg | 430kg | 720kg | 900kg | |||

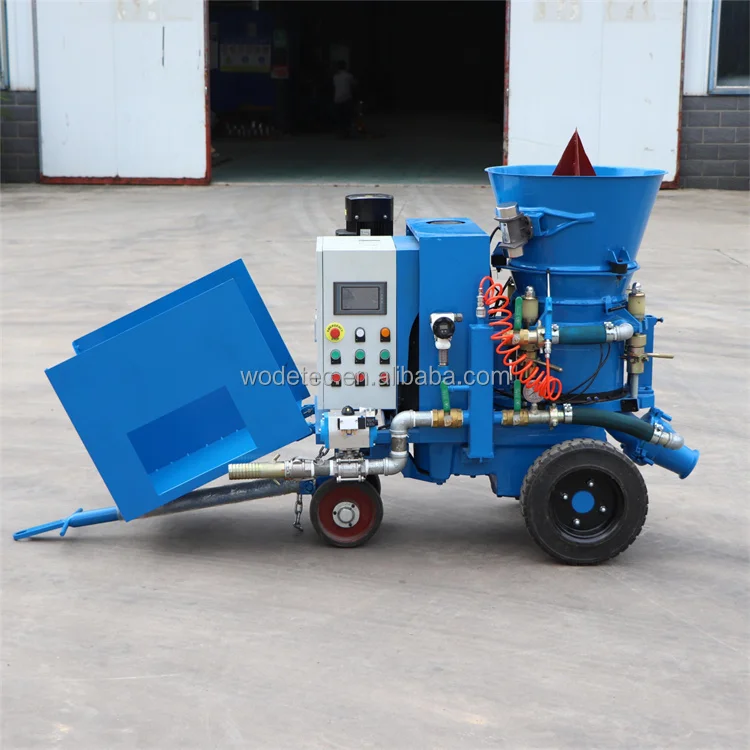

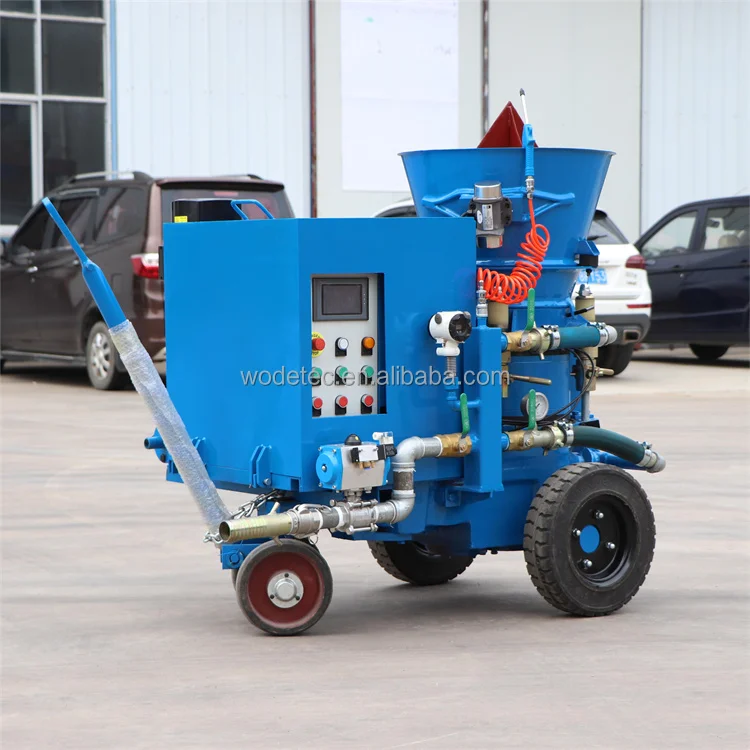

Compared with our market popular WZ-3ER refractory gunning machine, WZ-3ER/S is a new upgrade version.
1. Gets lower dust and high spraying flow.
2. Automatically clean delivery line blockage; PLC+VFD+Air Pressure Sensor.
3. Sector hole rotor reduces the friction area, reduces the rotor speed, and improves the work life of the rubber sealing plate.
4. The combination of gunning machine and high-pressure water pump, it is easy to move.
5. Add an automatic lubricator to the rubber seal plate to make the work life of worn parts longer.
1. Gets lower dust and high spraying flow.
2. Automatically clean delivery line blockage; PLC+VFD+Air Pressure Sensor.
3. Sector hole rotor reduces the friction area, reduces the rotor speed, and improves the work life of the rubber sealing plate.
4. The combination of gunning machine and high-pressure water pump, it is easy to move.
5. Add an automatic lubricator to the rubber seal plate to make the work life of worn parts longer.
WZ-3ER/S Refractory gunning machine (WZ-3ER upgrade version) | ||||
Rotor volume | 6.3L | |||
Rotor Speed | 4-8r/min | |||
Max. Output | 1.5-3m3/h (3-6ton/h) | |||
Max. Horizontal Conveying Distance | 200m | |||
Max. Aggregate Size | Φ10 mm | |||
Conveying Hose Inner Diameter | 38/32mm | |||
Operating air Pressure | 0.2-0.4MPa (29-58PSI) | |||
Air Consumption | 6~7m3/min (215-250CFM) | |||
Material Charging Height | 1.1m | |||
Overall Dimension(L×W×H) | 1.6×1.0×1.3m | |||
Weight | 665kg | |||
Rotor Motor | Power | 4KW | ||
Voltage | 3 phase, 380V, 50Hz | |||
Water pump | Output | 26L/min | ||
Pumping head | 70m | |||
Motor | 1.5kw | |||
Automatic lubrication | Volume | 2L | ||
Power | 24V, 50w | |||
Product Accessories
Pre-dampening Nozzle

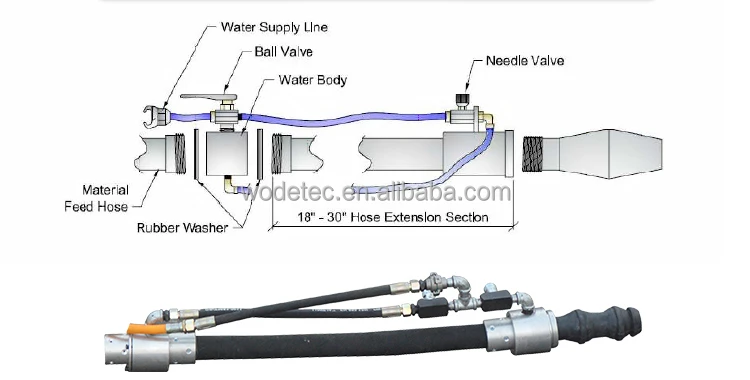

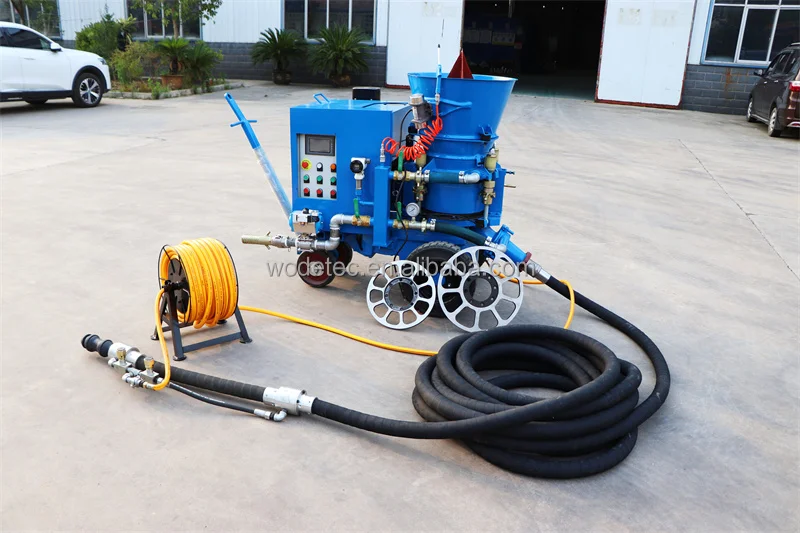

High-pressure water pump is used for providing high-pressure water for a new type of pre-dampening nozzle assy. There is one water ring in the nozzle assy, high-pressure water go through water ring small hole and atomize. If so, water could be mixed even with materials, achieving the best spraying effect.
ABB frequency converter is used for adjusting motor speed, and further controlling output of refractory gunite machine. When the machine begins to work, small output could effectively avoid blocks because of larger output.
ABB frequency converter is used for adjusting motor speed, and further controlling output of refractory gunite machine. When the machine begins to work, small output could effectively avoid blocks because of larger output.
Pre-dampening nozzle reduces the amount of water added and improves refractory compactness and strength. It also achieves low rebound and low dust.
Related Product
Product Application

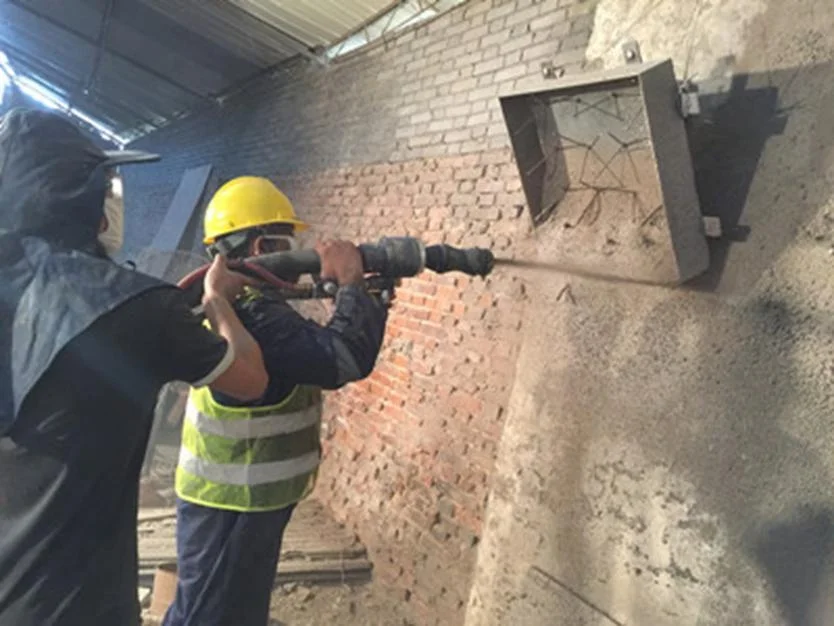

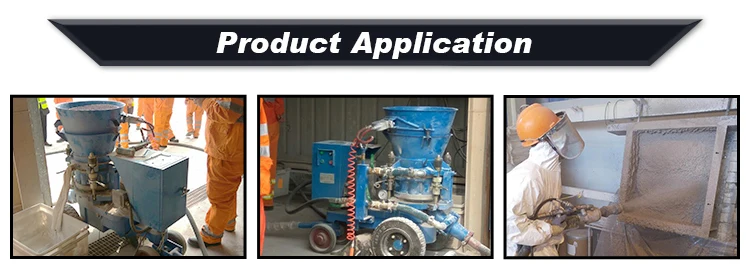

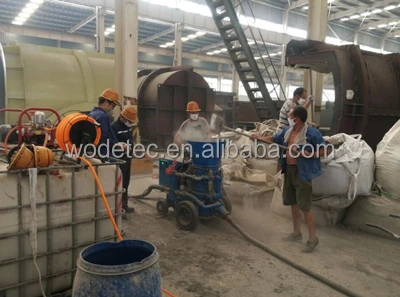

Our WZ series refractory gunning machine is specially designed for spraying refractory materials. It is mainly used for repairing lining kilns, boilers, furnaces, and carbon injection furnace lining, converter lining, thermal spraying of the blast furnace lining. And it is also used for concrete building repair, concrete dome construction, etc.
Packaging & Shipping
Company Information
Zhengzhou Wode Heavy Industry Co., Ltd. is a manufacturer in the R&D and sale of refractory gunning machine. Nowadays, we have electric motor refractory gunning machine and full pneumatic refractory gunning machine. And the rated output from 1m3/h to 9m3/h.
We can customize the rated output and drive type according to your requirements, please contact us.
