YOUNGSUN Automatic Industrial 6 Axis Collaborative Robot Cobot 6 20Kg Payload Robotic Arm System For Palletizing
YOUNGSUN Automatic Industrial 6 Axis Collaborative Robot Cobot 6-20Kg Payload Robotic Arm System For Palletizing

YOUNGSUN Automatic Industrial 6 Axis Collaborative Robot Cobot 6 20Kg Payload Robotic Arm System For Palletizing

Share on (1601033898247):


Price:$18,000.00

Quantity:


Product Overview

Description



Recommend Products




Product Description

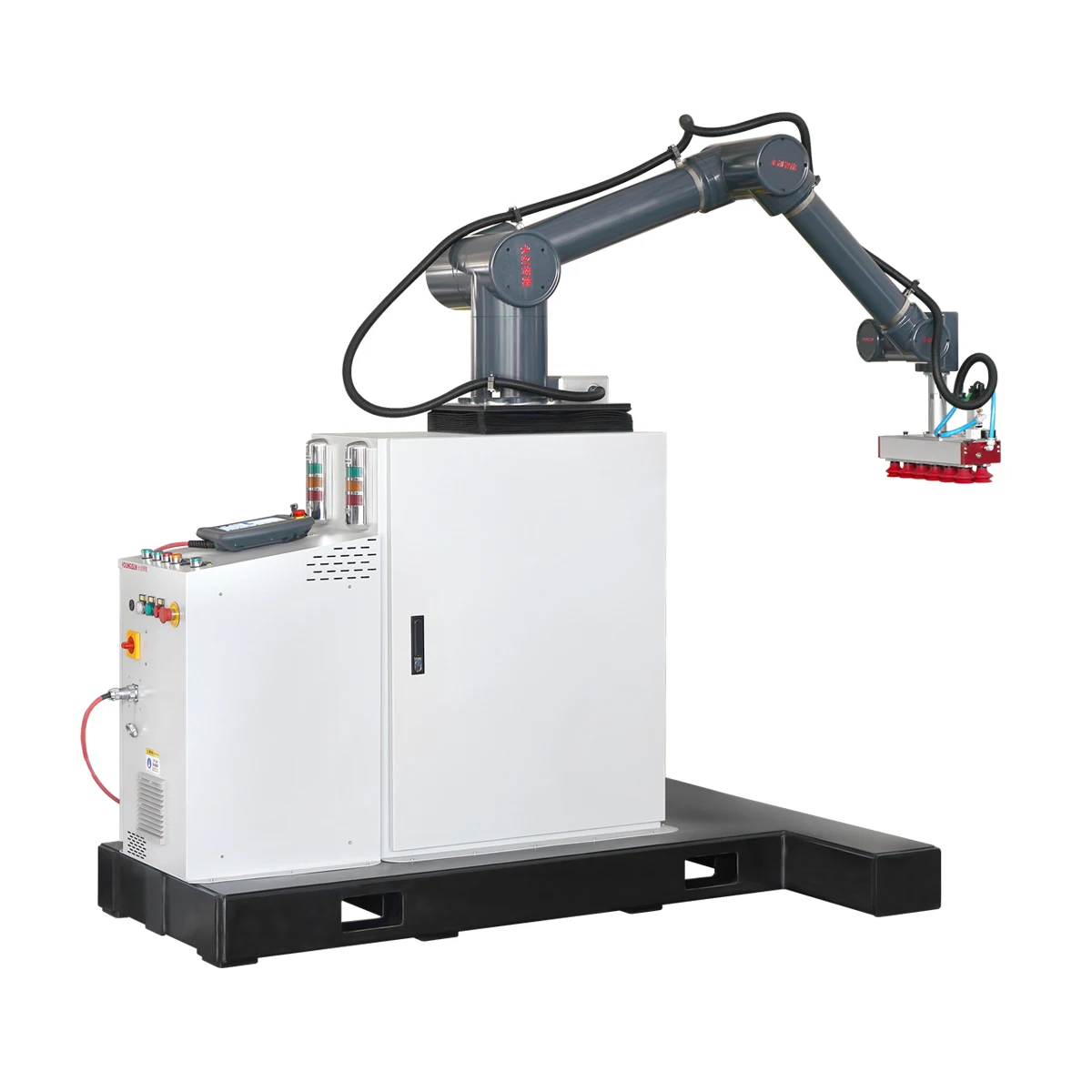

Automatic Industrial 6 Axis Collaborative Robot Cobot 6-20Kg Payload Robotic Arm For Palletizing




Specification


Model
YSR-6-20-F/1600
Power supply
DC 48V (220V), 2.0kW
Air supply
0.5-0.8Mpa
Max. capacity
20kg(Weight including end suction head）
Stack box size
L（260-500）*W（200-450）*H（150-400）mm
（Box size and stack type: customized）
Maximum Pallet size
1100mm*1100mm
Maximum stack height
1600-1900mm(including pallet）
Maximum speed
5-6 boxes/min
Maximum Working speed
1.2m/s
Maximum range of motion
1600mm
Maximum Working speed
1.2m/s
Maximum range of motion
1600mm


Joint range of motion
J1
J2
J3
J4
J5
J6
±180°
±180°
±175°
±180°
±180°
±180°
Maximum speed
A1
A2
A3
A4
A5
A6
100°/s
100°/s
120°/s
180°/s
180°/s
180°/s


Communication mode
EtherCAT
Screen
Supports multiple security inputs and outputs, including emergency stop, security protection, manager mode, and manufacturer
settings mode
Indicator light status
When powered on normally, the indicator light is always green and on; When powered off, the indicator light goes off
Safety function
Emergency stop function and reserved external safety interface (can be controlled through I/O interface)
*Optional: safety grating, safety fence, safety LiDAR
IP
Robot arm IP54, gripper and other accessories are IP32
temperature range
0-55℃
Material
aluminum alloy
Weight
60kg
Configuration
Plc: Keba
Control panel：keba
Servo driver：hcfa
Sucker：Youngsun
switch power supply：Siemens
Safety relay：Pilz
Circuit breaker：schneider
Button：Siemens APT


Packing & Delivery


Robot uses wooden pallet packaging


Company Profile




Hangzhou Intelligent Equipment Co., Ltd.
Youngsun(https://www.youngsunpack.com/English/), be built in 1983, the famous trademark of China’s packaging industry, is a larger manufacturer of packaging equipment in China and a national high-tech enterprise integrating R&D, production, sales and services, with main businesses including various liquid filling, powder and granule packaging, universal packaging equipment, and external packaging materials, etc.
It has been listed on the Shanghai Stock Exchange since May 29, 2015, with the Stock Code 603901.
The output value of Youngsun group and the affiliated companies reach USD 600 million, and the output value of Youngsun headquarters reaches USD 300 million.
We have already passed Moody international ISO9000 in 2002, approved CE in 2004. What's more, we established long term business with world-famous brands like Ferroro, Danone, Budweiser, Pepesi, P&G, Asiafoods etc.
As a customized-products oriented company and enjoy high reputation in worldwide packing industry, we are still seeking for ever greater perfection.
We offer: Case Erectors; Labeling Machine; Shrink Wrapper; Carton Sealer Strapping Machine; Strapping Tool; Palletizer; Wrapping Machine; Carton Packer; Packing Line; PP/PET Straps; Stretch Film/Shrink Film; Conveyor; Cartoning Machine; Robot……and customized packing machines.
We are in a good position not only to supply you high quality machinery, but also the excellent after sales service. Well-trained engineers will offer you any technical support. I think we can find opportunity to cooperate as we have the same goal: providing superior quality products and services that consistently exceed our customers' expectations.






FAQ


1. who are we?
We are based in Zhejiang, China, start from 2002,sell to Western Europe(11.11%),Eastern Asia(11.11%),Mid East(11.11%),Oceania(11.11%),Africa(11.11%),Southeast Asia(11.11%),Eastern Europe(11.11%),South America(11.11%),North America(11.11%). There are total about 1000+ people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Strapping Machine,Carton Sealer,Pallet Stretch Wrapper,PP Strap,Filling Machine

4. why should you buy from us not from other suppliers?
null

5. what services can we provide?
Accepted Delivery Terms: null；
Accepted Payment Currency:null;
Accepted Payment Type: null;
Language Spoken:null
